tailBeaconXTM STC
Installation Manual

UAV-1003599-001 2
Rev A
© 2022 uAvionix Corporation. All rights reserved.
Except as expressly provided herein, no part of this guide may be
reproduced, transmitted, disseminated, downloaded or stored in any
storage medium, for any purpose without the express written permission of
uAvionix. uAvionix grants permissions to download a single copy of this
guide onto an electronic storage medium to be viewed for personal use,
provided that the complete text of this copyright notice is retained.
Unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.
uAvionix®and Ping®are registered trademarks of uAvionix Corporation and
may not be used without express permission of uAvionix.
tailBeaconX, skyBeaconX, ping200X, tailBeacon, skyBeacon, AV-30-C,
AV-22-C and skyBeacon Installer are trademarks of uAvionix Corporation
and may not be used without express permission of uAvionix.
Patent uavionix.com/patents

UAV-1003599-001 3
Rev A
1 Revision History
Revision
Date
Comments
A
2/3/2022
Initial release

UAV-1003599-001 4
Rev A
2 Warnings / Disclaimers
All device operational procedures must be learned on the ground.
uAvionix is not liable for damages arising from the use or misuse of this
product.
This equipment is classified by the United States Department of
Commerce's Bureau of Industry and Security (BIS) as Export Control
Classification Number (ECCN) 7A994.
These items are controlled by the U.S. Government and authorized for
export only to the country of ultimate destination for use by the ultimate
consignee or end-user(s) herein identified. They may not be resold,
transferred, or otherwise disposed of, to any other country or to any person
other than the authorized ultimate consignee or end-user(s), either in their
original form or after being incorporated into other items, without first
obtaining approval from the U.S. government or as otherwise authorized by
U.S. law and regulations.
DO NOT FORCE ROTATION; tailBeaconX should rotate with little
resistance.
DO NOT connect the tailBeaconX to any high voltage sources.
Safe operating voltage range is 14-28 volts DC.
Ensure that the tailBeaconX is oriented consistent with the
installation direction indication on the labels. This ensures the
GPS antenna is correctly oriented skyward.
Refer to the Aircraft Manufacturer's Service Manual to determine if
control surface balancing is required and for balancing
instructions.
Never hit, tap on, or flex the fin portions the tailBeaconX
assembly. Doing so will cause undue stress and could void your
warranty.
tailBeaconX must be enabled, typically in ALT mode, during all
phases of flight including surface movement operations.
!
!
!
!
!
!

UAV-1003599-001 5
Rev A
3 Limited Warranty
uAvionix products are warranted to be free from defects in material and
workmanship for two years from the installation of tailBeaconX on the
aircraft. For the duration of the warranty period, uAvionix, at its sole option,
will repair or replace any product which fails in normal use. Such repairs or
replacement will be made at no charge to the customer for parts or labor,
provided that the customer shall be responsible for any transportation cost.
Restrictions: This warranty does not apply to cosmetic damage,
consumable parts, damage caused by accident, abuse, misuse, fire or
flood, theft, damage caused by unauthorized servicing, or product that has
been modified or altered.
Disclaimer of Warranty: IN NO EVENT, SHALL UAVIONIX BE LIABLE
FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE OR
INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE
PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS MAY NOT APPLY TO YOU.
Warranty Service: Warranty repair service shall be provided directly by
uAvionix. Proof of purchase for the product from uAvionix or authorized
reseller is required to obtain and better expedite warranty service.
Please email or call uAvionix support with a description of the problem you
are experiencing. Also, please provide the model, serial number, shipping
address and a daytime contact number.
You will be promptly contacted with further troubleshooting steps or return
instructions. It is recommended to use a shipping method with tracking and
insurance.

UAV-1003599-001 6
Rev A
4 Table of Contents
1Revision History......................................................................................................3
2Warnings / Disclaimers...........................................................................................4
3Limited Warranty.....................................................................................................5
4Table of Contents....................................................................................................6
5System Information.................................................................................................8
5.1 Certification.........................................................................................................8
5.2 TSO Authorizations.............................................................................................8
5.2.1 tailBeaconX..............................................................................................8
5.2.2 tailBeaconX Universal Installation Kit.......................................................9
5.3 System Limitations..............................................................................................9
6System Specifications...........................................................................................10
6.1 Wi-Fi.................................................................................................................10
6.2 Call Sign ...........................................................................................................10
6.3 Suppression Input.............................................................................................10
6.4 Physical Specifications .....................................................................................10
6.5 Wired Control Interface Specifications..............................................................12
6.6 Wireless Configuration Interface Specifications................................................12
6.6.1 System Interfaces...................................................................................12
7Installation.............................................................................................................13
7.1 Unpacking and Inspecting.................................................................................13
7.2 Authorized Part Numbers .................................................................................13

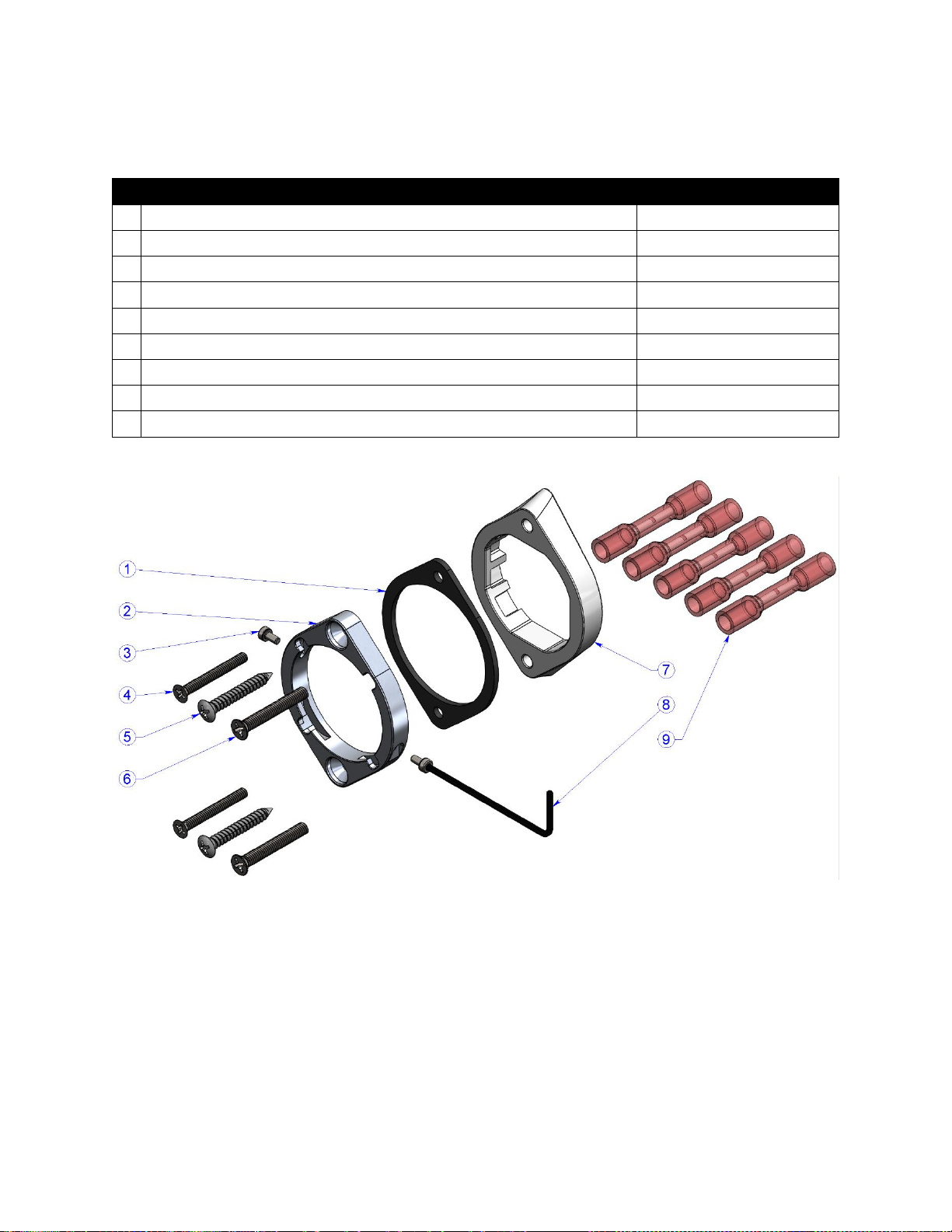

7.2.1 tailBeaconX Universal Installation Kit UAV-1003793-001 ......................14
7.3 Installation Materials and Tools ........................................................................15
7.4 Additional Required Equipment ........................................................................15
7.5 Mounting...........................................................................................................16
7.5.1 Direct Mounting......................................................................................16
7.5.2 Spacer Mounting....................................................................................18
7.6 Wiring ...............................................................................................................19
7.6.1 uAvionix AV-30-C Wiring........................................................................22
7.7 Unit Installation.................................................................................................23
7.8 Post Installation Checks ...................................................................................25

UAV-1003599-001 7
Rev A
7.8.1 Ground Tests..........................................................................................25
7.8.2 ADS-B Out Performance Test................................................................25
8System Configuration............................................................................................25
8.1 tailBeaconX Configuration ................................................................................25
8.1.1 Verify Software Version..........................................................................25
8.1.2 Configure Device....................................................................................26
8.2 AV-30-C Configuration......................................................................................26
9Support.................................................................................................................26
Appendix A AV-30-C Control Head .........................................................................27
Appendix B Suppression Interface ..........................................................................28

UAV-1003599-001 8
Rev A
5 System Information
5.1 Certification
This installation manual provides mechanical and electrical information
necessary to install tailBeaconX. The content of this manual assumes use
by competent and qualified personnel using standard maintenance
procedures in accordance with Title 14 of the Code of Federal Regulation
and other related accepted procedures.
Those installing this article on an aircraft listed on the Approved Models List
shall verify the compatibility of existing STCs with the tailBeaconX STC
prior to returning the aircraft to service.
For installations on non-US registered aircraft, verify validity of the
tailBeaconX STC for your Make and Model with relevant authorities or
consult the uAvionix tailBeaconX webpage country specific information.
This is an incomplete system intended to provide the functions identified in,
and when installed according to this installation manual.
5.2 TSO Authorizations
5.2.1 tailBeaconX
tailBeaconX complies with the following TSOs when properly installed and
interfaced with equipment as detailed in this guide.
Function
TSO/RTCA/SAE
Class/Type
Air Traffic Control Radar Beacon
System/Mode Select (ATCRBS /
Mode S) Airborne Equipment
TSO-C112e
RTCA/DO-181E
Level 2els,
Class 1
[1]
Extended Squitter Automatic
Dependent Surveillance –
Broadcast (ADS-B) and Traffic
Information Service –Broadcast
(TIS-B) Equipment Operating on
the Radio Frequency of 1090
MHz
TSO-C166b
RTCA/DO-260B
Class B1S
Airborne Navigation Sensor
Using the Global Positioning
System (GPS) Augmented by the
TSO-C145e
INCOMP
RTCA/DO-229E
Beta 1

UAV-1003599-001 9
Rev A
Satellite Based Augmentation
System (SBAS)
Position Light (White)
TSO-C30c
SAE/AS8037
Type III
[1] Anticipating RTCA/DO-181F Level 2 Transponder requirements,
tailBeaconX does not support the UM protocol, does not support the
Comm-A protocol, and does not have the capability to process and
transmit air-initiated Comm-B messages.
5.2.2 tailBeaconX Universal Installation Kit
tailBeaconX Universal Installation Kit complies with TSO-C30c INCOMP
when properly installed as detailed in this guide.
5.3 System Limitations
Installation
This article meets the minimum performance and quality control standards
required by a technical standard order (TSO) and when installed on aircraft
approved on the AML can be approved for return to service after
installation. If you are installing this article on or in a specific type or class
of aircraft, not listed on the AML you must obtain separate approval for
installation.
SatCom
The tailBeaconX GPS has not been demonstrated as compatible with
SatCom equipment and should not be installed on SatCom equipped
aircraft.
TCAS/ACAS System
tailBeaconX does not support installation on aircraft with an active Airborne
Collision Avoidance System (ACAS) with Resolution Advisory capability,
such as TCAS II or ACAS X.
AV-30-C tailBeaconX STC
Installation of a uAvionix AV-30-C by FAA STC SA00410BO is a
prerequisite for this tailBeaconX STC. tailBeaconX is not operable without
an installed AV-30-C. See appropriate AV-30-C STC Installation Manual
(UAV-1003947-001) for AV-30-C installation instructions.

UAV-1003599-001 10
Rev A
6 System Specifications
6.1 Wi-Fi
Wi-Fi is intended only for on-ground configuration. Wi-Fi is only enabled
in standby (STBY) mode and disabled when in ALT or ON mode.
To restore Wi-Fi functionality after flight, the device must be set back to
STBY mode.
6.2 Call Sign
Your call sign may be adjusted on the ground using the skyBeacon Installer
app, or at any time by use of an appropriately featured control head. This
allows your call sign to be configured to correspond with ATC
communications and flight plans, for use during commercial, medical, or
volunteer flight operations. When changing the call sign using skyBeacon
Installer smartphone app, ensure no other installation parameters are
adjusted. For typical operations, the call sign should be set to the entire
aircraft registration text. For example, U.S. registered aircraft must include
the leading “N”.
6.3 Suppression Input
The external suppression input can be connected to the suppression output
of other L-band equipment, such as DME. Driven high, tailBeaconX will
suppress transmissions. The suppression input must be driven to an input
voltage of at least 10 VDC. The input must be connected to ground
when not in use.
Note: See Appendix B for external suppression unit connections
6.4 Physical Specifications
Characteristics
Specifications
Width
43.43mm
Height
110.38mm
Depth
110.75mm
Weight
3.24 oz (92 grams)
Operating temperature range
-45°C to +70°C
Maximum pressure altitude
35,000ft
Input voltage range
9 to 30.3 VDC
