UAZ UAZ-374195 User manual

2021
Ulyanovsk Automobile Plant LLC
Vehicles
UAZ-374195, UAZ-396295,
UAZ-220695, UAZ-390995,
UAZ-330365, UAZ-390945
and versions
Operating Manual
РЭ 05808600.106-2007
Edition Fourteenth

2
CAUTION:
The Operating Manual contains the necessary rules for the operation and maintenance of the vehicle.
Before using the vehicle, we ask you to carefully read this manual and vehicle log book.
We ask you to familiarize yourself especially carefully with the chapters "Safety requirements and warnings",
"Running in a new vehicle", "Starting and stopping the engine".
Your wrong actions can lead to injuries, failure of the vehicle and its components, termination of the
manufacturer’s warranty obligations.
For safe and trouble-free operation of the vehicle, follow all the operating and maintenance instructions in this
Manual.
You can entrust the vehicle maintenance to one of the servicestations recommended by the company that sold you the
vehicle. Service stations are provided with the necessary spare parts, a set of special appliances and tools. All vehicle
maintenance operations shall be performed by experienced professionals.
Due to the ongoing vehicle improvement, the changes not reflected in this issue may be introduced in the vehicle
design. We wish you a successful trip!
© Ulyanovsk Automobile Plant LLC, 2021

3
Chapter 1. GENERAL
UAZ-374195 (Figures 1.1, 1.2) is a freight car with an all-metal closed body of wagon type, divided into a two-seat
cabin and a cargo compartment with or without glass house. Three reclining shelves can be installed on request in the
cargo compartment (it is not allowed to use them while the vehicle is in motion). Designed for the transportation of goods.
UAZ-374195-05 ( (Figure 1.3) is a freight car with an all-metal closed body of wagon type with a glass house,
divided into a two-seat cabin and a cargo compartment with or without glass house. Designed for the transportation of
goods or passengers.
The UAZ-396295 (Fig. 1.4) and its versions is a medical service vehicle (ambulance car) made on the chassis of
UAZ-3741 off-road vehicle, with a wagon-type body divided into a two-seat cabin and a sanitary compartment. Designed
for serving the health care facilities.
The UAZ-220695 vehicle (figures 1.5, 1.6) and its versions are specialized passenger vehicles built on the chassis of
the UAZ-3741 off-road vehicle with a wagon type body divided into a double cabin and a passenger compartment.
Designed for the passenger transportation.
UAZ-390995 (figures 1.7, 1.8) and its versions - freight car with a wagon type body, divided into a five or seven-seat
cabin and cargo compartment. The five-seat cabin (Fig. 1.7) can be optionally equipped with two seats for processing
papers (it is not allowed to use them while the vehicle is in motion). Designed for the transportation of passengers and
goods. UAZ-390995 "Trophy" version (Fig. 1.9) is equipped with additional equipment: expedition rack (for cargo
transportation), disappearing stair. The "Expedition" version of UAZ-390995 (Fig. 1.10) is equipped with additional
equipment: expedition rack (for cargo transportation), folding ladder, rope winch, front metal bumper, rear metal bumper,
protection of steering rods, drawbar, splash guards.
UAZ-330365 (fig. 1.11) is a truck with an extended base, two-seat cabin truck with а flatbed cargo platform.
Designed for the transportation of goods.
UAZ-390945 (Fig. 1.12) is a vehicle for public utilities, cooperative and individual farms, with an extended base,
five-seat cabin and flatbed cargo platform. Designed for the transportation of goods and passengers.
UAZ off-road vehicles with front and rear drive axles are designed to operate on all types of roads and terrain.
The "U" version vehicles (category 1) as per GOST 15150 are intended for operation at ambient operating
temperatures from minus 40 to plus 40°С, relative air humidity up to 75% at plus 15°С, dust content up to 1.0 g/m3and
wind speeds of up to 20 m/s, including areas located at an elevation of up to 3000 mabove sea level, with a corresponding
derating of the tractive and dynamic performance and fuel economy.
The “+” sign next to the name of the part (assembly) means that this part (assembly) is installed on vehicles
depending on package.

4

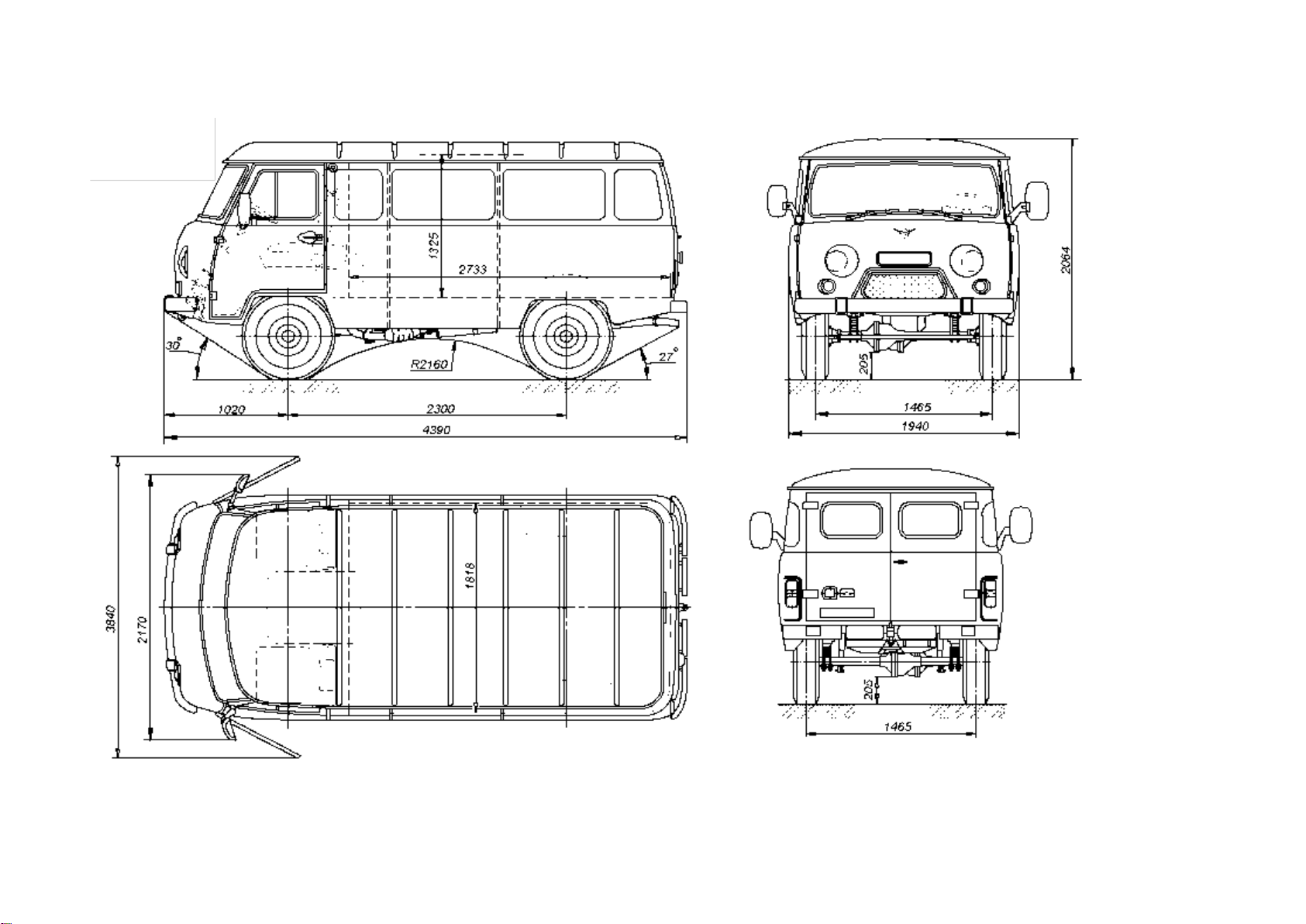

Fig. 1.1 Outline (averaged) dimensions of the UAZ-374195 with gross weight (dimensions are given for reference)

5
Fig. 1.2. Outline (averaged) dimensions of the UAZ-374195 with three reclining berths with gross weight (dimensions are given for reference)

6
Fig. 1.3. Outline (averaged) dimensions of the UAZ-374195-05 with gross weight (dimensions are given for reference)

7
Fig. 1.4 Outline (averaged) dimensions of the UAZ-396295 with gross weight (dimensions are given for reference)

8

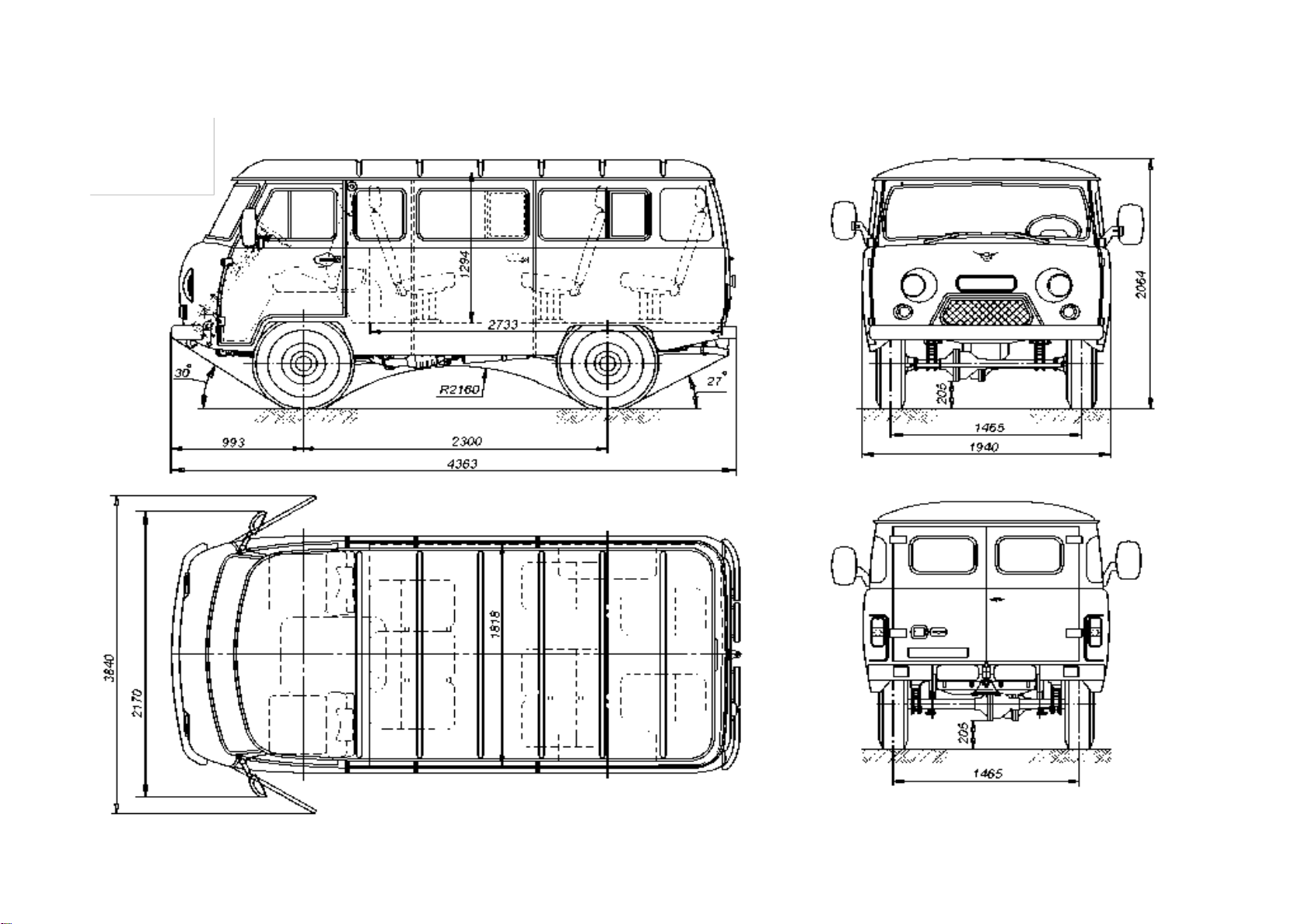

Fig. 1.5 Outline (averaged) dimensions of the UAZ-220695 with gross weight (dimensions are given for reference)

9
Fig. 1.6 Outline (averaged) dimensions of the UAZ-220695-04 with gross weight (dimensions are given for reference)

10
Fig. 1.7 Outline (averaged) dimensions of the UAZ-390995 with gross weight (dimensions are given for reference)

11
Fig. 1.8 Outline (averaged) dimensions of the UAZ-390995-04 with gross weight (dimensions are given for reference)

12
Fig. 1.9 Outline (averaged) dimensions of the UAZ-390995-04 "Trophy" with gross weight (dimensions are given for reference)

13
Fig.1.10 Outline (averaged) dimensions of the UAZ-390995-04 "Expedition" with gross weight (dimensions are given for reference)

14

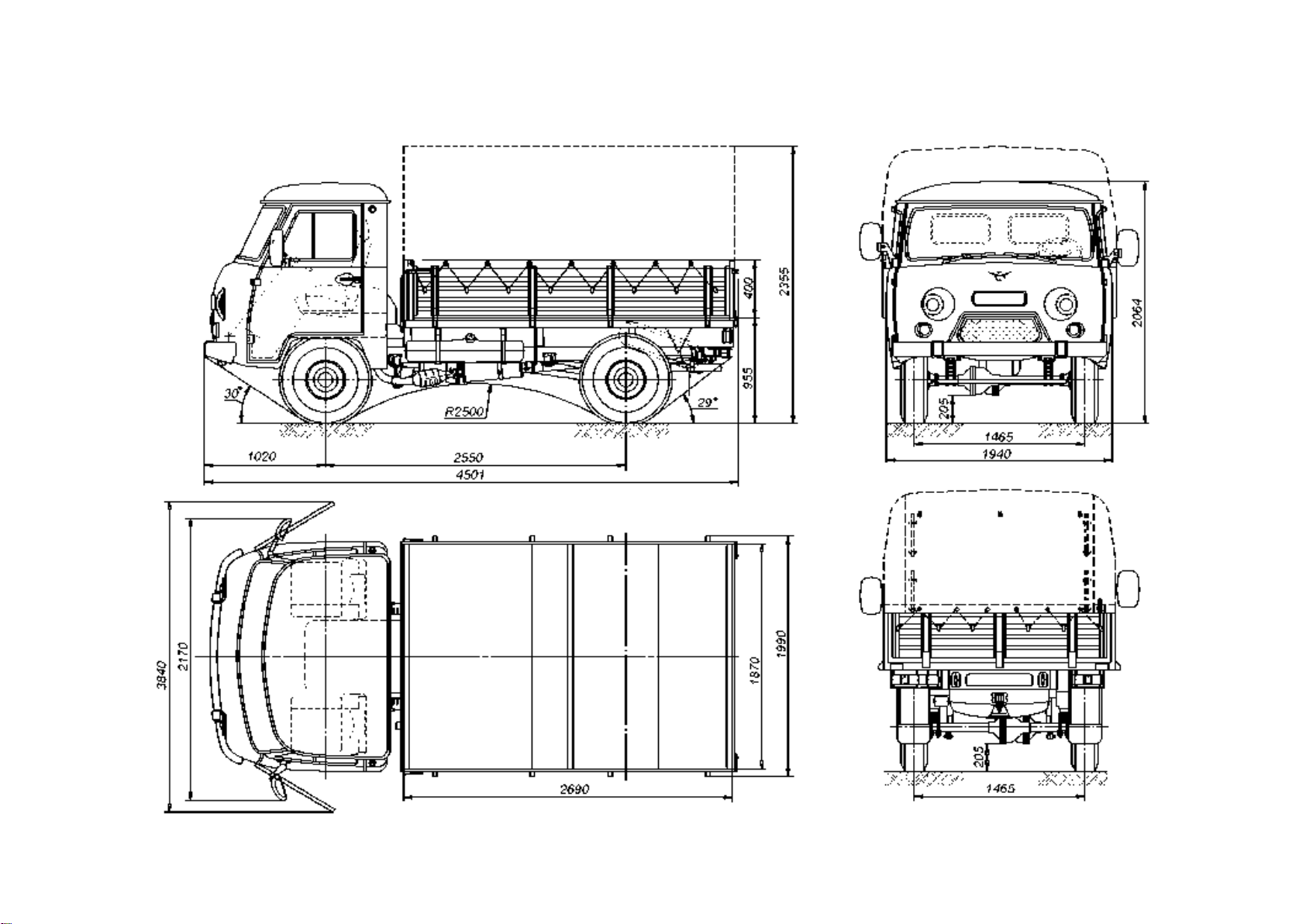

Fig.1.11 Outline (averaged) dimensions of the UAZ-330365 with gross weight (dimensions are given for reference)

15

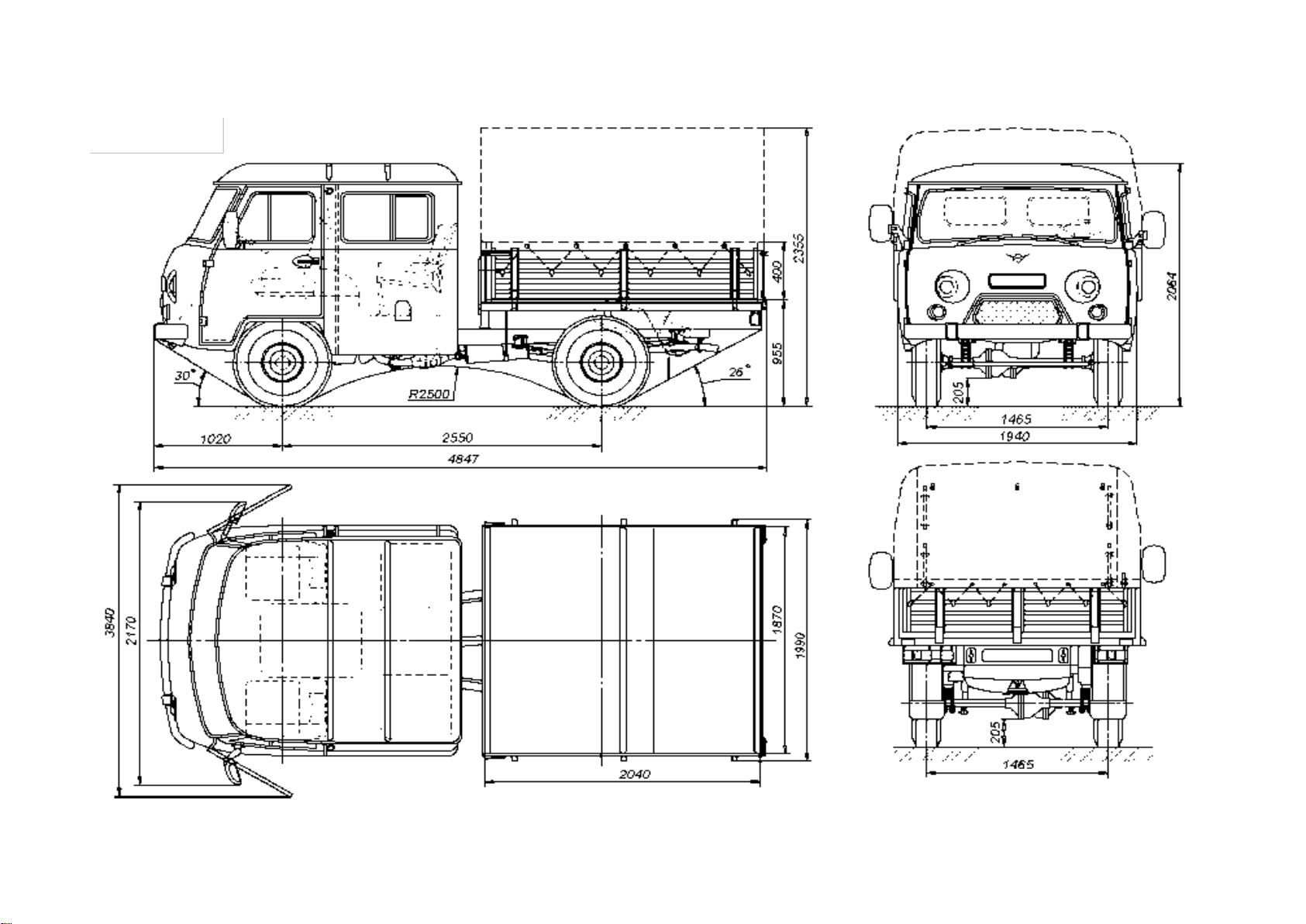

Fig.1.12 Outline (averaged) dimensions of the UAZ-390945 with gross weight (dimensions are given for reference)

16
VEHICLE MARKING
The vehicle identification number (Fig. 1.13) is indicated on the nameplate and on the bottom flat of the roof duct
on UAZ-220695, UAZ-220695-04, UAZ-396295, UAZ-374195, UAZ-374195-05, UAZ-330365, UAZ-390995,
UAZ-390995-04, UAZ-390945 and their modifications.
The identification number consists of three parts:
I - part - manufacturer’s international identification code, shall mean:
X - the geographical area where the manufacturer is located;
T - country code;
Т - manufacturer’s code.
II descriptive part - the designation of the vehicle.
III indicating part - the model year of the vehicle; assembly plant code; vehicle production number.
The vehicle nameplate 2 (Fig. 1.14) is mounted inside the cabin on the upper front panel under the right sun visor
and has the following markings:
I - full number of the vehicle type approval (VTA);
II- vehicle identification number (VIN code);
Fig.1.13 Vehicle identification number (VIN)
a, b - for UAZ-220695, UAZ-220695-04, UAZ-396295 vehicles;
b - for UAZ-374195, UAZ-374195-05, UAZ-330365, UAZ-390945; UAZ-390995; UAZ-390995-04 vehicles
Fig.1.14 The vehicle type plate
III - maximum permissible weight of vehicle;
IV- maximum permissible front axle load;
kg kg kg kg
MOTOR
UAZ LLC

17
V - maximum permissible rear axle load;
VI- engine make designation;
VII - equipment code;
VIII - version code;
IX - emission standard.
Instruction plates are located:
- on the inside of the left sun visor;
- on the cross-wall on both sides (only on UAZ 220695, UAZ-220695-04, UAZ-396295 vehicles);
- on the left inner side (only for UAZ 220695, UAZ-220695-04, UAZ-396295 vehicles);
Engine identification number is embossed on the platform located on the left side of the cylinder block, above the
bosses for fixing the front engine mount (Fig. 1.15).
I - manufacturer’s international identification code of the integral part (WPMI-code).
The WPMI identification number code includes four characters:
- the first three characters of the WMI code assigned to UAZ LLC by FSUE NAMI are used as the first three
characters;
- the number "0"must be used as fourth character.
II - code of the main features of the engine (descriptive part) includes six characters, including the designation of the
model (modification) of the engine by EC. If the model code contains less than six characters, the empty spaces are
populated with zeros.
III - conditional code of engine manufacturing year. The symbol (letter or number) indicates the year of manufacture
of the engine.
IV - serial number of the engine assigned by the manufacturer, where: the first character (digit) - code of the
production unit; the remaining six characters (digits) - the serial number of the engine.
Fig.1.15 Location of the engine identification number

18
TECHNICAL DATA
General data
Description
UAZ vehicle models
374195(-05)
396295
220695(-04)
390995(-04)
330365
390945
Vehicle dimensions1)
Shown in Fig. 1.1 - 1.12
Vehicle type
Off-road, two-axle, type 4x4
Number of seats
2 (5)
4+1
9+1 (8+1)
5 (7)
2
5
Passenger capacity
-
4
9 (8)
-
-
-
Weight of cargo transported in the cargo compartment, kg, not
more
—
—
—
475 (410)
—
—
Weight of cargo transported on the platform, not more than
—
—
—
—
1150
700
Technically permissible maximum vehicle weight, kg
2730 (2845)
2880
2880
2830
3070
3070
Distribution Technically max permissible weight distributed by
axles, kg:
on front axle
1300 (1350)
1440
1440
1360
1435
1435
on rear axle
1430 (1495)
1440
1440
1470
1635
1635
Unladen weight of car2), kg
1805 (1920)
2000
2015 (2005)
1890 (1920)
1845
1995
Distribution of unladen weight by axles, kg:
on front axle
1085 (1160)
1180
1195 (1185)
1135 (1155)
1180
1220
on rear axle
720 (760)
820
820 (820)
755 (765)
665
775
Max. gross weight of towed trailer:
without brakes
750 3)
-
-
-(750 3))
-
750 3)
Minimum turning radius on the centerline of the front outer
(relative to the turning center) wheel trace, m, max.
6.3
7.0
Minimum outer turning radius as to the front bumper point, the
farthest from the turning center, m, max.
6.8
7.5
Max. grade climbed by vehicle with the vehicle, degrees
30
The greatest depth of a ford, m
0.5
Maximum speed, km/h
127
115
Fuel consumption, L/100 km, when driving at 60 km/h
9,04)
9,64)
Fuel consumption, L/100 km, when driving at 80 km/h
11,24)
12,44)
1) Dimensions are averaged, given for reference and may vary depending on the operating conditions of the installed tires, their condition and air pressure, vehicle load, suspension condition, etc.
2) With fuel, tools, extra equipment, spare tire and driver
3) A trailer may only be towed with a ball-type tow hitch that has been certified as part of a haul train in the prescribed manner.
4) Fuel consumption is used to determine the technical condition of the vehicle and shall not be regarded as the operational standard. Reliability of measurements of fuel consumption is ensured only during special tests in strict
accordance with the requirements of GOST R 54810-2011 when the vehicle reaches a total mileage of 9000-10000 km.

19
Engine
Description
UAZ vehicle models
Make
ZMZ-40911
Type
4-stroke, gasoline, fuel-injected
No. of cylinders
Four
Cylinder arrangement
In-line, vertical
Firing order
1-3-4-2
Diameter of the cylinder, mm
95.5
Piston stroke, mm
94
Displacement, L
2,693
Compression ratio
9
Minimum crankshaft speed at idle, min-1
800-900
Maximum power, kW (hp): netto according to UN
Regulation 85
82.5 (112.2) at 4250 min1
Maximum torque, N-m (kgf-m) according to UN
Regulation 85
198.0 (20.2) at 2500 min1
Lubrication system
Combined: pressurized and sprinkler-type
Crankcase ventilation
Closed-type
Fuel supply system
With forced fuel feed
Fuel
Unleaded gasoline (see Annex 3)
Cooling system
Liquid-type, closed, with forced circulation
Transmission
Description
UAZ vehicle models
Clutch:
clutch type
Dry, single-plate
drive type
Hydraulic
Gearbox:
gearbox type
Mechanical, synchronized, five-speed
type of control
Mechanical
Transfer case:
gearbox type
Two-stage
type of control
Mechanical
Transmission ratios
direct gear
1.00
downshift gear
1.94
power take-off1)
It is possible for the drive (when driving and when vehicle is parked) of special units installed in the body, with the
installation of a power take-off box by the consumer. Allowed power take-off - 40%.

20
Description
UAZ vehicle models
Driveline
Open type, consisting of two shafts. Each shaft has two cardan-joint with a cross on needle bearings
Front and rear drive axles:
axle type
Single-stage, driven
final drive gear ratio, axle differential
4.625 Cone-shaped with 4 satellites
steering knuckle pivots of the front axle
Ball-type constant-velocity joints
1) Installation of a power take-off box shall be agreed with UAZ LLC as appropriate
Chassis
Description
UAZ vehicle models
374195, 390995, 330365, 390945
396295,220695
Suspension:
suspension type
On four longitudinal semielliptical springs with (or without) anti-roll
bar in the front suspension
On four longitudinal semielliptical springs with anti-roll bar in the
front suspension; rear springs with mounts
shock absorbers
Four pieces, hydraulic, telescopic bilateral, rear: hydraulic, front:
hydraulic or hydro-pneumatic (if equipped with anti-roll bar
Four telescopic, bilateral, front: hydro-pneumatic, rear: hydraulic
Wheels and tires:
One-piece rim disks 61/2Jx16H2, with 225/75R16 radial tubeless tires. Wheel fastening - by five nuts.
The spare wheel is made of steel, fitted with the same size tire as the wheels for normal operation. On some vehicles, the spare wheel can
be equipped with a tire 225/70R16, used as a spare wheel for temporary use.
The spare wheel is attached to the holder with one nut
Control system
Description
UAZ vehicle models
Steering mechanism type
Screw-ball nut-rack-sector with power steering
Brakes:
service brake type
With disc brakes on the front wheels and drum brakes on the rear wheels with ABS or pressure regulator without ABS
working brake actuator type
Hydraulic with vacuum booster, separate for front and rear wheels
parking brake type
Drum with internal pads
parking brake actuator type
Mechanical
Electrical equipment
Description
UAZ vehicle models
Wiring system
Single-wire, negative pole is connected to vehicle ground
Electrical system voltage (rated), V
12
Generator
5122.3771 (14B 80A OOO Pramo-Elektro); 3212.3771-10 (14B 90A OAO BATE for medical service cars -
5122.3771.000-30 (14B 120A OOO Pramo-Elektro); 32112.3771 (14B 110A OAO BATE)
Battery
6ST-66A or 6ST-66A with ventilation pipe
