Open Joint-Stock Company
"Ulyanovsky Avtomobilny Zavod"
AUTOMOBIL S
ÓÀÇ-31512,
ÓÀÇ-31514,
ÓÀÇ-31519,
ÓÀÇ-3153
AND TH IR MODIFICATIONS
Instruction Manual
2001

This instruction manual contains the brief description of the
design and necessary operating and maintenance instructions.
Since efforts are continually made to improve the reliability
and performance of the automobiles, minor changes may be
introduced without special notice.
e wish You a good trip!

3
IMPORTANT!
To ensure trouble-free operation of the automobiles, we
recommended that You should attentively familiarize yourself with
the present publication and follow all the operating and mainte-
nance instructions laid down therein.
You can trust the maintenance of your automobile to one of the
service stations recommended by the Sellers. These service stations
are well stocked with spares, special appliances and tools. All the
maintenance operations are performed by e perienced specialists.
Safety instructions
1. Before a trip, check the condition of the lock mechanisms of
the hood and the body doors.
2. When using the low-freezing fluid, leaded gasoline and brake
fluid, do the following:
- avoid any operations which could lead to penetration of these
fluids or their steams into the mouth cavity;
- do not let to dry the liquid which is occured on the skin, but
wash it off right away with warm water and soap;
- never spill liquids in the interior or indoors. Should spillage
occur, wash off the spilled place with water and ventilate it;
- take off the spilled clothes, wash and dry it outdoors;
- wet with kerosene the carbon of leaded gasoline when scraping
it off to avoid penetrating of to ic particles of carbon into the
respiratory organs.
3. To avoid scalding, open the radiator cap of the engine cooling
system with care.
4. Do not warm up the automobile assemblies with free flame.
5. Cut out the storage battery after driving and also in case of
short circuit of wiring.
Precautions
1. Do not begin driving the automobile with the cold engine. After
starting the engine from cold, never run it at a high crankshaft speed.
2. Cut in the oil cooler at an ambient temperature above 20
°C,

4
and when riding under hard service conditions (at heavy loads
and a high crankshaft speed) independing on ambient temperature.
3. Shift the gearbo in the reverse gear and shift the transfer case
to low range only when the automobile is stationary
4. When descending a steep:
- do not shut down the engine to avoid loss of the efficiency of
the brakes provided with the vacuum booster;
- do not disengage the clutch to avoid breaking of the clutch driven
disk.
5. When riding on dry hard-surface roads, disengage the front
a le. When the front wheels are disengaged, never engage the front a le.
6. If one of the hydraulic brake circuits is a failure, the travel
of the brake pedal is increased, and the braking efficiency is
decreased.
7. When driving the automobile equipped with the hydraulic
steering booster, it is not recommended to hold the steering wheel
at the e treme position for more than 5 s in order to prevent
overheating of oil and failure of the hydraulic steering booster pump.
8. When using the gun with the unscrewed tip, take out the spring
and the ball in order to avoid their falling in the assemblies with
liquid grease.
9. Avoid falling acides, soda solutions, braking fluids, antifreeze
and fuel on the painted surfaces of the body and rubber parts.
10. Do not allow impact loads on the chassis of the automobile.
When a strong impact of the front wheels is occured, inspect
carefully the wheels, all parts of the front a le, steering rods,
steering mechanism, oil sump, eliminate deffects, if required.
11. To avoid heavy loads on the a le differential, do not allow
a prolonged slipping.
12. Use the warmth-keeping hood for radiator shell to provide
the proper temperature condition for engine at an ambient tempera-
ture below 0 °C.
13. When the automobile is to be operated at a temperature
below -30 °C, do not fail to disengage the front a le.
14. The automobile is provided with a towing hook allowing a
short-time operation with a trailer. Do not tow a trailer on rugged
ground.
15. Since efforts are continually made to improve the reliability
and performance of the automobiles, minor changes may be
introduced without special notices.

5
INTRODUCTION
The automobile ÓÀÇ-31512 (Fig. 1) - passenger/cargo, with
soft open-top four-door body and tail gate, with driving axles
without hub drives*.
The automobile ÓÀÇ-31514 (Fig. 2) - passenger/cargo, with
four-door body, hard top and tail gate, with driving axles without
hub drives*.
The automobile ÓÀÇ-31519 - passenger/cargo, with four-
door body, hard top (Fig. 2) or soft open-top (Fig.1) and tail
gate, with driving axles without hub drives*.
The automobile ÓÀÇ-3153 (Fig. 3) - passenger/cargo, with
four-door body, hard top and tail gate, with driving axles without
hub drives*.
There are two-axle all-wheel drive cross-country vehicles (4x4
wheel arrangement).
The automobiles are designed for transportation of people
and loads on roads of all types and intended for operating at
ambient temperatures from -45 °C to +40 °C
The automobiles ÓÀÇ-31519, ÓÀÇ-3153 are equipped with
an engine of uprated power.
AUTOMOBIL MARKING
The identity number of the automobile is indented on the
nameplate, on the level flange of the body front upper panel
(Fig. 5).
The nameplate "Identification Data" is fixed at the central
pillar of the r.h. body side (at the aperture of the rear side door).
The body number is indented on the level flange of the body
front upper panel (under the hood, on the l.h. side).
The chassis number is indented on the frame r.h. rear cross-
member.
The engine number is indented on the l.h. side of the
cylinder block (Fig. 6).
* Some automobiles could be equipped with the driving axles with the hub drive
(Fig. 4)

6

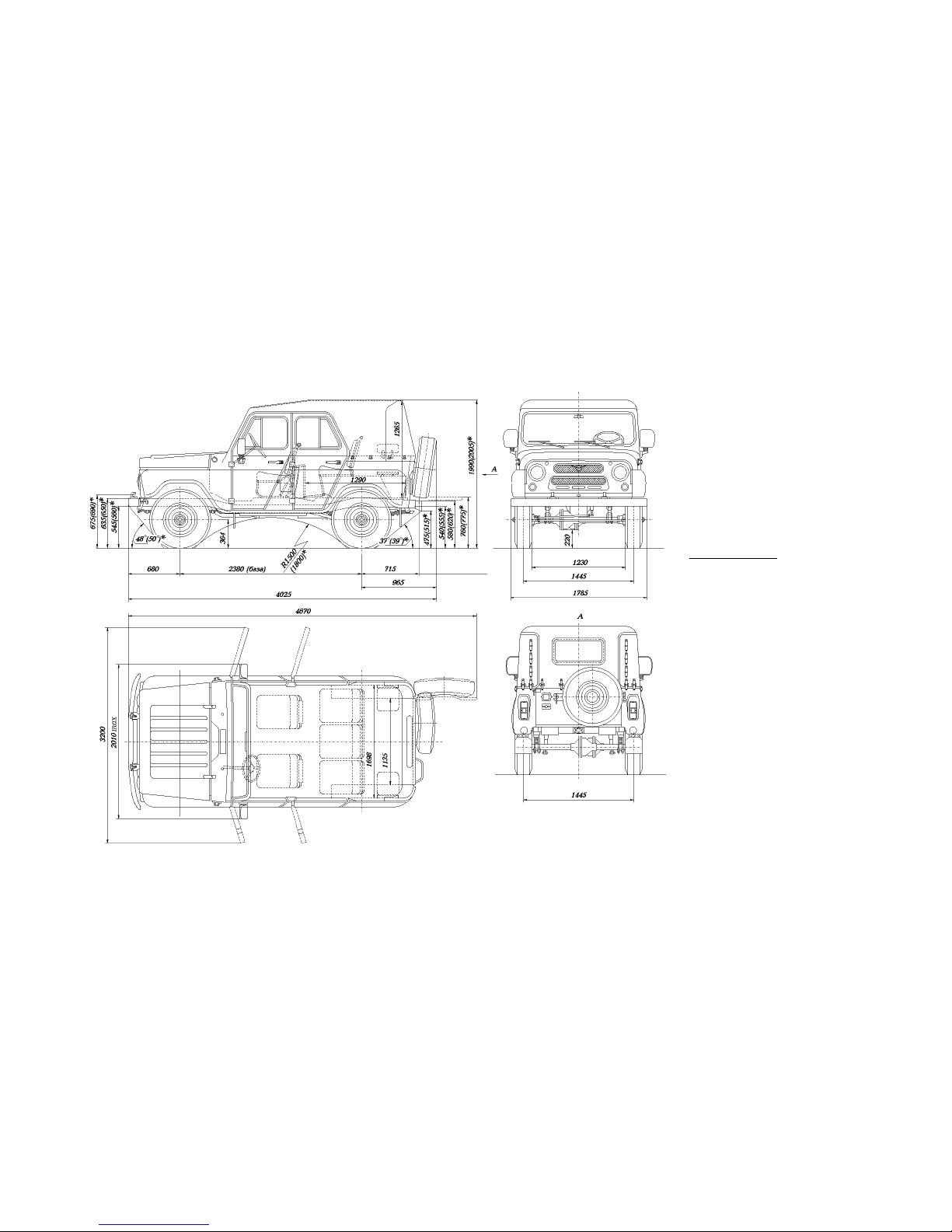

Fig. 1. Overall Dimensions
of Automobiles ÓÀÇ-31512
and ÓÀÇ-31519 (Dimensions
are given for reference)
* For automobiles with front
spring suspension
Note. Dimensions of automo-
biles provided with axles with
hub drive see in Fig. 4

7

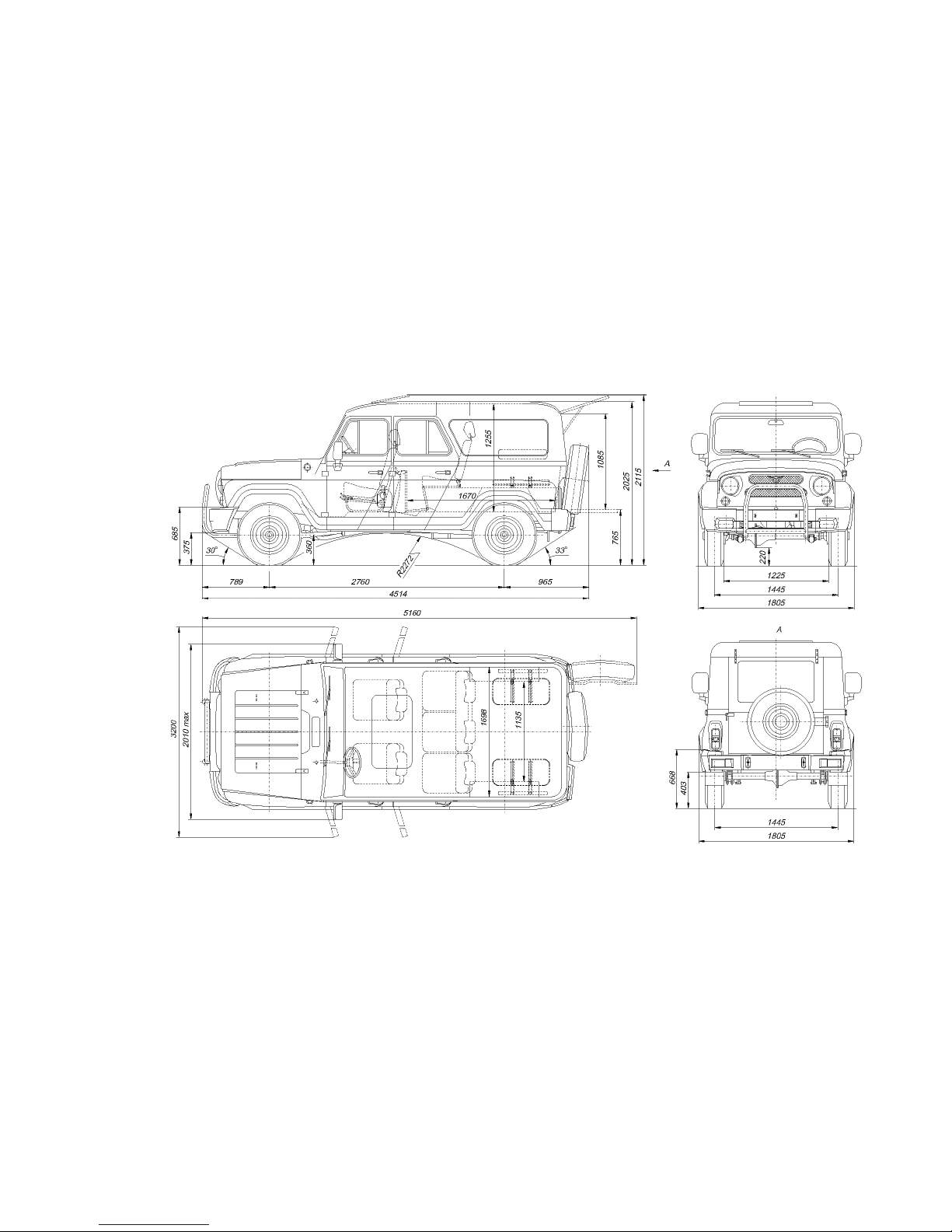

Fig. 2. Overall Dimen-
sions of Automobile
ÓÀÇ-31514 and
ÓÀÇ-31519 (Dimen-
sions are given for
reference)
* For automobiles with
front spring suspension
Note. Dimensions of
automobiles provided
with axles with hub drive
see in Fig. 4

8
Fig. 3. Overall Dimensions of Automobile
ÓÀÇ-3153 (Dimensions are given for
reference)

9
Fig. 4. Overall Dimensions of
Automobiles ÓÀÇ-31512,
ÓÀÇ-31514, ÓÀÇ-31519 pro-
vided with axles with hub
drives (dimensions are given
for reference)
* For automobiles with hard
top

10
Fig. 5. Automobile Marking:
1, 2 - identity numbers; 3 - body number; 4 - chassis number; 5 - name plate
"Identification Data";
I - international code of manufacturer;
II - descriptive part (automobile model, make);
III - indicating part (year of automobile manufacture and ordinal number)
Fig. 6. Location of Engine
Number

11
SP CIFICATIONS
Automobile Models
Description ÓÀÇ-31512 ÓÀÇ-31514 ÓÀÇ-31519 ÓÀÇ-3153
1 2 3 4 5
G N RAL DATA
Overall dimensions of automobiles are given in Fig. 1-4
Automobile type two-axle all-wheel drive crosscountry vehicle
(4x4 wheel arrangement)
Seating capacity 7 9
Load capacity (driver 750 - when riding on improved 800
and passengers included, kg roads
550 - other roads and country
roads
Gross weight, kg:
with soft top 2350 - 2350 -
with hard top - 2500 2500 2600
Gross weight distribution, kg:
front axle:
with soft top 965 - 965 -
with hard top - 1000 1000 1080
rear axle:
with soft top 1385 - 1385 -
with hard top - 1500 1500 1520
Vehicle total weight, kg:
with soft top 1600 - 1600 -
wit hard top - 1750 1750 1800
Vehicle total weight distribution:
front axle :
with soft top 880 - 880 -
with hard top - 950 950 930
rear axle:
with soft top 720 - 720 -
with hard top - 800 800 870
Maximum speed, km/h 110 110 120* 120
Permissable total tow weight, kg:
with brakes 1500**
without brakes 750**
* Maximum speed should be not more 110 km/h when the tyres ß-245-1 are
installed.
** To tow a trailer at all times and on rugged ground is allowed only when the
automobile is equipped with a towing gear of the ball type.

12
Minimum turning radius by
track of front outer wheel
(relative to centre of turn), m,
not more 6.3 (6.5*) 7.2
Outer turning radius by point
of front bumper max. removed
from centre of turn, m,
not more 6.8 (7.0*) 7.6
Maximum upgrade of full
laden automobile, deg. 31
Maximum depth of ford, m
without preparation 0.5
with preparation 0.7
NGIN
Model 4178 4218
Type 4-stroke, carburettor-type
Cylinder number four
Cylinder order in-line, vertical
Firing order 1-2-4-3
Cylinder bore, mm 92 100
Piston stroke, mm 92 92
Displacement, l 2.445 2.89
Compression ratio 7.0 7.0
Nominal power at crankshaft
speed of 66 s-1 (4000 min-1)
k (hp)
to DIN 70020 57.4 (78) 63.2 (86)
gross to SAEj 816b 68.4 (93) 73.5 (100)
net to ÃÎÑÒ14846 55.9 (76) 61.8 (84)
Maximum gross torque at
36-42 s-1 (2200-2500 min-1)
Nm (kgfm):
to DIN 70020 164.8 (16.8) 193 (19.7)
gross to SAEj 816b 174.6 (17.8) 201 (20.5)
net to ÃÎÑÒ 14846 159.8 (16.3) 189 (19.3)
Minimum low idle speed of
crankshaft, s-1, (min-1) 11.6-12.5 (700-750)
Engine lubrication system Combination: forced and splash
Crankcase ventilation Closed
1 2 3 4 5
* hen the axle with hub drive is installed

13
Fuel system ith forced fuel feed and
fuel-air mixture heating
Fuel Gasoline with octane number 76
Cooling system Liquid, closed, forced circulation
POW R TRAIN
Clutch:
Type of clutch Dry, single-disk
Type of drive Hydraulic
Gearbox Four-speed
gear ratios 1st speed....3.78 3rd speed ... 1.55
2nd speed...2.60 4th speed.....1.00
Reverse.....4.12
Optional version of gearbox:
gear ratios 1st speed...4.124 3rd speed .....1.58
2nd speed...2.641 4th speed.......1.00
Reverse.....5.224
Transfer box Two-range
gear ratios:
high range 1.00
low range 1.94 or 1.47
Front and rear driving axles Final drive - spiral bevel gearing;
gear ratio 4.625*
front axle steering knuckle
joints Constant-velocity universal joints of ball type
CHASSIS
Suspension: front -
type on four longitudinal semielliptic spring
springs ** with
transverse
stabilizer;
rear - on
small-leaf
springs
1 2 3 4 5
* The automobiles ÓÀÇ-31512, ÓÀÇ-31514, ÓÀÇ-31519 could be equipped with
Ï-shape axles with hub drive:
Hub drive: gear, spur internal gears
Gear ratio of hub drive 1.94
Gear ratio of final drive 2.77
Total gear ratio 5.38
** Some models of automobiles ÓÀÇ-31512, ÓÀÇ-31514 and ÓÀÇ-31519 are
equipped with front spring suspension with transverse stabilizer and rear small-
leaf springs.

14
heels and tyres:
wheels Steel, with deep-well one-piece rim, size
6L½15 or 6J½16 depending on tyres
in use
tyres Tubed
225R16C (Ê-151 or Ê-152),
225/75R16 108Q (Ê-153),
225/75R16 (ß-435À)
215/90-15Ñ (ß-245-1), -
215/90R15C 99N (ßÈ-357À)
Tube size 8,40-15 or 225-16 depending
on tyres in use
CONTROL SYST MS
Steering arrangement: Safe, steering shaft - split, with cardan joint
type of steering
mechanism hourglass Screw-ball nut-sector
worm with or without hydraulic
steering booster
with two or without steering booster
comb
roller*
mean gear ratio
of steering mechanism 20.3 with hydraulic
steering booster......17.3
without hydraulic steering
booster.....20.5
Brakes:
Service Shoe, with two separate circuits
actuated from two-chamber master cylinder
parking Drum with inner shoes
acting on power train, with mechanical drive
L CTRICAL QUIPM NT
iring Single-wire, with ground returned minus
Rated voltage, V 12
Overload breakers:
fuse Unit, provided with three fuses 10À each in
circuits of horn, warning lights and instruments
Fuse in circuit of cigarette lighter, 16A
Fuse in circuit of heater motor, 6A
1 2 3 4 5
* Some automobiles ÓÀÇ-31512 could be equipped with steering mechanism of
type "screw-ball nut-sector" with or without hydraulic steering booster

15
thermal cut-out Pushbutton - in lighting circuit
ADJUSTM NT DATA
Valve-to-rocker clearance on
cold engine (at 15-20 °C), mm:
for exhaust valves of No.1
and No. 4 cylinders 0.30-0.35
for the rest of valves 0.35-0.40
Deflection of fan and hydraulic
steering booster belts when:
force of 4 kgf is applied, mm 8-14
Cooling fluid density at
20 °C, g/cm3:
ÎÆ-40 "Ëåíà" 1.075-1.085
ÎÆ-65 "Ëåíà" 1.085-1.100
Cooling fluid temperature
in cooling system, °Ñ 80-90
Spark plug gap, mm 0.85+0.15
Free travel of clutch pedal, mm 35-55
Free travel of brake pedal, mm 5-14
Front wheel toe-in, mm 1.5-3.0
Maximum turning angle of
front inner wheel, deg 27
Steering wheel play, deg,
not more 10
Tyre Inflation Pressure, kPA (kgf/cm2)
Tyre Model
ß-245-1 ßÈ-357A Ê-151, Ê-152,
Ê-153, ß-435À
Front wheel:
ÓÀÇ-31512, ÓÀÇ-31514
ÓÀÇ-31519 1.7 (1.7) 1.9 (1.9) 1.9 (1.9)
ÓÀÇ-3153 - - 2.0 (2.0)
Rear wheel:
ÓÀÇ-31512, ÓÀÇ-31519 with
soft top 2.2 (2.2) 2.4 (2.4) 2.4 (2.4)
ÓÀÇ-31514, ÓÀÇ-31519 with
hard top 2.5 (2.5) 2.6 (2.6) 2,6 (2,6)
ÓÀÇ-3153 - - 2,6 (2,6)
1 2 3 4 5

16
FILLING CAPACITI S, l
Automobile Models
Description ÓÀÇ-31512 ÓÀÇ-31514 ÓÀÇ-31519 ÓÀÇ-3153
Fuel tanks:
r.h. 39
l.h. 39
Engine cooling system
(heater and expansion
tank including) 12.5-12.7
Engine lubrication system 5.8
Gearbox 1.0
Transfer box 0.7
Final drive casing
(each) 0.85
Steering gear case 0.25 0.5 (1.1)*
Shock absorbers (each) 0.320
Hydraulic actuated brake
system 0.52
Clutch hydraulic system 0.18
indshield washer reservoir 2
CONTROLS AND INSTRUM NTS

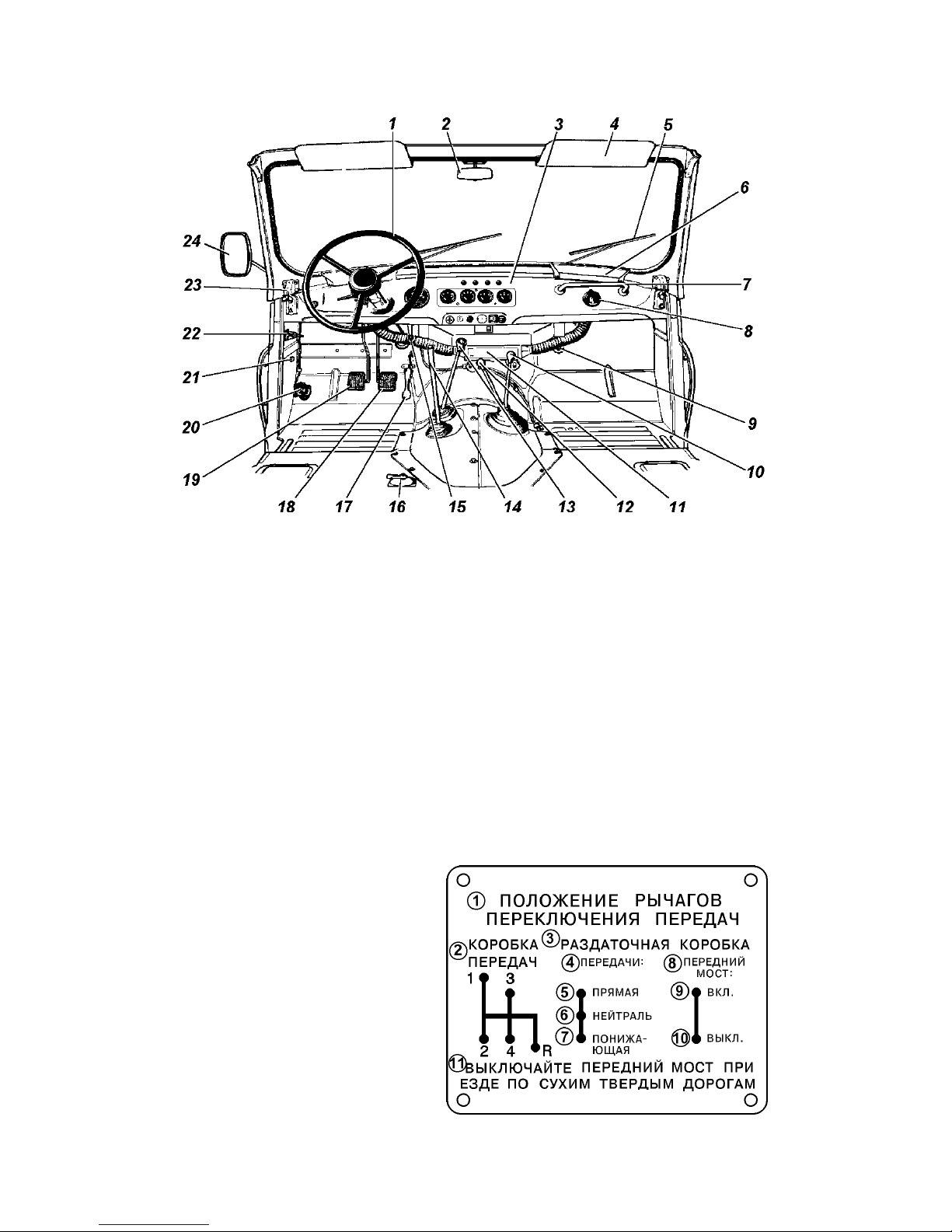

Arrangement of the controls and instruments is illustrated in
Fig. 7:
1 - steering wheel.
2 - rear view mirror (internal).
3 - instrument panel.
4 - sun visors.
5 - windshield wiper blades.
6 - windshield demisting nozzle.
7 - passenger grab handle.
8 - light (mounted on automobile ÓÀÇ-31512).
9 - ground switch .
10 - front driving axle control lever: the forward lever
position - the front axle is engaged (Fig. 8).
* For steering mechanism with hydraulic steering booster

17
Fig. 7. Controls and Instruments (for Ref. Nos. refer to text)
11 - heater box cover: when the cover is open the hot air flows
into the compartment.
12 - transfer box shift lever: the forward lever position -direct
range - ON, the intermediate position - neutral, the backward
position - low range ON.
13 - gearshift lever: directions for moving the lever for shifting
in the gears are indicated on the handle of the gearshift lever and
in Fig. 8.
14 - parking brake lever.
15 - heater and ventilator lid control handle.
Fig.8. Instruction Plate.
Positions of Transmission,
Transfer Case and Front Axle
Shift Levers:
1 - positions of shift levers; 2 -
transmission; 3 - transfer case; 4 -
speed ranges; 5 - high range; 6 -
neutral; 7 - low range; 8 - front
axle; 9 - engaged; 10 - disen-
gaged; 11 - when driving on dry
hard-surface roads, do not fail to
disengage the front axle

18
16 - handle of fuel tank cock: turned to the right - the right-
hand fuel tank is on; turned forward - the cock is closed; turned
to the left - the left-hand fuel tank is on.
17 - accelerator pedal.
18 - service brake pedal.
19 - clutch pedal.
20 - foot-operated dimmer switch: by pressing the button,
when the lights are on, the lower beam or upper beam will be
on. (mounted on the automobile ÓÀÇ-31512).
21 - receptacle
22 - radiator shutters control handle: the radiator shutters are
closed when the handle is pulled out towards yourself.
23 - window frame lock.
24 - rear-view mirror (external).
The instrument panel is illustrated in Fig. 9, 10, 11, wherein:
1 - flasher warning system button switch.
2 - speedometer with trip odometer indicating the automo-
bile speed in km/h, and trip odometer indicating the total run
of automobile in km.
3 - fuel level gauge. Each tank is provided with a fuel level
gauge.
4 - brake emergency condition warning lamp (red).
5 - parking brake warning lamp (red).
6 - turn indicator warning lamp (green).
7 - radiator cooling fluid emergency overheating warning
lamp.
8 - upper beam warning lamp (blue).
9 - engine cooling fluid temperature gauge
10 - emergency oil pressure warning lamp.
11 - oil pressure gauge
12 - voltmeter indicating voltage in automobile mains
13* - cigarette lighter.
14 - light (on automobiles ÓÀÇ-31514, ÓÀÇ-31519, ÓÀÇ-
3153 dome light is mounted ).
15 - dome light switch (dome light switch of automobiles
ÓÀÇ-31514, ÓÀÇ-31519 is located near by the dome light).
* Installed on some automobiles

19
Fig. 9. Instrument Panel of Automobile ÓÀÇ-31512 (for Ref.
Nos. refer to text)
Fig. 10. Instrument Panel of Automobiles ÓÀÇ-31514,
ÓÀÇ-31519 (for Ref. Nos. refer to text)
Fig. 11. Instrument Panel of Automobile ÓÀÇ-3153 (for Ref.
Nos. refer to text)

20
16 - throttle valve control knob. The knob can be fixed by
turning it through 90° in any direction.
17 - selector switch of fuel level gauges.
18 - rear fog switch.
19* - fog lamps switch.
20 - combined ignition and starter switch (see Fig. 12 and 13).
The ignition key should be removed only when it is in the
position III, thereby the interlock device mechanism engages
and locks the steering gear shaft.
To lock the steering gear when parking, put the key in the
position III, take it out and rotate the steering wheel in any
direction till click is heard; this means that the lug of the
interlock device is in register with the recess of the stop-bush of
the steering wheel shaft. To unlock the steering gear, insert the
key into the ignition switch, and by turning the steering wheel
to the left and to the right, turn the key clockwise to the position I.
* Installed on some automobiles
Fig. 12. Position of Ignition Key of Automobile ÓÀÇ-31512:
0 -neutral;
I -ignition ON;
II -ignition and starter ON;
III -radio ON (if available)
Fig. 13. Position of Ignition Key of Automobiles
ÓÀÇ-31514, ÓÀÇ-31519, ÓÀÇ-3153:
0 -all OFF (fixed position);
I -ignition ON (fixed position);
II -starter ON (non-fixed position);
III -parking (fixed position)
