UAZ 2001 ???-3741 User manual

Open Joint-Stock Company
"Ulyanovsky Avtomobilny Zavod"
Automobiles
ÓÀÇ-3 41, ÓÀÇ-3962,
ÓÀÇ-3909, ÓÀÇ-2206,
ÓÀÇ-3303
and Their Modifications
Instruction Manual
2001

This instruction manual contains the brief description of the
design and necessary operating and maintenance instructions.
Since efforts are continually made to improve the reliability
and performance of the automobiles, minor changes may be
introduced without special notice.
e wish You a good trip!
© ÎÀÎ "Óëüÿíîâñêèé àâòîìîáèëüíûé çàâîä", 2001

3
IMPORTANT!
To ensure trouble-free operation of the automobiles, we
recommend that You should attentively familiarize yourself with the
present publication and follow all the operating and maintenance
instructions laid down therein.
You can trust the maintenance of your automobile to one of the
service stations recommended by the Sellers. These service stations
are well stocked with spares, special appliances and tools. All the
maintenance operations are performed by e perienced specialists.
Safety Instructions
1. Before a trip, check the condition of the lock mechanisms of
the hood and the body doors.
2. When using the low-freezing fluid, leaded gasoline and brake
fluid, do the following:
- avoid any operations which could lead to penetration of these
fluids or their steams into the mouth cavity;
- do not let to dry the liquid which is occured on the skin, but
wash it off right away with warm water and soap;
- never spill liquids in the interior or indoors. Should spillage
occur, wash off the spilled place with water and ventilate it;
- take off the spilled clothes, wash and dry it outdoors;
- wet with kerosene the carbon of leaded gasoline when scraping
it off to avoid penetrating of to ic particles of carbon into the
respiratory organs.
3. To avoid scalding, open the radiator cap of the engine cooling
system with care.
4. Do not warm up the automobile assemblies with free flame.
5. Cut out the storage battery after driving and also in case of
short circuit of wiring.
Precautions
1. Do not begin driving the automobile with the cold engine. After
starting the engine from cold, never run it at a high crankshaft speed.
2. Cut in the oil cooler at an ambient temperature above 20
°C,
and when riding under hard service conditions (at heavy loads and
a high crankshaft speed) independing on ambient temperature.
3. Shift the gearbo in the reverse gear and shift the transfer case
to low range only when the automobile is stationary.

4
4. When descending a steep downhill:
- do not shut down the engine to avoid loss of the efficiency of
the brakes provided with the vacuum booster;
- do not disengage the clutch to avoid breaking of the clutch
driven disk.
5. When riding on dry hard-surface roads, disengage the front
a le. When the front wheels are disengaged, never engage the front a le.
6. If one of the hydraulic brake circuits is a failure, the travel
of the brake pedal is increased, and the braking efficiency is
decreased.
7. When using the gun with the unscrewed tip, take out the spring
and the ball in order to avoid their falling in the assemblies with
liquid grease.
8. Avoid falling acides, soda solutions, braking fluids, antifreeze
and fuel on the painted surfaces of the body and rubber parts.
9. Do not allow impact loads on the chassis of the automobile.
When a strong impact of the front wheels is occured, inspect
carefully the wheels, all parts of the front a le, steering rods,
steering mechanism, oil sump, eliminate deffects, if required.
10. To avoid heavy loads on the a le differential, do not allow
a prolonged slipping.
11. Use the warmth-keeping hood for radiator shell to provide
the proper temperature condition for engine at an ambient tempera-
ture below 0 °C.
12. When the automobile is to be operated at a temperature
below -30 °C, do not fail to disengage the front a le.
13. The automobile is provided with a towing hook allowing a
short-time operation with a trailer. Do not tow a trailer on rugged
ground.
14. Do not transport at the same time passengers and cargoes
(e cept for a hand luggage) in the passenger and the sanitary
compartments of the automobiles ÓÀÇ-2206, ÓÀÇ-3909,
ÓÀÇ-3962, in the cargo compartment of the automobile ÓÀÇ-3741
equipped with the hinged seats, on the platform of the automobiles
ÓÀÇ-3303, ÓÀÇ-33036, ÓÀÇ-39094, ÓÀÇ-39095 equipped with
the hinged seats and the tarpaulin.
The automobile design is provided with special parts to fasten cargoes.
15. Since efforts are continually made to improve the reliability
and performance of the automobiles, minor changes may be
introduced without special notices.

5
INTRODUCTION
The automobiles ÓÀÇ with a wheel arrangement 4x4 are
designed for operating on roads of all types, at all climatic
conditions, in all seasons, at ambient temperatures from -45 °Ñ
to + 40°Ñ .
The OJSC UAZ manufactures automobiles of the following
models and modifications:
ÓÀÇ-3741, ÓÀÇ-37419 (Fig. 1) - vans with all-metal
closed wagon-type body divided into a two-seat cab and a cargo
compartment. The vans are intended for cargo transportation;
ÓÀÇ-3962, ÓÀÇ-39629 (Fig. 2) - ambulance cars with
wagon-type body divided into a two-seat cab and a sanitary
compartment. The ambulance cars are intended for transportation
of invalids and could be used for service of emergency aid in
towns and countries;
ÓÀÇ-39625 and ÓÀÇ- 396259 - special vehicles with wagon-
type body divided into a two-seat cab and a passenger/cargo
(seven-seat) compartment. The vehicles are intended for
passenger/cargo transportation. The vehicles ÓÀÇ-39625 and
ÓÀÇ-396259 are manufactured on the base of the vehicles
ÓÀÇ-3962 and ÓÀÇ-39629 correspondingly and have the same
specifications;
ÓÀÇ-3909, ÓÀÇ-39099 (Fig. 3) - special vehicles with
wagon-type body divided into a two-seat cab, a five-seat
passenger compartment and a cargo compartment. The vehicles
are intended for cargo/passenger transportation;
ÓÀÇ-2206, ÓÀÇ-22069 (Fig. 4) - buses with wagon-type
body divided into a two-seat cab and a passenger compartment.
The buses are intended for passenger transportation;
ÓÀÇ-3303, ÓÀÇ-33039 (Fig. 5) - cargo vehicles with two-
seat cab and wooden platform. The cargo vehicles are intended
for cargo transportation*;
ÓÀÇ - 33036 (Fig. 6) - a cargo vehicle with the enlarged wheel
base, two-seat cab, metal or wooden platform.The cargo
vehicles are intended for cargo transportation*;
* To transport passengers on the platform equipped with hinged seats at the front
side is allowed, if there is no cargo on the platform.

6
ÓÀÇ-39095 (Fig. 7) - a special vehicle with the enlarged
wheel base, two-seat cab and metal platform for municipal
econimy, cooperative and individual farmings. The vehicles are
intended for cargo transportation*;
ÓÀÇ-39094 (Fig. 8) - a special vehicle with the enlarged
wheel base, five-seat cab and metal platform for municipal
econimy, cooperative and individual farmings. The vehicles are
intended for passenger/cargo transportation*;
The vehicles ÓÀÇ-37419, ÓÀÇ-39629, ÓÀÇ-39099, ÓÀÇ-
22069, ÓÀÇ-33039 differ from the vehicles ÓÀÇ-3741, ÓÀÇ-
3962, ÓÀÇ-3909, ÓÀÇ-2206, ÓÀÇ-3303 correspondingly in the
engine of increased power.
The vehicles ÓÀÇ-33036, ÓÀÇ-39094, ÓÀÇ-39095 are
equipped with the engine of increased power.
AUTOMOBILE MARKING
The identification number (Fig. 9) is indented on the name-
plate and on the roof channel (on the automobiles ÓÀÇ-2206,
ÓÀÇ-3962 and their modifications - at two points à and á;
on the automobiles ÓÀÇ-3303, ÓÀÇ-3741, ÓÀÇ-3909, ÓÀÇ-
33036, ÓÀÇ-39094, ÓÀÇ-39095 and their modifications - at one
point á).
The nameplate is fixed on the upright side of the front r.h.
wheel case. The engine model and make are also indicated in the
nameplate.
The body (cab) number is indented on the level panel of the
front r.h. door aperture.
The chassis number is indented on the rear r.h. cross-member
end of the frame.
The engine number (Fig. 10) is indented on the l.h. side of the
cylinder block.
* To transport passengers on the platform equipped with hinged seats at the front
side is allowed, if there is no cargo on the platform.

7
Fig. 1. Overall
dimensions (ap-
proximately) of
automobiles
ÓÀÇ-3741,
ÓÀÇ-37419
(Dimensions
are given for ref-
erence)

8

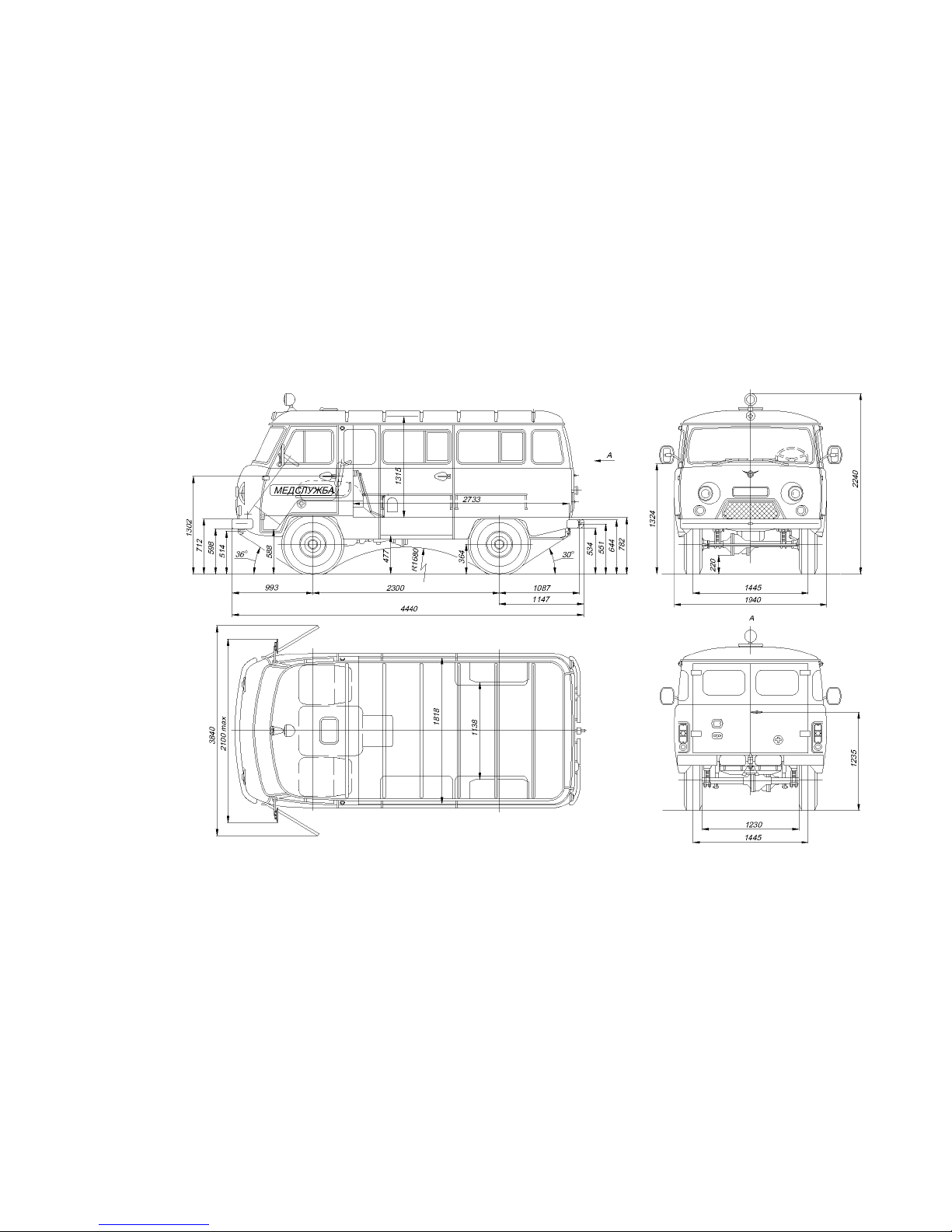

Fig. 2. Overall
dimensions (ap-
proximately) of
automobiles
ÓÀÇ-3962,
ÓÀÇ-39629
(Dimensions
are given for ref-
erence)

9
Fig. 3. Overall
dimensions (ap-
proximately) of
automobiles
ÓÀÇ-3909,
ÓÀÇ-39099
(Dimensions
are given for ref-
erence)

10
Fig. 4. Overall
dimensions (ap-
proximately) of
automobiles
ÓÀÇ-2206,
ÓÀÇ-22069
(Dimensions
are given for ref-
erence)

11

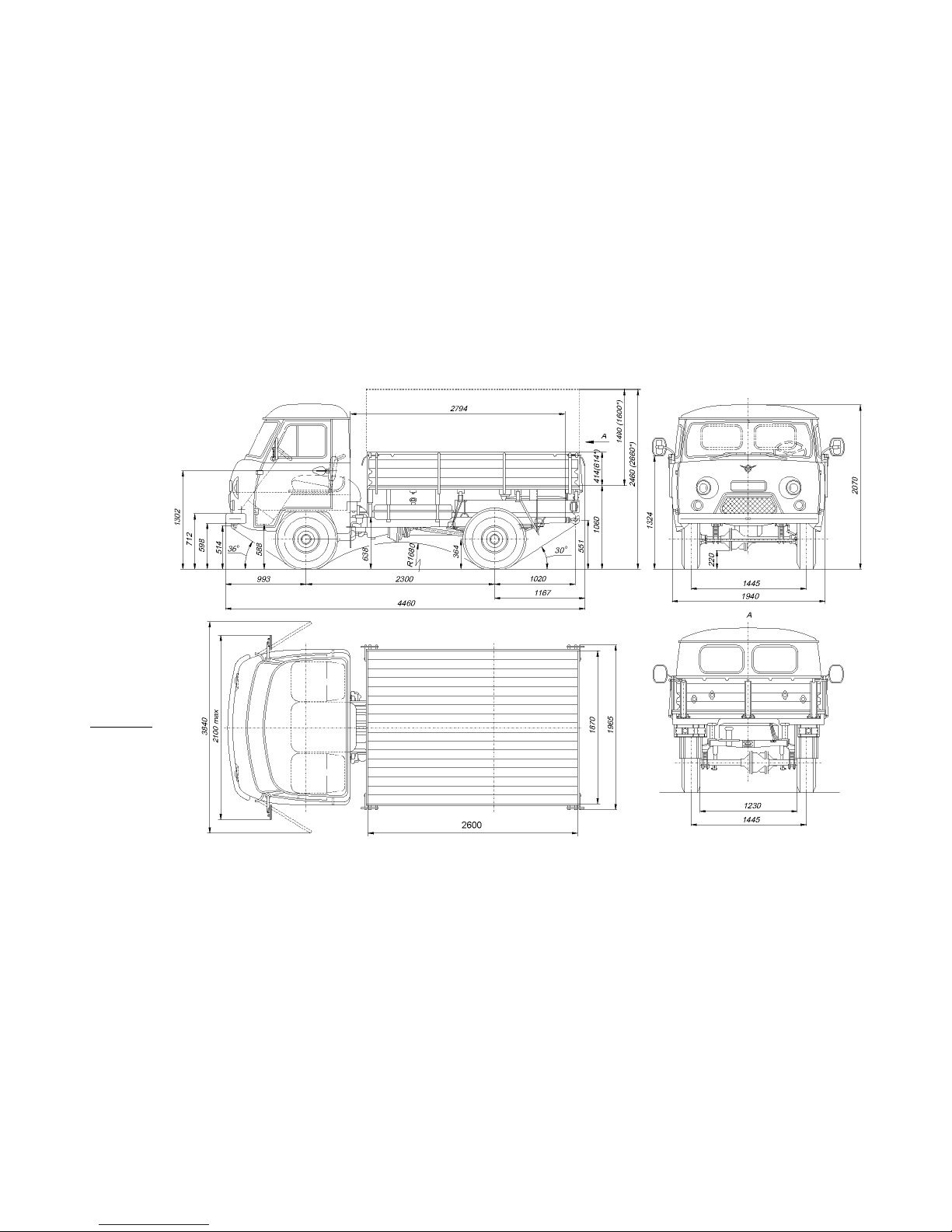

Fig. 5. Overall
dimensions (ap-
proximately) of
automobiles
ÓÀÇ-3303,
ÓÀÇ-33039
(Dimensions are
given for refer-
ence)
* For automo-
biles with high
sides

12
Fig. 6. Overall
dimensions (ap-
proximately) of
automobiles
ÓÀÇ-33036
(Dimensions are
given for refer-
ence)
* For automo-
biles with
wooden plat-
form and high
sides

13

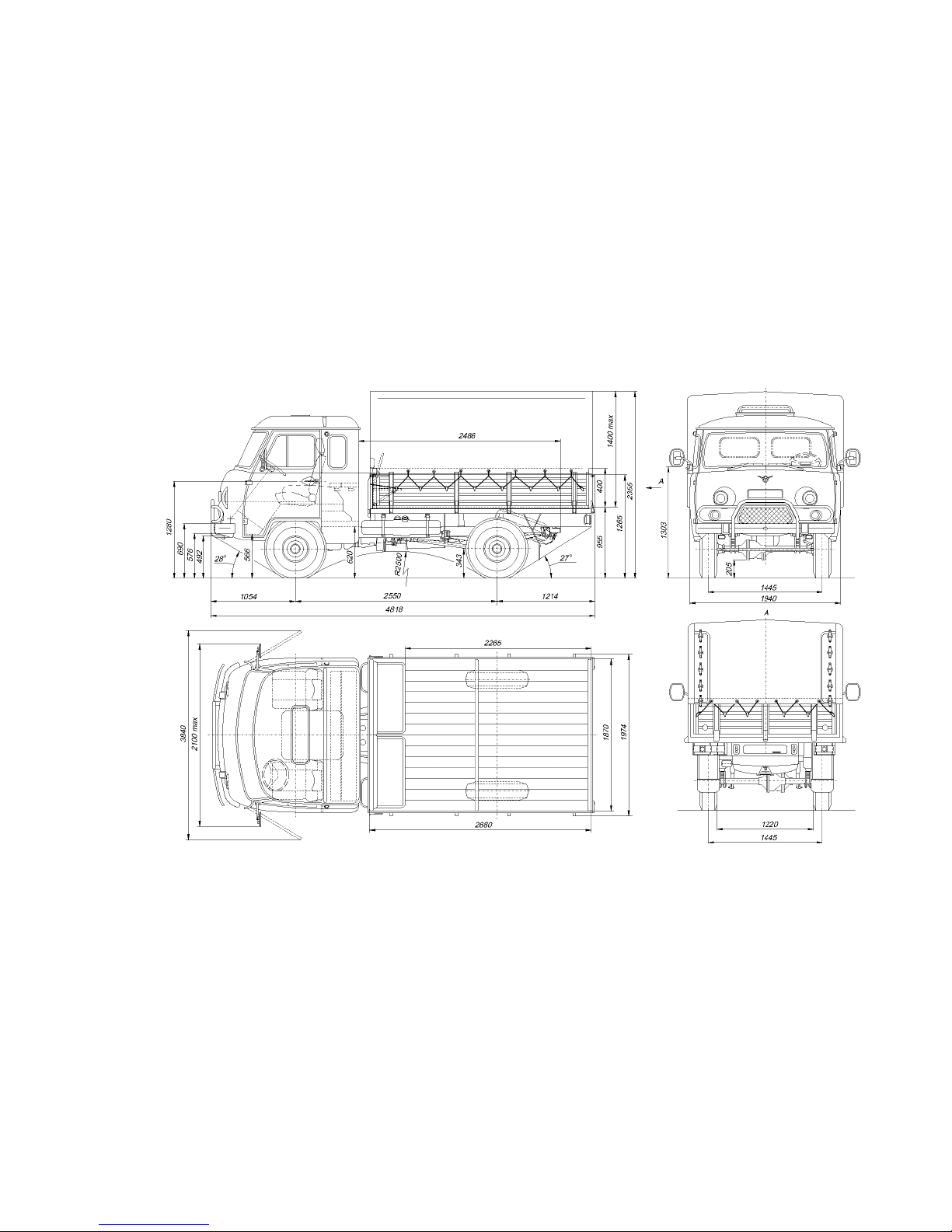

Fig. 7. Overall
dimensions (ap-
proximately) of
automobiles
ÓÀÇ-39095
(Dimensions
are given for ref-
erence)

14

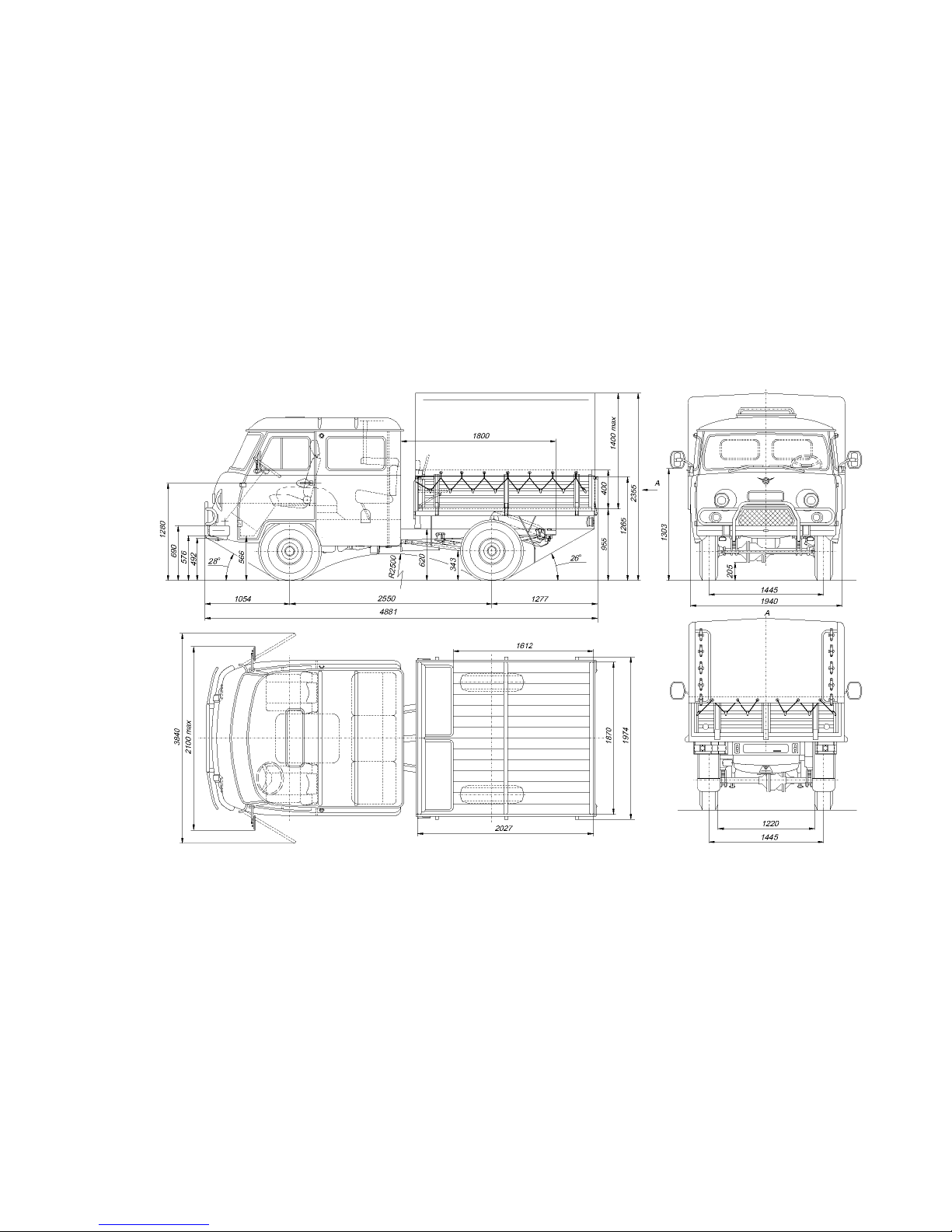

Fig. 8. Overall dimen-
sions (approximately) of
automobiles ÓÀÇ-39094
(Dimensions are given
for reference)

15
Fig. 10. Location of engine number
Fig. 9. Automobile marking:
1 -identification number of automobile:
à, á - for automobiles ÓÀÇ-2206, ÓÀÇ-3962 and their modifications;
á - for automobiles ÓÀÇ-3303, ÓÀÇ-3741, ÓÀÇ-3909, ÓÀÇ-33036, ÓÀÇ-39094,
ÓÀÇ-39095 and their modifications;
2 -chassis number;
3 -body (cab) number;
4 -nameplate;
I -international code of manufacturer;
II -descriptive part (automobile model, make);
III -indicating part (year of automobile manufacture and serial number of
automobile)

16
SPECIFICATIONS
Models of Automobiles ÓÀÇ
Description 3741, 3962, 3909, 2206, 3303, 33036 39094 3909
37419, 39629, 39099 22069 33039
1 2 3 4 6 7 8 9
GENERAL DATA
(Overall dimensions of automobiles are given in Fig. 1 - 8)
Automobile type two-axle all-wheel drive cross-country vehicle (4x4 wheel arrangement)
Max. load capacity (driver
and passengers included), kg 1000 -1) 1000 92 1000 1300 11 0 1170
Cargo weight in cargo compartment,
kg, not more - - 47 - -
Cargo weight on platform,
kg, not more - - - - - - 700 9 0
Seating capacity (driver included) 2 9 7 11-8 2) 2 or 6 3) 2 or 6 3) 9 3) 6 3)
Permissible total tow weight, kg 2720 2 00 2820 2780 26 0 30 0 30 0 30 0
1) ÓÀÇ-3962 and ÓÀÇ-3962 9 - 9 persons driver included or 2 persons driver included and 8 0 kg cargo.
2) Depending upon the version.
3) Depending upon the complete equipment, the platform could be equipped with a removable tarpaulin provided with the frame and
two double seats installed along the front side. It is not permitted to transport persons on the platform equipped with seats, if the
frame of the tarpaulin is removed (except for platforms with the side height of 614 mm).

17
Vehicle total weight distribution, kg:
front axle 1290 123 1380 1330 1220 1420 1420 1420
rear axle 1430 126 1440 14 0 1430 1630 1630 1630
Gross weight, kg: 1720 182 1820 18 16 0 17 0 1900 1880
Gross weight distribution, kg:
front axle 1000 103 1060 102 1000 1090 1130 1180
rear axle 720 790 760 830 6 0 660 770 700
Total tow weight, kg, not more:
with brakes 1 00 1)
without brakes 7 0 1)
Minimum turning radius by
track of front outer wheel
(relative to centre of turn), m,
not more 6.3 7.0
Outer turning radius by point
of front bumper max. removed
from centre of turn, m, not more 6.8 7.
Maximum upgrade, deg. 30
Maximum depth of ford, m 0.
1) To tow a trailer at all times and on rugged ground is allowed only when the automobile is equipped with a towing gear of the ball
type.
1 2 3 4 6 7 8 9

18
Models of Automobiles ÓÀÇ
Description 3741, 3962, 3909, 37419, 39629, 3303 33039 33036, 39094,
2206 39099, 22069 3909
Maximum speed, km/h 110 117 1) 100 110 10
Models of Automobiles ÓÀÇ
Description 3741, 3962, 3909, 37419, 39629, 39099,
2206, 3303 22069, 33039, 33036
39094, 3909
1 2 3
ENGINE
Model 4178 4218
4-stroke, carburettor-type
Cylinder number four
Cylinder order in-line, vertical
Firing order 1-2-4-3
Cylinder bore, mm 92 100
Piston stroke, mm 92 92
Displacement, l 2.44 2.89
Compression ratio 7.0 7.0
Nominal power at crankshaft
speed of 66 s-1 (4000 min-1) kW (hp):
to DIN 70020 7.4 (78) 63.2 (86)
1) When the tyres ß-24 -1 are installed, in service the maximum speed should be not more than 110 km/h.

19
gross to SAEj 816b 68.4 (93) 73. (100)
net to ÃÎÑÒ 14846 .9 (76) 61.8 (84)
Maximum torque at 36-42 s-1 (2200-2 00 min-1),
Nm (kgfm):
to DIN 70020 164.8 (16.8) 193 (19.7)
gross to SAEj 816b 174.6 (17.8) 201 (20. )
net to ÃÎÑÒ 14846 1 9.8 (16.3) 189 (19.3)
Minimum low idle speed of crankshaft, s-1, (min-1) 11.6-12. (700-7 0)
Lubrication system Combination: forced and splash
Crankcase ventilation Closed
Fuel system With forced fuel feed and fuel-air mixture heating
Fuel Gasoline with octane number 76
Cooling system Liquid, closed, forced circulation
TRANSMISSION
Clutch:
Type of clutch Dry, single-disk
Type of drive Hydraulic
Gearbox Four-speed
gear ratios 1st speed ....................... 3.78 3rd speed ..................... 1.
2nd speed ...................... 2.60 4th speed ...................... 1.00
Reverse ....................... 4.12
Optional version of gearbox:
gear ratios 1st speed ...................... 4.124 3rd speed .................... 1. 8
2nd speed ..................... 2.641 4th speed .................... 1.00
Reverse .................... .22
Transfer box Two-range
1 2 3

20
gear ratios:
high range 1.00
low range 1.94
Front and rear driving axles Final drive - spiral bevel gearing; gear ratio 4.62
front axle steering knuckle joints Constant-velocity universal joints of ball type
1 2 3
Models of Automobiles ÓÀÇ
Description 3741, 37419, 3962, 39629, 33036, 39094
3909, 39099, 2206, 22069, 3909
3303, 33039
1 2 3
CHASSIS
Suspension:
type four longitudinal semielliptic springs operating in conjunction with four
hydraulic telescopic shock absorbers
Wheels and tyres:
wheels Steel, with deep-well one-piece rim, size 6L½1 or 6J½16 depending on
tyres in use
tyres Tubed
21 /90-1 Ñ (ß-24 -1), 22 /7 R16 108Q (Ê-1 3),
21 /90R1 C 99N (ßÈ-3 7À), 22 /7 R16 (ß-43 À)
22 R16C (Ê-1 1 or Ê-1 2),
22 /7 R16 108Q (Ê-1 3),
22 /7 R16 (ß-43 À)
Tube size 8.40-1 or 22 -16 depending 22 -16
on tyres in use
