Ubiquiti ETH-SP-G2 User manual

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
ETH-SP-G2 M5 Self-Tapping Screw M5 Serrated Washer
ETH IN/OUT Port
Grounding Point
Package Contents

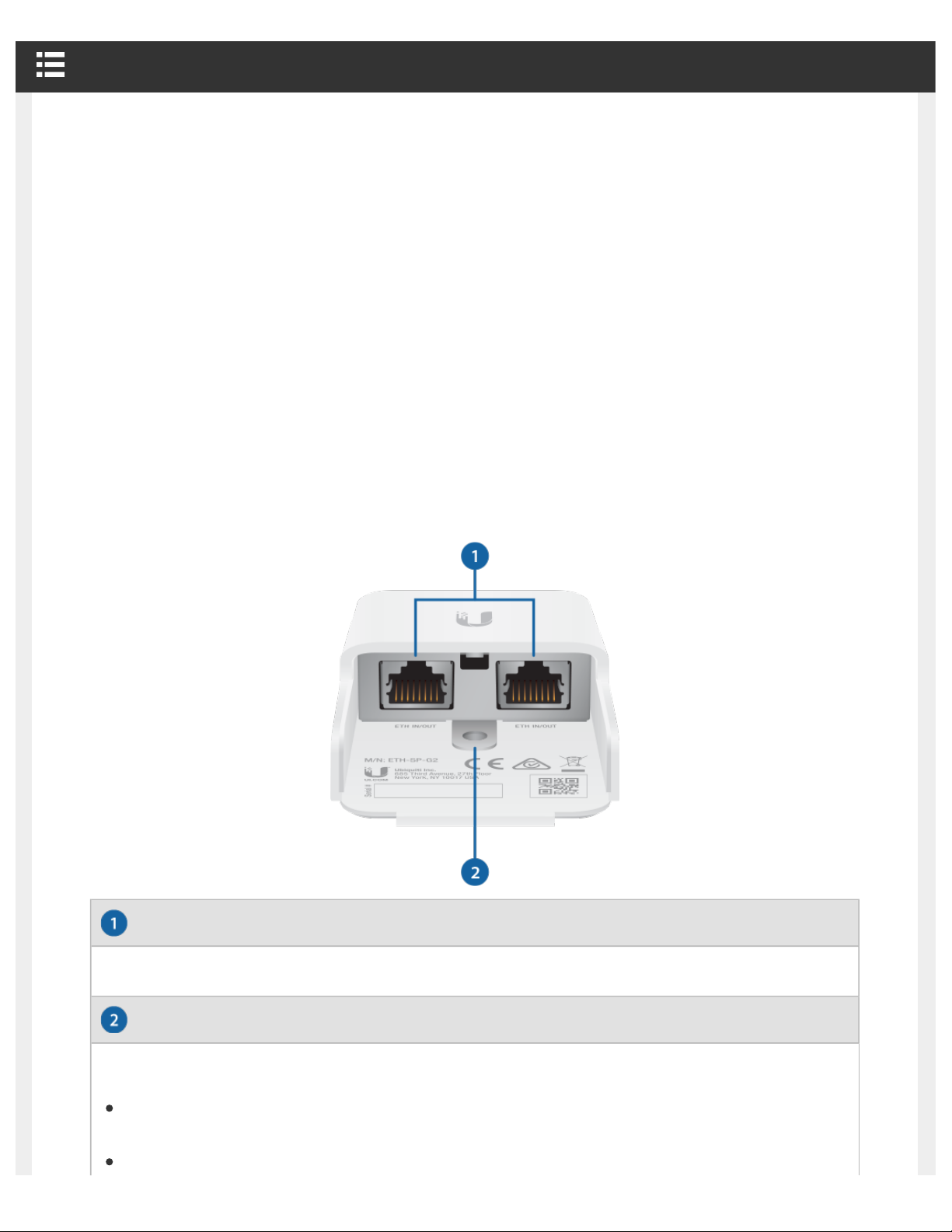

Hardware Overview
Passive surge-protected RJ45 Ethernet ports.
The ETH-SP-G2 must be grounded by one of the following methods:
Using the included Self-Tapping Screw to ground the ETH-SP-G2 directly to a grounded
metal pole or structure; or

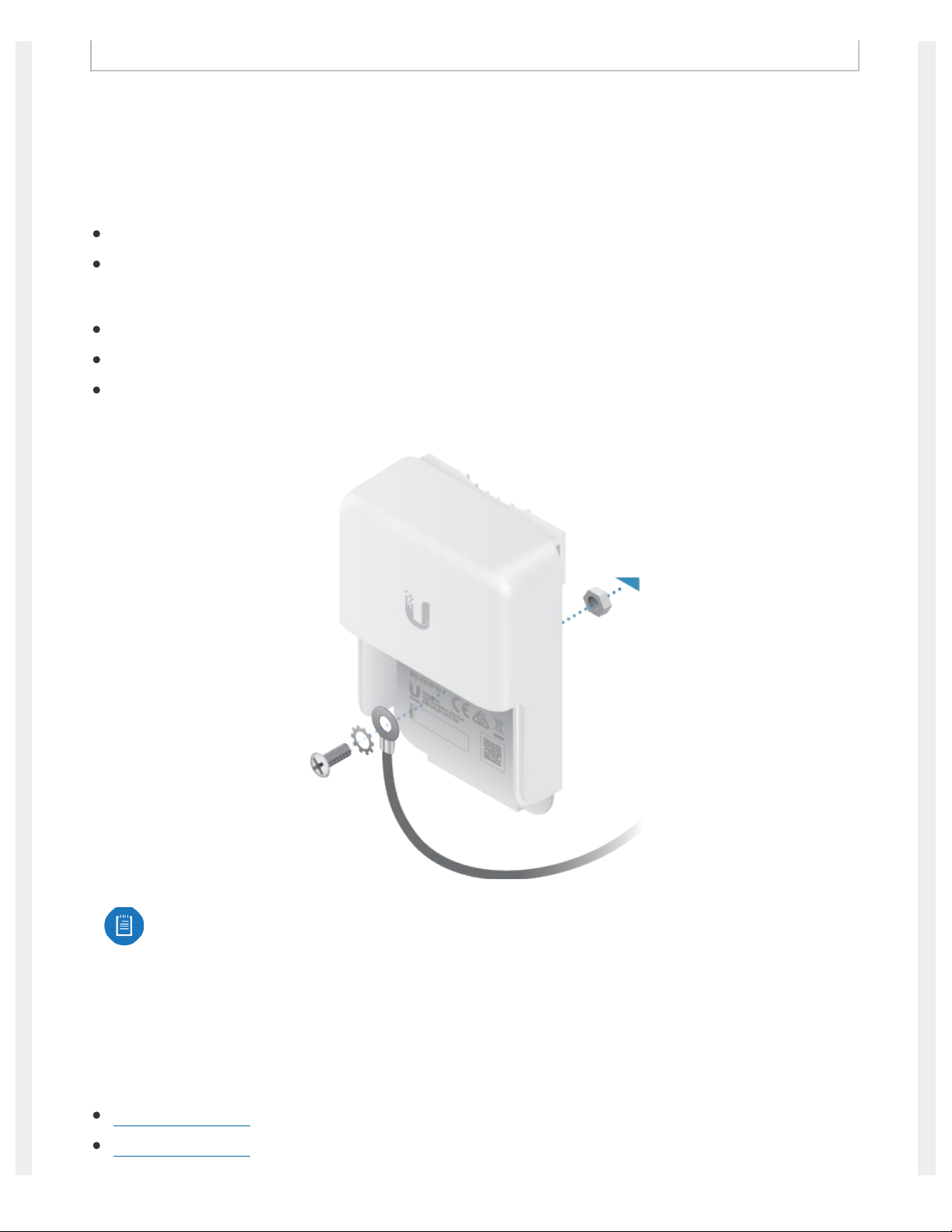

Using an M5 machine screw and nut (not included) to attach a drain wire that is
ETH-SP-G2 Quick Start Guide

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
connected to a remote grounding block or structure.
Installation Requirements
Mounting accessories and optional drain wire are not included.
Pole-Mounting:

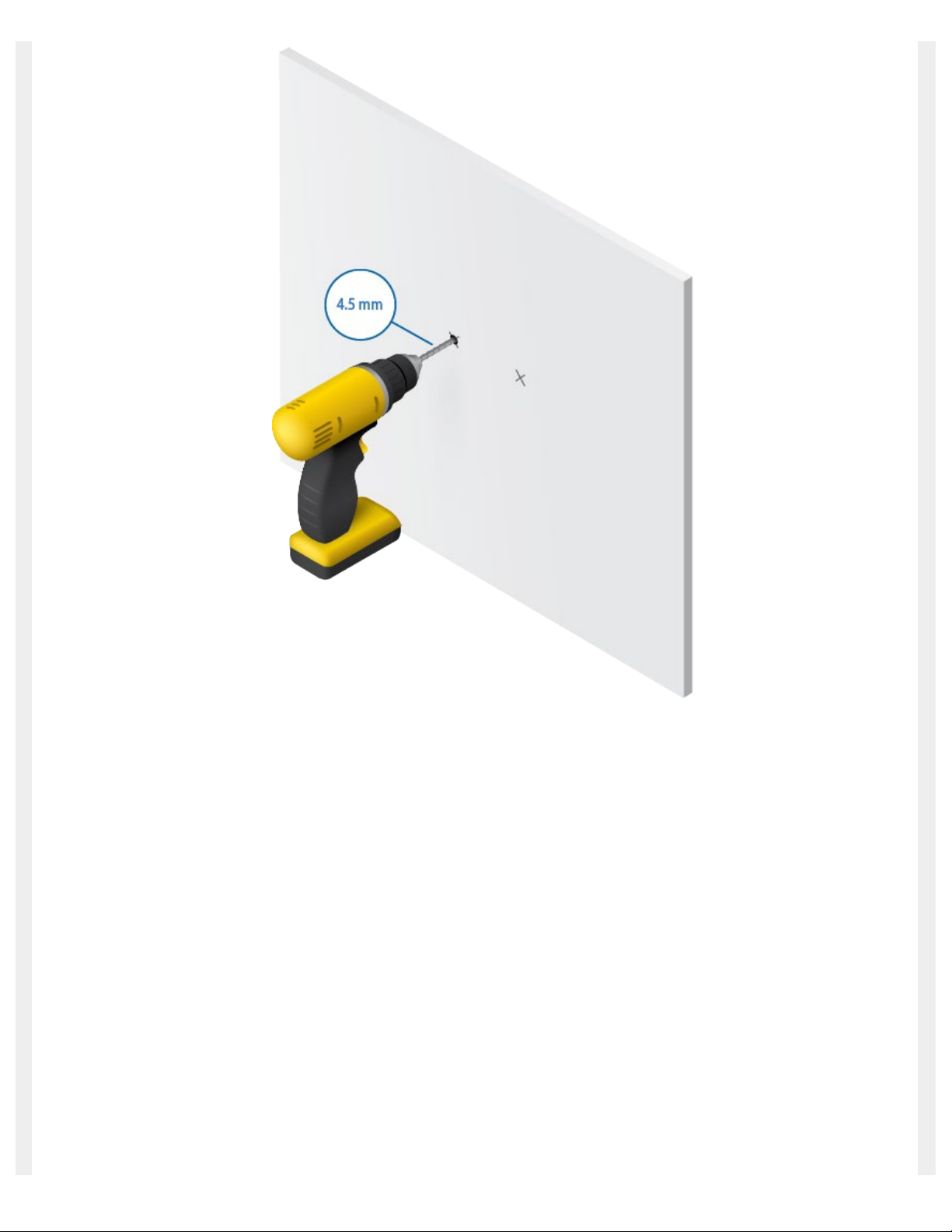

Drill with a 4.5 mm drill bit
(1) Metal strap or cable tie
Wall-Mounting:
(2) Screws (≤ 5 mm screw head)
(1) M5 machine screw and nut
(1) Drain wire (≤ 16 AWG, ≤ 40 cm)
Optional: Drain wire, M5 machine screw, and nut are not included.
Note: Place the included Serrated Washer between the screw and drain wire.
Installation
Install the ETH-SP-G2 near an Ethernet device. Follow the appropriate steps for your
installation:
“Pole Mounting”
“Wall Mounting”

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
Pole Mounting
A metal strap or cable tie is not included.
1.
Note: If the Ethernet device is mounted on the pole with a metal strap, you may
use the same strap to attach the ETH-SP-G2.
2.
3.

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
Note: If you are using a drain wire for grounding, proceed to “Connecting
Ethernet”.
4.

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
5.
6. Proceed to “Connecting Ethernet”.

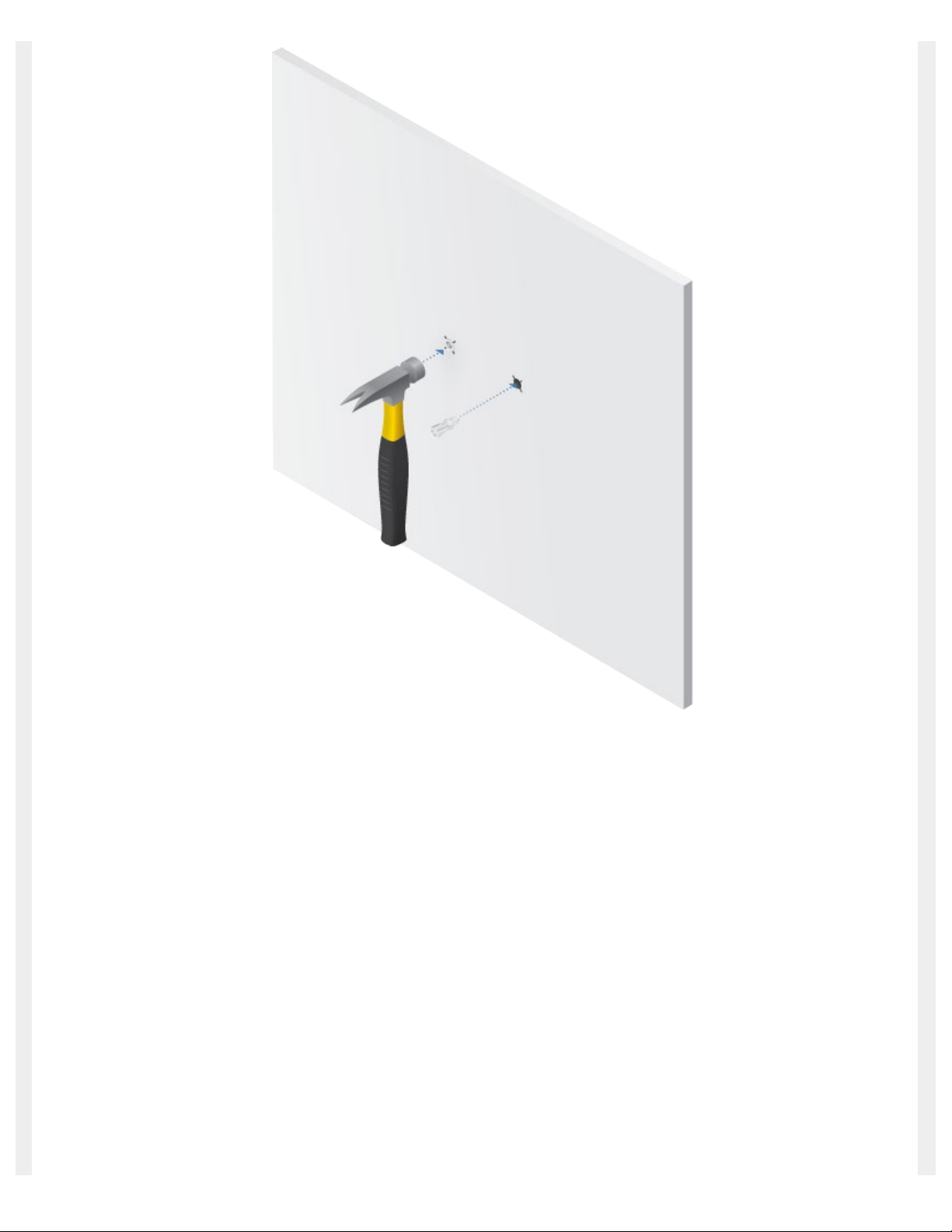

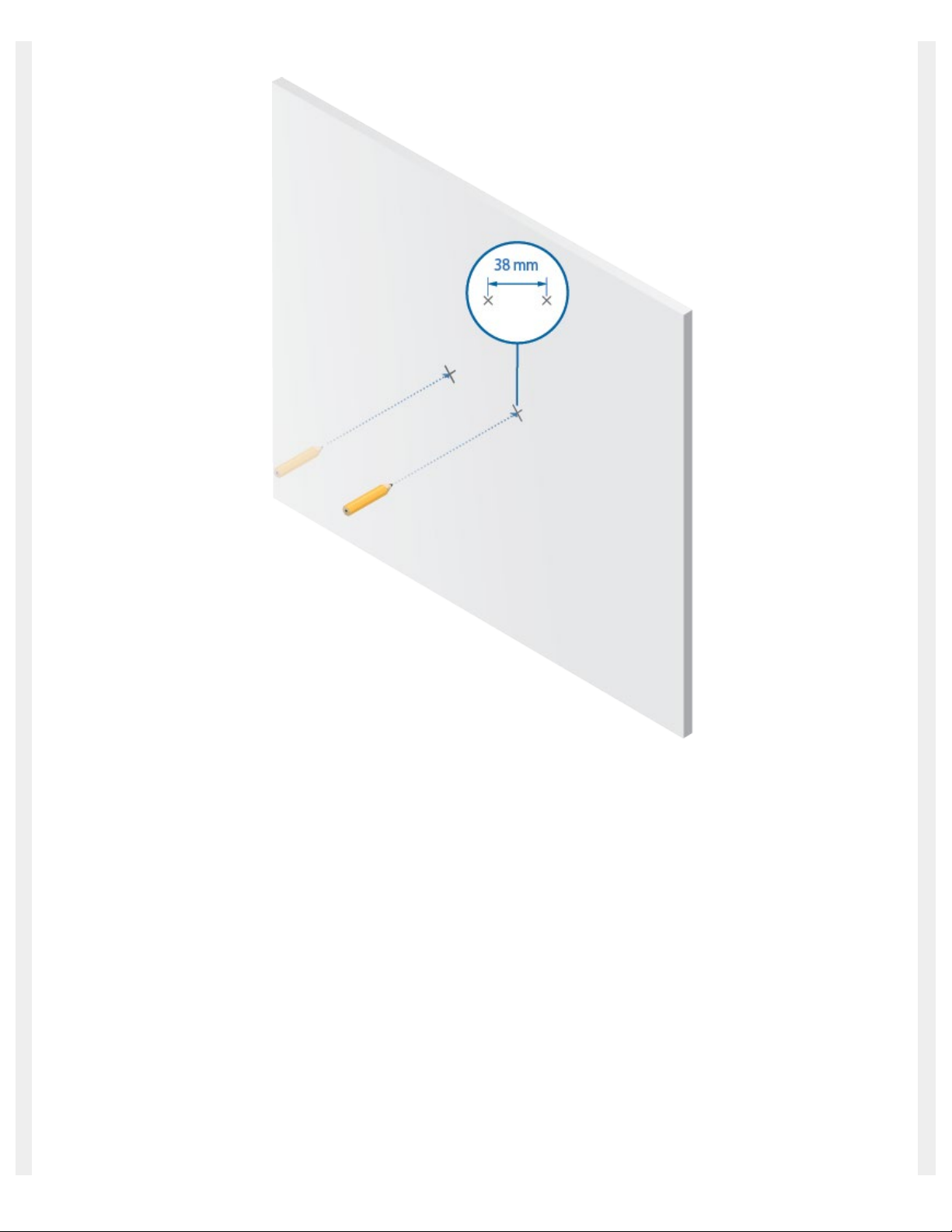

Wall Mounting

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
1.
2.

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
3.

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
4.

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
Connecting Ethernet

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
Specifications
ETH-SP-G2
Dimensions 91 x 61 x 32.5 mm
(3.58 x 2.4 x 1.28")
Weight 80 g
(2.82 oz)
Interface Connections (2) RJ45 Female Connectors
ESD/EMP Protection Absorbing Transient Current with Response to Surge
Voltage from 100V/s to 1kV/µs
DC Spark-Over Voltage 90V @ 100V/s
Maximum Impulse Spark-over Voltage 700V @ 1kV/µs
Discharge Current 15kV
Maximum Insulation Resistance 1GΩ @ 50V
Maximum Capacitance 1.0 pF @ 1 MHz
Data Line Protection RJ45 10/100/1000 Ethernet
IEEE 802.3af PoE Support Yes
Shock and Vibration Certification ETSI300-019-1.4 Standard
Operating Temperature -30 to 65° C
(-22 to 149° F)
Operating Humidity 10 to 90% Noncondensing

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
WARNING: Do not use this product in location that can be submerged by water.
WARNING: Avoid using this product during an electrical storm. There may be a remote risk of
electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the
manufacturer’s label. Connection to a different power source than those specified may result in
improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a
qualified service technician.
3. The equipment requires the use of the ground wire as a part of the safety certification, modification or
misuse can provide a shock hazard that can result in serious injury or death.
4. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to
connecting the equipment.
5. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate
short-circuit backup protection.
Limited Warranty
ui.com/support/warranty
The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where
applicable, specify arbitration instead of jury trials or class actions.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
ISED Canada
CAN ICES-3(B)/NMB-3(B)
Australia and New Zealand
CE Marking
CE marking on this product represents the product is in compliance with all directives that are applicable
to it.
WEEE Compliance Statement
Declaration of Conformity
Online Resources

ETH-SP-G2 Quick Start Guide
https://dl.ubnt.com/qsg/ETH-SP-G2/ETH-SP-G2_EN.html[1/20/2020 4:04:01 PM]
© 2020 Ubiquiti Inc. All rights reserved.
