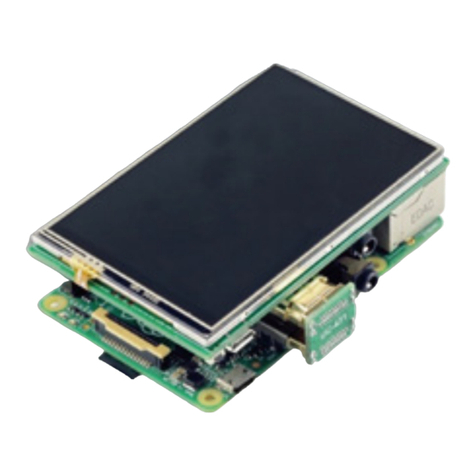

Uctronics U6111 User manual

3.5” Raspberry Pi Touch
Screen Display LCD
Panel, SPI Interface
(High-Speed Version)
Model: U6111
SPECIFICATION
Display
3.5” (Diagonal)
Native Resolution
480×320 pixels
Video Input Support
480×320 ~ 1920×1080(scaled)
Video Interface
SPI 125MHz
Dual Display Support
Yes, up to triple on Pi 4
Power Input
Raspberry Pi GPIO power pins
Dimensions
85.6mm×55.98mm
Touch Screen Support
Raspbian, Ubuntu, Kali,
RetroPie
Raspberry Pi Support
Support all standard Raspberry Pi
Display Refresh Rate
60fps (MAX)
Hotplug Support
Yes
Backlight Control
On-board backlight switch
Power consumption
5V/150mA
Working temperature
-10~55 C
Weight
50g
INTRODUCTION
UCTRONICS U6111 is a 3.5” TFT LCD display with SPI
interface and touchscreen support. It works with all
standard Raspberry Pi models and supports operating
systems like Raspbian, Ubuntu, Kali and RetroPie. Win-
dows 10 IoT is NOT supported.
PACKING LIST
For U6111
●UCTRONICS 3.5” SPI Pi screen
●This instruction Manual
VARIATIONS
●U6111: Display
●U611101: Display with case
For U61101
●UCTRONICS 3.5” SPI Pi screen
●Acrylic case set
●This instruction Manual
HARDWARE INSTALLATION
Figure 1 Dimension and Pinout
Figure 2 Align pins and connect to Pi

PIN DEFINITION
PIN NO. PIN NAME DESCRIPTION
1, 17 3.3V 3.3V power from
Raspberry Pi
2, 4 5V 5V power from Rasp-
berry Pi
3, 5, 7, 8, 10, 12,
13, 15, 16 NC Not Connected
6,9,14,20,25 GND Power Ground
11 TP_IRQ
Touch Panel Interrupt
request, LOW level for
detected panel touch
18 LCD_RS
Register Selection,
LOW level for com-
mand, HIGH level for
data
19 LCD_SI /
TP_SI LCD/ Touch Panel SPI input
21 TP_SO Touch Panel SPI output
22 RST Reset
23 LCD_SCK /
TP_SCK LCD / Touch Panel SPI clock
24 LCD_CS LCD chip select, LOW
level enabled
26 TP_CS Touch Panel chip select, LOW level
enabled
TROUBLESHOOTING
Q1: Why am I getting a UCTRONICS logo instead
of the video feed for about a minute when boot-
ing up?
Our drivers need to be loaded on startup, which takes a
little time. It’s expected to see the UCTRONICS logo. The
staying logo also serves as a self-detecting method, and
if the driver is not correctly installed, the logo won’t go.
Q2: The screen stays after I shut down the system.
How do I turn that o?
Like the red indicator light on the Pi, it’s normal for the
screen to stay because the Pi board still feeds power to
it. Please unplug the power cable of your Pi or toggle
the backlight on/o button of the screen above the Pi
power port.
Q3: Why is my desktop monitor not responding to
the dual-display setup?
The native resolution of the display is 480x320, which is
not supported by all monitors. For any dual-display
setup, make sure you set the resolution of the system to
one that’s supported, like 640x480 or 1920x1080. Howev-
er, higher resolutions may leave the contents unreada-
ble on 3.5” screens.
DRIVER INSTALLATION
The screen will not work without installing the driver.
Connect to the Pi and install the driver before using the
screen. There are 2 ways to control the Raspberry Pi.
1. Connect the Raspberry Pi to another working
display.
2. Connect with an SSH client like PuTTY. Make sure
your Pi is connected to the Internet before you
proceed.
Run the following commands to download and install
the LCD driver.
For dierent operating systems, the step 3 varies. You
need to enter the folder with the name of your specic
system. Take the Raspbian for example:
CONTACT US
If you need any further support, feel free to contact us.
●Website: https://www.uctronics.com
●Email: [e-mail]
