Ultima 250 Series User manual

www.UltimaDentalSystems.com
[phone]
ULTIMA 250 SERIES
Owners Manual

1 | P a g e
www.UltimaDentalSystems.com

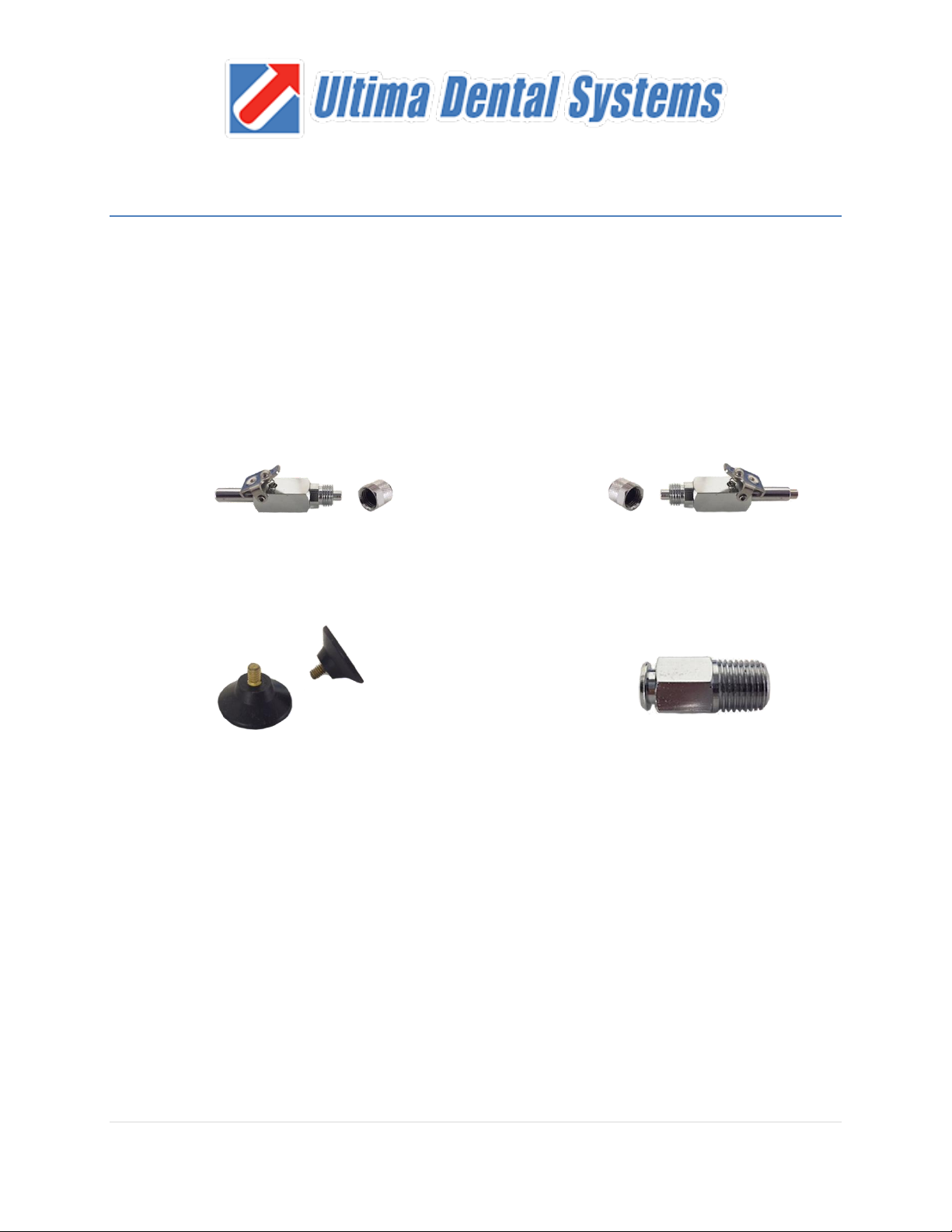

Ultima 250 Table-Top
Inside the units’ removable top are two male quick disconnect fittings one with shut-off and one
without, along with Suction feet for the table-top unit. Un-screw the sliver thumb screw located at
the top of the unit. The two suction feet provided are to ensure more stability for the unit on a table
top surface, even if the water bottles are empty. To make a more permanent installation in a
location, simply screw in the unit to a flat surface.
Male Quick Disconnect w/o Shut off Valve Part # UD0277
Male Quick Disconnect w/ Shut Off Valve Part # UD0276
Suction Feet
Air Source Female Quick Disconnect Part # UD0148

2 | P a g e
www.UltimaDentalSystems.com

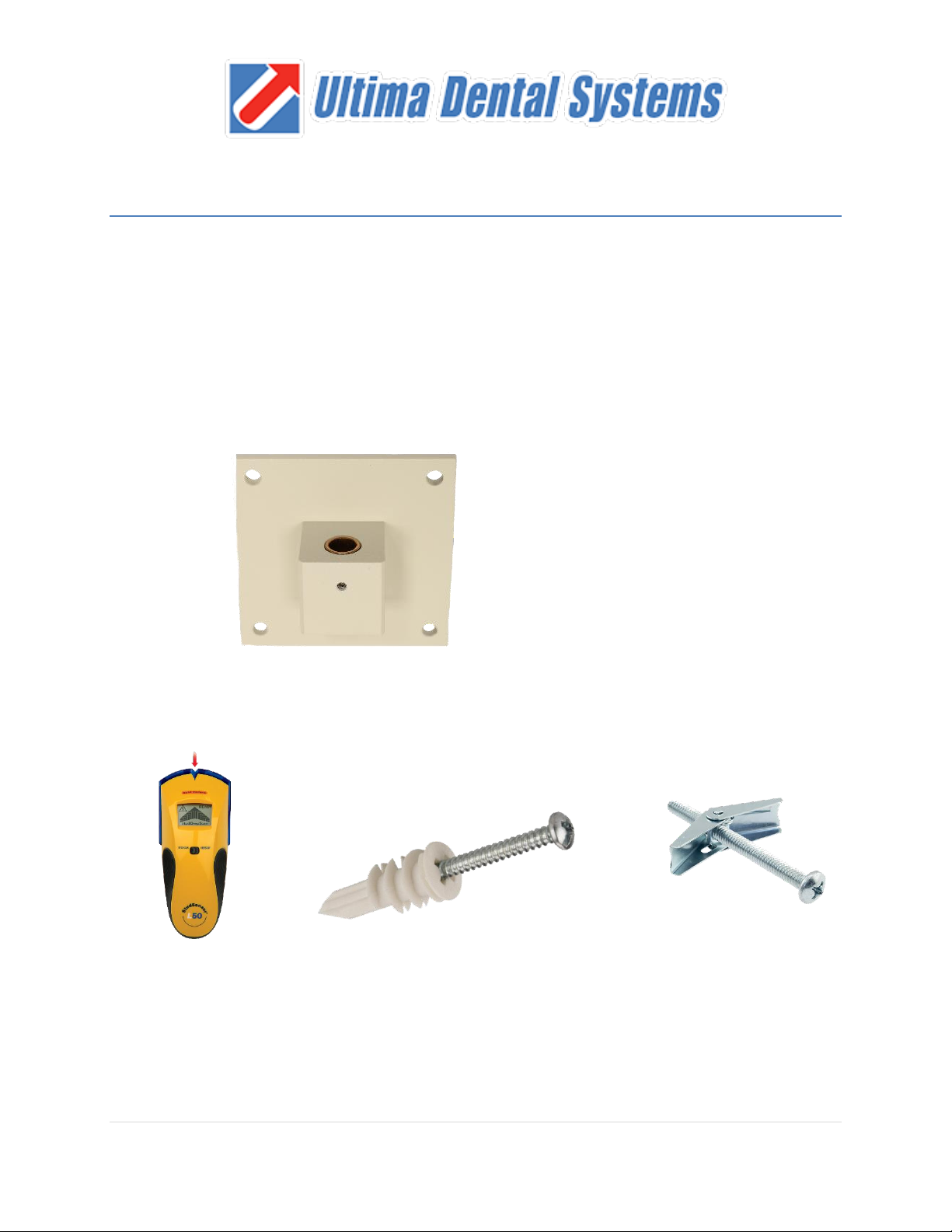

Ultima 250 Arm Wall/Pole Mount
WALL MOUNT
When installing the wall mount for the Ultima 250 Arm unit, it is best if the wall mount is screwed
into and secured to a wall beam. Use a stud finder, which can be found in most hardware stores,
to locate a beam in the area the Ultima 250 will be installed. However, if this is not possible a
second option is to use Drywall mollies to secure the wall mount, preferably the butterfly type that
spring open behind the drywall for extra holding power.
Stud Finder
Drywall Anchor
Butterfly Drywall Anchor
Wall Mount Part # UD0103

3 | P a g e
www.UltimaDentalSystems.com

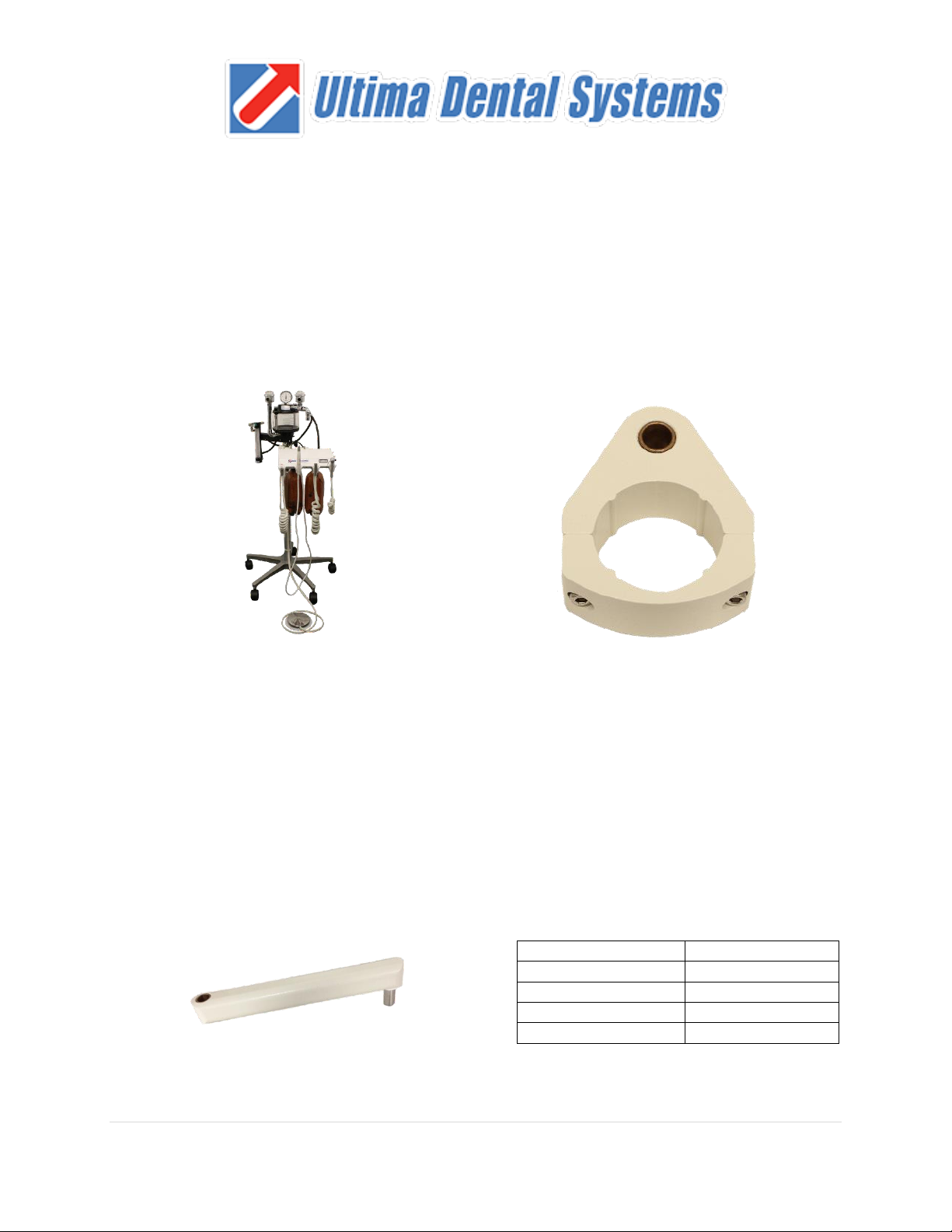

POLE MOUNT
Pole mount attachmentsare available for U250 Series Arm units so theycan be securely attached
to anesthesia poles. When installing the pole mount be sure you have the right size pole mount
for the pole you are connecting it to. The pole mounts are available in two sizes 1 ¾” and 2”. On
the pole mount there are two allen (Hex) screws, one on either side of the mount. Simply, un-
screw the allen (Hex) screws to open the pole mount. Place the mount around the pole and re-
attach the other half, tighten the screws on the pole mount until tight and secure.
Both Table-Top and Arm units include a standard 12” arm attachment. Additional 6”, 8”, 12” and
16” arm attachments are also available. The Ultima 250 Arm units make it possible to connect to
as many arm attachments as needed to achieve the correct length necessary for any practice
environment. To order additional arm attachments contact the local distributor in your area or call
The UDS Support team directly at [phone].
Description
Part #
6” Folding Arm
UD0104
8” Folding Arm
UD0105
12” Folding Arm
UD0106
16” Folding Arm
UD0107
1 ¾” Pole Clamp Part # UD0101
2” Pole Clamp Part # UD0102
Ultima 250 Arm unit mounted on Anesthesia pole

4 | P a g e
www.UltimaDentalSystems.com

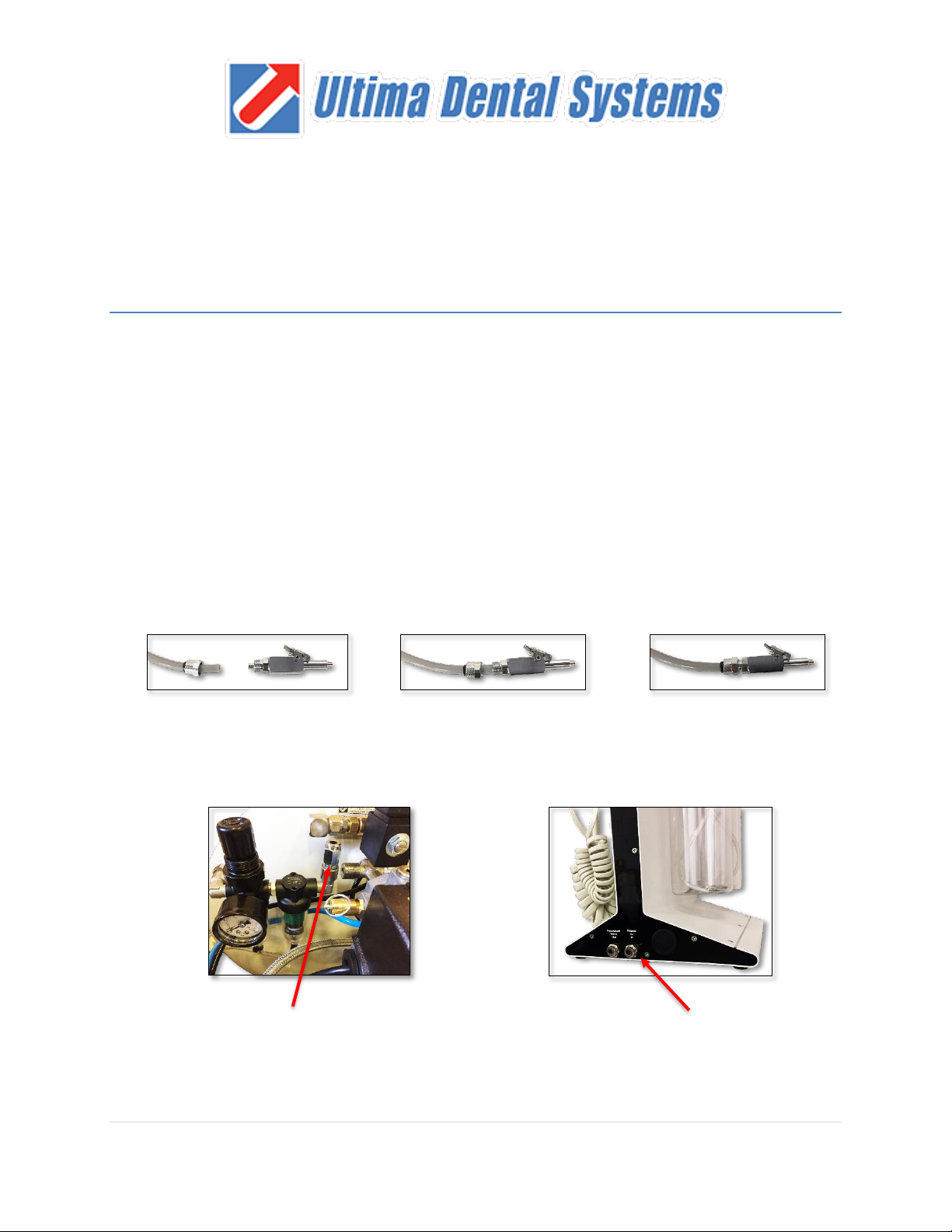

Set-Up and Installation
Air Source
COMPRESSED AIR
To begin working with the Ultima 250 dental unit using an air compressor, you will need ¼ outside
diameter tubing. Cut the ¼” tubing to the length needed between the compressor and where the
unit will be used. Connectthe male quick disconnect fittings provided with the unit to the ¼” tubing,
connect the male quick disconnect without shut-off to the compressor. Run the tubing to the unit
from the compressor and connect themale quick disconnect fitting with shut off valve to the female
quick disconnect fitting on the side of the unit labeled Filtered Air In. Set the air pressure from the
compressor to 70 Psi. NEVER EXCEED 80 Psi GOING INTO THE UNIT!
*If you are using a compressor that is not an Ultima Silent-Surge compressor then additional parts
and fittings may be required. For additional parts contact your local distributor or UDS Technical
Support: [phone]
Place the tubing through the collar on the male quick disconnect fitting provided. Slide the tubing
onto the metal barb on the back of the male quick disconnect fitting. Screw on the collar to the back
of the male quick disconnect and tighten.
Compressor Regulator In-Line
female quick disconnect fitting
Filtered Air in female quick disconnect
fitting on Table-Top model

5 | P a g e
www.UltimaDentalSystems.com

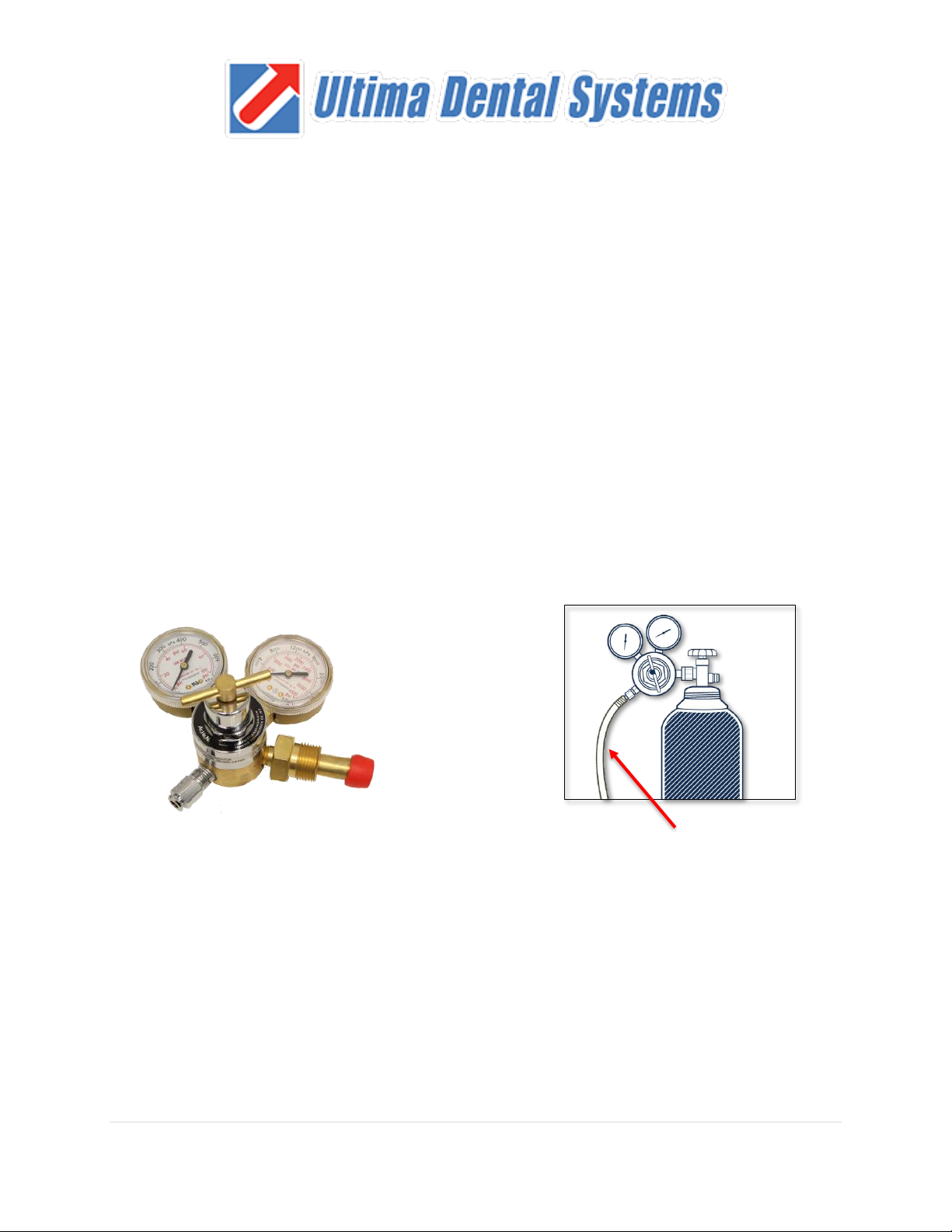

NITROGEN
To begin working with the Ultima 250 dental unit using nitrogen, you will need ¼ outside diameter
tubing. Cut the ¼” tubing to the length needed between the nitrogen source and the location the
unit will be used. Connectthe male quick disconnect fittings provided with the unit to the ¼” tubing,
connect the male quick disconnect without the shut-off valve to the nitrogen source. Run the
tubing to the unit from the nitrogen source and connect the male quick disconnect fitting with the
shut off valve to the female disconnect fitting on the side of the unit labeled Filtered Air In. Set the
air pressure from the nitrogen source to 70 Psi. NEVER EXCEED 80 Psi GOING INTO THE
UNIT!
*If you are using a nitrogen regulator not provided by Ultima Dental Systems then additional
hardware may be required to install the unit. Contact your local gas company for Nitrogen E-tank
and H-tank refills. Ultima Dental Systems only sells H-tank regulators. Your local gas company will
be able to provide you with an E-tank regulator if you choose to use a smaller nitrogen tank.
Nitrogen Regulator Part # UD0278
Nitrogen Regulator In-Line pressure

6 | P a g e
www.UltimaDentalSystems.com

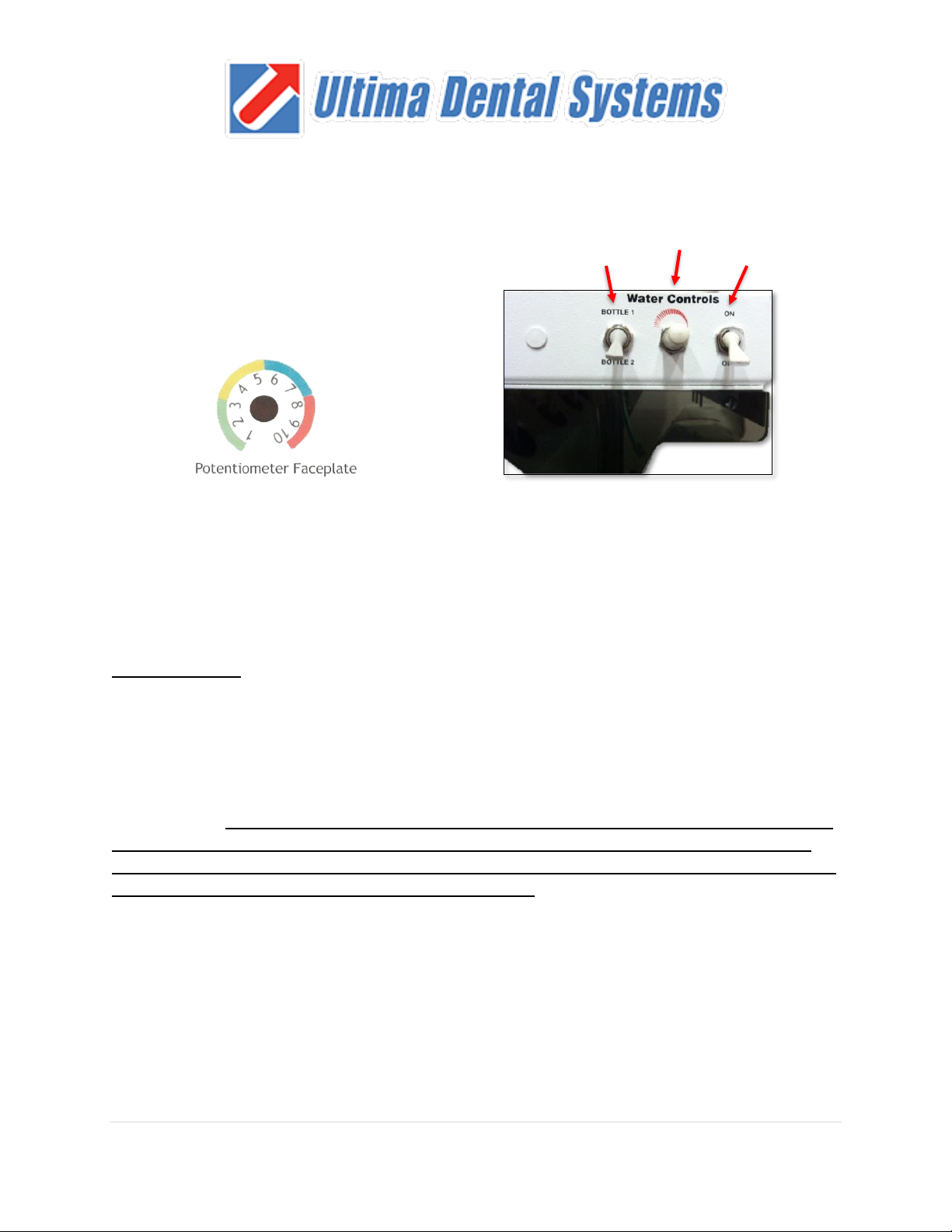

Operation
From right to left;
1. The On/Off Toggle Switch –turn the water on/off to the units hand piece lines.
2. The Volume knob –Allows you to increase/decrease and adjust the water to the hand pieces.
3. The bottle Selector Switch –Allows you to change the water source to the hand pieces
between bottles one and two.* You may fill one bottle with cholhexidine solution and one with
distilled water. (IT IS VERY IMPORTANT TO FLUSH THE HAND PIECE TUBING LINES WITH
DISTILLED WATER AFTER USE FOR THIRTY SECONDS TO A MINUTE TO NOT ALLOW
THE CHOLHEXIDINE TO AND FORM PARTICLES INSIDE THE TUBING LINES, WHICH CAN
CAUSE CLOGS AND BLOCKAGE WITHIN THE UNIT).
4. The white cap next to the bottle selector switch is a pre-drilled hole available if you decide to
upgrade to a Piezo Scaler.
You will also find the Ultima 250 units to be extremely user/repair friendly. On the top of the unit
there is an easy to remove lid secured by a silver thumb screw. To gain access to the U250
components simply un-do the silver thumb screw.
(1)
(2)
(3)
)
If the unit has a Piezo electric scaler there
will be a numbered color power dial
Located on the side of the
Ultima 250 Units are the controls

7 | P a g e
www.UltimaDentalSystems.com
Operation
On the Ultima 250 units only one hand piece can be run at a time. They are activated by an
automatic holder when removed from its place. The hand piece must be placed in the same holder
to de-activate the hand piece in order to allow another hand piece to function. The holders and
hand piece tubing has been color coded for your convenience. Red is the low speed hand piece
(Polisher), White is the accessories line or Piezo line if the unit is equipped with one, and Blue is
for the high speed drill. The hand piece pressures have been preset at the factory. To run the
hand piece simply step on the foot control pedal. Hand piece Pressures: HP 1. Red line (Polisher)
should be set to 40 –50 Psi, HP 2. White line is an accessories line and is not set, HP 3. Blue
line (High speed drill) should be set to 32 Psi. To change individual hand piece pressures look on
the back of the unit under the captions HP 1, HP 2, HP 3, inside the holes are small adjustment
screws. To decrease individual air line pressure turn adjustment screw clockwise. To increase
individual air line pressure turn counter clockwise.
To install hand pieces simply mate the rear end of the hand piece with the hand piece tubing
connector.
1. The UDS low speed hand piece (Polisher) is a 4:1 E-style hand piece with a 20,000 Rpm
motor. Meaning the motor is powerful enough for a 1:1 nose cone or contra angle, making
it useful on procedures for small animals such as rabbits, and more advanced method
such as modeling of teeth.
2. If your unit is equipped with a Piezo Scaler built into the middle white accessories line do
not worry about the pressure setting for this, as it is an electric Scaler and only uses air to
turn a switch on and off.
3. If your unit is equipped with a fiber optic high speeddrill note that it has aneighteen second
delay. This is a great feature; the eighteen second time delay on the hand piece allows
you to use the drill as a light wand.
4. The 3 Way syringe is used by depressing the right button for a burst of air, the left button
for a stream of water, both buttons depressed will produce a mist.

8 | P a g e
www.UltimaDentalSystems.com
Operation
To refill water bottles it is not necessary to disconnect the Ultima 250 unit from the air source. To
refill the water bottles, simply un-screw the bottles slowly until air begins to escape, wait two
seconds and un-screw the bottle the rest of the way off the pressure head, refill and then re-
attach.
Basic Maintenance
The Ultima 250 Series dental units require very little maintenance.
1. Always keep handpieces oiled with liquid handpiece oil.
2. Disconnect air source going into the unit each night to allow the unit to vent.
3. Always remember to flush out the tubing lines with distilled water when using an antiseptic
solution such as chlorhexidine.
4. Always use distilled water in the unit.
5. Wipe down unit with any disinfectant after use.
The Ultima 250 units are guaranteed for five years against any manufacturing defects.
If you have any questions or require any additional assistance, please do not hesitate to contact
the UDS Technical Support Team: [phone]

9 | P a g e
www.UltimaDentalSystems.com
Piezo Scaler Quick Reference Guide
Magnetostrictive vs Piezo Electric Scalers
What’s the difference?
Developed In the 1950’s, Magnetostrictive units (cavitron style) vibrate a tip (insert) at either 25k or 35k
(cps). The handpiece of a magnetostrictive ultrasonic is hard wired into the ultrasonic unit, therefore it is
not detachable nor autoclavable.
The tip is attached to several long metallic stacks. These stacks are inserted into the handpiece. Under the
handpiece and surrounding the metal stacks are several coiled wires which when excited by electricity give
a vibration to the insert’s stacked metal plates caused by a “magnetic field” which is produced. The tip of
the insert vibrates in an elliptical motion.
The handpiece generates a tremendous amount of heat, which requires a high volume of water to
constantly run through the hand piece to keep it cool. This excessive amount of water causes the
practitioner poor visibility. IT BASICALLY WORKS LIKE A JACK-HAMMER.
Piezo was first developed in 1972 by SATELEC. The handpieces are detachable and autoclavable. Inside
the hand piece is the “transducer”. The transducer consists of ceramic disks stacked next to one another.
These ceramic disks have high quartz content and when excited with electricity they compress and
decompress causing a controlled vibration, the result is an ultrasonic vibration in a linear motion (forward
and backward) on the same plane as the handpiece.
There is very little to no heat generated in the handpiece requiring a minimal amount of water, which means
better visibility for the practitioner and a dryer patient. The water from the tip flushes removed deposits and
is required for “the cavitation effect” to de-bride bio-film.
The linear tip motion is also more efficient and more comfortable. When the magnetostrictive tip vibrates, it
bangs on the surface of the tooth to knock calculus off in chunks, where as a piezo tip vibrates linearly so
the tip works along the tooth surface, shaving calculus off in sheets. Satelec piezo ultrasonic scalers also
leave the tooth surface smoother than other ultrasonic scalers, sonic scaler, and hand instrumentation.
Visit www.UltimaDentalSystems.com for helpful videos and tips on how to get the most out for
your Ultima!
For technical assist or questions, simply call [phone] and one of our knowledgeable
customer support members will help you with what you need Monday through Friday 9am to
5pm Est.

10 | P a g e
www.UltimaDentalSystems.com

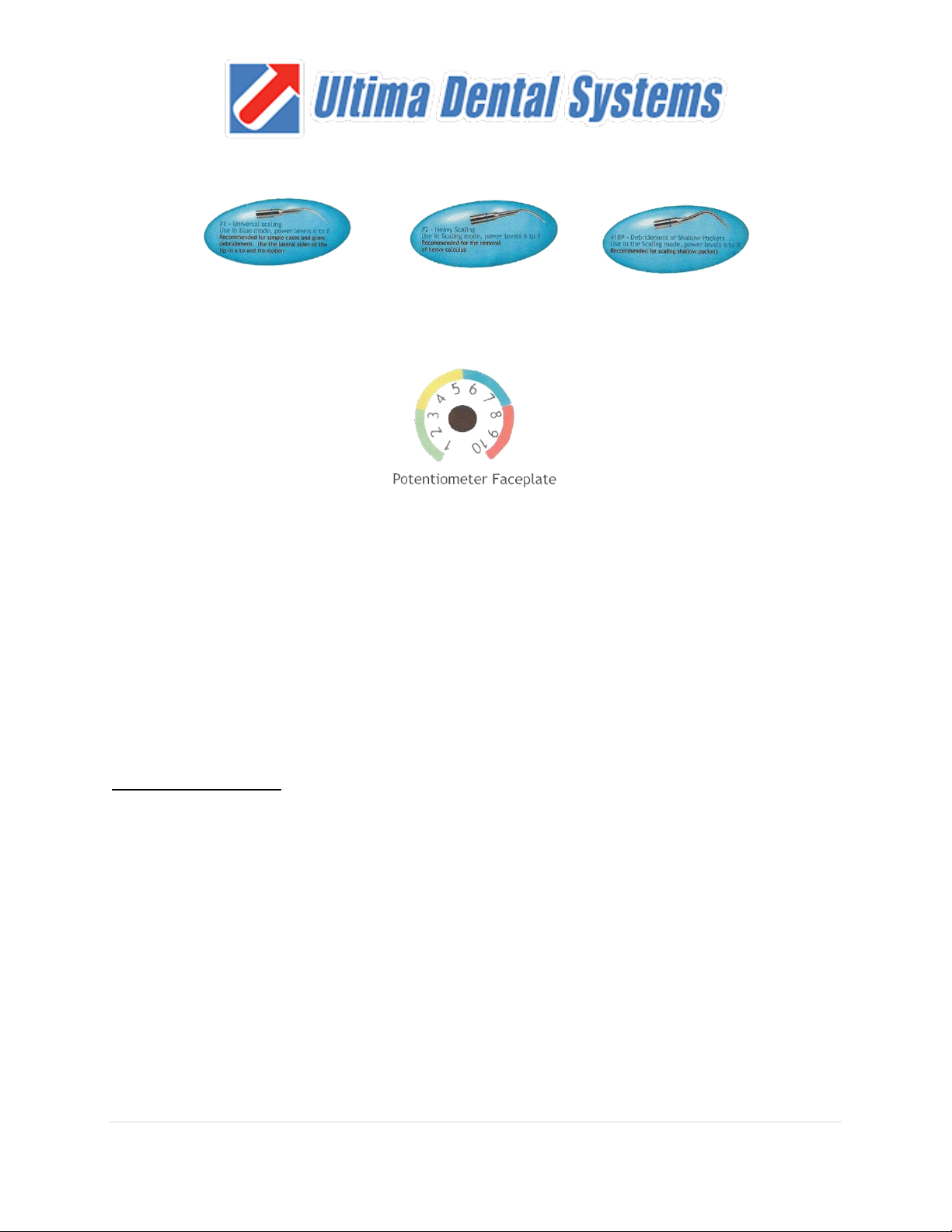

#1 Universal –Part 54121 #2 Heavy Scaling –Part # 54122 10P Perio –Part # 54130
Ultima dental units with built in Satelec piezo scaler come standard with 3 scaling tips. The #1 Universal
tip is recommended for simple cases and gross debridement. The #2 tip is recommended for the removal
of heavy calculus and the 10P tip is recommended for scaling shallow pockets. Satelec offers over 70
different tips that require different levels of power. This is why the Potentiometer (Power Dial Knob) is
numbered 1-10 and is color coded. The scaling tips that come standard with your Ultima unit are color
coded blue and should be operated in the blue zone between 6 and 8.
Most likely, you are coming from years of working with a cavitron or similar magnetorestrictive type unit. If
that is the case you are in for a very pleasant surprise.
Water Flow
Cavitron user are accustomed to heavy water spray. With piezo technology, the handpiece doesn’t heat
up so only the tip requires cooling reducing the amount of water used tremendously.
Adjusted the Water Flow
1. Screw on the #1 tip (Universal) onto the handpiece until it is hand tight. Then use the scaler tip
wrench provided and give it an extra half turn to securely tighten the tip. When screwing the tip
onto the handpiece ensure that it is screwing on smoothly, if the tip is not screwing on
smoothly do not force it, otherwise you will end up cross threading the handpiece and tip.
Use care when tightening the tips, excessive torque may cause damage to the tip and/or
handpiece.
2. Turn the power control dial down to its lowest setting.
3. Flip the water control switch to the ON position. Using the water flow knob, start to “inch” it up
slowly until you get a drop rate of about 2-3 drops of water per second.
4. Turn the power control dial up to its intended operating range, which in this case would be the
Blue zone. You’ll be pleasantly surprised to find that 2-3 drops of water is all that you need. This
small amount of water creates a very fine mist which produces a “halo” effect around the tip
providing improved visibility for the techinician.

11 | P a g e
www.UltimaDentalSystems.com
Technique
Cavitron users are accustomed to utilizing magnetorestrictive tip differently from the way a Satelec tip
should be used. With the elliptical motion a cavitron provides, the technican is accustomed to using the
front, side or back of the tip to bang the tooth to remove calculus. With piezo the process is different
because the tip vibrates on the same plane as the handpiece. The tip moves forward and back, making
the laterl side of the tip extremely efficient for shaving calculus. This stroke is a mirror image of hand
instrumentation, with extraordinary results achieved, requiring only very little pressure resulting in no hand
fatigue.
Maintenance and Preventive Care
Tips
Only Satelec tips should be used. Use of other manufactures tips will result in poor performance and/or
damage to the scaler handpiece. Care should be excercised when tightening tips on the handpiece.
Excessive torque may cause damage to the tip and/or handpiece.
Tips without water ports
Use of tips without water ports can cause water to leak into the handpiece damaging it. User must turn off
water when using a tip without a water port.
Handpiece and tubing
If using irrigating fluids other than water, the cord and handpiece should be flushed out with distilled water
for at least one minute. The handpiece should be disconnected from the cord after use. Dry the connector
end of the handpiece and the handpiece tubing with air using the 3 way syringe on th dental unit. This will
avoid moisture and dirt from accumulating which may cause problem with the connectors.
Handpiece tubing
During normal use the handpiece tubing should not require any maintenace. Care should be excercised
to avoid stepping on or rolling over the cord with the dental unit, as this can cause damage to the wires
and hoses inside.The handpiece tubing may be cleaned with a cloth moistened with alcohol only.
Handpiece cleaning
Remove tips from handpiece. Wipe the casing with a cloth moistened with alcohol. Place the handpiece in
an autoclave pouch. Autoclave cycles will vary and it is recommended to consult your autoclave
manufacture for sterilization cycle recommendations.
The Satelec handpiece can withstand the following tempertures and pressures:
134 degrees celcius, 2 bar for 20 minutes
121 degrees celcius, 1 bar for 40 minutes
Chemclaving of the handpiece is not recommended and may shorten the life of the handpiece.

12 | P a g e
www.UltimaDentalSystems.com
The handpiece should not be cold sterilized or submerged in any liquid as it will damage the handpiece.
Handpiece maintenace
The small o-ring on the handpiece should be inspected on a regular basis. If the o-ring is damaged it
should be replaced. The small o-ring should be replace every six month, or every two to three months if
the handpiece is regularly autoclaved. An installation tool and three extra o-rings are provided in the
handpiece box. Additional o-rings may be ordered using Part # 54138. The large o-ring should not require
replacement during normal service. If the large o-ring should become damaged a replacement may be
obtained using Part # 54136.
Warranty
Satelec piezo scaler are covered under warranty for 1 year following the date of purchase against defects
in material or worksmanship. A copy of an invoice is required as proof of date of purchase. Warranty is
void if it is determined that the product has sustained malicious or delberate damage. Tips have a 90 day
limited warranty.

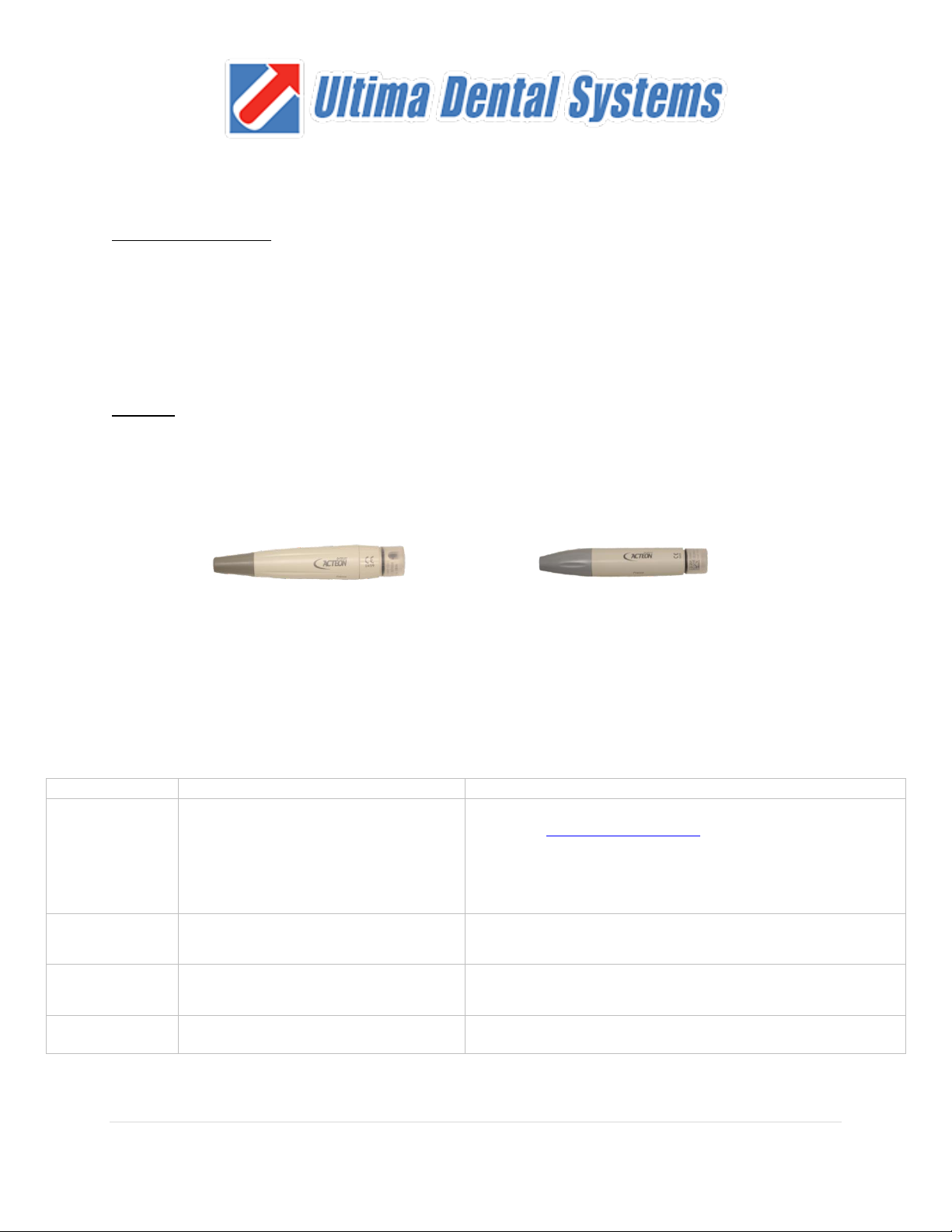

Piezo Scaler Quick Reference Guide
Fault Detected
Possible Causes
Solution
Handpiece does not
vibrate
1. Faulty handpiece cord & connector
2. Scaler cord wire cut
3. Handpiece damaged
4. Electrical contacts on cord are loose
5. Tip worn or distorted
1. Unplug the scaler unit and wait 30 seconds to reset the scaler module
2. Replace tip, worn tips will not allow the scaler to function properly
3. Visit www.UltimaDentalSystems.com to watch the instructional video on how
to remove the scaler you’re your Ultima 500 series dental unit. Contact the
UDS Technical support team for further instructions on where to send the
scaler in for repair [phone]
Weak Vibration
1. Tip worn or distorted
2. Tip over tighten
3. Incorrect use
4. Fluid in the cord connector
1. Replace the tip/Check tip chart to see if worn
2. Tighten the tip using the tip wrench
3. Dry electrical contacts
Fluid leakage between
hand piece and cord
1. Worn small water o-ring
2. Worn large handpiece o-ring
1. Check the small water o-ring on the bottom of the handpiece near the
connector for damage. Replace if needed using Part # 54138
2. Check the large handpiece o-ring on the bottom of the handpiece on the
outer perimeter. Replace the o-ring if needed using Part # 54136
No light
(L.E.D model only)
1. Faulty L.E.D ring
2. Faulty handpiece/cord connector contacts
1. Clean the L.E.D ring contacts/ Replace L.E.D ring
2. Clean the hand piece / cord connector contacts
3. For further assistance call the UDS Technical support team: [phone]
Standard Satelec Handpiece –Part # 54086
LED Satelec Handpiece –Part # 54082

13 | P a g e
www.UltimaDentalSystems.com
Basic Trouble Shooting Guide
Nowater-Scaler/High-speedDrill
1. Check the water on/off toggle switch and make sure it is in the on position.
2. Check the water increase/decrease knob and make sure it is turned up.
3. Grab the 3-way syringe and check to see if you get water from the handpiece.
4. Inspect the water bottles. Check for air leaks around the water bottles and make sure their
secured tightly to the pressure head.
5. Squeeze the bottles to make sure they pressurized; the bottles should be rock hard.
If no water continues to be the issue, the problem may be more involved and may require a
professional dental equipment technician. Other causes of no water issues could involve the
blockage, failure, or damage of the water relay, control block, control block diaphragm, or the
distribution block.
To determine the exact cause of the issue and to schedule an in-office visit by a certified
technician Call Pro Repair Service: 1-800-645-6594. For all other general questions contact the
UDS Technical Support team: [phone].
Please check with the local dental Repair Service or equipment distributor in your area if you wish
to schedule an in-office visit outside of the U.S.A.

14 | P a g e
www.UltimaDentalSystems.com
Basic Trouble Shooting Guide

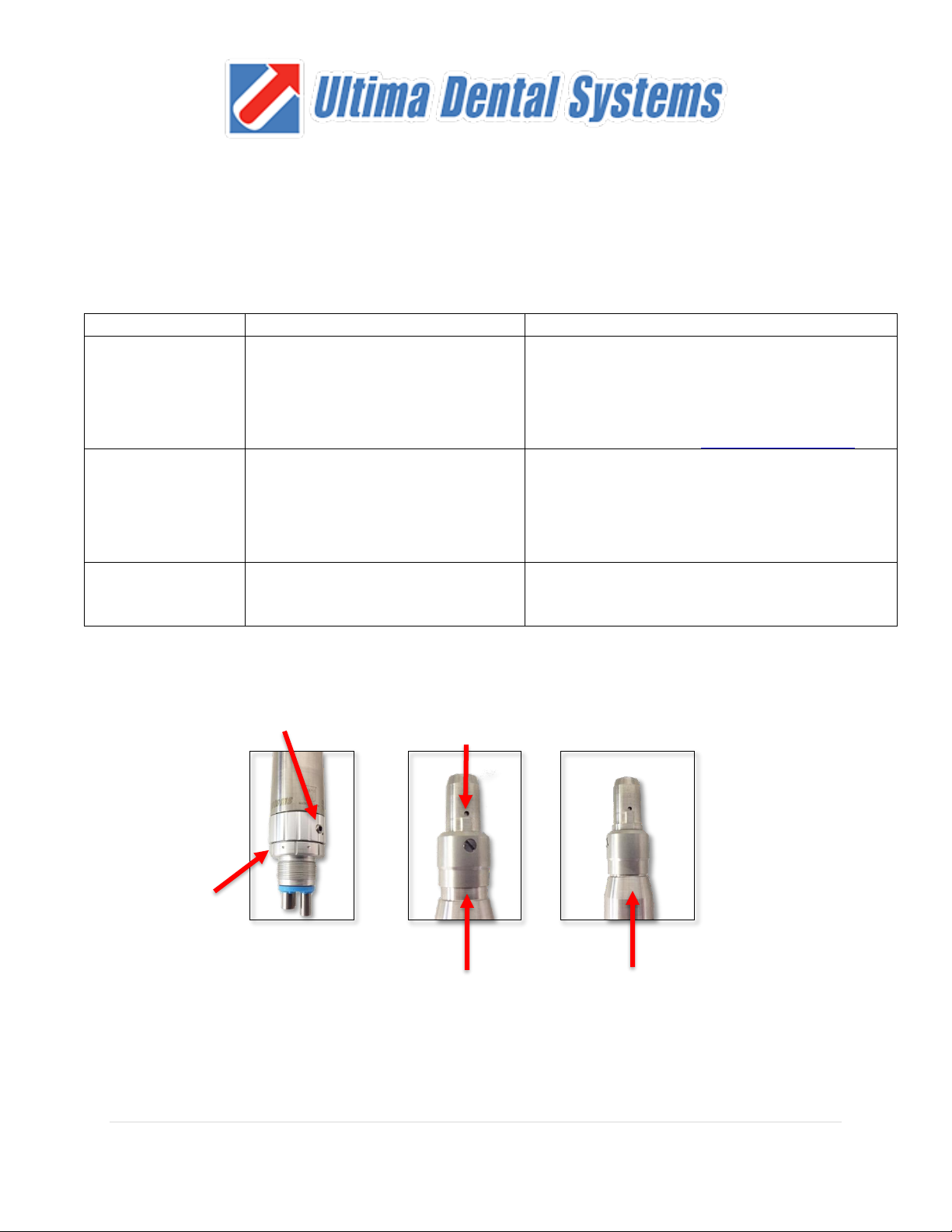

Polisher
Fault Detected
Possible Causes
Solution
The prophy angle
does not spin
1. The prophy is faulty or damged
2. The gear dial is set to the incorrect
position
3. The polisher motor is ceased
1. Replace the prophy angle. The bearings on metal prophy
angles often go bad and need to be replaced. We recommend
using Crosstex disposable prophy angles to prevent costly
repairs (Part # UD0311).
2. Make sure the polisher motor is set to the correct gear. If the
motor is set to the neutral position, the prophy angle will not
spin. (See Picture Below)
3. Try oiling the polisher to break free the ceased motor. Watch
the instruction video at www.UltimaDentalSystems.com.
The prophy angle
will not seat properly onto
the polisher nose cone
1. Faulty or damaged nose cone chuck
2. Prophy angle stem has broken inside of
the nose
1. The nose cone chuck will need to be repaired or replaced.
Contact Ultima Dental Systems to send in your handpiece in
for repair and receive a loaner handpiece while you wait, call
[phone].
2. The prophy angle stem needs to be removed from the nose
cone chuck, this requires disassembling the polisher nose
cone. Contact Ultima Dental Systems to send in your
handpiece in for repair and receive a loaner handpiece while
you wait, call [phone].
The polisher seems weak
and lacks power
1. The pressure is not set correctly for the
polisher handpiece
1. Polisher pressure should be between 40-50 Psi. Adjust gold
screw that reads HP 1 on the front panel if needed. When
adjusting, the pressure turn the screw slowly to avoid damaging
the control block diaphragm.
Gear Lines
Gear Indicator
Prophy Angle Indicator
Collar Up
Collar Down

15 | P a g e
www.UltimaDentalSystems.com
Polisher
Oil the polisher to ensure the inside components are lubricated. To oil the polisher disconnect the
handpiece from the tubing, you will notice four metal barbs on the bottom of the polisher. Two
small barbs and two big barbs, place two to three drops of handpiece oil into the smaller of the
two larger barbs. Re-connect the handpiece and run it upside down for thirty seconds to allow the
oil to travel through the polisher. It is important that the polisher be run upside to avoid the thin
handpiece oil from sliding back down the handpiece tubing.
Crosstex Disposable Prophy Angles 100 Ct Part # UD0311 Handpiece Oil Pen Part # UD0300
Visit www.UltimaDentalSystems.com for helpful videos and tips on how to get the most out for
your Ultima!
For technical assist or questions, simply call [phone] and one of our knowledgeable
customer support members will help you with what you need Monday through Friday 9am to
5pm Est.
Smaller Metal Barb

16 | P a g e
www.UltimaDentalSystems.com
Basic Trouble Shooting Guide
High-speedDrill
Fault Detected
Possible Causes
Solution
The drill will not spin
1. Blockage in the air line (Handpiece tubing)
2. Pressure is not set correctly
3. Damaged turbine
1. Disconnect the handpiece from the tubing. Step on the foot
pedal to ensure air is flowing through the tubing. If air is
flowing through the tubing it is likely that the turbine is
damaged. If no air is flowing through the tubing, there is a
blockage somewhere in the dental unit. A further in depth
inspection is necessary, contact the UDS technical support
team at [phone] or Henry Schein Pro Repair
service to schedule an in-office visit at [phone].
2. Make sure the pressure from the regulator is set properly
(65-70 psi). Next ensure the pressure is set correctly on
the control panel, adjust HP 3 to 32 psi.
3. Spin the drill bur with your fingers, it should spin freely. If
this is not the case, oil the handpiece to ensure the turbine
is properly lubricated. If this does not solve the issue of the
drill not spinning, a new turbine may be required. For a
push button drill use part # UD0301. For a standard non-
push button drill use part # UD0302. If you have any
questions, please call [phone] to speak with a
knowledgeable Ultima dental technician.
The drill bur is stuck
and will not come out
1. The turbine inside the drill is most likely
damaged and needs to be replaced.
1. Remove the end cap located on the back of the drill.
Check for debris, this is a sign that parts inside the turbine,
such as the bearings, may have come loose causing the
turbine not to function properly. Remove the turbine and
try to manual remove the bur, if the bur is lodged in there
and can’t be removed replace the turbine. For a push
button drill use part # UD0301. For a standard non-push
button drill use part # UD0302. If you have any questions,
please call [phone] to speak with a knowledgeable
Ultima dental technician.
The drill keeps spitting
out the bur
1. The turbine inside the drill is most likely
damaged and needs to be replaced.
1. Remove the end cap located on the back of the drill.
Check for debris inside of the drill head, this is a sign that
parts inside the turbine, such as the bearings, may have
come loose causing the turbine not to function properly. If
you have any questions, please call [phone] to
speak with a knowledgeable Ultima dental technician.
Air is coming from
the bottom of the
handpiece, where it
connects to the tubing
1. Damaged handpiece gasket
2. Hole or tear in the handpiece tubing
1. Remove the handpiece from the tubing and inspect the
gasket on the bottom of the handpiece for any damage. If
the gasket is damaged replace it using Part # UD0310 for
a 5 hole handpiece gasket, commonly used on fiber optic
handpieces. Use Part # UD0315 to order a 4 hole
handpiece gasket. If you have any questions, please call
[phone] to speak with a knowledgeable Ultima
dental technician.

17 | P a g e
www.UltimaDentalSystems.com

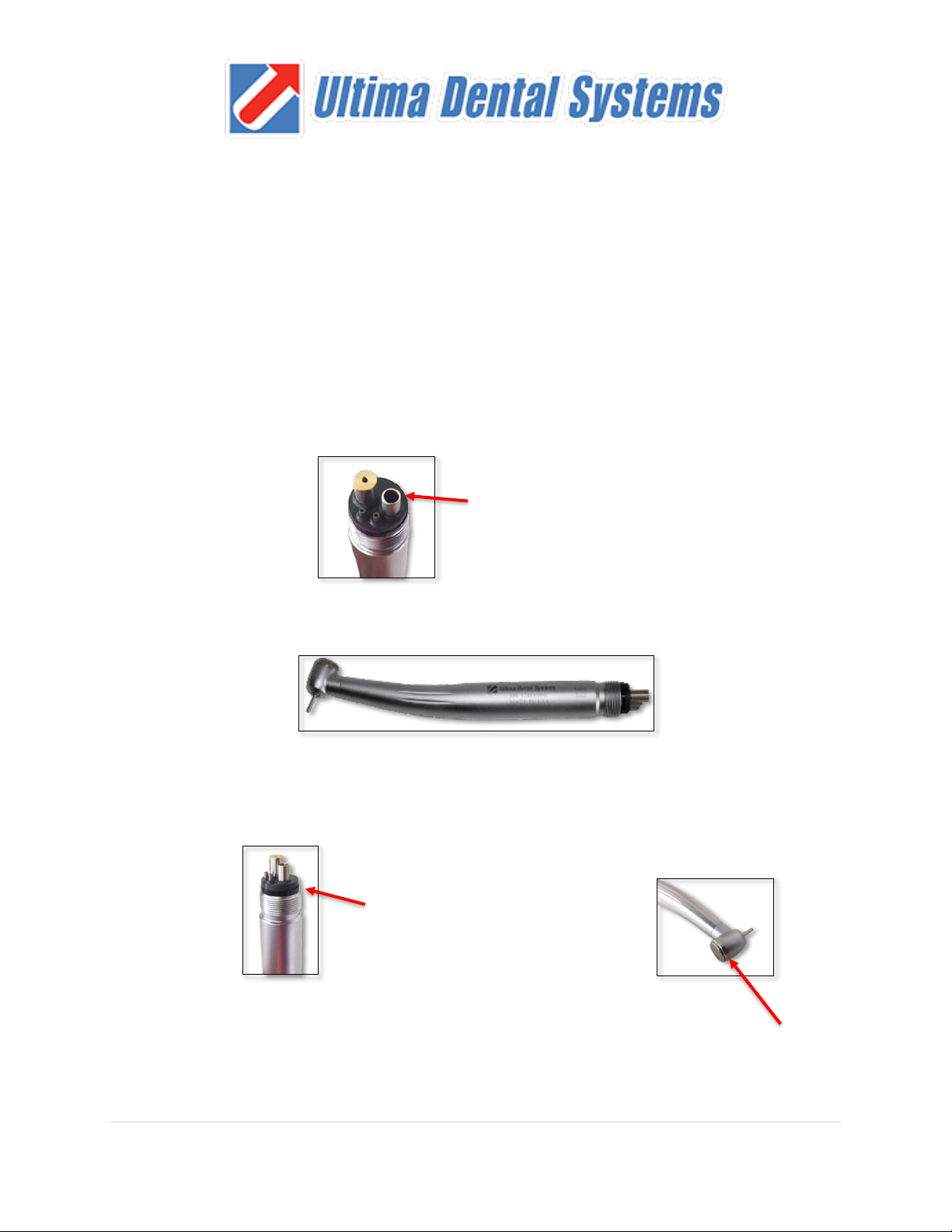

LubricatingtheHigh-speed Drill
To oil the drill simply turn it upside down. On the bottom of the drill there are four metal
barbs, two small barbs and two big ones. Add two to three drops of handpiece oil to the
smaller of the two larger barbs located on the bottom of the drill. Re-attach the hand
piece and run the drill upside down for thirty second to a minute to allow the oil to
circulate through the drill. Turning the handpiece upright will cause the oil to run down
the tubing and will not lubricate the drill correctly.
Place 2-3 drops of handpiece oil in the
smaller of the two larger metal barbs
Drill End Cap
Push Button Handpiece Gasket
Push Button Drill Part # 54150

18 | P a g e
www.UltimaDentalSystems.com
High-speed Drill Turbines
The TEK USA LED high-speed drill is a discontinued item and is no longer available for
purchase. Replacement spare parts for T64 highspeed drills are still available for purchase.
If you have any questions or need assistance ordering parts for T64 highspeed drills contact
Ultima Dental Systems at [phone].
Standard Turbine Part # UD0302
Push Button Turbine Part # UD0301
TEK USA T64 LED Drill
T64 Turbine Part # UD0303
TEK USA T65 LED Drill Part # 54162
T65 Turbine Part # UD0304

19 | P a g e
www.UltimaDentalSystems.com
Warranty
5 year defective parts and technical support warranty. All parts on the unit are covered
for 5 years if defective.
The Fiber Glass and Aluminum shells for the dental units are only covered under
warranty if defective out of the box and damaged during shipping.
All parts on Ultima compressors are covered for 5 years if defective.
The Lowspeed Polisher is covered under warranty for 1 year if defective.
The Highspeed drill is covered under warranty for 1 year if defective - The turbine is
covered under warranty for 6 months if defective.
The Piezo scaler is covered under warranty for 1 year if defective.
Labor and shipping is not included.
