Ultra Start 1155 Series User manual

INSTALL GUIDE
www.ultrastarters.com
Technical Support: 866-698-5872 ext 0
[e-mail]
Covers the installation of the
1155 Series Remote Starter
The system must be placed into Service Mode before any service work is started on the
vehicle. It is the sole responsibility of the vehicle owner to ensure that this is done. The
manufacturer accepts no liability or responsibility for accidental starting of the vehicle.
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage, Carport etc...)
- The Hood Pin Safety Switch Must Always be Installed!
Warning!!
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
It is the sole responsibility of the user to place the system in Service Mode
when parking in an enclosed area ex: garage, partially enclosed area
ex: carport, or when the vehicle is being serviced.
REV.2006.01

If the remote starter has a failed start attempt or if a safety input is activated the Diagnostic Memory will
store up to four shutdowns in memory. This information can then be accessed to determine the source
of the shutdown.
To Enter Diagnostic Mode:
Step 1 -Turn the ignition on wait two seconds then turn off. Press the Program Button and release.
Step 2 - The system will respond with three park light flashes and the horn will honk (optional) the
same number of times as the events in memory. ( Maximum four events, four honks)
NOTE: If the horn does not honk, there are no events in memory.
Step 3 - Press the Program Button once to view the last shut down code. The (optional) Horn will honk
once to confirm code one. (If the horn does not honk, there are no codes in memory).
Step 4 - The LED’s will flash a code corresponding to a shut down trigger. Press the Program Button
again to check the second code. The horn will honk twice to confirm code two.
Step 5 - To Clear Diagnostic Memory. While in Diagnostic Mode press and hold the Program Button for
five seconds. The park lights will flash and the horn(optional) will honk once.
NOTE: Once diagnostic memory has 4 shutdown events in memory, the system will not record any
further shutdown events until the system memory has been cleared.
Diagnostics
Diagnostic Memory- With Program LED/Switch.
PARK LIGHTS STATUS LED DIAGNOSTIC CODE
3 Slow Flashes LED’s On Solid System Is In Service Mode
5 Flashes Series of 5 Flashes Hood Pin Opened
5 Slow Flashes Series of 5 Flashes Ignition On During Start
6 Flashes Series of 6 Flashes Brake Pedal Shutdown
7 Flashes Series of 7 Flashes Tach Lock-Out
8 Flashes Series of 8 Flashes 3 Start Attempts with no start
- Control module - Installation guide
- 6 pin main harness with - Hood pin safety switch
dual 30amp power inputs . - 14 pin auxiliary harness
- 2 pin keyless entry harness - LED/Program Switch
Components
Service Mode is to used when the vehicle is having service work preformed on the vehicle.
Service Mode will disable the remote starter from activating until the service mode is Deactivated.
ACTIVATING Service Mode
1.While the ignition is “ON” press and hold the Program Button for five seconds. The park lights will flash
five times and the horn (optional)will honk five times to confirm that the system is in Service Mode.
2. While in Service Mode the remote start functions will be disabled and LED’s will be “ON” steady.
Door locks and trunk release are still operational.
1. While the ignition is “ON” press and hold the Program Button for five seconds. The park lights will flash
two times and the horn (optional)will honk two times to confirm that the system has exited Service Mode.
2. Remote start functions will return to normal operation.
DEACTIVATING Service Mode
System Service Mode (Valet Mode)

The jumpers control the output from the white wire from the six pin
harness. Place the jumpers in the following order to change the output.
Note: The default setting is second ignition.
* Connect only one of these wires for remote start activation. The input requires 2
pulses within 2 seconds to activate.
Positive Start Trigger*
Negative Start Trigger*
Not used on this model
Negative When Running
Not used on this model
N/A
N/A
Program LED/Switch

Yellow Starter 30amp output 12volts during crank only.
Green Heater 30amp output 12volts in accessory off during start.
Red 12 power 30amp input Constant 12volt power at ignition harness.
Red 12 power 30amp input Constant 12volt power at ignition harness.
Blue Ignition 1 30amp output 12volts in ignition and start positions.
White Select Output 30amp output Selectable Output. See jumper diagram.
Yellow Re-Arm 0.75sec Pulse On Shutdown. (500ma Output)
Red/White N/A Not Used on this model.
Brown Disarm 0.75sec Pulse With Unlock And Before Start.(500ma Output)
Orange (-) Output (-) While Running
White/Blue Horn (-) Horn Honk Output
Black/White N/A Not Used on this model.
Purple (+) Start Connect to positive start input.
White Park Lights Positive Park light Output - 10 Amp Max.
Green/White Hood Pin Negative Hood Pin Input - MUST BE CONNECTED!!
Green (-) Start Connect to negative start input.
Black Ground System Ground Input - MUST BE CONNECTED!!
Pink Brake Positive Brake Input - MUST BE CONNECTED!!
Blue/White Tach Tach Signal Input - Must be connected for Tach Mode!!
Blue Glow Plug Programmable Input - DIESEL ONLY.
Note: 500ma outputs are low current and are designed to activate relays.
* Connect only one start input. The start input will require 3 negative pulses within 2
seconds to activate the remote starter.
6 Pin Power Connector
14 Pin Connector
4 Pin Connector Blue - Program LED/ Switch

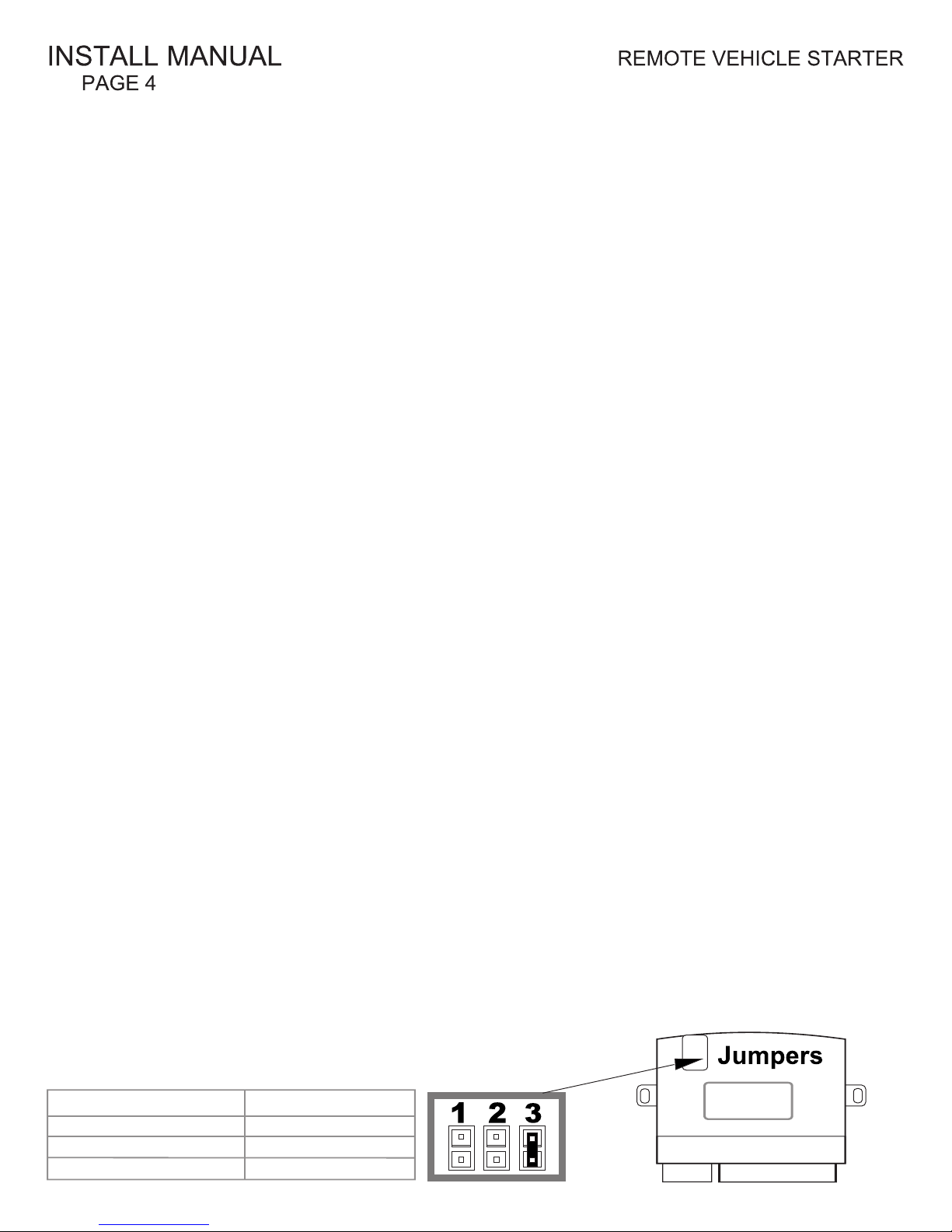

Jumper Selections
Program LED/Switch connector. The program switch is integrated into the LED. Press the
LED to activate the switch.
Position One Second Starter Output On the White Wire From The 6-Pin Connector.
Position Two Second Accessory Output On The White Wire From The 6-Pin Connector.
*Position Three Second Ignition Output On The White Wire From The 6-Pin Connector.
* The Default Setting For The System Is Second Ignition Output.
The jumpers control the output from the white wire at the 6-pin harness. Place the jumper in the following
positions to change the output.
Note: The default jumper setting is second ignition.
Output on White wire Jumper position
Second Starter Position 1
Second Accessory Position 2
Second Ignition Position 3

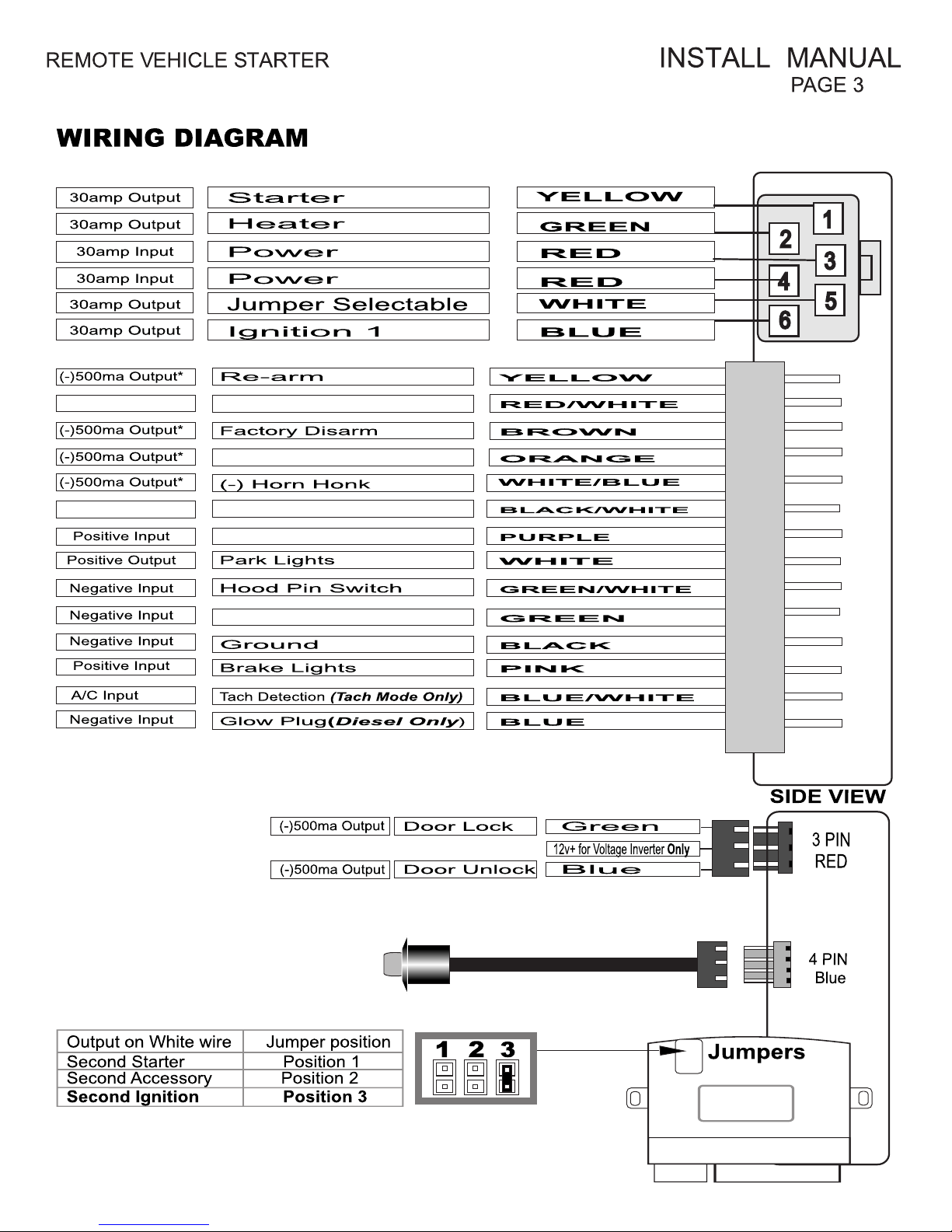

WIRING CONNECTIONS

Yellow Starter Output Connect To The Vehicles Starter Wire.
Green Heater Output Connect To The Vehicles Accessory Wire.
Red 12 power Input Connect to Constant 12 Volt Power Source- High Current.
Red 12 power Input Connect to Constant 12 Volt Power Source- High Current.
Blue Ignition 1 Output Connect To the Vehicles Primary Ignition.
White Selectable Output Select Jumper Position (If Necessary). See Page 5.
6 Pin Power Connector
14 Pin Power Connector
Your Basic Install Is Complete!
Step 1 - Connect All Of the Following Wires
Black System Ground Connect To Chassis Ground.
Pink Brake Switch Connect To (+) When The Brake Pedal Is Applied.
White Park Lights Connect To (+) Park Light System.
Green/White Hood Pin Connect To Hood Pin Switch. (Must Be Connected)
Blue/White Tach Connect To A/C Tach Souse (Tach Mode Only)
Green* (-) Start Connect to Negative start activation input.
Purple * (+) Start Connect to Positive start activation input.
* Connect only one start input. The start input will require 3 negative pulses within 2 seconds to
activate the remote starter.
** The start input can be connected to such things as factory keyless entry (Connect to unlock
wire) or an auxiliary output from a aftermarket alarm system.
TACH LEARNING
1) Make all the required wire connections and plug-in the Unit.
**The park lights should flash twice upon power up.
2) Turn the Ignition Key ON. (The Park Lights will turn on).
3) Start the vehicle with the key, the program LED will come when proper tach signal is detected.
After 30 seconds the park lights will turn off then flash twice to confirm Tach learning.
*The system will flash the park lights seven times if not Tach/ Tachless learned and the start button
is pressed. The system must be Tach/ Tachless learned before remote starting.
** If the program LED does not come on during tach learn, a proper Tach signal was not detected.
Note: If the park lights do not flash in Auto Tach Learn Mode it may be necessary to connect
to a different tach source. For best results connect the tach to the coil pack or to a fuel
injector wire.
TACHLESS LEARNING (TL Models Only)
1) Make all the required wire connections and plug-in the Unit.
**The park lights should flash twice upon power up.
2) Turn the Ignition Key ON. (The Park Lights will turn on).
3) Start the vehicle with the key, the program LED will turn on after 30 seconds then the park lights
will turn off and flash twice to confirm Tachless learning.
Note: If the first ignition wire is connected to a wire that does not stay 12 volts in the start
position the system will not Tach/ Tachless learn.
***The system must be reset to re-Tach/Tachless learn.
Step 2- Auto Tach/ Tachless Learning (TL Models)
QUICK START INSTALL

Programming Overview
Entering Program Mode
Changing the Programmable Settings
SYSTEM RESET
Program mode allows you to adjust the settings and options of your system.
Your system has been intelligently designed by installers with years of
experience. The system’s default settings do not require any program changes
in most cases. However, this system does incorporate a highly advanced
programming system that can be easily adjusted.
1) Make sure ignition is in the off position.
2) Within three seconds turn the key ON - OFF - ON - OFF - ON. Leave in
the “ON” position.
3) Press and release the Program Button.
4) The park lights will come on and the horn (optional) will honk to confirm
Program Mode.
* Turning off the ignition or 30 seconds of no activity will exit the Program Mode.
This will be confirmed by 1 long horn honk and park light flash.
**: If the unit does not enter Program Mode, turn ignition off for 5 seconds and
repeat steps 1-4. **
The first ignition(Blue)MUST be connected to the vehicle’s first ignition wire. If
it is not connected it will not be possible to enter the Program Modes.
1) Enter Program Mode. (See Above)
2) Press & release the Program Button the correct number of times to select
the desired Program Setting. The LED’s will flash and the horn (optional) will
honk to indicate the current setting that is selected.
4) Hold the Program Button until the parking lights /horn confirm the selected
setting. The park lights will flash and the horn (optional) will honk to indicate the
option selected within the setting.
5) Turn the ignition key “Off” to exit Program Mode.
1) Within 3 seconds turn the key ON-OFF-ON-OFF-ON (Leaving Key ON).
2) Press and release the Program Button.
3) The park lights will turn ON and the horn(Optional) will honk once.
4) Press the Program Button a second time and hold for 8 seconds.
The park lights will flash and the horn (Optional) will honk 3 times.
The System is now re-set to the factory default settings.

Programming Menu
.
Turn the ignition key to the on position 3 times then press and release the program
button. The park lights will turn on and the horn(Optional) will honk once. While the
park lights are on press and release the program button until the LED is flashing the
same number of times as the program setting that is to be changed. Press and hold
the program switch until the park lights flash the correct number of times as the
option to be programmed.
Setting 1- Start Trigger Input- Number of pulses to activate Remote Starter
1 Three Pulses 1 Flash Three pulses required to activate the remote starter.
2 Two Pulses 2 Flashes Two pulses required to activate the remote starter.
3 One Pulses 3 Flashes One pulse required to activate the remote starter.
Press the Program Button 1 time to select setting 1 (This will be confirmed by 1 LED flash)
Press and hold the Program Button until you receive the appropriate # of park light flashes and/or horn honks.
Release the Program Button momentarily to move to next program step or repeat to change selection
Press the Program Button 2 times to select setting 2 (This will be confirmed by 2 LED flashes)
Press and hold the Program Button until you receive the appropriate # of park light flashes and/or horn honks.
Release the Program Button momentarily to move to next program step or repeat to change selection
Press the Program Button 3 times to select setting 3 (This will be confirmed by 3 LED flashes)
Press and hold the Program Button until you receive the appropriate # of park light flashes and/or horn honks.
Release the Program Button momentarily to move to next program step or repeat to change selection
Press the Program Button 4 times to select setting 4 (This will be confirmed by 4 LED flashes)
Press and hold the Program Button until you receive the appropriate # of park light flashes and/or horn honks.
Release the Program Button momentarily to move to next program step or repeat to change selection
Continued on next page...
Setting 2- Special Door Lock/ Unlock Operations
1 Type 1 1 Flash Unlock before start. Lock pulse after start and shutdown
2 Type 2 2 Flashes Lock pulse only after remote starter shuts off
3* Normal Operation 3 Flashes No additional re-lock pulses
Setting 3- Gas/ Diesel Mode- Blue Wire on 14-Pin
1 (-) Glow Plug 1 Flash Waits a maximum 30 seconds before starting.
2 15 Seconds Delay 2 Flashes Ignition ON for 15 seconds before remote starting
3* Gas/ + Glow Plug 3 Flashes Waits 2 seconds to start if no diesel input is detected
.
Setting 4- Rearm Output- Yellow Wire on 14-Pin
1 Type 1 1 Flash Pulse after start and with lock
2 Type 2 2 Flashes Pulse after start only
3* Factory Re-arm 3 Flashes 0.75 second pulse with lock and after shutdown

Setting 5- Run Time
1 30 Min Run Time 1 Flash Remote Starter runs for 30min when activated
2 45 Min Run Time 2 Flashes Remote Starter runs for 45min when activated
3* 15 Min Run Time 3 Flashes Remote Starter runs for 15 min when activated
Setting 6-Maximum Crank Time
1 10 Seconds 1 Flash 10 sec Max time that starter will stay engaged
2 3 Seconds 2 Flashes 3 sec Max time that starter will stay engaged
3*5 seconds 3 Flashes 5 sec Max time that starter will stay engaged
Press the Program Button 5 times to select setting 5 (This will be confirmed by 5 LED flashes)
Press and hold the Program Button until you receive the appropriate # of park light flashes and horn honks.
Release the Program Button momentarily to move to next program step or repeat to change selection
Press the Program Button 6 times to select setting 6 (This will be confirmed by 6 LED flashes)
Press and hold the Program Button until you receive the appropriate # of park light flashes and horn honks.
Release the Program Button momentarily to move to next program step or repeat to change selection
Setting 7- Tach Selection
1Tach Detection 1 Flash Set for Tach Detection - Must Connect Tach Wire
*2Tachless Mode 2 Flashes No Tach connection required
Press the Program Button 7 times to select setting 7 (This will be confirmed by 7 LED flashes)
Press and hold the Program Button until you receive the appropriate # of park light flashes and horn honks.
Release the Program Button momentarily to move to next program step or repeat to change selection
Setting 8- Adjust For Over-Crank
1 - Enter Program Mode (Ignition ON-OFF-ON-OFF-ON) then press the Program Button.
2 - Press the Program Button - 8 times (Led will start flashing 8 times).
3 - Hold the Program Button - For 5 seconds until parking lights flash (each time lights
flash tach is reduced).
4 - Release the Button - Exit Program Mode and remote start to test.
Setting 9- Adjust For Under-Crank
1 - Enter Program Mode (Ignition ON-OFF-ON-OFF-ON) then press the Program Button.
2 - Press the Program Button - 9 times (Led will start flashing 9 times).
3 - Press and Hold Program - For 5 seconds until parking lights flash (each time lights
flash tach is increased ).
4 - Release Program - Exit Program Mode then remote start to test.
