Ultra Start 660 Series User manual

www.ultrastarters.com
FCC/ID Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance
void the user’s authority to operate this devise.
660 Series Advanced 2-Way Remote
Vehicle Security System

OWNER’S MANUAL REMOTE VEHICLE SECURITY
PAGE 2
Table Of Contents
Table Of Contents Page 2
Alarm Functions Page 3
Arm System
Disarm System
Priority Unlock*
Silent Arm/Disarm
Car Finder
Panic
Starter Disable*
Passive Arming*
Ignition Auto Locks*
Trunk Release (Ch 3)*
Auxiliary #1 (Ch 4)*
Auxiliary #2 (Ch 5)*
Setting The Time
Page 6-7
Icon Descriptions
Programmable Icons
Page 9
Additional LED Flashes
Se
Entering Car Jack
Emergency Override
Product Warranty Page 12
Alarm Functions Page 4
Alarm Functions Page 5
LCD Display
Shock Sensor Page 8
Shock Sensor Programming/Adjustments\
Temporary Shock Sensor Bypass
Diagnostics
Diagnostics Chart
rvice Mode Page 10
Activating & Deactivating Service Mode
Car Jack Page 11
*(optional features)

REMOTE VEHICLE SECURITY OWNER’S MANUAL
PAGE 3

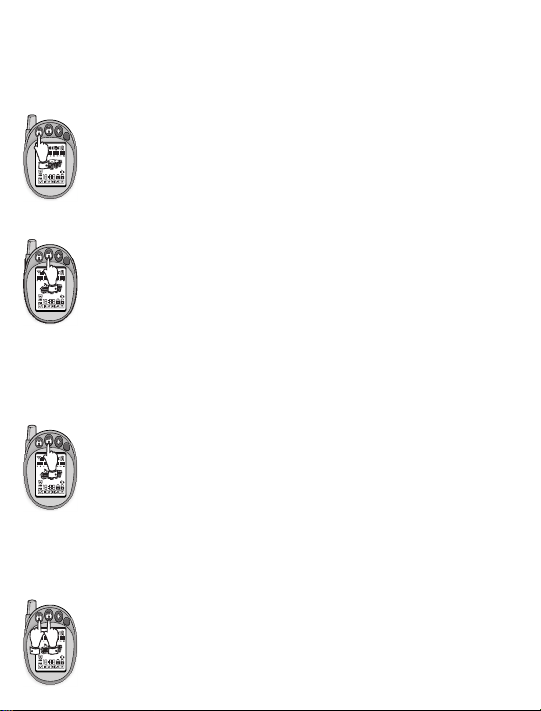

Disarm System
1.Press and release the UNLOCK button on the remote transmitter.
2.The park lights will flash and the siren will chirp two times.*
3.The doors will unlock (optional).
4.The LEDs on the antenna will stop flashing.
* If the system was triggered, the system will respond with two park
light flashes and three siren chirps. See Page 9 for Diagnostics.
NOTE: If the system is triggered, example: opening the door before
disarming the system.
The first press and release of UNLOCK disables the siren
ONLY! A second press and release disarms the system.
Priority Unlock Feature (optional)
1. Press and release the UNLOCK button on the remote transmitter.
The park lights will flash, the siren will chirp two times and the
drivers door will unlock.
2. Press and release the UNLOCK button again and the remaining
doors will unlock.
NOTE: The UNLOCK must be pressed a second time within 3sec.
Arm System
1. Press and release the LOCK button on the remote transmitter.
2. The park lights will flash and the siren will chirp one time.
3. The doors will lock (optional).
4. The LEDs on the antenna will start flashing within five seconds.
Alarm Functions
#
Silent Arm and Disarm
Press and release the LOCK and UNLOCK buttons simultaneously.
If the system was armed this will disarm the system. The park lights
will flash twice without siren chirps as confirmation.
#
#
#

OWNER’S MANUAL REMOTE VEHICLE SECURITY
PAGE 4

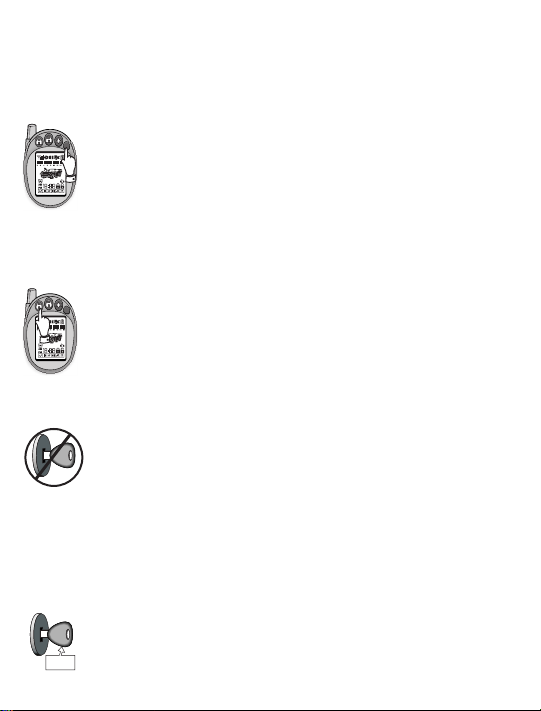

Car Finder Mode
Car Finder is a feature that can be used to find your vehicle in a
crowded parking lot.
1. Press and hold the #button for three seconds.
2. The park lights will flash and the siren will chirp five times to draw
attention to the location of the vehicle.
3. The remote will beep and display the systems current status.
Panic Mode
Activating Panic Mode
Press and hold the LOCK button for three seconds. The park lights
will begin to flash and the siren will activate.
Disabling Panic Mode
Press and release the LOCK or UNLOCK button to disable Panic.
NOTE: Panic mode will stay activated for sixty seconds.
#
#
Alarm Functions
Passive Arming (optional)
The system will automatically arm and lock (optional) the doors 30
seconds after the last door is closed. It may also be programmed to
arm and lock (optional) the doors if the UNLOCK is pressed and a
door is not opened.
Ignition
On/Off
Starter Disable (optional)
The system will interrupt the vehicles starter when the system is
armed and allow the vehicle to start when the system is disarmed.
Ignition Auto Locks (optional)
1) The system will lock the doors 2 seconds after the ignition key is
turned to the “on” position.
2) The system will unlock the doors when the ignition key is turned to
the “off” position.

REMOTE VEHICLE SECURITY OWNER’S MANUAL
PAGE 5

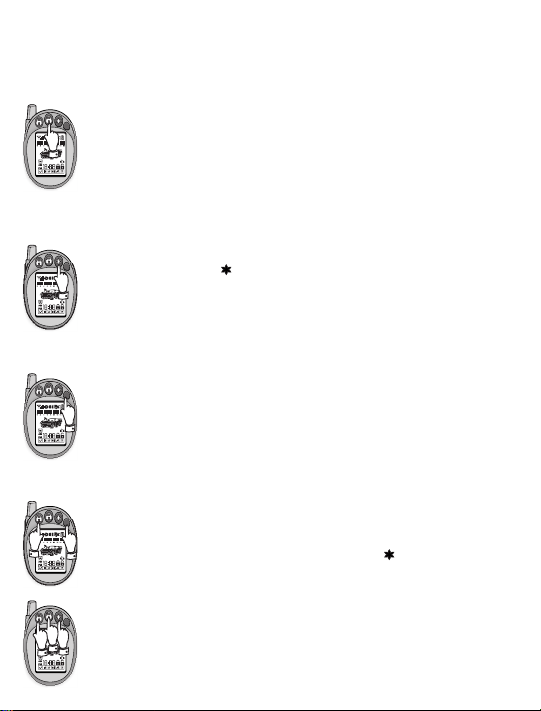

1. Press and hold the button.
2. The park lights will flash and the siren will chirp 1 time.
3. The auxiliary output will stay activated until the button is released.
NOTE: Dealer programmable constant, latched or momentary output.
Auxiliary Output Ch 4 (optional)
Auxiliary Output Ch 5 (optional)
1. Press and hold the # button.
2. The park lights will flash and the siren will chirp 1 time.
3. The auxiliary output will stay activated until the button is released.
NOTE: Car Finder Mode no longer available with this option.
#
#
Trunk Release Ch 3 (optional)
Press and hold the UNLOCK button. The system will disarm, unlock
the doors and within six seconds the trunk release will activate. This
will be confirmed by one park light flash and one siren chirp.
Note: The trunk release output will not activate when the ignition key
is in the “On” position.
#
#
#
Enter
Set
Setting The Time
1) Press and hold the LOCK and #buttons until the minute
portion of the clock begins to flash.
a) To set the MINUTES or HOURS, press the button to
increase and the UNLOCK button to decrease.
b) To change from MINUTES to HOURS press and release
the LOCK button.
2) Press and release the #button to exit.
Note: To set the AM/ PM icon, continue changing the hour until
the appropriate icon is displayed. The remote will exit setting
the time if there is no activity for 20 seconds.
Alarm Functions
a
a
b

OWNER’S MANUAL REMOTE VEHICLE SECURITY
PAGE 6
SIREN ICON- This icon indicates that the alarm has been triggered.
The remote will start to beep and the siren icon will come on solid at
the same time as the icon for the violated zone.
ANTENNA ICON-This icon will be visible or show a series of
lines next to the icon whenever the remote is within transmitting
range of the vehicle. The icon will disappear when out of
transmitting range.
STATUS ICONS
These icons display the current status of the system. The icons may not all be
present on the screen at all times, certain icons will only turn on when a feature
is activated.
STATUS CHECK MODE
This feature is used to check the status of the system. To check the status
press and release # Button on the remote transmitter. The remote will display
the icons of the active features on the LCD screen.
TRUNK ICON- This icon will be displayed on the LCD screen when
the trunk release is activated. The icon will stay displayed until the
system is armed or if the status button is pressed.
BATTERY ICON- This icon is always present to indicate the
current battery level of the remote transmitter. The black area of the
icon will disappear as the battery level decreases.
RUN TIMER- This icon is active at all times. The bar graph will scan
back and fourth (every 10 seconds), to check the status of the
system. The speed will increase when the alarm is triggered.
LCD DISPLAY

REMOTE VEHICLE SECURITY OWNER’S MANUAL
PAGE 7
SERVICE MODE ICON- This icon indicates the status of the
Service Mode feature. If this icon is present, the system is in Service
Mode.
NOTE: In Service Mode, keyless entry and optional features will
still operate.
?
SHOCK SENSOR ICON* - This icon indicates the status of the
shock sensor. If the icon is present on the LCD screen the shock
sensor is active.
SIREN ICON(Chirp Delete)* - This icon indicates the status of
the chirp delete feature. If the icon is on, the siren will work normally.
If the icon is not displayed the chirp delete feature is on and the siren
will not chirp.
NOTE: Chirp delete disables the Lock and Unlock chirps Only.
LOCK ICON- This icon indicates the armed status of the alarm.
If the LOCK icons is present the alarm is armed.
UNLOCK ICON - This icon indicates the disarmed status of the
alarm. If the UNLOCK icons is present the alarm is disarmed.
NOTE: This icon will flash and the Siren will be solid along with
an audible indication to notify that the Door, Hood or
“Ignition On” input of the alarm have been triggered.
SHOCK SENSOR ICON - This icon indicates the Shock Sensor
has been triggered. This icon will flash and the siren icon will be solid
along with and audible indication to notify that the shock sensor on
the alarm has been triggered.
*Dealer Programable
Programable Icons-The six squares found at the bottom of the
display are user/dealer programmable.
LCD DISPLAY

OWNER’S MANUAL REMOTE VEHICLE SECURITY
PAGE 8
Method 1
Press and hold the LOCK and UNLOCK buttons for three
seconds. The park lights will flash and the siren will three
times.
While the park lights are on, strike the vehicle with the amount of
force wanted to trigger the alarm. Strike the vehicle with the palm of
the hand the same amount of force three times, the siren will chirp
each time the system detects impact.
NOTE: Be careful not to impact the vehicle in a area that may cause
damage. The most common location for testing and setting the shock
sensor is the vehicles A-pillar. The A-Pillar is the metal support that
runs from the roof of the vehicle to the hood area.
Adjusting the shock sensor:
Shock Sensor Programming/ Adjustment
Method 1
Method 2
Exit
To enter shock sensor programming:
To exit shock sensor programming:
Press and release LOCK or UNLOCK.
#
#
#
Method 2
Press and release the LOCK button five times (once every
second). The park lights will flash and the siren will three
times.
#
Temporary Shock Sensor Bypass.
Within three seconds press and release the LOCK button and then
press and release the button. The system will chirp once when the
LOCK button is pressed and once when the button is pressed. The
shock sensor will be disabled until the system is disarmed and the
rearmed again.

REMOTE VEHICLE SECURITY OWNER’S MANUAL
PAGE 9
Diagnostics
While the system is disarmed and the ignition is in the off position, the
LEDs will activate from the following triggers:
1) If the door is opened the LEDs will stay on until the door is closed.
2) If the hood is opened the LEDs will stay on until the hood is closed.
3) If the shock sensor detects vibration the LEDs will turn on momentarily.
4) If the auxiliary sensor input is activated the LEDs will activate momentary.
If the alarm system is triggered while armed, the system will retain in memory
the cause of the trigger. The diagnostics can then be used to determine what
the cause of the trigger was. When disarming the alarm, the siren/horn will
chirp 3 times instead of the usual 2 times to indicate the alarm had been
triggered. The system’s LED will also flash in pulses to indicate which input
triggered the alarm.
Diagnostic Chart
Additional LED Flashes
Siren LED Flashes Diagnostic
Three Chirps Two Flashes Shock Sensor Input Triggered
Three Chirps Three Flashes Door/Hood Pin Input Triggered
Three Chirps Four Flashes Ignition Input Triggered
None Off System Disarmed
None On Solid Valet / Service Mode
One Chirp Single Flashes System Armed
NOTE: The LED diagnostics will be reset when the Ignition key is
turned to the “ON” position.
Ignition
“On”

OWNER’S MANUAL REMOTE VEHICLE SECURITY
PAGE 10
Emergency Service Mode - (Valet Mode)
Method 1
To Activate Service Mode:
Turn the ignition key to the “On” position then press and hold the
Program Button located on the antenna for 5 seconds. The system
will chirp the siren 5 times as confirmation.
To Deactivate Service Mode:
Turn the ignition key to the “On” position then press and hold the
Program Button located on the antenna for 5seconds. The system
will chirp the siren 2 times as confirmation.
Ignition
“On”
#
Method 2
To Activate Service Mode:
Press and release the # Button and then press and hold it until the
system chirps the siren 5 times as confirmation.
To Deactivate Service Mode:
Press and Release the #button and then press and hold it until the
system chirps the siren 2 times as confirmation.
NOTE: The LEDs will be “ON” solid and the “?” icon on the remote
transmitter will appear when the system is in Service Mode.
This feature will disable the system except for lock, unlock and trunk
functions. This mode is used if a remote is misplaced, damaged or if
the system malfunctions. If the system was installed with a starter
disable this feature will disable the starter disable relay and allow the
vehicle to start.
Activate/ Deactivate Service Mode (Valet Mode)
5 sec.

REMOTE VEHICLE SECURITY OWNER’S MANUAL
PAGE 11
To activate Car Jack Mode:
Type 1 (Door)- With the ignition key in the “On” position, open and close the
door. The LEDs will begin to flash rapidly for 30 seconds. After an additional 30
seconds the siren will begin to chirp on/off for 10 seconds, followed by full siren.
Type 2 (Ignition)- With the ignition key in the “On” position, turn the ignition
key to the “Off” position. The LEDs on the antenna will immediately begin to
flash rapidly for 30 seconds, followed by the siren chirping on/off and then full
siren.
Remote Transmitter*- With the ignition key in the “On” position press and
release the #button. The LEDs will begin to flash rapidly for 30 seconds. After
an additional 30 seconds the siren will begin to chirp on/off for 10 seconds,
followed by full siren.
*Default setting, will activate Car Jack mode in Type 1 or Type 2
NOTE: If car jack mode was accidently activated, within 10 seconds turn the
ignition key to the “On” position, then press and release the Program Button.
To deactivate Car Jack Mode
1) Turn the ignition key to the “On” position, press and hold the program button
for 20 seconds and turn the ignition key back to the “Off” position.
2) Enter Service Mode*.
3) Exit Service Mode*. *see page 10
Car Jack Mode

OWNER’S MANUAL REMOTE VEHICLE SECURITY
PAGE 12
Limited Lifetime Warranty
The manufacturer warrants to the original purchaser of their remote starters and
alarms, that the product shall be free from defects in material and workmanship.
However, should this product be proven to be defective, within a two year period
from the original date of purchase, the manufacturer will, without charge to the
purchaser (excluding any charges incurred to have the product delivered to the
manufacturer), repair or replace any part of the remote starter and/or alarm which the
manufacturer agrees to be defective. After the initial 2year period the manufacture
shall repair or replace defective products with a nominal processing fee of $30.00
USD. All warranties apply to the original purchaser and the vehicle in which it was
originally installed ONLY. Repairs or replacement of defective modules shall remain at
the discretion of the manu- facturer. All other parts, components, accessories and/or
optional equipment pertaining to the remote starter and alarm are not included in the
manu- facturer’s warranty. This warranty is non-transferable. Request for warranty
service from any Factory Authorized Dealer must be accompanied with the original
purchase receipt or have product registered by authorized dealer on
manufacturer’s website. Failure to comply with any of these conditions may result
in warranty being voided. This warranty does not cover the following: removal and
reinstall labor charges, shipping charges, abuse, misuse, or accidental damages to
the remote starter and alarm, automobile, and/or parts there of. This warranty is void
upon modification, repairs, or alterations of any part of the product. The manufacturer
does not guarantee or insure against theft of the vehicle or its contents. Alarm models
are designed only to act as a deterrent against possible theft. This alarm may qualify
for auto insurance discounts, contact your Insurance Agent for further information .
The manu-facturer shall not be held liable for any consequential damages due to
breach of this or any other warranty, expressed, or implied. This warranty gives you
specific legal rights. Your specific legal rights may vary for each region.
CERTAIN DAMAGES EXCLUDED - The manufacturer expressly disclaims any
liability or responsibility for incidental damages caused by the product, including
economic loss, loss of use of the product, car rentals, or any other costs relating to
the care and custody of the product. The manufacturer dis- claims liability or
responsibility for any consequential damages caused by the product or resulting from
its use, including the cost of repairing or replacing other property damaged by the
product or caused by its use, whether or not the product is working properly. The
product is intended to deter unauthorized use of the vehicles in which it is installed.
The manufacturer does not warrant that the product is fool-safe against theft and/or
vandalism and/or human error or misuse. The manufacturer accepts no liability or
responsibility for any damage of any kind whatsoever caused to any vehicle in which
the product is installed or any resulting damage from its use. The manufacturer
accepts no responsibility or liability for any damage resulting to or theft of the vehicle
or its contents, caused or alleged to be caused, directly or indirectly, by failure of the
product.
