UltraGlow UltraGlow G33R-NG1 Natural Gas Quick start guide

WARNING:
If the information in these instructions are not followed exactly, a
fire or explosion may result causing property damage, personal
injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified installer,
service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
 Do not try to light any appliance
 Do not touch any electrical switch: do
not use any phone in your building.
 Immediately call your gas supplier
from a neighbour's phone. Follow the
gas supplier's instructions.
 If you cannot reach your gas supplier,
call the fire department.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-002a
MODELS: G33R-NG1 Natural Gas G33R-LP1 Propane
G33R Zero Clearance Rear Direct Vent
Gas Fireplace
Owners &
Installation Manual
01/03/06
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
2

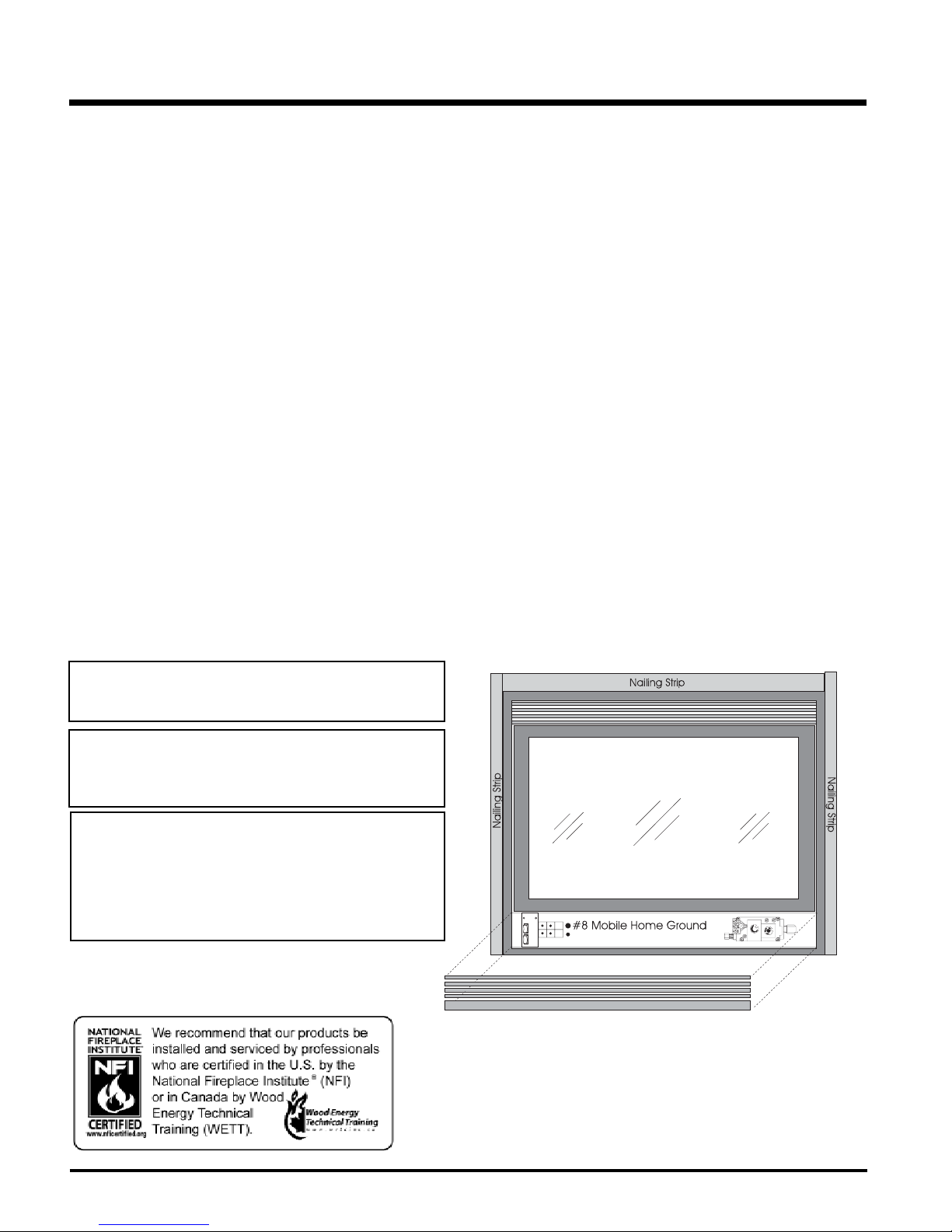

This UltraGlow Mobile/Manufactured Home Listed
appliance comes factory equipped with a means to secure
the unit.
This UltraGlow Mobile/Manufactured Home listed appliance
comes equipped with a dedicated #8 ground lug to which
an 18 gauge copper wire from the steel chassis ground
must be attached.
This appliance may be installed in an aftermarket
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only use with the type of gas indicated
on the rating plate. This appliance is not convertible for
use with other gases, unless a certified kit is used.
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Stove by FIREPLACE PRODUCTS INTERNATIONAL. The G33R-1 is
a hand crafted appliance and has been designed to provide you with all the warmth and charm of a wood fireplace
at the flick of a switch. The model G33R-1 has been approved by Warnock Hersey for both safety and efficiency.
As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free
years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of
your UltraGlow Fireplace.
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This UltraGlow product has been tested and listed by Warnock Hersey as a Vented Gas Fireplace to the following standards: ANSI
Z21.50-1996/CGA 2.22M96, CAN/CGA-2.17-M91.
This Direct Vent SystemAppliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured
Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 3
TABLE OF CONTENTS
Operating Instructions
Operating Instructions .............................................. 27
Lighting Procedure ................................................... 27
Shutdown Procedure................................................ 27
First Fire ................................................................... 27
Normal Operating Sounds of Gas Appliances.......... 27
Lighting Plate Instructions ........................................ 28
Aeration Adjustment ................................................. 28
Maintenance
Maintenance Instructions ........................................ 29
General Vent Maintenance....................................... 29
Log Replacement ..................................................... 29
Thermopile/Thermocouple ....................................... 29
Glass Gasket............................................................ 29
Door Glass Replacement ......................................... 29
Removing Valve........................................................ 30
Installing Valve.......................................................... 30
Parts List
Replacement/Spare Parts List.................................. 31
Warranty
Warranty ................................................................... 35
Safety Label
Safety Label ............................................................... 4
Installation
Important Message..................................................... 5
Before You Start ......................................................... 5
General Safety Information ........................................ 5
Installation Checklist................................................... 5
Locating Your Gas Stove ............................................ 6
Manufactured Home Additional Requirements........... 6
Unit Dimensions ......................................................... 6
Clearances ................................................................. 6

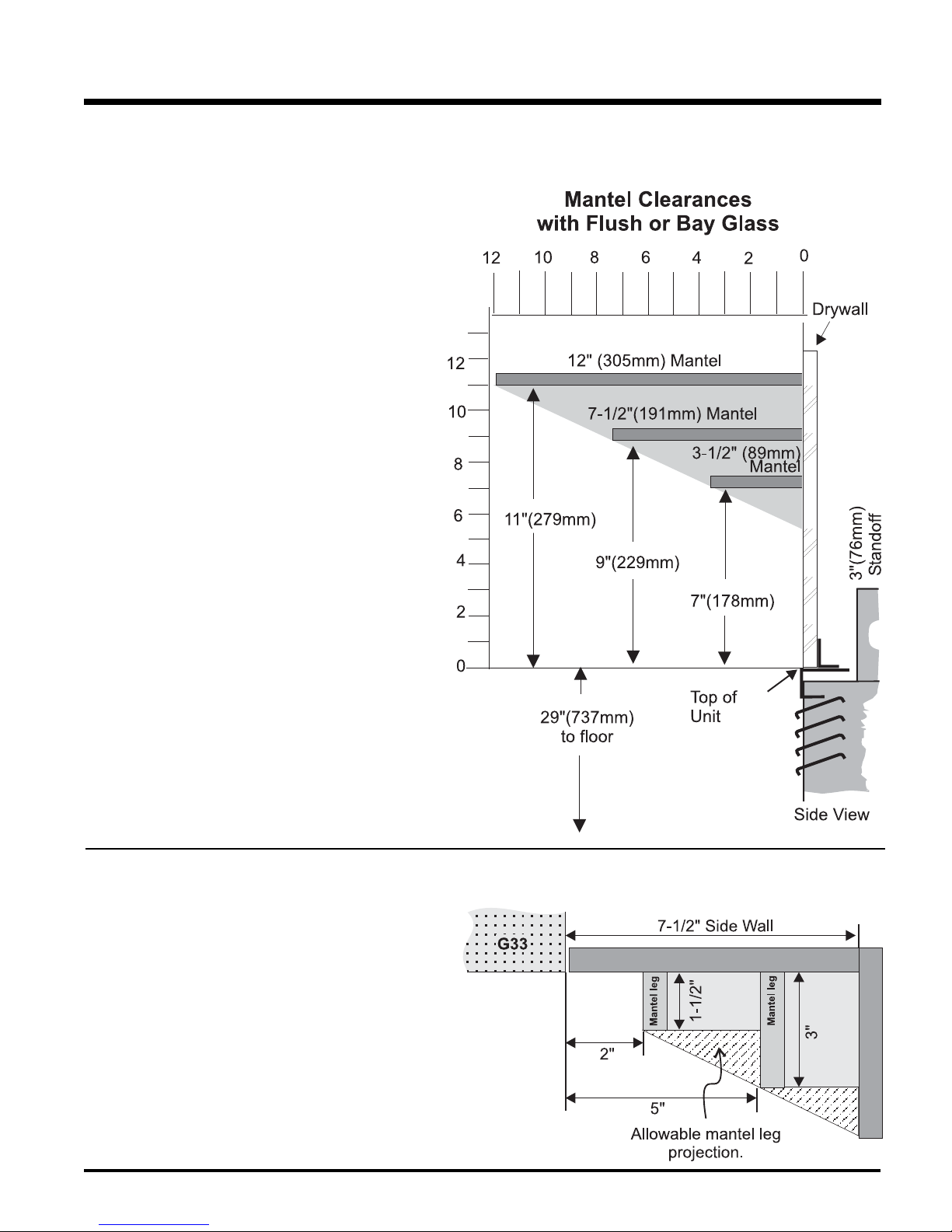

Combustible Mantel Clearances ................................ 7
Mantel Leg Clearance ................................................ 7
Framing and Finishing................................................ 8
Exterior Vent Termination Locations ........................... 9
Unit Assembly Prior to Installation............................ 10
Venting Introduction.................................................. 10
Venting - UltraGlow Direct Vent System (Flex)
Horizontal Terminations only ................................. 10
Venting - Installation of UltraGlow Direct Vent
System (Flex) .........................................................11
Rigid Pipe Venting Systems ......................................11
Rigid Pipe Venting Components List..................... 12
Venting Arrangements - Horizontal Terminations . 13
Venting Arrangements - Vertical Terminations....... 14
Vertical Terminations - Co-linear Flex System....... 16
Venting Arrangements........................................... 17
Venting - Horizontal Installations........................... 18
Venting - Vertical Termination................................ 19
Gas Line Installation................................................. 20
System Data............................................................. 20
High Elevation .......................................................... 20
Pilot Adjustment........................................................ 21
Gas Pipe Pressure Test............................................ 21
SIT Valve Description ............................................... 21
Log Installation ......................................................... 21
Optional Fan ............................................................ 23
Flush Door................................................................ 24
Flush Trim................................................................. 24
Flush Louvers........................................................... 24
Remote Control ....................................................... 25
Remote Wall Switch ................................................. 25
Wall Thermostat ...................................................... 25
Wiring Diagram......................................................... 26
Page Page

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
4
This is a copy of the label that accompanies
each G33R-1 Zero Clearance Direct Vent Gas
Fireplace. We have printed a copy of the contents
here for your review. The safety label is located
on the front inside base of the unit, visible when
the bottom louver is open.
NOTE: UltraGlow units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL
For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the
appliances individual manual shut-off must
be a t-handle type valve.
DO NOT REMOVE THIS LABEL /
NE PAS ENLEVER CETTE TIQUETTEÉ
210
210
NATURAL GAS: Model G33R-NG1
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
L
Output
PROPANE: Model G33R-LP1
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
L
Output
DOOR SEAL: Please check that
the door is properly sealed
FPI Fireplace Products International Ltd.
Delta, BC, Canada
Minimum Clearances to Combustibles
/Degagement Minimum De Materiaux Combustibles
0" Clearance to
combustibles from:
Mantel Clearances from Top:
Side Wall Clearance from Side
Facing
Top, sides, bottom and rear of unit
(A) Min. 7" (177mm)
B) 7.5"(191mm)
with Flush or Bay Front
Max. Depth 36" (914mm)
Min. Width 48" (1219mm),
Min. Height 59“ (1499mm)
Alcove Clearances for Bay &
Flush Louvers:
(See Instruction Manual for
Detailed Instructions)
Serial No./ No de serie
918-003 rev. 10/03
5" WC (1.25 kPa)
3.8" WC (0.95 kPa)
1.2" WC (0.30 kPa)
# 49 DMS
0-4500 ft/pi (0-1372 m)
8,996 B (2.64 )
15,000 B (4.39 )
11,340 Btu/h (3.32 kW)
tu/h kW
tu/h kW
The "Bay Louvers" be
used with the Bay Glass option
MUST
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR ETRE POELE: Mod le G33R-NG
Pression d'allimentation minimum
Pression a la tubulure d' chappement lev e
Pression a la tubulure d' chappement basse
Grandeur de l'injecteur
D bit Califorique minimum selon
D bit Caliorfique maximum selon
l'altitude
é
ééé
é
é
é
D bit Califoriqueé
APPAREIL FONCTIONNANT AU PROPANE
CONCU POUR ETRE POELE: Mod le G33R-LP
Pression d'allimentation minimum
Pression a la tubulure d' chappement lev e
Pression a la tubulure d' chappement basse
Grandeur de l'injecteur
D bit Califorique minimum selon
D bit Caliorfique maximum selon
l'altitude
é
ééé
é
é
é
D bit Califoriqueé
VENTING: Use listed Simpson Dura-Vent GS System or Regency Direct Vent System. Only for direct discharge without duct connection. This appliance
must be installed in accordance with the manufacturer's installation instructions and with local codes, if any; if not, follow the current ANSI Z223.1inthe
USA or the current CAN 1-B149 in Canada. For Manufactured Home Installation: This Direct Vent System Appliance must be installed in accordance with
the manufacturer's installation instructions and Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the current Standard
for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home
Standard in Canada. This vented gas fireplace appliance is not for use with air filters.
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed:
Certified for/Certifi e pour:
Tested to:
Report No.
VENTED GAS FIREPLACE
CANADA and U.S.A.
476-1688-00 (July 1999) and 476-1759-00 (Feb. 2000)
é
ANSI Z21.50-1996, CGA 2.22-M96,
CAN/CGA-2.17-M91
Model/Modele:
G33R-NG1 Model/Modele:
G33R-LP1
Not for use with solid fuel.
Made in Canada/
Fabrique au Canada
Duplicate S/N
BB
30"
Ceiling
Wall
Wall
A
Horizontal Terminations require
the use of the
(Part # 946-523)
Minimum clearance of Vent
Terminal to Outside Corner &
Inside Corner: 6"/150mm
AstroCapTM
12" WC (2.49 kPa)
11" WC (2.99 kPa)
2.9" WC (0.72 kPa)
# 56 DMS
0-4500 ft/pi (0-1372 m)
7,819 B (2.29 )
15,000 B (4.39 )
11,115 Btu/h (3.26 kW)
tu/h kW
tu/h kW

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 5
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The G33R-NG1 or G33R-LP1 Direct Vent Fire-
place must be installed in accordance with these
instructions. Carefully read all the instructions in
this manual first. Consult the "authority having
jurisdiction" to determine the need for a permit
prior to starting the installation. It is the respon-
sibility of the installer to ensure this fireplace
is installed in compliance with manufacturer's
instructions and all applicable codes.
BEFORE YOU START
Safe installation and operation of this appli-
ance requires common sense, however, we
are required by the Canadian Safety Standards
and ANSI Standards to make you aware of the
following:
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local codes or, in the absence of local
codes, with the current Canadian or National
Gas Codes, CAN1-B149 or ANSI Z223.1
Installation Codes.
2) The appliance when installed, must be
electrically grounded in accordance with
local codes, or in the absence of local codes
with the current National Electrical Code,
ANSI/NFPA 70 or CSA C22.1 Canadian
Electrical Code.
3) See general construction and assembly
instructions. The appliance and vent should
be enclosed.
4) This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fitted as per Venting
instructions.
5) Inspect the venting system annually for
blockage and any signs of deterioration.
6) Venting terminals shall not be recessed into
a wall or siding.
7) Any safety glass removed for servicing
must be replaced prior to operating the ap-
pliance.
8) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
9) Wear gloves and safety glasses for protec-
tion while doing required maintenance.
10) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.
11) Under no circumstances should this ap-
pliance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.
12) Installation and any repairs to this appliance
should be done by a qualified service per-
son. A professional service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.
15) The appliance area must be kept clear and
free of combustible materials, (gases and
other flammable vapours and liquids).
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location, page 6
b) Clearances to Combustibles, page 6
c) Mantle Clearances, page 7
d) Framing and Finishing Requirements,
page 7
e) Venting Requirements, pages 9-20.
2) Install Top Facing Support and Side Nailing
Strips before sliding unit into position, page
10.
3) Install vent, pages 9-19.
4) Make gas connections. Test the pilot. Must
be as per diagram. Page 21.
5) Install log, page 21.
6) Install Optional Fan, page 23.
7) Install Flush Door Front and Gold Trim,
page 24.
8) Install Flush Louvers, page 24.
9) Install optional Wall Switch, Remote Control,
or Wall Thermostat, page 25.
10) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is fir-
ing correctly and operation fully explained
to customer.
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
INSTALLATIONAND REPAIR SHOULD
BE DONE BY A QUALIFIED SERVICE
PERSON. THE APPLIANCE SHOULD
BE INSPECTED BEFORE USE AND
AT LEAST ANNUALLY BY A PRO-
FESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE
BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS OF
HIGH SURFACE TEMPERATURES,
ESPECIALLY THE FIREPLACE GLASS,
AND SHOULD STAY AWAY TO AVOID
BURNS OR CLOTHING IGNITION.
YOUNGCHILDRENSHOULDBECARE-
FULLY SUPERVISED WHEN THEY
ARE IN THE SAME ROOM AS THE
APPLIANCE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
Emissions from burning wood or gas could
contain chemicals known to the State of Cali-
fornia to cause cancer, birth defects or other
reproductive harm.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
6
Diagram 1
INSTALLATION
LOCATING YOUR
GAS STOVE
1) When selecting a location for your stove,
ensure that the clearances outlined on this
page are met.
2) Provide adequate clearances for servic-
ing.
3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, metal,
concrete). This may be the floor, or raised up
on a platform to enhance its visual impact.
If the appliance is going to be installed
on carpeting, combustible linoleum tile or
other combustible material other than wood
flooring, the appliance must be installed on
a metal or wood panel extending the full
width and depth of the appliance.
4) The G33R-1 Direct Vent Gas Fireplace
can be installed in a recessed position or
framed out into the room as in A, B, C, D.
See Diagram 1.
5) This appliance is Listed for bedroom instal-
lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The G33R-1 Direct Vent Gas Fireplace is
approved for alcove installations, which
meet the clearances listed on this page.
7) We recommend that you plan your instal-
lation on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have a
qualified inspector, dealer, or installer review
your plans before installation.
Clearances Flush Front
UNIT DIMENSIONS
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
2) Ensure proper grounding using the #8 ground
lug provided. See page 26.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Note: For vent terminations see page 9.
CLEARANCES
The clearances listed below are Minimum
distances unless otherwise stated:
A major cause of chimney related
fires is failure to maintain required
clearances (air space) to combus-
tible materials. It is of the greatest
importance that this fireplace and
vent system be installed only in ac-
cordance with these instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum floor clearance must be
maintained from the top surface of the carpet-
ing, tile, etc.
Minimum Clearance from Top of Unit to:
Mantel* min. 7" (177mm)
Ceiling 30" (762mm)
from top of unit.
* see mantle clearance instructions (page 7).
Side Wall Clearance
Bay or Flush Front 7-1/2" (191mm)
Vent
Flex 1-1/2" (38mm)
Simpson Dura-Vent 1-1/4" (32mm)
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 59" (1499mm)
WARNING
Fire hazard is an extreme risk
if these clearances are
not adhered to.
The HeatWave Duct Kit has different clear-
ance and framing requirements, check the
HeatWave manual for details.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 7
INSTALLATION
COMBUSTIBLE MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit are shown
in the diagram below.
Note: A non-combustible mantel may be installed at a
lower height if the framing is made of metal studs
covered with a non-combustible board.
This drawing is to scale at 1:6 (one inch = 6 inches). Mantel
can be installed anywhere in shaded area or higher using the
above scale.
Note: Ensure the paint that is used on the mantel and the
facing is "heat resistant" or the paint may discol-
our.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
Maximum
1-1/2" projection at 2" minimum clearance.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
8
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate
the fireplace itself.)
4) The top of the unit must not be closer than
30" (762mm) to the ceiling.
5) Combustible material may be brought up to
the top and sides of the unit and be covered
with ceramic tiles, bricks, rock or other suit-
1) Determine the total thickness of facing mate-
rial (e.g. drywall plus ceramic tiles) to allow
the finished surface to be flush with the front
of the unit. Total facing thickness can vary
from 1/2" (13mm) to 1-1/4" (32mm) thick.

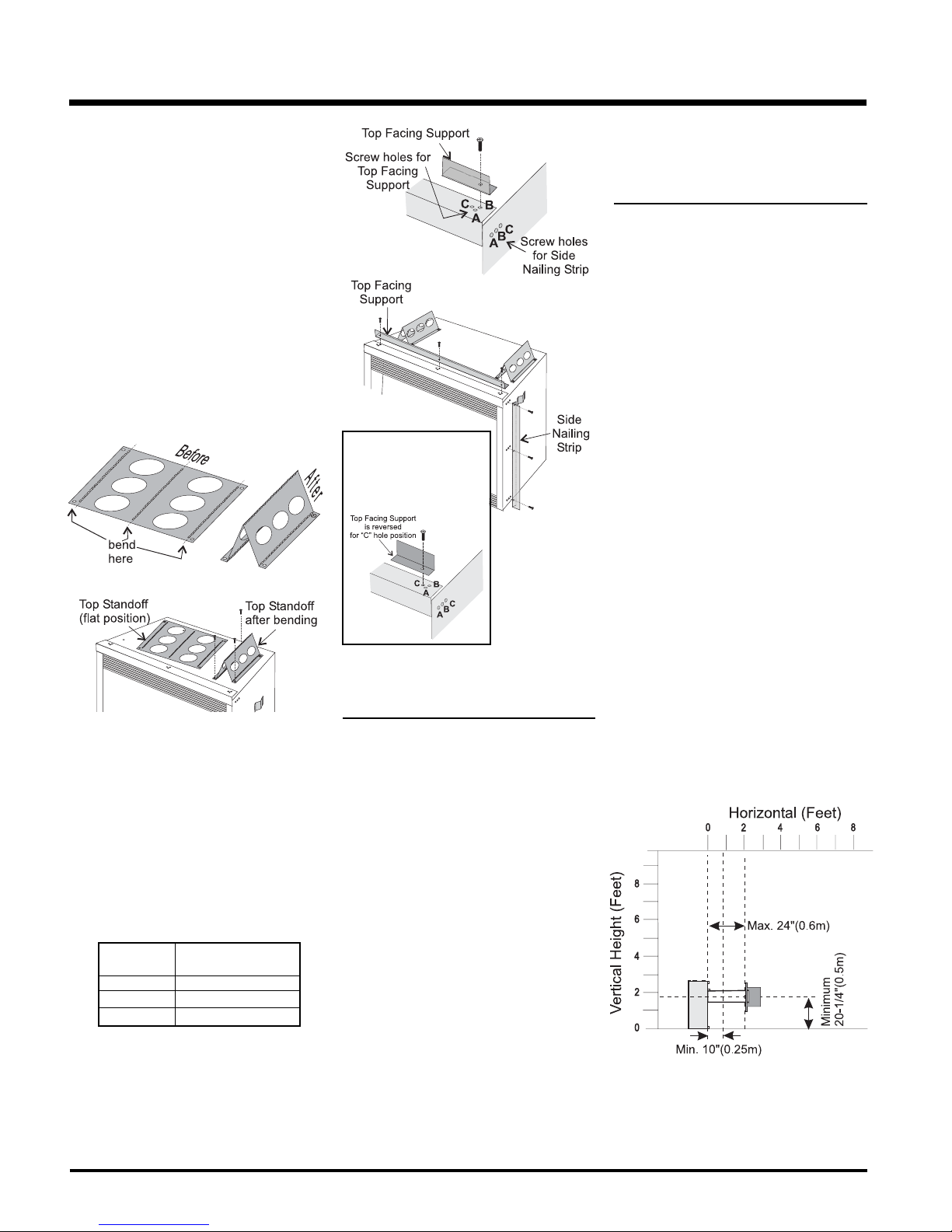

Install Side Nailing Strips, and Top Facing
Support before unit is slipped into position.
See page 10 for assembly details.
able combustible finishing materials.
Note: The unit does not have to be com-
pletely enclosed in a chase. The
clearance on top of the unit is 0" to
the standoffs so combustible building
materials can be laid directly on top
of the standoffs. You must maintain
1-1/2" (38mm) clearance from the
vent to combustible materials for flex
(1-1/4" for Simpson Dura-Vent).
2) Frame in the enclosure for the unit with
framing material.
6) Use steel studs for framing where the
1-1/2" (38mm) clearance from the vent
to combustible material cannot be main-
tained.
FRAMING AND FINISHING
INSTALLATION
The HeatWave Duct Kit has different clear-
ance and framing requirements, check the
HeatWave manual for details.
Vertical Termination or
Vertical Rise with Horizontal
Termination
NOTE: If this is an outside corner, the minimum
distance between the vent and the outside
corner is 6" (15cm) with AstroCap termination
cap or 12" (30cm) with Dura-Vent termina-
tion cap.
Rear Termination
NOTE: If this is an outside corner, the minimum
distance between the vent and the outside
corner is 6" (15cm) with AstroCap termination
cap or 12" (30cm) with Dura-Vent termina-
tion cap.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 9
INSTALLATION
EXTERIOR VENT TERMINATION LOCATIONS
.
BB
B
B
A
C
V
V
V
V
V
VV
A
A
V
Fixed
Fixed
Openable
Closed Closed
Openable
NL
B
E
B
M
D
F
K
H
j
Vertical Termination
VVent terminal Area where terminal is not permitted
AAir supply outlet
24"
V
A
G
Inside
corner detail
V
24"
18"
Vertical Termination
A
*
B
*
C* D E F G H J K
= Clearance above grade, veranda, porch, deck, or balcony
(min. 12"/30cm)
= Clearance to window or door that may be opened
(12"/30cm) #(9/23cm)
= Clearance to permanently closed window (min. 12"/30cm) = Vertical clearance to ventilated soffit located above the terminal
within a horizontal distance of (24"/60cm) from the centerline of the terminal (min. 18"/46cm) check with local code.
= Clearance to unventilated soffit (min. 15"/38cm)
= Clearance to outside corner: with ™ Termination Cap
(6"/15cm) or with Dura-Vent Termination Cap (12"/30 cm)
= Clearance to inside corner
= Not to be installed above a meter/regulator assembly within
(3'/90cm) horizontally from the centerline of the regulator.
= Clearance to service regulator vent outlet
Min. 36"/90cm
= Clearance to non-mechanical air supply inlet to building or the
combustion air inlet to any other appliance *(12"/30cm)
AstroCap
: with ™ Termination Cap
(6"/15cm)
AstroCap
#(9/23cm)
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)
#3’ (91cm) above if within 10’ (3m) horizontally.
M N *
= Clearance above paved sidewalk or a paved driveway
located on public property *(min. 84"/2.1m)
= Clearance under veranda, porch, deck, or balcony
*(min. 12"/30cm)
As specified in CGA B149 Installation Code.
# In accordance with the current ANSI Z223.1 / NFPA 54, National Fuel Gas Code. Note:
Note:
-A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings. -Only permitted if veranda, porch, deck, or balcony is
fully open on a minimum of two sides beneath the floor.
-If the vent termination is accessible a certified guard shall be installed.
Local codes
or regulations may require different clearances.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
10
INSTALLATION
NOTE: Ensure compliance with the outside vent
terminal location before cutting hole as both
dimensions must be met.
REGENCY VENT
SYSTEM (FLEX)
HORIZONTAL
TERMINATIONS ONLY
This venting system, in combination with the
G33R-1 Direct Vent Gas Fireplace, have been
tested and listed as a direct vent heater system by
Warnock Hersey. The location of the termination
cap must conform to the requirements in the Vent
Terminal Locations diagram on page 8.
Regency Direct Vent (Flex) System Termina-
tion Kit (Part # 946-513) includes all the parts
needed to install the G33R-1 with a maximum
run of 2 feet.
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" Drill Point, Stainless Steel
(4)
Notes:
1) Liner sections should be continuous
without any joints or seams.
2) Only Flex pipe purchased from Ult-
raGlow may be used for Flex instal-
lations.
VENTING
INTRODUCTION
The G33R-1 uses the "balanced flue" tech-
nology Co Axial system. The inner liner vents
products of combustion to the outside while the
outer liner draws outside combustion air into the
combustion chamber thereby eliminating the
need to use heated room air for combustion and
losing warm room air up the chimney.
There are 2 vent systems approved for use with
the G33R-1: the UltraGlow Direct Vent System
(Flex) for Horizontal Terminations only (see
pages 8 and 10), and the Simpson Dura-Vent
Systems for Horizontal and Vertical Terminations
(see pages 11-20).
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and vent system must be
vented directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's own
separate vent system. Common vent systems
are prohibited.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The Top Facing Support, the Side Nailing Strips
and the 2 Top Standoffs must be correctly po-
sitioned and attached to the top before unit is
slipped into position.
Top Standoff Assembly
The top standoffs are shipped in a flat position
and must be pulled up and bent into the cor-
rect shape. Setup each of the 2 Top Standoff
by bending up at the bend lines until the screw
hole in the standoff and the pre-punched screw
holes on the top line up. Use three more screws
per standoff to attach securely to the top.
Top Facing Support & Side Nail-
ing Strips
Determine the total thickness of facing mate-
rial (e.g. drywall plus ceramic tiles) to allow the
finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips can
be mounted in 3 different positions depending
on the thickness of the facing material.
2) Use the same screw hole position for the
Side Nailing Strips as was used for the Top
Facing Support. Attach each side nailing
strip using 3 screws.
*For "C" screw position the top facing
support is reversed.
1) Mount Top Facing Support using the 3
supplied screws into the three pre-punched
screw holes on the top front of the unit. Use
hole positions A, B, or C depending on your
facing depth.
"C" Screw Position:
For a facing material
depth of 1-1/4"(32mm),
the top facing support
must be reversed.
Screw Facing Material
Position Depth
A 1/2" / 13mm
B 7/8" / 22mm
C*1-1/4" / 32mm

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 11
RIGID PIPE VENTING
SYSTEMS
Horizontal or Vertical
Terminations
The Rigid Pipe Vent System offers a com-
plete line of component parts for installation
of both horizontal and vertical installations.
Many items are offered in decorative black,
as well as galvanized finish. We recommend
using the galvanized finish for installation
with the G33R-1.
The minimum components required for a basic
horizontal termination are:
1 AstroCap Horizontal Termination Cap
1 90oElbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
For siding other than vinyl furring strips may
be used, instead of the vinyl siding standoff,
to create a level surface to mount the vent
terminal. The Terminal must not be recessed
into siding.
If a Vinyl Siding Standoff is required (it must be
used with vinyl siding), measure to outside sur-
face of wall without siding and add 2 inches.
INSTALLATION
PROCEDURES
for UltraGlow Direct Vent
System (Flex)
1) Locate the unit in the framing, rough in the
gas (preferably on the right side of the unit)
and the electrical (Junction block is on the
left side) on the left. Locate the centerline of
the termination and mark wall accordingly.
Cut a 10"(254mm) hole in the wall (inside
dimension).
*If this is an outside corner, the minimum distance
between the vent and the outside corner is 6"
(15cm) with AstroCap termination cap or 12"
(30cm) with Dura-Vent termination cap. See
"F" on the diagram on page 8.
Minimum and Maximum Vent Clearances
Note: A 1-1/2"(38mm) clearance around
the liner must be maintained except
that only a 1" (25mm) clearance is
needed at the termination end. We
recommend framing a 10"(254mm) x
10"(254mm) (inside dimensions) hole
to give structural rigidity for mounting
the termination.
Note: If installing termination on a siding
covered wall, furring strips must be
used to ensure that the termination
is not recessed into the siding.
2) Level the fireplace and fasten it to the fram-
ing using nails or screws through the nailing
strips.
3) Assemble the vent assembly by applying
Mill Pac to the 4"(100mm) inner collar of the
termination and slipping the 4"(100mm) liner
over it at least 1-3/8" (35mm). Fasten with
the 3 screws (drilling pilot holes will make this
easier). Apply Mill Pac or high temperature
silicone to the 6-7/8"(175mm) flex pipe and
slip it over the 6-7/8" outer collar of the vent
terminal at least 1-3/8"(35mm) and fasten
with the 3 screws.
4) Separate the 2 halves of the wall thimble and
securely fasten the one with the tabs to the
outside wall making sure that the tabs are
on top and bottom. Fasten the other thimble
half to the inside wall. The thimble halves
slip inside each other and can be adjusted
for 2 x 4 or 2 x 6 walls. The liners must slip
over the collars a minimum of 1-3/8".
5) Slip the assembled liner and termination
assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
Note: To make the installation more
aesthetically pleasing,
we recommend framing
out a square to mount
the terminal to.
INSTALLATION
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.
6) Pull the centre 4"(100mm) liner and outer
6-7/8"(175mm) liner out enough to slip over
the flue collars of the fireplace.
7) Apply Mill Pac over the fireplace inner collar
and slip the 4"(100mm) liner down over it
and attach with 3 supplied screws.
8) Do the same with the 6-7/8"(175mm) liner.
9) Apply a bead of silicone between the thimble
and termination and around the outer edge
of the terminal at the wall in order to keep
the water out.
IMPORTANT: Do not locate termination hood
where excessive snow or ice buildup may
occur. Be sure to check vent termination
area after snow falls, and clear to prevent
accidental blockage of venting system. When
using snow blowers, make sure snow is not
directed towards vent termination area.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
12
INSTALLATION
RIGID PIPE VENTING COMPONENTS LIST
All Simpson Dura-Vent components are available directly from FPI.
Description Simpson Dura-Vent Selkirk AmeriventR
Direct VentGSR Direct-TempTM Direct Vent
6" Pipe Length, Galvanized 908 4DT-6 N/A
6" Pipe Length, Black 908B 4DT-6B N/A
7" Pipe Length, Galvanized N/A N/A 4D7
7" Pipe Length, Black N/A N/A 4D7B
9" Pipe Length, Galvanized 907 4DT-9 N/A
9" Pipe Length, Black 907B 4DT-9B N/A
12" Pipe Length, Galvanized 906 4DT-12 4D12
12" Pipe Length, Black 906B 4DT-12B 4D12B
18" Pipe Length, Galvanized N/A 4DT-18 N/A
18" Pipe Length, Black N/A 4DT-18B N/A
24" Pipe Length, Galvanized 904 4DT-24 4D2
24" Pipe Length, Black 904B 4DT-24B 4D2B
36" Pipe Length, Galvanized 903 4DT-36 4D3
36" Pipe Length, Black 903B 4DT-36B 4D3B
48" Pipe Length, Galvanized 902 4DT-48 4D4
48" Pipe Length, Black 902B 4DT-48B 4D4B
Adjustable Length, 11"-14", Galv. 911 4DT-AJ N/A
Adjustable Length, 11"-14", Black 911B 4DT-AJB N/A
Adjustable Length, 17"-24", Black 917B N/A N/A
Adjustable Length, 7" Galvinized N/A N/A 4D7A
Adjustable Length, 7" Black N/A N/A 4D7AB
Adjustable Length, 12" Galvinized N/A N/A 4D12A
Adjustable Length, 12" Black N/A N/A 4D12AB
45OElbow, Galvinized 945 4DT-EL45 4D45L
45OElbow, Black 945B 4DT-EL45B 4D45LB
45OElbow, Swivel, Galvinized 945G N/A N/A
45OElbow, Swivel, Black 945BG N/A N/A
90OElbow, Galvinized 990 4DT-EL90S 4D90LS
90OElbow, Black 990B 4DT-EL90SB 4D90LBS
90OElbow, Swivel, Galvinized 990G N/A N/A
90OElbow, Swivel, Black 990BG N/A N/A
Ceiling Support 949 - n/a from FPI 4DT-CS 4DFSP
Cathedral Support Box 941 4DT-CSS 4DRSB
Wall Support/Band 988 4DT-WS/B 4DWS
Offset Support 989 - n/a from FPI 4DT-OS N/A
Wall Thimble, Black 942 4DT-WT 4DWT
Wall Thimble Support Box/Ceiling Support 940 N/A N/A
Firestop Spacer 963 4DT-FS 4DFSP
Trim Plate, Black N/A 4DT-TP 4DFPB
Brass Trim for Wall Thimble/Ceiling Support 3951 N/A N/A
Attic Insulation Shield 12" N/A N/A 4DAIS12
Attic Insulation Shield - Cold Climates 36" N/A N/A 4DAIS36
Basic Horizontal Termination Kit (A) 970 4DT-HKA 4DHTK2
Horizontal Termination Kit (B) 971 4DT-HKB 4DHTK1
Vertical Termination Kit 978 4DT-VKC 4DVTK
High Wind Vertical Cap 991 N/A N/A
High Wind Horizontal Cap 985 N/A N/A
Horizontal Square Termination Cap 984 4DT-HHC 4DHC
Verical Termination Cap 980 4DT-HVC 4DVC
Storm Collar 953 4DT-SC 4DSC
Adjustable Flashing, 0/12-6/12 943 4DT-AF6 4DF
Adjustable Flashing, 6/12-12/12 943S 4DT-AF12 4DF12
Vinyl Siding Standoff 950 4DT-VS N/A
Vinyl Siding Shield Plate N/A 4DT-VSP N/A
Snorkel Termination 14" 982 4DT-ST14 4D12S
Snorkel Termination 36" 981 4DT-ST36 4D36S
946-506/P Vent Guard (Optional)
510-994 Rigid Pipe Adaptor (must use with all rigid pip-
ing)
640-530/P Riser Vent Terminal
946-205 Vinyl Siding Shield for Riser Vent Terminal
946-208/P Vent Guard (Optional) - Riser Vent Terminal
946-523/P AstroCap Horizontal Cap
946-206 Vinyl Siding Standoff - AstroCap

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 13

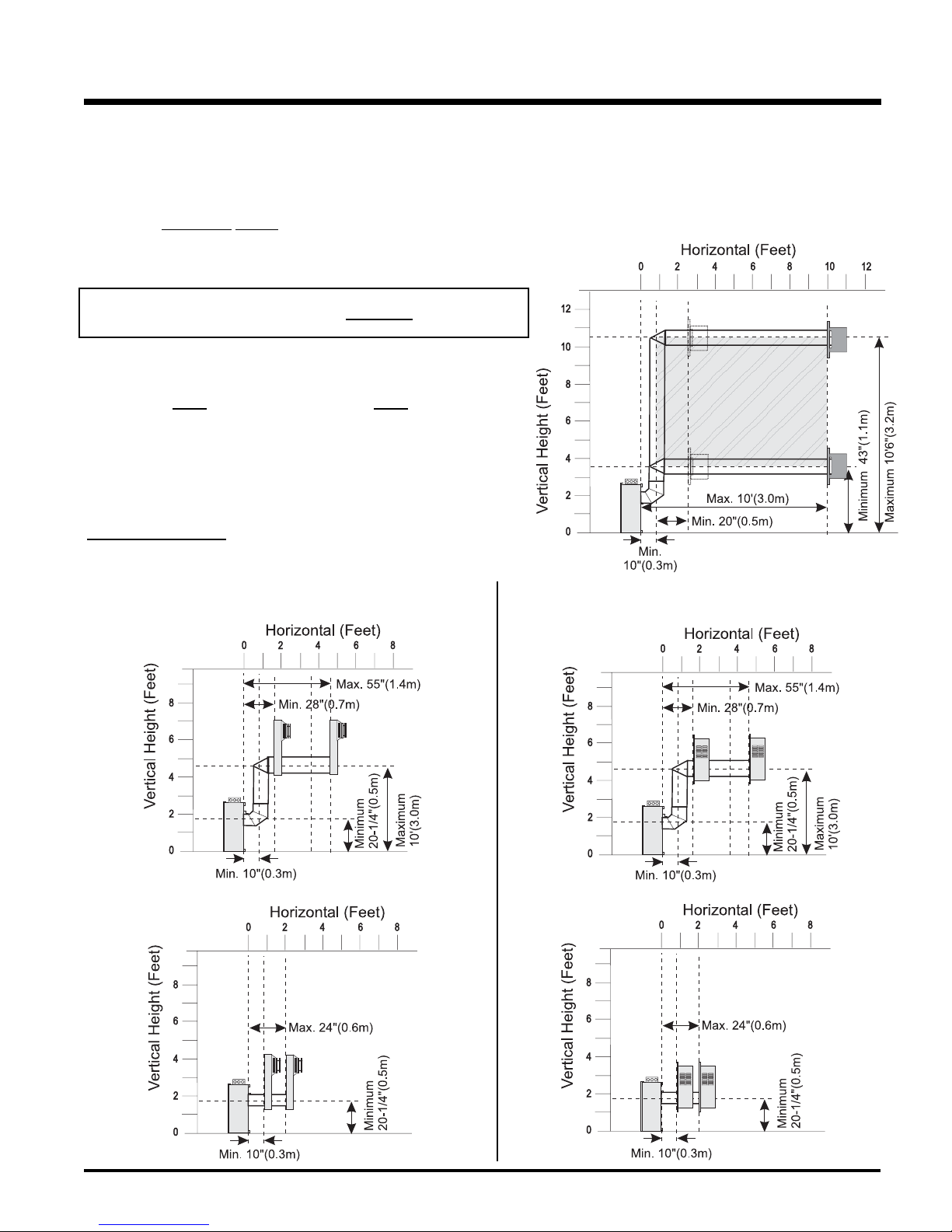

RIGID PIPE VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS
(Propane & Natural Gas)
The diagram shows all allowable combinations of vertical runs with horizontal
terminations, using two 90oelbows (two 45o elbows equal one 90oelbow).
A vent guard should be used whenever the termination is lower than the specified
minimum or as per local codes.
For horizontal terminations the Regency Direct Vent Flex System (see page 10)
may be used for installations with a maximum continuous vent length of 10 ft
(3.0m).
Note: Must use optional rigid pipe adaptor (Part # 510-994) when using
Rigid Pipe vent systems.
• Maintain a 1-1/4" clearance to combustibles (1-1/2" with Flex).
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing through
a wall.
NOTE: Only the AstroCap (Part #: 946-523), the Dura-Vent Snorkel Termina-
tion Cap (Part #: 982 (14") or Part# 981 (36") and the Riser Vent (Part
#: 640-530) are approved for Horizontal Termination installations.
All Rigid Pipe Systems: 4" inner diameter, 6-5/8" outer diameter
Dura-Vent Snorkel Termination Riser Vent Termination
INSTALLATION
(Dura-Vent System or Regency DV Flex)

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
14
INSTALLATION
• Vent must be supported at offsets
• Firestops are required at each floor level and whenever passing through a wall.
• Maintain a 1-1/4" clearance to combustibles
Note: Must use optional rigid pipe adaptor when using rigid pipe vent systems (Part # 510-994).

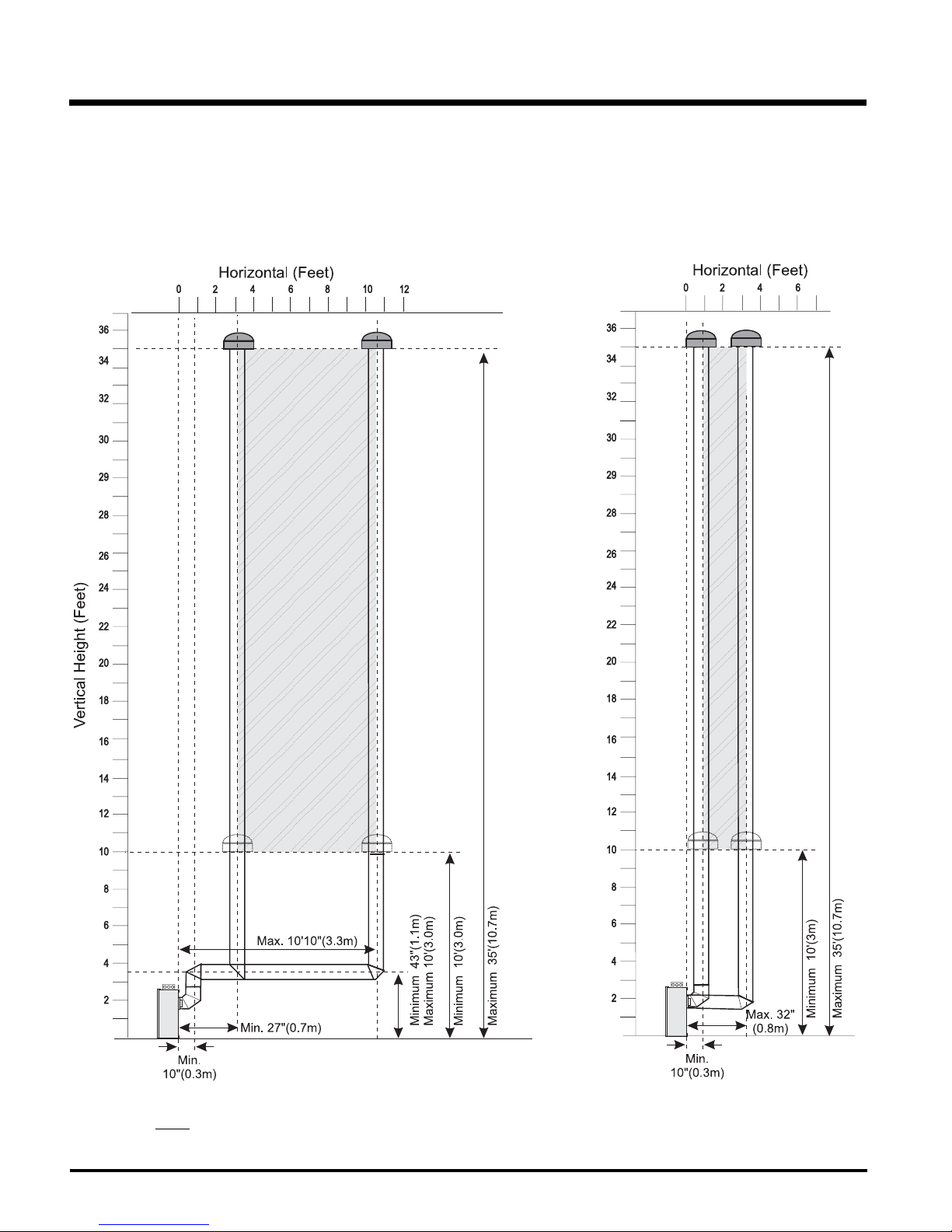

RIGID PIPE VENTING ARRANGEMENTS - VERTICAL TERMINATIONS
(Propane & Natural Gas)
The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations , using three 90oelbows
(two 45o elbows equal one 90oelbow), with rigid pipe vent systems for Propane and Natural Gas.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 15
Pipe Length
(see parts list)
Vertical
Termination
Cap
Storm Collar
Adjustable
Flashing
0/12 to 6/12
(D)
Vertical termination kit
(part #978)
Pipe Length
(if required)
Elbow
Elbow
(B)
Wall Thimble
(Part #942)
(C)
Vinyl siding
standoff
(Optional)
Vent Guard
946-506/P
(optional)
Rigid Pipe Adaptor
(Part# 510-994)
Termination Cap
(Part# 946-523)
(patent pending)
AstroCap
INSTALLATION
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
Alternate Horizontal
Termination Caps
Alternate Horizontal
Riser Vent Terminal
Part# 640-530/P
Alternate Snorkel Ter-
mination Cap Part#
982 (14")
Part# 981 (36")
This product has been evaluated by Intertek for
using a Dura-Vent Flue Adaptor in conjunction
with Selkirk Direct-Temp and Ameri Vent Direct
venting systems. Use of these systems with the
Direct Vent GS starting collar is deemed accept-
able and does not affect the Intertek WHI listing
of components.
WARNING:
Do not combine venting components from
different venting systems.
However use of the the AstroCapTM and FPI
Riser is acceptable with all systems.
When using piping other than Simpson
Dura-Vent, 3 screws must be used to
secure rigid pipe to adaptor.
The FPI AstroCapTM and FPI Riser Vent terminal is certified for installations using FPI venting systems as well as Simpson Dura-Vent®, Direct Vent GS,
American Metal Products, Ameri Vent Direct vent and Selkirk Direct-Temp. FPITM, and FPI AstroCapTM are the proprietary trademarks of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
16
VERTICAL TERMINATION
WITH CO-LINEAR FLEX SYSTEM
This appliance is designed to be attached to
two 3" (76mm) co-linear aluminium flex running
the full length of the chimney. See the Venting
Arrangements on next page for minimum and
maximum heights.
Masonry chimneys may take various contours which the flexible liner will accommodate. However,
keep the flexible liner as straight as possible, avoid unnecessary bending.
The Air Intake pipe must be attached to the inlet air collar of the termination cap.
Required Parts:
Part # Description
946-529 Co-linear DV Vertical
Termination Cap
948-305 3" Flex - 35 ft.
946-563 Co-Axial to Co-Linear Adapter
Kit
which contains the following:
Co-linear Flex Adapter
Outer Pipe
Inner Pipe Adapter
510-994 Rigid Pipe Adaptor
Alternate Approved Caps
980 Vertical Termination Cap
991 High Wind Cap
923GK 3" Co-linear Adapter with flashing
INSTALLATION
THE APPLIANCE MUST NOT BE
CONNECTED TO A CHIMNEY FLUE
SERVING A SEPARATE SOLID FUEL
BURNING APPLIANCE.
FPI Cabinet and/or Flat Wall Mantles
may be used in these applications en-
suring that clearances to combustibles
are maintained.

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 17
Venting Arrangements - Vertical Terminations
with Co-linear Flex System for both
Residential & Manufactured Homes
into Masonry Fireplaces
The shaded area in the diagrams show the
allowable vertical terminations.
INSTALLATION

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
18
HORIZONTAL
INSTALLATIONS
Install the vent system according to the
manufacturer's instructions included with the
components.
1) Set the unit in its desired location. Check
to determine if wall studs or roof rafters
are in the way when the venting system is
attached. If this is the case, you may want
to adjust the location of the unit. Rough in
the gas preferably on the right side of the
unit and the electrical (junction block is on
the left side) on the left.
2) Direct Vent pipe and fittings are designed
with special twist-lock connections to con-
nect the venting system to the appliance
flue outlet. A twist-lock appliance adaptor
is an available option that must be used in
conjunction with the Simpson Dura-Vent
Direct Vent GS system.
3) Put a bead of silicone inside the outer
section of the adapter and a bead of Stove
Mate on the inner collar. Slip the adapter
over the existing inner and outer flue collar
and fasten to the outer collar only with the
3 supplied screws (drilling pilot holes will
make this easier). Level the fireplace and
fasten it to the framing using nails or screws
through the nailing strips.
4) Assemble the desired combination of pipe
and elbows to the appliance adaptor and
twist-lock for a solid connection.
Note:
a) Twist-lock procedure: Four indentations,
located on the female ends of pipes and
fittings, are designed to slide straight
onto the male ends of adjacent pipes
and fittings, by orienting the four pipe
indentations so they match and slide
in to the four entry slots on the male
ends, Diagram 1. Push the pipe sections
completely together, then twist-lock
one section clockwise approximately
one-quarter turn, until the two sections
are fully locked. The female locking lugs
will not be visible from the outside, on
the Black Pipe or fittings. They may be
located by examining the inside of the
female ends.
Note: Apply sealant "Mill-Pac" to inner pipe
Diagram 1
and high temperature silicone seal-
ant to outer pipe on every twist-lock
joint.
Diagram 3
b) Horizontal runs of vent must be sup-
ported every three feet. Wall straps are
available for this purpose.
5) Mark the wall for a 10" x 10" square hole.
The center of the square hole should line
up with the centerline of the horizontal pipe.
Cut and frame the 10 inch square hole in
the exterior wall where the vent will be
terminated. If the wall being penetrated is
constructed of non-combustible material,
i.e. masonry block or concrete, a 7"(178mm)
diameter (7-1/2"(191mm) dia. for flex) hole
is acceptable. See Horizontal Termination
diagram on page 13.
Note: With Dura-Vent, the minimum height
is achieved by installing a 90oelbow
directly to the rigid pipe adaptor.
Note:
a) The horizontal run of vent must be level,
or have a
1/4 inch rise for every 1 foot of run to-
wards the termination. Never allow the
vent to run downward. This could cause
high temperatures and may present the
possibility of a fire.
b) The location of the horizontal vent termi-
nation on an exterior wall must meet all
local and national building codes, and
must not be blocked or obstructed. For
External Vent Terminal Locations, see
diagram on page 9.
c) Snorkel Terminations:
For installations requiring a vertical rise
on the exterior of the building, 14-inch
and 36-inch tall Snorkel Terminations
and the Riser Vent as shown in Dia-
gram 2 & 2a are available. Follow the
same installation procedures as used
for standard Horizontal Termination.
NEVER install the snorkel upside
down.
*As specified in CGA B149 Installation Code.
Local codes or regulations may require different
clearances.
Diagram 2

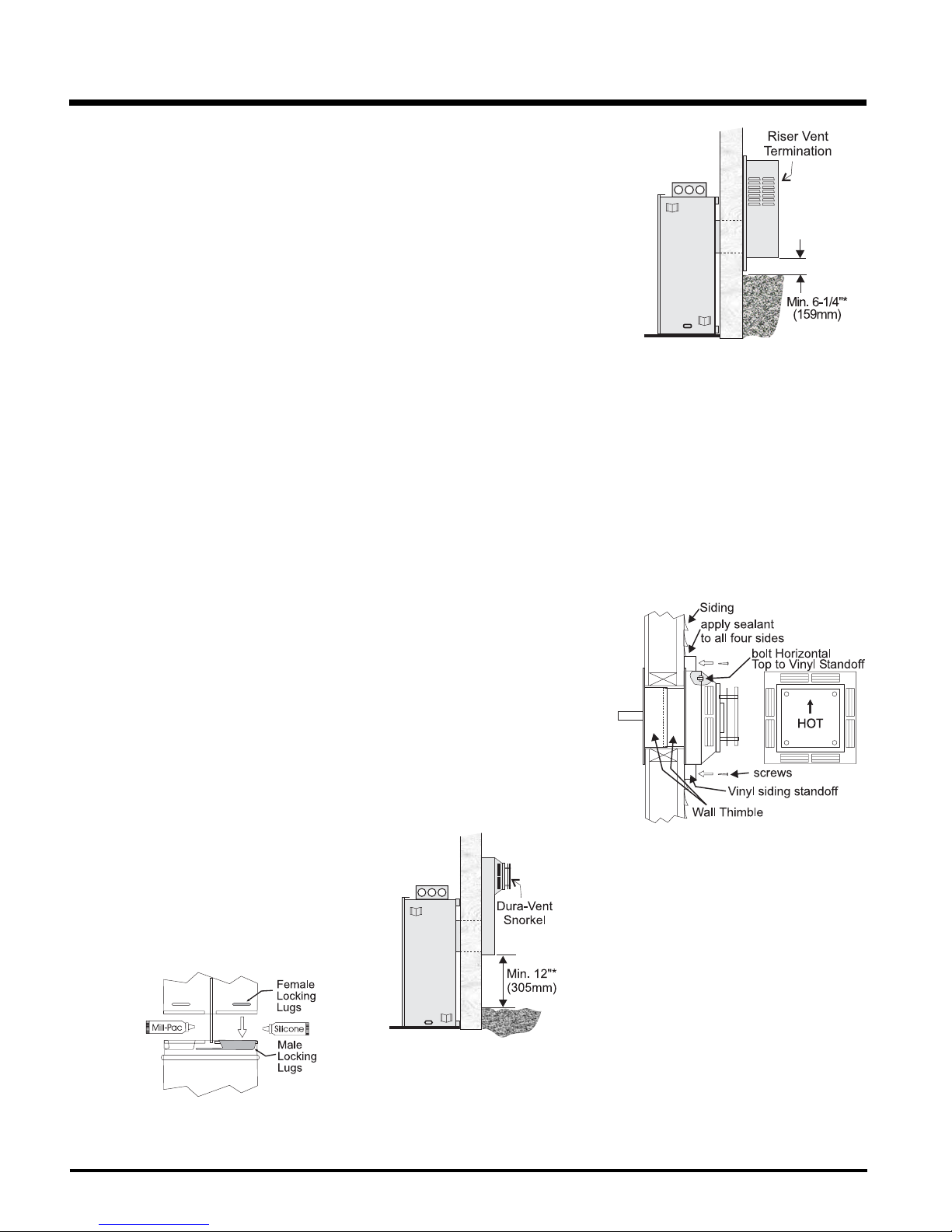

Below Grade Snorkel Installation
If the Snorkel Termination must be installed
below grade, i.e. basement application,
proper drainage must be provided to prevent
water from entering the Snorkel Termination.
Refer to Dura-Vent Installation instructions
for details. Do not attempt to enclose the
Snorkel within the wall, or any other type
of enclosure.
6) The arrow on the vent cap should be
pointing up. Insure that the 1-1/2" clear-
ances to combustible materials are main-
tained (Diagram 3). Install the termination
cap.
Diagram 2a

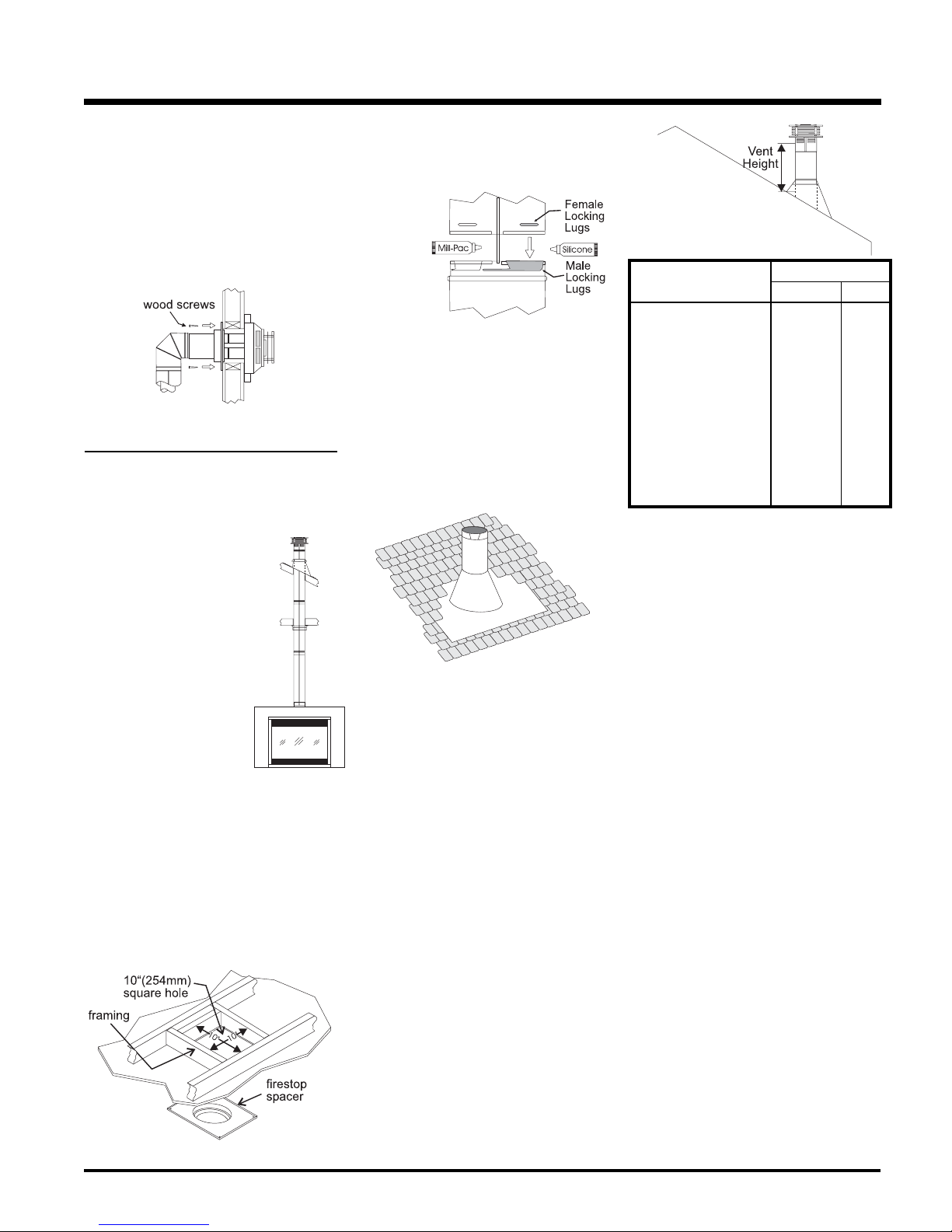

The four wood screws provided should
be replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.
Note: If installing termination on a siding
covered wall, a vinyl siding standoff
or furring strips must be used to
ensure that the termination is not
recessed into the siding.
7) Before connecting the horizontal run of vent
pipe to the vent termination, slide the Wall
Thimble (Part # 620-926) over the vent
pipe.
8) Slide the appliance and vent assembly
towards the wall carefully inserting the
INSTALLATION

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace 19
4) Assemble the desired lengths of pipe and
elbows. Ensure that all pipes and elbow
connections are in the fully twist-locked
position and sealed.
Note: Apply sealant "Mill-Pac" to inner pipe
and high temperature silicone seal-
ant to outer pipe on every twist-lock
joint.
Diagram 4
5) Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The
hole should be of sufficient size to meet
the minimum requirements for clearance
to combustibles of 1-1/2". Slip the flashing
under the shingles (shingles should overlap
half the flashing) as per Diagram 3.
Diagram 3: The upper half of the flashing is
installed under the roofing material and not
nailed down until the chimney is installed. This
allows for small adjustments.
6) Continue to assemble pipe lengths.
Note: If an offset is necessary in the attic to
avoid obstructions, it is important to
support the vent pipe every 3 feet, to
avoid excessive stress on the elbows,
and possible separation. Wall straps
are available for this purpose.
Galvanizedpipeis desirableabove the roofline
due to its higher corrosionresistance. Continue
to add pipe sections through the flashing until
the height of the vent cap meets the minimum
height requirements specified in Diagram 4 or
local codes. Note that for steep roof pitches,
the vertical height must be increased. Apoor
draft, or down drafting can result from high
wind conditions near big trees or adjoining
roof lines, in these cases, increasing the
vent height may solve the problem.
7) Ensure vent is vertical and secure the base
of the flashing to the roof with roofing rails,
slide storm collar over the pipe section and
seal with a mastic.
8) Install the vertical termination cap by twist-
locking it.
Note: Any closets or storage spaces, which
the vent passes through must be
enclosed.
Diagram 1
Diagram 2
VERTICAL
TERMINATION
1) Maintain the 1-1/2" clearances (air
spaces) to combustibles when
passing through ceilings, walls,
roofs, enclosures, attic rafter,
or other nearby combustible
surfaces. Do not pack air spaces
with insulation. Check pages
12-13 for the maximum vertical
rise of the venting system and
the maximum horizontal offset
limitations.
Diagram 4
vent pipe into the vent cap assembly. It is
important that the vent pipe extends into the
vent cap sufficient distance so as to result
in a minimum pipe overlap of 1-1/4 inches.
Secure the connection between the vent pipe
and the vent cap 3 sheet metal screws.
9) Install wall thimble in the center of the 10"
square and attach with wood screws (Dia-
gram 4).
2) Set the gas appliance in
its desired location. Drop a
plumb bob down from the
ceiling to the position of
the appliance flue exit, and
mark the location where the
vent will penetrate the ceiling. Drill a small
hole at his point. Next, drop a plumb bob
from the roof to the hole previously drilled
in the ceiling, and mark the spot where the
vent will penetrate the roof.
3) A Firestop spacer must be installed in the
floor or ceiling of every level. To install the
Firestop spacer in a flat ceiling or wall, cut
a 10 inch square hole. Frame the hole as
shown in Diagram 2 and install the fire-
stop.
INSTALLATION
Roof Pitch Minimum Vent Height
Feet Meters
flat to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44

UltraGlow G33R-1 Zero Clearance Rear Vent Direct Vent Gas Fireplace
20
GAS LINE
INSTALLATION
The gas line can be brought through either the
right or the left side of the appliance. The gas
valve is situated on the right hand side of the
unit and the gas inlet is on the right hand side
of the valve.
Note: If the gas line is being installed from
the left side, be sure to leave room to
accommodate servicing of the fan.
The gas line connection may be made of rigid
pipe, copper pipe or an approved flex connec-
tor. (If you are using rigid pipe, ensure that the
valve can be removed for servicing.) Since some
municipalities have additional local codes it is
always best to consult with your local authorities
and the CAN/CGA B149 installation code.
For USA installations follow local codes and/or
the current National Fuel Gas Code, ANSI
Z223.1.
When using copper or flex connectors use only
approved fittings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and flex
connectors are usually considered to meet this
requirement.
Important:Always check for gas leaks with a
soap and water solution or gas leak detector.
Do not use open flame for leak testing.
INSTALLATION
Note: Output capacity - The efficiency rating
of the appliance is a product thermal
efficiency rating determined under
continuous operating conditions and
was determined independently of any
installed system.
Vent height may or may not change
your efficiency ratings.
G33R-1 SYSTEM DATA
For 0 to 4500 feet altitude
Burner Inlet Orifice Sizes:
Natural Gas Propane
Burner #49 #56
Max. Input Rating
- Natural Gas 15,000 Btu/h
- Propane 15,000 Btu/h
Min. Input Rating
-Natural Gas 8,996 Btu/h
-Propane 7,819 Btu/h
Output Capacity
Natural Gas 11,340 Btu/h
Propane 11,115 Btu/h
Supply Pressure
Natural Gas min. 5.0" w.c.
Propane min. 12.0" w.c.
Manifold Pressure (High)
Natural Gas 3.8" +/- 0.2" w.c.
Propane 11" +/- 0.2" w.c.
Log Set Ceramic fibre, 4 per set.
Vent System: Simpson Dura-Vent Direct
Vent System or UltraGlow Direct Vent System
(Flex)
HIGH ELEVATION
This unit is approved in Canada for altitude 0
to 4500 ft. (CAN1 2.17-M91) with the orifice
supplied.
