SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL
ULTRAMAGIC FLIGHT MANUAL SUPPLEMENT 39
ULTRAMAGIC ‘TEKNO’ BASKETS
39.1 GENERAL INFORMATION
This supplement details the instructions and limitations necessary to ensure the
safe operation, maintenance and continued airworthiness of CT-01 and CT-02
Ultramagic ‘Tekno’ Baskets.
The section indexes on this supplement are preceded with the §39.X, and the
suffix is kept in line with the Ultramagic Flight Manual. The content of this
supplement replaces or appends the information contained on the Flight Manual
for the balloon or parts to which this supplement is intended.
39.2 OPERATIONAL LIMITATIONS
The following limitations are additional to those already stated in the Flight
Manual.
39.2.3.1 Acceptable Damage
Add the following:
Damages or cuts on the fabric walls are allowed unless the consistency of the
walls is jeopardized or holes larger than 5 cm diameter are present.
No cracks or damages are allowed on the steel structure.
Any crack longer than 15 cm and 3 mm depth (two cross-banded veneers) or
more in the plywood floor is not allowed.
39.2.4 Minimum Equipment
Amend point 1: 1 kg (2.2 lb) dry powder fire extinguisher conforming to EN3
or equivalent (ANSI/UL711)
39.2.6 Loading
Applicable loading parameters are listed on section 39.5 of this supplement.
39.2.7 Crew

FM04US Rev. 4 ULTRAMAGIC, S.A page 2 of 8
SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL
Maximum number of occupants is described on section 39.D.
39.2.13 Fuel cylinders
2. For cylinders installed inside the basket, the cross-harness supplied
must be fitted to each cylinder. These should be attached so as not
to allow any up and down as well as lateral movement, as shown in
the following Figure 1:

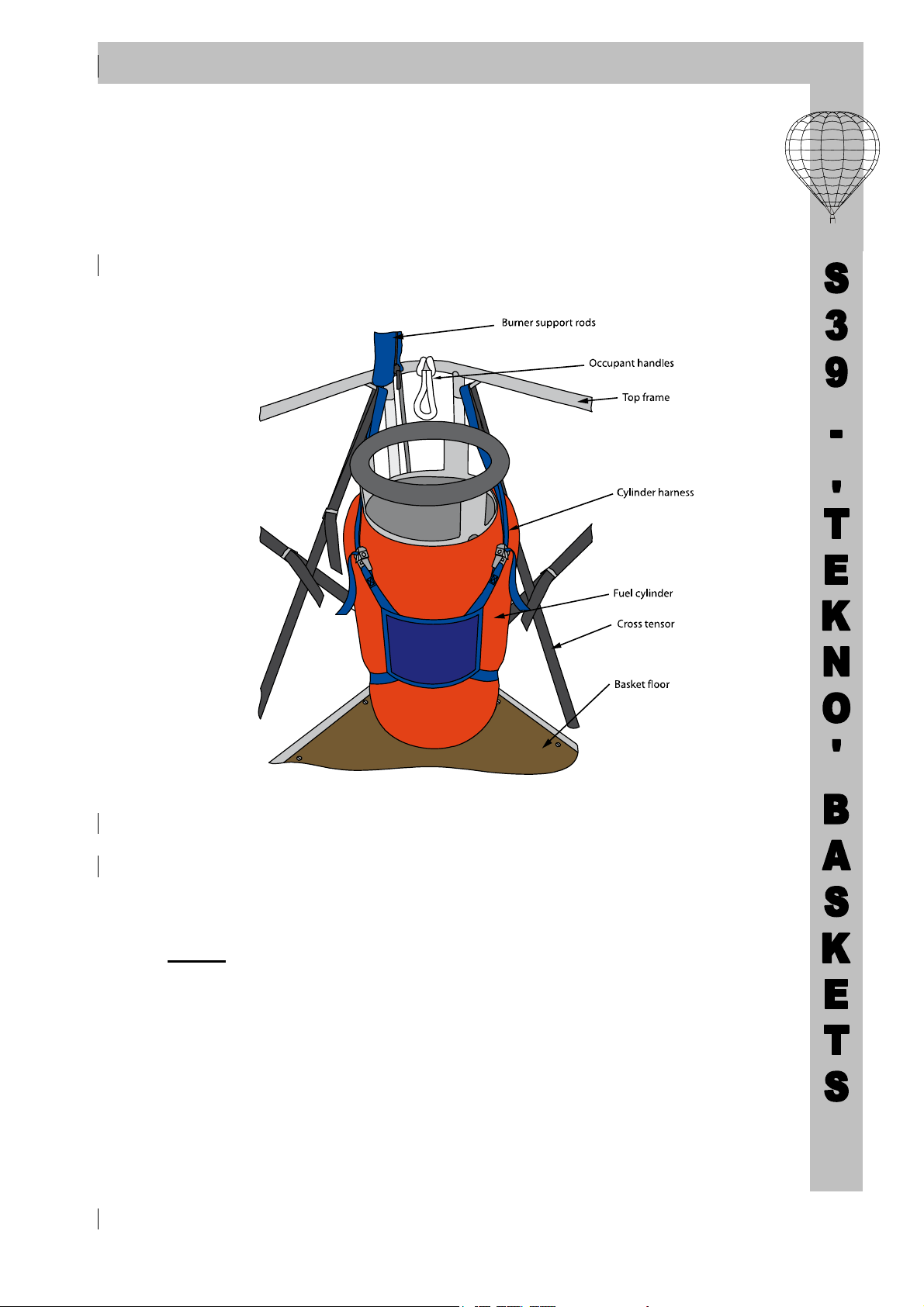

Figure 1 – Cylinder installation inside the basket
When optional external attachments for fuel cylinders are installed,
2 or 4 cylinders may be carried in pairs on the short sides of the
basket. Each pair of cylinders must be attached using two horizontal
straps, two support brackets and the two suspension straps
provided on the basket top frame, as shown on Figure 2.
NOTE: Only M-20, M-20D, M-30, M-30D or Worthington cylinders, or a
combination of them, may be installed externally to the ‘Tekno’
basket. Only cylinders of the same type may be mounted together
externally on the same side of the basket.

FM04US Rev. 4 ULTRAMAGIC, S.A page 3 of 8
SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL

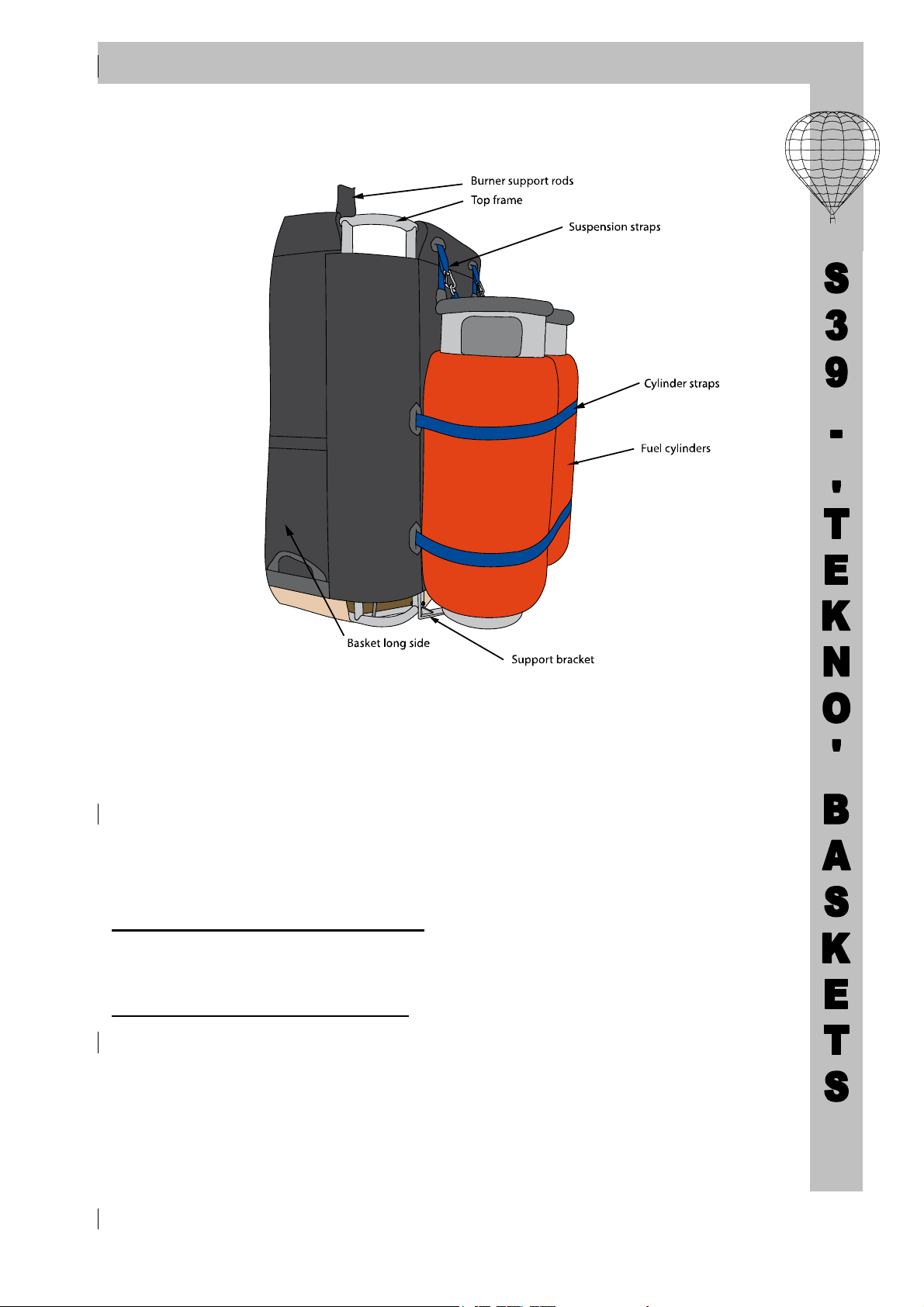

Figure 2 – Cylinder installation outside the basket (optional fitting - accessory)
39.2.14 Tethered Flight
Tethered flight is not allowed if the wind speed on the surface is above 10 knots
(5 m/s or 18.5 km/h).
39.3 EMERGENCY PROCEDURES
No change.
39.4 STANDARD PROCEDURES
The following procedures are in addition to those already contained in the Flight
Manual.
39.4.5.1.4 Basket
Proceed as per 39.4.5.5 and refer after to 39.D for specific pre-flight checks.

FM04US Rev. 4 ULTRAMAGIC, S.A page 4 of 8
SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL
39.4.5.2 Rigging the basket and burner
Add the following:
A single stainless steel karabiner with working load of 900 kg (1984 lb) may be
used on each corner of the burner frame to attach the flying wires from the
envelope. Those karabiners shall be properly engraved and must be supplied or
approved by Ultramagic.
39.4.5.5 Mounting the ‘Tekno’ Basket
The ‘Tekno’ basket is supplied with a transportation bag specially designed to
protect the components during handling and storage, as well as to allow a neat
organization of its parts. When the basket must be mounted, proceed as follows:
- Deploy the body of the basket over a flat surface. Make sure that the
basket floor is underneath.
- Take 8 white rods from the bag and fit each end in the sockets of the
basket bottom structure.
- Lift up the top frame and position the upper end of the rods in its sockets.
- With the main structure up, unfold the wall panels out of the basket, and
put the fuel cylinders into the basket.
- A set of 8 tapes fitted with buckles is provided.
- Pass each tape diagonally joining two opposite corner eyelets, leaving
them a bit loose. Make sure that their buckles are not entangled. Repeat
the operation with all the tapes. Finally firmly tighten the 8 tapes.
- Using the harness arrangement provided, attach firmly the cylinders to the
corners as per 39.2.13(2), paying attention to the balance of the basket.
Secure the two carbine hooks to the bottom corner brackets.
- Lift the panels up and attach them around the top frame by means of the
two Velcro tapes provided. Make sure the panel and the fixings are tight.
- Unfold the corner covers of each straight panel and tighten them over the
walls of the long side by using the Velcro bands.
CAUTION: The whole structure must remain inside the boundary formed by
the fabric walls, with the exception of the external fitting for fuel cylinders.
- Proceed with the rigging as per section 4.5.2 of the Flight Manual.

FM04US Rev. 4 ULTRAMAGIC, S.A page 5 of 8
SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL
39.4.11.5 Installation of external cylinders (optional)
If the ‘Tekno’ basket is provided with external attachments for fuel
cylinders, pilot may install up to 4 cylinders on them. To install the fuel cylinders
refer to Figure 2 and proceed as follows:
- Make sure that the cylinder support brackets located at the basket bottom
edge are not damaged and are firmly secured to the basket sockets.
- Place each cylinder over a bracket checking that the bracket hook joins
the cylinder bottom ring.
- For CT-02 external fuel cylinders attachment, place and secure the
padded spacer provided.
- Secure all cylinder suspension straps through their Carbine hook to the
ring placed at the end of the strap. Make sure that the cylinder top ring is
secured.
- Fasten the horizontal straps around the cylinders installed on one side of
the basket. Note that these straps must be passed through the holes of the
basket corners, lacing the cylinders to the adjacent wall and nylon rods.
NOTE: Observe the limitations listed on 39.2.13.
Information regarding the assembly or removal of the external support
brackets may be found in Supplement 18 to the Ultramagic Maintenance Manual.
39.4.11.6 Folding the ‘Tekno’ Basket
To fold the basket after flight, proceed in reverse order of the steps in
39.4.5.5. If the basket has suffered a hard landing, follow section 6.7.3 of the
Maintenance Manual and Supplement applicable before next flight.

FM04US Rev. 4 ULTRAMAGIC, S.A page 6 of 8
SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL
39.5 LOADING
39.5.2 Table of Empty Weight and Maximum Lift
For the calculations in the Load Chart of chapter 5 of the Flight Manual will be
used the following characteristics:
Model V Pv Lmax
CT-01 CT-02 CT-01 CT02
S-50 1415 99/218 120/264 500/1102 500/1102
S-70 1982 113/249 135/297 515/1135 650/1433
S-90 2550 N/A 167/368 N/A 768/1693
S-105 2950 N/A 176/388 N/A 777/1713
H-31 900 98/216 N/A 307/676 N/A
H-42 1200 107/236 128/282 416/917 416/917
H-56 1590 123/271 144/317 527/1161 549/1210
H-65 1840 132/291 153/337 536/1181 638/1406
H-77 2200 137/302 158/348 541/1192 756/1666
V-56 1590 126/277 147/324 530/1168 549/1210
V-65 1840 132/291 153/337 536/1181 638/1406
V-77 2180 136/299 157/346 540/1190 756/1666
V-90 2550 N/A 169/372 N/A 770/1697
V-105 2950 N/A 181/399 N/A 782/1724
M-42 1200 112/246 133/293 414/912 414/912
M-56 1590 123/271 144/317 527/1161 550/1212
M-56c 1590 127/279 148/326 531/1170 550/1212
M-65 1840 133/293 154/339 537/1183 638/1406
M-65c 1840 137/302 158/348 541/1192 635/1399
M-77 2200 135/297 156/343 539/1188 756/1666
M-77c 2200 141/310 162/357 545/1201 756/1666
M-90 2550 N/A 171/377 N/A 772/1701
M-105 2950 N/A 183/403 N/A 784/1728
Z-90 2550 N/A 167/368 N/A 768/1693
V = volume [m³]
Pv = Empty weight (without any cylinder) [Kg/lb]
Lmax = Maximum authorised Lift [Kg/lb]
39.5.4 Table of Compatibility
Envelopes listed on 39.5.2 are considered compatible with the CT-01 and CT-02
‘Tekno’ Baskets.
‘Tekno’ basket is approved for flight using the following burners:
· MK-21 Single
· BMK-008 Single
· MK-21 Double (only CT-02)
· BMK-008 Double (only CT-02)

FM04US Rev. 4 ULTRAMAGIC, S.A page 7 of 8
SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL
39.6 BALLOON AND SYSTEMS DESCRIPTION
39.6.3 Dimensions and Weights
See following table corresponding to mass and dimensions:
BASKET CT-01 CT-02
Length* (m/ft) 1,0/3,3 1,2/3,9
Width (m/ft) 0,8/2,6 1,0/3,3
Wall height (m/ft) 1,1/3,6 1,1/3,6
Empty Mass* (kg/lb) 35/77 49/108
Min Karabiners Strength (kN/lbf) 0,9/202 2,5/562
* Fuel cylinders, burner and burner frame not included
39.7 BALLOON HANDLING, MAINTENANCE AND CARE
Follow instructions as per Maintenance Manual and Supplement 18.
39.8 OTHER MANUFACTURERS EQUIPMENT
No change.
39.C QUICK REFERENCE PRE-FLIGHT CHECKLIST
Replace Basket pre-flight checklist with the following:
Basket
1.  Check the general condition of the basket for damage.
2.  Ensure that the basket wires are free of damage and twists.
3.  Ensure that the burner frame and poles fit correctly and are free of damage.
4.  Ensure that the attachment points are secure and that all karabiners are screw-locked.
5.  Make sure that cross-tensor tapes are correctly attached and tightened.
6.  Check that wall panels are firmly closed and tightened.
7.  If installed, check that external fuel cylinders are mounted as per 39.4.11.5.

FM04US Rev. 4 ULTRAMAGIC, S.A page 8 of 8
SUPPLEMENT 39, Issue 4
HOT AIR BALLOON FLIGHT MANUAL
39.D MINIMUM BASKET SPACE REQUIREMENTS
Consider the following table
Basket Specs.
Model
Width
Length
Max
Load
Capacity
Cylinders
Inside
Cylinders
Outside*
Maximum
Occupants
CT-01 Tekno
0.8 m (2,6 ft) 1.0 m (3,3 ft)
401 kg (884 lb)
Up to 4 0, 2 or 4 1
Up to 2 0, 2 or 4 2
0 2 or 4 3
CT-02
1,0 m (3,3 ft) 1,2 m (3,9 ft)
650 kg (1433 lb)
Up to 4 0, 2 or 4 2
Up to 3 0, 2 or 4 3
Up to 1 2 or 4 4
* If optional attachments are installed
