Uniden ANA9620 User manual

CONTENTS
Introduction......................................1
Welcome......................................1
Features.......................................1
IncludedInYourPackage.........................2
SettingUpAndAdjustingYourPhone..................3
 Selecting The Location ...........................3
 Connecting The Telephone Line ....................3
 Connecting The Telephone Cords ...................4
PowerToTheBase&ChargerUnits.................5
WallInstallation................................6
AttachingTheBeltClip...........................9
InstallingTheBattery...........................10
ChargingTheBattery...........................10
ChargingSecondBattery.........................11
LowBatteryIndicator...........................11

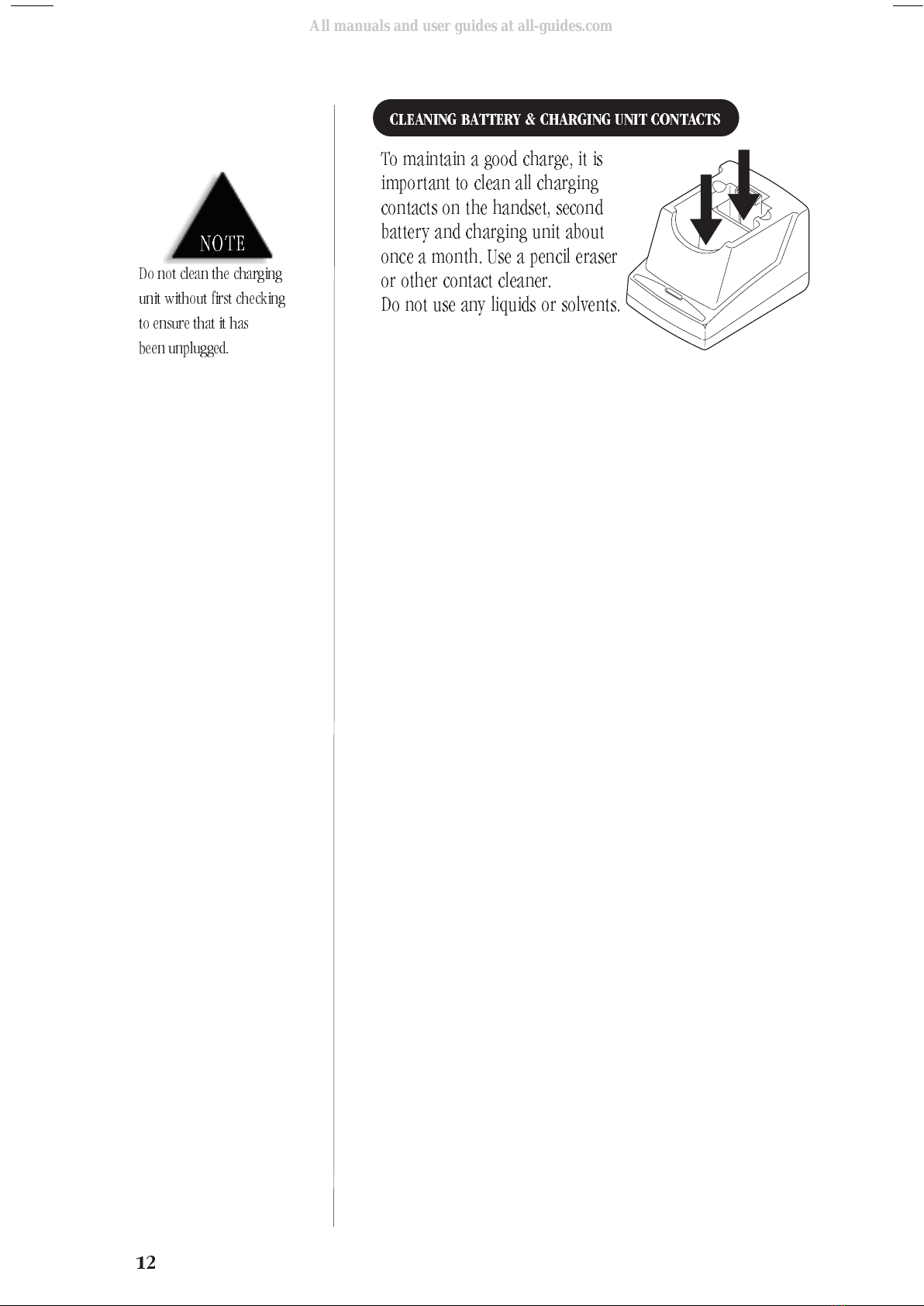

CleaningBattery&ChargingUnitContacts..........12
HandsetUse.....................................13
 ANA9620 Handset Controls .......................13
UsingTheHandset.............................14

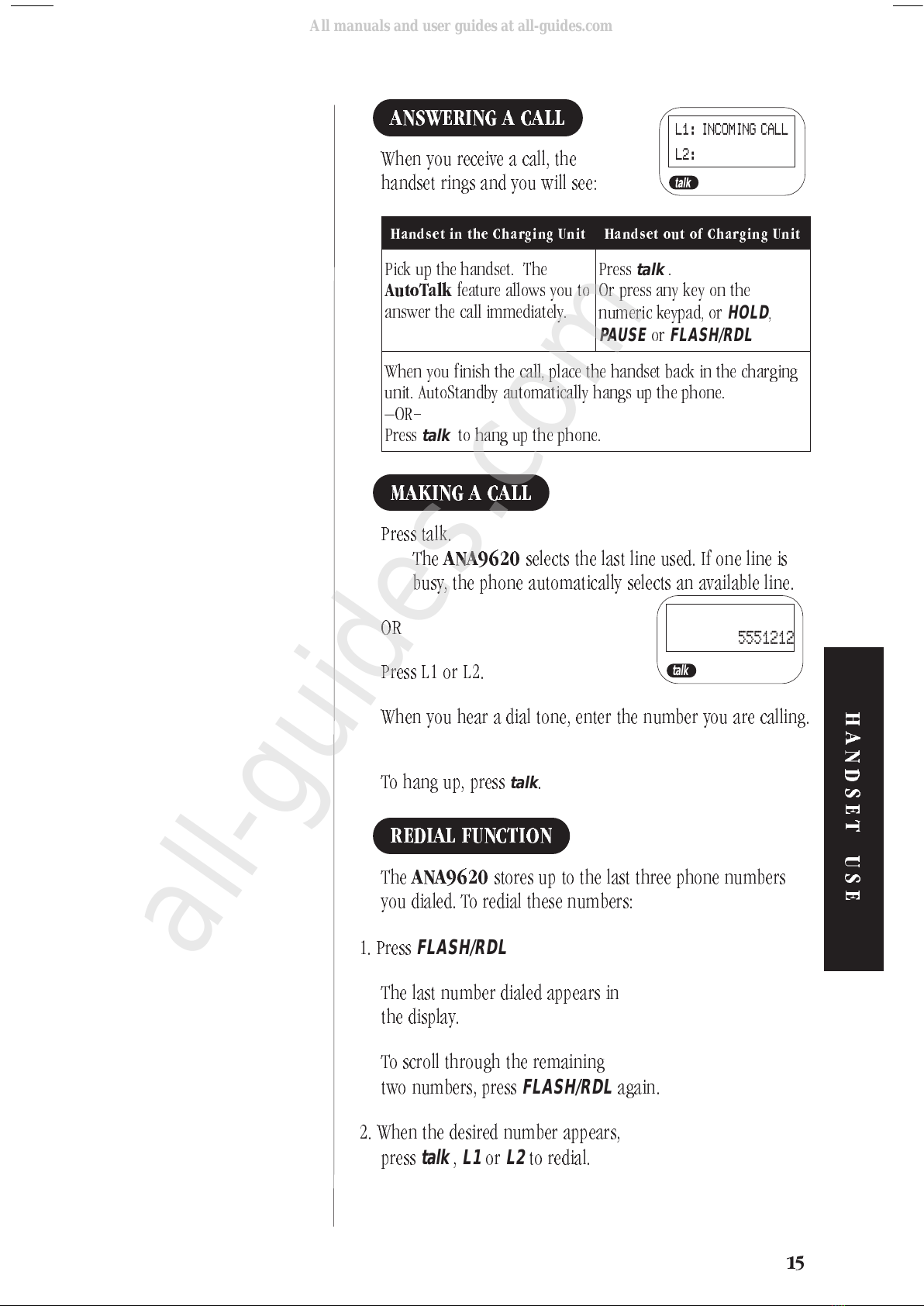

AnsweringACall...............................15
MakingACall.................................15
ProgrammingFunctions...........................16
PBXOrPSTN..................................16
ProgramModeSetup............................16
ProgrammingXFERInPBX ......................17
ProgrammingCONFInPBX......................18
UsingTheFeatureButtons.......................19
PBXFeatures..................................19
PSTNFeatures.................................22
Accessories......................................24
OptionalHeadSet..............................24
OptionalBackupAdapter........................24
OtherAccessories&Parts........................25
Troubleshooting..................................26
Specifications....................................27
CONTENTS
Uniden®is a registered trademark of Uniden America Corporation.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:36:03 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com
all-guides.com

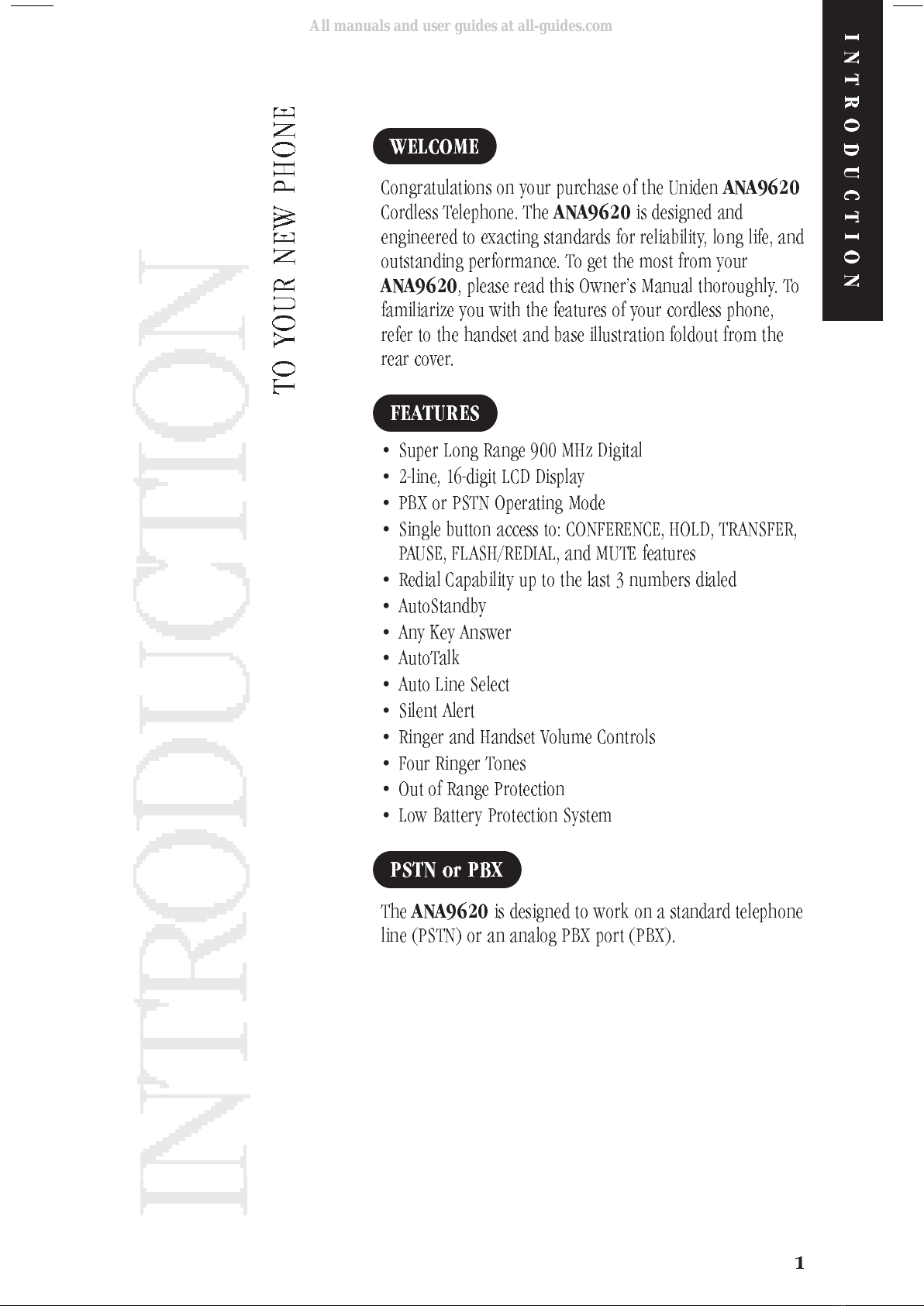

Introduction
WELCOME
Congratulations on your purchase of the Uniden ANA9620
Cordless Telephone. The ANA9620 is designed and
engineered to exacting standards for reliability, long life, and
outstanding performance. To get the most from your
ANA9620 , please read this Owners Manual thoroughly. To
familiarize you with the features of your cordless phone,
refer to the handset and base illustration foldout from the
rear cover.
FEATURES
•
Super Long Range 900 MHz Digital
•
2-line, 16-digit LCD Display
•
PBX or PSTN Operating Mode
•
Single button access to: CONFERENCE, HOLD, TRANSFER,
PAUSE, FLASH/REDIAL, and MUTE features
• Redial Capability up to the last 3 numbers dialed
• AutoStandby
• Any Key Answer
• AutoTalk
• Auto Line Select
•
Silent Alert
•
Ringer and Handset Volume Controls
•
Four Ringer Tones
•
Out of Range Protection
•
Low Battery Protection System
PSTN or PBX
The ANA9620 is designed to work on a standard telephone
line (PSTN) or an analog PBX port (PBX).
1
TO YOUR NEW PHONE
INTRODUCTION
INTRODUCTION
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:34:56 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

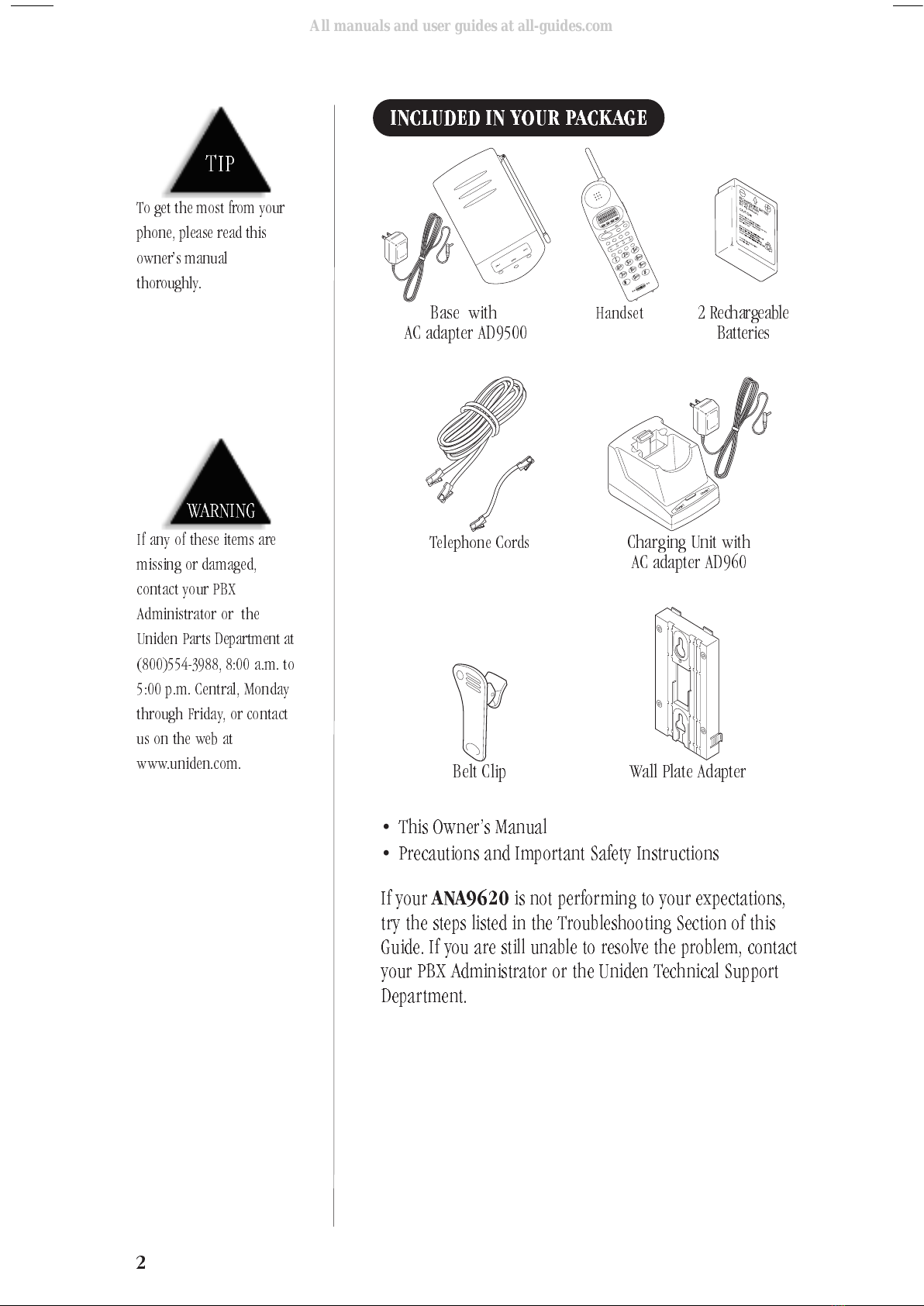

INCLUDED IN YOUR PACKAGE
•
This Owners Manual
•
Precautions and Important Safety Instructions
If your ANA9620 is not performing to your expectations,
try the steps listed in the Troubleshooting Section of this
Guide. If you are still unable to resolve the problem, contact
yourPBXAdministratorortheUnidenTechnicalSupport
Department.
2
Belt Clip Wall Plate Adapter
TIP
To get the most from your
phone, please read this
owners manual
thoroughly.
WARNING
If any of these items are
missing or damaged,
contact your PBX
Administrator or the
Uniden Parts Department at
[phone], 8:00 a.m. to
5:00 p.m. Central, Monday
through Friday, or contact
us on the web at
www.uniden.com.
Telephone Cords Charging Unit with
AC adapter AD960
Base with
AC adapter AD9500
talk
talk
F1
12
76
58
0
#
43
9
F2 F3 F4
xfer conf hold
wxyz
abc
pqrs
mno
jkl
tuv
oper
ghi
def
mute
chan vol
lock msg
bat low
Handset 2 Rechargeable
Batteries
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:01 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

Setting Up and Adjusting Your Phone
SELECTING THE LOCATION
Select a location for the ANA9620 to avoid excessive heat or
humidity. The base of your ANA9620 can be placed on a
desk or tabletop near a standard 120V AC outlet and
telephone line jack. The base can also be mounted on a
standard AT&T or GTE wall plate using the included wall
mount adapter. Keep the base and handset away from
sources of electrical noise (motors, fluorescent lighting,
computers).
CONNECTING THE TELEPHONE LINE
There are three types of phone outlets:
▼
1) Modular Jack
Plug the telephone line cord from the base into a standard
modular telephone jack(s). ( Note :Ifyoudonothavea
modular jack, contact your local telephone company for
information on the installation of these jacks.)
▼ 2) 4-Prong Jack
An adapter (not included) is required. The adapter plugs into
the 4-prong jack and the telephone line cord plugs into the
adapter.
▼
3) Hard-wired Jack
A modular jack converter (not included) is required. You
may need to rewire when connecting the converter (making
color-coded connections).
3
Your Uniden telephone dealer or a telephone supply
store can advise you on the proper adapter or converter.
AND ADJUSTING YOUR PHONE
SETTING UP
SETTING UP
TIP
Before choosing a location
foryourphone,readthe
Installation
Considerations included in
the Precautions and
Important Safety
Instructions brochure.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:02 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

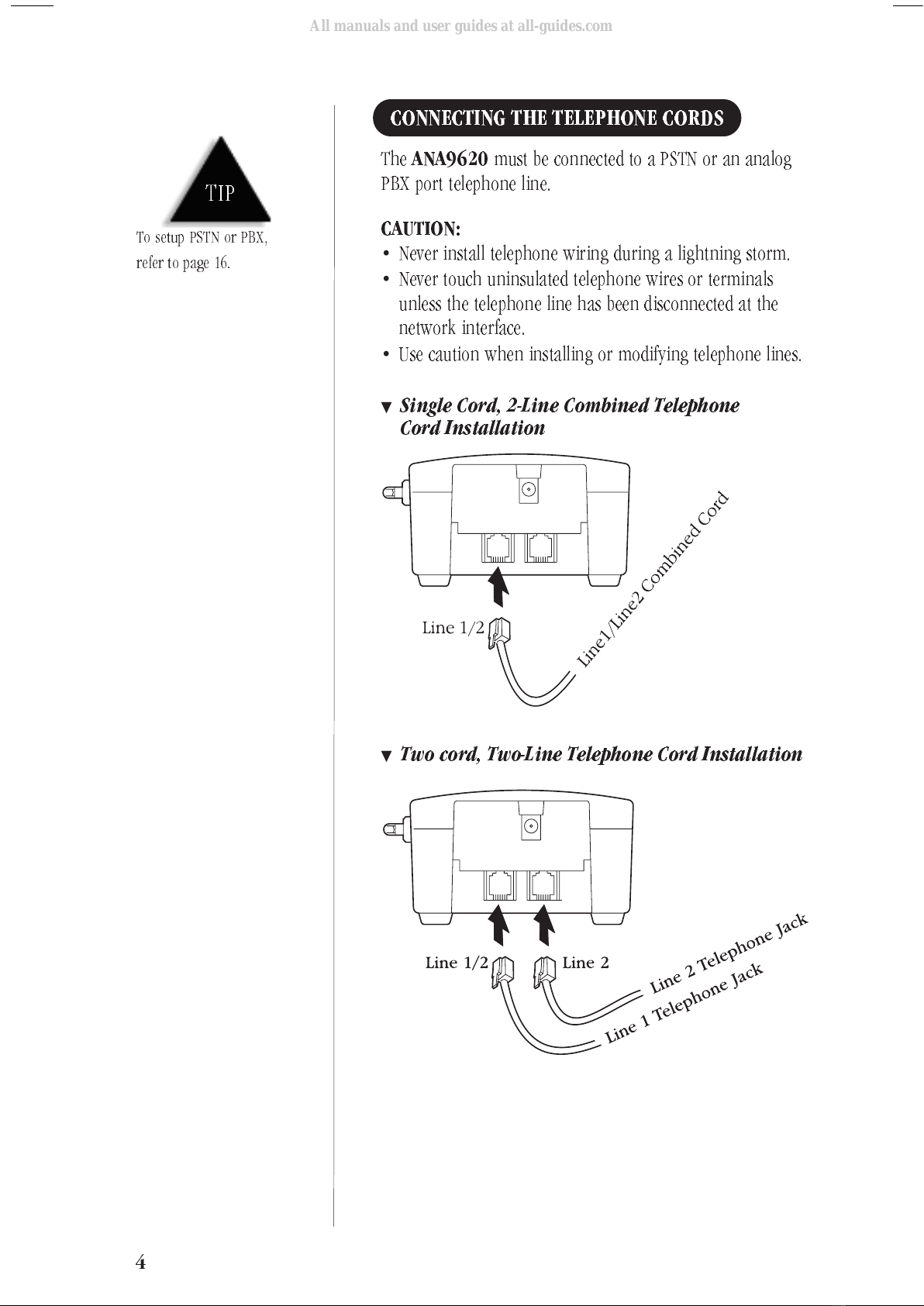

CONNECTING THE TELEPHONE CORDS
The ANA9620 must be connected to a PSTN or an analog
PBX port telephone line.
CAUTION:
•
Never install telephone wiring during a lightning storm.
•
Never touch uninsulated telephone wires or terminals
unless the telephone line has been disconnected at the
network interface.
•
Use caution when installing or modifying telephone lines.
▼
Single Cord, 2-Line Combined Telephone
Cord Installation
▼
Two cord, Two-Line Telephone Cord Installation
4
TIP
To setup PSTN or PBX,
refer to page 16.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:04 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

POWER TO THE BASE & CHARGER UNITS
Theuniquedesignofyour ANA9620 allows you to place
the handset in the charging unit with or without the belt clip
attached. The charging unit also has the ability to charge a
second battery with or without the handset being charged.
The battery can be recharged either in or out of the handset.
5
IMPORTANT
Route the power cord
where it will not create a
trip hazard, or where it
could become chafed and
create a fire or other
electrical hazards.
SETTING UP
!
Use only the Uniden
AC adapter AD9500
supplied with this base.
!
Use only the Uniden
AC adapter AD960 supplied
with this charging unit.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:09 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com
all-guides.com

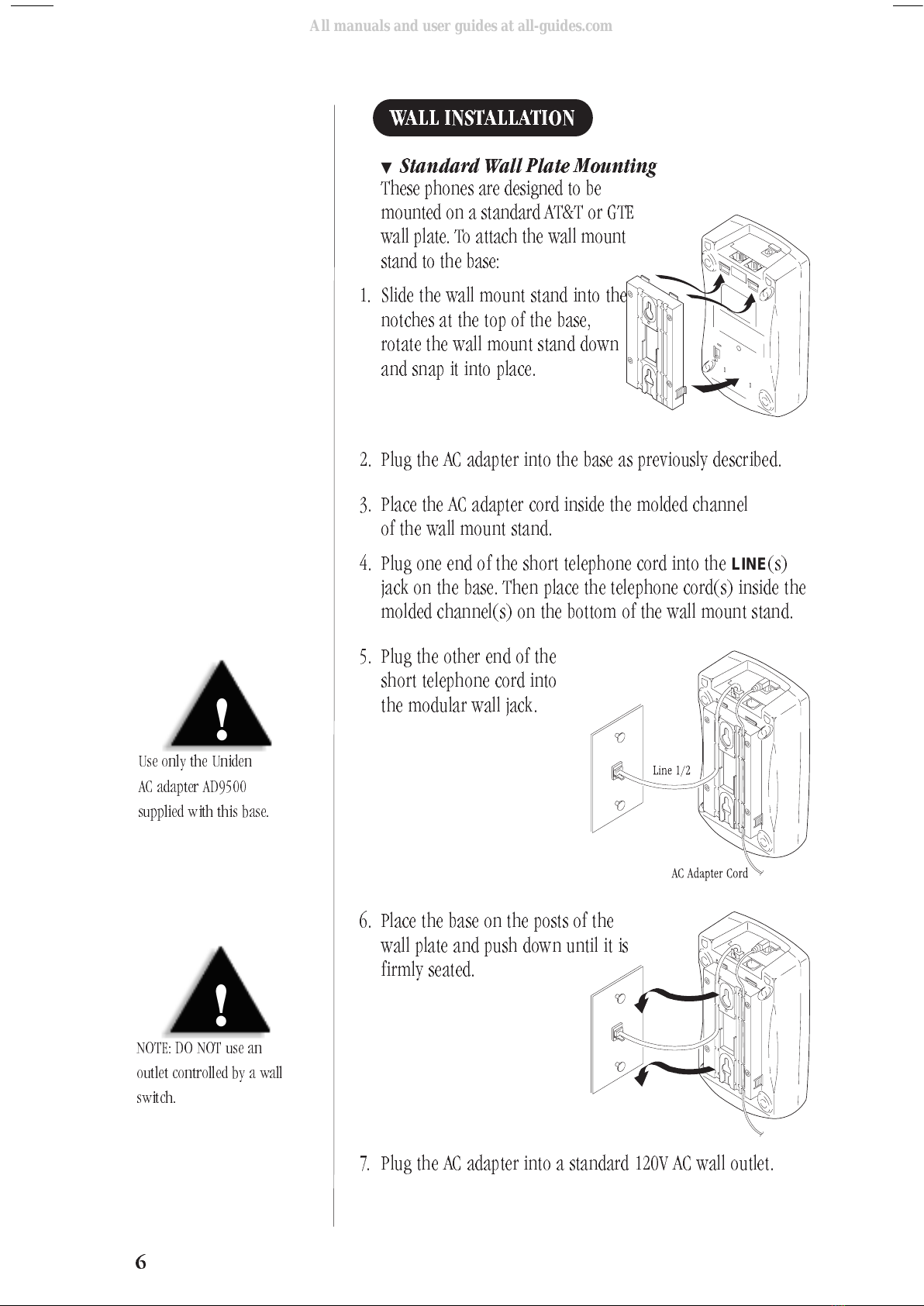

WALL INSTALLATION
▼
Standard Wall Plate Mounting
These phones are designed to be
mounted on a standard AT&T or GTE
wall plate. To attach the wall mount
stand to the base:
1. Slide the wall mount stand into the
notches at the top of the base,
rotate the wall mount stand down
and snap it into place.
2. Plug the AC adapter into the base as previously described.
3. Place the AC adapter cord inside the molded channel
of the wall mount stand.
4. Plug one end of the short telephone cord into the
LINE (s)
jack on the base. Then place the telephone cord(s) inside the
molded channel(s) on the bottom of the wall mount stand.
5. Plug the other end of the
short telephone cord into
the modular wall jack.
6. Place the base on the posts of the
wall plate and push down until it is
firmly seated.
7. Plug the AC adapter into a standard 120V AC wall outlet.
6
!
NOTE:DONOTusean
outlet controlled by a wall
switch.
!
Use only the Uniden
AC adapter AD9500
supplied with this base.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:13 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

▼

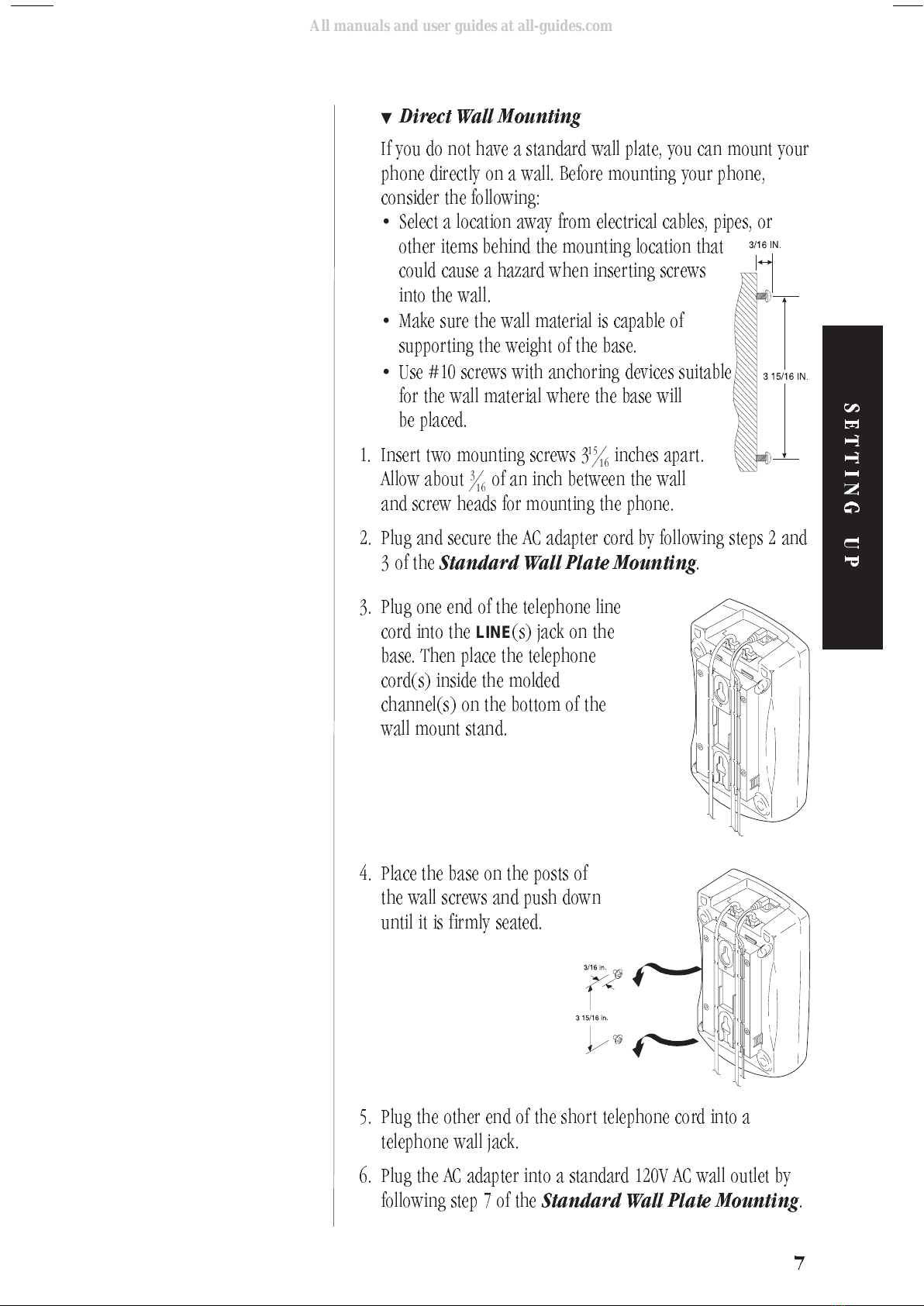

Direct Wall Mounting
If you do not have a standard wall plate, you can mount your
phone directly on a wall. Before mounting your phone,
consider the following:
•
Select a location away from electrical cables, pipes, or
other items behind the mounting location that
could cause a hazard when inserting screws
into the wall.
•
Make sure the wall material is capable of
supporting the weight of the base.
•
Use #10 screws with anchoring devices suitable
for the wall material where the base will
be placed.
1. Insert two mounting screws 31516 inches apart.
Allow about 316 of an inch between the wall
and screw heads for mounting the phone.
2. Plug and secure the AC adapter cord by following steps 2 and
3ofthe Standard Wall Plate Mounting .
3. Plug one end of the telephone line
cord into the LINE (s) jack on the
base. Then place the telephone
cord(s) inside the molded
channel(s) on the bottom of the
wall mount stand.
4. Place the base on the posts of
thewallscrewsandpushdown
untilitisfirmlyseated.
5. Plug the other end of the short telephone cord into a
telephone wall jack.
6. Plug the AC adapter into a standard 120V AC wall outlet by
following step 7 of the Standard Wall Plate Mounting .
7
SETTING UP
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:16 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

▼

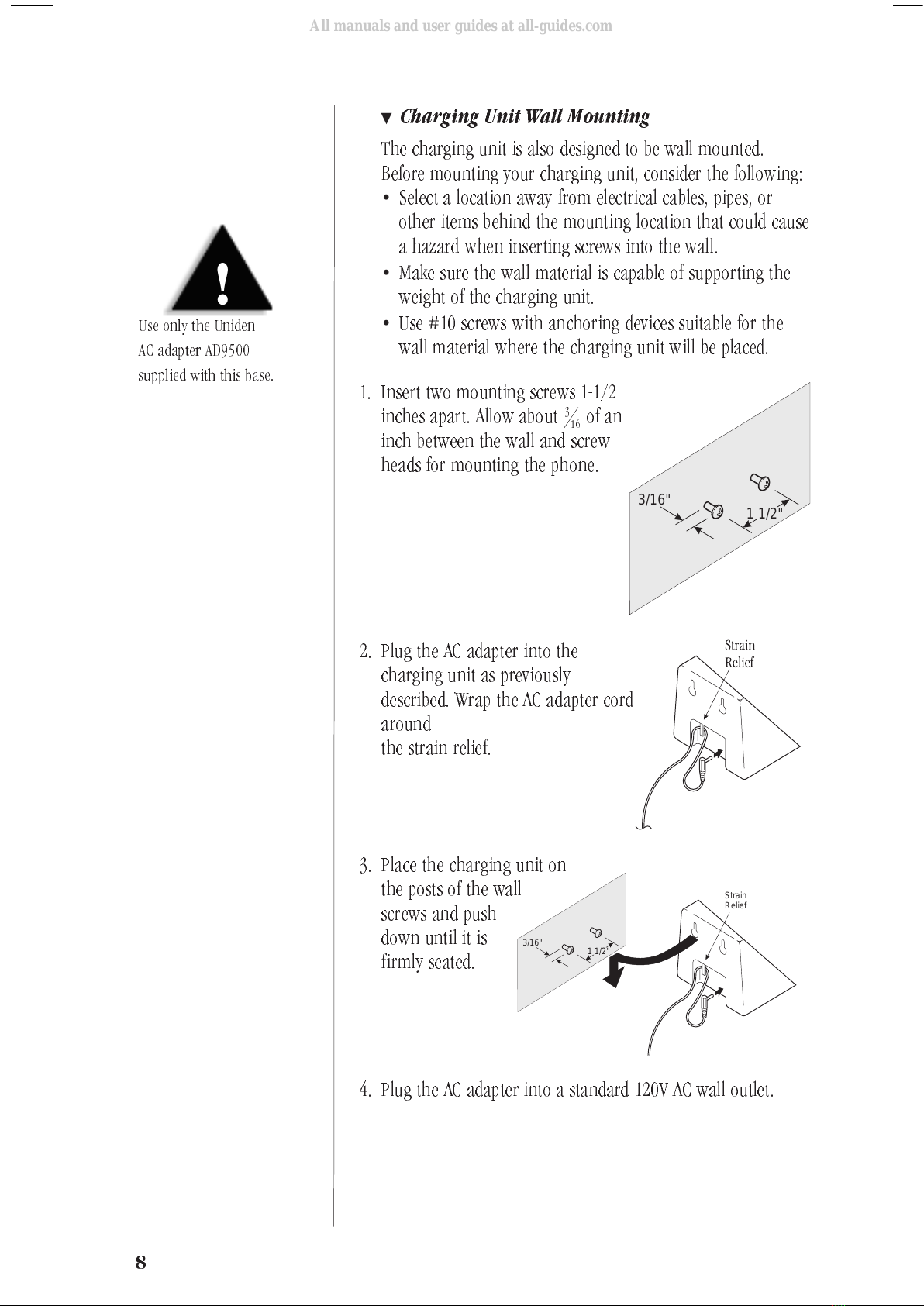

Charging Unit Wall Mounting
The charging unit is also designed to be wall mounted.
Before mounting your charging unit, consider the following:
•
Select a location away from electrical cables, pipes, or
other items behind the mounting location that could cause
a hazard when inserting screws into the wall.
•
Make sure the wall material is capable of supporting the
weight of the charging unit.
•
Use #10 screws with anchoring devices suitable for the
wall material where the charging unit will be placed.
1. Insert two mounting screws 1-1/2
inches apart. Allow about 316 of an
inch between the wall and screw
heads for mounting the phone.
2. Plug the AC adapter into the
charging unit as previously
described. Wrap the AC adapter cord
around
the strain relief.
3. Place the charging unit on
the posts of the wall
screws and push
down until it is
firmly seated.
4. Plug the AC adapter into a standard 120V AC wall outlet.
8
1 1/2"
3/16"
Strain
Relief
1 1/2"
3/16"
!
Use only the Uniden
AC adapter AD9500
supplied with this base.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:18 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

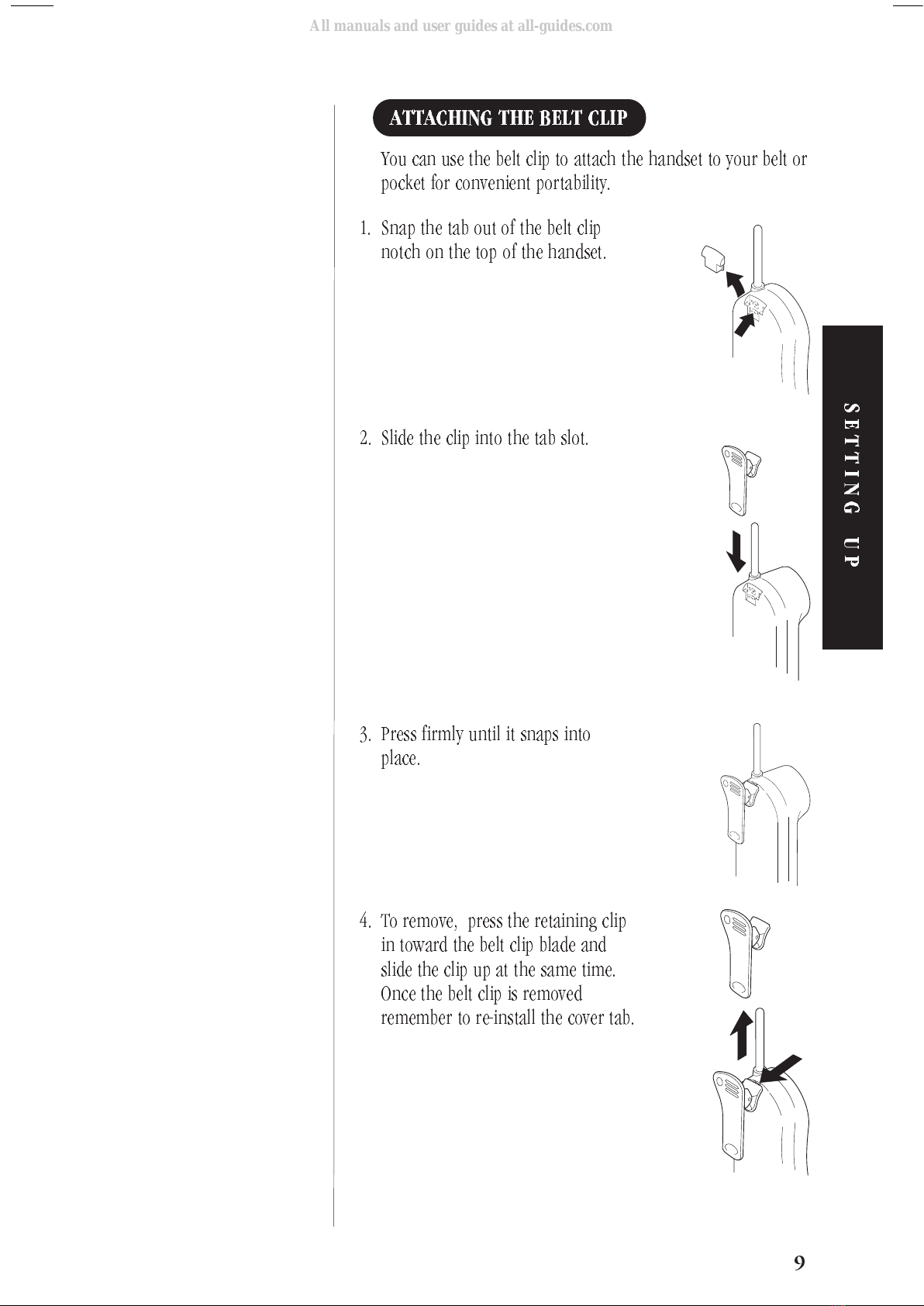

ATTACHING THE BELT CLIP
You can use the belt clip to attach the handset to your belt or
pocket for convenient portability.
1. Snap the tab out of the belt clip
notch on the top of the handset.
2. Slide the clip into the tab slot.
3. Press firmly until it snaps into
place.
4. To remove, press the retaining clip
in toward the belt clip blade and
slide the clip up at the same time.
Once the belt clip is removed
remember to re-install the cover tab.
9
SETTING UP
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:23 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

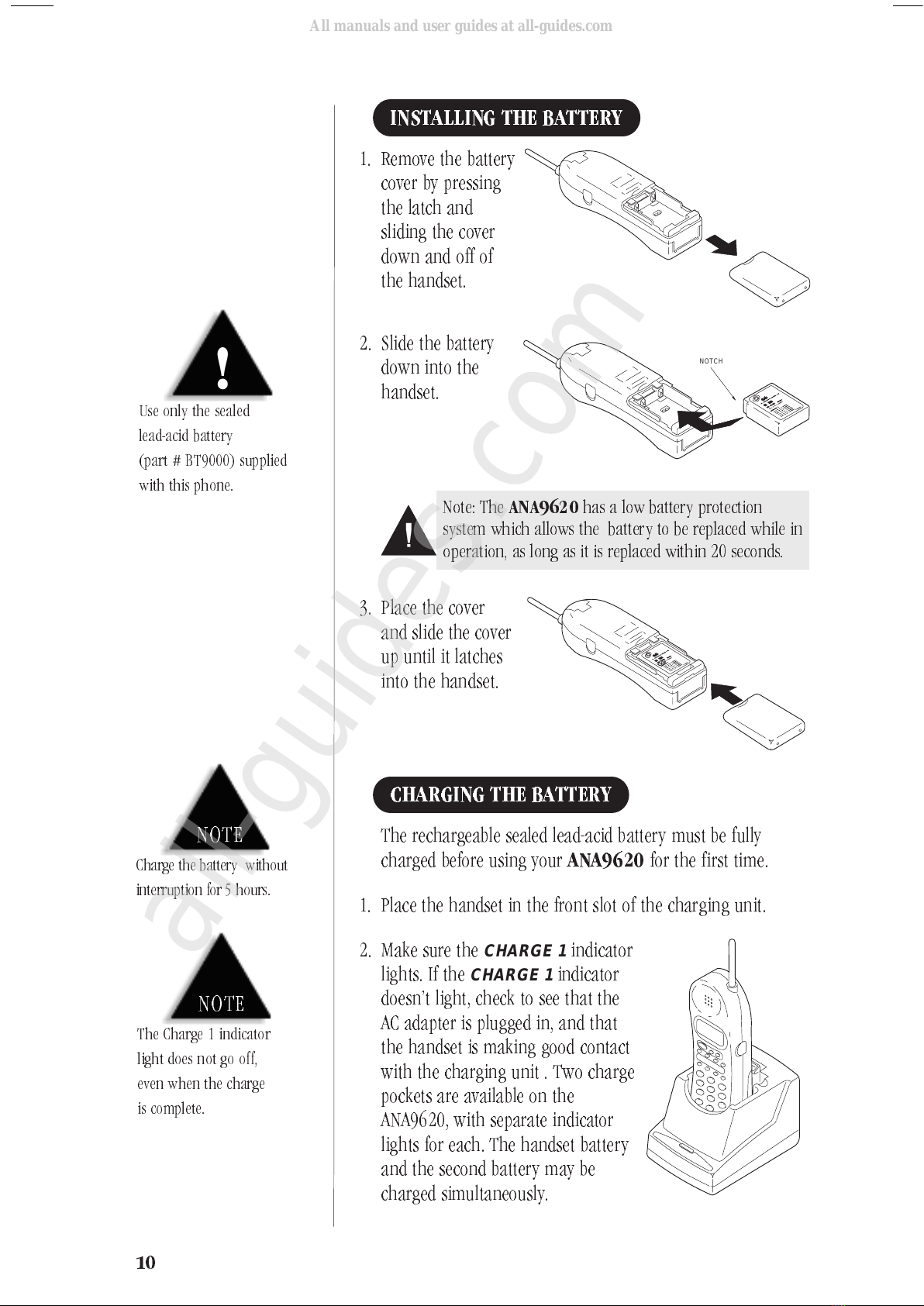

INSTALLING THE BATTERY
1. Remove the battery
cover by pressing
the latch and
sliding the cover
down and off of
the handset.
2. Slide the battery
down into the
handset.
3. Place the cover
and slide the cover
up until it latches
into the handset.
CHARGING THE BATTERY
The rechargeable sealed lead-acid battery must be fully
charged before using your ANA9620 for the first time.
1. Place the handset in the front slot of the charging unit.
2. Make sure the
CHARGE 1 indicator
lights. If the CHARGE 1 indicator
doesnt light, check to see that the
AC adapter is plugged in, and that
the handset is making good contact
with the charging unit . Two charge
pockets are available on the
ANA9620, with separate indicator
lights for each. The handset battery
and the second battery may be
charged simultaneously.
10
!
Use only the sealed
lead-acid battery
(part # BT9000) supplied
with this phone.
NOTE
Charge the battery without
interruption for 5 hours.
NOTCH
Note: The ANA9620 has a low battery protection
system which allows the battery to be replaced while in
operation, as long as it is replaced within 20 seconds.
NOTE
TheCharge1indicator
light does not go off,
even when the charge
is complete.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:26 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com
all-guides.com

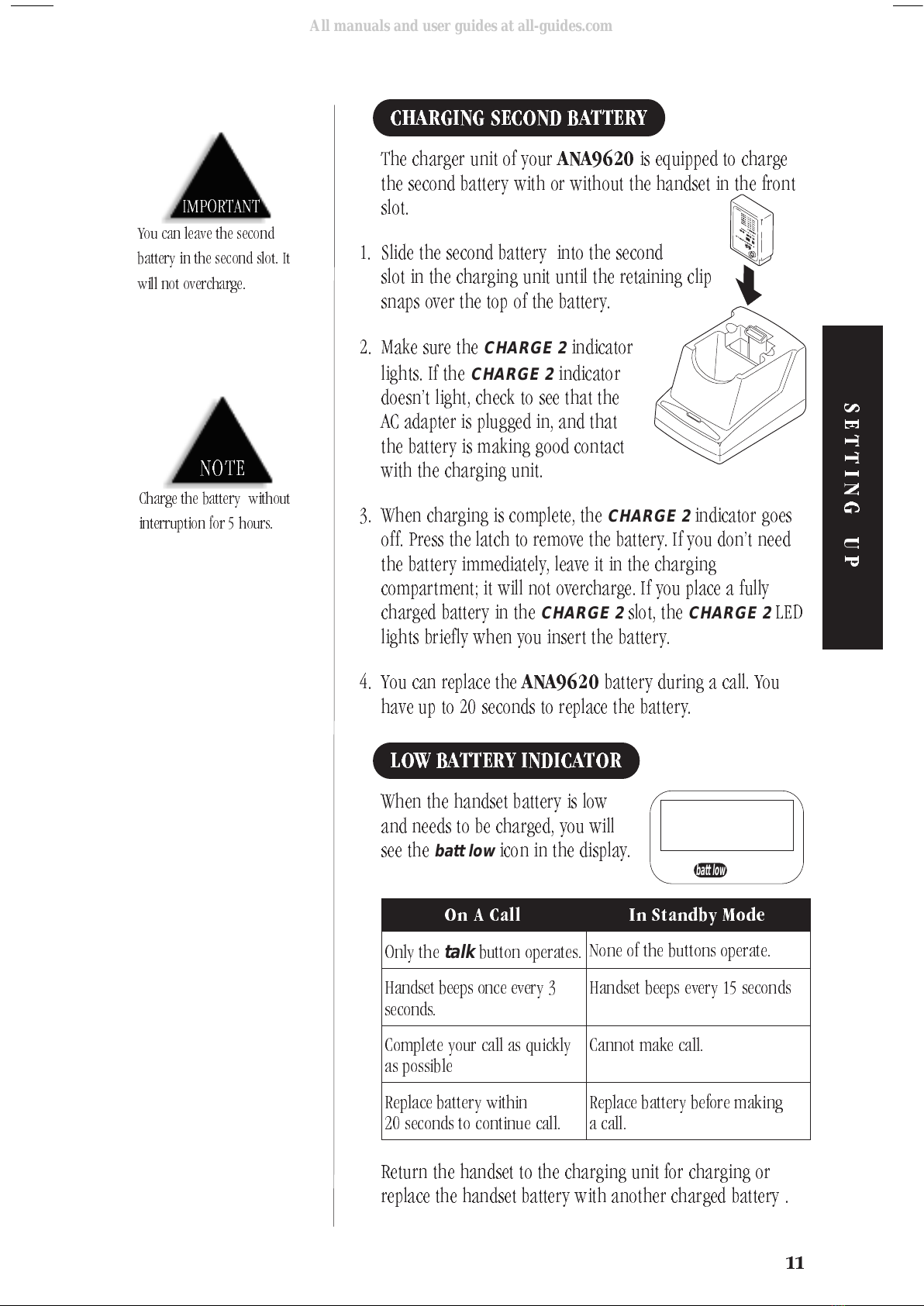

CHARGING SECOND BATTERY
The charger unit of your ANA9620 is equipped to charge
the second battery with or without the handset in the front
slot.
1. Slide the second battery into the second
slot in the charging unit until the retaining clip
snaps over the top of the battery.
2. Make sure the
CHARGE 2 indicator
lights. If the CHARGE 2 indicator
doesnt light, check to see that the
AC adapter is plugged in, and that
the battery is making good contact
with the charging unit.
3. When charging is complete, the
CHARGE 2 indicator goes
off. Press the latch to remove the battery. If you dont need
the battery immediately, leave it in the charging
compartment; it will not overcharge. If you place a fully
charged battery in the
CHARGE 2 slot, the CHARGE 2 LED
lights briefly when you insert the battery.
4. You can replace the ANA9620 battery during a call. You
have up to 20 seconds to replace the battery.
LOW BATTERY INDICATOR
When the handset battery is low
and needs to be charged, you will
see the batt low icon in the display.
On A Call In Standby Mode
Only the
talk button operates. None of the buttons operate.
Handset beeps once every 3
seconds. Handset beeps every 15 seconds
Complete your call as quickly
as possible Cannot make call.
Replace battery within
20 seconds to continue call. Replace battery before making a call.
Return the handset to the charging unit for charging or
replace the handset battery with another charged battery .
11
SETTING UP
NOTE
Charge the battery without
interruption for 5 hours.
batt low
IMPORTANT
You can leave the second
battery in the second slot. It
will not overcharge.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:27 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

CLEANING BATTERY & CHARGING UNIT CONTACTS
To maintain a good charge, it is
important to clean all charging
contacts on the handset, second
battery and charging unit about
once a month. Use a pencil eraser
or other contact cleaner.
Do not use any liquids or solvents.
12
NOTE
Do not clean the charging
unit without first checking
to ensure that it has
been unplugged.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:28 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

Handset Use
Before using your ANA9620 ,besuretoraisetheantennato
the vertical position.
ANA9620 HANDSET CONTROLS
Condition Action LCDDisplay
Handset
Earpiece Volume
(talk mode)
Press
vol on the front of the
handset to select a high or
low earpiece volume level.
No display
indications.
Ringer select
(standby mode) Press
vol on the front of the
handset to select one of the
following settings:
Ring type A (High)
Ring type A (Low)
Ring Type B (High)
Ring Type B (Low)
Ring Off (Silent Alert)
13
FOR YOUR NEW PHONE
HANDSET USE
HANDSET USE
Note: Operation of the ANA9620 is performed using the
handset out of the charging unit.
talk chan vol
Ring Type A
High
Ring Type A
High
Ring Type A
Low
Ring Type A
Low
Ring Type B
High
Ring Type B
High
Ring Type B
Low
Ring Type B
Low
Ring Off
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:35 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

USING THE HANDSET
When you pick up the handset and
press talk , you will see:
After the connection has been made
between the handset and base, the
displaywillshowthelines
currently connected:
Or, you may see one of the following:
Condition Indicator LCD Screen
no connection to base error tone
no service
channel busy error tone no display indication.
line in use l1 or l2
indicator
blinks.
l1 line in use
or
l2 line in use
If the handset is at the range limit
of the ANA9620 ,ornopoweris
going to the base, you may see:
Take the following action:
During a Call In Standby Mode
Condition
Sound is Muted Cant make or answer calls
(Phone may ring
intermittently)
Action
Move back in range
within 20 seconds or
check power to the
base.
Move back within range or
check power to the base.
14
AQUIRING
LI N K
NO SERVICE
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:38 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

ANSWERING A CALL
When you receive a call, the
handset rings and you will see:
Handset in the Charging Unit Handset out of Charging Unit
Pick up the handset. The
AutoTalk feature allows you to
answer the call immediately.
Press talk .
Or press any key on the
numerickeypad,or HOLD ,
PAUSE or FLASH/RDL
When you finish the call, place the handset back in the charging
unit. AutoStandby automatically hangs up the phone.
OR
Press
talk to hang up the phone.
MAKING A CALL
Press talk.
The ANA9620 selects the last line used. If one line is
busy, the phone automatically selects an available line.
OR
Press L1 or L2.
When you hear a dial tone, enter the number you are calling.
To hang up, press
talk .
REDIAL FUNCTION
The ANA9620 stores up to the last three phone numbers
you dialed. To redial these numbers:
1. Press FLASH/RDL
The last number dialed appears in
the display.
To scroll through the remaining
two numbers, press FLASH/RDL again.
2. When the desired number appears,
press
talk , L1 or L2 to redial.
15
HANDSET USE
5551212
talk
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:40 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com
all-guides.com

Programming Functions
PBX OR PSTN
In the Programming mode, you can select either Analog PBX or
PSTN (Public Service Telephone Network) operation. The default
is PSTN.
Available features of each mode of operation are illustrated in the
table below.
Feature Analog PBX PSTN
Conference Conference by PBX Connect Lines 1 & 2
Transfer Transfer by PBX Not Available
PROGRAM MODE SETUP
To enter the Program mode, perform the following steps:
1. At Standby , press and hold the
, keys. While holding the
and keys, press and hold
the talk key until a short beep is
heard and the handset LCD displays:
2. Press the chan or vol keys to switch between and PSTN Analog
PBX modes.
3. Press the
talk key to enter your selection
into memory. The handset LCD displays:
The phone returns to Standby .
For operation in PSTN mode , see page 19. For operation in
PBX mode , see page 17.
16
PROGRAMMING
FUNCTIONS
Note: Both Conference and Transfer commands must be
programmed to their respective keys before these
features can be used.
#
#
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:42 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

PROGRAMMING XFER IN PBX
The XFER key can be programmed for special use, such as
causing a Hook Flash followed by a special number or
function.
The Hook Flash is used to send a signal to the PBX system to
initiate a transfer.
For example  to program the
XFER key for Hook Flash
and the 9 key for outside transfers only:
Press and hold
PAUSE for two
seconds.
The talk icon blinks
Press
FLASH/RDL .
Press
9 .
Press
XFER .
Press
XFER .
For the ANA9620 ,thetransferkeyisoperatedbythe
Hook-Flash function. Program your system transfer code with
the assistance of the PBX System Administrator.
17
PROGRAMMING PBX
Note: Before programming these commands, contact
your PBX Administrator to obtain programming codes.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:45 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

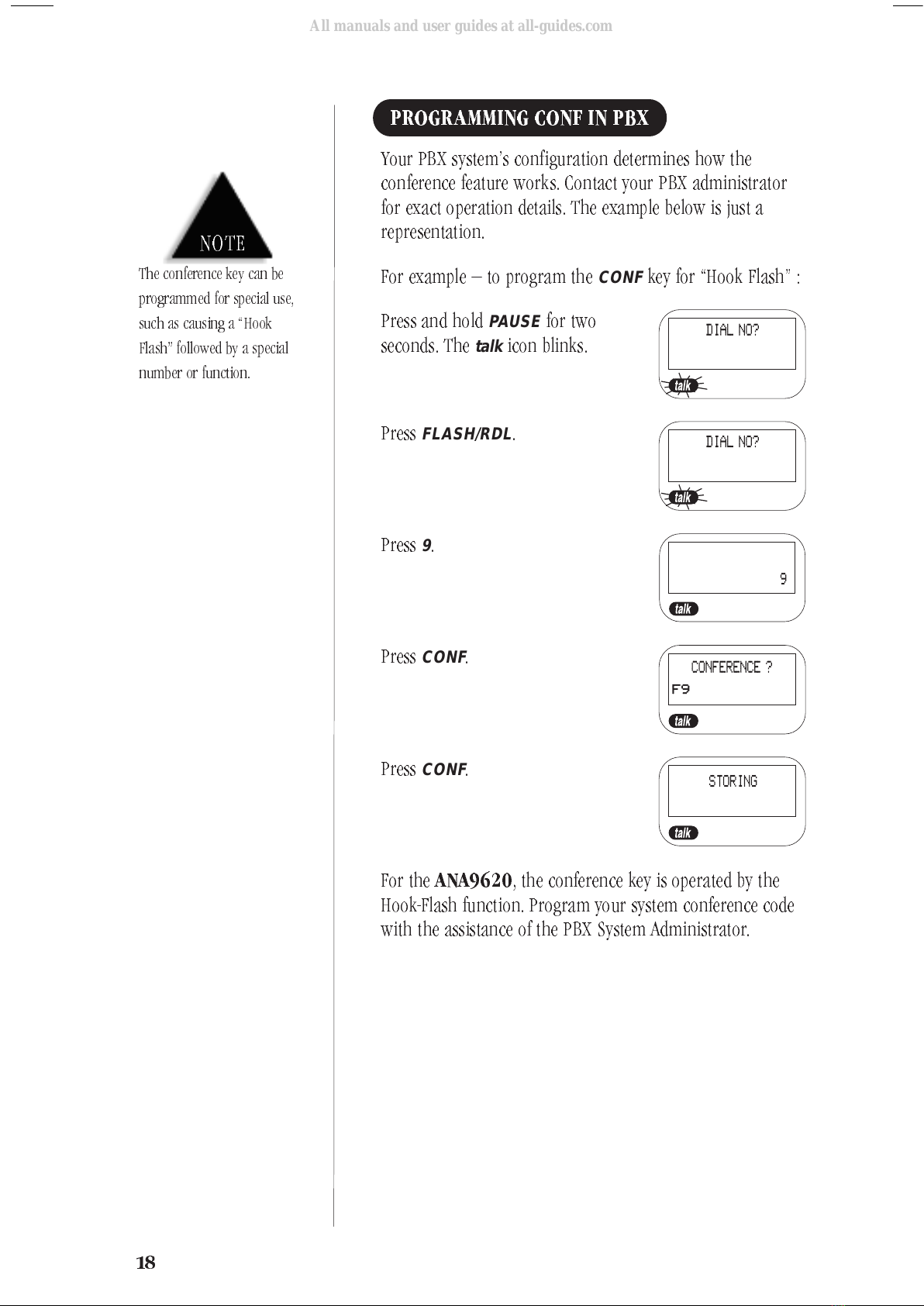

PROGRAMMING CONF IN PBX
Your PBX systems configuration determines how the
conference feature works. Contact your PBX administrator
for exact operation details. The example below is just a
representation.
For example  to program the
CONF key for Hook Flash :
Press and hold PAUSE for two
seconds. The talk icon blinks.
Press
FLASH/RDL .
Press
9 .
Press
CONF .
Press
CONF .
For the ANA9620 , the conference key is operated by the
Hook-Flash function. Program your system conference code
with the assistance of the PBX System Administrator.
18
NOTE
Theconferencekeycanbe
programmed for special use,
such as causing a Hook
Flash followed by a special
number or function.
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:45 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com

USING THE FEATURE BUTTONS
▼
Placing a Call on Hold
Press
HOLD . You will hear a beep
and see:
To resume the call, press
L1 or L2 or talk .
▼
Transferring A Call
The
XFER keymustbeprogrammedbeforeuse.
Refer to the PROGRAMMING XFER IN PBX
section.Press XFER (TRANSFER),
you will hear a beep,
and you will see:
Dial the target number.
When the receiving party answers, press
XFER to complete
the transfer.
▼
Connecting a PBX Conference Call
Refer to the PROGRAMMING CONF IN PBX section.
1. To connect a second party to a call in progress,
press
CONF (CONFERENCE).
You willl hear a beep, and see:
2. Dial the second partys number.
3. When the other party answers,
press
CONF to have a three-way conversation.
19
FEATURES
PBX FEATURES
NOTE
The exact operation of the
Feature Buttons depends
on how your PBX system is
configured. Contact your
PBX Administrator for
more information.
talk
3410
Note:The transfer feature is not available in PSTN mode.
Note:In PBX mode, multiline conferencing is available
according to the configuration of the PBX system..
C:\ana9620-1\ANA9620-1.vp
Fri Jul 31 12:35:50 1998
Color profile: Disabled
Composite Default screen
All manuals and user guides at all-guides.com
