Contents
Memory Dialing
Storing phone numbers and names 21
Steps for entering names and special characters 23
Making calls with memory dialing 25
Chain dialing 26
Editing a stored name and/or phone number 27
Erasing a stored name and phone number 29
Telephone Features
3-way conferencing 30
Paging 31
Caller ID Features
Caller ID 32
When the telephone rings 32
Viewing the Caller ID Message list 33
Deleting information from the Caller ID list 34
Using the Caller ID list 35
Using “Caller ID on call waiting“ service 37
Call Waiting Features 38
Introduction/Features 2
Controls and Functions 4
Getting Started
Read this first 6
Step 1: Checking the package contents 7
Step 2: Setting up the base unit 8
Step 3: Installing the handset battery pack 10
Step 4: Setting Caller ID options 12
Entering your Area Code 13
Basics
Making a call 14
Receiving a call 16
Adjusting the volume 18
Redialing a call 19
Traveling out-of-range 20
UC772EZ ENG(24-148) 10/9/01 15:23 Page ii

The Integrated Answering Device
Features 39
Setting up your answering system 40
Using your answering system 44
Additional Information
Changing the digital security code 49
Installing the beltclip 50
Headset installation 50
Note on power sources 51
Maintenance 52
Troubleshooting 53
General Information 55
Technical Information 56
Precautions & Warranty 58
Index 60
UC772EZ ENG(24-148) 10/9/01 15:23 Page 1

INTRODUCTION/FEATURES[ 2 ]
Welcome
Features
Congratulations on your purchase of the 24-148 cordless telephone. This
phone is designed for reliability, long life and outstanding performance
utilizing the latest in 2.4 GHz Spread Spectrum technology.
NNoottee::SSoommeeiilllluussttrraattiioonnssiinntthhiissmmaannuuaallmmaayyddiiffffeerrffrroommtthheeaaccttuuaalluunniittffoorr
eexxppllaannaattiioonnppuurrppoosseess..
• 2.4 GHz Spread Spectrum Technology
• Secure Digital Transmission
• Integrated Answering Device
• Caller ID and Call Waiting Caller ID
• Advanced Caller ID with Call Waiting Options
• 50 Number Caller ID Memory
• 20 Number Memory
• 3 Line, 16 Character Backlit Handset Display
• 3 Redial Memories (up to 32 digits)
• Flash and Pause
• Pulse / Tone Dialing
• 10 Day Standby Battery Life
• 6 Hour Talk Time
• Handset Earpiece and Ringer Volume Control
• Base Speakerphone
• 3-Way Conference Operation
• Bilingual Language, option
UC772EZ ENG(24-148) 10/9/01 15:23 Page 2

INTRODUCTION/FEATURES [ 3 ]
DDiiggiittaallSSpprreeaaddSSppeeccttrruummTTeecchhnnoollooggyyutilizes a “wider frequency band“ vs. a
“single narrow band“ used in standard digital transmissions. The 2.4 GHz
frequency range was recently released to commercial communications. The
result is a more secure conversation with the clarity of digital sound, extended
range, and minimal interference from other cordless phones.
RRaannddoommCCooddeeTM digital security automatically selects one of over 65,000 codes
for the handset and base.
These features enhance your phone´s security and also prevents unauthorized
calls as a result of your phone being activated by other equipment.
Throughout this manual, terms such as Standby and Talk Mode are used. Below
is the terminology explanation.
•SSttaannddbbyyMMooddee- The handset is not in use, off the base and has not
been pressed. A dial tone is not present and the display is blank.
•TTaallkkMMooddee- The handset is off the base and has been pressed enabling a
dial tone. Talk appears in the display.
Uniden®is a registered trademark of Uniden America Corporation.
Random CodeTM and Auto TalkTM are trademarks of Uniden America Corporation.
UC772EZ ENG(24-148) 10/9/01 15:23 Page 3

CONTROLS AND FUNCTIONS[ 4 ]

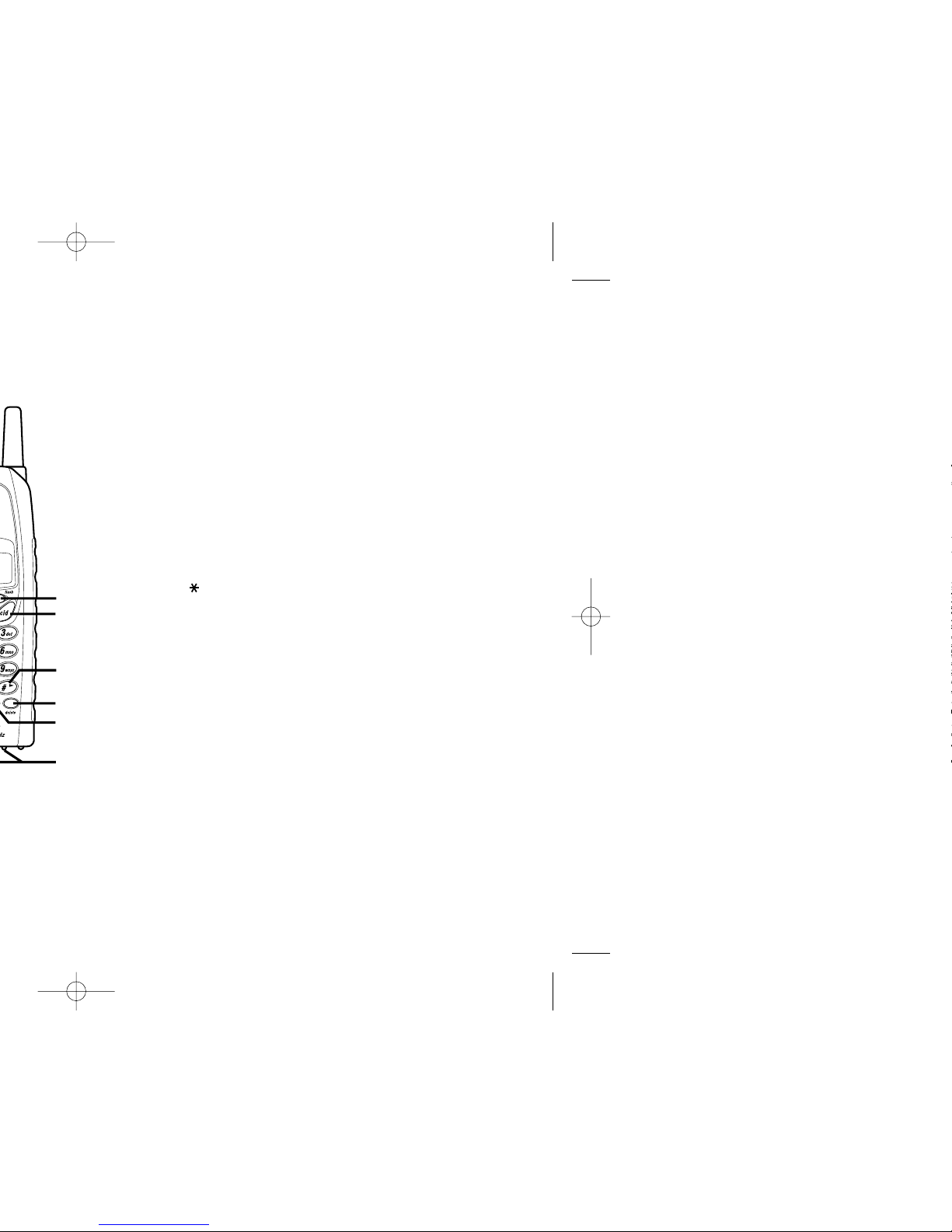

Controls and Functions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1. Handset Antenna
2. Headset Jack Cover
3. Handset Battery Compartment
4. Handset Earpiece
5. LCD Display
6. Volume Up Key
7. Memory Key
8. Talk Key
9. Volume Down Key
10. /Tone/Left Cursor Key
11. Redial/p (pause) Key
12. Options Key
13. Handset Microphone
14. Flash Key
15. Cid (Caller ID) Key
16. ##/Right Cursor Key
17. Delete Key
18. Select/Channel Key
19. Handset Charging Contacts
UC772EZ ENG(24-148) 10/9/01 15:23 Page 4

44
20
21
22
23
24
25
26
27 28
29
39
40
41
30
31
32
33
35
34
37
38
36
42 43
20. Base Charging Contacts
21. Delete Key
22. Voice Memo Key
23. Base Speaker
24. Greeting Key
25. Pin Set Key
26. Speaker Key
27. Status LED
28. Speaker LED
29. Play Key
30. Skip Key
31. Repeat Key
32. Answer On/Off Key
33. Clock Set Key
34. Page/Find Key
35. Base Antenna
36. Volume Down Key
37. Volume Up Key
38. Record Time Switch
39. Ring Time Switch
40. Base Microphone
41. Base Ringer Switch
42. Pulse-Tone Switch
43. DC Power Input
44. Phone Jack
CONTROLS AND FUNCTIONS [ 5 ]
UC772EZ ENG(24-148) 10/9/01 15:23 Page 5

GETTING STARTED[ 6 ]
Read This First
This cordless telephone must be set up before use. Follow these steps:
BBaasseeuunniitt
AAbboouutttthheeddiiggiittaallsseeccuurriittyyccooddee
This cordless telephone uses a digital
security code to prevent unauthorized
access to your base unit. This security
code prevents other cordless handsets
from making calls through your
base unit.
A random security code will be
assigned automatically between your
base unit and handset when you charge
the battery pack for the first time.
If you want to reset the security code,
see page 49.
SStteepp11((ppaaggee77))
Unpack the telephone and accessories.
SStteepp22((ppaaggee88ttoo99))
Next, choose the best location to
set up the base unit.
SStteepp33((ppaaggee1100ttoo1111))
Then, insert the battery pack into the
handset. You must charge the battery
pack for 1155--2200hhoouurrssbbeeffoorreepplluuggggiinnggiinnttoo
tthheepphhoonneelliinneeaanndduussiinnggtthheepphhoonnee..
SStteepp44((ppaaggee1122ttoo1133))
Finally, set the Caller ID options and
store your area code in the memory to
use the Caller ID service.
NNoottee::Skip the area code setting if your
calling area requires 10-digit dialing.
HHaannddsseett
HHaannddsseett
UC772EZ ENG(24-148) 10/9/01 15:23 Page 6

GETTING STARTED [ 7 ]
GETTING STARTED
Checking the Package Contents
Make sure you have received the following items in the package.
If any of these items are missing or damaged, contact the Uniden Parts
Department (see below).
Also included:
••TThhiissOOwwnneerr´´ssMMaannuuaall
••QQuuiicckkRReeffeerreenncceeGGuuiiddee
••RReeggiissttrraattiioonnCCaarrdd
••BBaasseeuunniitt••HHaannddsseett••AACCaaddaapptteerr((AADD--331133))••RReecchhaarrggeeaabbllee
bbaatttteerryyppaacckk
((BBTT--880000))
••TTeelleepphhoonneelliinneeccoorrdd••BBeellttcclliipp
UUnniiddeennPPaarrttssDDeeppaarrttmmeenntt
[phone]
Hours: M-F 7:00 AM to 5:00 PM CST.
We can also be reached on the web at www.uniden.com
UC772EZ ENG(24-148) 10/9/01 15:23 Page 7

GETTING STARTED[ 8 ]
Setting Up the Base Unit
Do the following steps:
• Choose the best location
• Connect the base unit
• Choose the dialing mode
CChhoooosseetthheebbeessttllooccaattiioonn
Before choosing a location for your new phone, read “INSTALLATION CONSIDERATIONS“in
“PRECAUTIONS & WARRANTY“. Here are some important guidelines you should consider:
• After installing the battery pack in the handset, you should charge your handset for
1155--2200hhoouurrssbbeeffoorreeuussiinnggtthheepphhoonnee. Once the handset battery pack is fully charged, connect
the telephone line cord to the base and telephone wall outlet.
• The location should be close to both a phone jack and a continuous power outlet which is not
switchable.
• Keep the base and handset away from sources of electrical noise such as motors and
fluorescent lighting.
• Be sure there is sufficient space to raise the base antenna to a vertical position.
AAvvooiiddhheeaattssoouurrcceess,,ssuucchhaass
rraaddiiaattoorrss,,aaiirrdduuccttss,,aannddssuunnlliigghhtt
AAvvooiiddtteelleevviissiioonnsseettssaanndd
ootthheerreelleeccttrroonniicceeqquuiippmmeenntt
AAvvooiiddnnooiisseessoouurrcceessssuucchhaassaawwiinnddooww
bbyyaassttrreeeettwwiitthhhheeaavvyyttrraaffffiicc
AAvvooiiddmmiiccrroowwaavveeoovveennss
AAvvooiiddeexxcceessssiivveemmooiissttuurree,,eexxttrreemmeellyyllooww
tteemmppeerraattuurreess,,dduusstt,,mmeecchhaanniiccaallvviibbrraattiioonn,,oorrsshhoocckk
AAvvooiiddppeerrssoonnaallccoommppuutteerrss
AAvvooiiddootthheerrccoorrddlleesssstteelleepphhoonneess
CChhoooosseeaacceennttrraallllooccaattiioonn
UC772EZ ENG(24-148) 10/9/01 15:23 Page 8

[ 9 ]
GETTING STARTED

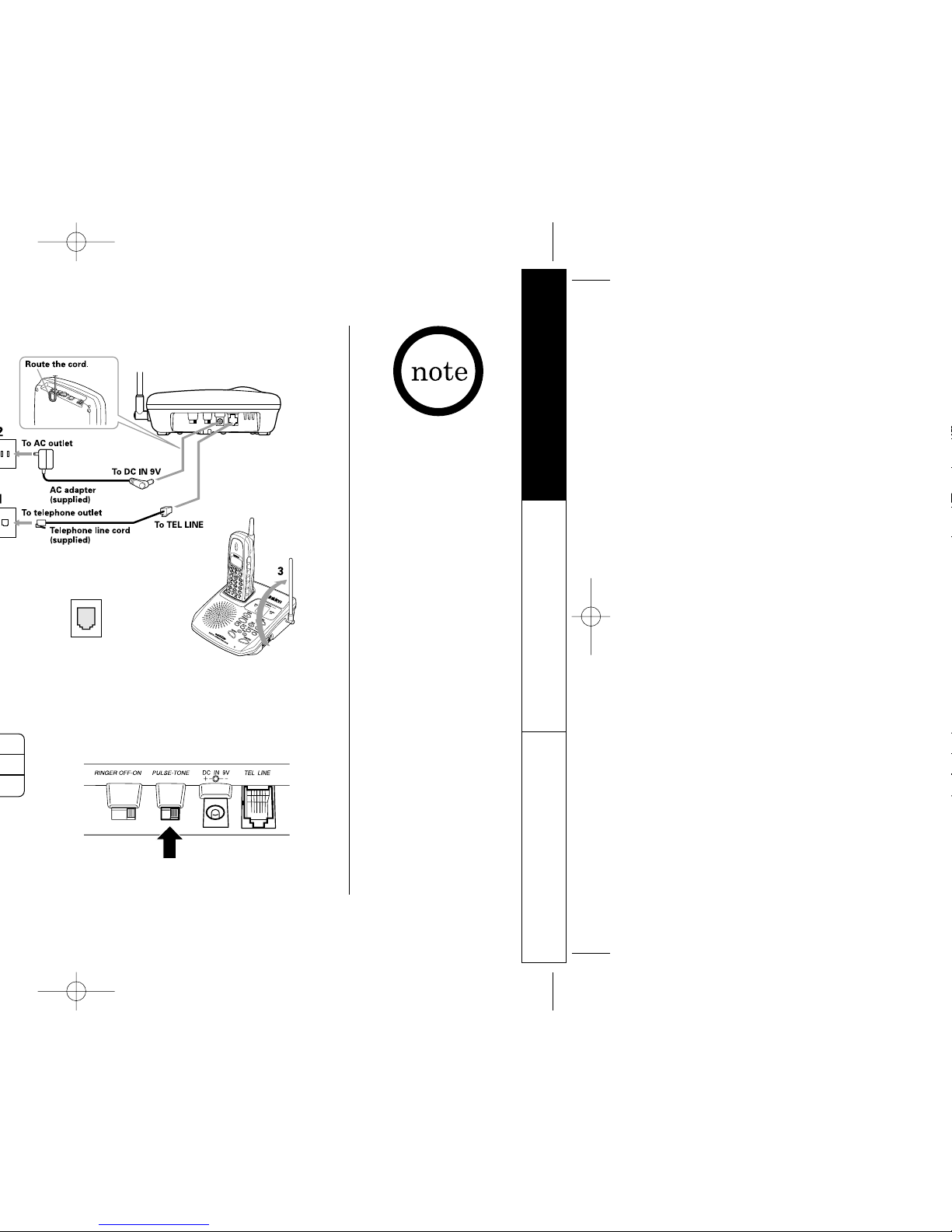

CCoonnnneecctttthheebbaasseeuunniitt
11Connect the telephone line cord
to the
TTEELLLLIINNEE
jack and to a
telephone outlet.
22Connect the AC adapter to the
DDCC
IINN99VV
jack and to a standard 120V
AC wall outlet.
33Set the base unit on a desk or
tabletop. Place the handset on the
base unit as shown. Then raise the
antenna to a vertical position.
• Place the power cord so
it does not create a trip
hazard or where it could
become chafed and
create a fire or electrical
hazard.
• Use only the supplied
AD-313 AC adapter.
Do not use any other
AC adapter.
• Connect the AC adapter
to a continuous power
supply.
MMoodduullaarr
If your telephone outlet isn´t modular, contact your
telephone company for assistance.
CChhoooosseetthheeddiiaalliinnggmmooddee
Depending on your dialing system, set the PPUULLSSEE--TTOONNEEswitch as follows:
If you aren´t sure of your dialing system,
make a trial call with the PULSE-TONE switch
set to
TTOONNEE
.
If the call connects, leave the switch as is;
otherwise, set to
PPUULLSSEE
.
IIffyyoouurrddiiaalliinnggssyysstteemmiissSSeetttthheesswwiittcchhttoo
Tone
TTOONNEE
Pulse
PPUULLSSEE
GETTING STARTED
• Place the base unit close
to the AC outlet so that
you can unplug the AC
adapter easily.
UC772EZ ENG(24-148) 10/9/01 15:23 Page 9

GETTING STARTED[ 10 ]
Installing the Handset Battery Pack
Use only the Uniden Battery (BT-800) supplied with your phone.
Replacement batteries are also available through the Uniden Parts
Department (See page 7).
CChhaarrggeetthheebbaatttteerryyppaacckkffoorr1155--2200hhoouurrssbbeeffoorreepplluuggggiinngg
tthheepphhoonneelliinneeiinnttooyyoouurrpphhoonnee..
11Press in on the battery cover release and slide the cover
down until it comes off.
22Connect the battery pack connector with the correct
polarity (black and red wires), then insert the battery
pack into the battery compartment.
33Slide the battery cover forward until it snaps into place.
44Place the handset on the base as shown.
55Make sure that the
ssttaattuuss
LED lights. If the LED doesn´t
light, check to see that the AC adapter is plugged in and
that the handset makes good contact with the base
charging contacts.
UC772EZ ENG(24-148) 10/9/01 15:24 Page 10

GETTING STARTED [ 11 ]
GETTING STARTED
BBaatttteerryyuusseettiimmee((ppeerrcchhaarrggee))
From fully charged
• 6 hours continuous use.
• 10 days when the handset is in the standby mode.
WWhheenntthheebbaatttteerryycchhaarrggeebbeeccoommeessllooww
When the battery pack is very low and needs to be charged,
the phone is programmed to eliminate functions in order to
save power. If the phone is not in use, “Low Battery“
flashes and none of the keys will operate. If the phone is
in use, “Low Battery“ flashes and the handset beeps.
Complete your conversation as quickly as possible and
return the handset to the base unit for charging.

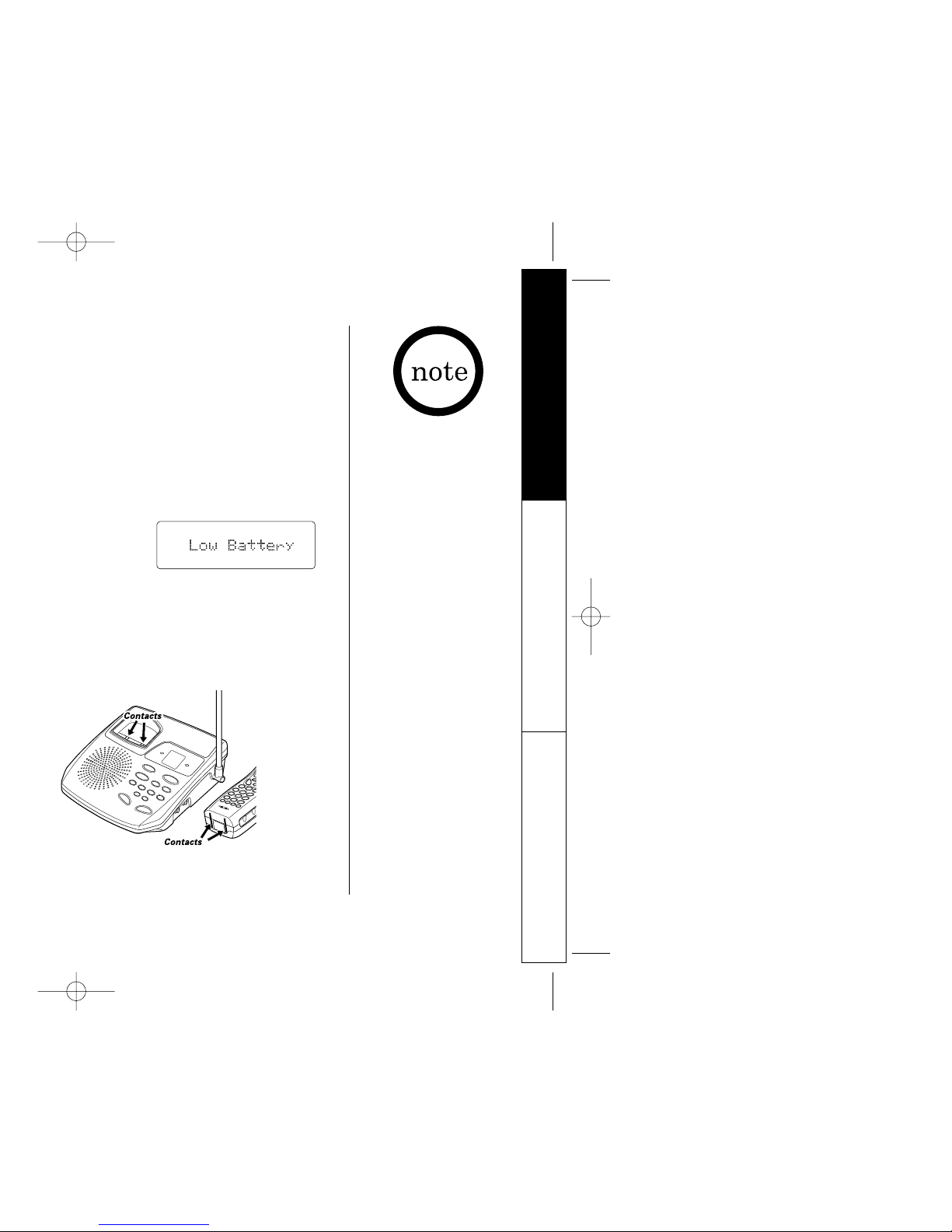

CClleeaanniinnggtthheecchhaarrggiinnggccoonnttaaccttss
To maintain a good charge, it is important to
clean the battery contacts on the handset and
base unit with a dry cloth or a pencil eraser
about once a month.
DDoonnoottuusseeaannyylliiqquuiiddssoorrssoollvveennttss..
• Even when the battery
pack is not being used, it
will gradually discharge
over a long period of
time. For optimum
performance, be sure to
return the handset to the
base unit after each
telephone call.
• If you must replace the
battery pack during a
telephone call, complete
the replacement of the
battery pack within
30 seconds, and you
can return to the
original call.
The last number dialed in redial memory, back up for up to 2 minutes
while you replace the battery pack.
UC772EZ ENG(24-148) 10/9/01 15:24 Page 11

[ 12 ]
There are three Caller ID setup options available: AutoTalk, CIDCW (Caller ID on Call
Waiting), and Area Code. (See page 13 for Area Code setup instructions.)
AAuuttooTTaallkkTM allows you to answer the phone without pressing the button. If the
phone rings when AutoTalk is on, simply remove the handset from the base and
the phone automatically answers the call. Or if the handset is not on the base,
press any key to answer the call. If the phone rings when AutoTalk is off, you must
press to answer the call.
CCaalllleerrIIDDoonnCCaallllWWaaiittiinngg((CCIIDDCCWW))performs the same as regular Caller ID on a call
waiting number. Call waiting options allow you to handle call waiting calls in six
different ways. (See page 38.)
YYoouummuussttssuubbssccrriibbeettooCCIIDDCCWWffrroommyyoouurrllooccaallpphhoonneeccoommppaannyyiinnoorrddeerrttoouussee
tthhiissffeeaattuurree..TThheeCCaallllWWaaiittiinnggooppttiioonnssaarreeaasseeppaarraatteesseerrvviicceeaavvaaiillaabblleetthhrroouugghhyyoouurr
pphhoonneeccaammppaannyy..
LLaanngguuaaggeeoption can be used to choose the language of your display. You can
select either English or French.
To change your Caller ID options/Language:

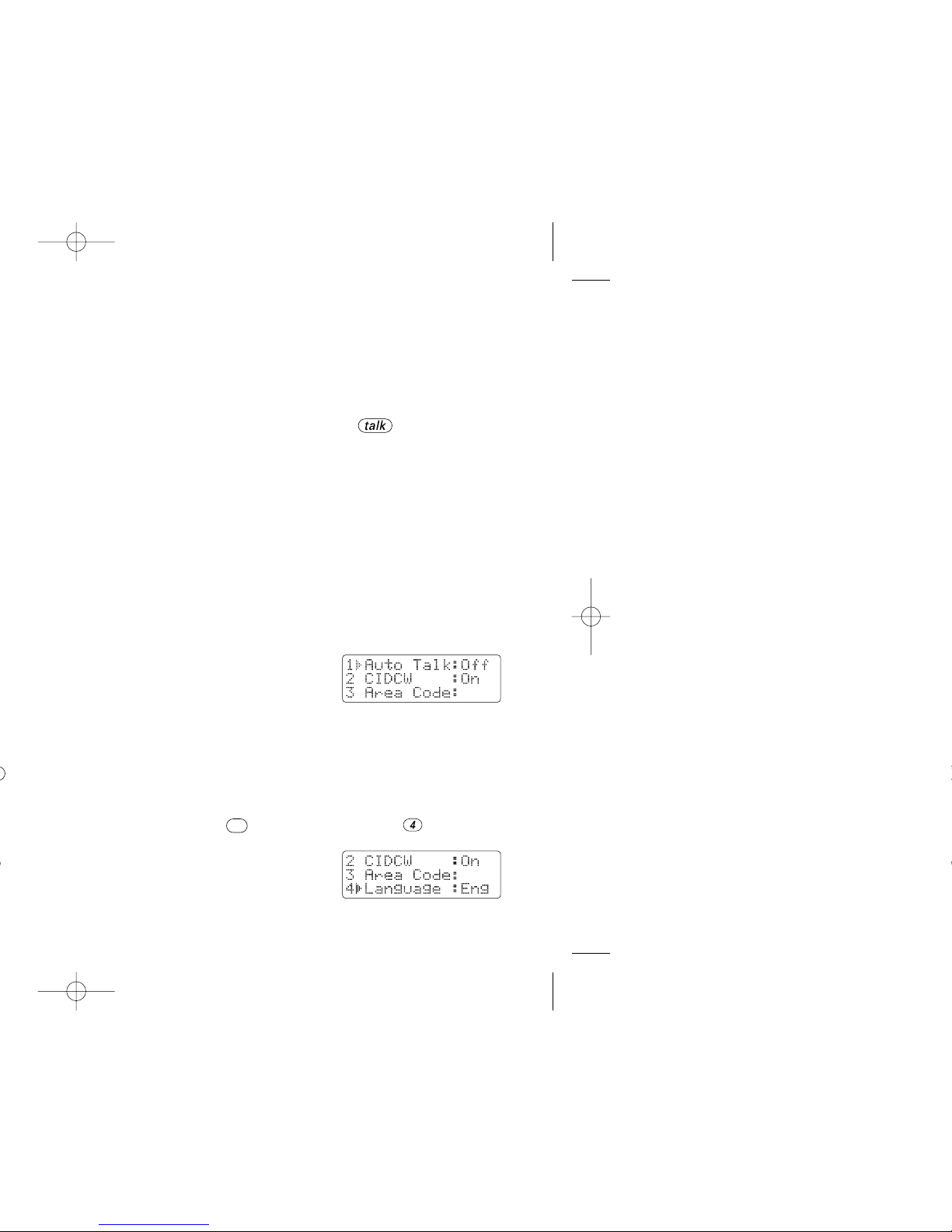

11Press in the standby mode. The following
screen appears.
22Use and or a number key (1-3) to move the pointer to the selection that
you would like to change.
Press to toggle between “On“ and “Off“ for “Auto Talk“.
For “CIDCW“, choose “On“, “Off“, or “Opt“ depending upon the type of
service to which you subscribe.
33To set up the language of your display, press or the number key to move
the pointer to “Language“.
Press to select “Eng“ (English) or “Fr.“ (French).
44After you have made your Caller ID selections,
press and return the handset to the base.
ª
ª
•
Setting Caller ID Options/Language
GETTING STARTED
UC772EZ ENG(24-148) 10/9/01 15:24 Page 12

GETTING STARTED [ 13 ]
GETTING STARTED
Entering Your Area Code
If you enter a 3-digit area code number in the “Area Code“ option, your local
area code does not appear in Caller ID messages. Do not program this option, if
your calling area requires 10-digit dialing.
When reviewing Caller ID messages, you will see only the local seven digit
number. For calls received from outside your local area code, you will see a full
10-digit number.

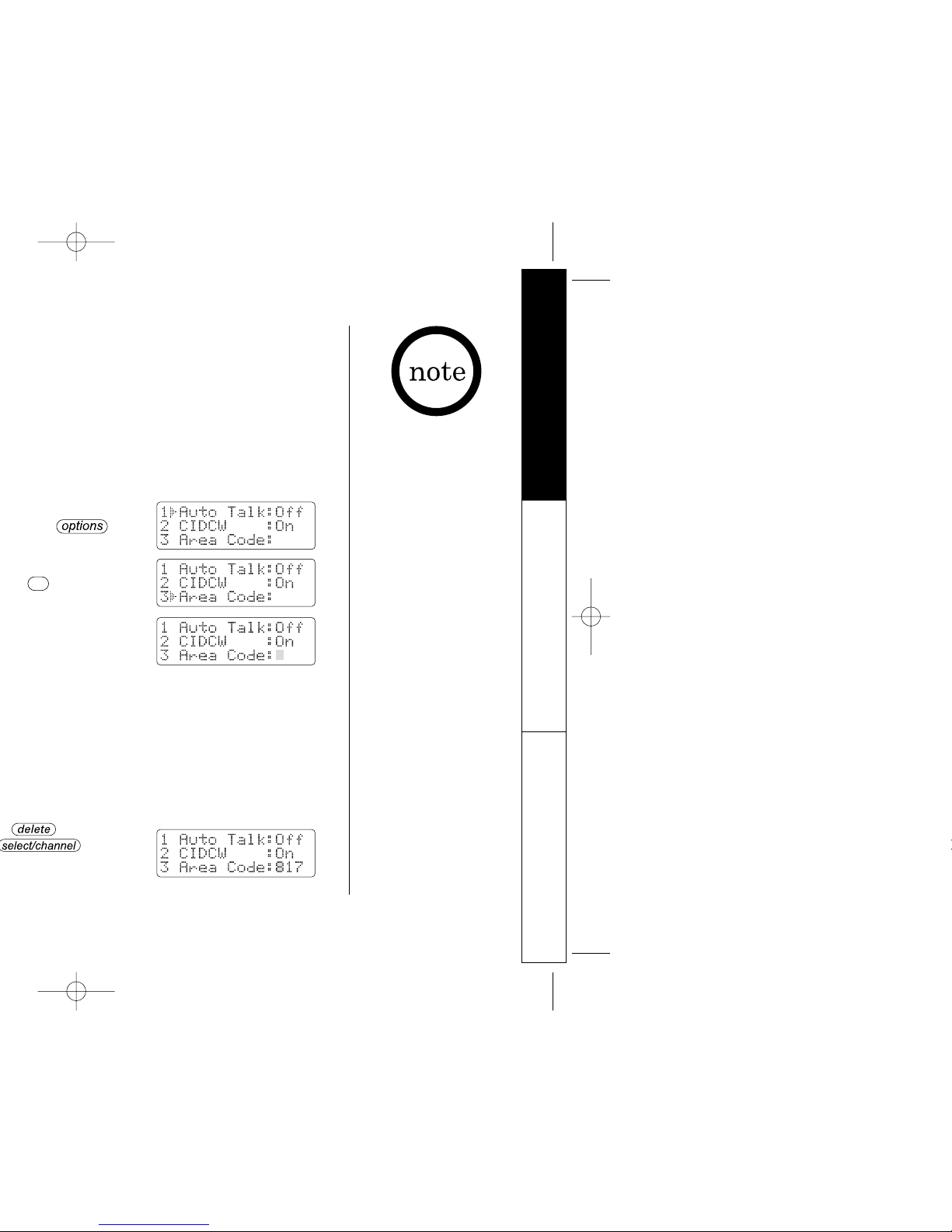

11When the phone is in the standby mode, press .
The Caller ID setting screen appears.
22Press to select “Area Code“ or press .
33Press .
44Use the number keypad ( to ) to enter the 3-digit area code.
55Press . A tone sounds and the displayed area code is entered.
66Press to complete the setting or return the handset to the base. The
handset returns to the standby mode.
ª
If your calling area
requires 10-digit dialing,
do not program this
option.
When the area code has already been stored in memory, the stored
area code will be displayed. To change it, use the and number
keypad to enter the new area code. Then press .
To complete the setting, press or return the handset to the
base unit.
UC772EZ ENG(24-148) 10/9/01 15:24 Page 13

DDootthhiiss
Press during a call.
Press or during a call.
Press . The following
numbers will be sent as tone dialing.
Press . “P“ appears in the
display which represents a pause.
ª
•
BASICS[ 14 ]

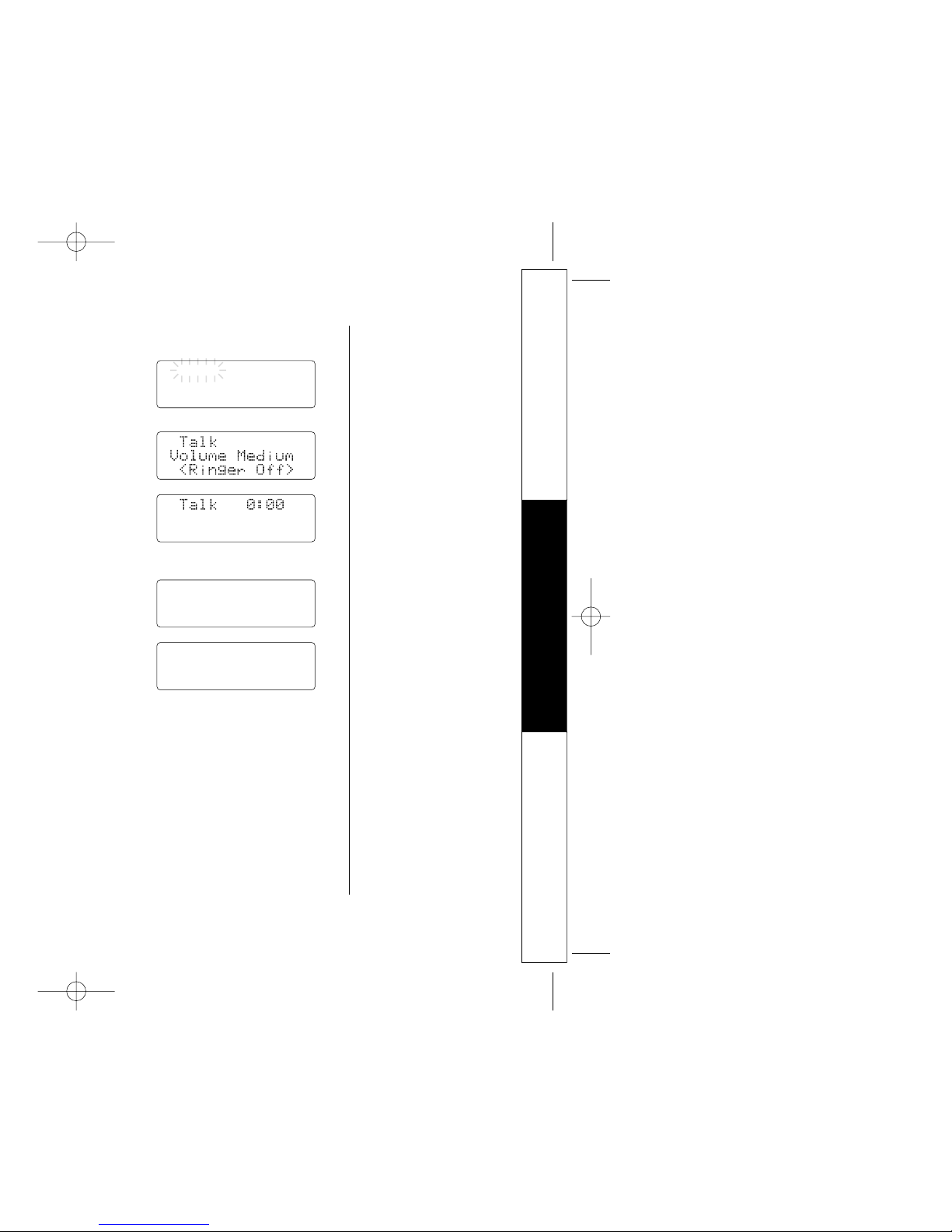

Making a Call
DDiiaalliinnggffrroommSSttaannddbbyyMMooddee
11Enter the phone number.
22Press .
“Talk“ flashes on the display.
Then current volume setting is displayed.
EExxaammppllee::• Volume Medium
• Volume Medium and Ringer Off.
33The number is dialed. After about 5 seconds, the call-time
display appears.
44To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.
• Press if you
enter a wrong number
in step 1.
To delete all the numbers
that you have entered,
press and hold
until the display clears.
• You must press a key
within 20 seconds or the
phone will return to
standby.
TToo
To improve the reception
To adjust the earpiece volume
To temporarily switch to tone dial
(when the base is set to pulse mode)
To enter a pause within the dialing
sequence
Talk 0:00
002971023
OOtthheerrOOppeerraattiioonnss
• Refer to terminology
explanation on page 3
if necessary.
5:15
Talk
UC772EZ ENG(24-148) 10/9/01 15:24 Page 14

BASICS [ 15 ]
BASICS
DDiiaalliinnggffrroommTTaallkkMMooddee
11Press . “Talk“ flashes on the display.
Then the current volume setting is displayed.
EExxaammppllee::Volume Medium.
After about 5 seconds, the call-time display appears.
22Dial the phone number.
EExxaammppllee: Enter 8002971023
33To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.
Talk
Talk 0:17
002971023
10:03
If you set the ringer to off, “<Ringer Off>“ appears
on the display.
UC772EZ ENG(24-148) 10/9/01 15:24 Page 15

BASICS[ 16 ]
Receiving a Call
FFrroommtthheehhaannddsseett
11The phone rings. “Incoming Call“appears on
the display.
22Press . “Talk“ and volume setting appear on
the display.
33Talk with the caller.
44To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.
AAuuttooTTaallkkwwhheennrriinnggiinngg
When the AutoTalk setting is on and there is an incoming call, simply lift the
handset from the base unit to answer the phone. See “Setting Caller ID
Options“ on page 12 for more details.
AAnnyykkeeyyaannsswweerrwwhheennrriinnggiinngg
When the AutoTalk setting is on and the handset is off the base, press any
handset key to answer the incoming call.
CCaallllWWaaiittiinngg
NNoottee::YYoouummuussttssuubbssccrriibbeettooCCaallllWWaaiittiinnggsseerrvviicceettoouusseetthhiissffeeaattuurree..
When a call is received during a telephone call already in progress, press
to switch to the new call. If you also subscribe to Call Waiting on Caller ID, you
will see the name and number of the caller in call waiting. (See page 37.)
Incoming Call
Talk 0:02
115:35
If you receive a Caller ID,
the received Caller ID
information appears.
If you set the ringer to off, “<Ringer Off>“ appears on the
display.
UC772EZ ENG(24-148) 10/9/01 15:24 Page 16

BASICS [ 17 ]
BASICS
FFrroommtthheebbaassee
11The phone rings. The ssttaattuuss
LED on the
base flashes.
22Press and begin speaking.
The
ssppeeaakkeerr
LED lights.
33To hang up, press .
The base microphone is
located under the base.
Position yourself as near to
the base as possible and
speak clearly.
speaker
LED
status
LED
UC772EZ ENG(24-148) 10/9/01 15:24 Page 17

BASICS[ 18 ]
Adjusting the Volume
HHaannddsseettrriinnggeerrttoonneeaannddvvoolluummee

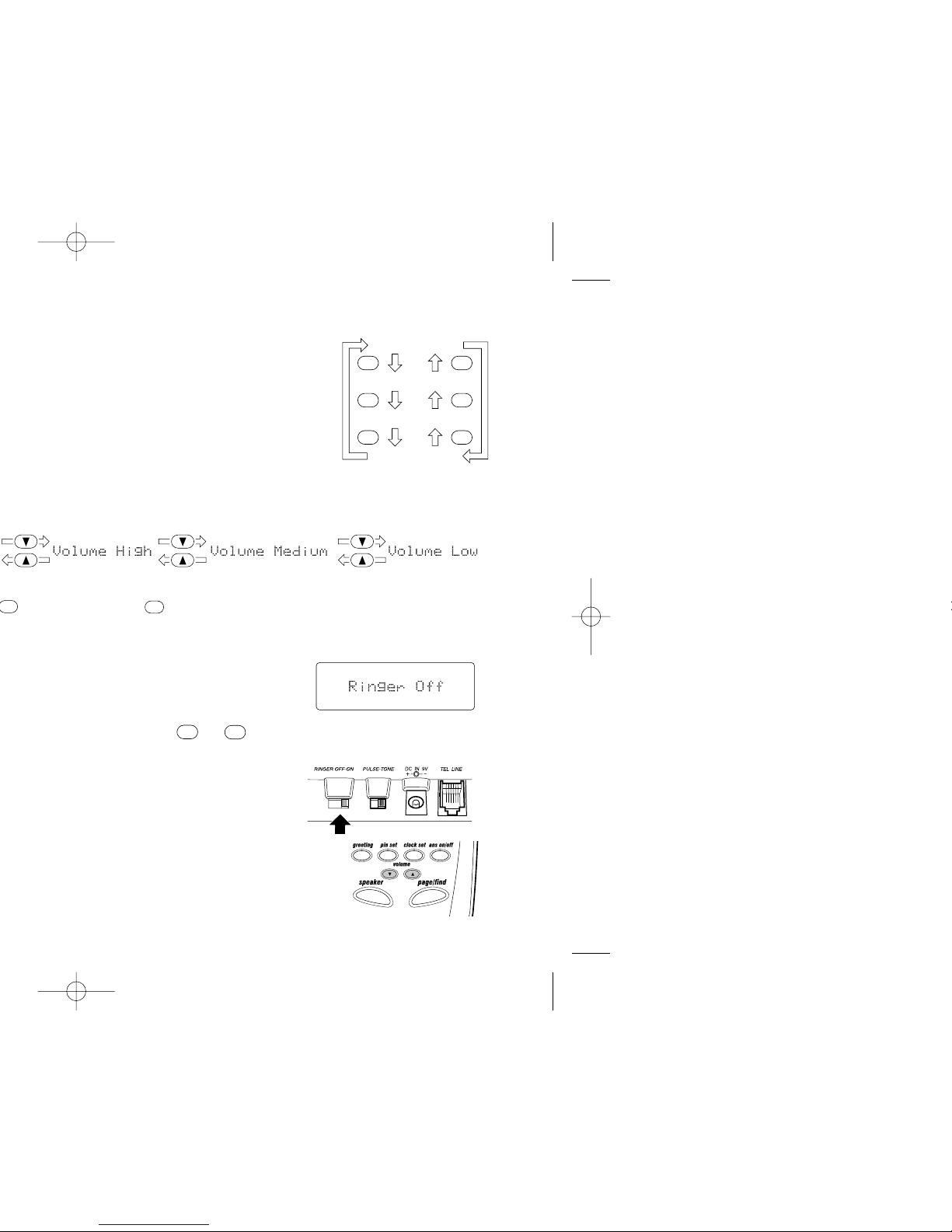

Press or in Standby mode to select one of four
ringer tone and volume combinations.
EEaarrppiieecceevvoolluummee
Pressing or during a call will change the earpiece
volume of the handset. This setting will remain in effect after
the telephone call has ended.
RRiinnggeerrooffff
During the standby mode or tone/volume setting,
press and hold until the phone beeps and
“Ringer Off“ appears.
To turn the ringer back on, simply press or .
“Ringer A High“ appears.
BBaasseerriinnggeerrsswwiittcchh
This switch turns the base ringer on or off.
BBaasseessppeeaakkeerrvvoolluummee
To control the speaker volume of the base, adjust the
vvoolluummee
and as desired.
ª
•
ª
•
ª
ª
•
ª
•
When you press in Maximum mode or in Low mode, an error tone sounds.
ª
•
Ringer A High
•
ª
Ringer A Low
•
ª
Ringer B High
•
ª
Ringer B Low
UC772EZ ENG(24-148) 10/9/01 15:25 Page 18
