Uniden DXAI7288-2 User manual

DXAI 7288-2

[1]
www.uniden.com
Contents
Welcome/Features 2
Controls and Functions 3
Terms Used in this Manual 5
Getting Started 6
Installing the Phone 6
A. Choose the Best Location 6
B. Install the Rechargeable Battery Packs into
the Handsets 7
C. Connect the Main Base and Charging Cradle,
and Charge the Handsets 8
D. Mount the Main Base on a Wall 9
Installing the Beltclip 10
Headset Installation 11
Register Handsets to the Main Base before Using! 12
When to Re-register Handsets 13
Call Transfer Feature 13
Basic Setup 14
Activating AutoTalk 14
Activating Caller ID on Call Waiting 14
Entering Your Area Code 15
Choosing the Dialing Mode 16
Setting the Language 17
Selecting the Ring Tone and Volume 17
Basics 18
Using Your Phone 18
Making and Receiving Calls 18
Adjusting the Earpiece Volume 19
Tone Dialing Switch-over 20
Traveling Out-of-Range 20
Selecting a Different Channel 20
Find Handsets 21
Using Call Waiting 21
RocketDial 22
RocketDial 22
Storing the RocketDial 22
Using the Speed Dial Memory 23
Using the Speed Dial Memory 23
Storing Names and Numbers in Speed Dial Memory 23
Storing Caller ID Messages in Speed Memory Locations 26
Making Calls from Speed Dial Memory 27
Caller ID Features 28
Caller ID and CIDCW (Caller ID on Call Waiting) 28
When the Telephone Rings 28
Viewing the Caller ID Message List 29
Deleting Information from the Caller ID List 30
Making a Call from the Caller ID List 31
The Integrated Answering Device 32
The Integrated Answering Device 32
Turning the Answering System On/Off 33
Setting Up Your Answering System 34
Using Your Answering System 43
Remote Operation 48
Additional Information 51
Changing the Digital Security Code 51
Note on Power Sources 52
General Information 54
Troubleshooting 55
Liquid Damage 58
Precautions & Warranty 59
I.C. Notice 61
Index 62
Remote Operation Card
UP038.book 1 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[2]
www.uniden.com
Welcome
Features • 2.4GHz Extended Range Technology
• Dual Handset System
(Extra Handset & Charger Included)
• Call Transfer from Handset to Handset
• Integrated Telephone Answering Device
(ITAD)
• Trilingual Voice Prompts (English, French
or Spanish Support)
• 3 Line Backlit Displays
• Caller ID and Caller ID on Call Waiting
• 10 Speed Dial Memory
• One touch Rocketdial®
• Last Number Redial
• English, French or Spanish Support
• Pulse/Tone Dialing
•FindHandset
• Earpiece Volume Control
•RingerVolumeControl
• Hearing Aid Compatible
• 20 Channel Autoscan
Be sure to visit our web site: www.uniden.com
Uniden® and Rocketdial® are registered trademarks of Uniden America Corporation.
AutoTalk, AutoStandby, UltraClear Plus, Random Code, and AutoSecure are trademarks of
Uniden America Corporation.
Congratulations on your purchase of the Uniden dual handset cordless telephone and answering
system. This phone is designed and engineered to exacting standards for reliability, long life, and
outstanding performance.
Note:Illustrations in this manual are used for explanation purposes. Some
illustrations in this manual may differ from the actual unit. The color of your
cordless phone may vary.
UP038.book 2 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[3] CONTROLS & FUNCTIONS
www.uniden.com

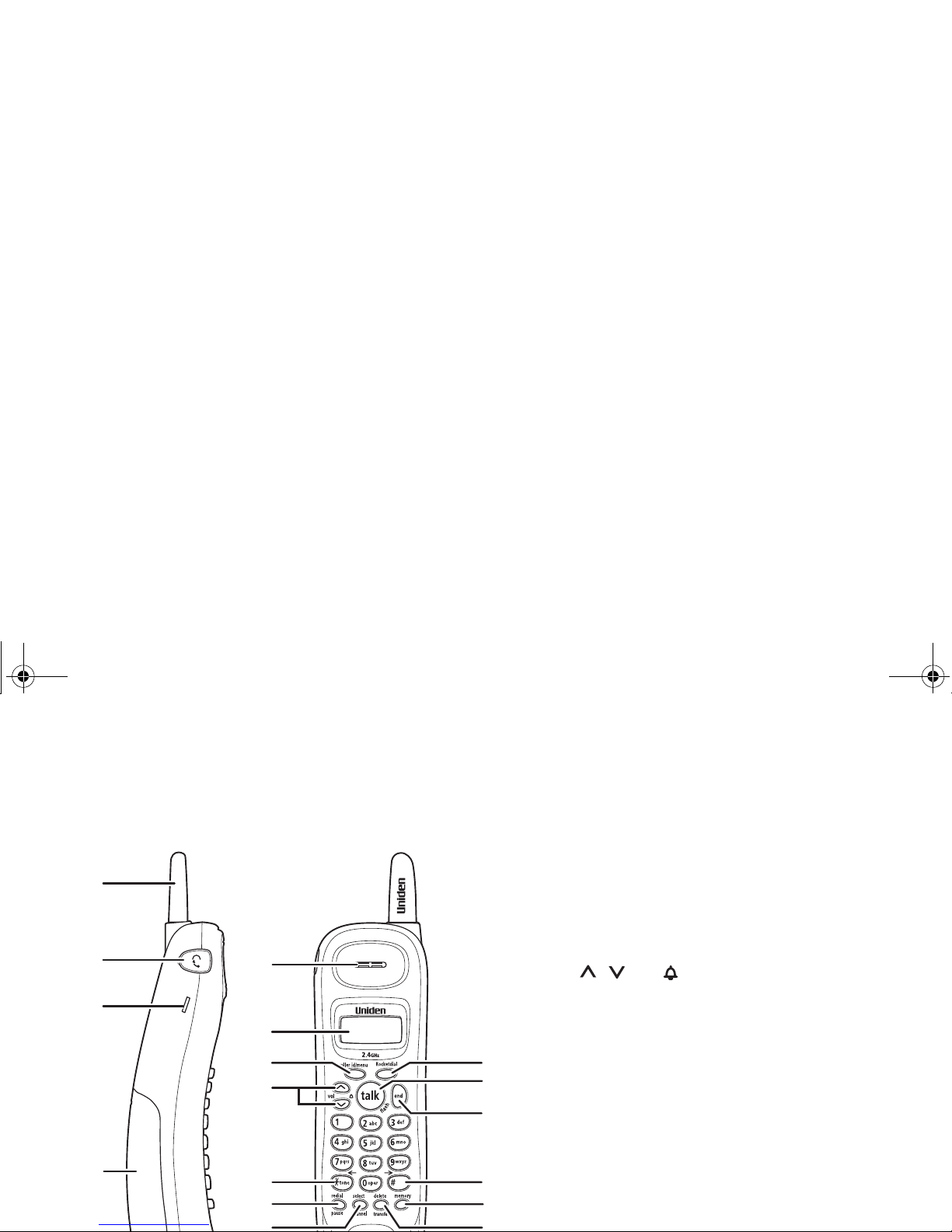

Controls and Functions
Handsets
6
5
7
8
9
10
11
18
15
16
17
19
12
13
14
4
1
2
3
1. Handset antenna
2. Jack for optional headset
3. Beltclip hole
4. Handset battery compartment
5. Handset earpiece
6. LCD display
7. caller id/menu key (pages 14 and 28)
8. / /vol/ (earpiece volume, ringer
volume and scroll) key (pages 14, 17 and 19)
9. */tone/←key (left cursor) key
(pages 20 and 23)
10. redial/pause key (pages 19 and 25)
11. select/channel key (pages 14, 20 and 23)
12. Rocketdial key (page 22)
13. talk/flash key (pages 18 and 21)
14. end key (pages 18 and 19)
15. #/→(right cursor) key (page 23)
16. memory key (page 23)
17. delete/transfer key (pages 13 and 30)
18. Handset microphone and ringer speaker
19. Handset charging contacts
CONTROLS & FUNCTIONS
UP038.book 3 ページ ２００４年１月２６日 月曜日 午前１０時１７分

CONTROLS & FUNCTIONS [4]
www.uniden.com

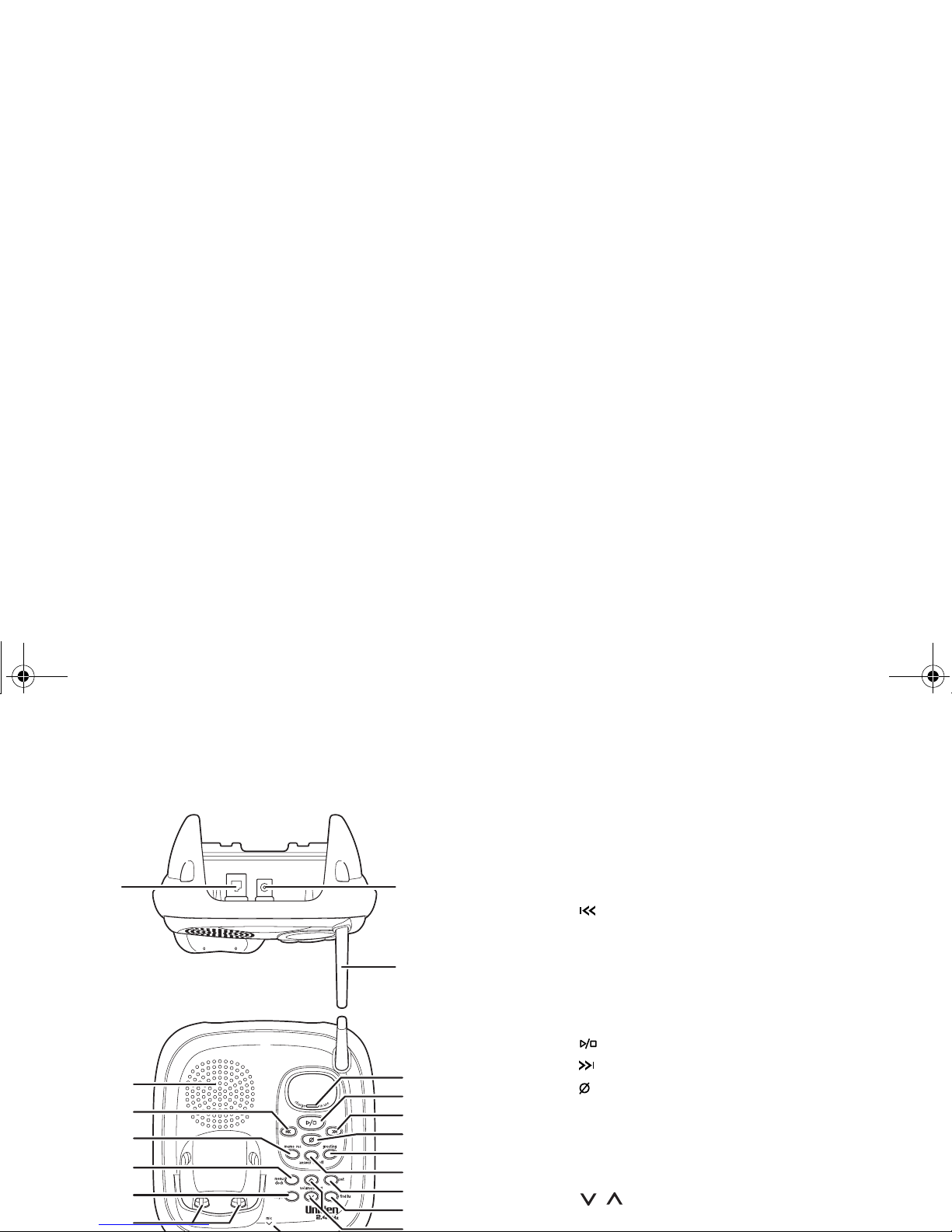

Main Base
21
22
20
29
30
31
32
33
34
36
38
37
35
24
23
25
26
27
28
CONTROLS & FUNCTIONS
20. Telephone line jack
21. DC IN 9V jack
22. Main base antenna
23. Main base speaker
24. (repeat/rewind) key (page 44)
25. memo rec (record) key (page 47)
26. menu/clock key (pages 34 and 37)
27. ringer key (page 42)
28. Main base charging contacts
29. charge in use LED
30. (play/stop) key (pages 42 and 43)
31. (skip/fast forward) key (page 45)
32. (delete) key (page 46)
33. greeting key (page 41)
34. answer on/off key (page 33)
35. set key (page 34)
36. find hs (handset) key (pages 21 and 51)
37. / /volume/select keys
(pages 34 and 42)
38. mic (microphone)
UP038.book 4 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[5] CONTROLS & FUNCTIONS
www.uniden.com
Extra Charging Cradle for Second Handset
Terms Used in this Manual
• Standby Mode - The handset may be sitting in or off the cradle, but is NOT in use. The talk/flash key has not
been pressed and there is no dial tone.
• Talk Mode - The handset is off the cradle and the talk/flash key has been pressed, enabling a dial tone.
• CID - Caller ID
• CIDCW - Caller ID on Call Waiting
• RocketDial - One touch speed dial
39
40
41
CONTROLS & FUNCTIONS
39. Charging contacts
40. Charge LED
41. DC IN 9V jack
UP038.book 5 ページ ２００４年１月２６日 月曜日 午前１０時１７分

GETTING STARTED [6] www.uniden.com
Installing the Phone
Do the following steps:
A. Choose the Best Location
B. Install the Rechargeable Battery Packs into the Handsets
C. Connect the Main Base and Charging Cradle, and Charge the Handsets
D. Mount the Main Base on a Wall

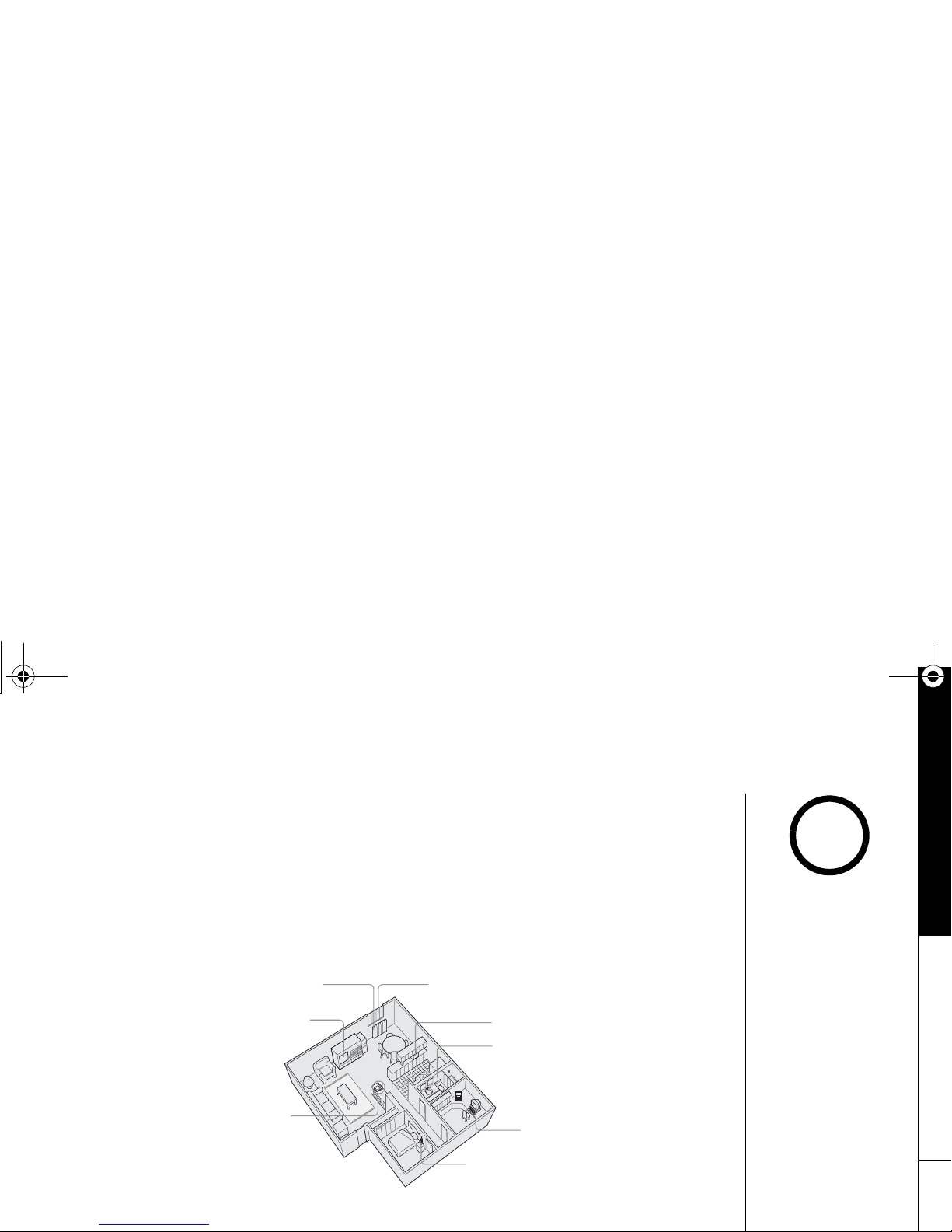

A. Choose the Best Location
When choosing a location for your new phone, here are some important guidelines you should
consider:
• The location should be close to both a phone jack and a continuous power outlet (one
which is not connected to a switch).
• The main base and each handset should be kept away from sources of electrical noise such
as motors, microwave ovens, and fluorescent lighting.
• The cradle can be placed on a desk, tabletop, or mounted on a standard wall plate.
• There should be enough space to fully extend the antenna.
Avo
id
h
eat sources, suc
h
as ra
di
ators,
air ducts, and sunlight
Avoid television sets and other
electronic equipment
Choose a central location
Avo
id
no
i
se sources suc
h
as a w
i
n
d
ow
b
y
a street with heavy traffic
Avoid microwave ovens
Avoid excessive moisture,
extremely low temperatures, dust,
mechanical vibration, or shock
Avoid personal computers
Avoid other cordless telephones
If your home has
specially wired alarm
equipment connected to
the telephone line, be
sure that installing the
system does not disable
your alarm equipment.
If you have questions
about what will disable
your alarm equipment,
contact your telephone
company or a qualified
installer.
note
GETTING STARTED
UP038.book 6 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[7] GETTING STARTED www.uniden.com

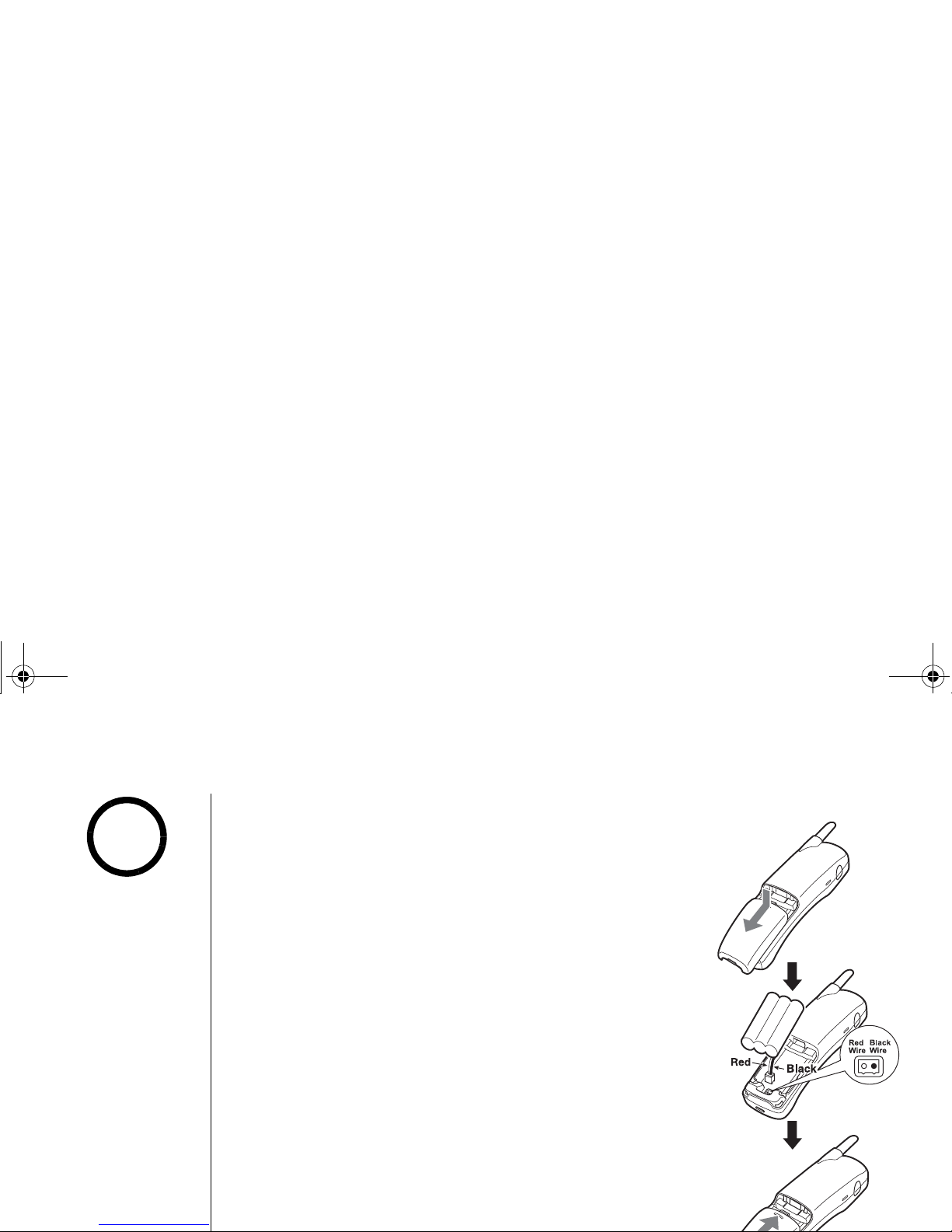

B. Install the Rechargeable Battery Packs into the Handsets
Both handsets are powered by rechargeable battery packs. The
battery recharges automatically when the handset is placed in
the main base or charging cradle.
1) Press down on the handset battery case cover (use the finger
indention for a better grip) and slide the cover downward to
remove.
2) Plug the battery pack connector (red & black wires) into the
jack inside the battery compartment.
(The connector notches fit into the grooves of the jack only
one way.) Match the wire colors to the polarity label in the
battery compartment, connect the battery and listen for a
click to insure connection.
3) Make sure you have a good connection by slightly pulling on
the battery wires. If the connection is secure, the battery
jack will remain in place.
4) Place the battery case cover back in the handset by sliding it
upwards until it clicks into place.
•Use only the Uniden
(BT-905)
rechargeable battery
pack supplied with
your cordless
telephone.
•Replacement batteries
are also available
through the Uniden
Parts Department at
[phone],
Monday through Friday
from 8:00 a.m. to 5:00
p.m. or online at
www.uniden.com
!
GETTING STARTED
UP038.book 7 ページ ２００４年１月２６日 月曜日 午前１０時１７分

GETTING STARTED [8] www.uniden.com

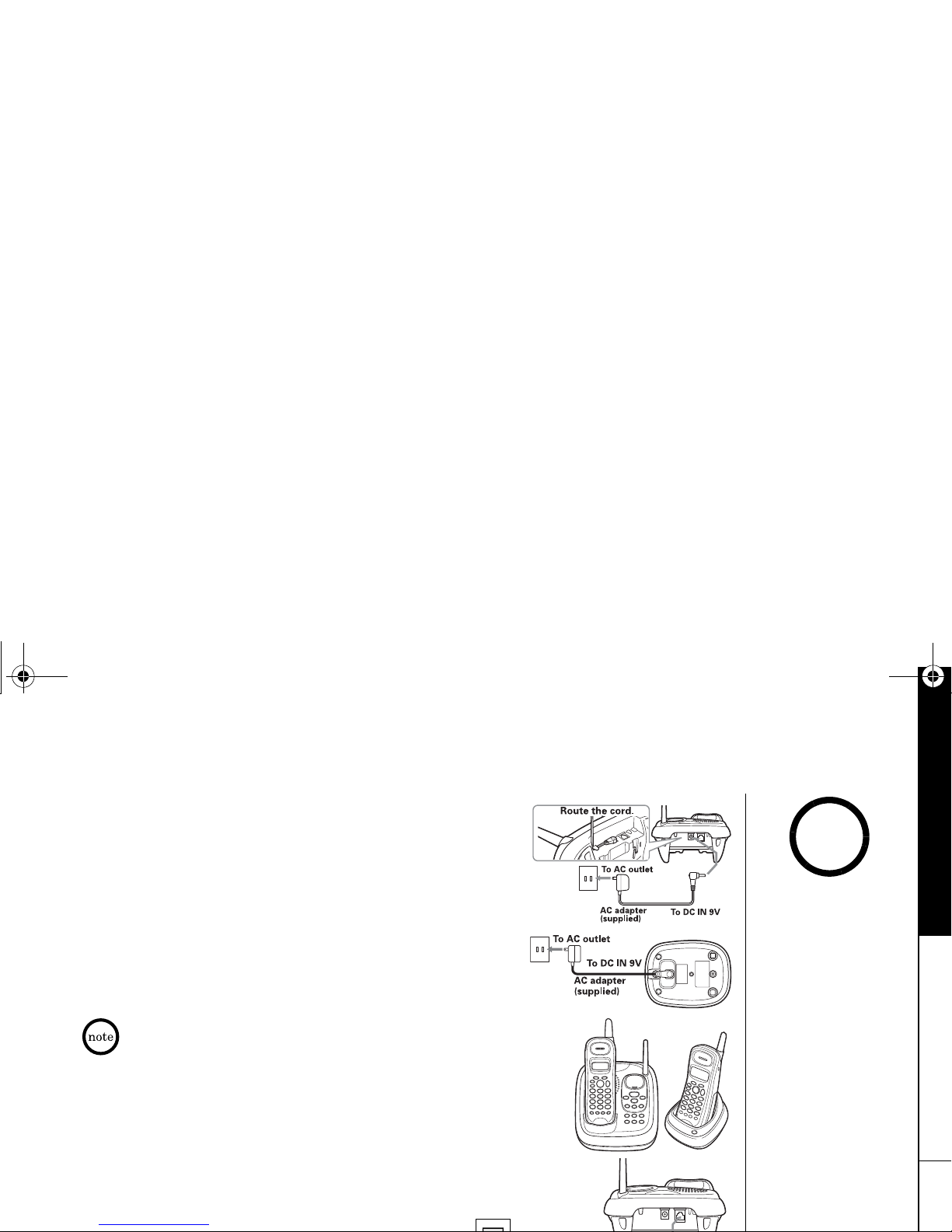

C. Connect the Main Base and Charging Cradle,
and Charge the Handsets
1) Connect the AC adapter to the DC IN 9V jack and to a
standard 120V AC wall outlet.
2) Place one handset in the main base and the other in the
charging cradle with the keypad facing forward.
3) Make sure the charge in use LED and charge LED illuminate.
If the LED does not illuminate, check to see that the AC adapter is
plugged in and the handset makes good contact with the cradle's
charging contacts.
• Connect each AC adapter to a continuous power supply.
• Place each cradle close to the AC outlet so that you can
unplug the AC adapter easily.
4) Charge your handsets at least 15-20 hours before plugging into the
phone line.
5) Once the handset battery packs are fully charged, connect
the telephone line cord to the TEL LINE jack and a telephone
outlet.
If your telephone outlet isn't modular, contact your
telephone company for assistance.
Modular
•Use only the supplied
AD-314 AC adapter
for the main base and
AD-310 for the
charging cradle.
Do not use any other
AC adapter.
•Do not place the power
cord where it creates a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
!
GETTING STARTED
UP038.book 8 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[9] GETTING STARTED www.uniden.com

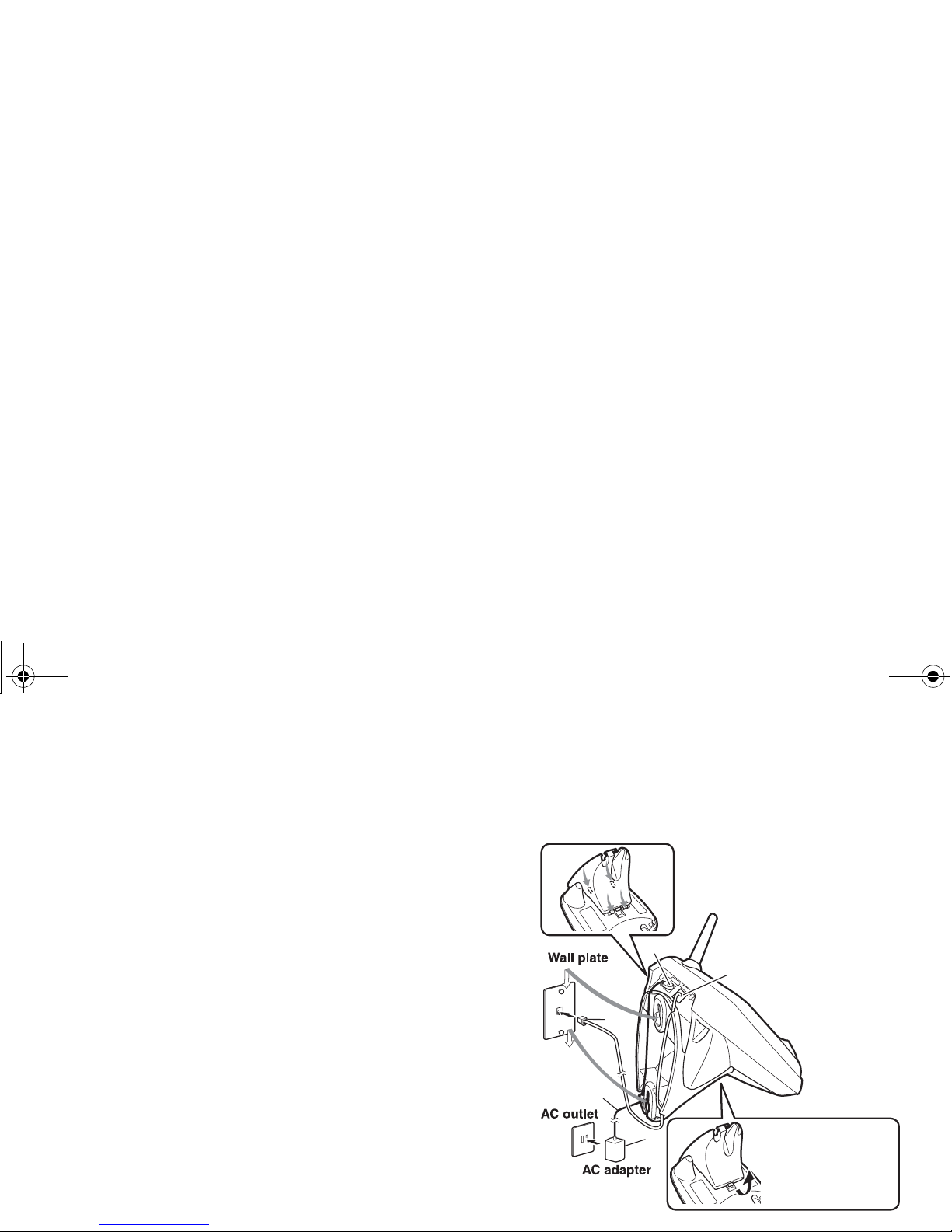

D. Mount the Main Base on a Wall
Standard wall plate mounting
This phone can be mounted on any
standard wall plate.
1) Locate the wall mount adapter on
the main base as shown and slide the
wall mount adapter into the notches
on the main base bottom with the
tab pressed.
2) Plug the AC adapter to the DC IN 9V
jack.
3) Route the AC adapter cord through
the molded wiring channel as shown.
4) Plug the AC adapter into a standard
120V AC wall outlet.
5) Plug the telephone line cord into the
TEL LINE jack. Route the cord
through the molded wiring channel
as shown.
6) Plug the telephone line cord into the
telephone outlet.
7) Align the mounting slots on the
main base with the mounting posts
on the wall. Then push in and down
until the phone is firmly seated.
2
1
5
3
4
6
7
7
To remove, push up
a tab on the wall
mount adapter as
shown.
GETTING STARTED
UP038.book 9 ページ ２００４年１月２６日 月曜日 午前１０時１７分

GETTING STARTED [10] www.uniden.com
Direct wall mounting
If you don't have a standard wall plate, you can mount your phone
directly to the wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting
location that could cause a hazard when inserting screws into the
wall.
• Try to mount your phone within 5 feet of a working phone jack to
avoid excessive cord lengths.
• Make sure the wall material is capable of supporting the weight of
the main base and handset.
• Use #10 screws (minimum length of 1-3/8 inches) with anchoring
devices suitable for the wall material where the main base will be
placed.
1) Insert two mounting screws into the wall, (with their appropriate anchoring device), 3-
15/16 inches apart. Allow about 1/8 of an inch between the wall and screw heads for
mounting the phone.
2) Refer to steps 1 through 7 on page 9 to mount the telephone.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset. Press down until it clicks.
To remove the beltclip
Pull both sides of the beltclip to release the tabs from the holes.
GETTING STARTED
UP038.book 10 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[11] GETTING STARTED www.uniden.com
Headset Installation
Your phone may be used with an optional headset, the Uniden HS910.
To use this feature, insert the headset plug into the headset jack.
Your phone is ready for hands-free conversations.
(Headset may be purchased by calling the Uniden Parts Department or
visiting the web site. See page 54.)
GETTING STARTED
UP038.book 11 ページ ２００４年１月２６日 月曜日 午前１０時１７分

GETTING STARTED [12] www.uniden.com
Register Handsets to the Main Base before Using!
Whichever handset you choose to charge in the main base will automatically register to the
main base.
The second handset (charging in the extra charging cradle) MUST also be registered to the
main base before use. Follow the steps below to register the second handset.
1) Be sure both handsets are fully charged.
2) Remove the handset from the charging cradle, and place it in the main base. The charge
in use LED light on the main base will begin to flash, indicating that the registration is
taking place.
3) Wait for at least five seconds, then remove the handset from the main base.
4) Press the find hs key on the main base. If both handsets beep, registration is complete. If
one handset does not beep, re-register that handset.
5) Once both handsets are registered, it doesn’t matter which handset is placed in the main
base or the charger.
•When you charge the
handsets, Caller ID
summary screen and
the name of the
handset,
HS1 appears.
If
HS2 appears, you
are charging the
handset No. 2.
•The charging cradle
can be used to charge
either handset.
note
GETTING STARTED
UP038.book 12 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[13] GETTING STARTED www.uniden.com
When to Re-register Handsets
1) You’ll need to re-register the second handset (follow steps on page 12) each time the digital
security code is changed. Refer to page 51 for details regarding the Digital Security Code.
2) When there is a power failure for more than one hour:
If power failure occurs (e.g. due to electrical storm or if the unit is unplugged during a
move), both handsets will need to be re-registered. To re-register, follow the same
registration process on page 12.
3) If the second handset’s battery becomes very low, the handset must be recharged for 15-
20 hours and re-registered to the main base.
Call Transfer Feature
Your cordless phone allows you to transfer outside calls from handset to handset; only one
handset at a time can talk with an outside caller. The second handset cannot go off hook to
listen to conversations or make an outgoing call while the other handset is in use.
To transfer a call
1) During a call, press the delete/transfer key. The call will
automatically be placed on hold and the transfer tone sounds.
2) When the other handset receives the call, the transfer tone
stops. To cancel the transfer and return to the caller, press the
delete/transfer or talk/flash key on the handset.
To receive a transfer call
Pick up the handset from the cradle (when AutoTalk is set to on),
or pick up the handset and press the talk/flash key to answer
the transferred call. Additionally, you can answer the transferred
call by pressing any number key, (when AutoTalk is set to on).
•Make sure to return the
handsets to the cradles
after each phone call.
•If you transfer the call
and it is not picked up
after 5 minutes, the
call will be
disconnected.
note
GETTING STARTED
UP038.book 13 ページ ２００４年１月２６日 月曜日 午前１０時１７分

GETTING STARTED [14] www.uniden.com
Basic Setup
There are five basic options that you will need to set up: AutoTalk, CIDCW (Caller ID on Call
Waiting), Area Code, Dial Mode and Language.
CIDCW and Dial Mode options can only be set by using Handset 1. If you try to set by using
Handset 2, you will not see these options listed on the LCD screen.
(Headset 1 shows HS1 in the display while the phone is charging.)
AutoTalk, Area Code and Language options can be set by using either
Handset 1 or Handset 2.
Activating AutoTalk
AutoTalk allows you to answer the phone simply by removing the handset from the cradle.
You do not have to press any keys.
1) When the phone is in standby mode, press and hold the caller id/
menu key. The following screen appears.
2) Press the select/channel key to turn AutoTalk on.
3) Press the end key to complete the setting. The handset returns to
standby mode.
Activating Caller ID on Call Waiting
Caller ID allows you to see the name and number of the calling party before you answer the
phone. Caller ID on Call Waiting (CIDCW) lets you see the name and number of a call that
comes in when you are on the line.
GETTING STARTED
UP038.book 14 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[15] GETTING STARTED www.uniden.com
You must subscribe to Caller ID service through your local telephone provider to use this
feature.
1) When the phone is in standby mode, press and hold the caller id/
menu key. The following screen appears.
2) Press the /vol/ key to select
CIDCW .
3) Press the select/channel key to toggle and turn on Caller ID on
Call Waiting.
4) Press the end key and return the handset to the main base to
complete the setting. The handset returns to standby mode.
Entering Your Area Code
If you enter a 3-digit area code number in the Area Code option, your local area code does
not appear in Caller ID messages. Do not program this option if your calling area requires 10-
digit dialing. When reviewing Caller ID messages, you will see only the local seven digit
number. For calls received from outside your local area code, you will see a full 10-digit
number.
1) When the phone is in standby mode, press and hold the caller id/
menu key. The following setting screen appears.
2) Press the /vol/ key twice to select
Area Code .
3) Press the select/channel key. If an area code was already stored,
the phone will display it.
GETTING STARTED
UP038.book 15 ページ ２００４年１月２６日 月曜日 午前１０時１７分

GETTING STARTED [16] www.uniden.com
4) Use the number keys (0 - 9) to enter the 3-digit area code. If you
make an error, use the delete/transfer key to backspace.
5) Press the select/channel key. A confirmation tone sounds.
6) Press the end key to complete the setting. The handset returns to standby mode.
Choosing the Dialing Mode
Most phone systems use tone dialing. However some phone systems (such as in rural areas)
still use pulse dialing. Your Uniden phone supports both tone and pulse dialing. The default
setting is tone dialing. If your phone system uses pulse dialing, follow the steps below to
change the dialing mode:
1) When the phone is in standby mode, press and hold the caller id/
menu key. The following screen appears.
2) Press the /vol/ key three times to select
Dial .
3) Press the select/channel key to set the phone to pulse dialing.
4) Press the end key and return the handset to main base to
complete the setting. The handset returns to standby mode.
•If you are not sure of
your dialing system,
make a trial call. If the
call connects, leave
the setting as is.
Otherwise, set for
pulse dialing.
•If your phone system
requires pulse dialing
and you need to send
DTMF tones during a
call, you can
temporarily switch
over to tone dialing.
(Refer to “Tone Dialing
Switch-over” on
page 20.)
note
GETTING STARTED
UP038.book 16 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[17] GETTING STARTED www.uniden.com
Setting the Language
There are three languages to choose from: English, French and Spanish.
1) When the phone is in standby mode, press and hold the caller id/
menu key. The following screen appears.
2) Press the /vol/ key four times to select
Language .
3) Press the select/channel key to select Eng , Fr. or Esp.
4) Press the end key to complete the setting. The handset returns to
standby mode.
Selecting the Ring Tone and Volume
Your phone has five different ringer tone/volume combinations you can choose from.
1) With the phone in standby mode, press the /vol/ or /vol/ key.
2) The phone will sound the different ring tones at different volumes.
3) When the phone sounds the ring tone and volume you wish to use, press the end key.
GETTING STARTED
UP038.book 17 ページ ２００４年１月２６日 月曜日 午前１０時１７分

BASICS [18] www.uniden.com
Using Your Phone
Making and Receiving Calls
Making a call
1) Remove the handset from the cradle.
2) Press the talk/flash key.
3) Listen for the dial tone.
4) Dial the number.
OR
1) Remove the handset from the cradle.
2) Dial the number.
3) Press the talk/flash key.
Receiving a call
1) Remove the handset from the cradle. (If AutoTalk is on, the phone will automatically
answer the call when you pick it up.)
2) Press the talk/flash key.
OR
1) If the handset is off the cradle, press the talk/flash key or any number key. (AutoTalk is
on.)
Hanging up
Press the end key or return the handset to the cradle.
BASICS
Refer to page 14
"Basic Setup" to turn On
the AutoTalk feature if
desired.
note
UP038.book 18 ページ ２００４年１月２６日 月曜日 午前１０時１７分

[19] BASICS www.uniden.com
Redialing the last dialed number
1) Remove the handset from the cradle.
2) Press the talk/flash key.
3) Listen for the dial tone.
4) Press the redial/pause key.
OR
1) Remove the handset from the cradle.
2) Press the redial/pause key.
3) Press the talk/flash key.
Adjusting the Earpiece Volume
To change the earpiece volume, press the /vol/ or /vol/
key during a call.
Temporarily Mute Ringer
If the handset is off the cradle while an incoming call is ringing,
simply press the end key to temporarily mute the incoming ring.
The ringer will sound with the next incoming call.
BASICS
UP038.book 19 ページ ２００４年１月２６日 月曜日 午前１０時１７分
