INTRODUCTION/FEATURES[ 2 ]
Welcome
Features
Congratulations on your purchase of the EXT 1365 cordless telephone. This
phone is designed for reliability, long life and outstanding performance
utilizing the latest in 2.4 GHz Spread Spectrum Technology.
NNoottee::SSoommeeiilllluussttrraattiioonnssiinntthhiissmmaannuuaallmmaayyddiiffffeerrffrroommtthheeaaccttuuaalluunniittffoorr
eexxppllaannaattiioonnppuurrppoosseess..
•2.4 GHz Spread Spectrum Technology
•Secure Digital Transmission
•Caller ID and Call Waiting Caller ID
•Advanced Caller ID with Call Waiting Options
•50 Number Caller ID Memory
•20 Number Memory
•3 Line Backlit Display
•3 Redial Memories (up to 32 digit)
•Flash and Pause
•Bilingual Language Option
•Pulse / Tone Dialing
•10 Day Standby Battery Life
•6 Hour Talk Time
•Handset Earpiece and Ringer Volume Control
•Base Speakerphone with Keypad
•3-Way Conference Operation
•Dual Keypad Operation
•35 Channels
•Voice Message Waiting Indicator
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 2

INTRODUCTION/FEATURES [ 3 ]
DDiiggiittaallSSpprreeaaddSSppeeccttrruummTTeecchhnnoollooggyyutilizes a “wider frequency band“vs. a
“single narrow band“used in standard digital transmissions. The 2.4 GHz
frequency range was recently released to commercial communications. The
result is a more secure conversation with the clarity of digital sound, extended
range, and minimal interference from other cordless phones.
RRaannddoommCCooddeeTM digital security automatically selects one of approx. 65,000
codes for the handset and base.
These features enhance your phone´s security and also prevents unauthorized
calls as a result of your phone being activated by other equipment.
UnidenTM is a registered trademark of Uniden America Corporation.
AutoTalkTM and Random CodeTM are trademarks of Uniden America Corporation.
Throughout this manual, terms such as Standby Mode and Talk Mode are
used. Below is the terminology explanation:
•SSttaannddbbyyMMooddee- The handset is not in use, off of the base and
has not been pressed. A dial tone is not present and the display
is blank.
•TTaallkkMMooddee- The handset is not on the base and has been pressed
enabling a dial tone. Talk appears on the display.
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 3

CONTROLS AND FUNCTIONS[ 4 ]
Controls and Functions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

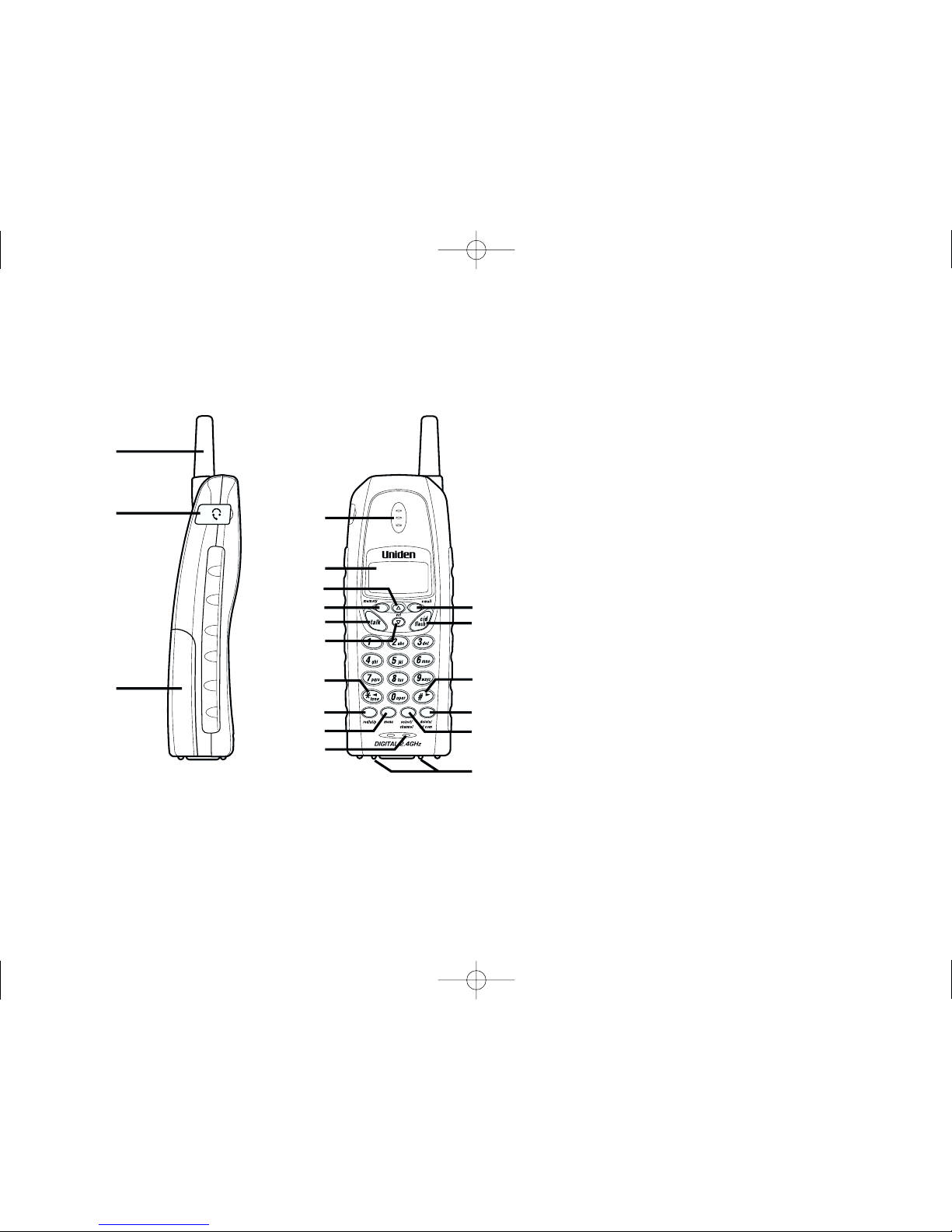

1. Handset Antenna
2. Headset Jack Cover
3. Handset Battery Compartment
4. Handset Earpiece
5. LCD Display
6. Volume Up Key
7. Memory Key
8. Talk Key
9. Volume Down Key
10. Tone/Left Cursor Key
11. Redial/Pause Key
12. Menu Key
13. Handset Microphone
14. V.mail Key
15. Caller ID/Flash Key
16. Right Cursor Key
17. Delete/Intercom Key
18. Select/Channel Key
19. Handset Charging Contacts
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 4

CONTROLS AND FUNCTIONS [ 5 ]
33
20
21
22
23
24
25
26
27
28
29
30
31
32
34 35 36 37
20. Base Charging Contacts
21. Base Speaker
22. Tone Key
23. Speaker LED
24. Status LED
25. Voice Mail LED
26. Intercom Key
27. Redial/Pause Key
28. Flash Key
29. Base Antenna
30. Voice Mail Key
31. Speaker Key
32. Base Speaker Volume Adjust
33. Base Microphone
34. Base Ringer Switch
35. Pulse-Tone Switch
36. DC Power Input
37. Phone Jack
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 5

[ 6 ] GETTING STARTED
Read This First
This cordless telephone must be set up before use. Follow these steps:
AAbboouutttthheeddiiggiittaallsseeccuurriittyyccooddee
This cordless telephone uses a digital
security code to prevent unauthorized
access to your base unit. This
security code prevents other cordless
handsets from making calls through
your base unit.
A random security code will be
assigned automatically between your
base unit and handset when you
charge the battery pack for the
first time.
If you want to reset the security
code, see page 49.
SStteepp11((ppaaggee77))
Unpack the telephone and accessories.
SStteepp22((ppaaggee88))
Next, choose the best location to
set up the base unit.
SStteepp33((ppaaggee99ttoo1111))
Then, insert the battery pack into the
handset. Connect the base unit. You
must charge the battery pack for 1155--2200
hhoouurrssbbeeffoorreepplluuggggiinnggiinnttootthheepphhoonnee
lliinneeaanndduussiinnggtthheepphhoonnee.
SStteepp44((ppaaggee1122ttoo1133))
Finally, set the Caller ID options and
store your area code in the memory to
use the Caller ID service.
NNoottee::Skip the area code setting if your
calling area requires 10-digit dialing. HHaannddsseett
HHaannddsseett
BBaasseeuunniitt
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 6

[ 7 ]
GETTING STARTED
Checking the Package Contents

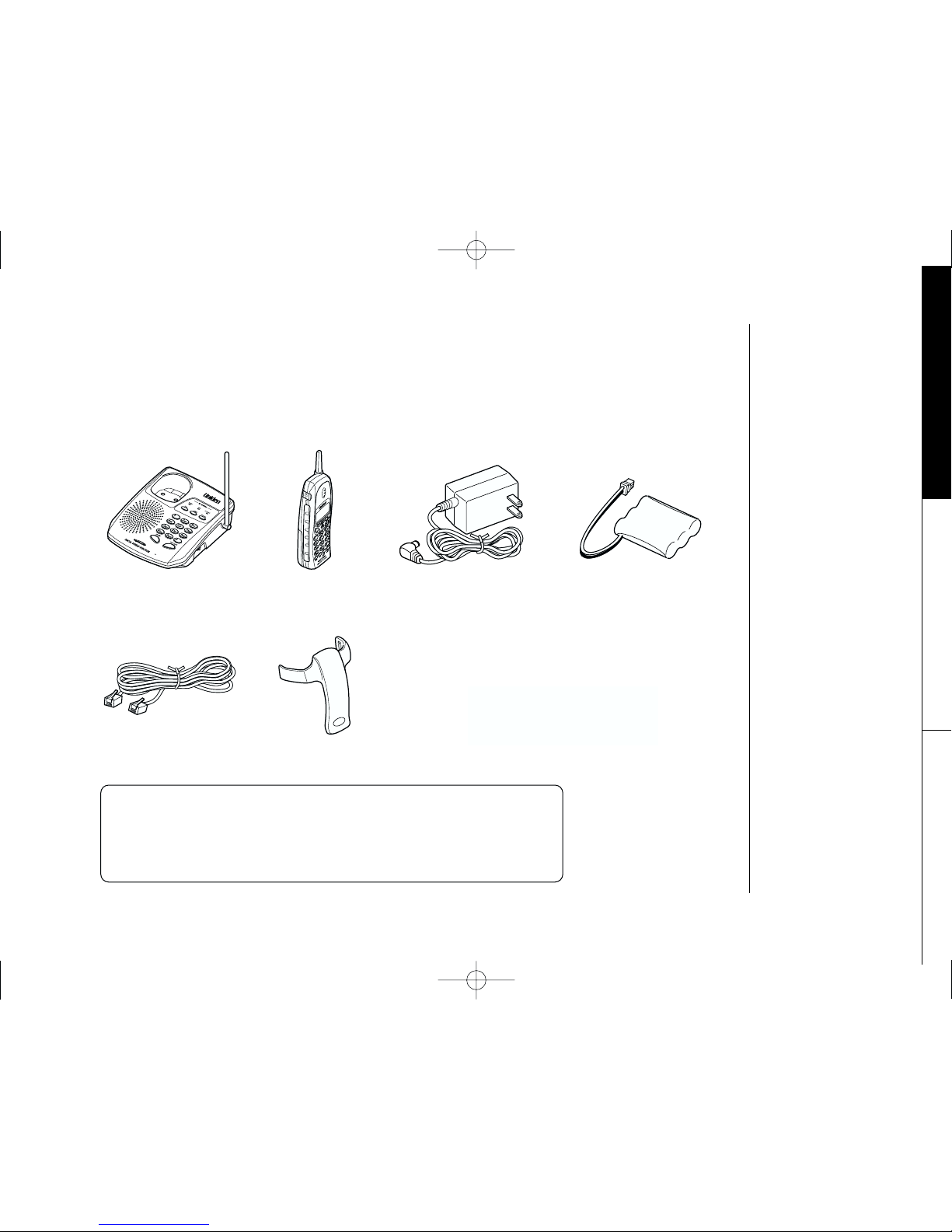

Make sure you have received the following items in the package.
If any of these items are missing or damaged, contact the Uniden Parts
Department (see below).
GETTING STARTED
••TThhiissOOwwnneerr´´ssMMaannuuaall
••QQuuiicckkRReeffeerreenncceeGGuuiiddee
••BBaasseeuunniitt••HHaannddsseett••AACCaaddaapptteerr((AADD--331122))••RReecchhaarrggeeaabbllee
bbaatttteerryyppaacckk
((BBTT--880000))
••TTeelleepphhoonneelliinneeccoorrdd••BBeellttcclliipp
UUnniiddeennPPaarrttssDDeeppaarrttmmeenntt
[phone]
Hours: M-F 7:00 AM to 5:00 PM CST.
We can also be reached on the web at www.uniden.com
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 7

[ 8 ]
Setting Up the Base Unit
Do the following steps:

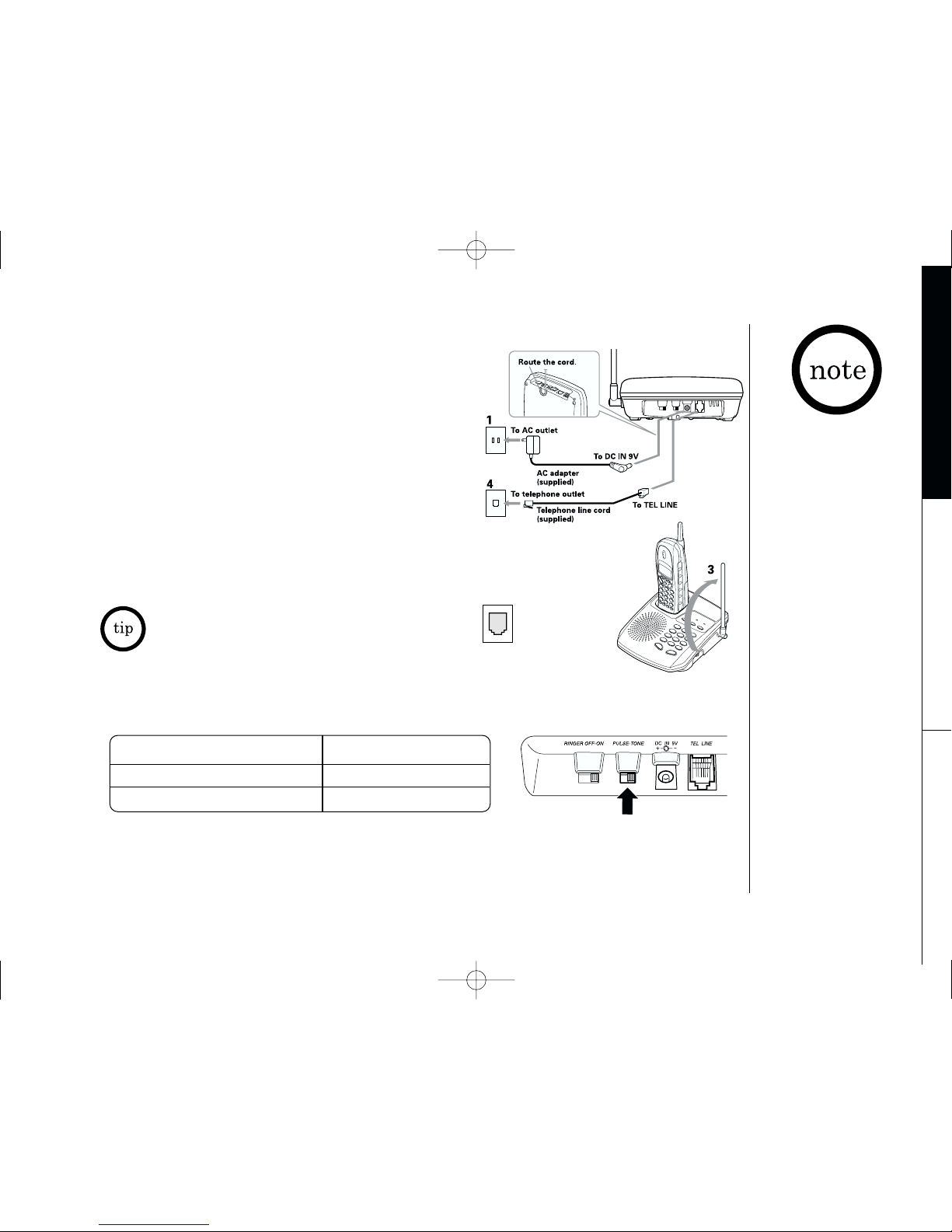

A. Choose the best location C. Connect the base unit
B. Install the battrery pack D. Choose the dialing mode
AA..CChhoooosseetthheebbeessttllooccaattiioonn
Before choosing a location for your new phone, read the INSTALLATION CONSIDERATIONS included
in the PRECAUTIONS AND IMPORTANT SAFETY INSTRUCTIONS brochure. Here are some important
guidelines you should consider:
•After installing the battery pack in the handset, you should charge your handset for 1155--2200
hhoouurrssbbeeffoorreeuussiinnggtthheepphhoonnee. Once the handset battery pack is fully charged, you may connect
the telephone line cord to the base and telephone wall outlet.
•The location should be close to both a phone jack and a continuous power outlet which is
not switchable.
•Keep the base and handset away from sources of electrical noise such as motors and
fluorescent lighting.
•Be sure there is sufficient space to raise the base antenna to a vertical position.

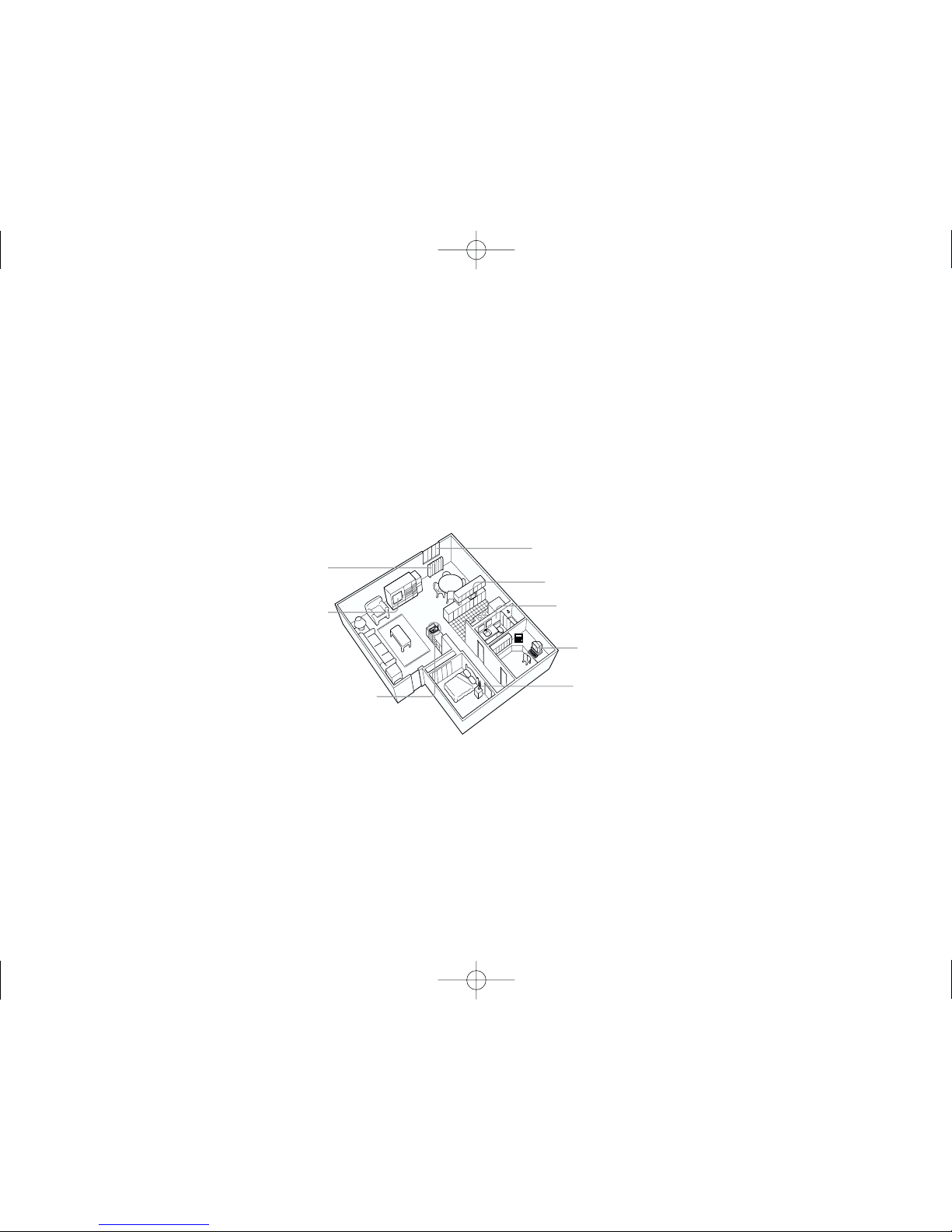

AAvvooiiddhheeaattssoouurrcceess,,ssuucchhaass
rraaddiiaattoorrss,,aaiirrdduuccttss,,aannddssuunnlliigghhtt
AAvvooiiddtteelleevviissiioonnsseettssaanndd
ootthheerreelleeccttrroonniicceeqquuiippmmeenntt
AAvvooiiddnnooiisseessoouurrcceessssuucchhaassaawwiinnddooww
bbyyaassttrreeeettwwiitthhhheeaavvyyttrraaffffiicc
AAvvooiiddmmiiccrroowwaavveeoovveennss
AAvvooiiddeexxcceessssiivveemmooiissttuurree,,eexxttrreemmeellyyllooww
tteemmppeerraattuurreess,,dduusstt,,mmeecchhaanniiccaallvviibbrraattiioonn,,oorrsshhoocckk
AAvvooiiddppeerrssoonnaallccoommppuutteerrss
AAvvooiiddootthheerrccoorrddlleesssstteelleepphhoonneess
CChhoooosseeaacceennttrraallllooccaattiioonn
GETTING STARTED
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 8

[ 9 ]
GETTING STARTED
GETTING STARTED
The plastic connectors will
fit together only one way.
Make sure the battery´s
connector is properly
aligned.
BB..IInnssttaalllliinnggtthheeHHaannddsseettBBaatttteerryyPPaacckk
CChhaarrggeetthheebbaatttteerryyppaacckkffoorr1155--2200hhoouurrssbbeeffoorree
pplluuggggiinnggtthheepphhoonneelliinneeiinnttooyyoouurrpphhoonnee..
11Press in on the battery cover release and slide the
cover down until it comes off.
22Connect the battery pack connector with the
correct polarity (black and red wires), then insert
the battery pack into the battery compartment.
33Slide the battery cover forward until it snaps
into place.

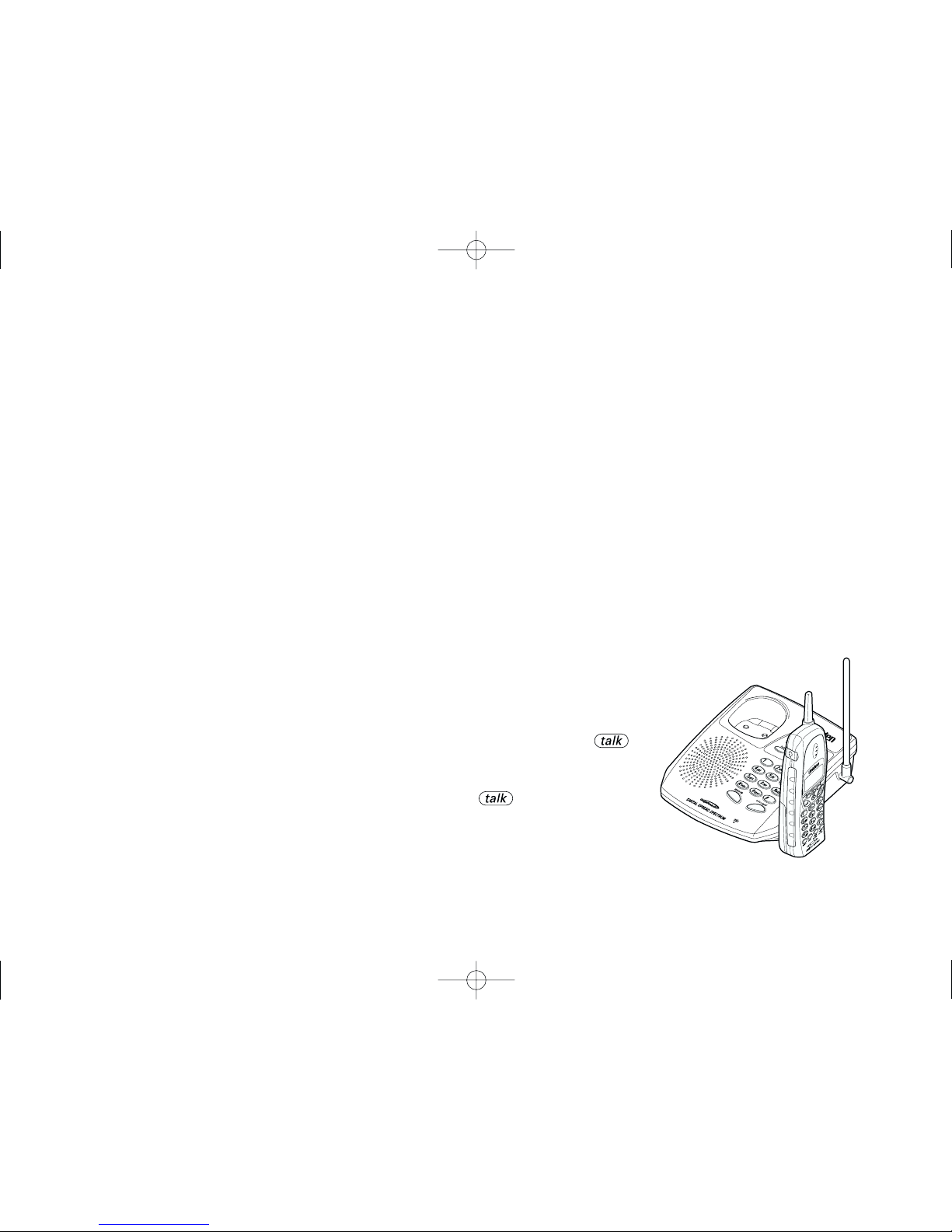

44Place the handset on the base.
55Make sure that the “
ssttaattuuss
“LED lights. If the LED
doesn´t light, check to see that the AC adapter is
plugged in and that the handset makes good
contact with the base charging contacts.
Use only the Uniden Battery (BT-800) supplied with
your phone. Replacement batteries are also available
through the Uniden Parts Department (See page 7).
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 9

[ 10 ]
BBaatttteerryyuusseettiimmee((ppeerrcchhaarrggee))
From fully charged
•6 hours continuous use
•10 days when the handset is in the standby mode
WWhheenntthheebbaatttteerryycchhaarrggeebbeeccoommeessllooww
When the voltage of battery pack in the handset is very low and needs to be
charged, the phone is programmed to eliminate functions in order to save power.
If the battery charge becomes low, “Low Battery“
appears on the LCD. If the phone is in use, the handset
beeps. Complete your conversation as quickly as possible
and return the handset to the base unit for charging.

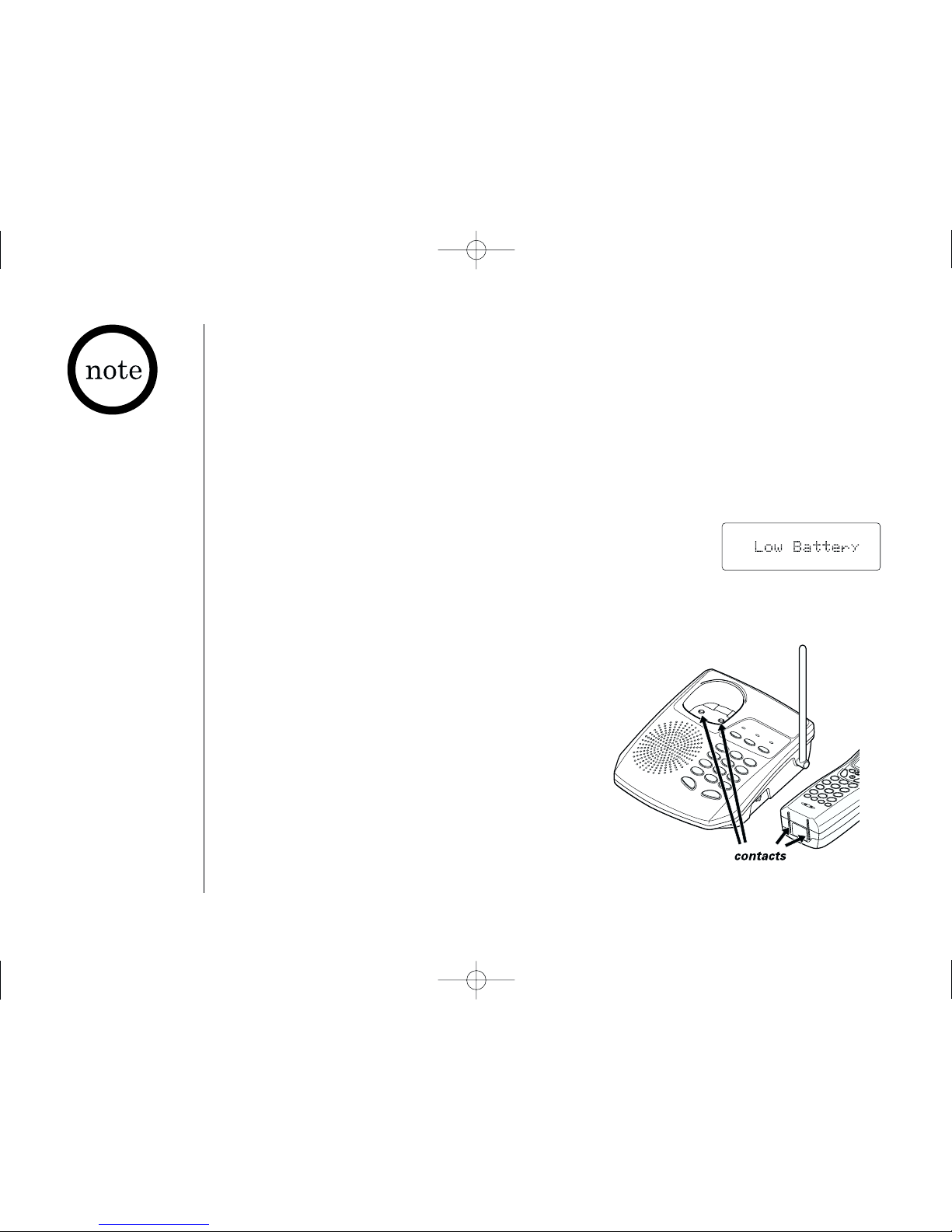

CClleeaanniinnggtthheecchhaarrggiinnggccoonnttaaccttss
To maintain a good charge, it is important
to clean the battery contacts on the
handset and base unit with a dry cloth or a
pencil eraser about once a month.
DDoonnoottuusseeaannyylliiqquuiiddssoorrssoollvveennttss..
•Even when the battery
pack is not being used,
it will gradually
discharge over a long
period of time. For
optimum performance,
be sure to return the
handset to the base unit
after each telephone
call.
•The built-in memory
backup can hold
numbers and names
stored in the memory
even if the battery is
completely discharged.
•If you must replace the
battery pack during a
telephone call,
complete the
replacement of the
battery pack within
30 seconds, and you
can return to the
original call.
GETTING STARTED
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 10

[ 11 ]
GETTING STARTED
•Connect the AC adapter
to a continuous power
supply.
•Place the base unit close
to the AC outlet so that
you can unplug the AC
adapter easily.
CC..CCoonnnneecctttthheebbaasseeuunniitt
11Connect the AC adapter to the DDCCIINN99VV
jack
and to a standard 120V AC wall outlet.
22Set the base unit on a desk or tabletop and
place the handset on the base unit as shown.
33Then raise the antenna to a vertical position.
After installing the battery pack in the
handset, charge your handset at least 1155--2200
hhoouurrssbbeeffoorreepplluuggggiinnggiinnttootthheepphhoonneelliinnee.
Once the handset battery pack is fully
charged, connect the telephone line cord
to the base and telephone wall outlet.
44Connect the telephone line cord to the
TTEELLLLIINNEE
jack and to a
telephone outlet.
DD..CChhoooosseetthheeddiiaalliinnggmmooddee
Depending on your dialing system, set the PPUULLSSEE--TTOONNEEswitch as follows:
If you aren´t sure of your dialing system, make a trial call with the PPUULLSSEE--TTOONNEE
switch set to
TTOONNEE
. If the call connects, leave the switch as is; otherwise, set to
PPUULLSSEE
.
•Place the power cord so
it does not create a trip
hazard or where it could
become chafed and
create a fire or electrical
hazard.
MMoodduullaarr
If your telephone outlet isn´t modular, contact
your telephone company for assistance.
•Use only the supplied
AD-312 AC adapter. Do
not use any other AC
adapter.
IIffyyoouurrddiiaalliinnggssyysstteemmiissSSeetttthheesswwiittcchhttoo
Tone
TTOONNEE
Pulse
PPUULLSSEE
GETTING STARTED
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 11

[ 12 ] GETTING STARTED
Setting Caller ID Options/Language
There are three Caller ID setup options available; they are AutoTalk, CIDCW (Caller
ID on Call Waiting), and Area Code. See page 13 for Area Code setup instructions.
AAuuttooTTaallkkTM allows you to answer the phone without pressing the button. If the
phone rings when AutoTalk is on, simply remove the handset from the base and the
phone automatically answers the call. Or if the handset is not on the base, press
any key to answer the call. If the phone rings when AutoTalk is off, you must
press to answer the call.
CCaalllleerrIIDDoonnCCaallllWWaaiittiinngg((CCIIDDCCWW))performs the same as regular Caller ID on a call
waiting number. Call waiting options allow you to handle call waiting calls in seven
different ways. (See page 43.)
To change your Caller ID options/Language:
11Press and hold . The following screen appears.
22Use and or a number key (1-4) to move the
pointer to the selection that you would like to change.
Press to choose “On“and “Off“for
“Auto Talk“.
For “CIDCW“, choose “On“, “Off“, or “Opt“depending upon the type of
service to which you subscribe.
33To set up the language of your display, press or the
number 4 key to move the pointer to “Language“.
Press to select “Eng“(English) or
“Fr.“( French).
44After you have made your Caller ID selections, press and return the
handset to the base.
You must subscribe to
Caller ID on Call Waiting in
order to use this feature.
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 12

[ 13 ]
GETTING STARTED

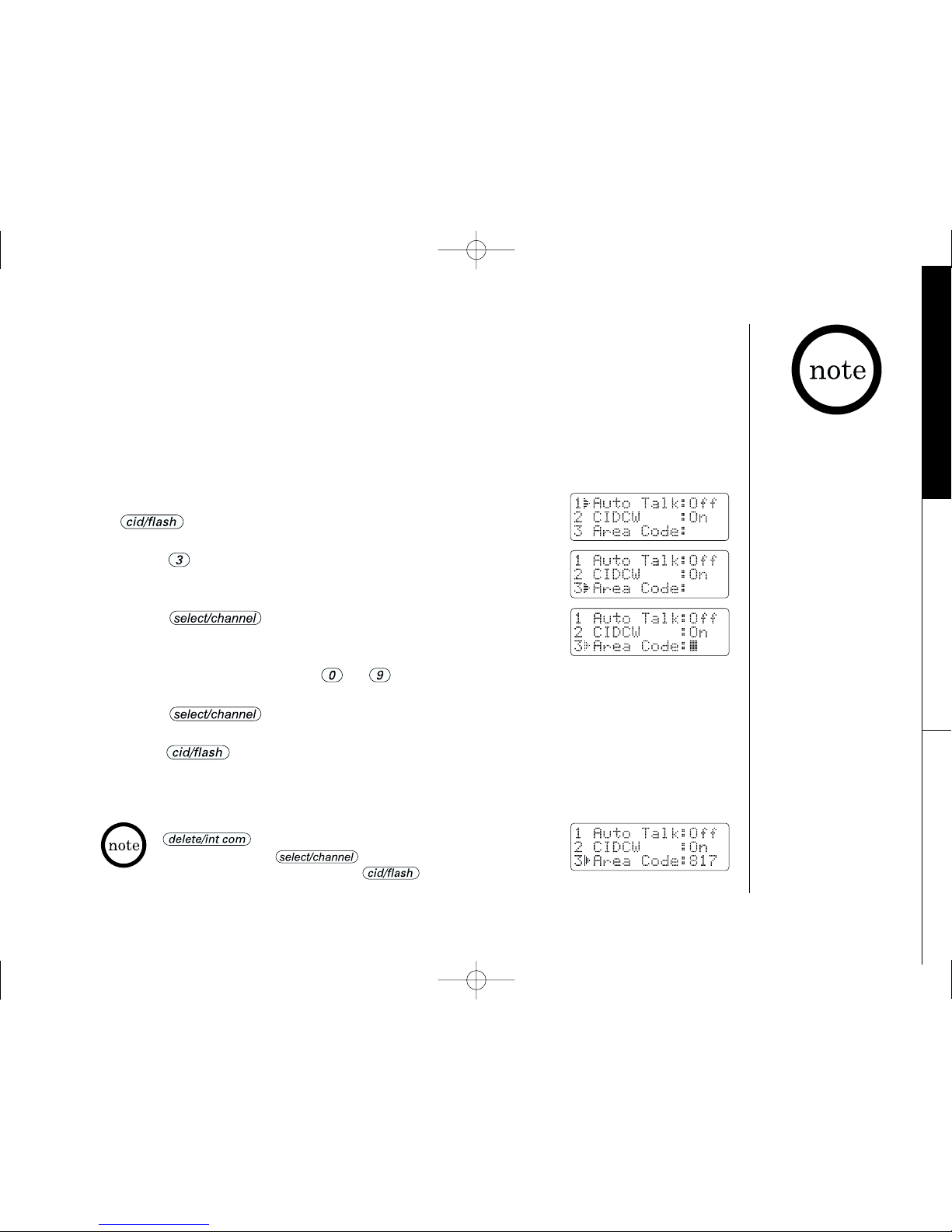

Entering Your Area Code
If you enter a 3-digit area code number in the “Area Code“option, your
local area code does not appear in Caller ID messages. Do not program this
option if your calling area requires 10-digit dialing. When reviewing Caller ID
messages, you will see only the local seven digit number. For calls received
from outside your local area code, you will see a full 10-digit number.
11When the phone is in the standby mode, press and hold
. The Caller ID setting screen appears.
22Press to select “Area Code“.
33Press .
44Use the number keypad ( to ) to enter the 3-digit area code.
55Press . A tone sounds and the displayed area code is entered.
66Press to complete the setting. Or return the handset to the base
unit to complete the setting. The handset returns to the standby mode.
If your calling area requires
10-digit dialing, do not
program this option.
GETTING STARTED
When the area code has already been stored in memory, the
stored area code will be displayed. To change it, use the
and number keypad to enter the new area
code. Then press .
To complete the setting, press or return the
handset to the base unit.
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 13

[ 14 ]
•Refer to terminology
explanation on Page 3,
if necessary.
BASICS
Making a Call

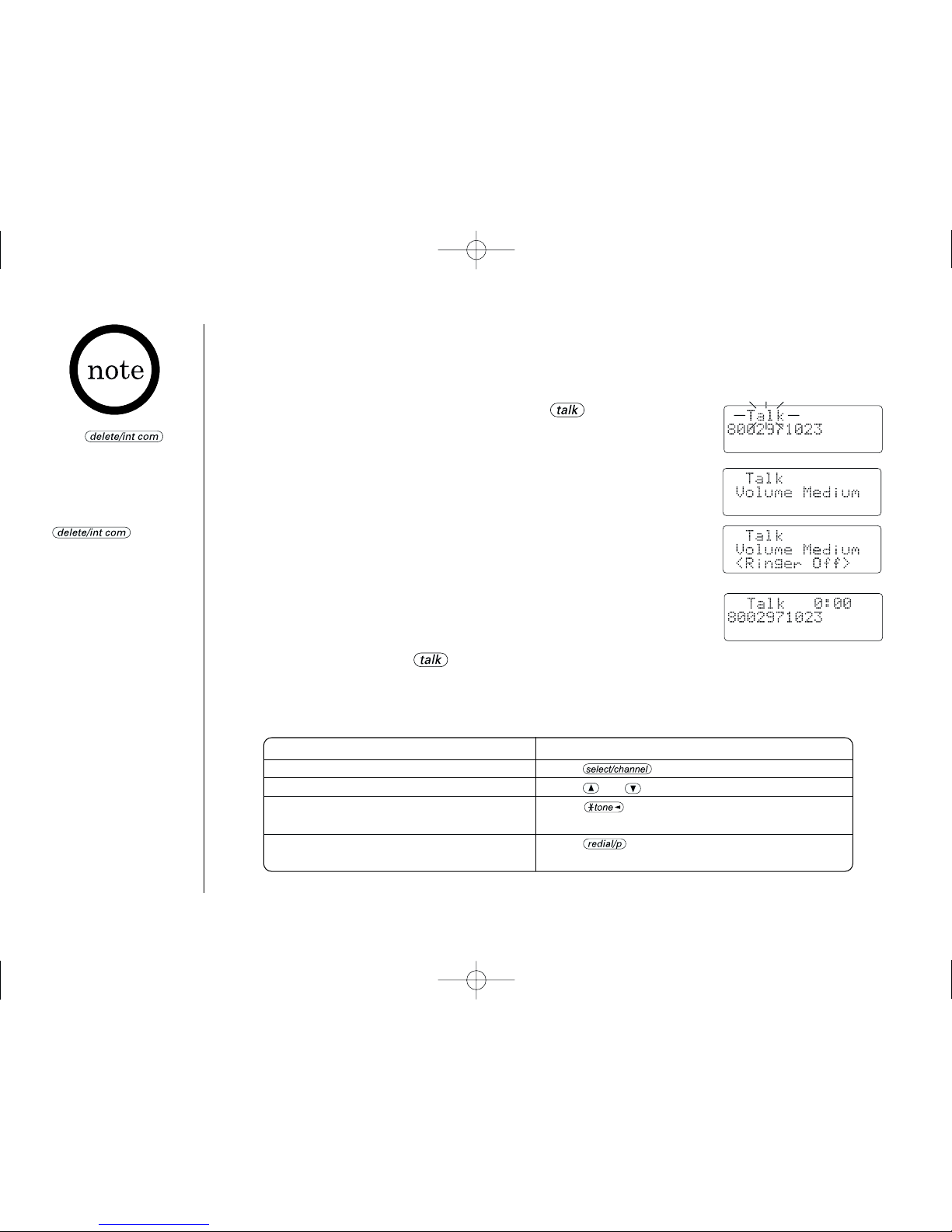

DDiiaalliinnggffrroommSSttaannddbbyyMMooddee
11Enter the phone number and press . “Talk“
flashes on the display.
Then current volume setting is displayed.
EExxaammppllee::•Volume Medium
•Volume Medium and Ringer Off
22The number is dialed. After about 5 seconds, the
call-time display appears.
33To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.
•Press if
you enter a wrong
number at step 1. To
delete all the numbers
that you have entered,
press and hold
until the
display clears.
•You must press a key
within 20 seconds or the
phone will return to
standby.
OOtthheerrOOppeerraattiioonnss
TTooDDootthhiiss
To improve the reception Press during a call.
To adjust the earpiece volume Press or during a call.
To temporarily switch to tone dial Press . The following numbers
(when the base is set to pulse mode) will be sent as tone dialing.
To enter a pause within the Press . “P“appears on the display
dialing sequence which represents a pause.
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 14

DDiiaalliinnggffrroommTTaallkkMMooddee
11Press . “Talk“flashes on the display.
Then current volume setting is displayed.
22Dial the phone number.
EExxaammppllee: Enter 8002971023
33To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.

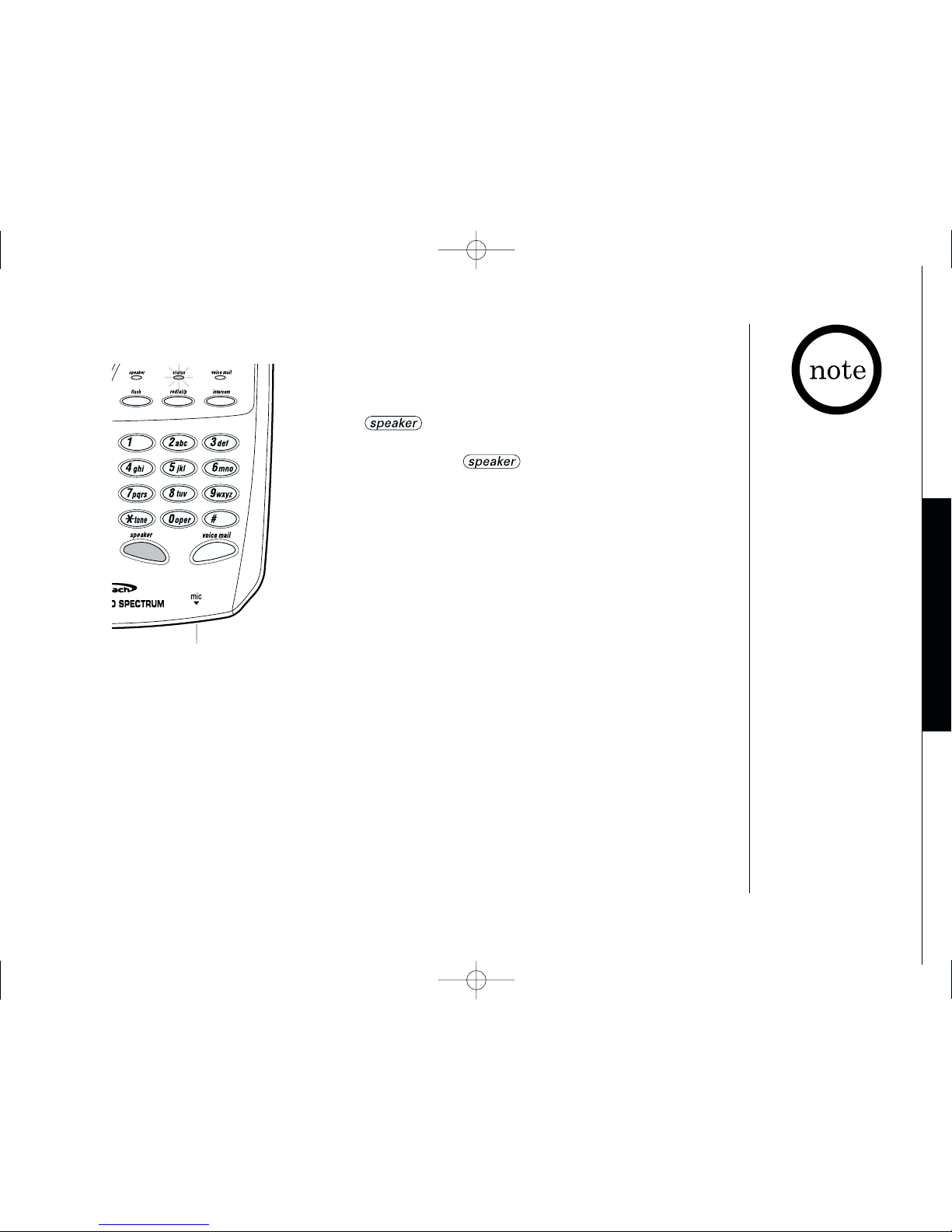

FFrroommtthheebbaassee
11Press .
22Dial the number on the keypad.
33When you finish the call, press to hang up.
[ 15 ]
BASICS
BASICS
The base microphone is
located under the phone.
Position yourself as near to
the base as possible and
speak clearly.
If you set the ringer to off, “Ringer Off“
appears on the display.
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 15

[ 16 ] BASICS
Receiving a Call
FFrroommtthheehhaannddsseett
11The phone rings.
22Press . “Talk“and the volume setting appears
on the display.
33Talk with the caller.
44To hang up, press or place the handset on
the base. The call-time will be displayed for about
5 seconds.
AAuuttooTTaallkkwwhheennrriinnggiinngg
When the AutoTalk setting is on and there is an incoming call, simply lift the
handset from the base unit to answer the phone. See “Setting Caller ID options“
on page 12 for more details.
AAnnyykkeeyyaannsswweerrwwhheennrriinnggiinngg
When the AutoTalk setting is on and the handset is off the base, press any
handset key to answer the incoming call.
CCaallllWWaaiittiinngg
NNoottee::YYoouummuussttssuubbssccrriibbeettooCCaallllWWaaiittiinnggsseerrvviicceettoouusseetthhiissffeeaattuurree..
When a call is received during a telephone call already in progress, press
to switch to the new call. If you also subscribe to Call Waiting on Caller ID, you
will see the name and number of the caller in call waiting. (See page 42.)
If you set the ringer to off, “Ringer Off“
appears on the display.
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 16

[ 17 ]
BASICS
BASICS
FFrroommtthheebbaassee
11The phone rings. The ssttaattuuss
LED on the
base flashes.
22Press and begin speaking.
33To hang up, press .
The base microphone is
located under the phone.
Position yourself as near to
the base as possible and
speak clearly.
Microphone
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 17

[ 18 ] BASICS

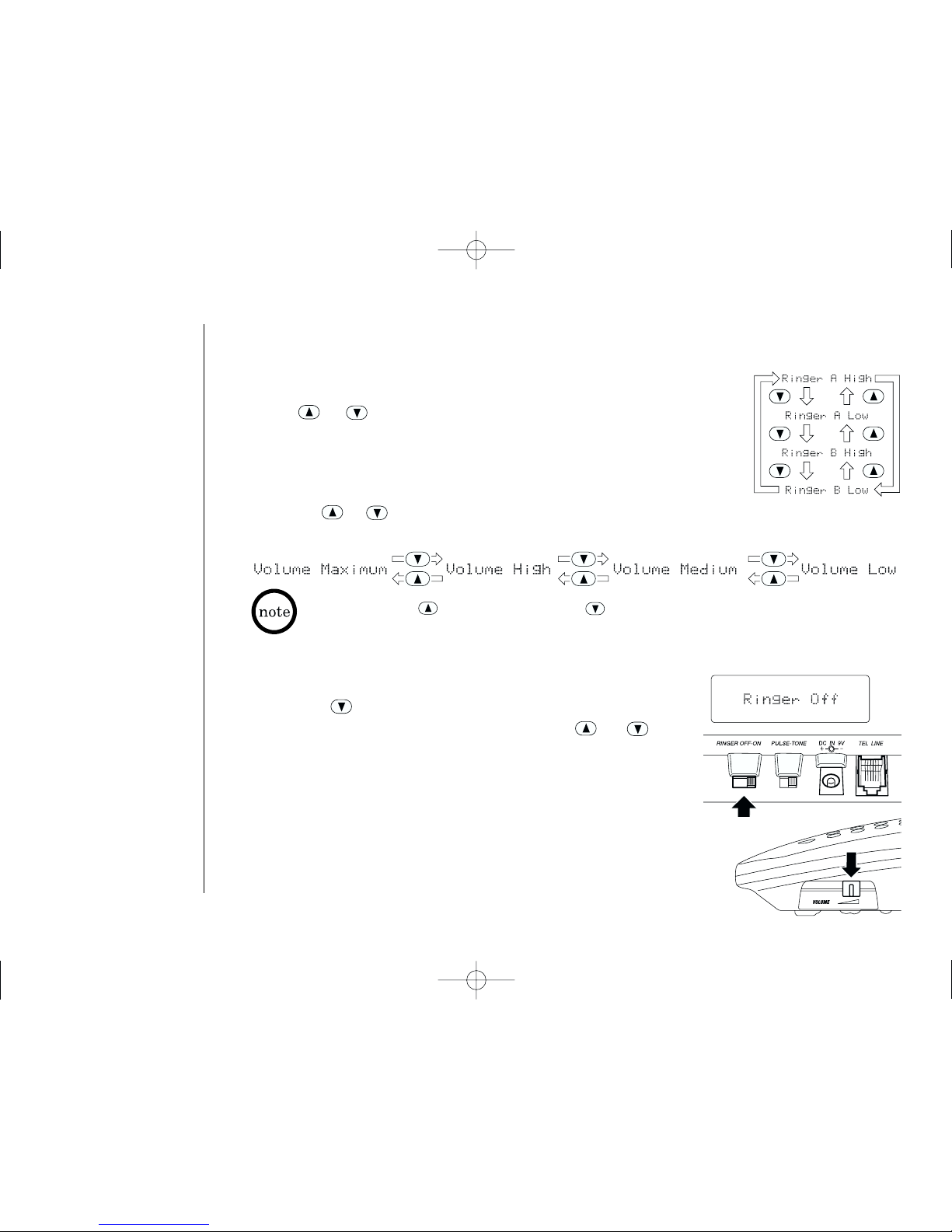

Adjusting the Volume
HHaannddsseettrriinnggeerrttoonneeaannddvvoolluummee
Press or in standby mode to select one of four ringer
tones and volume combinations. (Refer to terminology
explanation on page 3 if necessary.)
EEaarrppiieecceevvoolluummee
Pressing or during a call will change the earpiece volume of the handset.
This setting will remain in effect after the telephone call has ended.
HHaannddsseettrriinnggeerrooffff
During the standby mode or tone/volume setting, press
and hold until “Ringer Off“appears.
To turn the ringer back on, simply press or .
“Ringer A igh“appears.
BBaasseerriinnggeerrsswwiittcchh
This switch turns the base ringer on or off.
BBaasseessppeeaakkeerrvvoolluummee
To control the speaker volume of the base, adjust the
volume slide control as desired.
When you press in Maximum mode or in Low mode, an error tone sounds.
EXT1365 (ENG)-8/9 Final 8/13/01 10:56 Page 18
