Uniden LRD 766 User manual

laser / radar detectors
with a digital compass
The industry’s most
advanced fully integrated

1
CONTENTS
I
ntroduction.......................................2
Feature Highlights ...............................2
Included with Your Radar Detector....................3
Speed Detection....................................4
Speed Detection Systems............................4
Radar.........................................4
Laser .........................................5
Controls...........................................6
Controls and Functions............................6
Display Panel....................................7
Installation........................................8
Helpful Tips ....................................9
Adjusting the Windshield Mounting Clip...............10
Connecting the Power............................11
Replacing the Fuse...............................12
Operation........................................13
Power On.....................................13
Demonstration..................................13
Volume Control ................................13
Memory Retention Feature.........................14
Full Warning...................................14
Audio Alert Only Operation.........................14
Visual Alert Operation.............................15
Auto Mute Operation..............................15
City Operation..................................16
Signal Strength Meter.............................17
Safety Warming System Operation....................17
Voice Alert(LRD777 Only)..........................18
SWS Warring Messages............................19
Care and Maintenance............................18
Troubleshooting...................................22
Compass Calibration...............................21
Specifications
Warranty
.....................................23
.........................................24
CONTENTS
OF YOUR REFERENCE GUIDE
NOTE: Foldout the
back cover of this
reference guide to
refer to the “Controls
& Functions” page.
Reference
Guide
Back
Cover

INTRODUCTION
Welcome to the world of sophisticated, early warning laser/radar
detection. You have purchased one of the most advanced laser/radar
detectors available. The LRD 767 / LRD 777 is a completely integrated
laser/radar detector. It responds to the X, K, and Ka-SuperWideband
radar guns in use today and also provides 360 detection of the latest
speed monitoring system — the laser gun. The built-in Safety
Warning System (SWS™) is capable of detecting a hazardous
warning signal transmitted on the K-band.
The LRD 767 / LRD 777 provides distinct visual and audio alerts to
warn you of the presence of X, K, and Ka-SuperWideband radar
signals as well as IR laser signals and Safety Warning System. You can
drive with confidence when you bring along the LRD 767 / LRD 777.
The LRD 767 / LRD 777 employs Super Stalker Technology (SST), a
state-of-the-art electronic system designed to make this radar
detector invisible to all current VG-2 radar detector detectors.
The LRD 767/LRD 777 will also warn you of VG-2 use.
The LRD 767 / LRD 777 includes electromagnetic compass
sensors to its circuitry and enables you to stay on course with this
digital navigator.
We are certain that you will enjoy the LRD 767 / LRD 777, and to
ensure that you get the most from its features, please read this
Reference Guide carefully before installing and operating the unit.
FEATURE HIGHLIGHTS
•
360 Laser Detection
•
Signal Strength Meter
•
Safety Warning System™
•
Warning Lights
•
All Band Coverage
•
Visual Only Mode
•
7 Alarm Tones
•
Auto Mute Mode
•
Super Wideband
•
Audio Only Mode
•
VG-2 Undetectable
•
Self Test
•
K/Ka Priority
•
Memory Retention Feature
•
Pulse Detection
•
City and Highway Modes
•
VG-2 Alert
•
External Speaker Jack
•
Electronic Compass (LRD777 Only)
•
Text Readout
•
Voice Announce Alert
(LRD777 Only)
2
INTRODUCTION
TO YOUR NEW LASER/RADAR DETECTOR

INCLUDED WITH YOUR RADAR DETECTOR
3
INTRODUCTION
Reference Guide Windshield Clip
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
njdfjnjnjfnjfjn
jnkjnjksnkjsnfj
dfksfmkm
kfmkmkmlf
sfkkmmfmsmsm\
kkoioionksnkln
mmkmkkl
skdmkmkm
sdmkmfmmmk
mdmklkkkml
mmkkllmmk
Printed Material Fuse
Coiled Cigarette Adapter
WARNING
If any of these items
are missing or damaged,
contact your dealer
immediately. Be sure
to complete and mail
the product registration
card. Included with
your radar detector.
To get the most from
your laser/radar
detector, please read
this Reference
Guide thoroughly.
laser / radar detectors
with a digital compass
The industry’s most
advanced fully integrated

SPEED DETECTION SYSTEMS
A speed detection device (often called a radar gun) sends out
either a microwave signal or beam of light. When this signal
reaches its target, part of the signal is reflected or bounced back
toward the emitting gun. The time required for the signal to leave
the gun, bounce off an object, and return is used to determine a
vehicle’s distance and speed.
▼
RADAR
Radar (Radio Detection and Ranging) is a microwave system for
detecting the speed of moving objects by reflected pulses of high
frequency radio waves. There are three radar bands
(microwave frequencies): X band (10.49 to 10.56GHz), K band
(24.04 to 24.26GHz), and the “superwide” Ka band (33.4 GHz to
36 GHz).
The X band was the first used for traffic, followed by the K band
which is harder to detect (most instant-on radar is K band). The
Ka band was introduced in 1987, and widened to Ka SuperWideband
in 1990 by the FCC. The LRD 767/LRD 777 monitors all current
radar bands including the entire Ka SuperWideband.
The radar beam is cone shaped — the narrower the beam, the
greater the resolution. A moving vehicle reflects radar signals
back towards the radar gun. The LRD 767/LRD 777can detect the
signals emitted by radar guns, and it will sound an audio alarm
and flash a warning indicator. For continuously transmitting
radar, use the LRD 767/LRD 777 to get accurate detection from a
safe distance. Weak signals cause the audio and visual alarms to
sound intermittently, but as the signal gets stronger (the closer
you get to the radar gun), both alarms increase in intensity.
Instant-on transmitters fire a short radar pulse beam at a vehicle
and instantly read its speed. When detected at a distance, you will
hear a few beeps and see the strength meter begin to light.
Instant-On radar signals are the most difficult to detect at a safe
distance because they are transmitted only when directed at you
or at a vehicle directly ahead of you.
4
SPEED DETECTION
IMPORTANT INFORMATION ABOUT YOUR NEW LASER/RADAR DETECTOR

▼
LASER
The Laser Speed Detection System, also called LIDAR (for Li
ght
Detection and R
anging), uses a laser gun that emits infrared light
pulses just outside the spectrum of visible light. Each reflected
pulse measures the speed of the object coming toward or going
away from the laser gun.

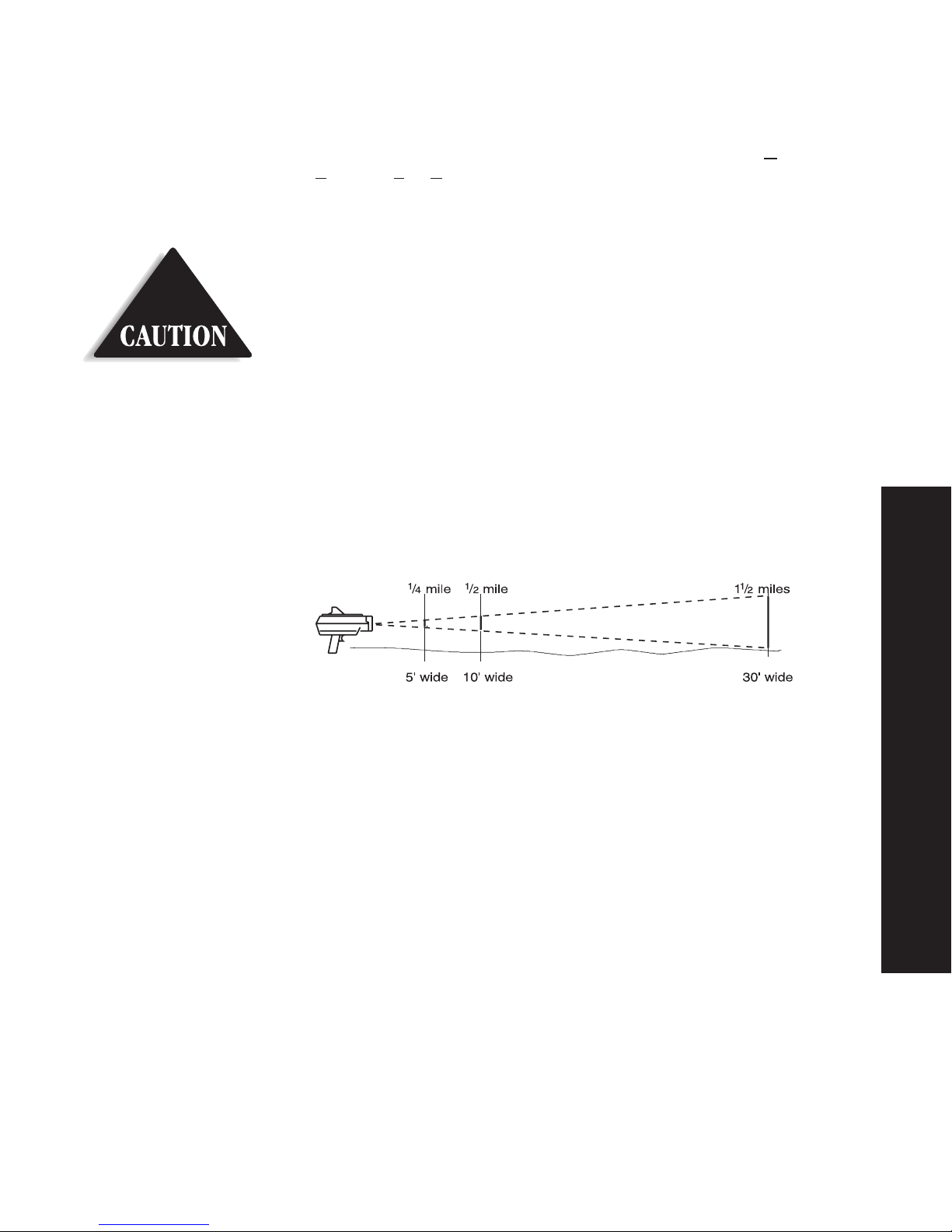

Unlike radar, the laser gun emits a very narrow beam of light, so
it can pinpoint a speeding car within traffic. The infrared beam
spreads out, but slowly and over a longer distance than a
radar signal.
The laser gun can acquire a speed reading as quickly as 0.3
seconds, sometimes less. However, since it isn’t easy to accurately
aim at and hit a moving target, an operator often moves the laser
gun in several directions to get a reading. So laser signals
are emitted continuously for a few seconds for each
speed measurement.
The LRD 767/LRD 777 can detect these light pulses from as far
away as 1.5 miles, which is about four times the effective
range of a laser gun (2,000 feet), and about ten times its
average operating range (500-800 feet).
5
To be safe, do not
ignore any warnings.
Although there are
other types of radar
signals that may
cause interference,
when the
LRD 767/LRD 777
detects a signal, be
on the alert. It is
important to exercise
caution at all times.
SPEED DETECTION

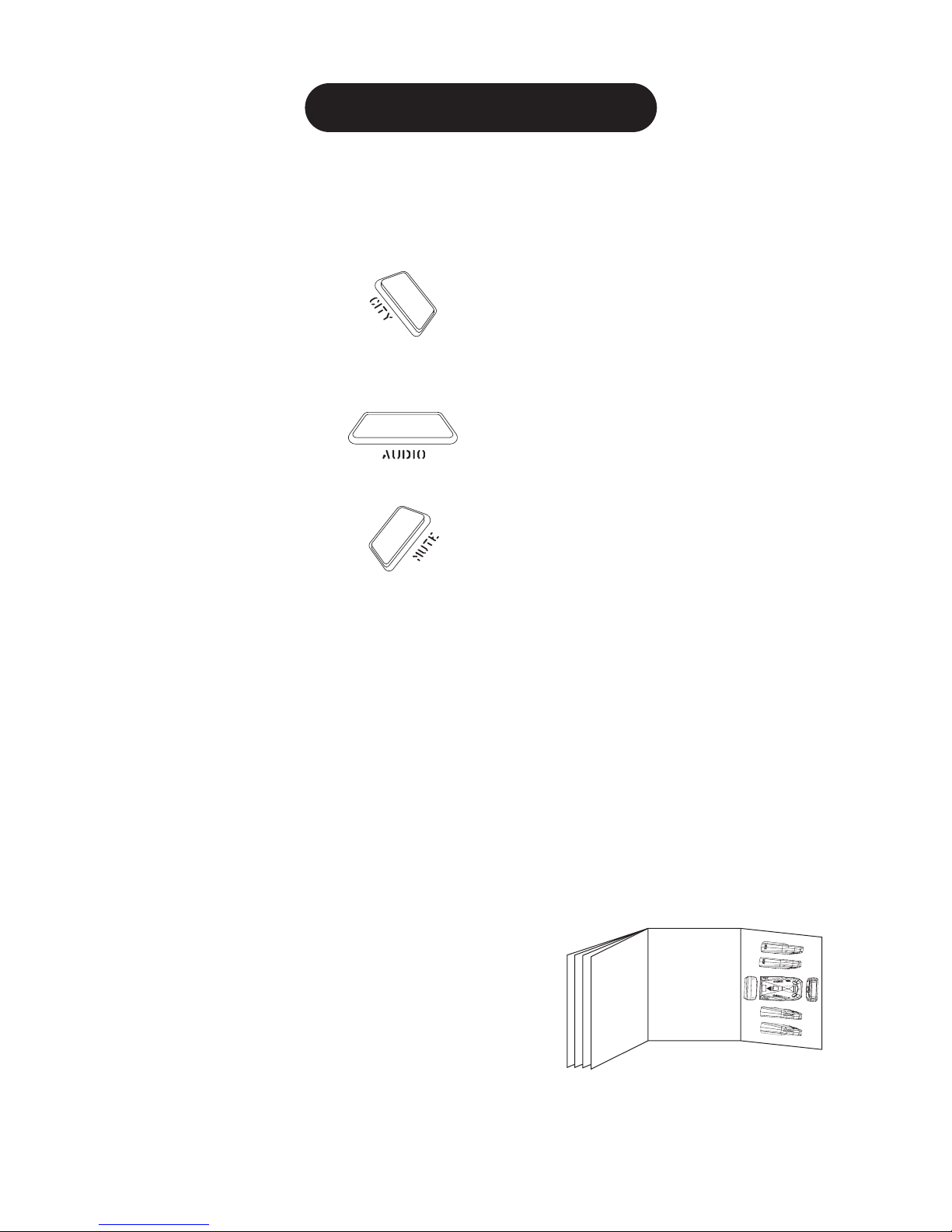

CONTROLS AND FUNCTIONS
1. Clip Release — Press the clip release button to remove the
LRD 767/LRD 777 from the windshield mounting clip.
2. Rear and Side Laser Detector Lense — For rear and side
detection of laser signals.
3. Press the
city button to help reduce X-band false
alarms while driving in the city. When you turn
on the City Mode, the City indicator turns on.
While driving on highways, turn off the City
Mode for long-range detection.
(LRD 777 will give a voice confirmation.)
4. Press the
audio button to activate the Audio Alert
Only operation. All the LEDs dim, and the signal
strength meter is disabled.
(LRD 777 will give a voice confirmation.)
5. Press the
mute button to activate the Auto Mute
feature, which produces a full alert level when a
signal is first received, then automatically
reduces to chirps for the rest of the warning.
(LRD 777 will give a voice confirmation.)
6. Speaker — Sounds audio alert. There are seven different audio
alert tones to distinguish each type of signal received. When
you become familiar with all the distinct alert tones, you can
operate the LRD 767/LRD 777 just by listening, devoting
your full attention to the traffic in front of you.
7. DC 12V Power Input — Connect the DC power cord here.
8. On-Off/Volume Control — Turns the power on and adjusts
the Audio Alert volume.
9. Display Panel —LEDs display laser/radar alerts, signal strength,
operation mode, Safety Warning System (SWS) messages,
and eight (8) cardinal directions.
6
CONTROLS
AND FUNCTIONS OF YOUR LASER/RADAR DETECTOR
NOTE: Foldout the
back cover of this
reference guide to
refer to the “Controls
& Functions” page.
Reference
Guide
Back
Cover

DISPLAY PANEL
The display panel indicates the driving direction and each mode
of the operational conditions when no signal is engaged.
At city mode :
At highway mode :
At audio-only mode :
(dim & dimmer)
or
At audio-only mode :
(dark)
or
At display-on mode : or
At mute-on mode : or
At mute-off mode : or
7
Every time you turn
on the LRD 767/LRD
777, a self test is
performed for all visual
and audio alerts. You
will hear, in-order,
four distinct tones for
the X, K, and
Ka-SuperWideband
radar bands, as well
as for laser, laser L2,
VG-2 and SWS.
CONTROLS AND FUNCTIONS
NOTE: Foldout the
back cover of this
reference guide to
refer to the “Controls
& Functions” page.
Reference
Guide
Back
Cover
CTY NE
HWY NE
CTY d NE
HWY d NE
CTY a NE
HWY a NE
CTY NE
HWY NE
CTYm NE
HWYm NE
CTY NE
HWY NE

INSTALLATION
The LRD 767/LRD777 uses a highly sensitive horn-type antenna
and IR laser sensor to receive laser/radar signals. Its sensitivity
and range depend on the method of installation and the direction
of the antenna/sensor in relation to the signal source. The
inherent nature of radar waves makes them reflect off metallic
surfaces. This is why these waves are so useful for measuring the
speed of a vehicle. The IR laser light may reflect only from shiny
surfaces. Both radar waves and IR laser light will, however, pass
through plastic or glass.
Before you decide where to put your radar detector, please keep in
mind these two important factors:
•
For safety, do not mount the LRD 767/LRD 777 in a location
where it will obstruct your driving vision.
•
Most vehicles have the top part of the windshield tinted.
Mounting the LRD 767/LRD 777 behind tinted or mirrored
glass may reduce the effectiveness of laser detection by
reducing the amount of laser light received by the dectector.
8
INSTALLATION
OF YOUR NEW LASER/RADAR DETECTOR

HELPFUL TIPS
The antenna and the forward looking sensor are located
behind the rear panel of the unit, (and the rear- and
side-looking sensors are located on top of the unit), directly
behind the mode selection keys. The antenna and sensors
should not be obstructed by metal or metallic surfaces
and should be pointed at the horizon for accurate
long-range detection.
•
Do not mount the unit behind the windshield wiper blades,
radio antenna, tinted glass area, or mirrored glass. Be sure
the unit is free from obstruction by seat backs, rear view
mirror, sun visors, or the ceiling of the automobile.
•
Do not mount the unit in front of the heater or
defroster vents.
•
Do not leave the unit in direct sunlight or in the glove
compartment of a closed car for long periods of time, as
extreme changes in temperature may cause internal damage.
Also, removing the unit from the windshield makes you less
susceptible to break-in and theft.
9
INSTALLATION

ADJUSTING THE WINDSHIELD MOUNTING CLIP
1) The metal portion of the bracket locks into the plastic
portion at two different positions. These positions can be used
for vehicles with two different vertical angles of their
windshields. The back position can be used for vehicles with
windshields that are slanted back.
2) For optimum laser detection, gently bend the angled portion
of the windshield mounting bracket so that the LRD 767/
LRD 777 is parallel to the road surface. Be sure the
LRD 767/LRD 777 is mounted so it is free of obstructions
from seat backs, rear view mirror, sun visors, or the ceiling
of the automobile. There must be a clear 360 line of sight
to the outside of the vehicle.
To mount the LRD 767/LRD 777:
1) Press the button on top of the radar and insert the
windshield clip into the LRD 767/LRD 777. The metal
portion of the bracket locks in to the plastic portion.
2) Place the bracket and the LRD 767/LRD 777 in the proper
location on the windshield of your vehicle, and press the
suction cups firmly against the windshield.
10

CONNECTING THE POWER
The LRD 767/LRD 777 is designed to operate on most 12 VDC
negative ground vehicle electrical systems. The power cord
provided with the unit has a cigarette lighter socket plug at
one end and a small connector at the other.
1) Insert the small connector into the jack on the side of
the unit.
2) Insert the other end into the cigarette lighter socket of
your vehicle.
When installing the power cord, make sure that:
•
The socket is clean to allow proper contact.
•
The power cord does not block the antenna area on the back
of the unit
.
11
INSTALLATION
Use only a Uniden
supplied power cord
or its replacement.

REPLACING THE FUSE
The cigarette lighter plug contains a 1-ampere fuse to protect it
from power surges.
1. To replace the fuse, unscrew the top of the plug.
2 Remove the fuse and replace it with the same type.
3. To replace the top, push in the two metal contacts and twist
into place.
12
Press In

OPERATION
You are now ready to enjoy the convenience and security of your
LRD 767/LRD 777. Please read this section of the Reference Guide
carefully to familiarize yourself with the basic operation of this
unit.
POWER ON
DEMONSTRATION
VOLUME CONTROL
Adjust the volume control to a comfortable alarm tone level for
your vehicle. The volume level does not have any effect on the
unit’s sensitivity. It is best to adjust the audible alarm during the
self-test.
13
OPERATION
OPERATION
OF YOUR NEW LASER/RADAR DETECTOR

MEMORY RETENTION FEATURE
The Memory Retention Feature retains the LRD 767/LRD 777’s
operational settings in memory for at least 2 days without power.
When you turn on the LRD 767/LRD 777, it will be in the same
mode as when you turned it off.
FULL WARNING
When the LRD 767/LRD 777 detects a radar, laser, VG-2 or safety
warning signal, it emits a distinct warning tone and the
corresponding visual messages will light. The blink rate of the LEDs
increases and the signal strength meter LEDs light successively as
the signal source comes closer.

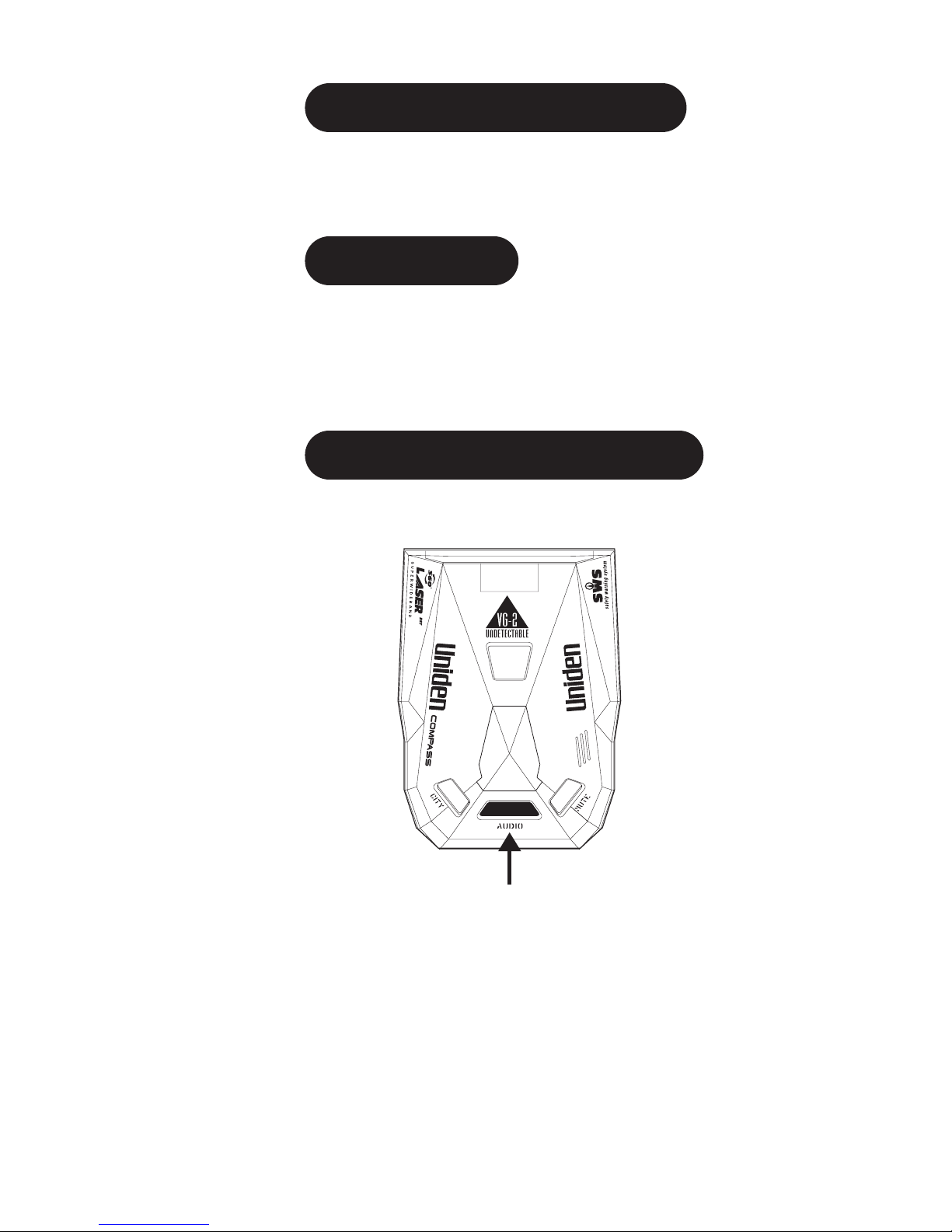

AUDIO ALERT ONLY OPERATION
Press the audio button for Audio Alert Only operation.
When Audio Alert Only is selected, the visual alert and signal
strength meter are disabled. In this mode, the display panel will
dim. There are four levels for the display panel brightness control.
You can control the brightness by pressing the
audio button repeatedly.
Press the
audio button again for the Full Alert (audio and
visual) Mode. Do not set the Volume control at minimum when in
Audio Alert Only because there will be no alert.
14

VISUAL ALERT ONLY OPERATION
You can operate the LRD767/LRD777in Visual Alert Only by
setting the
volume control at the minimum position in Full
Alert Mode. At this setting you can barely hear the audio alert
in a quiet environment.

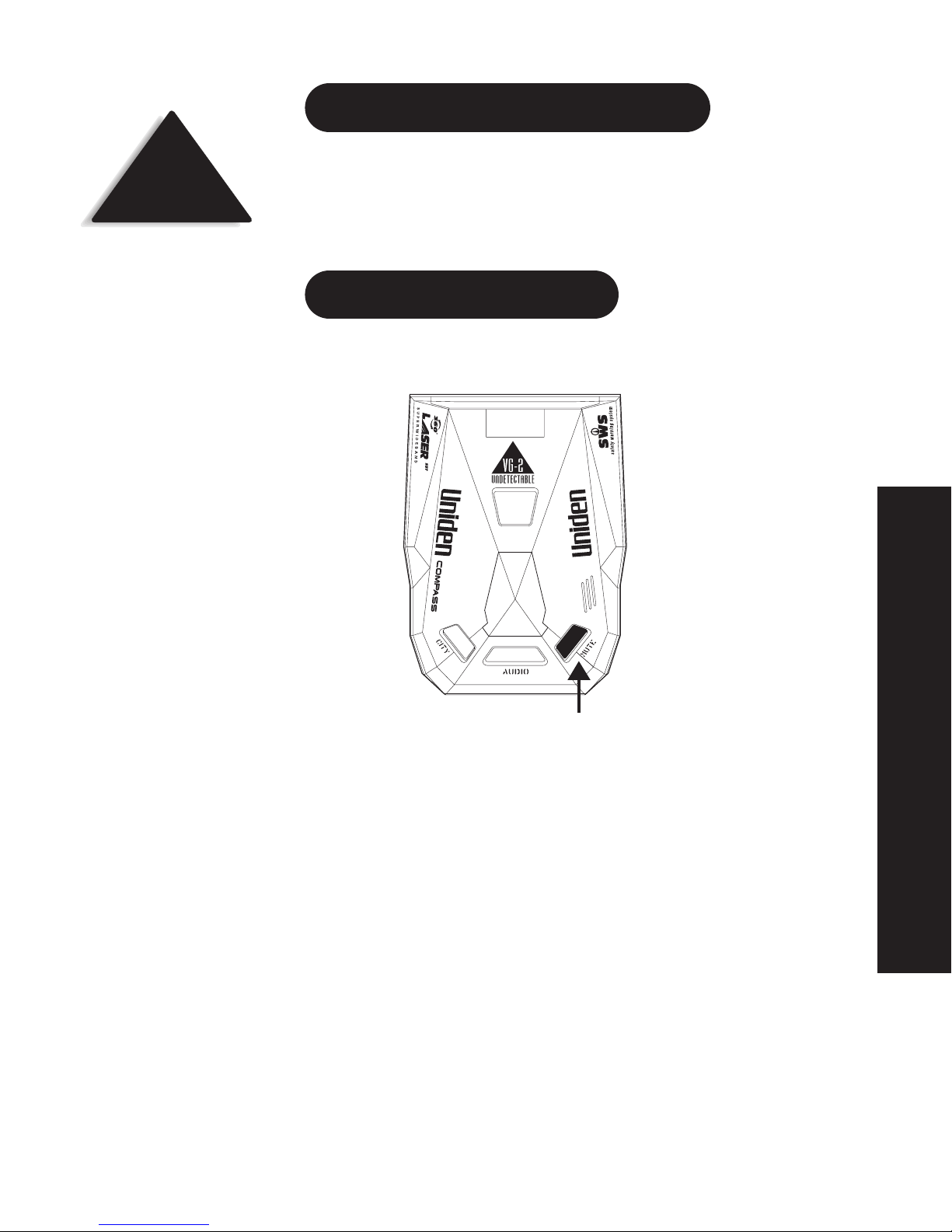

AUTO MUTE OPERATION
Press the mute button to activate the Auto Mute feature.
When the Mute is selected, the unit is in Auto Mute Mode.
In this mode you hear the full audio alert when a signal is
first received. The audio alert automatically reduces to a
chirp for the duration of the warning.
15
WARNING
To operate with
visual alert only, set
the volume control to
the minimum.
Remember though,
if the volume control
is turned down and
Audio Only operation
is selected, the alarm
features are
completely disabled.
OPERATION

CITY OPERATION
In highly populated areas, you may encounter many devices that
use the same frequencies as radar signals, such as motion
detectors, automatic doors, and intrusion alarms. These devices
may trigger an alert called “falsing.”
To filter most of the weaker signals and get the most accurate
radar signal recognition, press
city to turn on the City Mode.
In City Mode, the combination of visual and audio alert tones
varies based on the strength of the received signal.
16
If you use both the
Audio Only Alert and
City modes, you won’t
receive an audio alert
until you are very
close to the radar
source.

SIGNAL STRENGTH METER
The signal strength meter shown in the display panel gives you
instant information about the strength of the signal being detected.
A weak signal causes the first bar to light, but as signal strength
increases, more bars light. All six bars for radar and three bars for
laser light when full signal strength is received. Use this meter to
judge the distance from the signal source.
*NOTE : In Audio only mode the signal strength meter
will not be displayed.
<Examples>
SAFETY WARNING SYSTEM OPERATION
The Safety Warning System (SWS™) is a new communication
system that will provide an early warning when a road hazard
exists. The LRD 767/LRD 777 is capable of detecting the SWS
signal broadcast on the K-band by either law enforcement or
local departments of transportation.The corresponding message
from 64 SWS warning messages is scrolled from the right to the
left of the display panel. while an audible alert sounds.
When this alert sounds, you should tune to local radio traffic
reports or prepare to slow down or stop your vehicle because
you could be approaching an accident, bad road conditions
caused by weather, or road crews or construction.
17
OPERATION
X
K
KA
LASER

CARE AND MAINTENANCE
The LRD 767/LRD 777 is designed to give you years of trouble-free
service. There are no user-serviceable parts inside, and, except for
the fuse, no maintenance is required. To keep your detector in
new condition, follow these important suggestions:
VOICE ALERT (LRD 777 ONLY)
When each function is activated by pressing a control button, the
LRD 777 gives the following voice messages:
– By the
city button : City Mode, Highway Mode
– By the
audio button : Display Dim, Display Dimmer, Audio Only,
Display On
– By the
mute button : Mute On, Mute On, Mute Off.
When a signal comes in, the LRD 777 gives the corresponding alert
voices : X Band, K Band, Ka Band, Laser Band, UltraLyte Band,
VG2 Band. When a SWS signal comes in, the LRD 777 gives the
corresponding voice message of the 64 warning messages listed in the
following page.
•
Never leave the LRD 767/LRD 777 on the windshield when
you park your vehicle. The temperature in the vehicle in
summer can reach levels above what is considered to be safe
for this unit
.
•
To make you less susceptible to break-in and theft, remove
the unit from your windshield when you leave your vehicle.
• Do not expose the unit to moisture. Rain, dew, road splash,
or other liquids can damage the internal components and
reduce sensitivity of the LRD 767/LRD 777.
18
CARE & MAINTENANCE
OF YOUR NEW LASER/RADAR DETECTOR
*NOTE : The second “Mute On” confirms that the voice muting
is activated.

SWS WARNING MESSAGES
Highway Construction
– Work zone ahead
– Road closed ahead / Follow detour
– Bridge closed ahead / Follow detour
– Highway work crews ahead
– Utility work crews ahead
– All traffic follow detour ahead
– All trucks follow detour ahead
– All traff ic exit ahead
– Righ lane closed ahead
– Center lane closed ahead
– Left lane closed ahead
Highway Hazard Zone Advisory
Stationary police vehicle ahead
–Train approaching / at crossing
– Low overpass ahead
– Drawbridge up
– Observe bridge weight limit
– Rock slide area ahead
– School zone ahead
– Road narrows ahead
– Sharp curve ahead
– Pedestrian crossing ahead
– Deer / Moose crossing
– Blind / Deaf child area
– Steep grade ahead / truck use low gear
– Accident ahead
– Poor road surface ahead
– School bus loading / unloading
– No passing zone
– Dangerous intersection ahead
– Stationary emergency vehicle ahead
19
CARE & MAINTENANCE
OF YOUR NEW LASER/RADAR DETECTOR
