UniKeyboard DIVERGE 3 R0 ALEXANDRI User manual

DIVERGE 3 R0 “ALEXANDRI”
SPLIT ERGONOMIC MECHANICAL BACKLID KEYBOARD
Model: Diverge typeZERO R0 “Alexandri Magni”
Dimensions: 180mm x 170mm x 20mm per side
Number of Keys: 72
Max Number of Layers: 8
Keycaps: 1u x 72
Interface: HID via USB
Rollover: NKRO/6KRO Togglable
Assembly Instruction: http://unikeyboard.io/instruct/diverge-3

01
- Choking Hazard:
This product contains small parts, use with adult supervision.
- Lead Hazard:
The solder used on the PCB contains lead which may lead to lead
poisoning, the solder that you are using also very likely contains lead
if it is not explicitly labelled as “Lead Free,” do not eat or drink whilst
soldering and do not bite your fingers, solder wire, or soldering iron.
- Temperature Hazard:
Assembly of this kit requires the use of a soldering iron, a soldering iron
is extremely hot when turned on, do not touch, or lick any parts of a
soldering iron which is hot with any of your body parts other than the
handle with your hand.
WARNING

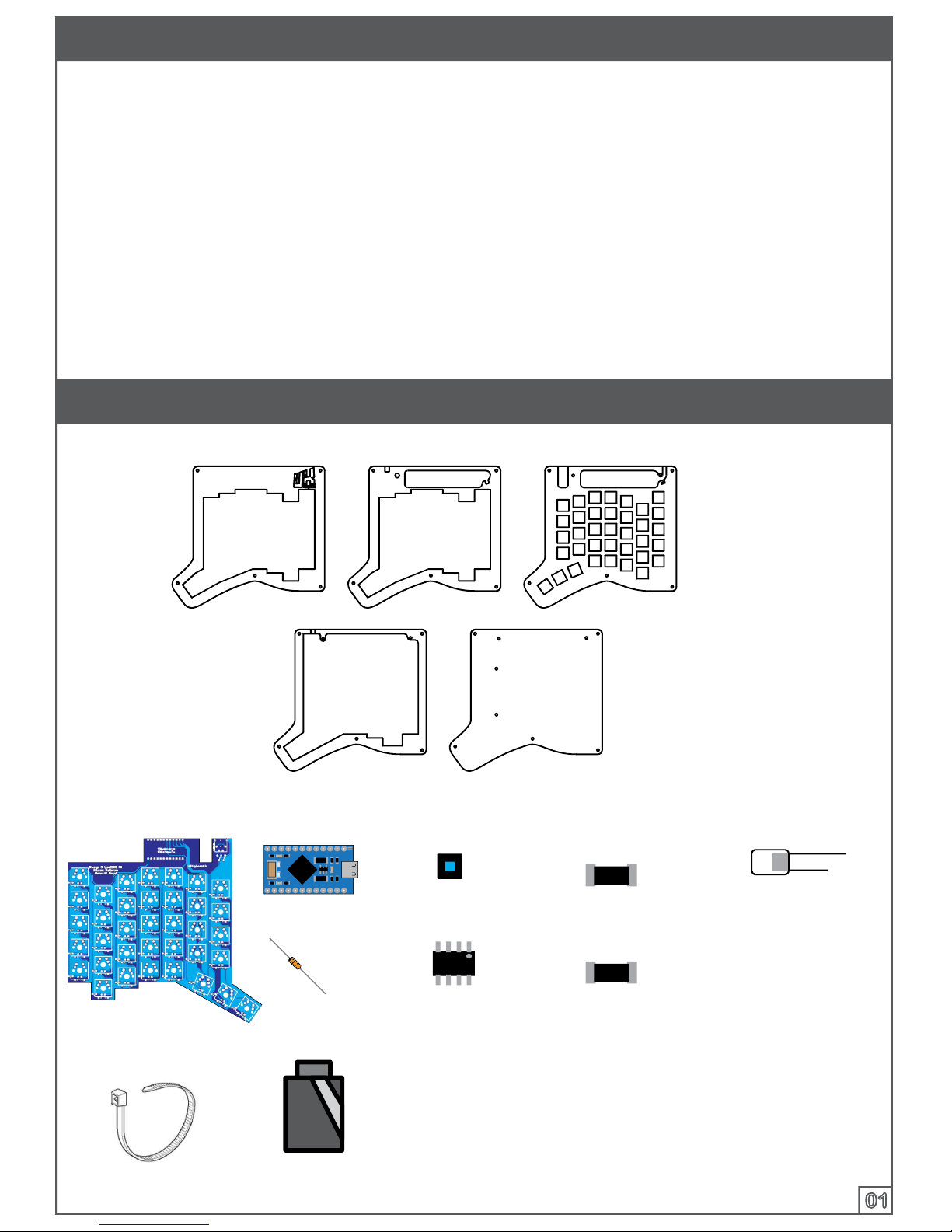

PARTS
Acrylic Frames (Two of each)
PCB x 2 Pro Micro x 2
Diodes x 72
Switches x 72
MOSFET x 2
Resistor x 2
(100Kohm)
Resistors x 73
(100ohm)
LEDs x 72
USB Cable x 1
Ziptie x 1
TRRS Cable x 1
TRRS Socket x 2

02

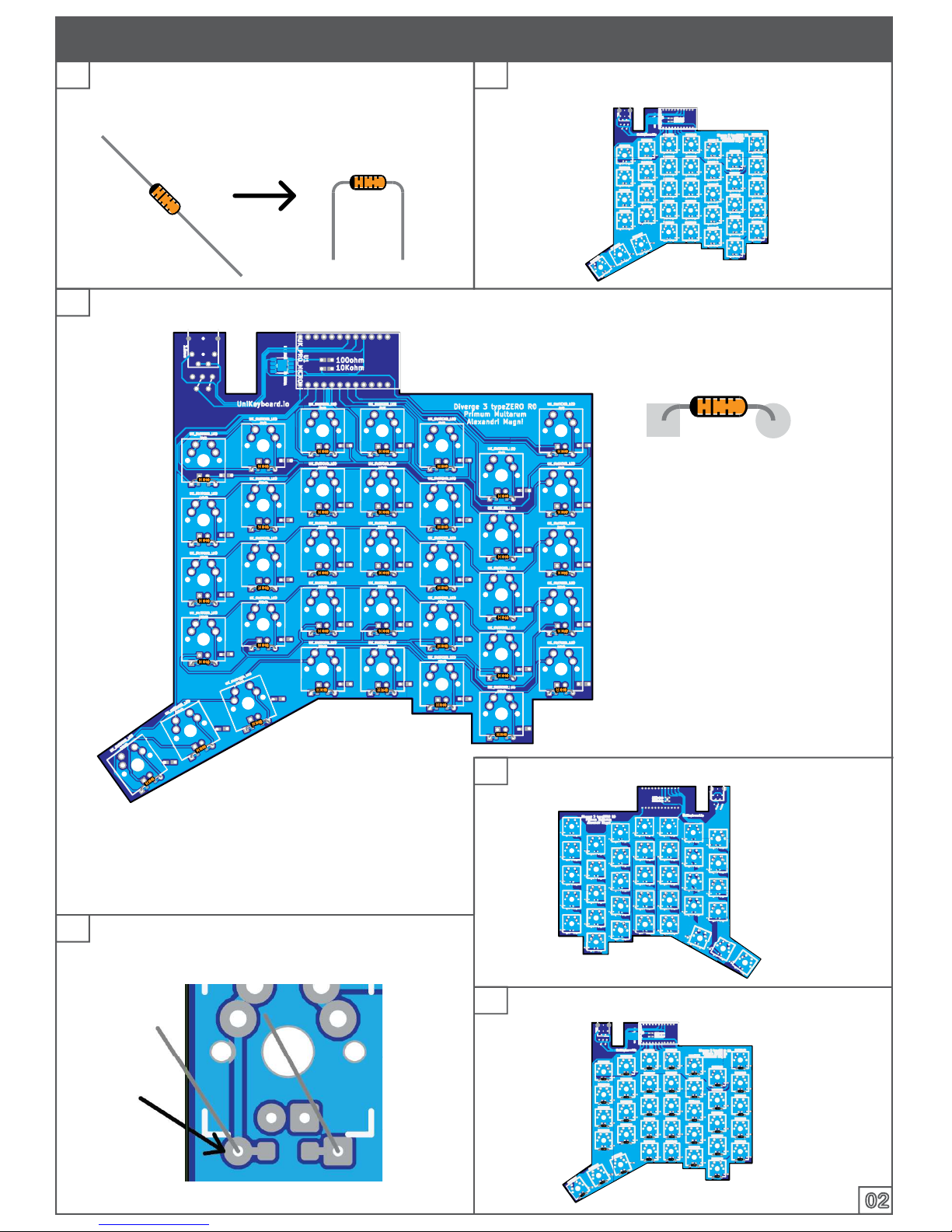

ASSEMBLY INSTRUCTIONS
01 Bend all diodes as shown below 02 Orient the PCB as follows
Make sure to orient all
the diodes like this
03 We are now assembling the LEFT side, insert all the diodes as shown below
Now solder on all the diodes
04 Reorient your PCB as follows
05 Cut off the leads with a nail clipper
or snipper
06 Reorient your PCB as follows

03

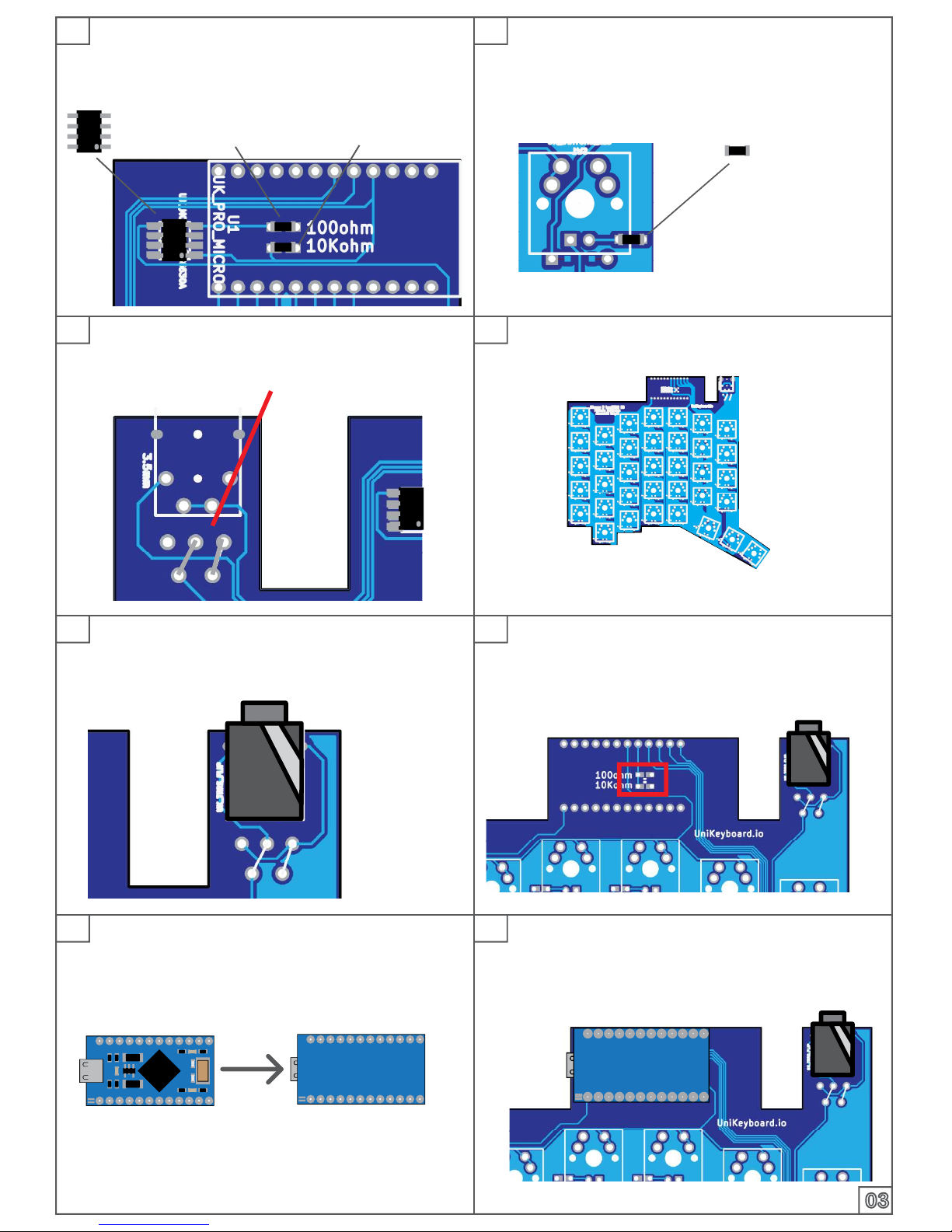

07 Solder on the MOSFET, notice the
orientation of the MOSFET marked by
a dot in the corner, solder the marked
resistors if you wish to install LEDs
100ohm 100kohm
08 Solder on the resistors on all the
switches (skip this step if you do not
need LEDs)
10 Reorient your PCB as follows
12 (Optional) Place sellotape onto the
location marked with a red rectangle
13 Orient the LEFT controller as follows
(Controller package should be marked
LEFT or RIGHT)
14 Place and solder the controller
as follows
09 Insert 2 leads cut from the diodes and
solder them by following the white
lines on the PCB
11 Solder on the TRRS jack, make sure
the TRRS jack is facing up and the
diodes are facing down

03

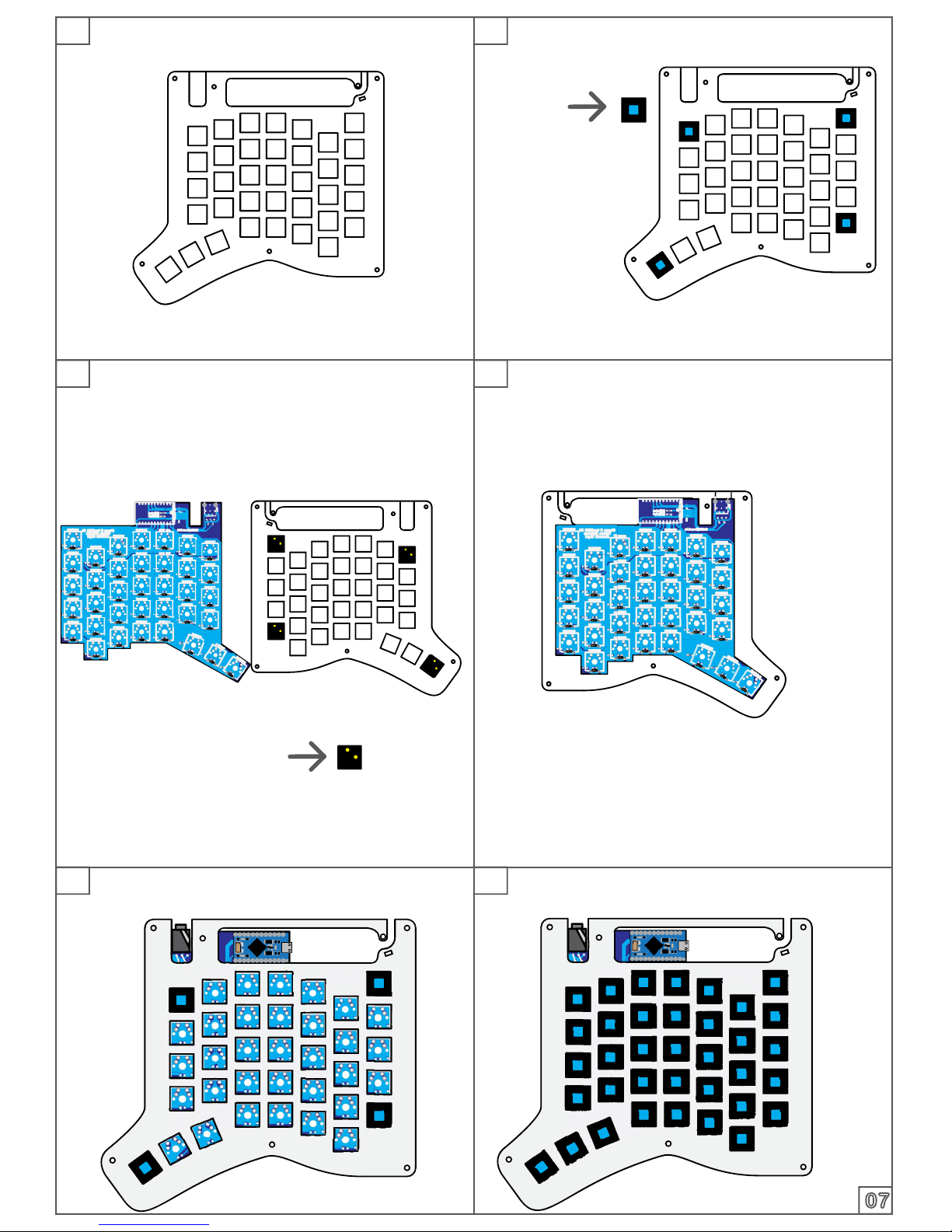

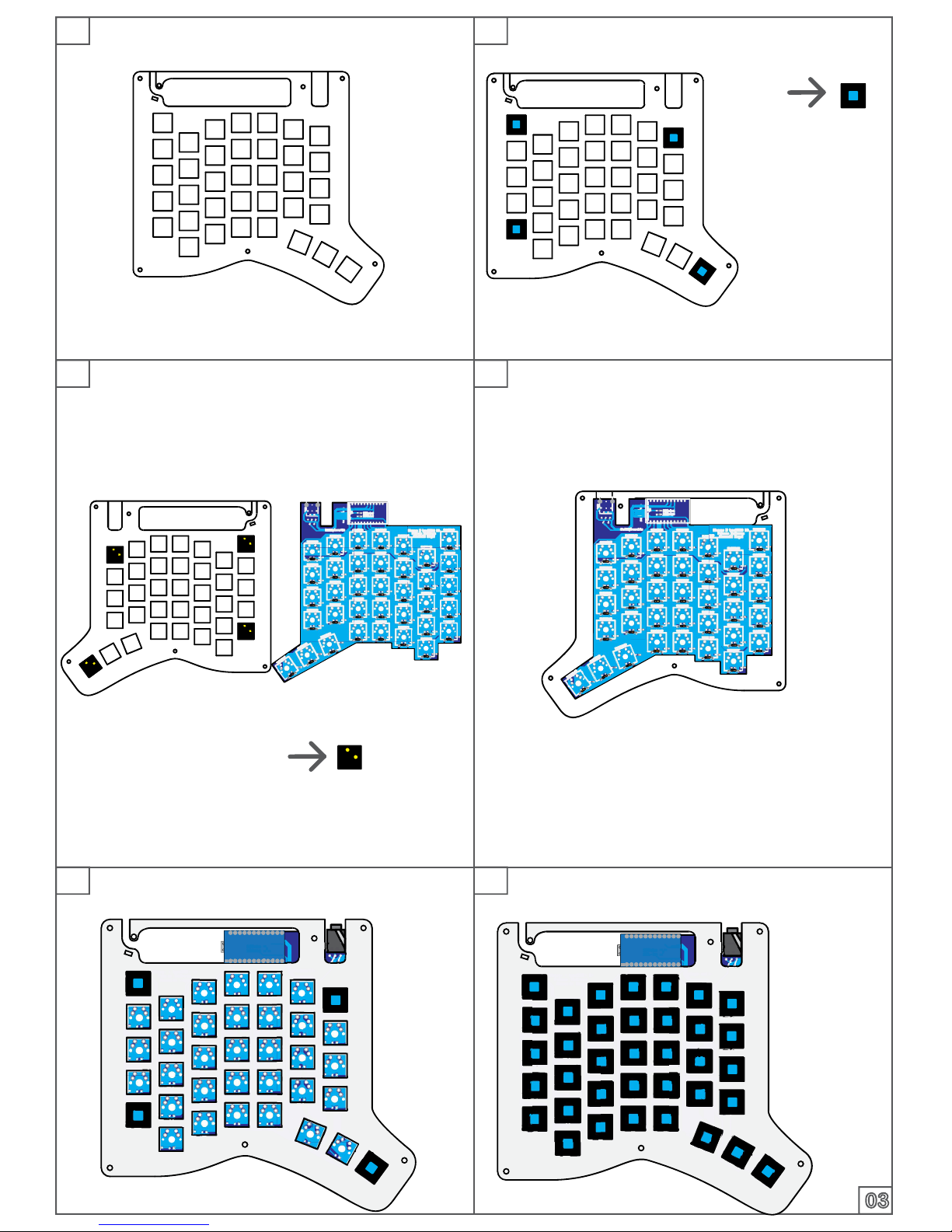

15 Orient the acrylic mount plate as
follows
16 Press four switches into the corners
of the plate
Switch
17 Reorient the PCB and acrylic piece
as follows such that the switches are
facing downads and the diodes are
facing upwards
Flipped switch
18 Place the PCB onto the plate, make
sure to press firmly on the switches
Solder the four switches so that the PCB
and plate are now held together
19 Reorient the assembly as follows 20 Place the rest of the switches in and
solder them

04

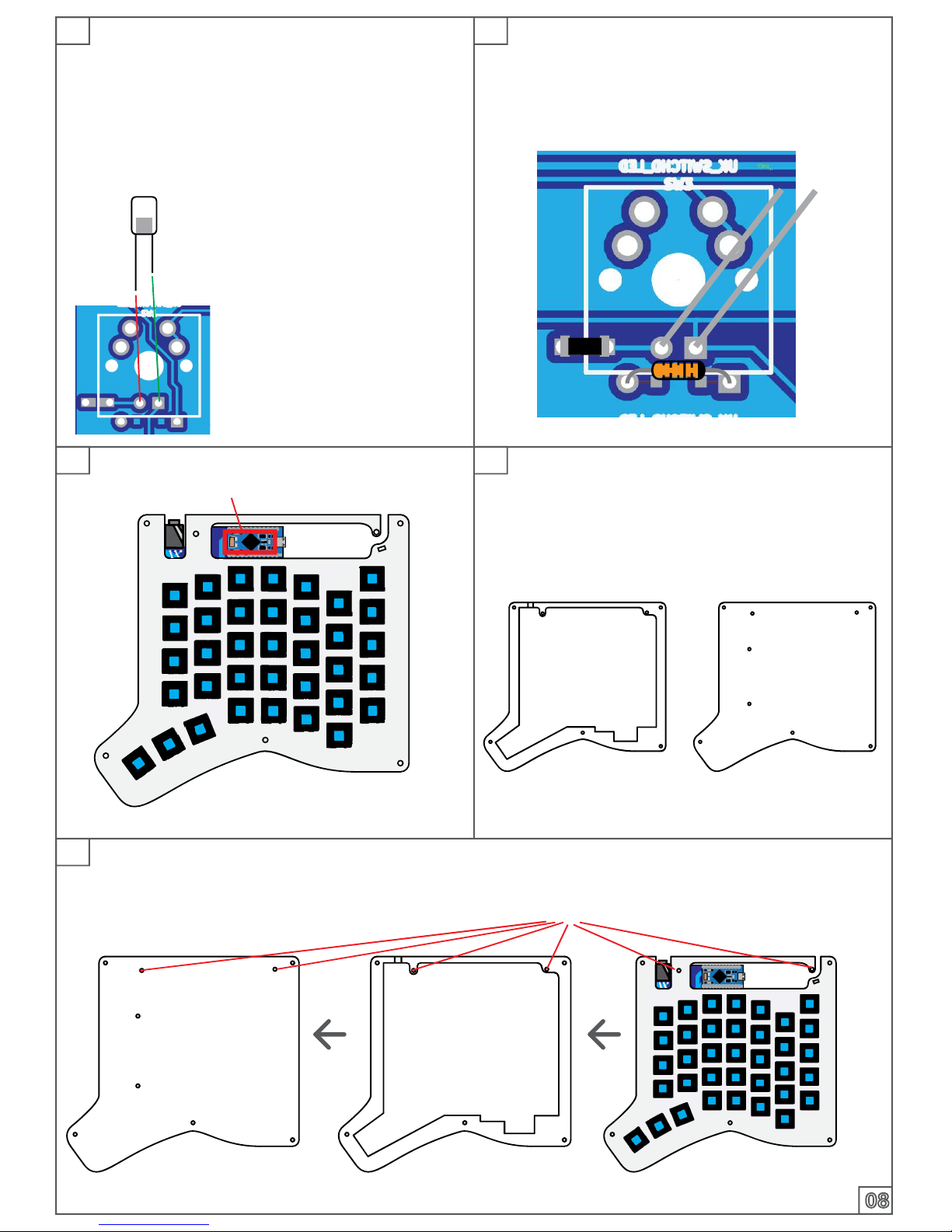

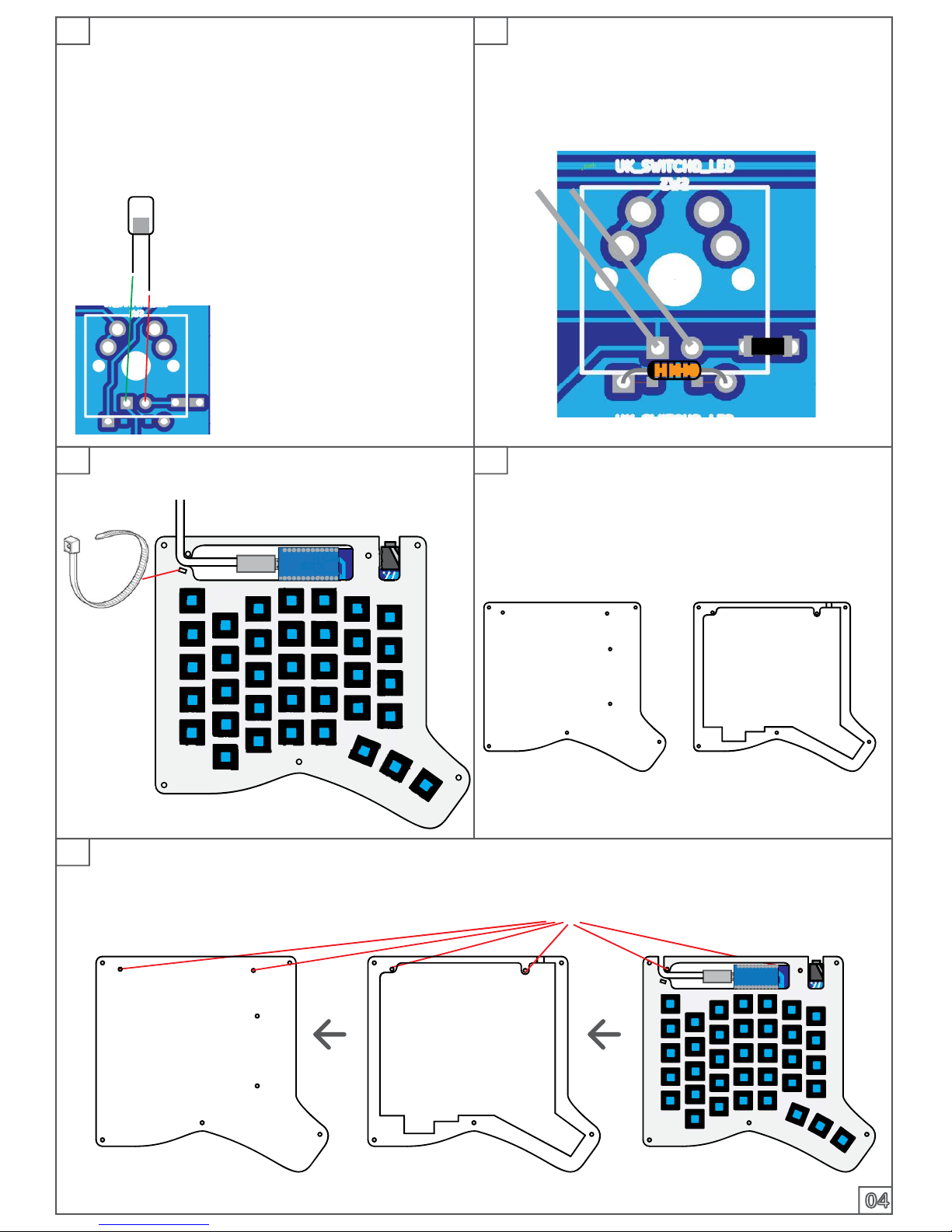

21 If you wish to install LEDs, insert each
individual LED into the Cherry MX
switch’s LED socket and solder them
one by one, make sure to do them one
by one so that each LED is deeply
seated and does not poke out and
obstruct the keycaps.
Make sure the long lead
goes to the circular pin
and the short lead goes
to the square pin
22 Cut off the leads with a nail clipper
or snipper
23 Insert the USB cable and secure the
USB cable with the zip tie
24 Prepare for the next step by obtaining
and orienting these two pieces of
acrylic as follows
25 Stack the plates in the order as shown below and screw the screws
marked red below
Bottom Top
Screw this screw in

05

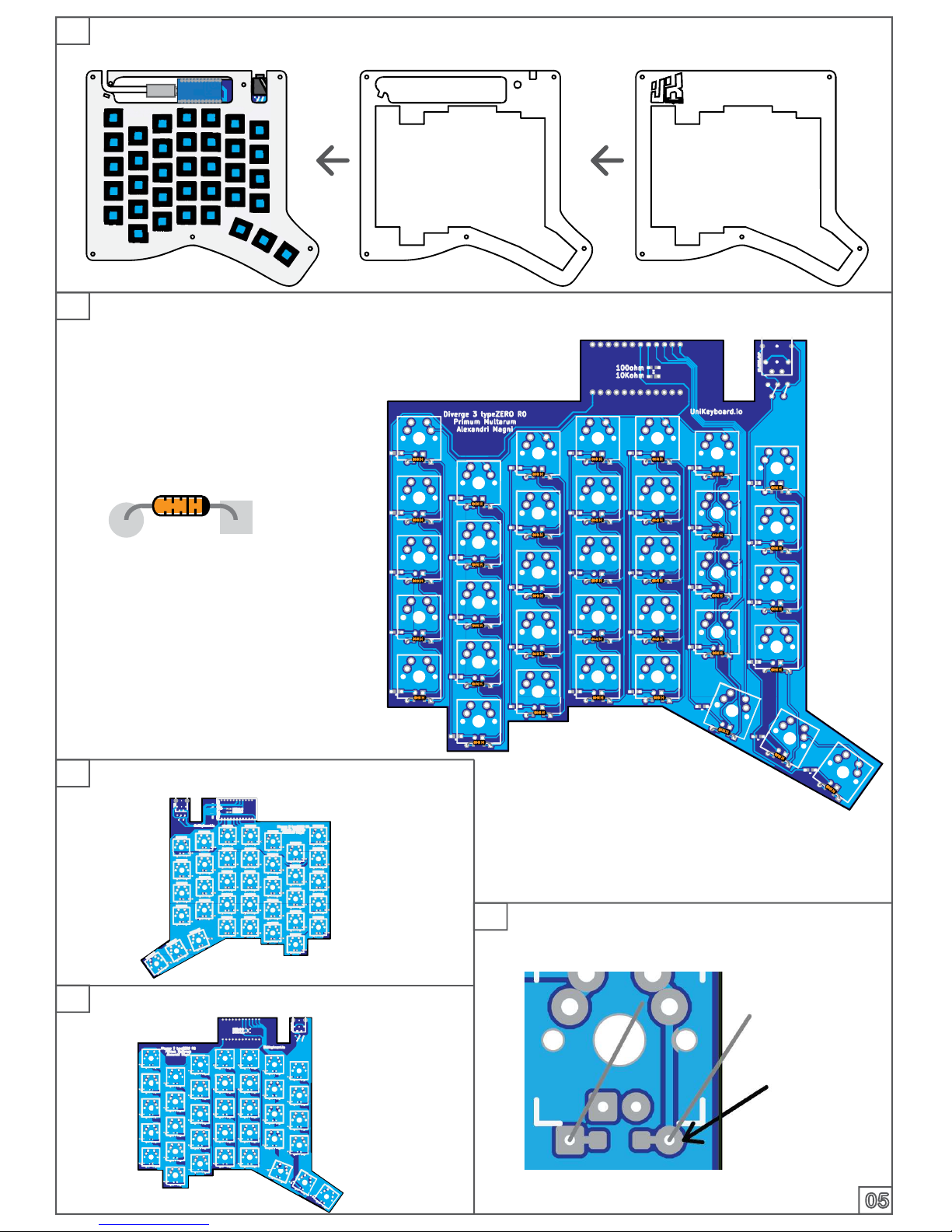

26 Get the rest of the acrylic plates, stack them and screw in the rest of the screws
Bottom Top
Make sure to orient all
the diodes like this
27 We are now going to assemble the RIGHT side. Orient the second PCB and
insert the diodes as shown below
Now solder on all the diodes
28 Reorient your PCB as follows
29 Cut off the leads with a nail clipper
or snipper
30 Reorient your PCB as follows

06

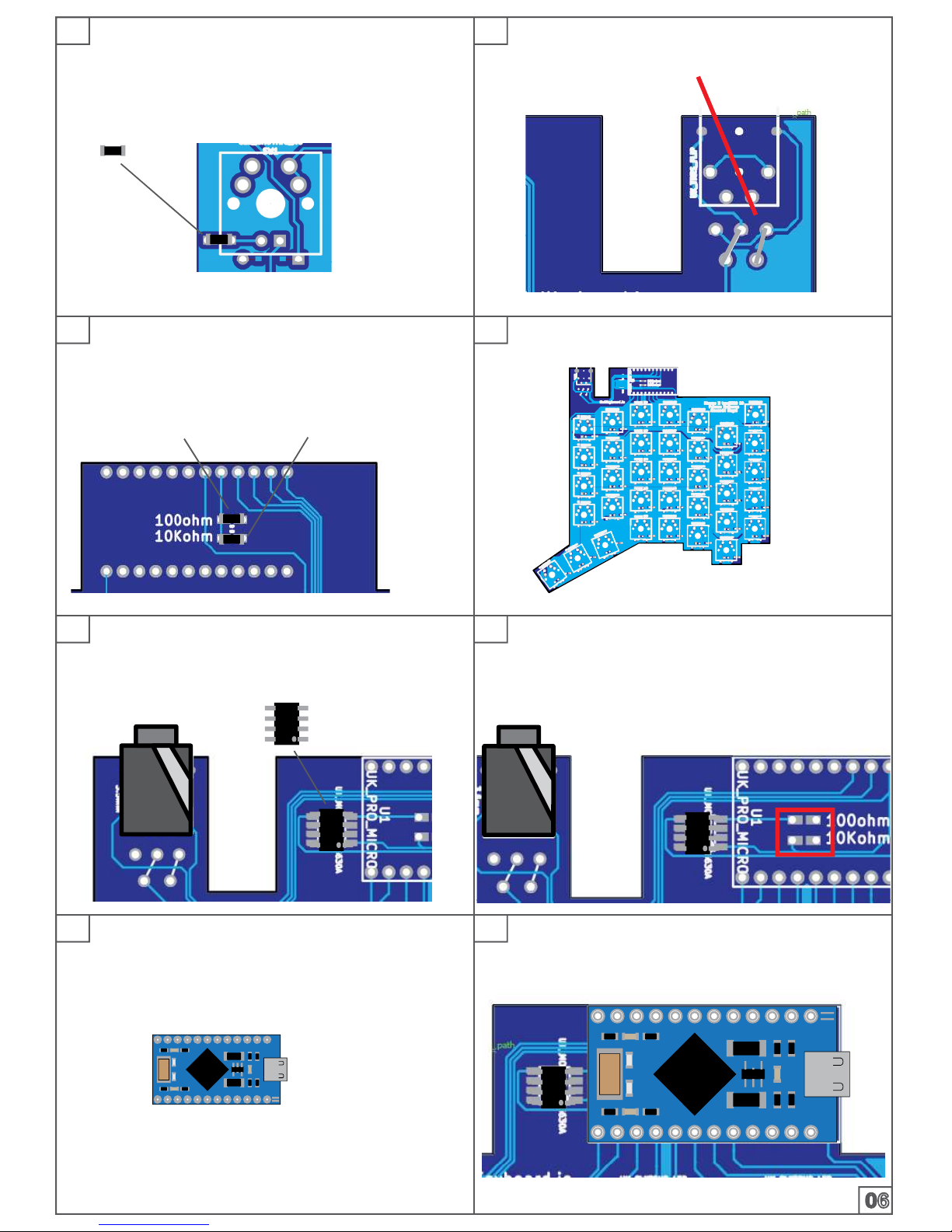

07 Solder on the resistors on all the
switches (skip this step if you do not
need LEDs)
10 Reorient your PCB as follows
12 (Optional) Place sellotape onto the
location marked with a red rectangle
13 Orient the RIGHT controller as follows
(Controller package should be marked
LEFT or RIGHT)
14 Place and solder the controller
as follows
09 If you wish to install LEDs,solder on
the resistors pictured below, notice
that the diodes are facing upwards.
11 Solder on the TRRS jack and MOSFET,
make sure the TRRS jack is facing up
and the diodes are facing down
09 Insert 2 leads cut from the diodes and
solder them by following the white
lines on the PCB
100ohm 100kohm

07
15 Orient the acrylic mount plate as
follows
16 Press four switches into the corners
of the plate
Switch
17 Reorient the PCB and acrylic piece
as follows such that the switches are
facing downads and the diodes are
facing upwards
Flipped switch
18 Place the PCB onto the plate, make
sure to press firmly on the switches
Solder the four switches so that the PCB
and plate are now held together
19 Reorient the assembly as follows 20 Place the rest of the switches in and
solder them

08
21 If you wish to install LEDs, insert each
individual LED into the Cherry MX
switch’s LED socket and solder them
one by one, make sure to do them one
by one so that each LED is deeply
seated and does not poke out and
obstruct the keycaps.
Make sure the long lead
goes to the circular pin
and the short lead goes
to the square pin
22 Cut off the leads with a nail clipper
or snipper
21 (Optional) cover the surface of the
controller with some black tape
22 Prepare for the next step by obtaining
and orienting these two pieces of
acrylic as follows
23 Stack the plates in the order as shown below and screw the screws
marked red below
Bottom Top
Screw this screw in

09

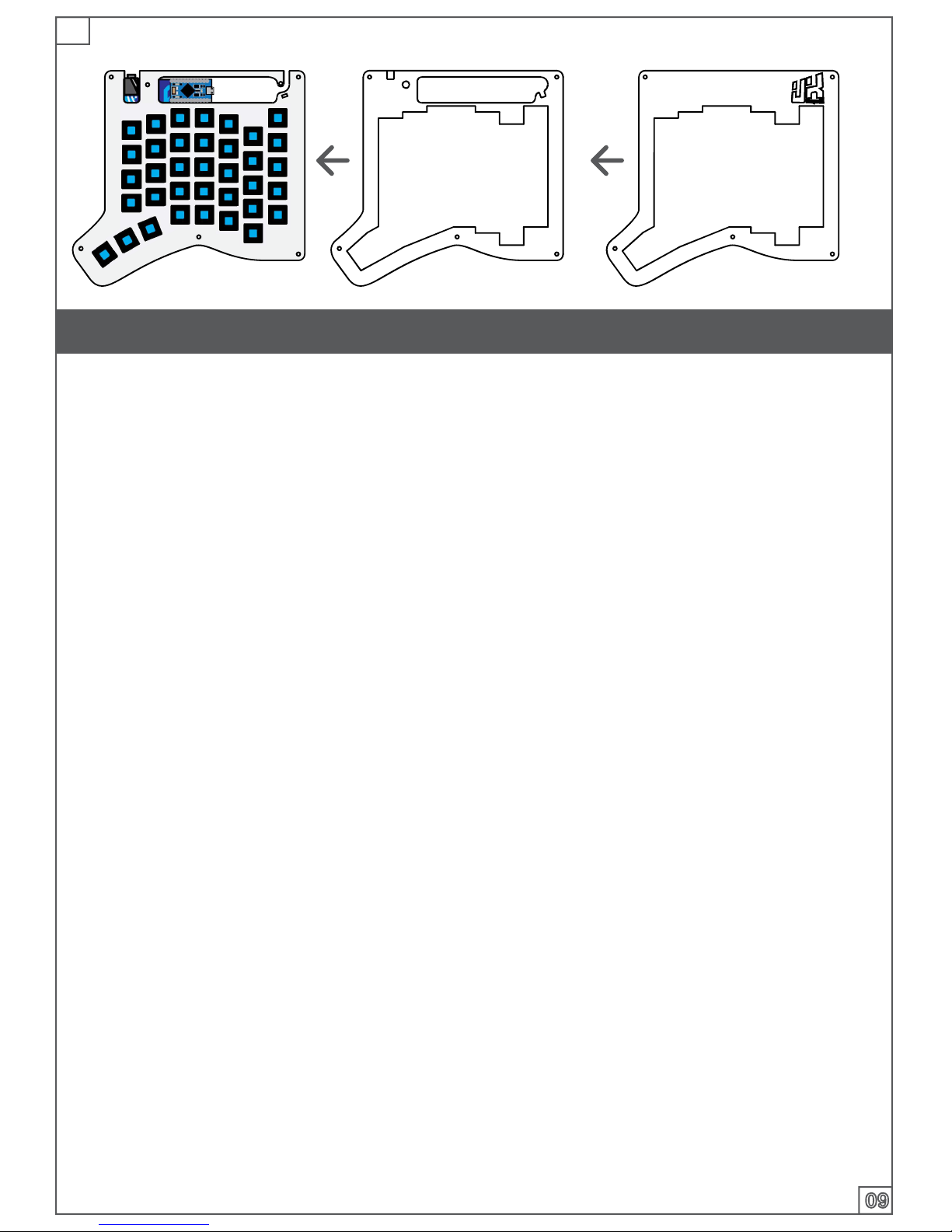

ASSEMBLY COMPLETED
To use the Diverge 3, first plug in the interconnecting TRRS cable on both sides,
then connect the USB cable from the left side to your computer. Do note that the
TRRS cable needs to be plugged in first before the USB is connected to the
computer for the Diverge 3 to work properly, alternatively, you could unplug the
TRRS cable completely and use the Diverge 3 sides individually, do note that you
will have to completely unplug the TRRS cable. (Don’t leave one side plugged in)
Now that you have completed assembly of the Diverge 3, you may wish to visit
http://unikeyboard.com/ to obtain a copy of the Arbites key rebinder to create
and upload your own customised layout.
Consider sharing your keyboard building experience with the community
with some pictures if you’ve enjoyed this build.
If you have any questions or problems relating to the build,
you can contact me at [e-mail] for assistance.
26 Get the rest of the acrylic plates, stack them and screw in the rest of the screws
Bottom Top
