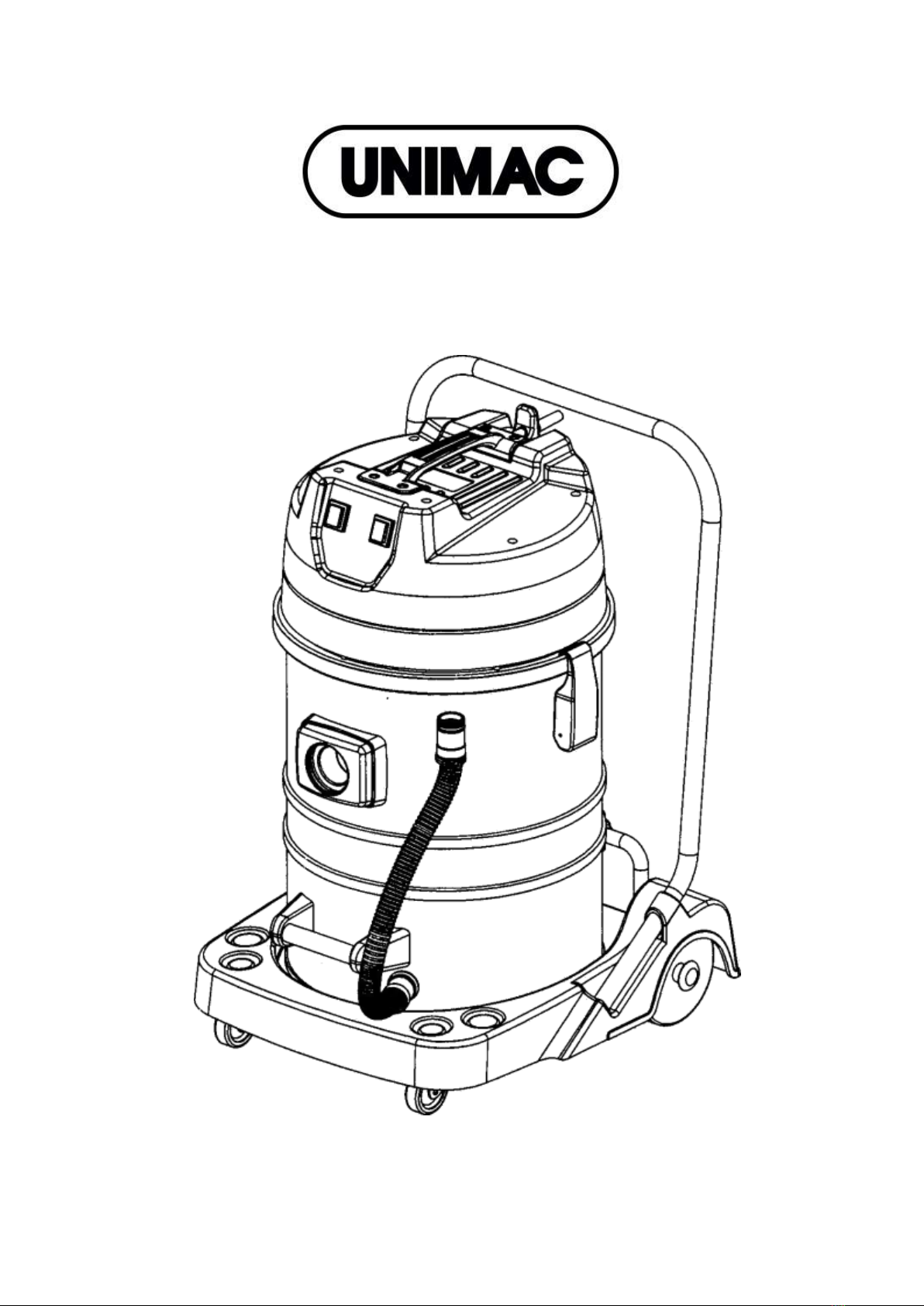

Unimac Wl70-3b User manual

100L VACUUM CLEANER

INSTRUCTION MANUAL

WET&DRY VACUUM CLEANER

1.Characteristics

1. Vacuum cleaner for wet and dry

2. With double wheels motor,motors work at the same time with stronger

suction

3. Jacks on the base,easy for depositing accessories

4. With special and good-looking design,suitable for hotel,office,factory etc.

5. Stainless steel barrel for permanent use

2.Choose suitable accessories for different

occasions.

Wet floor nozzle for floor,carpet etc Bristle for window,table etc.

Crevice nozzle for crevice,corner etc.

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

3.Safety Instruction

1. Check before operation that the power voltage is the same as the

specification on the rating labell

3. Do not pick up combustible and

explosive objects such as glowing

cigarette,gasoline etc. Do not pick up

sharp objects

Do not jam the air inlet mouth,in case

causing high temperature rise and

damage the motor

2. Do not use machine in the combustible

and explosive place in case the motor

spark cause fire.

4. Do not pick up sharp objects

4. Do not pick up objects which easily attach on the filter

such as calcareousness powder,gesso and graphite powder

that will block the ventilation and damage motor.

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

5.Warning: If water out from air outlet mouth,do not overturn the machine when

repairing in case water goes into the motor and cause damage

Do not use this machine as pump in case damaging the motor

6. Turn off the machine and remove the plug each time after using or when

repairing

7. Keeping machine away from strong sunlight and high temperature place in

case plastic distorting.

8. Do not wrest,tramp,or haul hose in case make it damaged.

9. Do not immerses water into the barrel cap or wash the barrel cap by water

in case water goes into the electriferous parts and cause person injury.The

correct way should be: Immerses the dishcloth then tweak to be dry.Wipe

the dirty part gently.

10.Do not use by children or not mature person

11.When clearing the stair,do use extra protection in case machine falls off

when moving the hose

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

4.Use Instruction

1. Connection

Insert the hose connector into the air inlet mouth as picture shows,make sure

the connector is tightly fastened.

Connect all the accessories as picture shows.

2. Check whether the dust filter is put in before operation

3. Take away all the things in barrel including the dust filter before the wet use

4. Put the power cordless at the right back of connector terminal when use the

machine

5. Insert the plug into the supply socket

6. Press switch button,the machine begin to work

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

5. Protection Device

Special instruction concerning preotective device

1. When the water in the barrel is full,the device begin to work.The suction

power with vanish tat this moment.The machine will make a noise which

indicates the motor is running at a big speed.Under this circumstance.you

should cut off the electricity,clean out the water.Then equip ths machine

and turn it on,it will begin to work normally.

2. Only connect to a proper 220-240 volt,50Hz socket

3. If the supply cord is damaged.it must be replaced by the manufacturer or its

service agent to a similarly qualified person in order to avoid a hazard.

4. This appliance is not intended for use by persons(including children) with

reduced physical,sensory or mental capabilities,or lack of experience and

knowledge,unless they have been given supervision or instruction or

instruction concerning use of the appliance by a person responsible for

their safety

5. Children should be supervised to ensure that thy do not play with the

appliance.

6. Correct Disposal of this product

This marking indicates that this product should not be disposed with other

household wastes throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled waste disposal,recycle it

responsibly to promote the sustainable reuse of material resources.To return

your used device,please use the return and collection systems or contact the

retailer where the product was purchased.They can take this product for

environmental saferecycling.

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

7.Warranty Information

The manufacturer provides warrantly in accordance with the legislation of the

customer’s own country of residence,with a minimum of 1 year,starting from

the date on which the appliance is sold to the end users.

The warrantly only covers defects in material or workmanship.

The repairs under warranty may only be carried out by an authorized service

centre.When making a claim under the warrantly,the original bill of

purchase(with purchase date) must be submitted.

The warrantly will not apply in cases of:z

- Normal wear and tear

- Incorrect use,e.g. overloading of the appliance,use of non-approved

accessories

- Use of force,damage caused by external influences

- Damage caused by non-observance of the user manual,e.g.

connection to an unsuitable mains supply or non-compliance with the

installation instructions

- Partially or completely dismantled appliances.

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

8.Maintence

1. Barrel Cleaning

After working or when the barrel is full of dust which cause suction decreases

considerably,you should cut off the electricity and clean the dust away from the

barrel.

1) Unfasten the locking knob,lift up the top cover

2) Take off the filter bag,clean the dust away in the dust barrel.

3) Install the filter bag back and place the top cover.

(The position of the power switch and air inlet mouth should be in the same

direction.)

2. Filter bag cleaning

The filter bag should be washed by clean and warm water when it was covered

with dust.If necessary,you can use litmusless scour to wash.

1) Take off the filter

2) Wash

3) Dry

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

9.WET/DRY VACUUM CLEANER

Technique Parameter

Type

WL70-3B

Power

3000W

Cooling

system

Recycle

Vacuum

degree

20Kpa

Capacity

100L

Tank diameter

420mm

Function

Wet/Dry

Voltage

220V-240V

Length of

cable

4.5m

Accessories

1

Suction hose

2

Short Connector

3

Long Connector

4

Metal Tube

5

Dry floor nozzle

6

Wet floor nozzle

7

Crevice nozzle

8

Dust brush

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

1. Handlez

2. Coating

3. Power cable

4. Top cover

5. Switch

6. Middle cover

7. Pad

8. Spong

9. Capacitor

10. Middle cover gasket

11. Air outlet sponge

12. Upper gasket

13. Motor

14. Lower gasket

15. Air inlet blocking board

16. Motor pedestal

17. Barrel cover

18. windtight ring

19. Protective valve

20. Pedestal basket

21. Support basket

22. Filter

23. Barrel

24. Barrel lock

25. Locking block

26. Turnover part

27. Turnover shelf

28. Turnover support shelf

29. Base big handrail

30. Axle press-cover

31. Axle

32. Axle press-bottom

33. Cork

34. Rubber wheel

35. Wheel

36. Pedestal

37. Tight gasket

38. Water outlet

39. Rubber gasket

40. Water outlet screw

41. Water outlet hose

42. Connector ring

43. Water outlet coating

44. Handle pedestal

45.tainless steel tube

46.cktion pedestal

47.Ring

48.Sucker mouth

EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS EDISONS

Some experts believe the incorrect or prolonged use of almost any

product could causeserious injury or death. For information that

may reduce your risk of serious injury or death consult thepoints

below and additionally, the information available at

www.datastreamserver.com/safety

- Consult all documentation, packaging and

product labelling be fore use. Note that some

products feature online documentation which

should be printed and kept with the product.

- Check product for loose / broken / damaged /

missing parts, wear or leaks (if applicable) be fore

each use. Never use a product with loose / broken

/ damaged / missing parts, wear or leaks (if

applicable).

- Products must be inspected and serviced (if

applicable) by a qualified specialist every 6

months assuming average residential use by a

person of average weight and strength, ab ove

average technical aptitude, on a property

matching average metropolitan specification.

Intended use outside these guidelines could

indicate the product is not suitable for intended

use or may require more regular inspection or

servicing.

- Ensure all possible users of the p roduct have

completed an industry recognised training course

before being given access to the product.

- The product has been supplied by a general merchandise

retailer that may not be familiar with your specific applic ation or

your description of the application. Be sure to attain third party

approval for your application from a qualified specialist before use

regardless of prior assurances by the retailer or its representatives.

- This product is not intended for use where fail-safe operation is

required. As with any product (take an au tomobile, aircraft,

computer or ball point pen for example) there is always a small

chance of a technical issue that needs to be repaired or may

require replacement of the product or a part. If the possibility of

such failure and the associated time it takes to rectify could in any

situation inconvenience the user, business or employee or could

financially affect the user, business or employee then the product

is not suitable for your requirements. This p roduct is not for use

where incorrect operation or a failure of any kind, including but

not limited to a condition requiring product return, replacement,

service by a technician or replacement of parts could cause a

financial loss, loss of employee time or an in convenience

requiring compensation.

- If this item has been purchased in error considering the points

above simply contact the retailer directly for details of their

returns policies if required.

Unimac WL70-3B User manual
