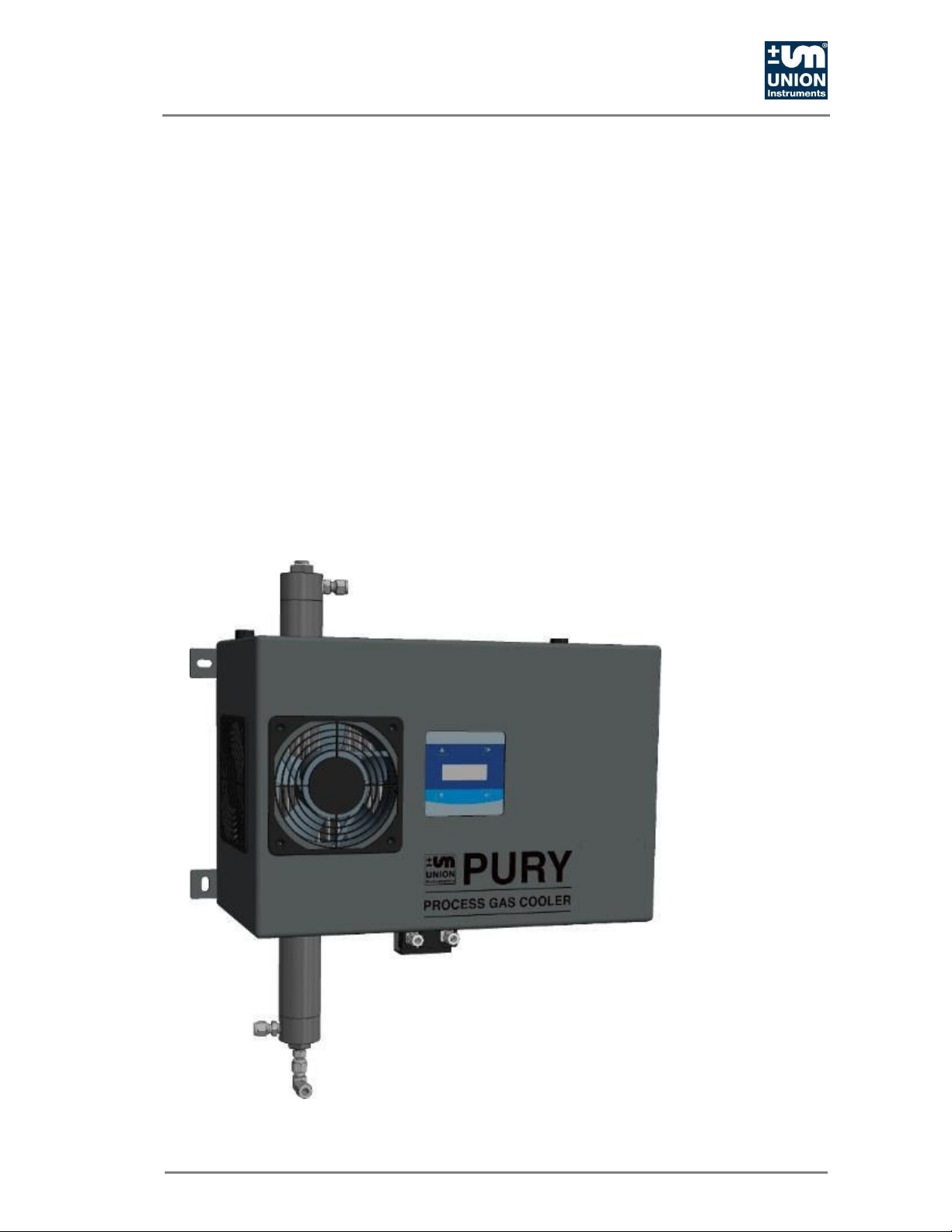

Union Instruments Pury250 S User manual

Operating Instructions
Gas Cooler
Pury250 S

2
April-2016 V1.00
Union Instruments GmbH
Zeppelinstrasse 42
76185 Karlsruhe
Germany
[phone]
[phone]
 [e-mail]
 http://www.union-instruments.com
Article number: 03608199998
© 2016
This documentation is protected by copyright. All rights, in particular the rights of translation,
reprint, extraction of figures, radio transmission, and duplication by photomechanical or other
means and of storage in data processing systems, in whole or in part, are reserved.
Technical data subject to change.

Table of contents
1 Technical data ..............................................................................................................5
1.1 Dimensions ................................................................................................................... 5
1.2 Device parameters ....................................................................................................... 6
1.3 Data and specifications................................................................................................. 7
2 EC Declaration of Conformity.................................................................................... 9
3 Safety information ...................................................................................................... 11
3.1 Warning information and symbols................................................................................. 11
3.2 Principle, intended use ................................................................................................. 12
3.3 Personnel and qualification........................................................................................... 12
3.4 Safety information......................................................................................................... 13
3.4.1 General safety information ......................................................................................... 13
3.4.2 Information on specific hazards ................................................................................... 13
3.5 Recurring operator training .......................................................................................... 13
3.6 Performing a workplace hazard analysis ...................................................................... 14
4 Protective equipment ................................................................................................. 15
4.1 Enclosure cover ............................................................................................................ 15
4.2 Markings and warning information ................................................................................16
5 Connections ................................................................................................................ 17
5.1 General description ...................................................................................................... 18
5.2 Accessories .................................................................................................................. 18
6 Transport, installation, and acceptance .................................................................. 19
6.1 Transport ...................................................................................................................... 19
6.2 Environmental conditions.............................................................................................. 20
6.2.1 Storage conditions ....................................................................................................... 20
6.3 Installing and connecting ............................................................................................. 20
6.4 Installation location ...................................................................................................... 20
6.4.1 Wall mounting .............................................................................................................. 21
6.4.2 Process gas ................................................................................................................. 23
6.4.3 Condensate line ........................................................................................................... 25
6.4.4 Electrical connection .................................................................................................... 28
6.4.5 Electrical interfaces ...................................................................................................... 28
6.4.6 Safety precautions of the user ..................................................................................... 31
6.5 Commissioning after installation ................................................................................... 31
6.6 Documentation ............................................................................................................. 31
7 Commissioning/Switching on.................................................................................... 33
8 Description of the HMI/operator control elements ................................................. 35
8.1 Work station/HMI .........................................................................................................35
9 Operation .................................................................................................................... 37
9.1 Description of display ................................................................................................... 38
9.1.1 Operation of membrane keyboard ............................................................................... 38
9.1.2 Display area ................................................................................................................. 39
9.2 Available displays ........................................................................................................ 39
9.2.1 Menu structure ............................................................................................................. 40
9.2.2 Navigation with keys Up ▲, Down ▼, ESC, and Enter ............................................... 41
9.3 Menu for closed-loop control......................................................................................... 41
9.3.1 Main menu ................................................................................................................... 41
9.3.2 Target cooling temperature .......................................................................................... 41

4
9.3.3 Switching temperature of fan ....................................................................................... 41
9.3.4 Difference between ambient and cooler temperatures ................................................ 42
9.3.5 Pump condensate quantity .......................................................................................... 42
9.4 Menu for service settings ............................................................................................. 43
9.4.1 Password for service mode ......................................................................................... 43
9.4.2 Temperature sensor cooler ......................................................................................... 43
9.4.3 Temperature sensor outside temperature ................................................................... 44
9.4.4 Operation Window ....................................................................................................... 44
10 Decommissioning / Switching off ............................................................................ 45
11 Maintenance ............................................................................................................... 47
11.1 Preparations ................................................................................................................ 47
11.2 Maintenance work/Inspection ...................................................................................... 48
11.2.1 Replacing filter inserts .................................................................................................. 50
12 Troubleshooting ......................................................................................................... 55
12.1 Preparations ................................................................................................................ 55
12.2 Changing/replacing fuses ............................................................................................ 56
12.3 Troubleshooting ........................................................................................................... 56
13 Service ......................................................................................................................... 57
14 Related documents .................................................................................................... 59
15 Disposal ...................................................................................................................... 61
16 Spare parts .................................................................................................................. 63
17 Appendix ..................................................................................................................... 65
Index 65
List of figures ........................................................................................................................... 66
List of tables ............................................................................................................................ 66

1 Technical data

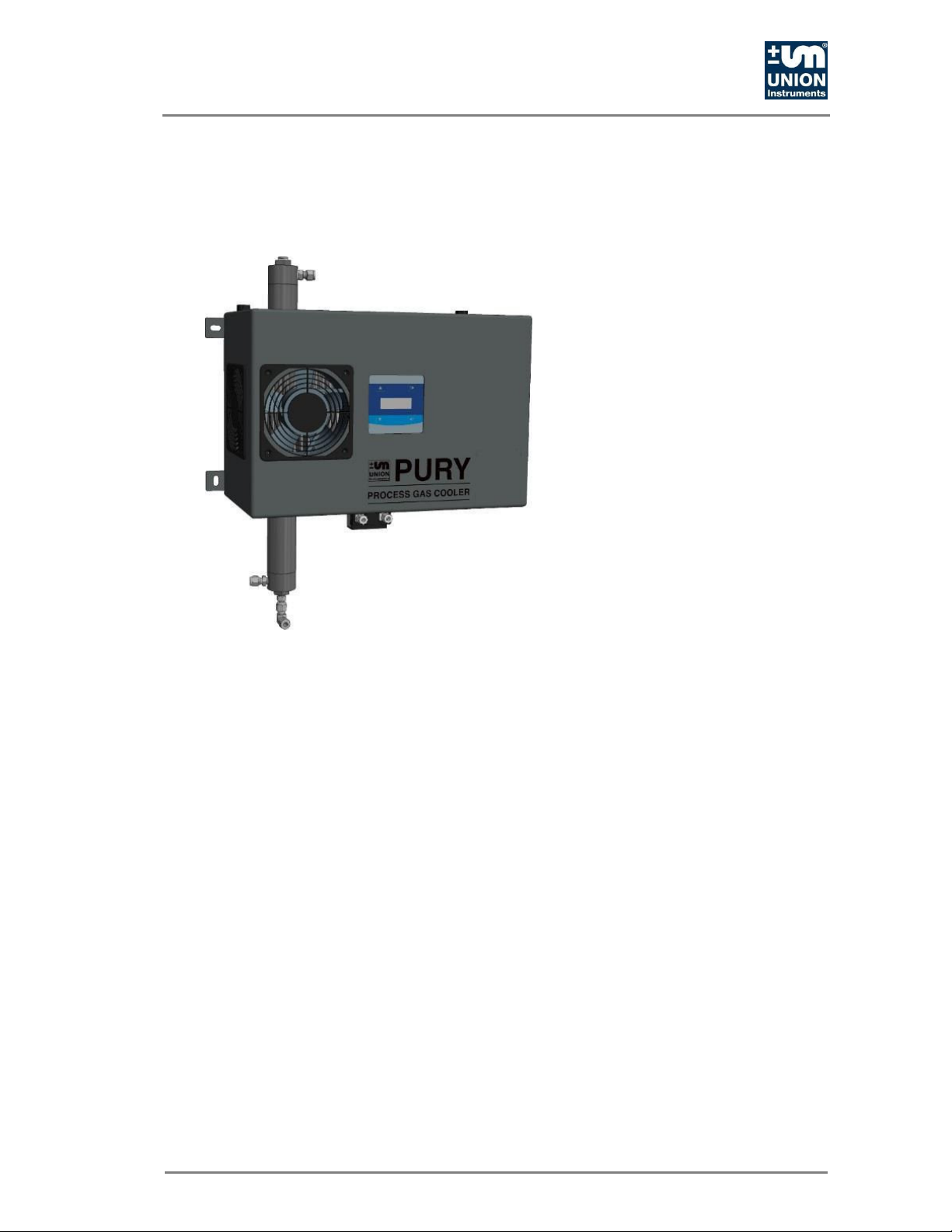

1.1 Dimensions
Weight approx. 12.6 kg (28lbs)
5

6
Technical data
1.2 Device parameters
See device name plate and data and information accompanying the device.
Example name plate:
1. Device description 2. Technical information
Fig. 1.1: Name plate (example)
1
2
1

Technical data
1.3 Data and specifications
Gas inputs
Input process gas: 1
Output process gas: 1
Output condensate: 1
Gas connections: Compression fitting 6mm / ¼”
Max. gas input pressure: 750 mbar absolute (11 psi)
Min. gas input pressure: -100 mbar relative
Gas pressure drop: 5 - 10 mbar (2 - 4” H2O)
Relative gas humidity:
Performance data
< 95% (non-condensing)
Gas capacity, max 250 l/h
Effective cooling capacity: 20 W at
∆
T 25 °C
Gas temperature difference,
max:
Max. 25 K
Protection class: I
Degree of protection:
Voltage supply
IP 22
Voltage: 100 - 240 VAC, 50 - 60 Hz
Power consumption: 250 VA max.
Protection class: I
Degree of protection:
Interfaces
IP22
Relay Contacts:
Environmental conditions
2
Operating temperature: 5 - 45 °C. (40 - 115°F)
Humidity: 0 - 95 % relative humidity
Ambient pressure: 0.8 - 1.1 bar (11.6 - 16 psi)
Storage temperature:
Weight
-20 - 60 °C ( -4 - 140°F)
Weight: Approx. 12.6 kg. (28lbs)
7

8
Technical data
NOTICE
When the PURY250S is used in outside environmental conditions, additional anti-
freeze measures must be discussed with Union Instruments GmbH!

EC Declaration of Conformity
2 EC Declaration of Conformity
Der Hersteller/The manufacturer
Union Instruments GmbH
Zeppelinstrasse 42
76185 Karlsruhe
erklärt hiermit, dass folgend bezeichnete Produkte / hereby declares, that following named products:
Produktbezeichnung: Gaskühler Gerätegruppe: PURY250
Product name Gas Cooler device group: PURY250
konform sind mit den Anforderungen, die in der EU – Richtlinie festgelegt sind / are compliant with the
requirements as defined in the EU directives:
2014/35/EU Niederspannungsrichtlinie
2014/35/EU Low voltage directive
2014/30/EU Elektromagnetische Verträglichkeit
2014/30/EU Electromagnetic compatibility
Angewandte harmonisierte Normen / Used harmonized standards:
EN 61010-1:2010 Sicherheitsbestimmungen für elektrische Mess-, Steuer-, Regel- und Laborgeräte -
Teil 1: Allgemeine Anforderungen
Safety requirements for electrical equipment for measurement, control, and laboratory
use - Part 1: General requirements
EN 61326-1:2013 Elektrische Mess-, Steuer-, Regel- und Laborgeräte - EMV-Anforderungen - Teil 1:
Allgemeine Anforderungen
Electrical equipment for measurement, control and laboratory use - EMC requirements -
Part 1: General requirements
Name des Dokumentationsbevollmächtigten: Schlichter
Name delegate of documentation
Adresse des Dokumentationsbevollmächtigten: siehe Adresse des Herstellers address delegate of documentation
see address of manufacturer
Bei einer nicht autorisierten Änderung des Gerätes verliert diese Erklärung ihre Gültigkeit. / Any unauthorized modification of the
device results in invalidity of this declaration.
9

10
EC Declaration of Conformity

3 Safety information
3.1 Warning information and symbols
The operating instructions use the following nomenclature and symbols for
especially important information:
DANGER
For an immediate danger that can lead to serious physical injury or death!
WARNING
For a potentially dangerous situation that can lead to serious physical injury or
death!
NOTICE
For a potentially dangerous situation that can lead to minor physical injury! This
may also be used for warnings of property damage!
NOTE
For information that can improve the operation of the process gas analyzer or
contribute to prevention of property damage.
11

12
Safety information
3.2 Principle, intended use
The PURY gas cooler is used to dry and clean coke oven gas, blast furnace gas,
and synthesis gas. It also provides a cleaning functions using stainless steel filter
elements. Napthalene crystallizes out in the moistened filters and is filtered out
with the condensate.
Application areas are the preparation of gases for further analysis with combustion
calorimeters or process gas analyzers.
In the case of toxic or explosive gases, the safety provisions applicable for the
installation location must be complied with.
The gas cooler is installed in a fixed manner and is intended only for use in closed
rooms with adequate ventilation.
Any use beyond this is regarded as non-approved. The manufacturer is not liable
for damage resulting from use. In this case, the risk is borne solely by the
installation engineer/commissioning engineer/owner/operator. Only certified
experts are permitted to make modifications to the gas cooler
(mechanical/electrical/pneumatic changes).
3.3 Personnel and qualification
Gas connections and work on the electrical equipment of the gas cooler should
only be carried out by a skilled person in compliance with safety provisions.
WARNING
Intended use also includes observance of these operating instructions! In
addition to the following safety information, the safety information of linked
system components must also be observed!
Additional equipment or accessory parts not installed, supplied, or made by
UNION Instruments GmbH require manufacturer's approval by UNION
Instruments GmbH! Any warranty is otherwise voided!

Safety information
3.4 Safety information
3.4.1 General safety information
WARNING
Only operate the gas cooler when all protective equipment is present and
operational!
Further safety information:
 Before the corresponding chapters!
3.4.2 Information on specific hazards
WARNING
• After installation, all gas-conveying parts must be checked for leak tightness
according to national regulations.
• Any type of repair that requires opening of the protective cover may only be
carried out by trained personnel!
3.5 Recurring operator training
NOTE
Country-specific regulations regarding recurring training of operators must be
observed by the owner, particularly regarding the handling of gases and
electrical equipment.
13

14
Safety information
3.6 Performing a workplace hazard analysis
NOTE
Depending on the National regulations and, if necessary, regardless of the CE
marking of the gas cooler, the owner must prepare a workplace hazard analysis!
Changes to these operating instructions may occur in the future due to further
technical developments. If you desire additional information or if specific problems
arise that are not covered in detail in this manual, you will receive information by
contacting the following address or local representative:
Union Instruments GmbH
Zeppelinstrasse 42
76185 Karlsruhe
Germany
[phone]
[phone]
 [e-mail]
 http://www.union-instruments.com

15
4 Protective equipment
4.1 Enclosure cover
Fig. 4.1: Enclosure cover

16
Protective equipment

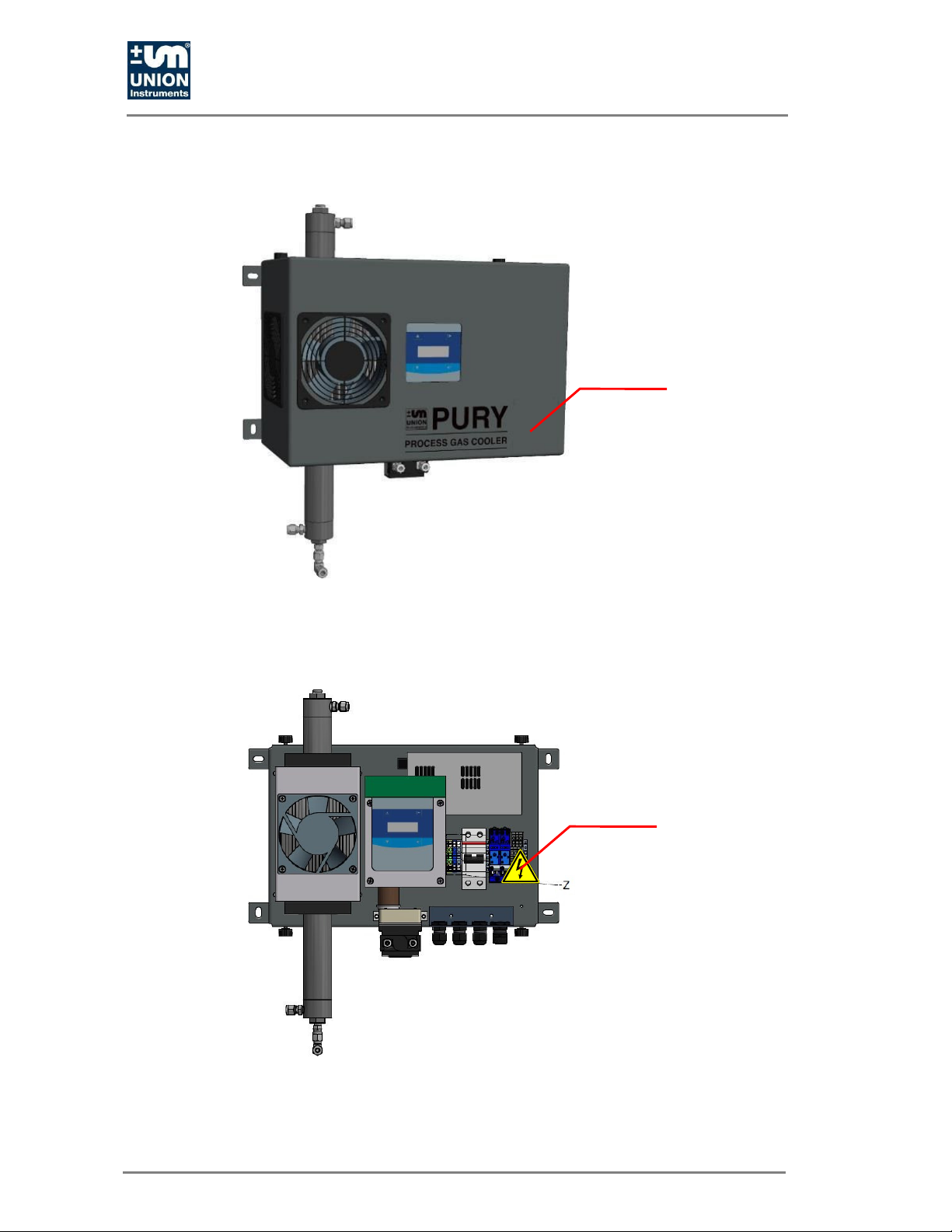

4.2 Markings and warning information
Fig. 4.2: Markings and warning information
1. Name plate
2. 115/230 V voltage
Fig. 4.3: Warning in the enclosure
2
1

17
5 Connections
Fig. 5.1: Product description
1. Enclosure screws, 4 pieces 8. Inlet process gas
2. Side fans, left, right 9. Display with operator input keys
3. Cooler tube with filter 10. Front fan
4. Condensate pump inlet side, suction 11. Output process gas
5. Condensate hose pump 12. Cable grips, voltage supply
6. Condensate pump discharge side, 13. Wall mounting, 4 pieces
pressurized
7.Condensate outlet
1
2
3
4
5
6
7
8
9
10
11
12
13
13
1
2
13

18
Connections
5.1 General description
5.2 Accessories
WARNING
Risk of injury/damage!
The use of non-approved accessories may cause damage and endanger persons.
Any warranty is voided in this case. The owner is then liable for damage that
occurs!
Only use genuine accessories or accessories approved by Union Instruments
GmbH.

19
6 Transport, installation, and commissioning
NOTE
The gas cooler is generally commissioned by Union Instrumen
ts GmbH or service
technicians.
When it is not transported, installed, and commissioned by Union Instruments
GmbH (e.g., internal transport/resale), the suitable procedure must be agreed with
Union Instruments GmbH (  Chapter 12 Service).
6.1 Transport
WARNING
Tipping over or dropping of the gas cooler from the pallet or load carrying means
may cause injuries!
 For the unpacking and transporting, observe the weight and dimensions (see
technical data)!
Use a second person or aid if required.
NOTE
In case of transport damage that is indicative of improper handling, a damage
assessment by the transport carrier (rail, mail, shipping company) must be
arranged.

20
Transport, installation, and acceptance
6.2 Environmental conditions
NOTICE
Comply with environmental conditions for storage and installation!
Comply with environmental conditions! Contact Union Instruments GmbH if the
gas cooler is stored for longer than 3 months or must be operated or stored
outside the prescribed environmental conditions!
6.2.1 Storage conditions
Ambient temperature: -15 - 60°C (-4 - 140°F)
Air humidity: 0 - 95% relative humidity
Ambient pressure: 0.7 - 1.4 bar (11.6 - 16 psia)
Frozen condensate water in the gas cooler may cause damage. Empty and dry the gas
cooler before storage!
6.3 Installing and connecting
6.4 Installation location
The installation location of the gas cooler must meet the following conditions:
• Clean dry room
• Protect from climatic influences, if necessary, with heating and cooling
• Ensure adequate load carrying capacity of the wall, the device must be installed on a
fixed wall
WARNING
Escaping process gas may pose a hazard!
Perform a leak test after installation and after work on gas-carrying lines!
