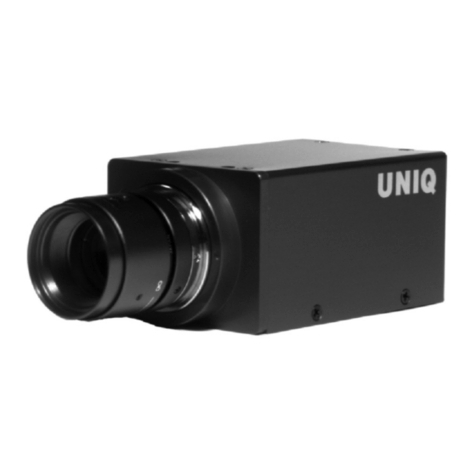

UP-900DS-CL
Digital CCD Camera
User's Manual
091-0905 V.1.2
08-09-17

1
Table of Contents
Warning.................................................................................................................2
Precautions............................................................................................................2
Limited Warranty ...................................................................................................2
1. Introduction.......................................................................................................3
2. CameraSetup.....................................................................................................5
3. CameraFunctions..............................................................................................5
4. RS-232C Communication Control ...........................…........................................9
5. Digital InterfaceTiming.....................................................................................10
6. CameraFunctional Timing.................................................................................11
7. CameraAccessories……………….............…..........................................................13
8. Technical Support ..............................................................................................13

2
WARNING
TOPREVENT FIREOR ELECTRIC SHOCK HAZARD,
DO NOTEXPOSE THIS CAMERAUNITTORAIN ORMOISTURE.
DO NOTATTEMPT TOREMOVE CAMERACOVER ORMODIFYTHECAMERAUNIT,
WARRANTY WILLBEVOIDED.
PRECAUTIONS
Do dotattempt to disassemble, modify, orrepair thecamera.ContactUNIQforhelp.
Do notpointthecameraatbrightobjects,such as thesun,foralongperiod.It may
causeCCDbloomingandpermanentdamages.
Do notoperate thecamerabeyondthetemperature range.Avoidusingthecamera
above 90% humidity.
Do notuseunregulated power supplysource.
Do nottouch CCDglass cover with fingersoranyhard objectsotherthan professional
glass cleaningsolvents.
Limited Warranty
UNIQ warrantstotheoriginal customer to befree fromdefectsin material and
workmanshipfortwofullyearsfromthedate oforiginal purchase. Thiswarranty covers
failures ordamagesdueto defects in material orworkmanship, whichoccurduring
normaluse. It doesnotcover damagesorfailures,whichresultfromshipment,
mishandling,abuse, misuse, ormodification.
AReturnMaterial Authorization(RMA)number isrequired priortoreturninganyUNIQ
productforrepair orreplacement.
Thisproprietary documentmaynotbe reproduced orphotocopied withouttheconsentof
UNIQ.UNIQ makesno warrantyorassumesno responsibility foranyerrors, which may
appearin thisdocument. UNIQreservestherightto make changeswithoutnoticeor
obligation.
Forimmediate technical assistance, pleasecall [phone] oremail to
[e-mail]

3
1. Introduction
1.1 General Description
The UP-900DS-CL is a10-bitdigitalCCD camerausing progressive scan sensor.The squarepixels
areespeciallysuitablefor processing, measuring, and analyzing tasks. High speed moving objects
can be captured with the externalasynchronous capturecontrol.Thiscompact and lightweight
cameraoffersexcellent signal to noise performance.
1.2 Features
•1/2” Progressive scan CCD imager
•1392 x1036 active pixels
•10-bitCameraLink digital output
•Analogoutput
•RS232Cinterfacecontrol
•Fullframe shutter
•<58 dB or better
•Asynchronous reset
•30 Hzframe rate
•2x2(692 x516)Binning at55 FPS
•50 MHz data clock
•C-mountlens
•Long-termframe integration
•Externalexposurecontrol
1.3 Applications
UP-900DS-CL applications include machine vision, automated inspection, motioncaptureand
analysis, high-resolutiongraphics capture, medical imaging, biomedicalimaging, non-contact
measurement, microscopy, and other scientific and industrialapplications.
1.4 CCD Imager Spectral ResponseCurve

4
1.5 Camera Specifications
Model
UP-900DS-CL
CCD Sensor 1/2” Hyper HAD progressive scan interline-transfer CCD
ChipSize 7.60mm x6.20 mm
EffectivePixels(H x V) 1392x1036 (approx.5:4aspect ratio)
UnitCellSize (Hx V)
4.65
µ
m x 4.65
µ
m
PixelClock 50 MHz(100 MHzformaster clock)
Frame Rate 30 fps
Sync. HD: 31.466Hz; VD: 30.0Hz
Digital VideoOutput Camera Linkformat
Analog VideoOutput 1V p-p,75ohm (BNC or 12 pinHirose)
S/NRatio <58 dB
Min. Illumination 0.1lux
Gain MGC
Gamma 1.0
ElectronicShutter 1/30 ~ 1/62,000 selectable
Lens Mount C-Mount
Operating Temperature
-
10
°
C
∼
+50
°
C
PowerRequirement 12 V DC,450 mA,5.4W 12 V DC,430 mA,5.2W
Dimension 50mm x 39mm x83mm
Ext. Sync. Internal/External AutoSwitch
Asynchronous Reset Standard
Weight 200g
1.6 Camera Dimension

5
2. Camera Setup
Abasiccameraand frame grabber system setup,as showninFigure1below,requiresa
UP-900DS-CL camera, astandardC-mount lens, aPS-12C powersupplyor equivalent,
aPC system and aVGA monitor,aframe grabber,and an external trigger device ifnecessary.
Figure1. Cameraand Frame GrabberSystem Setup
3. Camera Functions
3.1 12-Pin Connector
The 12-pin Hirose connector is located onthe
rear panelof the camera. All ground signals
onpin1, 3, 5, and 8arecommongrounds.
+12 VDC input isrecommended onpin2, but
thiscamerashouldwithstand +12 V ±1V
input voltage. Make sureto set the NM/AM
switch toNM positionforexternalHD and VD
locking. Figure2belowshows atopview of
the 12-pinHirose connector.
PinNo. UP-900DS-CL
1 GND
2 +12VDC input
3 GND
4 Video
5 GND
6 N/C
7 N/C
8 GND
9 N/C
10 N/C
11 Integrationcontrol
12 N/C
Figure2. 12-Pin Hirose Connector

6
3.2 Mode Switches Selection
Designation:
NS-Functionalselect
DS-Shutter speed select
NR- RS-232C communication Enable
RI-Rear switch control Enable
NP- Reserved forcustomoptions
PS- Reserved forcustomoptions
NM-Normalmode
AM-Asynchronous mode
Timing detailsof themode switches areshown insection6.
3.3 Shutter Speed Dial Switch
Shutter speed dial switch islocated onthe rearpaneland thereare16 different positions. To
select cameragain,reference, or tosave auser page, setNS/DS switch to NSposition.To adjust
shutter speed, set NS/DS to DS position. For normalshutter speed, make sureto set NM/AM mode
to NM location. For asynchronous capture, set NM/AMmode to AM location.
Position No. Functional Select (NS) Shutter Speed Select (DS)
Shutter
Speed (sec)
(NM Mode)
Shutter
Speed (sec)
(DS Mode)
Asynchronous
Capture for normal and
binning (sec)
(AM)
0 Normal 1/30 (Off) 1/50 No shutter
1 Gain Adjustment 1/60 1/100 1/120
2 Reference Adjustment 1/120 1/133 1/240
3 FactoryPage 1/240 1/210 1/500
4 User Page 1 1/500 1/400 1/1,000
5 User Page 2 1/1,000 1/860 1/2,000
6 User Page 3 1/2,000 1/1700 1/4,000
7 User Page 4 1/4,000 1/3500 1/6,000
8 Normal/2x2binning 1/6,000 1/5000 1/8,000
9 Reserved 1/8,000 1/6500 1/10,000
A Reserved 1/10,000 1/8700 1/12,000
B Reserved 1/12,000 1/10,000 1/15,000
C Reserved 1/15,000 1/13,000 1/20,000
D Reserved 1/20,000 1/17,000 1/31,000
E Reserved 1/31,000 1/26,000 1/62,000
F Reserved 1/62,000 1/52,000 Pulse Width Control
Figure 4. Shutter Speed DialSwitch
Figure 3. Mode switches

7
3.4 Momentary Switch (UP/Down Switch)
Position
No. Functional Select (NS) Up/Down Switch
0 Normal N/A
1 Gain Adjustment Move up or down toadjust gain
2 Reference Adjustment Move up or down toadjust reference
3 FactoryPage Move up or down torecall factorypage
4 User Page 1 Up: Recall;Down: Save
5 User Page 2 Up: Recall;Down: Save
6 User Page 3 Up: Recall;Down: Save
7 User Page 4 Up: Recall;Down: Save
8 Normal speed/2x2binning Up: Normal speed; Down: 2x2binning
9 Reserved
A Reserved
B Reserved
C Reserved
D Reserved
E Reserved
F Reserved
Camerasettings canbe savedinto four differentuser pages. Once the user page issaved and set
between shutter speeds 4and7, itwillbe activated as long as the camerais powered ON. User
Page works inboth rearplatecontroland RS232C communicationselections.
3.5 Gain Control (AGC/MGC)
Note:Thisgain potentiometer onlyappliesto cameras withoutUp/Down switch
on rearplate.
Manual gain control (MGC)
MGC isstandardfactorysetting onthiscamera. The manualgaincontrol can be adjusted from4dB
to 36 dB. Adjusting the gainpotentiometer locatedonrearpanelwillchange thegainvalue.
Automaticgain control (AGC):
AGC isnotavailable and itisnotrecommended to use. Contact UNIQfor further details.
Figure6. Gainpotentiometer
Figure5. Up/Down Switch

8
3.6 26-Pin Camera Link Connector
PIN NO. CAMERA LINK
SYMBOL UNIQ CAMERA SYMBOL FUNCTION
1, 14 INNER SHIELD SHIELD Inner shielding
2, 15 X0-,X0+ DATA0-,DATA0+ Video,LEN and FEN data output
3, 16 X1-,X1+ DATA1-,DATA1+ Video,LEN and FEN data output
4, 17 X2-,X2+ DATA2-,DATA2+ Video,LEN and FEN data output
5, 18 Xclk-,Xclk+ CLK-,CLK+ Pixel clockoutput
6, 19 X3-,X3+ DATA3-,DATA3+ Video,LEN and FEN data output
7, 20 SerTC+,SerTC- Rx+,Rx- Differential pair,serialcommunications from frame
grabber
8, 21 SerTFG-,SerTFG+Tx-,Tx+ Differential pair,serialcommunications to frame
grabber
9, 22 CC1-,CC1+ HD-,HD+ Camera Control 1(CC1) - Horizontal signal input
10,23 CC2+,CC2- VINT/VD+,
VINT/VD- Camera Control 2(CC2) - Vertical signal or asynchronous reset input
11,24 CC3-,CC3+ Reserved Reserved for custom options
12,25 CC4+,CC4- Reserved Reserved for custom options
13,26 INNNER SHIELD SHIELD Inner shielding
Figure8. 3M 26-pinCameraLink Connector (MDR-26 pin)

9
4. RS-232C Communication Control
UNIQ doesnotprovide its own softwareprogramfor RS232C communication, contact frame
grabber vendor or UNIQ for further details.
Command Command Name Notes
? Error “?” Error will appear on screen if incorrect command isentered
ru# Recall userpage Must have a number after “ru” such as 1, 2,3or 4
rp Report current
camera setting G= Gain; R = Reference S = Shutter Mode; NS,NM (refer to rear plate setting)
rf Recall factory
setting page Factorydefault setting
sm# Shutter mode Must have a number after sm (1~ f),referto section 3.3for details.
sp# Save user page There are 4user page available
ns Normal speed Refer to camera specifications
ds Double speed Refer to camera specifications
nm Normal mode Normal free running
am Asynchronous modeAsynchronous reset
gi### Gain increase ### = Hexadecimals(000~ 3ff).If nonumber entered,gain will be
increased byfactor of 1. If a number is entered,thennumber will be
added tostored gain.
gd### Gain decrease ### = Hexadecimals(000~ 3ff).
Same as giabove,except it will be decreased.
gn### Gain number ### = Hexadecimals(000~ 3ff).Refer tothe gain curve belowfor
details.
bi### Reference increase ### = Hexadecimals(000~ 3ff).If nonumber entered,reference
willbe increased byfactor of 1.If anumber is entered,then number
willbe added to stored reference.
Note: It’sveryuncommon to change reference level,contact UNIQ for
further details.
bd### Reference decrease
bn### Reference number
Note:
1. Command must be in “lowercase.”
2. Allnumbershave tobe in“hex” format, use aPC calculator to convertbetween hex and
decimal numbersifnecessary.
3. Command example:
UserEnters: “sm5” (shutter speed at 5)
Camerareturns: “?” or “3f”in Hex
(incorrectanswer,no RS232C communicationor something’s wrong)
or
Camerareturn: “ ”or “1” inHex (correct answer,itmight showother
symbolsdepending onPC system)
4. Gain Curves:
Figure9. CameraGainCurve

10
5. Digital Interface Timing
5.1 Pixel Clock
5.2 Line Enable
5.3 Frame Enable
5.4 2x2Binning Line Enable
5.5 2x2Binning Frame Enable
Note:
NormalMode 2x2 Binning Mode
HD 31.466 KHz 28.834 KHz
VD 29.996 Hz 55.028 Hz
PCLK 50 MHz 25 MHz

11
6. Camera Functional Timing
6.1 Free Run (shutter speed position 0, 30 fps)
6.2 Free Run (shutter speed position from 1 to F)
6.3 Asynchronous Capture (shutter speed position 0)
6.4 Asynchronous Capture (shutter speed position from 1 to E)
6.5 Asynchronous Capture with Pulse Width Control (shutter speed:F)

12
6.6 External Synchronization and Gen-lock (viaCameraLinkinterfaceONLY)
The UP-900DS-CL cameraautomaticallylocksto the externalsync source. The externalsync
source must match the cameraHD and VD specification, which are31.466 KHzand 30.0 Hz
respectively. BothexternalHD and VD areTTLlevelsignals.
a) HD
H: 2.5V to 5V
L:0V or GND
Pulse width:5-50% duty cycle, see figure8shown below.
b) VD
H: 2.5V to 5V
L:0V or GND
Pulse width:0.5-50% duty cycles
Figure10.ExternalSynchronizationandGen-lockTiming
6.7 Integration (via12-pin HiroseconnectorONLY)
The UP-900DS-CL cameracan be integrated up to 2seconds without severenoise ordarkcurrent
effect. Tostartintegration, pin#11 (same as pin #27 of 40-pindigital connector)of the 12-pin
connectormust be connected to GND or 0V. The integrated video will be shifted out following the
next vertical drive after pin#11 goesback to high or 5V level,as shown infigure9below. If a
frame grabber does notcapturethe immediate frame orintegrated video,the normal video(before
the integration) will display againonthe monitor.
Figure11.IntegrationControl Timing

13
7. Camera accessories
7.1 Power Supply and Power Cable
12 VDC regulated power supplywith 1A current output or betterisrecommended. Thiscamera
uses Hirose 12-pinconnectorforpower source. The matting cable plug connector can be
purchased through distributorsor UNIQ and the Hirose partnumberis HR10A10P12S.UNIQ
provides power suppliesand power cables as"one stopshopping"forcustomers. Alternatively,the
power suppliesand power cables can be purchased through power supplyand cablevendors.
Contact UNIQfor vendor list.
7.2 Lens
C-mountlens isthe standardlens for UP-900DS-CL camera. Thereareavarietyof C-mount lenses
inthe market that works withUP-900DS-CL camera. Make surethequality and specificationof the
lens matchthe camera's application. Some of themost popularlenses inthe market, such as
Cosmicar, Fujinon,Rodenstock, andSchneider,arerecommended.
7.3 Camera Link Cable
CameraLink cablecan be purchased from3M, Mouser,Digi-Key and frame grabber vendors.
8. Technical Support Information
For technical assistance, contact UNIQTechnicalSupportor Applications Engineer at
Phone: [phone]
Fax: [phone]
Email:[e-mail]
Company contactinformation:
UNIQ VISION, INC.
2924 ScottBlvd.
Santa Clara, CA 95054
Phone: [phone]
Fax: [phone]
Our website: www.uniqvision.com
General Inquiries: [e-mail]
