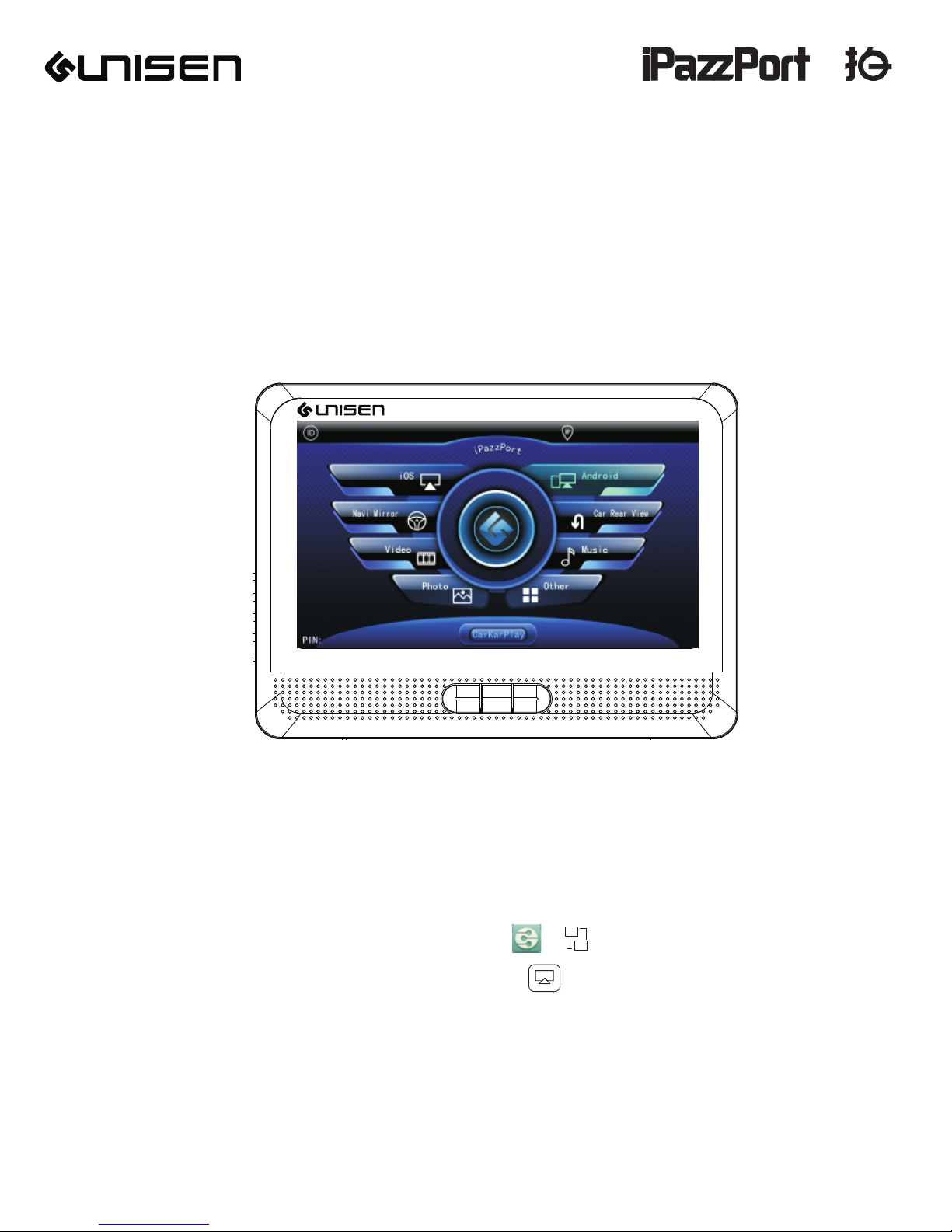

iPazzPort CarKarPlay
Model:MCS-808-03
User Manual
2.AirPlay ( ) (Mirror)
3.Miracast
1.DLNA ( / )
Music and video downloaded from iTunes is not available for this device
CarKarPlay

Thanks for buying iPazzPort CarKarPlay, to make you know this product
better and operate it correctly, please read below careful
1.This is a car play product,to avoid any injury, death or damage to
operator,please follow traffic regulations and not to operate it when
driving.
2.Supplied car charger is used for this product, if you want it to charge
other device, please read the specifications carefully,we will not be
respond for any damage to your device.
3. Do not use the charger in humid environment, please pull it out
when not use.
4.this product is applicable for the smart devices or Apps supporting
DLNA, Miracst and Airplay(Mirror) protocol, please contact the
manufacturer,editor or reseller to confirm whether your devices or
apps support the protocol.)
5.Videos and music downloaded from iTunes is not available for this
model
6.For any help,please contact us at [e-mail]
Prior to use

iPazzPort CarKarPlay is enhanced mobile entertainment center while
traveling in your car released by Unisen.If you want to utilize features
of the Internet for family viewing and recreation the iPazzPort
CarKarPlay provides you many new options.So if you like to watch
videos or Live Streaming content and movies,make Skype calls with
video,spend time on Facebook and Twitter,surf the Web,download
Google Apps,play games,access Dropbox and use your Samsung
cell phone’s GPS via a 7” LCD monitor,you can do it all with the
iPazzPort CarKarPLay.
iPazzPort CarKarPlay using the functions of Miracast and Google
Apps that support Miracast on your Samsung cell phone or Samsung
tablet will take you and the Internet mobile at a fraction of the cost
offered by systems that sell for thousands of dollars all with the luxury
of a 7”LCD monitor.The iPazzPort CarKarPlay is easy to use,
mountable on any flat surface regardless of surface angle and is
powered by the power of your car’s DC battery using the cigarette
lighter adaptor.
Just pick the spot you want the entertainment to flow and in literally
moments your family is enjoying everything the Internet can bring.
Or if you need GPS help locate the monitor strategically in a location
for driving assistance.
The CarKarPlay provides the processor to display Miracast on your
monitor,the cables for connection and the suction cup for placement
of the monitor,you only need your Samsung Galaxy III Phone or
above or Galaxy Tablet and a Miracast app from the Google Store.
Introduction
1

2
- 7 inch colour TFT LCD
- Support iOS and Android
- WiFi connected to smart phone/tablet
- Support DLNA, Miracast and Airplay(Mirror)
- Build in stereo speaker
- Build in car rear view system(option)
- Operation system: Linux
- Power supplied: car charger with 5V/2A
- Size: 190*140*29mm
- Weight: 304g
Features and specifications:

Mode Switch
(AV and HDMI)
Vol + Vol -
Power Switch
Menu
Product over view
DC 5V
Audio out
3

Installation
1. Fix the mount bracket with suction cup on the windscreen,
2. Install the KarPlay as below:
3. Connect the unit to car charger through supplied power cable:
push the tab down to fix the bracket
DC 5V
Audio out
DC 5V
Audio out
4

1. Android smart phone or tablet(support WLAN display):
1.1.In your android smart phone, go to “settings”, enable “WLAN”
then your mobile will scan and list the device name:
“iPazzPort_CarKarPlay_XXX”
1.2.Tap the device name to build connection
5
HOW TO USE
Local network
Device name Device IP address
KarPlay
Screen
WLAN
WLAN
iPazzPort_CarKarPlay
connected
Connected
iPazzPortgc
iPazzPortte
unisengroup
more
Available networks

1.3. After connection, back to “settings”, click “More”(under “Wireless &
Networks)
More WLAN display
VPN
Tethering&portable hotspot
WLAN Display
connect to display via WLAN
Enable WLAN display
Available devices
iPazzPort_CarKarplay_XXX
Find and tap “ WLAN display” Enable WLAN dispaly and select
“iPazzPort_CarKarplay_XXX”
CarKarPlay screen Mobile phone screen
1.4 Success
6
WLAN display
WLAN Display on iPazzPort_CarKarPlay_616
AVAILABLE DEVICES
iPazzPort_CarKarPlay_616
Session created.
WLAN display
WLAN Display on iPazzPort_CarKarPlay_616
AVAILABLE DEVICES
iPazzPort_CarKarPlay_616
Session created.

2.1.5.Choose“iPazzPort_CarKarPlay_XXX”,
turn on“Mirroring”,click “Done”.
7
2.iPhone/iPad
2.1.2. Tap it to build connection
2.1.1.Go to “settings”,find
“iPazzPort_CarKarPlay_XXX”
2.1.4.Tap “AirPlay”( )
iPhone
Screen
iPhone
Screen
2.1. Full screen mirror(support iPad3 and iPhone4S or above)
Settings WLAN
iPazzPort_CarKarPlay
Choose a network
iPazzPort
iPazzPortgc
iPazzPortte
unisengroup
more
Settings WLAN
iPazzPort_CarKarPlay
Choose a network
iPazzPort
iPazzPortgc
iPazzPortte
unisengroup
more
2.1.3. Open task bar after connect
AirPlay Done
iPhone
Mirror
iPazzPort_CarKarplay_XXX
Local network
Device name Device IP address
KarPlay
Screen

2.1.6 Success
iPazzPort_CarKarPlay screen iPhone screen
8

9
2.2.Using AirPaly to share local pictures,music and video(iPhone)
2.2.1.Photos/pictures sharing
iPazzPort_CarKarPlay_616
2.2.1.2. Tap it to build connection
2.2.1.1.Go to “settings”,find
“iPazzPort_CarKarPlay_XXX”
iPhone
Screen
Settings WLAN
iPazzPort_CarKarPlay
Choose a network
iPazzPort
iPazzPortgc
iPazzPortte
unisengroup
more
Settings WLAN
iPazzPort_CarKarPlay
Choose a network
iPazzPort
iPazzPortgc
iPazzPortte
unisengroup
more
2.2.1.3. After connection, back to
home page, find your photos and
select one of them to open
Airplay
2.2.1.4. Tap “AirPlay” indicated
as above
2.2.1.5. Select “iPazzPort_CarKarPlay_XXX”
indicated as above
iPhone
screen
KarCarPlay
Screen
2.2.1.6 Success

iPazzPort_CarKarPlay_616
2.2.2.4.Success
iPhone
screen
01:28 / 04:15
周杰伦
依然范特西
千里之外
CarKarPlay
Screen

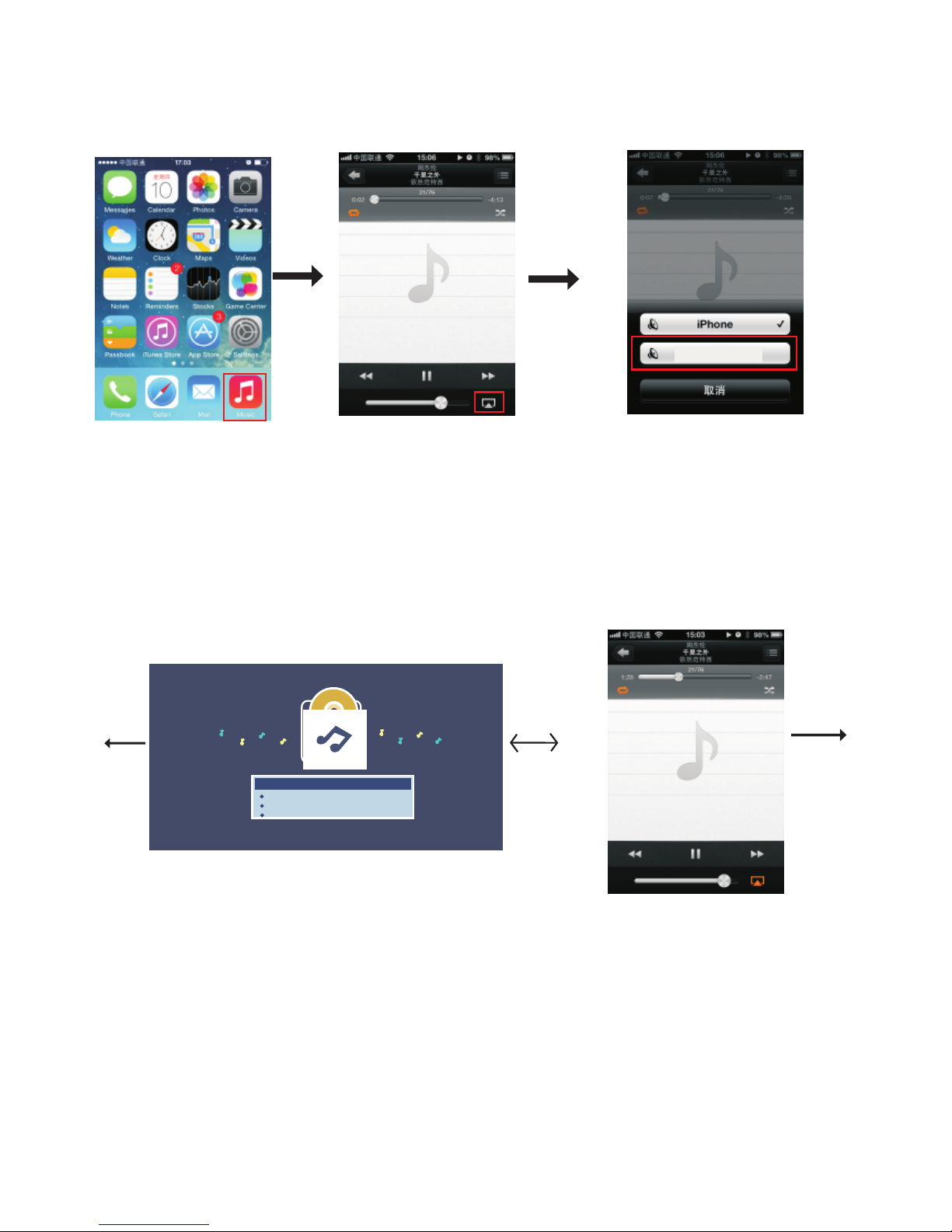

2.2.2.1 Open music 2.2.2.2. Tap “AirPlay”
indicated as above
2.2.2.3. Select “iPazzPort_CarKarPlay_XXX”
indicated as above
2.2.2 Local music sharing
10

2.2.3 Local video sharing
CarKarPlay
Screen
10
This video is played on iPazzPort_Karaplay_XXX
2.2.3.1 Open local video 2.2.3.2. Tap “AirPlay”
indicated as above
2.2.3.3. Select “iPazzPort_
CarKarPlay_XXX” indicated as above
iPazzPort_CarKarPlay_XXX
iPhone screen
2.2.3.4 Success
11

12
Before connecting the iPazzPort Cast to phone, please exit
the Apps run at the background and reconnect Wi-Fi
1.iOS
1.1.Close All Apps run on
background
1.2.Forget the Network 1.3.Choose the WiFi router
1.4.Enter Password
1.5.Connected successfully
1.6.Getting IP address
FAQ

13

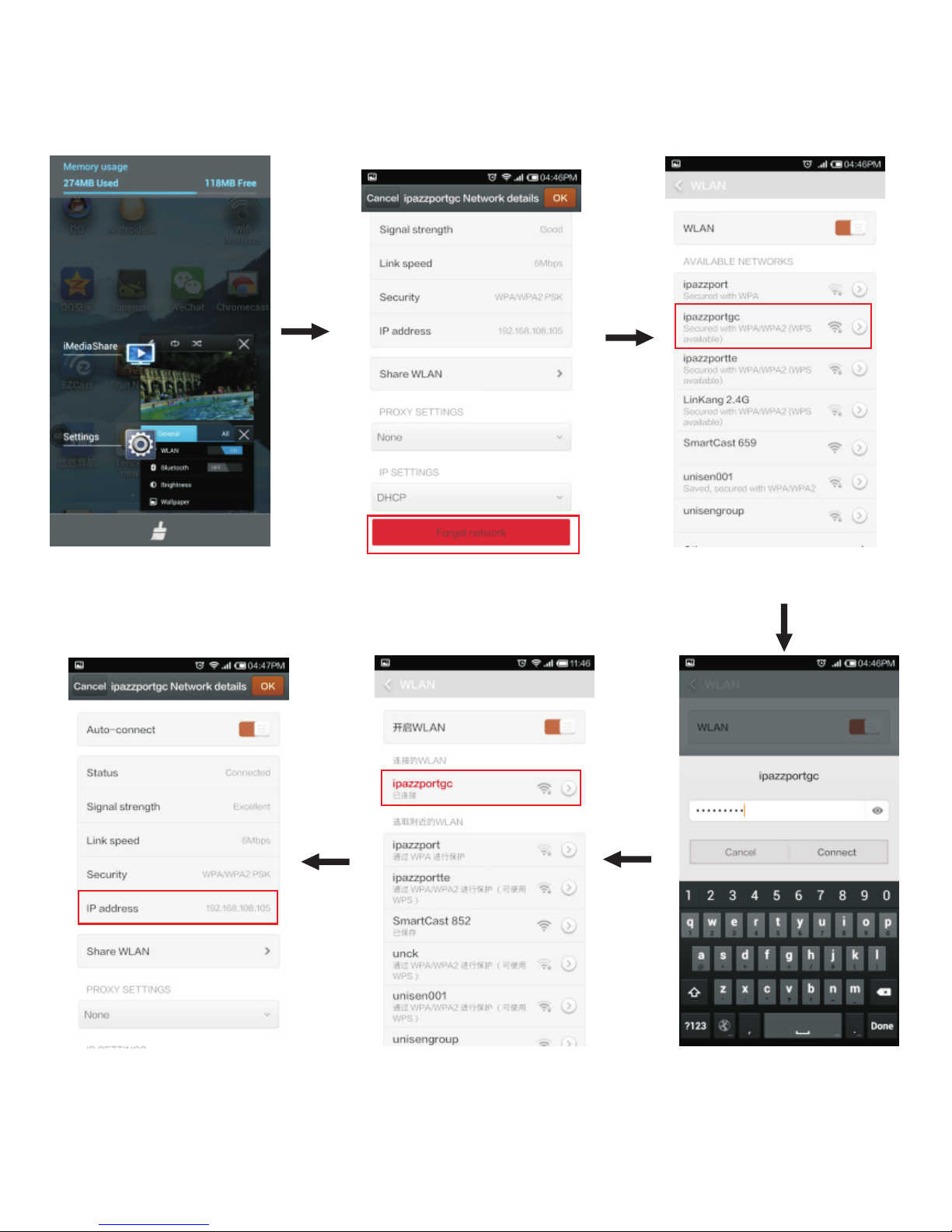

2.Android
2.2.Forget the Network 2.3.Choose the WiFi router
2.4.Enter Password
2.5.Connected successfully
2.6.Getting IP address
2.1.Close All Apps run on
background

3. when your CarKarPlay is connected to other local wireless network, your smart phone
can not find this deivce, please follow below steps to set it to default:
3.1. open mobile browser and input device IP address indicated on the right upper corner,
and enter below website:
3.2. click setup button indicated above to enter “Setup Option” page and tap “Reset to
Default”, then device will be disconnected from other local wireless network, and can be
searched by your smart phone.
