UNITI POWER SYMPHONY SPY6KIRTB User manual

UNITI POWER SYMPHONY
SPY6KiRT(B) & SPY10KiRT(B)
USER MANUAL
A RACKMOUNTABLE UNINTERRUPTIBLE POWER
SUPPLY PROVIDING UNITY POWER AND TRUE
ONLINE DOUBLE CONVERSION
Please visit www.unitipower.com for assistance
THE UNITI
POWER SYMPHONY 6k
VA –
10kVA
Download the app

2
SAFETY INSTRUCTIONS
KEEP THESE INSTRUCTIONS IN A SAFE PLACE
This manual contains important instructions that should be followed during the installation and maintenance of
the UPS and batteries.
UPS models operate at an optimal temperature of 20-25C
SPECIAL SYMBOLS
RISK OF ELECTRIC SHOCK – observe the warning associated with the risk of electric shock symbol
Important instructions that must always be followed
EU separate collection and lead content mark for lead-acid batteries. This indicates that the battery must not
be disposed of with the ‘normal’ household waste but separately collected and recycled
EU separate collection mark for waste electrical and electronic equipment (WEEE). This indicates that the
item must not be disposed of with the ‘normal’ household waste but separately collected and recycled
Information, advice, help
Refer to the user manual

3
SAFETY OF PERSONS
•RISK OF VOLTAGE BACKFEED. The system has its own power source (the battery). Isolate the UPS and
check for hazardous voltage upstream and downstream during lockout-tagout operation. Terminal blocks
may be energized even if the system is disconnected from the AC power source.
•Dangerous voltage levels are present within the system. It should be opened exclusively by qualified service
personnel.
•The system must be properly grounded.
•The battery supplied with the system contains small amounts of toxic materials. To avoid accidents, the
directives listed below must be observed:
-Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and the
required precautions.
-When replacing batteries, replace with the same type and number of batteries or battery packs.
-Do not dispose of batteries in a fire. The batteries may explode.
-Batteries constitute a danger (electrical shock, burns). The short-circuit current may be very high.
•Precautions must be taken for all handling:
-Wear rubber gloves and boots.
-Do not lay tools or metal parts on top of batteries.
-Disconnect charging source prior to connecting or disconnecting battery terminals.
-Determine if battery is inadvertently grounded. If inadvertently grounded, remove source from ground. Contact
with any part of a grounded battery can result in electrical shock. The likelihood of such shock can be reduced if
such grounds are removed during installation and maintenance (applicable to equipment and remote battery
supplies not having a grounded supply circuit).

4
PRODUCT SAFETY
•The UPS connection instructions and operation described in the manual must be followed in the indicated
order
•UPS enclosure IP rating IP20
•CAUTION: To reduce the risk of fire, the unit connects only to a circuit provided with a branch circuit
overcurrent protection of 20A rating, The upstream circuit breaker must be easily accessible
•For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be
incorporated externally into the equipment
•For PLUGGABLE EQUIPMENT, the socket outlet shall be installed near the equipment and shall be easily
accessible
•Check that the indications on the rating plate correspond to your AC powered system and to the actual
electrical consumption of all the equipment to be connected to the system
•Never install the system near liquids or in an excessively damp environment
•Never let a foreign body penetrate the system
•Never block the ventilation grates of the system
•Never expose the system to direct sunlight or source of heat
•If the system must be stored before installation, storage must be in a dry place
•The admissible storage temperature range is -25C to +55C without batteries, 0C to +40C with batteries – it is
advised that the batteries are stored below 25C
•This UPS can be used in TN-S/IT/TN-C/TT power systems
•This UPS may be installed with a maximum of 6 external battery modules
SPECIAL PRECAUTIONS
•The unit is heavy: wear safety shoes and suitable lifting equipment
•All handling operations will require at least two people (unpacking, lifting, installation in rack system)
•Before and after the installation, if the UPS remains de-energised for a long period, the UPS must be
energised for a period of 24 hours, at least once every 6 months (for a normal storage temperature of less
than 25C). This charges the battery, thus avoiding possible irreversible damage
•For three-phase AC input installation, this equipment complies with IEC 61000-3-12 provided that the short-
circuit power Ssc is greater than or equal to 3.63MW at the interface point between the user’s supply and the
public system. It is the responsibility of the installer or user of the equipment to ensure, by consultation with
the distribution network operator if necessary, that the equipment is connected only to a supply with a short-
circuit power Ssc greater than or equal to 3.63MW.
•During the replacement of the battery module, it is imperative to use the same type and number of elements
as the original battery module provided with the UPS to maintain an identical level of performance and
safety.
This is a category C3 UPS product. In a residential environment, this product may cause radio interference,
in which case the user may be required to take additional measures.

5
Contents
SAFETY INSTRUCTIONS .................................................................................................................................. 2
SPECIAL SYMBOLS ............................................................................................................................................... 2
SAFETY OF PERSONS ........................................................................................................................................... 3
PRODUCT SAFETY ................................................................................................................................................ 4
SPECIAL PRECAUTIONS ....................................................................................................................................... 4
1. INTRODUCTION ................................................................................................................................... 7
1.1 PRODUCT FEATURES ................................................................................................................................ 7
1.2 ENVIRONMENTAL PROTECTION ............................................................................................................... 7
2. PRODUCT OVERVIEW .......................................................................................................................... 8
2.1 WEIGHT AND DIMENSIONS ...................................................................................................................... 8
2.2 PRESENTATION ........................................................................................................................................ 9
3. INSTALLATION ................................................................................................................................... 11
3.1 UNPACKING & INSPECTING .................................................................................................................... 11
3.2 CHECKING THE ACCESSORY KIT .............................................................................................................. 11
3.3 INSTALLATION (UPS) .............................................................................................................................. 13
3.4 POWER CABLES CONNECTION ............................................................................................................... 15
3.4.1 INPUT/OUTPUT WIRING SPECIFICATIONS ...................................................................................... 15
3.4.2 WIRING FOR AC CABLE (AC SOURCE TO UPS) ................................................................................. 16
3.4.3 WIRING WITH EXTERNAL BATTERY MODULE (EBM) (DC SOURCE TO UPS) .................................... 16
3.4.4 WIRING WITH MBP ......................................................................................................................... 17
4. PARALLEL SYSTEM INSTALLATION AND OPERATION (OPTIONAL) ....................................................... 18
4.1 WIRING FOR AC CABLE ........................................................................................................................... 18
4.2 WIRING FOR PARALLEL SIGNAL CABLE ................................................................................................... 19
4.3 PARALLEL SYSTEM OPERATION .............................................................................................................. 19
5. OPERATION ....................................................................................................................................... 20
5.1 LCD PANEL .............................................................................................................................................. 20
5.2 LCD DESCRIPTION ................................................................................................................................... 22
5.3 DISPLAY FUNCTIONS .............................................................................................................................. 24
5.4 USER SETTINGS ...................................................................................................................................... 24
5.5 STARTING THE UPS WITH UTILITY POWER ............................................................................................. 26
5.6 STARTING THE UPS ON BATTERY ............................................................................................................ 26
5.7 UPS SHUTDOWN .................................................................................................................................... 26
6. COMMUNICATION ............................................................................................................................ 27
6.1 RS232 AND USB ...................................................................................................................................... 27
6.2 UPS REMOTE CONTROL FUNCTIONS ...................................................................................................... 27
6.3 IOT .......................................................................................................................................................... 28
6.4 MODBUS TCP ......................................................................................................................................... 28
6.5 INTELLIGENT CARDS (OPTIONAL) ........................................................................................................... 28
6.6 UPS MANAGEMENT SOFTWARE ............................................................................................................ 29
6.6.1 WINPOWER ..................................................................................................................................... 29
6.6.2 WinPower View App ....................................................................................................................... 30
7. UPS MAINTENANCE ........................................................................................................................... 31
7.1 EQUIPMENT CARE .................................................................................................................................. 31

6
7.2 TRANSPORTING THE UPS ....................................................................................................................... 31
7.3 STORING THE EQUIPMENT ..................................................................................................................... 31
7.4 REPLACING BATTERIES ........................................................................................................................... 31
7.5 RECYCLE ................................................................................................................................................. 31
8. TROUBLESHOOTING .......................................................................................................................... 32
8.1 TYPICAL ALARMS AND FAULTS: .......................................................................................................... 32
8.2 SILENCING THE ALARM .......................................................................................................................... 33
9. SPECIFICATIONS ................................................................................................................................ 34
9.1 UPS BLOCK DIAGRAM ............................................................................................................................. 34
9.2 UPS SPECIFICATION ................................................................................................................................ 35

7
1. INTRODUCTION
Thank you for selecting UNITI to protect your electrical equipment.
We recommend that you take the time to read this manual and take full advantage of the many features of the
UPS (uninterruptible power supply).
Before installing the UPS, please read the safety instructions. Then follow the indications in this manual.
1.1 PRODUCT FEATURES
The UPS protects your sensitive equipment from the most common power problems including power failures,
power sags, power surges, brownouts, line noise, high voltage spikes, frequency variations, switching transients,
and harmonic distortion.
Special characteristics:
•Double converter with pure sine waveform output
•Full digital control
•Output PF = 1
•High charger capability, the charger current is up to 12Amps
•Smart charging method to expand battery lifetime
•EBM quantity auto detection
•Communication ports: RPO, Dry in, Dry out, intelligent slot, USB, RS232
•IoT: Ethernet(default) and Wireless (optional)
•Dot-matrix LCD, it supports multi-language
•ECO Mode
•Start-able without battery
1.2 ENVIRONMENTAL PROTECTION
Products are developed according to an eco-design approach
Substances
This product does not contain CFCs, HCFCs or asbestos
Packing
To improve waste treatment and facilitate recycling, separate the various packing components.
•The cardboard we use comprises over 50% of recycled cardboard
•Sacks and bags are made of polyethene
•Packing materials are recyclable
Follow all local regulations for the disposal of packing materials
Product
The product is mainly made up of recyclable materials.
Dismantling and disassembly must take place in compliance with all local regulations concerning waste. At the
end of its service life, the product must be transported to recycling centres, re-use and treatment facilities for
waste electrical and electronic equipment (WEEE).
Battery
The product contains lead-acid batteries that must be processed according to applicable local regulations
concerning batteries.
The battery may be removed to comply with regulations and in view of correct disposal.

8
2. PRODUCT OVERVIEW
2.1 WEIGHT AND DIMENSIONS
The weight in this table is for reference only, please see the labels on the carton for details
Dimension ‘D’ is chassis only, not including panel.
Description
Net Weights (KG)
Dimensions: D x W x H (mm)
SPY6KiRT
15.8
540 x 438 x 86.3(2U)
SPY10KiRT
26.2
540 x 438 x 86.3(2U)
EBM2409RT3U
60.5
559 x 438 x 129(3U)
Optional accessories:
Type
Description
Remark
RT MBP
For 6/10kVA rackmount
SPY6KiRT & SPY10KiRT
Intelligent
card
Dry contact card (AS400)
See chapter 6.5
NMC card
MODBUS card (CMC)
EMP
Temperature and humidity
sensors
WLAN
WLAN module
Wireless connection for IoT
COMM cable
RS232 cable
For RS232 communication
Parallel kit
For parallel system
installation
See chapter 4
Battery cable
Battery cable (16 batt) for
UPS connection with users
own EBM
1.8m length
See chapter 3.4.3
Battery cable (20 batt) for
UPS connection with users
own EBM
Rail kit
Rail kit for installing UPS
into rack
See chapter 3.3.2
Gland kit
Glad kit for both models

9
2.2 PRESENTATION
SPY6KiRT & SPY10KiRT

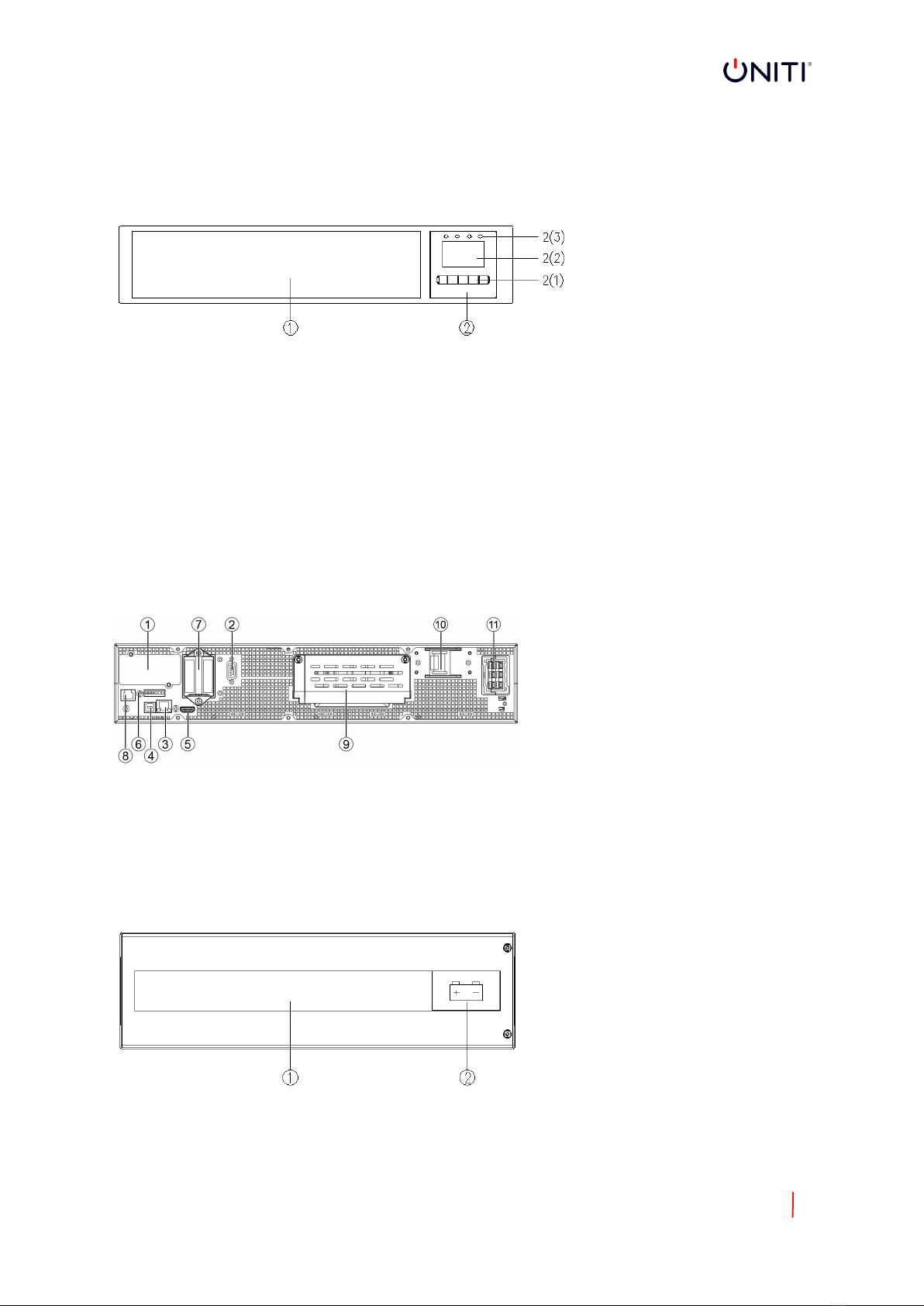

Front view
1. Ventilation area
2. LCD module, including 2(1)---button, 2(2)---LCD screen, 2(3)---LED indicator
Rear view
1. Intelligent slot
2. RS232
3. Ethernet port (RJ45, for IoT function)
4. USB
5. Wireless (HDMI, for IoT function)
6. RPO & Dry in / out
EBM
Front view
1. EBM label area
2. EBM label
7. Parallel slot
8. RJ45 (for EBM detection / rack MBP detection)
9. AC input / output port (terminal block)
10. Input breaker (optional)
11. External battery port

10
Rear view
1. Fuse board cover (replace EBM fuse)
2. EBM port 1
3. EBM port 2
4. EBM detection Box (RJ45 port)

11
3. INSTALLATION
It is recommended to move the equipment to the installation site by using a pallet jack or truck before unpacking.
The system may be installed only by a qualified electrician in accordance with applicable safet regulations.
Boxes may be heavy, please install with at least two people.
3.1 UNPACKING & INSPECTING
Unpacking the unit in a low-temperature environment may cause condensation occurred in and on the cabinet. Do not install
the unit until the inside and outside of the unit are absolutely dry (hazard of electric shock).
If any equipment has been damaged during shipment, keep the shipping cartons and packing materials for the carrier or
place of purchase and file a claim for shipping damage. If you discover damage after acceptance, file a claim for concealed
damage.
UPS:
EBM:
Note:
The cabinet is heavy, please see spec weight provided on the carton/label.
Do not lift the unit’s front panel and rear panel.
Discard or recycle the packaging in a responsible manner or store it for future use.
Packing materials must be disposed in compliance with all local regulations concerning waste.
3.2 CHECKING THE ACCESSORY KIT

12
Description
UPS
EBM
Battery Cable
o
√
EBM detection cable
√
USB cable
√
RS232 cable
o
Parallel cable
o
Tower foot
√
Extension plate of
tower foot
√
Rack ear
√
√
Rack rail kit
o
o
Quick start (EBM)
√
User manual (UPS)
√
Note: √ -- standard configuration; o – Optional, default is not configured

13
3.3 INSTALLATION (UPS)
These UPS support 2 installation modes: rack installation and tower installation
Always keep 500mm of space behind the UPS rear panel for ventilation.
Do not carry the front / rear panel of the module during installation
Rack installation
The procedure is suitable for 19-inch rack cabinet installation, it is recommended that the depth of the cabinet be
no less than 800mm.
UPS model
Identify the final position and keep 2U space for installation
1. Install the rail kit (if configured). This rail kit is 2U & with screw holes (M5), the depth of the rail kit is 443-
773mm.
Fasten the rail kit to the cabinet with 8pcs M5 screws + washers (as below)
2. Install ‘rack ear’ to the unit with M4 screws (flat head)
3. Slide the unit into the ‘rail kit’ and ensure the rack mounting screws are tightened

14
EBM model
Identify the final position and keep 3U space for installation. It is recommended to install below the UPS
1. Install the rail kit (if configured): same as UPS as above
2. Install ‘rack ear’ to the unit by the M4 screws (flat head)
3. Slide the unit into the rail kit and ensure the rack mounting screws are tightened
4.

15
Tower Installation
1. Rotate the LCD screen to the tower position
2. Set up the tower foot, then place the unit on to the tower foot.
EBM
1. Set up the ‘extension plate as below and install the tower foot from UPS.
2. place the UPS & EBM into the tower foot individually: place EBM module to the right of the UPS and
align with the front panel
3.4 POWER CABLES CONNECTION
This chapter introduces how to wire AC IN/OUT cable to UPS in different modes, and connect UPS to EBM
3.4.1 INPUT/OUTPUT WIRING SPECIFICATIONS
Before wring UPS, upstream breaker and backfeed contactor should be configured to avoid power backfeed to
UPS. “Backfeed voltage danger” warning label should be added in backfeed contactor or device. Before
operating, UPS input should cut off, and check all terminals voltage to avoid voltage dangerous. Backfeed
contactor rating current should be larger than UPS rating input current.
Below figures show the wiring system of UPS input and output
Danger!

16
The rated current of the utility power switch must be greater than the UPS input current, otherwise the utility
power switch may be burnt!
Recommended upstream protection and downstream switch:
UPS power rating
Upstream circuit breaker
Backfeed contactor
Downstream switch
6kVA
D curve – 63A
63A
40A
10kVA
D curve – 80A
80A
63A
Read the safety instructions regarding backfeed protection requirements. Recommended cable minimum cross-
sectional:
Model
6kVA
10kVA
Protective earthing conductor
10mm2
10mm2
Input L, N cable
6mm2
10mm2
Output L, N cable
6mm2
10mm2
Battery cable
6mm2
10mm2
The length of the output cable is recommended not to exceed 10 meters, otherwise, it may cause radio
interference. If a length of over 10m of output cable is required, please contact the distributor/vendor for details.
3.4.2 WIRING FOR AC CABLE (AC SOURCE TO UPS)
High leakage current:
Earth connection is essential before connecting supply
This type of connection must be carried out by a qualified electrical person
Before carrying out any connection, check that the upstream protection devices (normal AC source and bypass
AC source are open “O’ (off)
Always connect the ground wire first.
1. Remove the cover of the terminal block
2. Connect the AC cable to the terminal blocks:
For cables well fixed, it is recommended to tie these cables to the convex of the rear panel.
3.4.3 WIRING WITH EXTERNAL BATTERY MODULE (EBM) (DC SOURCE TO UPS)
1. Be sure to disconnect the battery cable from the EBM before connecting the battery terminals of the
UPS
2. Make sure the UPS is completely off before connecting or disconnecting the EBM

17
3. Before connecting the EBM, make sure that the EBM specification is compatible with UPS configuration.
4. Do not reverse the polarity of the external battery.
Connect with configured EBM:
Connect EBM to UPS with battery cable and EBM detection cable.
Note: Extend runtime with up to 6 EBMs per UPS.
Connect with the user’s own EBM:
Connect EBM to UPS with the battery cable (optional configuration)
Note:
1. If an additional battery cable is needed for installation, it must follow cable specifications and the
maximum length of battery cable is 10 meters.
2. If a length of battery cable over 10 meters is required, please contact the distributor or vendor for details.
3.4.4 WIRING WITH MBP
BBP is the rackmountable UPS system’s optional module, the UPS can be used with the MBP to implement the
maintenance bypass switching function to ensure that the output of the system is not affected during UPS
maintenance.
See the User Manual of RT MBP for details.

18
4. PARALLEL SYSTEM INSTALLATION AND OPERATION (OPTIONAL)
If your UPS is configured with a parallel function, up to 3 UPS can be connected in parallel to configure a sharing
and redundant output power.
In parallel, the mechanical installation for each module is the same as the single system. For details, please refer
to chapter 3.3.
Parallel system AC cable diagram:
4.1 WIRING FOR AC CABLE
1. Wiring length requirement
When the distance between the load and the parallel UPS is less than 10 meters, the length difference
between the input/output lines of the UPS systems in parallel must be less than 20%
When the distance between the load and the parallel UPS is greater than 20 meters, the length difference
between the input/output lines of the UPS systems in parallel must be less than 5%.
2. In the parallel system, common battery application is not supported. Independent EBM connect to each
UPS, please refer to chapter 3.4.3.
3. Professional installation is required, please set the parallel system in a restricted area.
Parallel system:

19
4.2 WIRING FOR PARALLEL SIGNAL CABLE
Parallel signal cable connection diagram:
Remove the cover of the parallel box, then connect each UPS one by one with the parallel cable, make sure
the cable is screwed to parallel port tightly.
It is recommended to lock the parallel cable as above for preventing the parallel ports suffering an unexpected
pulling force and causing the parallel system fault.
4.3 PARALLEL SYSTEM OPERATION
1. Turn on the input breakers for the parallel UPS
2. Pressing the button continuously of one UPS in the system, then the system will start to turn on and
enter line mode.
3. Regulate the output voltage of each UPS separately, and check if the output voltage difference is less
than 0.5V among the parallel system. If the difference is more than 0.5V, the UPS need to be regulated.
4. If the output voltage difference is less than 0.5V, press the button continuously on one of the UPS, the
system will turn off. Turn off the input breakers for the UPS to shut down. The switch on the output
breakers for all the UPS
5. Turn on the input breakers for the parallel UPS. Press the button continuously on one of the UPS
systems, then the system will start to turn on and enter line mode. The system will work normally in
parallel.

20
5. OPERATION
5.1 LCD PANEL
The UPS has a five-button graphical LCD screen. It provides useful information about the UPS itself, load status,
events, measurements and settings.
The LED:
Indicator
Status
Description
Green
on
The UPS is operating normally in Online or High
Efficiency Mode
Orange
on
The UPS is in Battery Mode
Orange
on
The UPS is in Bypass Mode
Red
on
The UPS has an active alarm or fault. See Chapter
8.1 Troubleshooting for additional information.
