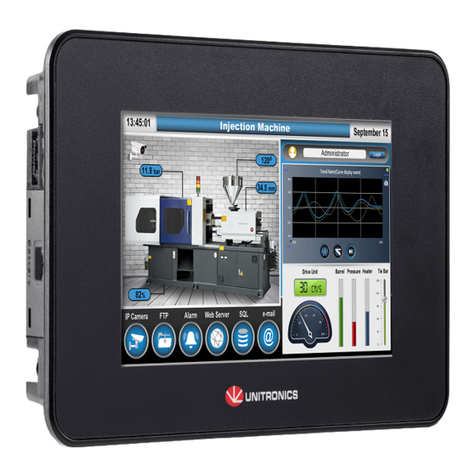

Unitronics UniStream USL-050-B05 User manual

Unitronics
1
UniStream®
Display
Installation Guide
USL-050-B05, USL-070-B05,
USL-101-B05, USL-156-B05
This guide provides basic installation information for UniStream®Display models. Displays
are compatible with UniStream®PLCs.
Technical specifications may be downloaded from the Unitronics website.
General Description
UniStream®Display models comprise resistive color touch-screens that support VNC client,
and are available in different dimensions.
Via VNC, UniStream®PLCs can access Displays to show HMI screens.
In addition to HMI screens, Displays support UniApps™, a built-in system that enables
the user to access communication settings, and manage the device.
Exact features are detailed in the product specification sheets.
Features
Resistive Color Touch-screens
1 Built-in RJ45 Ethernet port (USL-156-B05 has 2 ports)
1 USB host port for firmware updates (USL-156-B05 has 2 ports)
General Features of the UniStream PLC Series
Unitronics’ UniStream PLCs are DIN-rail mounted Programmable Logic Controllers (PLCs)
with a built-in I/O configuration.
The series is available in three versions: Pro, Standard, and Basic.
Note that a model number that includes:
B10 refers to Pro version (e.g. USC-B10-T24)
B5 refers to Standard version (e.g. USC-B5-RA28)
B3 refers to Basic version (e.g. only for USC-B3-T20)
Page 2 contains a comparison table detailing the features offered by the different models.
Exact features are detailed in the product specification sheets.
Power
Features
Built-in Trends and Gauges, auto-tuned PID, data tables, data
sampling, and Recipes
UniApps™: Access & edit data, monitor, troubleshoot & debug and
more
Security: Multi-level password protection
Alarms: Built-in system, ANSI/ISA standards
COM
Options
Built-in ports: 2 Ethernet, 1 USB host, 1 USB device port
Add-on ports (UAC-CB), available by separate order:
1 CANbus port may be added to all models
RS232/485 ports: according to model technical specifications
COM
Protocols
Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more.
Implement any serial RS232/485, TCP/IP, or CANbus third-party
protocols via Message Composer
Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM,
FTP Server/Client, Web Server, SQL, and MQTT.
Remote Access via any device that supports VNC.

UniStream®Display
2
Unitronics
Programming
Software
All-in-One UniLogic software for hardware configuration,
communications, PLC and HMI applications; free download.
HMI
All UniStream® PLCs can display HMI screens on the following devices:
UniStream Display (USL)
UniStream Modular HMI panel (USP)
UniStream Built-in (on the panels integral to the device)
Any device screen that supports VNC
HMI
HMI screens are designed in UniLogic. In addition to the HMI screens,
UniStream® PLCs offer built-in HMI features, including:
UniApps™: Access & edit data, monitor, troubleshoot, debug,
and more
Security: Multi-level password protection
Alarms: Built-in system, ANSI/ISA standards
USB Action
files
Programmers can create files in UniLogic and save them to a USB mass
storage device, such as a flash drive. This enables the end user to
implement certain actions such as to update firmware, update network
settings, download applications, extract log files and more.
Differences
between
B10, B5,
and B3
Feature
B10 Pro
B5 Standard
B3 Basic
I/O Expansion via Uni-I/O
Yes
No
Remote I/O Expansion via
Ethernet I/O Adapter (URB)
Up to 8
1
VFD
32
2
MicroSD
Yes
No*
Add-on COM modules
3
2
System Memory
6GB
3GB
3GB
MODBUS Slaves
Unlimited
Up to 8
Ethernet/IP Scanners
16
1
Ethernet/IP Adapters
32
8
Web Server
Yes
No
No
SQL Client
Yes
No
No
MQTT
Yes
PID Loops
64
2
Data Sampler/Trends
Yes
No
CSV files: creating/ reading
Yes
No
FTP, server/client
Yes
No
Saving Data Tables to SD
Yes
No*
Screenshots
Yes
No
Sending email attachments
Yes
No
USB device (programming port)
Yes
No**
* Note that B3 models do not support features requiring SD cards. In addition, Alarm
History is not retained after PLC reset.
** Note that B3 models may be programmed only via Ethernet cable.

UniStream®Display
Unitronics
3
Before You Begin
Before installing the device, the user must:
Read and understand this document.
Verify the Kit Contents.
NOTE
Throughout this document, images based on the USL-050-B05 apply to all models.
Alert Symbols and General Restrictions
When any of the following symbols appear, read the associated information carefully.
Symbol
Meaning
Description
Danger
The identified danger causes physical and property damage.
Warning
The identified danger could cause physical and property damage.
Caution
Caution
Use caution.
All examples and diagrams are intended to aid understanding, and do not guarantee
operation. Unitronics accepts no responsibility for actual use of this product based on
these examples.
Please dispose of this product according to local and national standards and regulations.
This product should be installed only by qualified personnel.
Failure to comply with appropriate safety guidelines can cause severe injury or
property damage.
Do not attempt to use this device with parameters that exceed permissible levels.
Do not connect/disconnect the device when power is on.
Environmental Considerations
Ventilation: 10mm space is required between the device top/bottom edges and the
enclosure’s walls
Do not install in areas with: excessive or conductive dust, corrosive or flammable
gas, moisture or rain, excessive heat, regular impact shocks or excessive vibration,
in accordance with the standards and limitations given in the product’s technical
specification sheet.
Do not place in water or let water leak onto the unit.
Do not allow debris to fall inside the unit during installation.
Install at maximum distance from high-voltage cables and power equipment.
Kit Contents
1 UniStream Display
4 mounting brackets
(USL-050-B05, USL-070-B05)
8 mounting brackets
(USL-101-B05)
10 mounting brackets
(USL-156-B05)
1 panel mounting seal
2 panel supports (except USL-050-B05)
1 power terminal block

UniStream®Display
4
Unitronics
Product Diagram
Front
Rear
1
Screen
Protection
A plastic sheet attached to the screen for protection. Remove it
during installation.
2
Ethernet port
Enables you to connect the Display to the UniStream PLC via
Ethernet cable.
Note that USL-156-B05 has 2 Ethernet ports.
3
USB Host port
Provides the interface for system updates and system log access.
Note that USL-156-B05 has 2 USB Host ports.
4
Power Supply
Input
Connection point for the Display power source.
Connect the Terminal Block supplied with the kit to the end of the
power cable.

UniStream®Display
Unitronics
5
Installation Space Considerations
Allocate space for:
the device
access to ports
For exact dimensions, please refer to the Mechanical Dimensions shown below.
Mechanical Dimensions
USL-050-B05

UniStream®Display
6
Unitronics
USL-070-B05

UniStream®Display
Unitronics
7
USL-101-B05

UniStream®Display
8
Unitronics
USL-156-B05

UniStream®Display
Unitronics
9
Panel Mounting
NOTE
Mounting panel thickness must be less or equal to 5mm (0.2”).
Ensure that the space considerations are met.
1. Prepare a panel cut-out according to the dimensions as shown in the previous section.
2. Slide the device into the cut-out, ensuring that the Panel Mounting Seal is in place as
shown below.
3. Push the mounting brackets into their slots on the sides of the panel as shown below.
Note that USL-050-B05 and USL-070-B05 models have 4 brackets, USL-101-B05 has 8
brackets and USL-156-B05 model has 10 brackets.
4. Tighten the bracket screws against the panel. Hold the brackets securely against the
unit while tightening the screws.
When properly mounted, the device is squarely situated in the panel cut-out as shown
below.
Caution
The necessary torque is 0.35 N·m (3.5 kgf·cm).
\

UniStream®Display
10
Unitronics
Wiring
This equipment is designed to operate only at SELV/PELV/Class 2/Limited Power
environments.
All power supplies in the system must include double insulation. Power supply
outputs must be rated as SELV/PELV/Class 2/Limited Power.
Do not connect either the ‘Neutral’ or ‘Line’ signal of the 110/220VAC to device’s 0V
point.
Do not touch live wires.
All wiring activities should be performed while power is OFF.
Use over-current protection, such as a fuse or circuit breaker, to avoid excessive
currents into the power supply connection point.
Unused points should not be connected (unless otherwise specified). Ignoring this
directive may damage the device.
Double-check all wiring before turning on the power supply.
Caution
To avoid damaging the wire, use a maximum torque of 0.5 N·m (5 kgf·cm).
Do not use tin, solder, or any substance on stripped wire that might cause the
wire strand to break.
Install at maximum distance from high-voltage cables and power equipment.
Wiring Procedure
Use crimp terminals for wiring; use 26-12 AWG wire (0.13 mm2–3.31 mm2 )
1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).
2. Unscrew the terminal to its widest position before inserting a wire.
3. Insert the wire completely into the terminal to ensure a proper connection.
4. Tighten enough to keep the wire from pulling free.
Wiring Guidelines
In order to ensure that the device will operate properly and to avoid electromagnetic
interference:
Use a metal cabinet. Make sure the cabinet and its doors are properly earthed.
Individually connect each functional ground point ( ) to the earth of the system
(preferably to the metal cabinet chassis).
Use the shortest and thickest wires possible: less than 1m (3.3’) in length, minimum
thickness 14 AWG (2 mm2).
Connect the power supply 0V to the earth of the system.
Earthing the cables' shield:
Connect the cable shield to the earth of the system (preferably to the metal
cabinet chassis). Note that the shield must be connected only at one end of the
cable; it is recommended to earth the shield at the Display-side.
Keep shield connections as short as possible.
Ensure shield continuity when extending shielded cables.

UniStream®Display
Unitronics
11
NOTE
For detailed information, refer to the document System Wiring Guidelines,
located in the Technical Library in the Unitronics’ website.
Wiring the Power Supply
The device requires an external power supply.
In the event of voltage fluctuations or non-conformity to voltage power supply
specifications, connect the device to a regulated power supply.
Connect the +V and 0V terminals as
shown in the accompanying figure.
Connecting Ports
Ethernet
CAT-5e shielded cable with RJ45 connector
USB Host
Standard USB Type-A plug
Uninstalling the Device
1. Disconnect the power supply.
2. Remove all wiring.
3. Unscrew and remove the mounting brackets, taking care to support the device to
prevent it from falling during this procedure.

UniStream®Display
12
Unitronics
Connecting the Display to a UniStream®
1. After the device is powered on,
select the Network tab at the
bottom of the screen.
2. Enter the IP Address for the VNC
connection, a password if one is
required by the VNC server, edit
the timeout if required, and then
tap Apply.
To add connections, tap the
Connection scroller and repeat the
steps above
1. When a connection is defined,
the Connect button is activated;
tap it to initiate the VNC
connection.
With Exit
Selecting the With Exit option places
an Exit VNC button on screen during
a VNC session. This can be tapped in
order to exit to UniApps.

UniStream®Display
Unitronics
13
Upgrading Firmware
1. Place a USB flash drive
containing the firmware update
into the USB port.
2. Select the System tab, tap
Upgrade, and follow the on-
screen instructions.
Note that Firmware updates are
located on the Unitronics website, on
the UniLogic page, under Download
Software.
The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole
discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or
temporarily withdraw any of the forgoing from the market.
All information in this document is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to any implied
warranties of merchantability, fitness for a particular purpose, or non-infringement. Unitronics assumes no responsibility for errors or omissions in the
information presented in this document. In no event shall Unitronics be liable for any special, incidental, indirect or consequential damages of any kind, or
any damages whatsoever arising out of or in connection with the use or performance of this information.
The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or
other third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them
DOC30022-A3 REV. A01 09/20
