UP Paragliders K24 User manual

______________________________________________________________________________
1
Owner's Manual
and Service Booklet
Serial Number:__________________________
The data and statements contained within this manual may be changed without prior notice. No
part of these documents may be copied or transmitted for any purpose in any manner or by any
means, either electronic or mechanical, without explicit written permission from UP International.
© 1995-2020 UP International
Inhaltsverzeichnis
Version 1.0
Effective: 11/2020
Updated: 11/ 2020

______________________________________________________________________________
2
WELCOME IN OUR TEAM........................................................................................................... 4
SAFETY INSTRUCTIONS............................................................................................................ 5
CORRECT BEHAVIOUR IN RELATION TO THE ENVIRONMENT .............................................5
TECHNICAL DESCRIPTION........................................................................................................ 5
PURPOSE ..................................................................................................................................6
LTF AND EN CLASSIFICATION...................................................................................................... 6
TARGET GROUP AND RECOMMENDED FLYING EXPERIENCE............................................................. 6
NECESSARY SKILLS FOR NORMAL FLIGHTS....................................................................................6
NECESSARY SKILLS FOR DEALING WITH DISTURBANCES.................................................................6
NECESSARY SKILLS FOR DEALING WITH RAPID DESCENT METHODS................................................. 6
SUITABILITY FOR TRAINING.......................................................................................................... 6
RECOMMENDED WEIGHT RANGE..................................................................................................6
OPERATING LIMITS .....................................................................................................................7
TECHNICAL DATA UP K24.........................................................................................................8
FRONT SECTION SUPPORT .........................................................................................................9
CANOPY MATERIAL .....................................................................................................................9
LINE MATERIAL........................................................................................................................... 9
LINE SYSTEM .............................................................................................................................9

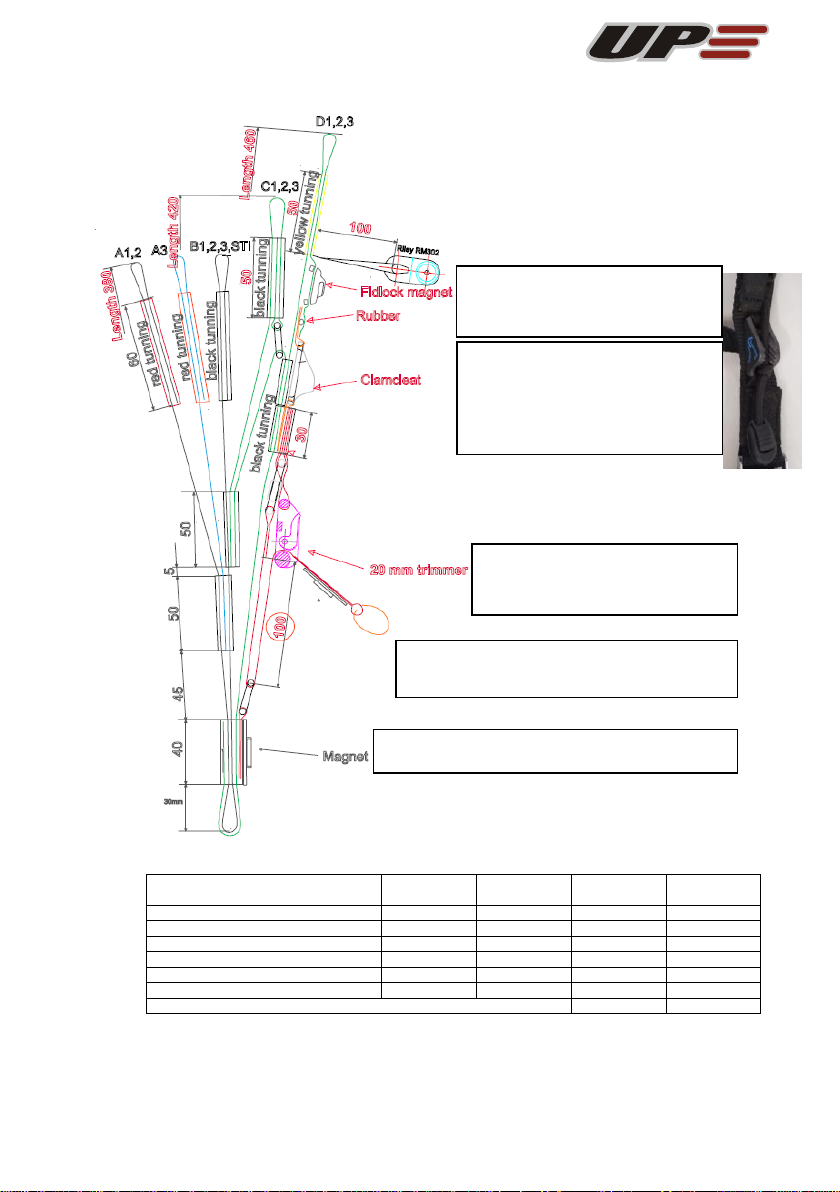

RISERS.................................................................................................................................... 10
SOFT SPREADER BAR (OPTIONAL)..............................................................................................10
BEFORE THE FIRST FLIGHT.................................................................................................... 12
ADJUSTMENTS ......................................................................................................................... 12
POSITION OF THE BRAKES......................................................................................................... 12
SUITABLE HARNESSES.............................................................................................................. 12
RESCUE SYSTEM...................................................................................................................... 13
USE OF THE UP K24.................................................................................................................13
AEROBATICS............................................................................................................................ 13
PPG.......................................................................................................................................14
FLYING WITH PASSENGER ......................................................................................................... 14
FLIGHT PRACTICE AND SAFETY............................................................................................ 14
FLIGHT PRACTICE ................................................................................................................... 14
PRE-FLIGHT CHECK .................................................................................................................. 14
ATTACHMENT TO SPREADER BAR............................................................................................... 15
Soft spreader bar............................................................................................................... 15
TAKE-OFF ............................................................................................................................... 16
SPEED CONTROL...................................................................................................................... 16
Using the brakes................................................................................................................ 16
Using the trimmers............................................................................................................. 16
TURNING ................................................................................................................................. 17
LANDING..................................................................................................................................17
WINCH TOWING........................................................................................................................ 17
Attaching the towline release system ................................................................................. 18
FLIGHT SAFETY........................................................................................................................ 18
THERMALS AND TURBULENCE ................................................................................................... 18

______________________________________________________________________________
3
GETTING DOWN FAST................................................................................................................ 18
STEEP SPIRAL DIVE.................................................................................................................. 19
B- STALLS ............................................................................................................................... 19
BIG EARS ................................................................................................................................ 19
FLYING OUTSIDE THE NORMAL FLIGHT ENVELOPE ........................................................... 20
BEHAVIOUR IN EXTREME SITUATIONS ......................................................................................... 20
COLLAPSING THE PARAGLIDER ..................................................................................................20
Asymmetric collapse..........................................................................................................20
Cravatte.............................................................................................................................21
Full frontal collapse............................................................................................................ 21
THE STALLS ............................................................................................................................. 21
Deep Stall.......................................................................................................................... 21
Full Stall............................................................................................................................. 22
Spin...................................................................................................................................22
WINGOVERS ............................................................................................................................22
EMERGENCY STEERING............................................................................................................ 22
FURTHER REFERENCES ............................................................................................................23
Rain-induced deep stall......................................................................................................23
Adhesive logos .................................................................................................................. 23
Overloading.......................................................................................................................23
Salt water........................................................................................................................... 23
MAINTENANCE AND CLEANING............................................................................................. 24
TAKING CARE OF YOUR PARAGLIDER..........................................................................................24
Packing the wing................................................................................................................ 24
Paraglider fabric................................................................................................................. 25
Paraglider lines.................................................................................................................. 25
Storage and transport........................................................................................................26
CLEANING................................................................................................................................26
CHECKS AND REPAIRS........................................................................................................... 26
MAINTENANCE ......................................................................................................................... 26
Change of trimmer webbing...............................................................................................26
Airworthiness Check..........................................................................................................27
UP Craftsmanship.............................................................................................................. 27
Spare parts........................................................................................................................ 27
UP WARRANTY........................................................................................................................ 27
National warranty conditions.............................................................................................. 27
International UP warranty...................................................................................................27
CHECKING THE UP K24............................................................................................................. 28
SENDING THE UP GLIDER AND OTHER UP PRODUCTS.................................................................. 28
ATTACHMENT............................................................................................................................. 0
LINE MAP...................................................................................................................................0
SERVICE BOOKLET .....................................................................................................................2

______________________________________________________________________________
4
Important
The following symbols are used to draw attention to particular sections:
WARNING!
Failing to comply with instructions given here may
lead to injury or death!
BEWARE!
Failing to comply with instructions given here may
cause undue wear to, or even damage your new
wing.
NOTICE
This pictogram indicates a tip or some helpful extra
knowledge.
Welcome in our team
Congratulations on the purchase of your new UP K24. UP International is renowned across the
globe for designing and building the finest paragliders available –paragliders characterised by
maximum safety, performance and quality in every aspect.
Please take a little time to register your glider. This way we can keep you informed of all new
products and developments at UP, as well as any technical information about the UP K24.
We would also be delighted to hear any feedback you have concerning the glider. This is only
possible once we have received your product registration online. Your completed product registra-
tion is also needed should any warranty issues arise.
http://www.up-paragliders.com/en/service/product-registration
If you have any questions regarding your paraglider or auxiliary equipment please ask your local
dealer or feel free to contact us here at UP directly.
UP International GmbH
Kreuzeckbahnstraße 7
D-8267 Garmisch-Partenkirchen
info@up-paragliders.com
+9 (0)8821 73099-0
Have fun with your new UP K24!
UP International

______________________________________________________________________________
5
Safety instructions
Paragliding is an extremely demanding sport requiring the highest levels of attention, judgement,
maturity, and self-discipline. Due to the inherent risks in flying this or any paraglider, no warranty
of any kind can be made against accidents, injury, equipment failure, and/or death. This glider is
not covered by product liability insurance. Do not fly it unless you are personally willing to assume
all risks inherent in the sport of paragliding and all responsibility for any property damage, injury,
or death, which may result from use of this paraglider.
Please read this owner's manual thoroughly before your first flight with the UP K24so that you are
fully acquainted with your new glider. This manual gives you information on the entire specific and
general flying characteristics of the UP K24, but it does not replace attending a paragliding school.
It is important to note the following points:
at the time of delivery the UP K24conforms to LTF NFL II-91/09 and EN 926-2:2014
requirements (see certification information later in this manual),
any changes being made outside the permitted range of adjustment invalidate any and all
claims under the warranty,
using this paraglider is exclusively at the risk of the user; the manufacturer or distributor
assumes no responsibility for accidents occurring while using it,
it is assumed that the pilot is in possession of the necessary qualifications and provisions of
any relevant laws are observed,
When reselling the wing please make sure you also give this manual to the new owner. The man-
ual is an integrated part of the paraglider and is required for the wing to keep its certification
Correct behaviour in relation to the environment
Paragliding is a particularly nature-friendly sport. This makes it all the more important that we as
paraglider pilots behave in a responsible way towards both the environment and the people shar-
ing it with us. We encourage you to treat nature with respect, to stay on marked hiking trails when
walking to takeoff or hiking out from an XC landing, to avoid unnecessary noise, to never litter and
to observe all local regulations.
Please also make sure to comply with legislation regarding protected areas, privately owned
property or hunting arenas –this ensures the least possible friction in relation to other users of the
great outdoors, to the benefit of both yourself and the sport as a whole.
Technical description
The UP K24was developed by UP to satisfy the demand of tandem pilots for a fast and secure
tandem paraglider with outstanding take-off attributes and easy handling.
As with all UP products, the materials used have been carefully chosen for their outstanding
quality and strength, to guarantee a long and trouble-free service life.
Further construction details, including line lengths, are included in the certification specification
sheets, which form part of this manual. Any technical changes will appear in the appendix and on
our website.

______________________________________________________________________________
6
Purpose
According to LTF 91/09 the K24is an air sport vehicle (class paraglider) with an empty weight of
less than 120 kg.
LTF and EN classification
The UP K24is certified to the following classification for both sizes: LTF09/EN B
Target group and recommended flying experience
The K24is ideally suited for both recreational pilots who want to enjoy relaxed thermal and cross-
country flights with passenger as well as for professional commercial use. Regular flight experi-
ence and advanced technical flight knowledge with at least 20-30 flight hours per year are re-
quired.
Necessary skills for normal flights
Due to the somewhat shorter brake line travel (compared to EN A wings)*, the reduced roll damp-
ening and the dynamic handling, the flying and handling behavior of paraglider in this class re-
quires advanced, precise skills along with the ability to fly instinctively and intuitively.
Necessary skills for dealing with disturbances
The glider behavior in connection with disturbances requires somewhat higher skills than what is
the case on LTF/EN A wings. The pilot must possess a certain amount of automated reactions
and be able to react quickly to incidents. We recommend making sure that you have the skills to
sense disturbances before they happen, and to deal with them correctly once they do. Of particu-
lar importance here are adequate skills for dealing with asymmetrical or frontal collapses. Should
you not feel fully up to the task we recommend visiting a SIV clinic with your new wing
Necessary skills for dealing with rapid descent methods
The behavior during maneuvers for rapid descents in this class can be demanding. The pilot
should possess adequate skills for the safe execution of these rapid descent maneuvers. In case
of insufficient skills or experience in this department we strongly recommend partaking in an SIV
course with the new wing.
Suitability for training
The UP K24is suitable for the training of future tandem pilots who have already completed training
as a solo pilot and who have already acquired the nationally valid requirements for training as a
tandem pilot.
Recommended weight range
The UP K24should be flown within the stipulated takeoff weight limits, found in the “Technical
data” section of this manual. The weights mentioned are total launch values, including glider, pilot,
passenger, harness, all clothing etc. The easiest way to find your own total launch weight is to
jump onto your scales with the complete backpack containing all your kit on your back, then
weighing the passenger and adding the two numbers. The UP K24responds to load changes by
flying either marginally faster or slower, depending on whether you in- or decrease the load. The
glide ratio in still air is not affected, and the minimum sink rate only insignificantly so.

______________________________________________________________________________
7
Operating limits
For the commissioning of the K24, compliance with the operating limits must be ensured for the
entire duration of the flight, including preparation and follow-up. These are exceeded as soon as
one of the following points applies:
•Flying with a number of seats that does not correspond to the certification
•Failure to comply with the respective upper and lower TOW
•Temperatures of more than -30° C or more than 50° C
•Flying in rain, snowfall, in clouds or fog or with a wet canopy for any other reason
•Impermissible modifications to the canopy, lines or risers
•Acrobatics and maneuvers with a bank angle of more than 90°
•Wind speeds at the take-off site and expected wind speeds in flight that are higher than
2/3 of the usable speed with the take-off weight intended for the flight
•Turbulent weather conditions that lead to extreme flight conditions outside the flight
conditions tested in the certifciation

______________________________________________________________________________
8
General overview
Size SM ML
Surface area flat [m²] 37,2 41,2
Surface area projected [m²] 31,8 35,2
Flat span [m] 14,2 14,9
Projected span [m] 10,9 11,5
Flat aspect ratio 5,4 5,4
Projected aspect ratio 3,8 3,8
Number of Chambers 52 52
Total line length incl. Brake [m] 253 269
Total # of lines incl.Brake
266 266
Glider weight [kg] 7,2 7,7
Takeoff weight [kg] 110-200 130-230
maximum symmetrical steering travel at
maximum weight [cm]
65 65
Accelerator travel [cm]
Number of risers (split A-risers) 4+1 4+1
Trimmer Yes Yes
Maximum trimmer travel [mm] 80 80
LTF/EN Category B * B
Description Solo&Tandem Tandem
* pending
Technical Data UP K24

______________________________________________________________________________
9
FSS
Front Section Support
UP was first with the Aerofoil Stabilising System, an idea that
has since been widely accepted in the industry. The K24 uses
a modified version of the same, and we have chosen to call
this the FSS. Instead of Mylar® the FSS comprises a Nylon®
batten that defines the leading edge curvature and helps keep-
ing the cell opening open at all times. This Nylon® batten is
insusceptible to bending damage and has no ageing properties
–it will normally outlast the rest of the canopy by a good mar-
gin. This means that the UP K24 will retain its perfect launch-
ing characteristics all through its service life. In the unlikely
event that a batten should break it can be replaced in a few
easy steps –please refer to the chapter “Replacing FSS bat-
tens” for guidelines.
Canopy material
The K24consists of a mixture of Porcher and Dominico fabrics:
Top Sail Front/Leading Edge Skytex 42 Everlast
Designs stripes small/wide Skytex 38 Universal
Top sail rear Skytex 38 Universal
Bottom sail Dominico 20 DMF
Ribs, V-Ribs, H-stripes Skytex 40 Hard
Line material
The lines used on the UP K24are sheathed and unsheathed Dyneema®- lines made by Edelrid,
Liros and Cousin in different diameters. Details can be found on the website in the current line
plan.
Line system
The lines of each wing section consist of four groups and the brake lines:
A-Level: Amain1, Amain2, Amain3
B-Level: Bmain1, Bmain2, Bmain3, STI
C-Level: Cmain1, Cmain2, Cmain3
D-Level: Dmain1, Dmain2, Dmain3
Brake lines : BRKI
The brake lines are collected at one main control line per side. This control line runs through a
pulley attached to the C-Riser and is marked with a black dot at the point where it should be tied
to the brake handle swivel. The brake is pre-set so that the glider is at 0 degree brake when the
toggle is free. Please don’t change the main brake lines without checking the new length carefully
at a suitable training hill before flying! The line bundles (AI-II, AIII, B,C and D) are colour coded for
easy identification and handling. All main lines of each level are looped together and attached to
delta quick links, which are connected to the risers. The quick links have special line collectors to
prevent lines slipping.

______________________________________________________________________________
10
Dimensions and adjustment range Position 1 Position 2 Position 3
Height difference
pilot to passenger
Distance main suspension (red) - pilot (blue) [mm] 420 360 300 -60
Distance main suspension (red) - passenger (green) [mm] 360 360 360 0
Adjustment path of the height adjustment [mm] 0 120 240 60
Risers
The split A and B risers are color-coded to ensure clear identification for take-off, big ears and
when descending using the B-stall.
A / A3 riser: red
B-riser: black
C -belt: black
D-riser: yellow
UP has equipped the UP K24with a newly developed riser with trimmers on D. This allows the
angle of attack of the canopy to be changed. The trimmer setting is described in more detail in the
chapter "Speed control using a trimmer".
Soft spreader bar (optional)
Upon request, the K24 can be supplied with a height-
adjustable soft spreader. This can be used to compensate
the height difference between pilot and passenger. There-
fore green markings are applied to the adjustment device at
a distance of 120mm. By pulling on the red loop, the length
of the distance between the pilot and the main suspension
can be varied as follows:
More details about the use can be found in the chapters below.
Soft spreader

______________________________________________________________________________
11
Risers of UP K24
Fidlock: to fix the brake handles when
folding the glider
Maximum load 15 dAN - only insert from
below or loosen from below
Rubber / Clamcleat: The rubber is clamped
into the clamcleat before the start in order to
avoid the lines getting caught during the
start
For big ears remove the elastic to fix the
Am3-0 leash (for details see section "Big
Ears")
Magnet: is used to fix the trimmer tape in flight to prevent it
from fluttering around
Trimmer strap: The trimmer can also be put on with gloves
in flight via the red loop
To fly with a trimmer see section "Speed control"
Trimmer: to release the trimmer, press the
clamp buckle with your thumb
To fly with a trimmer, see section "Speed
control"
Riser length [mm]
SM, ML closed
Trimmer
SM, ML open
Trimmer
M, L
M, L
accelerated
A I, II 380 380 0 0
A III 380 380 0 0
B I, II, III, STI 380 380 0 0
C I, II, III 370 420 0 0
D I, II, III 360 460 0 0
Trimmer Travel 100 0 0
Measurement with 5dAN on each riser - tolerance +/-5mm

______________________________________________________________________________
12
Before the first flight
The UP K24is delivered with an inner bag and compression strap and repair material. The manual
must be downloaded from the UP website. Every K24delivered has been minutely checked at the
factory, and corresponds exactly to the wing certified by DHV.
Der UP K24wird mit Innensack, Kompressionsbandband und Reparaturmaterial geliefert. Optional
ATTENTION! The K24must be test-inflated on flat ground, and the first flight must be
carried out by a professional, before the wing is delivered to its new owner.
Adjustments
The UP K24has undergone an extensive development program and series of flight tests to ensure
that the production model exhibits the optimum characteristics with regard to safety, handling and
flight performance. As with all products from UP International, the UP K24is manufactured to the
highest quality and precision. The line lengths of each glider are individually checked and record-
ed before dispatch. Under no circumstances should the lengths of the lines or risers of the UP K24
be altered in any way.
WARNING! Any change to the configuration of the wing will invalidate certification!
The only change allowed is to the length of the lower brake line. This should only be
done by an experienced person.
Position of the brakes
The UP K24is delivered from the factory with the best brake position for most pilots. But tall or
short pilots, or those with a harness with non-standard attachment points might consider it neces-
sary to change the position of the brake handles.
If the brakes are to be shortened, it is extremely important to avoid the adjustment affecting the
glider's trim speed. There must always be some slack in the brakes when they are fully released.
This can be checked with the glider inflated above the pilot's head. There should be a noticeable
bow in the brake lines, and the brakes should be having no effect on the shape of the trailing
edge. If the brake lines are to be lengthened, it is important to ensure that the pilot can still stall
the canopy (i.e. during extreme manoeuvres or landing) without the need to wraps the brake line.
If you do feel the need to change the brake line lengths, do so a little (3-4 cm) at a time, and
preferably whilst at an easy training slope. Check especially that both lines are the same length,
as any asymmetry will lead to tiring and possible dangerous flying characteristics.
If you have any questions or concerns with reference to the brake line lengths then seek advice
from either your UP dealer or directly from UP International.
BEWARE! Loose or incorrect brake knots can cause serious accidents through loss
of the steering of the glider!
Suitable harnesses
The K24 can be flown with any harness with the main suspension point at around chest height.
The lower the suspension points the more the harness will respond to weight shift.
The recommended distance between the karabiners depends on the pilot weight:

______________________________________________________________________________
13
<50kg: 38cm
50-80kg: 42cm
>80kg: 46cm
This dimensions were also used during the EN/LTF certification flights. The harness design
should also guarantee that it is possible to accelerate the UP K24 up to the maximum speed.
Please note that different harnesses can cause very different wing characteristics in extreme
situations (like increased risk of twists with cocoon harnesses).
Note that the height of the hang point also affects the brake line length. If you have a question
about your harness, contact your dealer.
Rescue system
It is strongly recommended that you have a rescue system (reserve parachute) fitted at all times.
In some countries it is mandatory, so check if you plan to travel. Make sure that the reserve sys-
tem you have is the correct size, and that you are fully conversant with its use. For fitting the
reserve system, follow the instructions of the harness manufacturer.
The rescue attachment line of the reserve
parachute must be attached to the connection
between the riser and the spreader bar in order to
enable an emergency landing with the passenger
as controlled as possible when the reserve
parachute opens. When using the UP soft
spreader, this is done using a quick link with a
minimum breaking load of 2400 dAN, which is
attached to the bottom of the main suspension. To
do this, the connecting line to the harness is led
through the neoprene cover on the underside of
the spreader by opening the Velcro fastener. The
mandatory two-seater rescue system must be
attached in such a way that it cannot be
unintentionally triggered by the passenger or the
pilot. Furthermore, the instructions of the rescue
system and harness manufacturer must be
observed
WARNING! Under no circumstances the rescue device may be attached on the pilot's
harness only, since if the reserve parachute is deployed, the passenger swings under
the pilot and is therefore exposed to an extreme risk of injury when landing.
Use of the UP K24
The UP K24has been developed and tested solely for foot launched and winch launched paraglid-
ing flights. It is not allowed and potentially dangerous to use the glider for any other purpose.
Aerobatics
The UP K24has not been developed, tested or built for aerobatics use.
Soft spreader

______________________________________________________________________________
14
WARNING! The glider has not been certified for aerobatics. Performing aerobatics
with the UP K24or any other paraglider can be very dangerous. Doing aerobatics can
induce flying configurations well beyond the tested flight envelope, and can lead to
total loss of control. Aerobatics can also overload your glider and break it in flight.
PPG
The UP K24has not been tested for use with any kind of engine. If you wish to fly your UP K24
with an engine please get in touch with the manufacturer of the engine unit, with UP International
GmbH and with the governing body for ultralight flying in your area, to check on certification of this
configuration.
Flying with passenger
The UP K24is designed for two-seat operation. The size SM is also approved for single-seat
operation. This paraglider is not approved for multi-seat (more than two people) operation.
All persons and items of equipment involved in flight operations must have the required certifi-
cates of qualification or approvals - especially for two-seater flying paragliders - in order to be able
to guarantee safe flight operations. This applies to the pilot, passenger, both harnesses, rescue
system and two-seater spreader.
Flying with a passenger is one of the most demanding tasks that paragliding has to offer. The pilot
shares the fascination of paragliding with his passengers in a simple way. In addition to the tech-
nical and prescribed requirements (see above), he should also be aware of the responsibility for
the passenger and take the individuality of each passenger into consideration. Those who meet
these requirements will provide passengers with an unforgettable flight experience and share the
joy of flying with them.
Flight practice and safety
Both of the following chapters (Flight practise and Flight safety) describe fundamental aspects of
flying paragliders. In no way do they substitute proper training, nor should any of the content
therein be unknown to any pilot who has chosen to fly a paraglider like the UP K24 .
Flight practice
Pre-flight check
Make sure whenever you get your UP K24 back from somebody else to check the glider very
carefully if you are not the only pilot flying it. Ask if there was anything that could have damaged
any part of the glider, if the pilot has found any part that needs to be replaced or if they noticed
any strange flight behaviour. Make sure you do the same when you lend your glider to somebody
else. A thorough pre-flight inspection should be performed prior to each flight. A careful pre-flight
check is a must for any and all airplanes –also the UP K24 . Please apply the same care and
attention before EVERY flight!
Before every launch you should carry out the standard 5-point checking procedure. It is a good
idea to do the checks following the same sequence every time to minimize the risk of omitting
something.
1. Unpack and arrange your glider in a semi-circular manner. This shape ensures that the
centre cells inflate before the tips. When unfolding your glider, observe the wind direction
and arrange your glider so that it is pointed directly into the wind.

______________________________________________________________________________
15
2. The lines must be arranged so that there are no tangles and the A-lines are uppermost.
Once the lines are free and untangled, check to make sure that they all go directly from the
riser to the glider without going over the top of the wing. Launching with a line over the wing
is extremely dangerous! It is also important that the brake lines are free and not tangled.

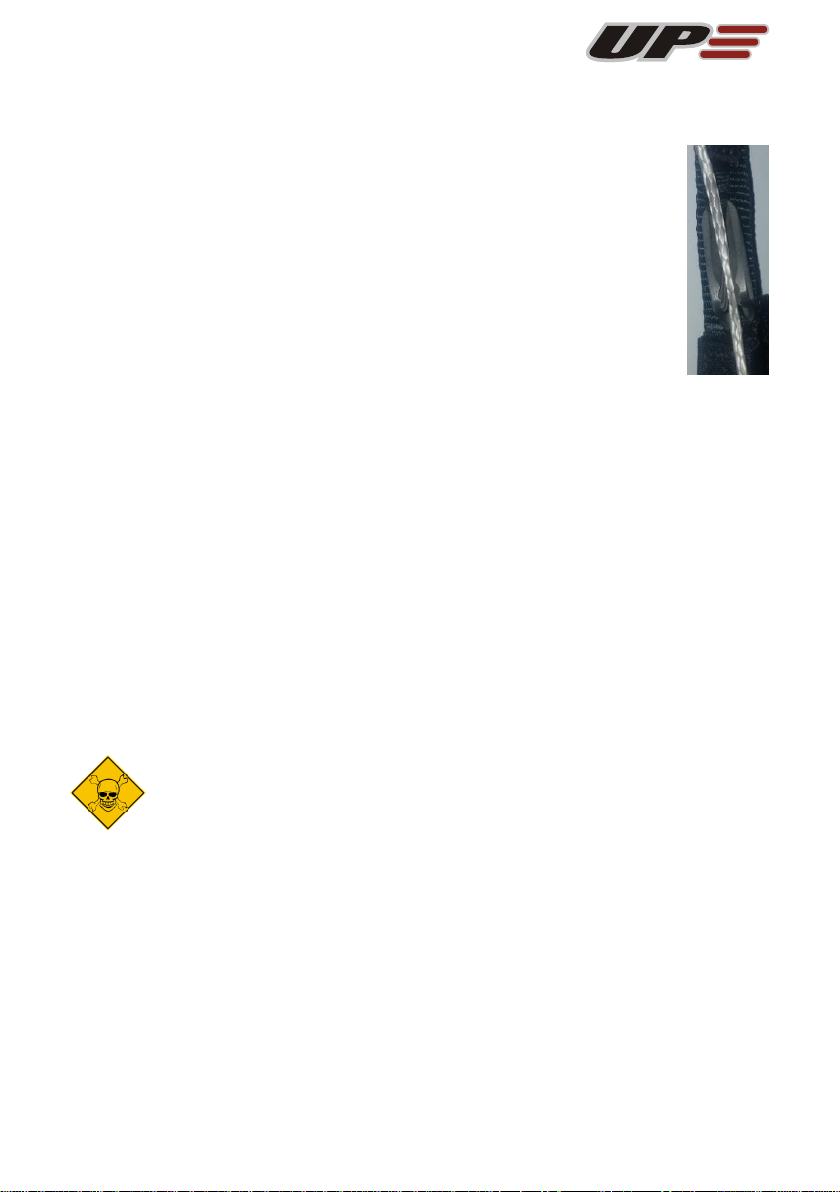

3. The seat of the rubber in the clamcleat (see picture on page
11) must be checked. This prevents unintentional tangling
of lines.
The trimmer is closed for takeoff on a hill. The green mark-
ing can be seen on the clamp and all risers are the same
length. For winch towing, it is recommended to open the
trimmer (red marking). The glider is then 50% accelerated.
4. Next check that you have put the harness on correctly, and ensure that both leg straps and
the chest strap are closed and adjusted. Also check the rescue system pins and deployment
handle. Check also the harness of the passenger and the correct attachment of the spreader
bar.
5. Right before the launch you should check the air space (also behind you).
6. Once again check the wind direction before take-off.
Attachment to spreader bar
The UP K24was tested and approved together with the K24tandem spreader (soft spreader).
When using other, untested tandem suspension systems, both the flight behavior and the behav-
ior in extreme flight positions can change significantly.
Soft spreader bar
W hen using the UP soft spreader, the difference in size between passenger and pilot can be
compensated by using the adjustment strap:
Position 1 is to be used if the passenger is significantly taller than the pilot. The difference is 6 cm
In position 2, the pilot and passenger are at the same height
Position 3 is to be used for smaller passengers. The pilot is 6 cm higher than the passenger.

______________________________________________________________________________
16
WARNING! Please note that the karabiner suspension points must be used correctly.
Failing to do so will cause risk of injury. The correct suspension points are marked
with colours to avoid confusion. Never connect the karabiners to the spreader bars
outside the designated suspension points. The bar is not designed for it and it may
lead to material failures due to unintended distribution of forces.
Take-Off
The take-off characteristics of the UP K24are extremely straightforward. Only a gentle forward
pressure on the inner A risers is necessary and the glider will inflate evenly and climb above your
head. The glider has no tendency to hang back behind you or to overshoot over your head.
With the A risers and the brakes in your hands, have another look at your unfolded glider. Make
sure that you are centrally positioned in the middle of the wing, and that the wing is facing into
wind. The middle of the canopy is marked by the UP logo at the leading edge.
Inflate the glider with a steady run and remember to position your arms so that they are a con-
tinuation of the A risers. As the glider comes above your head, you should glance up to see that
the entire canopy is inflated and flying. The UP K24has a low surge tendency, so there is usually
no necessity to brake to stop the glider from over-flying you.
Directional control should only be attempted when the glider is above your head. Excessive brak-
ing will cause the wing to drop back. After checking that the wing is properly inflated apply slight
brake pressure and accelerate rapidly down the hill. After a few steps you will reach flying speed
and become airborne.
Speed control
Using the brakes
The UP K24has a wide useable speed range, coupled with excellent stability at all speeds. The
speed can be set with the brakes to optimise performance in any situation.
Maximum glide speed is achieved with the brakes released completely, whereas minimum sink
speed is with approximately 15-20cm of brake applied. Further braking will not improve the sink
rate, but the brake pressure increases noticeably as the glider reaches minimum speed.
BEWARE! Flying close to the stall point is very dangerous and should be avoided. At
speeds below minimum sink the danger of entering an unintentional stall or spin is
increased dramatically.
Using the trimmers
The UP K24is equipped with trimmers on D risers.
Trimmer neutral: The neutral position is marked with a green marking on the trimmer webbing. We
recommend this normal position for hill take-off and as normal flight position in light winds.
Trimmer open: Open trimmers and the associated higher speed are suitable in strong winds,
winch towing takeoff, flying with big ears or light passengers. UP recommends to open trimmers
for flying in the lower and medium weight range. With the red marking the glider is accelerated to
50%. The glider can be fully accelerated by opening the trimmer completely. This can be seen
when the trimmer strap is completely relieved and the C / D risers have reached the maximum
length.

______________________________________________________________________________
17
BEWARE! Any unintended flying configuration (collapse etc.) will be aggravated by
higher airspeeds. For this reason the trimmers should not be used, or used with great
care close to the ground or in turbulent conditions.
Turning
Die The UP K24has been developed to meet the demands of tandem pilots. The brakes have
been designed so that the first 10 centimetre of travel will cause a soft and direct turning, whereas
larger movements will give the glider an agile and nimble feel.
Brake input and amount of weight shift induced will define the radius and bank angle on the UP
K24, and will allow it to be controlled with ease. Using weight shift in combination with brake input
will result in flat turns with minimum height loss and is in fact always the most efficient control
method. The radius of the turn is then controlled with the brake line whereas the bank is controlled
through weight shift.
If needed the UP K24will turn very tight. To do this, apply some brake input on both sides, then
release the outside brake whilst applying further brake on the inside –this will reduce turning
radius to a minimum.
When brake input is increased beyond approximately 50% on one side, the UP K24begins a fast
and steep turn, which can be made into a steep spiral (refer to chapter heading "steep spiral").
Landing
The UP K24is easy to land. While pointing into the wind, the pilot should fly the wing fast until
approximately one meter above the ground, and then apply both brakes completely. When land-
ing in stronger wind, less brake is required. Landing from steep turns should be avoided due to
the risk of an uncontrolled pendulum reaction.
Winch towing
The UP K24tows easily. There are no special techniques that need to be employed, but consid-
eration should be given to the following points:
It is recommended to open the trimmers 50% for towing (red marking, see previous sec-
tions). Doing this reduces the angle of attack during the tow so that the glider flies more
above the pilots, as opposed to hanging back. It also makes inflating the glider easier.
Especially when you are towing at an unknown field, make sure that you are fully aware of
any local conditions and peculiarities. Ask the local pilots if you are at all unsure.
During the launch, ensure that the glider is completely inflated and over your head before
giving the 'start towing' signal. If the glider is not central over your head do not continue with
the tow. Any corrections attempted through the brakes during this critical phase may result in
the canopy deflating again, or in the tow progressing with a non-flying wing; if tow tension is
applied when the glider is not correctly positioned then a 'lock out' or a stall could occur.
Try to avoid large brake inputs until you are reasonably high. Emphasize weight shift if any
course correction is necessary close to the ground.
Do not try to climb steeply during the first part of the tow. Good airspeed is essential.
Do not use a towline tension greater than 150 daN at any time during the tow.
All persons involved with the towing operation should be suitably qualified and experienced.
All equipment used should, where necessary, be certified, and a tow permit should be valid
for the field being used.

______________________________________________________________________________
18
Attaching the towline release system
For tandem paragliders it is not necessary to use the tow-release adapter now recommended for
solo towing. We recommend hooking into the passenger harness main karabiners, even if the
harness is equipped with tow-release loops. For tandem towing these are placed too low and will
result in an unsuitable load distribution, with the pilot/passenger being pulled too far forward.
Flight safety
The development of high performance paragliders from square parachutes has meant vast im-
provements in speed, sink rate and handling. But, at the same time, it has also led to a require-
ment on behalf of the pilot for accurate, sensitive control and an acute anticipation of possible
flying conditions. Any glider, whether beginner or competition class, may collapse in turbulent
conditions and you must be able to react accordingly.
.
A safe and efficient way to get used to your new paraglider is by practicing your ground handling
skills. We suggest finding a suitable area, like a playing field, and with light to medium wind it is
quite easy to practice inflating the glider and feel the reaction to brake input, b-line stall, collapses
etc.
Before takeoff and whilst flying it is very important to anticipate any likely turbulence and fly ac-
cordingly. Look well ahead, and as well as looking for areas of likely lift, try and predict, and avoid,
areas of sink and rough air. If you do find yourself in turbulence then look for the cause, and
adjust your flight plan to avoid other similar places.
Thermals and Turbulence
In turbulent air, the UP K24should be flown with a little brake to increase the angle of attack and
provide greater stability. While flying in strong or broken thermals, it is important that you concen-
trate on keeping the wing centrally above your head. Do this by allowing the glider to fly faster
while entering a thermal, and by dampening the surge of the canopy while exiting the thermal by
braking gently. Flying fast is useful for getting through sink or when flying into a headwind. The
UP K24possesses a high inherent stability due to its construction and design, however an active
flying style in turbulence will help increase safety by preventing unnecessary collapses and de-
formation of the canopy.
Getting down fast
All rapid descent manoeuvres should be practiced initially in smooth conditions with plenty of
altitude before you need to use them 'for real'. It is important to distinguish between the three
techniques, and to know the merits of each.
You should inform your passenger before the flight about all planned manoeuvres..
ahead, and as well as looking for areas of likely lift, try and predict, and avoid, areas of sink and
rough air. If you do find yourself in turbulence then look for the cause, and adjust your flight plan
to avoid other similar places.
WARNING! All other manoeuvres, such as full stalls and spins, should be avoided as
fast descent techniques. They are not very efficient, and incorrect recovery can have
dangerous consequences (as with any paraglider)!

______________________________________________________________________________
19
Steep Spiral Dive
A maximum sink rate of over 15 meters per second can be achieved in a steep spiral dive, but it is
advisable to build up gradually to these sink rates when you first practice spiralling.
Getting the UP K24into a spiral dive is very simple and has already been described in the chapter
regarding turning. When entering the spiral it is essential to induce the turn gradually; if you apply
the brake too quickly you may enter a spin. If this happens, release the brake immediately and let
the glider recover before trying again. Keep a steady tension on the inside brakes and observe
the increased angle of bank and sink rate. A little brake on the outer wing will help stabilize the
glider at a high sink rate.
As the sink rates increase the inner (lower) wing tip will begin to deform; this is a design feature
that improves the passive safety during the manoeuvre.
To recover from a spiral, simply release the inside brake. Do this gradually to prevent an uncon-
trolled steep climb caused by the excess energy built up during the dive. Be prepared for the
glider to climb a little and to damp out the subsequent dive. Be warned that steep spiral dives are
equal to high G loading on both you and your glider!
WARNING! Spiral dives with high sink rates expose the pilot and material to very
high centrifugal forces –incidents caused by pilots falling unconscious during spiral
dives are not unheard of. Approach this manoeuvre with caution. NEVER fly a spiral
dive with BigEars engaged –this could lead to a catastrophic material failure!
B- Stalls
To induce a B-line stall, start from normal, un-accelerated flight. Reach up and take hold of both B
risers, still with your hands in the brake loops, and pull down simultaneously by approximately 15
centimetres. The first few centimetres of travel will be quite hard, but as the glider settles into the
stall so the effort becomes less.
The glider will drop back a little as it stalls, and then centralize over your head. With 15 centime-
tres or so of pull a sink rate of up to 9 meters per second can be achieved. With less pull you will
get a decrease in sink rate. The B-risers should not be pulled beyond this point, as it may result in
the canopy entering an unstable phase or going into a frontal rosette. Should you inadvertently
have pulled too far down on the B-risers, simply release them a little again until the wing is again
stable above you, showing the characteristic deep crease along the B-level and being fully
stretched out span-wise.
To recover from a B-line stall, the risers should be released abruptly and simultaneously. Doing so
will allow the wing to re-inflate completely and resume normal flight. It is not unusual for the can-
opy to dive in front of the pilot as the wing regains speed, angles of up to 30-45° are not perfectly
normal. In this phase the pilot should NOT engage the brakes!
WARNING! Releasing the B-stall too slowly or asymmetrically can lead to dangerous
situations. Always practise manoeuvres under professional guidance and over water!
Big Ears
This is the best quick descent method for tandem paragliding due to the gentleness of the ma-
noeuvre –your passenger will be grateful!
To pull the ears in, reach up and get hold of the outermost A line (red small riser) on both front
risers and pull them down, simultaneously, by about 20 to30 cm until the tips collapse. Keep these
two lines in your hands, to prevent the wing re-inflating.

______________________________________________________________________________
20
We suggest keeping the brake toggles in your hands while inducing Big Ears. The glider will
remain fully steer-able through weight shifting during the manoeuvre. The sink rates will be around
2 to 3 meters per second.
For longer flying with big ears, the gray Dyneema line (Am3-0, see picture) can be
inserted into the clamcleat. To do this, remove the protective rubber line inwards and
lash the gray line in the clamcleat. To release the big ears, release the gray leash by
pulling it downwards
Releasing the two A-lines will normally have the tips re-inflating on their own, other-
wise light braking will assist the re-inflation. Do not perform other manoeuvres whilst
using Big Ears, as the structure of the canopy could become overloaded.
Inducing large Big Ears on the UP K24when flying near its lower weight limit re-
quires great caution on the amount of brake input used, as it may deep stall in ex-
treme cases. Should this happen use the recovery technique described in the ‘Deep
Stall’ section.
Flying outside the normal flight envelope
Behaviour in extreme situations
The UP K24is designed to be aerodynamically stable. However as with all paragliders extreme
turbulence or piloting error may induce unwanted behaviour from the canopy. To ensure that you
are able to handle these situations correctly we strongly recommend that you attend a safety-
training (SIV) clinic, where you can learn to master your wing outside the normal flying envelope
under professional guidance.
Safety training manoeuvres should only be practiced in calm air with sufficient altitude, and under
the instruction of qualified instructors. We would like to use this occasion to once again remind
you to never fly without a reserve parachute!
The manoeuvres and possible flight configurations described in the following may occur following
a conscious effort on the part of the pilot, through turbulence or through pilot input error. Any pilot
flying in turbulent air or making piloting mistakes may end up experiencing these flight configura-
tions and therefore find themselves in danger, particularly if they are not adequately trained to
master them.
WARNING! Mistakes during the execution of the following manoeuvres may seri-
ously compromise the safety of the pilot.
Collapsing the paraglider
As with all paragliders extreme turbulence may lead to the canopy partly or fully collapsing. This is
normally not critical. The K24will reinflate quickly and reliably and is easy to control during the
incident.
Asymmetric collapse
The UP K24belongs to the new generation of paragliders that, as well as having very good per-
formance, also exhibit a high degree of stability. Wing tip collapses can almost always be pre-
vented through active flying. Once an asymmetric collapse has occurred the pilot aims to maintain
flying direction through weight shift and careful application of brake input on the open side.
