Technical Application
Guide for UP-SHINE
LED Spike Light
UP-ML06-6W

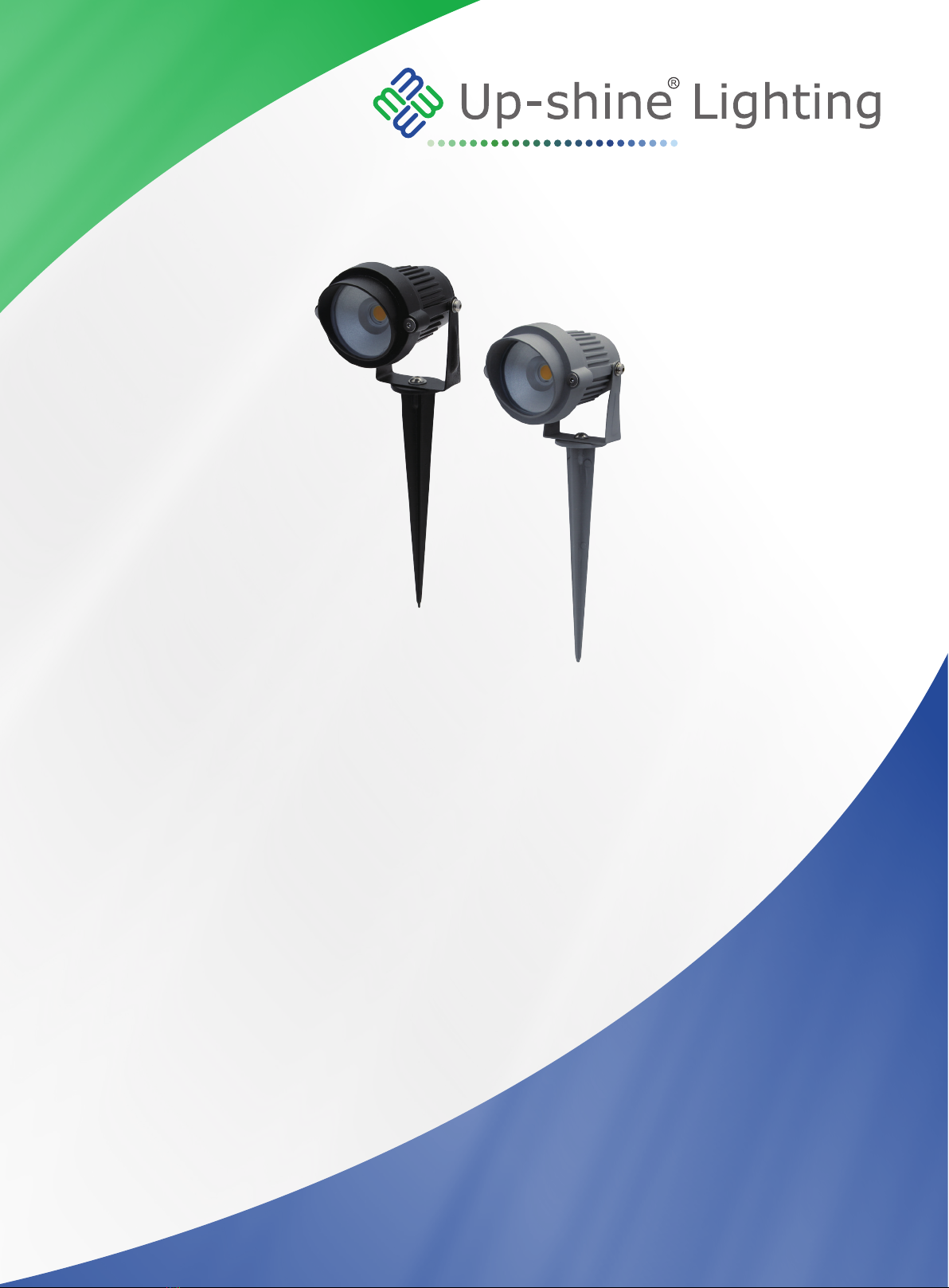

Introduction Up-Shine UP-ML06-6W led spike light
integrates cob light source of fashion design.
High lumen,high CRI ,low temperature,long
lifespan;low working voltage & low power to
ensure safe using ;portable and easy install
into various lawns; It applies to landscaping
embellishment lighting for residence and
community and all kind of parks.
● Up to 70% energy saving compared to
standard CFL
● Long lifetime of 40,000 hours
● 60° wide beam anglet
● CCT: 3000K-3200K 4000K-4500K
5000K-5500K 5500K-6000K
● No UV/IR light
● Environment friendly, without Mercury or any
other hazardous substances
Application notes
● IP65 for outdoor use
● The lamp must be installed by professional
electrician
● Ensure the power supply is switched off
before fitting this product
● Do not touch the lamp when in use
● Keep away from hot steam and corrosive gas
Application Areas
Up-shine 6W spike light is designed for general
lighting applications in hotel, home, office,
shop etc. It is also widely used for public areas
such as stairway, lobby, reception, corridors
etc.
Certificate
www.upshineled.com [email protected]

Technical Specifications
Model Voltage Power Power
Factor
Lumen
(±5%)
Beam
angle CCT Lifespan CRI Dimmable Dimension
UP-ML06-6W AC/DC12V 6W 1 300 60o3000K 40000hs ≥80 No L97mm*H243mm*W72mm
UP-ML06-6W AC/DC12V 6W 1 320 60o4000K 40000hs ≥80 No L97mm*H243mm*W72mm
UP-ML06-6W AC/DC12V 6W 1 340 60o5000K 40000hs ≥80 No L97mm*H243mm*W72mm
UP-ML06-6W AC/DC12V 6W 1 360 60o6000K 40000hs ≥80 No L97mm*H243mm*W72mm
Fixture Compatibility
Rated
Wattage
Electrical
Classification
Ingress
Protection (IP)
Operating
Temp
Operating
Humidity
Storage
Temp
6W II 65 -10oC-45oC 0-90% -20oC-65oC
Driver data Sheet
Driver data Non-dim
Input Voltage AC/DC12V
Frequency 50-60Hz
Input rated Voltage AC12V
Efficiency ≥88%
No load wattage ≤0.1W
Total load Wattage 6W
Power Factor 1
Rated input current ≤0.5A
No load output Voltage DC12V
No load output Voltage range DC8-12V
Full load output Voltage DC9-10V
Rated output current 550mA
Output current range 550mA±5%
Power tolerance ±5%
Current output tolerance ±5%
www.upshineled.com [email protected]
Product Information
243
160
97
72

Photometric Diagram
Spectral Distribution
www.upshineled.com [email protected]
ML06-6W 3000K ML06-6W 4000K
ML06-6W 5000K ML06-6W 6000K
Polar intensity diagram Polar intensity diagram
Polar intensity diagram Polar intensity diagram
Beam diagram Beam diagram
Beam diagram Beam diagram
Cartesian intensity diagram Cartesian intensity diagram
Cartesian intensity diagram Cartesian intensity diagram
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
3.5
3.15
2.8
2.45
2.1
1.75
1.4
1.05
0.7
0.35
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
4
3.6
3.2
2.8
2.4
2
1.6
1.2
0.8
0.4
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
4
3.6
3.2
2.8
2.4
2
1.6
1.2
0.8
0.4
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
4
3.6
3.2
2.8
2.4
2
1.6
1.2
0.8
0.4
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25
Height Eavg, Emax Angle: 53.56deg Diameter Height Eavg, Emax Angle: 50.94deg Diameter
Height Eavg, Emax Angle: 55.04deg Diameter Height Eavg, Emax Angle: 56.91deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 162.5 lm Flux out: 167.4 lm
Flux out: 183.3 lm Flux out: 209.6 lm
18.51, 31.81fc
199.2, 342.4lx
20.31, 35.49fc
224.0, 382.1lx
19.17, 34.29fc
206.3, 369.1lx
20.17, 35.93fc
217.1, 386.8lx
3.313ft
100.98cm
3.126ft
95.27cm
3.419ft
104.20cm
3.556ft
108.38cm
6.626ft
201.97cm
6.251ft
190.54cm
6.837ft
208.40cm
7.112ft
216.77cm
9.939ft
302.95cm
9.377ft
285.81cm
10.26ft
312.60cm
10.67ft
325.15cm
13.25ft
403.93cm
12.5ft
381.08cm
13.67ft
416.80cm
14.22ft
433.54cm
16.57ft
504.92cm
15.63ft
476.35cm
17.09ft
521.00cm
17.78ft
541.92cm
4.627, 7.954fc
49.81, 85.61lx
5.203, 8.874fc
56.00, 95.52lx
4.792, 8.572fc
51.58, 92.27lx
5.042, 8.983fc
54.27, 96.69lx
2.057, 3.535fc
22.14, 38.05lx
2.312, 3.944fc
24.89, 42.45lx
2.130, 3.810fc
22.93, 41.01lx
2.241, 3.992fc
24.12, 42.97lx
1.157, 1.988fc
12.45, 21.40lx
1.301, 2.218fc
14.00, 23.88lx
1.198, 2.143fc
12.90, 23.07lx
1.261, 2.246fc
13.57, 24.17lx
0.7404, 1.273fc
7.969, 13.70lx
0.8325, 1.420fc
8.961, 15.28lx
0.7667, 1.372fc
0.253, 14.76lx
0.8067, 1.437fc
8.684, 15.47lx
16.4ft
5m
16.4ft
5m
16.4ft
5m
16.4ft
5m
ML06-6W 3000K
ML06-6W 5000K ML06-6W 6000K
380 500 600 700 800
380 500 600 700 800 380 500 600 700 800
Wavelength(nm)
Wavelength(nm) Wavelength(nm)
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
ML06-6W 4000K
380 500 600 700 800
Wavelength(nm)
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Max=5338 [1.0=20000] 3.50SDCM F3000K
x=0.4464 y=0.4049
Max=7171 [1.0=20000] 2.12SDCM F4000K
x=0.3841 y=0.3816
Max=8694 [1.0=20000] 2.05SDCM F5000K
x=0.3473 y=0.3564
Max=7432 [1.0=20000] 4.91SDCM F6500K
x=0.3473 y=0.3564
UNIT: cd
AVERAGE BEAM ANGLE(50%): 54.8 DEG
UNIT: cd
AVERAGE BEAM ANGLE(50%): 52.2 DEG
UNIT: cd
AVERAGE BEAM ANGLE(50%): 56.1 DEG
UNIT: cd
AVERAGE BEAM ANGLE(50%): 57.6 DEG
-/+180 -/+180
-/+180 -/+180
-120 -120
-120 -120
-90 -90
-90 -90
-30 -30
-30 -30
120 120
120 120
90 90
90 90
30 30
30 30
0 0
0 0
70 80
80 80
140 160
160 160
210 240
240 240
280 320
320 320
350 400
400 400
0 0
0 0
6.562ft
2m
6.562ft
2m
6.562ft
2m
6.562ft
2m
3.281ft
1m
3.281ft
1m
3.281ft
1m
3.281ft
1m
13.12ft
4m
13.12ft
4m
13.12ft
4m
13.12ft
4m
9.843ft
3m
9.843ft
3m
9.843ft
3m
9.843ft
3m

Temperature
● The testing is operated at 35°C environment temperature.
● The minimum lifetime for capacitor is 5000hours at 105°C, the lifetime will be double when the temperature drop each 10°C
●Under 75°C working TEMP, max 40000hrs life time is achievable.
● The highest withstand temperature of IC is 120°C
● The highest withstand temperature of MOS is 120°C
● The highest withstand LED junction temperature is 150°C
90
80
70
60
50
40
30
20
10
0
11:13:13
11:25:10 11:37:10 11:49:10 12:01:10 12:13:10 12:25:10 12:37:10 12:49:10 13:01:10 13:13:10 13:25:10 13:37:10 13:49:10 14:01:10 14:13:10 14:25:10 14:37:10 14:49:10 15:01:10 15:13:10 15:25:10 15:37:10 15:49:10 16:01:10 16:13:10 16:25:10 16:37:10
IC
Capacitor
MOS
PCB
LED
Fitting
Environmental temperature
Temperature (oC)
Time
The driver lifespan is based on capacitor working temperature.
Driver lifetime & LED light decay rate
90000
80000
70000
60000
50000
40000
30000
20000
10000
0
65oC 75oC85oC 95oC 105oC
Lifetime (hours)
Capacitor Tc (oC)
Driver Lifetime
% Luminous Flux
FLUX
△U'V'
110%
105%
100%
95%
90%
85%
80%
75%
70%
0.0040
0.0035
0.0030
0.0025
0.0020
0.0015
0.0010
0.0005
0.0000
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
LifeTime (hours)
Polar Diagram Comparison
AVERAGE BEAM ANGLE (50%): 57.6DEG
UNIT: cd
C0/180, 56.7 deg
C30/210, 57.9 deg
C60/240, 58.1 deg
C90/270, 57.7 deg
www.upshineled.com [email protected]
80
160
240
320
400
0O
180O
150O -150O
120O -120O
90O -90O
60O -60O
30O
-30O
0
LED Light Decay Rate

Installation
Packaging Information
SIZE(CM) N.W/pc
(KGS) G.W.(KGS) Q'TY(PCS)
Carton 45*37*36 0.3 17.4 50
CTNS Q'TY(PCS) VOLUME(CBM)
20'' standard
container 460 23000 28
40'' standard
container 920 46000 56
www.upshineled.com [email protected] Phone: [phone]
Add: 2nd building Dingfeng High-Tech Zone, Fuyuan 1st road, Fu Yong Sub-district, Bao'an, Shenzhen China
Step 1: Install the inserted lamp at lawn, and adjust the angle.
Step 2: Connect the output end of power cord(DC12V) and input end of inserted lamp together, make
the joint waterproof.
