Up-shine Lighting UP-PL30120-30W-A User guide

Technical Application
Guide for UP-SHINE
LED Panel Light
UP-PL30120-30W-A
UP-PL30120-30W-A-D

Application notes
• IP40 for indoor use only
• Professional electrician for installation only
• Switch off before installation
• Do not touch when in use
• Keep away from hot steam and corrosive gas
Application Areas
Office & school lighting: office, meeting room,
class room etc. Commercial lighting: shopping
mall, super market, retailer shops etc.Other
situations: hospital, laboratory, dust-free
workshop etc.
Certificates
www.upshine.com [email protected]
Introduction
Features:
1. LED panel light back lit with louver reflectors design.
2. Lumen output: 3500Lm@4000K CRI 80.
3. luminous efficacy: 115 lm/w.
4. Ideal replacement for traditional 3x24W HO T5 and 3x18W T8 fluorescent louver luminaries, and
side lit LED panel light .
5. Installation: Suspended / Recessed.
6. UGR<13.
Featuring louver reflectors design technology,
PL-A panel light offers the ideal combination
of stylish design and optimum performance
for both task and general lighting. Ensures
optimum light distribution and full glare control
in compliance with the latest office-lighting
(UGR<13).
SAA

Fixture Compatibility
Rated
Wattage
Electrical
Classification
Ingress
Protection
Operating
Temp
Operating
Humidity
Storage
Temp
30W ⅡIP40 -20oC~45oC 0~90% -20oC~65oC
www.upshine.com [email protected]

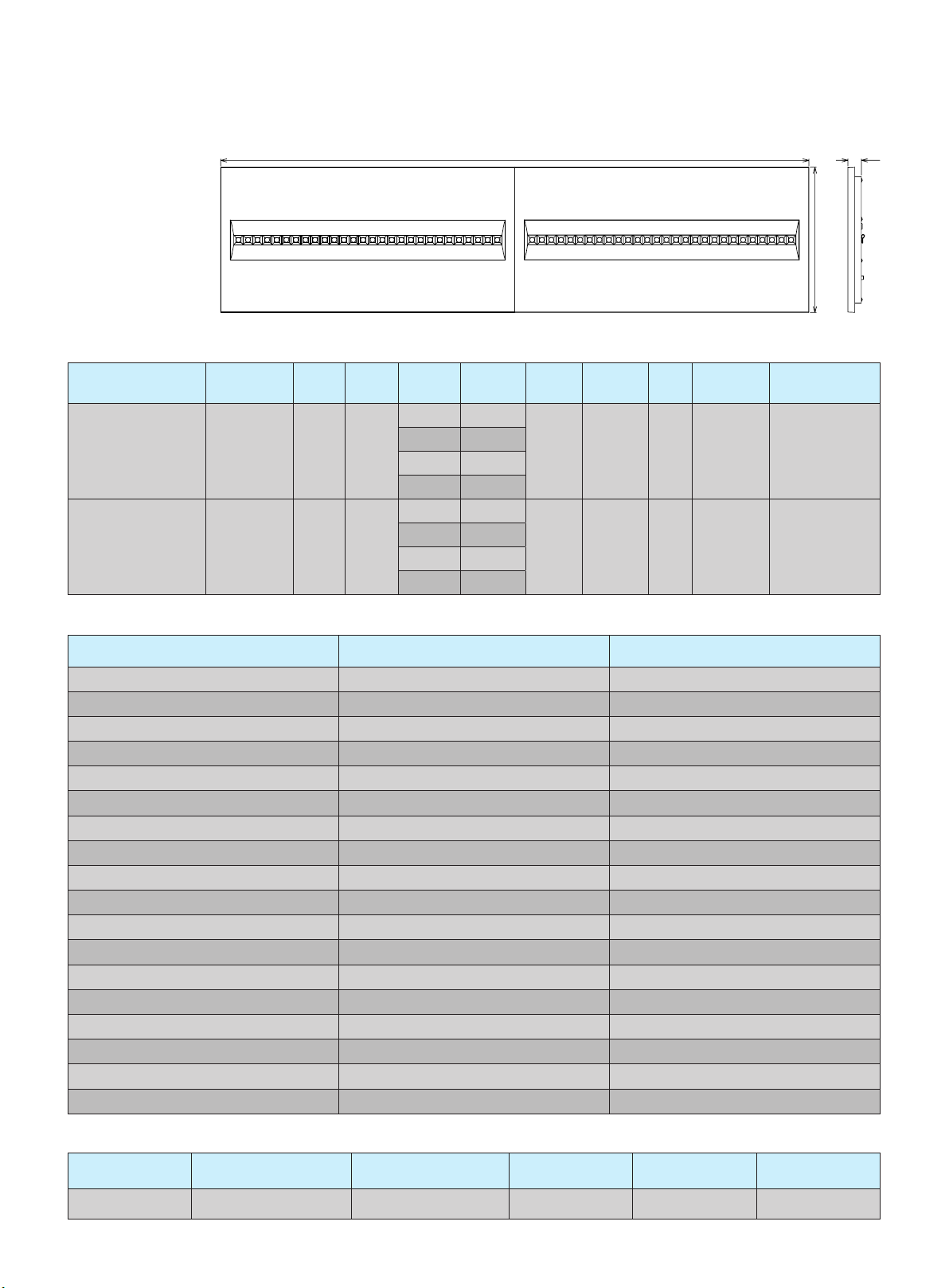

1195
295
28
Product Information
Technical Specifications
Model Voltage Power Power
Factor
Lumen
(±5%) CCT Beam angle Lifespan CRI Dimmable Dimension
UP-PL30120-30W-A AC230V 30W ≥0.9
3150 3000K
90o50000h ≥80 No 1195*295*28mm
3390 4000K
3450 5000K
3420 5700K
UP-PL30120-30W-A-D AC230V 30W ≥0.9
3055 3000K
90o50000h ≥80 Yes 1195*295*28mm
3290 4000K
3350 5000K
3320 5700K
Driver data Sheet
Driver data DIM Non-dim
Input rated Voltage AC230V AC230V
Frequency 50Hz 50Hz
Input Voltage AC200-240V A220-240V
Efficiency ≥84% ≥86%
Total load Wattage 30W±5% 30W±5%
Power Factor ≥0.9 ≥0.9
Rated input current ≤0.17A ≤0.17A
Full load output Voltage DC23-40V DC28-40V
Rated output current 700mA 720mA
Output current range 700mA±5% 720mA±5%
Power tolerance ±5% ±5%
Current output tolerance ±5% ±5%
Dimming range 8%-100% —
Dimmer Triac dimmers —
Short circuit protection PASS PASS
Over voltage protection PASS PASS
Over temperature protection PASS PASS
Withstand voltage AC3750V AC3750V

380 500 600 700 800
Wavelength(nm)
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
3000K
Max=9051 [1.0=20000] 5.09 SDCM F3000K
x=0.4500 y=0.4085
380 500 600 700 800
Wavelength(nm)
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
4000K
Max=8563 [1.0=20000] 4.74 SDCM F4000K
x=0.3899 y=0.3903
380 500 600 700 800
Wavelength(nm)
Max=11005 [1.0=20000]
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
5000K
380 500 600 700 800
Wavelength(nm)
Max=5796 [1.0=20000]
Spectrum
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
5700K
5.83 SDCM F5700K
x=0.3381 y=0.3531

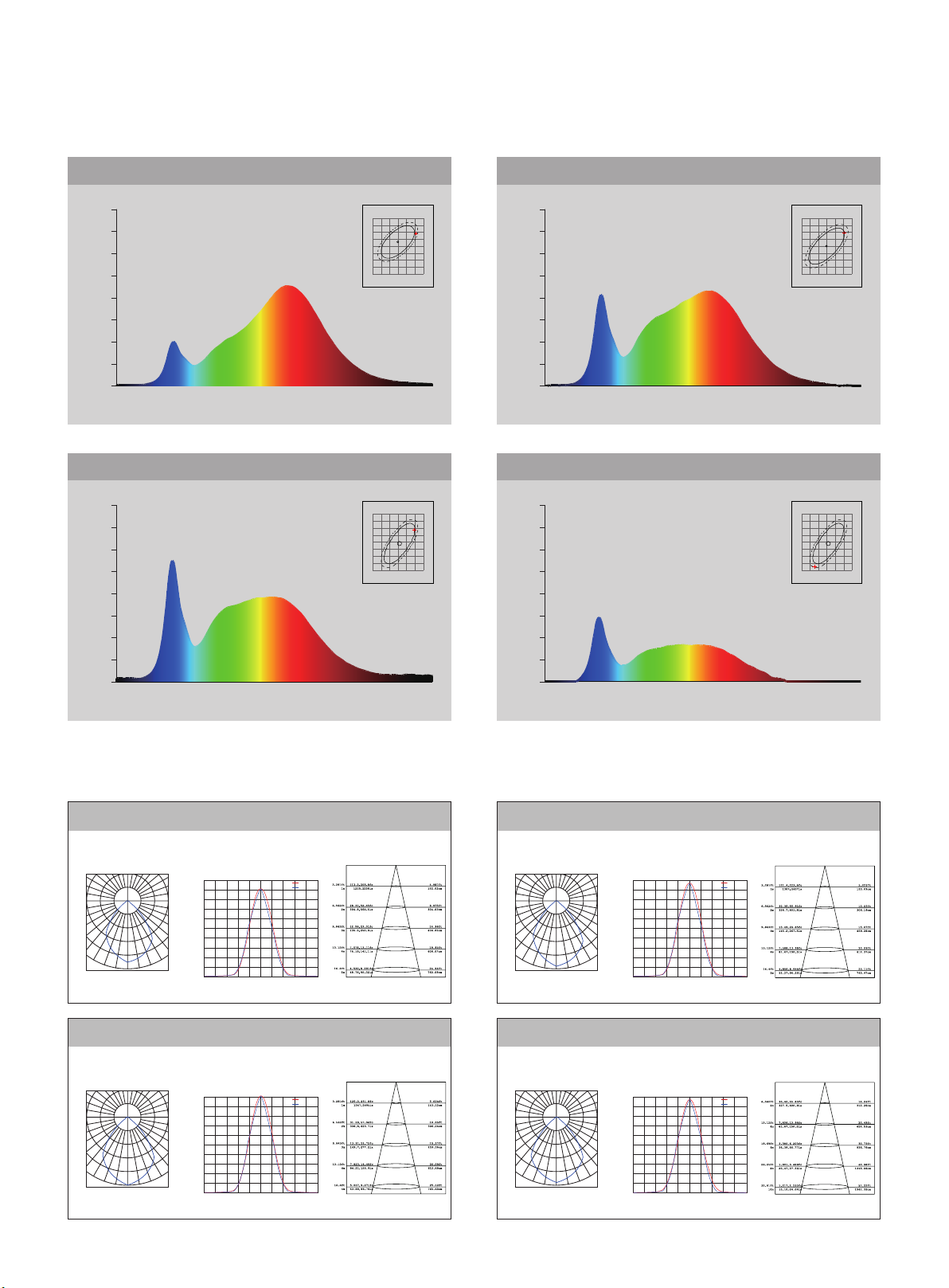

Spectral Distribution
Photometric Diagram
3000K
Beam diagramPolar intensity diagram Cartesian intensity diagram
UNIT: cd
AVERAGE BEAM ANGLE(50%): 76.4 DEG
-/+180
-120
-90
-30
120
90
30
0
500
1000
1500
2000
2500
0
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
25.0
22.5
20.0
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25 Height Eavg, Emax Angle: 74.48deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 2255 lm
4000K
Beam diagramPolar intensity diagram Cartesian intensity diagram
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
25.0
22.5
20.0
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25 Height Eavg, Emax Angle: 74.87deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 2417 lm
UNIT: cd
AVERAGE BEAM ANGLE(50%): 76.9 DEG
-/+180
-120
-90
-30
120
90
30
0
500
1000
1500
2000
2500
0
5700K
Beam diagramPolar intensity diagram Cartesian intensity diagram
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
25.0
22.5
20.0
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25 Height Eavg, Emax Angle: 75.96deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 2512 lm
UNIT: cd
AVERAGE BEAM ANGLE(50%): 79.4 DEG
-/+180
-120
-90
-30
120
90
30
0
500
1000
1500
2000
2500
0
5000K
Beam diagramPolar intensity diagram Cartesian intensity diagram
Planar Illuminance Curve
Distance(m)
MH=10mE(LX)
25.0
22.5
20.0
17.5
15.0
12.5
10.0
7.5
5.0
2.5
0
C0/180
C90/270
-25 -20 -15 -10 -5 0 5 10 15 20 25 Height Eavg, Emax Angle: 74.88deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
Flux out: 2492 lm
UNIT: cd
AVERAGE BEAM ANGLE(50%): 76.8 DEG
-/+180
-120
-90
-30
120
90
30
0
500
1000
1500
2000
2500
0
www.upshine.com [email protected]
4.53 SDCM F5000K
x=0.3544 y=0.3691

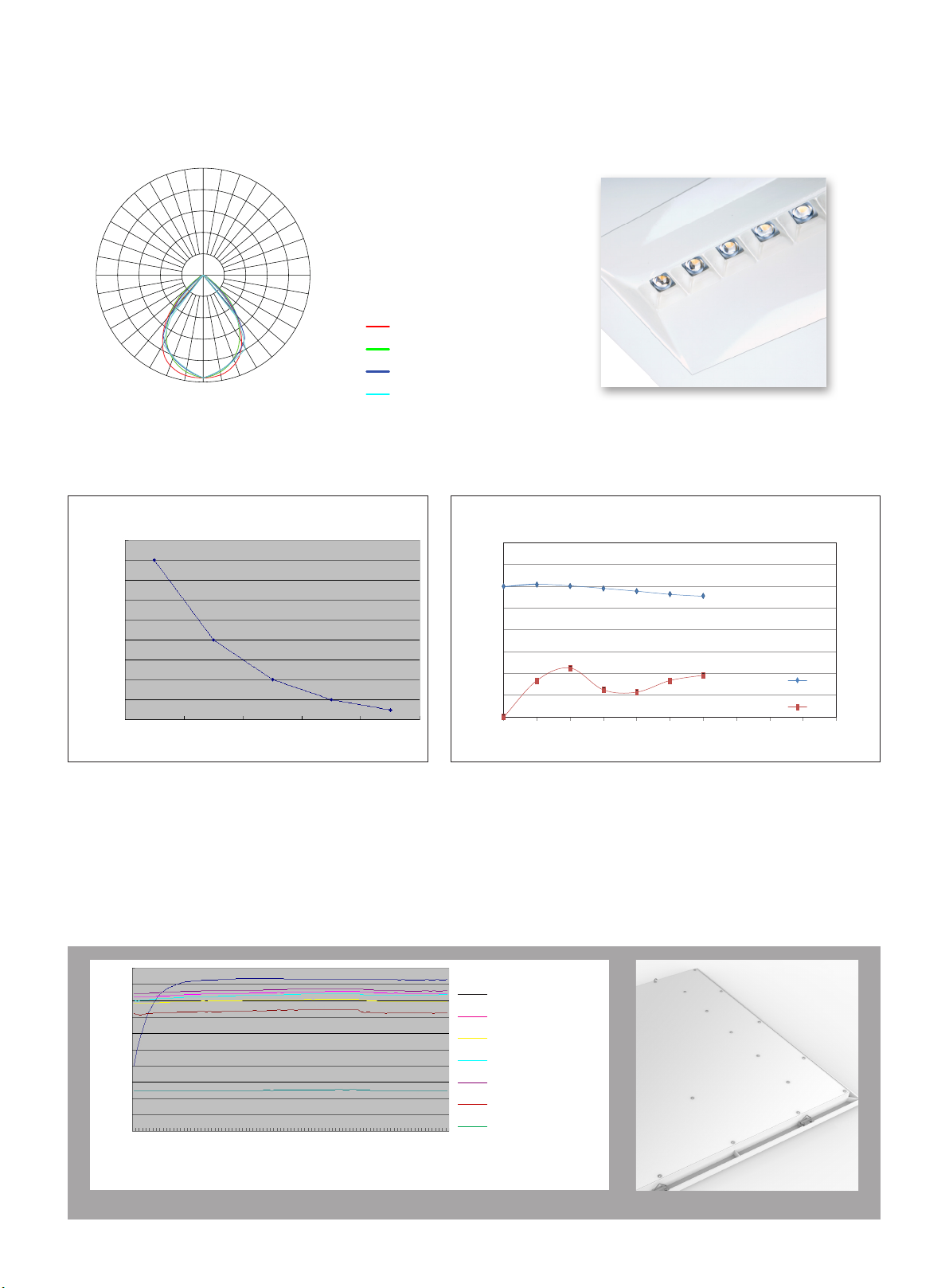

80
70
60
50
40
30
20
10
0
Temperature (oC)
Time
The driver lifespan is based on capacitor working temperature.
Driver lifetime & LED light decay rate
90000
80000
70000
60000
50000
40000
30000
20000
10000
0
65oC 75oC 85oC 95oC 105oC
Lifetime (hours)
Capacitor Tc (oC)
Driver Lifetime
% Luminous Flux
FLUX
△U'V'
110%
105%
100%
95%
90%
85%
80%
75%
70%
0.0040
0.0035
0.0030
0.0025
0.0020
0.0015
0.0010
0.0005
0.0000
0 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
LifeTime (hours)
Polar Diagram Comparison
AVERAGE BEAM ANGLE (50%): 79.4DEG
14:29:22 15:20:16 16:11:16 17:02:16 17:53:16 18:44:16 19:35:16 20:26:16 21:17:16 22:08:16 22:59:16 23:50:16
0:41:16 1:32:16 2:23:16 3:14:16 4:05:16 4:56:16 5:47:16 6:38:16 7:29:16 8:20:16
IC
Capacitor
MOS
PCB
Fitting
Voltage transformer
Environmental temperature
UNIT: cd
C0/180, 80.9 deg
C30/210, 80.5 deg
C60/240, 79.9 deg
C90/270, 76.1 deg
500
1000
1500
2000
2500
0O
+/-180O
150O -150O
120O -120O
90O -90O
60O -60O
30O
-30O
0
LED Light Decay Rate
Temperature
●The testing is operated at 25°C
●The lifetime of capacitor, minimum of 5,000 hours if operated at 105°C, will be doubled whenever the temperature drops 10°C
●The highest withstand temperature of IC, MOS could be 120°C
●The highest withstand temperature of LED junction temperature is 150°C
www.upshine.com [email protected]

Packaging Information
SIZE(CM) N.W/pc
(KGS) G.W.(KGS) Q'TY(PCS)
Carton 132*38*38 3 18 5
CTNS Q'TY(PCS) VOLUME(CBM)
20'' standard
container 146 730 28
40'' standard
container 292 1460 56
Installation
1.Recessed into ceiling
1. Remove ceiling
plaster slab.
2. Connect the main AC
wire L. N to the terminal
of driver respectively.
Connect the DC plug
between driver and panel
light.
3. Fix the panel light to
the plaster ceiling firmly.
4. Installation
complete, turn on the
power.
2. Suspending
1. Knock the plastic anchor into
ceiling.
2. Fix part A with tapping
screw to ceiling, Wire rope
goes through part B, and
then screw B into A.
3. Hanging the panel light to
the suspending wires, connect
the DC plug between driver
and panel light.
4. Connect the main AC wire
L. N to the terminal of driver
respectively.
www.upshine.com [email protected] Phone: [phone]
Add: 2nd building Dingfeng High-Tech Zone, Fuyuan 1st road, Fu Yong Sub-district, Bao'an, Shenzhen China
AC-L
AC-N
AC-L
AC-N
B
A
AC-L
AC-N
