UPO RF5612 User manual

GB User Manual
RF5612
NRF5612

2
558135
We thank you for the
confidence you have shown by
purchasing our appliance.
We wish you find a lot of pleasure in its
use.
The appliance is intended solely for
household use.
Refrigerator freezer (hereinafter: the
appliance) consists of two parts: the
upper part is the refrigerator and the
lower part is the freezer.
The refrigerator is intended for storing
fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh
food and for long-term storage of frozen
food (up to one year, depending on the
type of food).

3
TABLE OF CONTENTS
558135
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
OTHER
STORING AND
FREEZING FOOD
4 IMPORTANT NOTES AND PRECAUTIONS
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 APPLIANCE DESCRIPTION
12 INSTALLATION AND CONNECTION
15 CHANGING THE DIRECTION OF DOOR OPENING
17 OPERATING THE APPLIANCE
22 APPLIANCE INTERIOR EQUIPMENT
27 RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE
28 STORING FOOD IN THE REFRIGERATOR
30 STORING FOOD IN THE FRESHZONE DRAWER
31 FREEZING AND STORING FROZEN FOOD
31 Freezing process
31 Important warnings on freezing fresh food
32 Storage of industrially frozen food
32 Frozen food storage time
32 Defrosting frozen food
33 DEFROSTING THE APPLIANCE
34 CLEANING THE APPLIANCE
35 TROUBLESHOOTING
37 INFORMATION ABOUT APPLIANCE NOISE

4
558135
Spacers are fitted on
the corners of the doors.
Remove them and insert the
supplied plugs into their slots
(only in some models).
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
The instruction manual includes the NO FROST version/
model of the freezer which is fitted with a fan and in
which the defrosting process is automatic (only with some
models).
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
558135
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the manufacturer.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
558135
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
When removing a used appliance, disconnect the
power cord, remove the door, and leave the shelves in
the appliance. This will prevent children from locking
themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.

7
558135
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.

8
558135
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In case of an error or power supply failure, do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
i

9
558135
The symbol on the product or its packaging indicates that the product should not
be treated as normal household waste. The product should be taken to an
authorized collection centre for waste electric and electronic equipment
processing. Correct disposal of the product will help prevent any negative effects
on the environment and health of people which could occur in case of incorrect product
removal. For detailed information on removal and processing of the product, please
contact the relevant municipal body in charge of waste management, your waste
disposal service, or the store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
If the language on the rating plate is not the language of
your choice or the language of your country, replace it with
the one supplied.
i

10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
558135
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the
appliance).
• If the gasket is damaged or does not provide a perfect seal for other reasons, have it
replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the appliance, cool it to room temperature.
• Defrost frozen food in the refrigerator compartment.
• Remove some of the drawers from the freezer compartment as described in the
instruction manual, in order to make use of the entire interior.
• Defrost your conventional freezer when an approximately 3-5 milimeter layer of of frost
or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that the food
is placed so that the air can freely circulate in the appliance interior (observe the
recommended placement of food as described in the instructions).
• In appliances with a fan, do not block the fan slots.
• If you do not need the fan or the ionizer, switch them o to reduce power consumption.

11
APPLIANCE DESCRIPTION
558135
A
B
1
2
3
4
5
6
7
1
8
A Refrigerator
1Control unit
2LED lighting of refrigerator
interior
3Pull-out glass shelf (height-
adjustable)
4Crisper (fruit and vegetables
drawer)
5Height-adjustable door bin
6Bottle shelf
B Freezer
7Freezer drawers
8Glass shelves
• The drawers are protected against pulling out. To remove a drawer from the appliance,
pull it out as far as it will go, then lift at the front and pull out completely.
• Some models also feature a control unit on the door.

12
INSTALLATION AND CONNECTION
558135
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate correctly
if the environment temperature is in the interval specified in the table. The appliance class is
indicated on the rating plate / label with the basic information on the appliance.

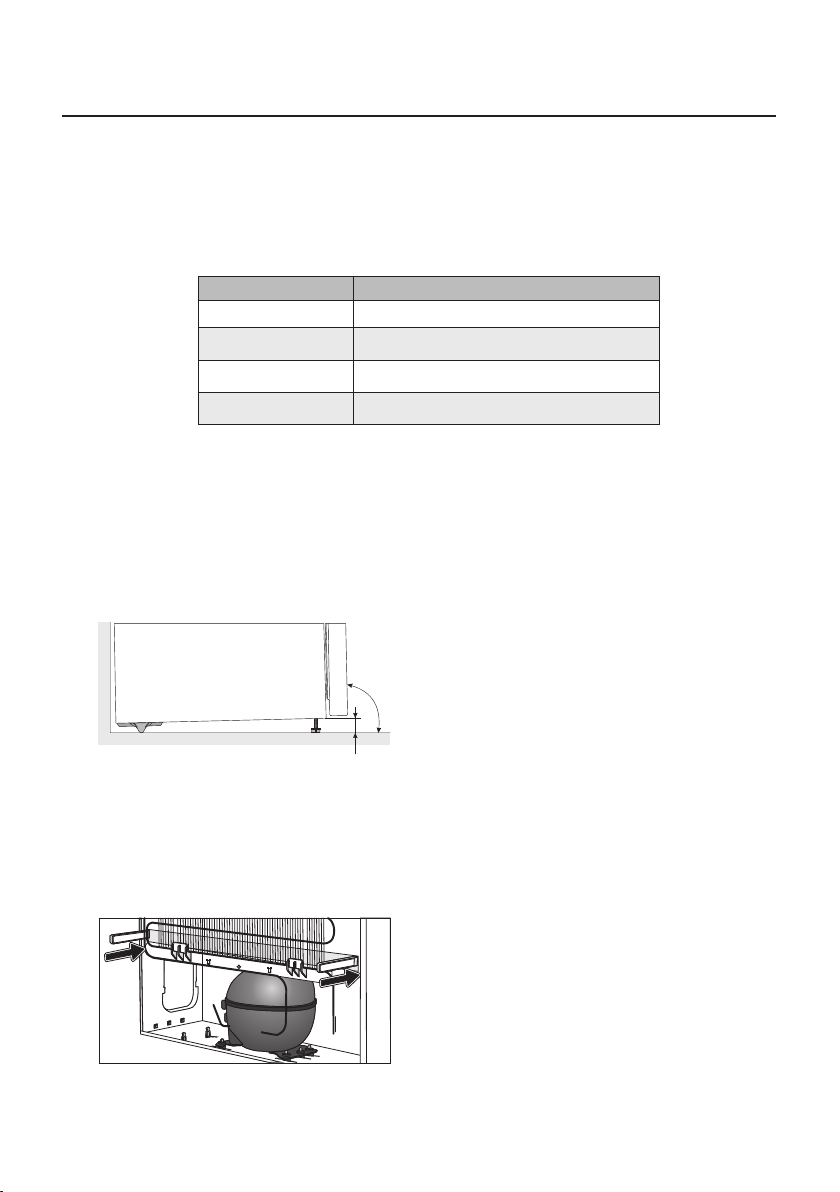

Class Temperature
SN (subnormal) from +10°C to +32°C
N (normal) from +16°C to +32°C
ST (subtropical) from +16°C to +38°C
T (tropical) from +16°C to +43°C
Warning: Make sure the room where the appliance is installed is large enough. There
should be at least 1 m3of space per 8 grams of refrigerant. Amount of refrigerant is stated
on the rating plate in the appliance interior.
INSTALLING THE APPLIANCE
Appliance installation should be carried out
by at least two persons to avoid any
physical injury or damage to the appliance.
• The appliance must stand level or tilted
slightly to the back, stable on a solid
base. At the front, the appliance is fitted

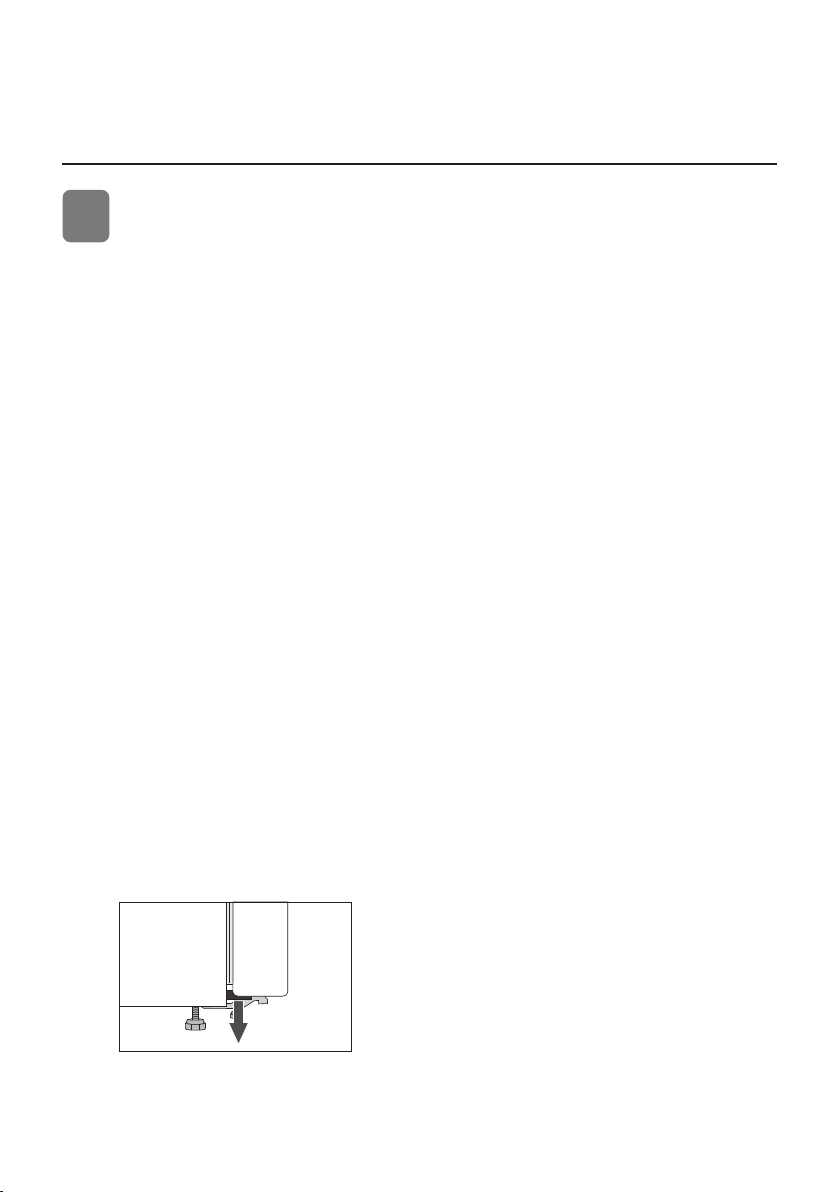

with two adjustable legs that can be used
to level the appliance. At the rear side,
casters allow for easier installation of the
appliance (only with some models).
• There should be a clearance of at least 5 cm
between the appliance and any cupboard
installed above it, in order to allow adequate
cooling of the condenser unit.
• The appliance is supplied with two
spacers which should be installed on
the lower part of the housing to prevent
from pushing the appliance too close to
the wall. Appliance may also be installed
without the spacers; however, this may
increase power consumption.
max
30 mm
> 90°

13
558135
• Do not expose the appliance to direct sunlight and do not place it near any source of
heat. If this cannot be avoided, install an insulation panel.

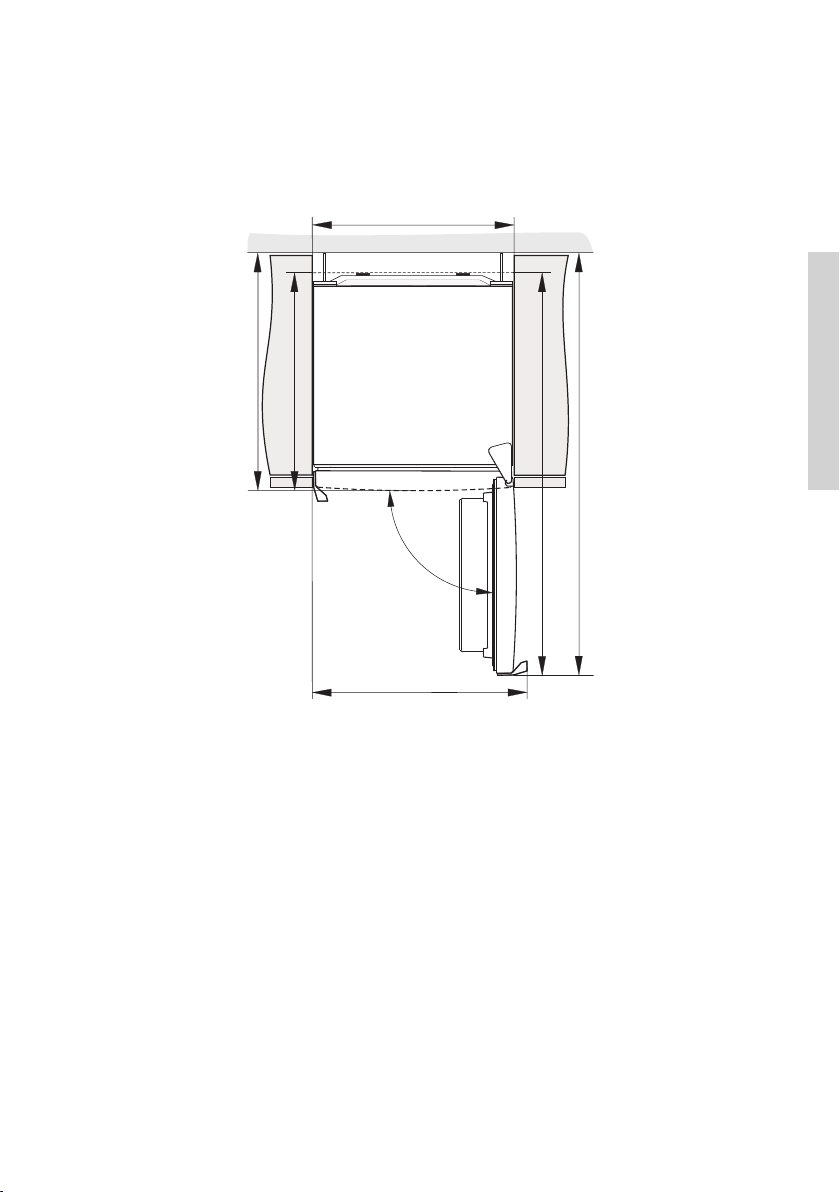

• The appliance may stand alone or it may be placed ext to a cupboard or a wall. Consider
the clearance required to fully open the door in order to allow pulling out the drawers
and shelves (see installation diagram).
1249 mm
688 mm
640 mm
600 mm
644 mm
max 90°
1201 mm

14
558135
CONNECTING THE APPLIANCE
• Connect the appliance to the power mains using a connection cable. The wall outlet
should be fitted with a ground contact (safety socket). Nominal voltage and frequency
are indicated on the rating plate/label with basic information on the appliance.
• The appliance must be connected to the power mains and grounded in compliance
with the eective standards and regulations. The appliance will withstand short-term
deviations from the nominal voltage, but not more than +/- 6%.
Note: When placing the appliances side by side, the anti-dew (anti-condensation) set has to be
purchased and installed!
Code for ordering the set:
dry room (relative humidity below
60%)
Appliances with a
height of 1850 mm
Appliances with a
height of 2000 mm
METAL PLATE (INOX) 576604 576606
PLASTIC PLATE
WHITE 672114 672118
GREY 672115 672117
BLACK 672116 672120
humid room (relative humidity over
60%)*
Appliances with a
height of 1850 mm
Appliances with a
height of 2000 mm
METAL PLATE (INOX) 558776* 558855*
* For safety reasons, the appliance should only be installed by an authorized service
technician!

15
CHANGING THE DIRECTION OF
DOOR OPENING
558135
Tools required: socket wrench No. 8, Phillips screwdriver, torx 25, flat screwdriver
The procedure to change the direction of door opening should be carried out by at least
two persons.
1. Remove the upper hinge cover (A) and the cover from the connector (B1).
2. Unplug the connector (C), unscrew the upper hinge (D) and remove the upper door (E).
3. Remove the side panels (F) and (G), then unscrew and remove the middle panel (H).
4. Move the upper hinge (D) and the connector and cable to the opposite side. Replace
all three panels (F), (G), and (H). Make sure the cable runs through the grooves in the
panels like it did before disassembly.
5. Then remove the covering plugs (I), unscrew the mid hinge (J) and remove the lower
door (K) from the lower hinge (L).
6. Tilt the appliance backwards, undo the lower hinge (L) and the foot (M) and install them
on the opposite side. Make sure the washer is installed like it was before disassembly.
7. Move the door bearings (N) and retainers (S) to the opposite side.
8. Place the Mid hinge (J) on the lower door (K) and place the lower door on the lower
hinge (L). Fasten the mid hinge (the door should be open while you do this). Do not
forget to place the washers (O) and covering plugs (I) as they were placed before the
disassembly.
9. Place the upper door (E) on the middle hinge (J). Remove the covering plugs (P) and
(B2). Reconnect the connector (C) and fasten the upper hinge (D).
10.Install the cover of the upper hinge (A), connector cap (B1), and covering caps (P) and
(B2).
11. Changing the side of the handle (R): remove the plugs/caps, undo the screws and
fasten the handle on the opposite side.
Place the plugs/caps on the opposite side.

16
558135
12
3
D
4
J
K
5
L
M
M
6
7
J
KO
I
8
I
N
10
9
11
E
C
P
D
B2
B2 B1
A
P
I
R
E
D
C
D
GH
F
N
S

17
OPERATING THE APPLIANCE
558135
(CONTROLS ON THE DOOR)
A Temperature adjustment and freezer
boost key
(also ON/OFF key – only for NoFrost
models)
B Refrigerator compartment temperature
indicator
C Freezer boost function indicator
D Alarm indicator
C
A
B
D

18
558135
SWITCHING THE APPLIANCE ON/OFF
When you connect your appliance to the
mains for the first time, it will be in standby
mode (powered, but switched off).
To switch on the appliance press Akey for
3 seconds.
To switch off the appliance press again A
key for 3 seconds. Appliance is in standby
mode (still powered).
• Adjust the temperature as desired with a
short press of the Akey.
• Press the Akey as many times as needed
until the desired temperature is set.

19
558135
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
• Adjust the temperature as desired with
the Akey.
• Press the Akey until the desired
temperature is set.
The appliance displays the set temperature
of the refrigerator compartment.
• Actual temperature inside the appliance
will depend on its use (amount and
distribution of food, environment
temperature, frequency of door opening,
compressor operation or stand-by mode,
fan operation etc.).
• Recommended setting is 3 °C.
• If the temperature of the room where the
appliance is installed is below 16°C, we
recommend setting a temperature lower
than 5 °C.
• Moreover, when environment temperature
is below 16 °C, we recommend setting
the manually adjustable flap to position 1
(manually adjustable flap is only available
with some appliance models).

20
558135
FREEZER BOOST FUNCTION
To activate the freezer boost function, press
the Akey until the symbol Clights up.
• Use this setting after switching on
the appliance for the first time, before
cleaning, or 24 hours before adding a
large amount of food.
• To switch o the freezer boost function,
press the Akey to select the desired
temperature (B). If the function is
not deactivated manually, it will
be deactivated automatically after
approximately two days.
HIGH TEMPERATURE ALARM
OPEN DOOR ALARM
If the refrigerator or freezer compartment
door is open for more than two minutes, an
acoustic alarm (continuous beep) will be
activated.
To acknowledge and turn off the acoustic
alarm press the Akey or close the door.
If the temperature inside the appliance is
too high, acoustic alarm will be activated
(intermittent tone) and the Dsymbol will
flash.
• Use the Akey to deactivate the acoustic
alarm. If the alarm is not deactivated, it
will be sounded for the first five minutes
of every hour.
• The symbol Dflashes until the appliance
reaches a suitable temperature.
