Upper Bounce UBRTG01-1017 User manual

05
Assembly, Installation, Care, Maintenance and Use Instructions

3-6
7
8-9
10
11
12
12-14
16
17

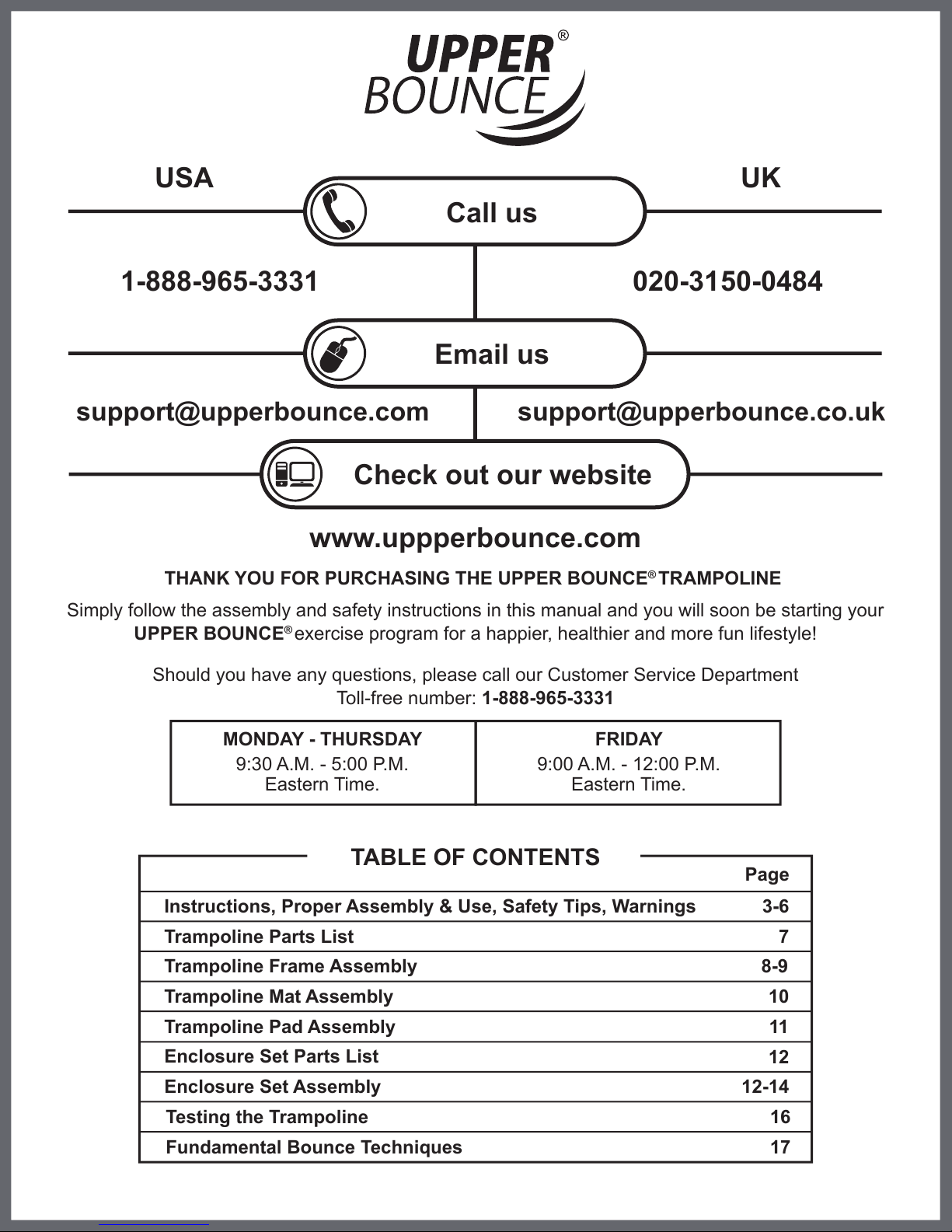

TABLE OF CONTENTS
1-888-965-3331 020-3150-0484
[email protected][email protected]
USA UK
Simply follow the assembly and safety instructions in this manual and you will soon be starting your
UPPER BOUNCE® exercise program for a happier, healthier and more fun lifestyle!
Should you have any questions, please call our Customer Service Department
Toll-free number: 1-888-965-3331
Call us
Email us
Check out our website
www.uppperbounce.com
THANK YOU FOR PURCHASING THE UPPER BOUNCE® TRAMPOLINE
MONDAY - THURSDAY FRIDAY
9:30 A.M. - 5:00 P.M.
Eastern Time.
9:00 A.M. - 12:00 P.M.
Eastern Time.
Instructions, Proper Assembly & Use, Safety Tips, Warnings
Page

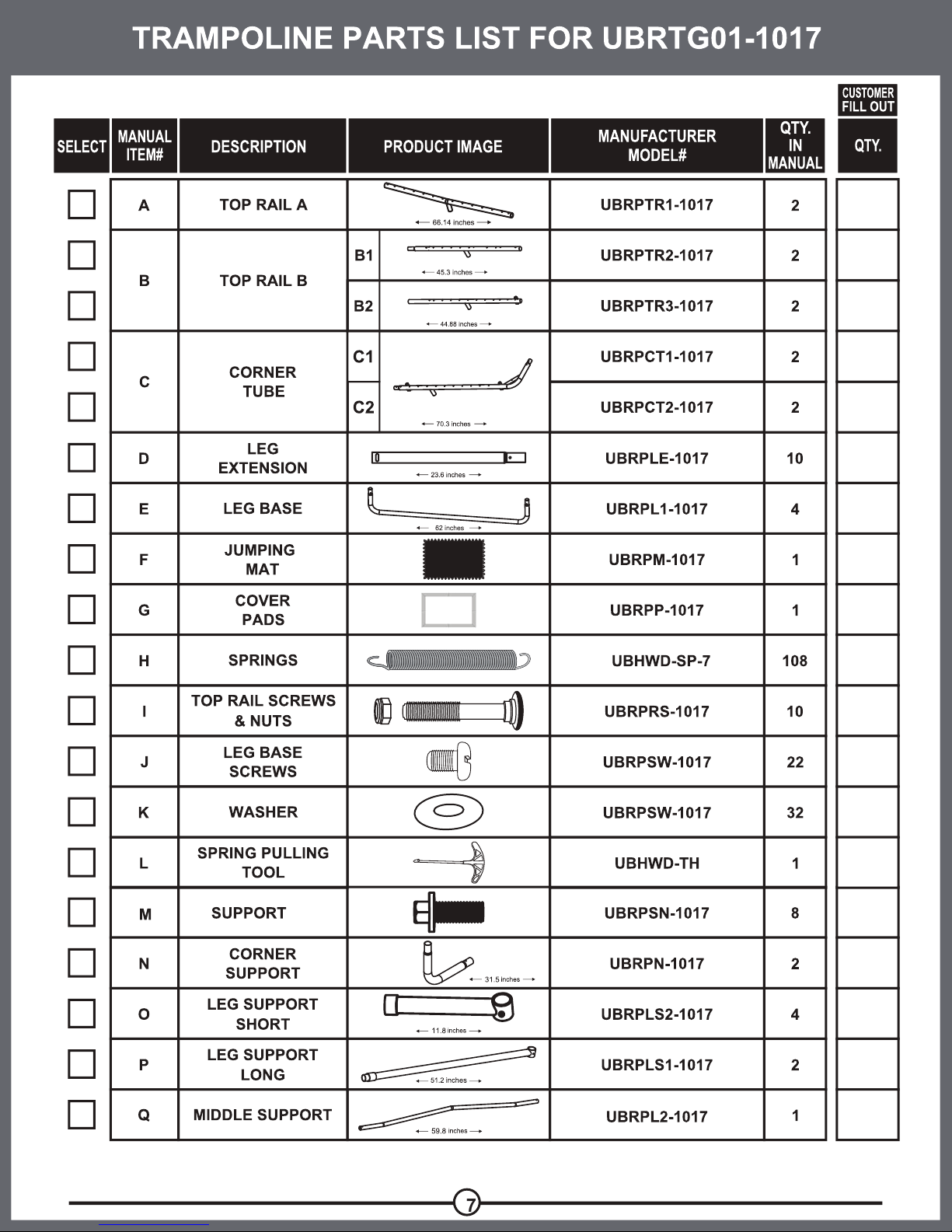

Trampoline Parts List
Trampoline Frame Assembly
Trampoline Mat Assembly
Trampoline Pad Assembly
Enclosure Set Parts List
Enclosure Set Assembly
Testing the Trampoline
Fundamental Bounce Techniques

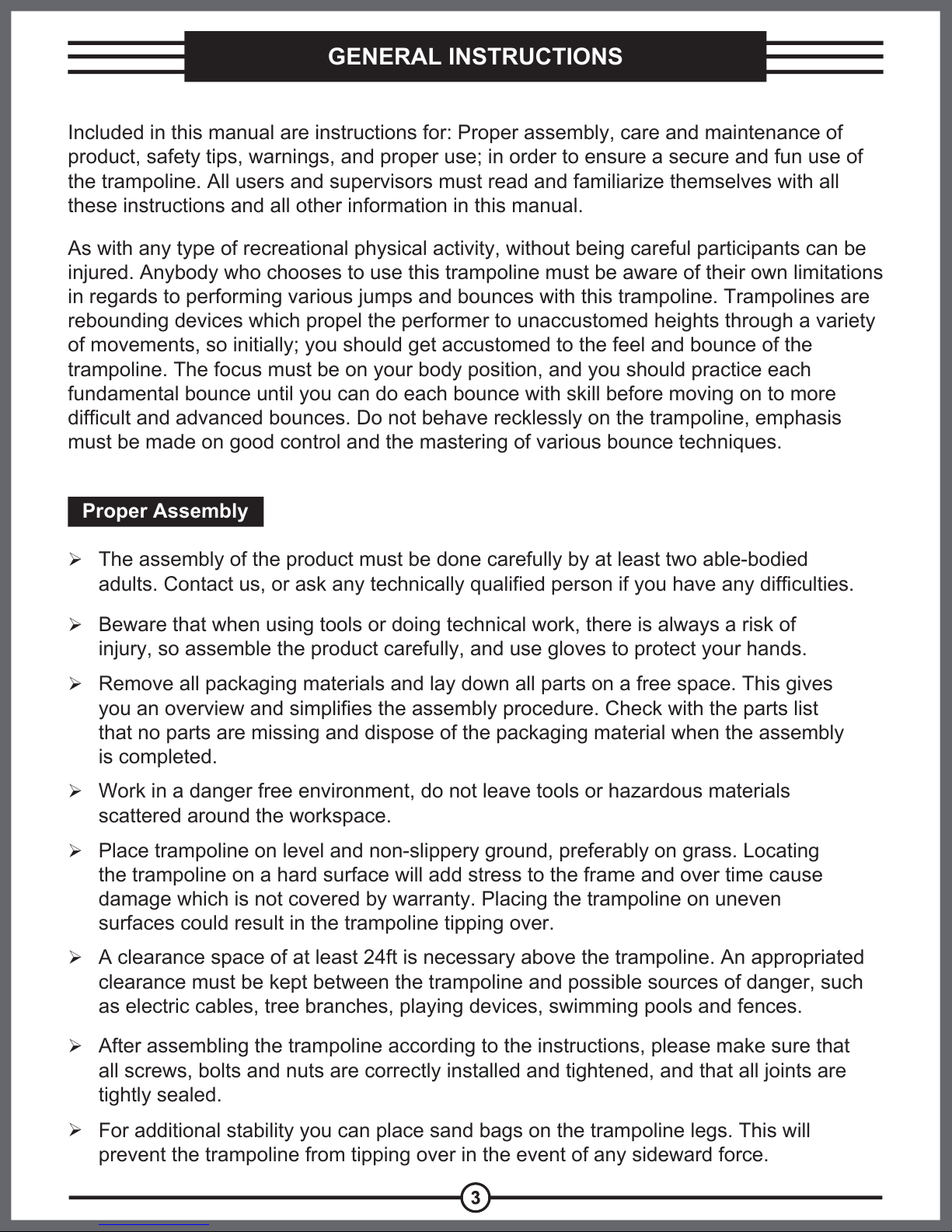

GENERAL INSTRUCTIONS
Included in this manual are instructions for: Proper assembly, care and maintenance of
product, safety tips, warnings, and proper use; in order to ensure a secure and fun use of
the trampoline. All users and supervisors must read and familiarize themselves with all
these instructions and all other information in this manual.
As with any type of recreational physical activity, without being careful participants can be
injured. Anybody who chooses to use this trampoline must be aware of their own limitations
in regards to performing various jumps and bounces with this trampoline. Trampolines are
rebounding devices which propel the performer to unaccustomed heights through a variety
of movements, so initially; you should get accustomed to the feel and bounce of the
trampoline. The focus must be on your body position, and you should practice each
fundamental bounce until you can do each bounce with skill before moving on to more
difficult and advanced bounces. Do not behave recklessly on the trampoline, emphasis
must be made on good control and the mastering of various bounce techniques.
¾The assembly of the product must be done carefully by at least two able-bodied
adults. Contact us, or ask any technically qualified person if you have any difficulties.
¾Beware that when using tools or doing technical work, there is always a risk of
injury, so assemble the product carefully, and use gloves to protect your hands.
¾Work in a danger free environment, do not leave tools or hazardous materials
scattered around the workspace.
¾Place trampoline on level and non-slippery ground, preferably on grass. Locating
the trampoline on a hard surface will add stress to the frame and over time cause
damage which is not covered by warranty. Placing the trampoline on uneven
surfaces could result in the trampoline tipping over.
¾A clearance space of at least 24ft is necessary above the trampoline. An appropriated
clearance must be kept between the trampoline and possible sources of danger, such
as electric cables, tree branches, playing devices, swimming pools and fences.
¾After assembling the trampoline according to the instructions, please make sure that
all screws, bolts and nuts are correctly installed and tightened, and that all joints are
tightly sealed.
¾For additional stability you can place sand bags on the trampoline legs. This will
prevent the trampoline from tipping over in the event of any sideward force.
¾Remove all packaging materials and lay down all parts on a free space. This gives
you an overview and simplifies the assembly procedure. Check with the parts list
that no parts are missing and dispose of the packaging material when the assembly
is completed.
Proper Assembly

¾Never set up the trampoline in rainy, windy or stormy conditions, especially lightening
conditions. It is recommended that the trampoline be taken apart and stored in bad
weather.
¾Do not alter the product; use it only as described in this manual.
¾Use the trampoline only in a well-lit area.
¾Do not place any objects under the trampoline.
¾Repairs should only be carried out by qualified technicians, using only original spare
parts. Improper repairs can compromise the safety of your trampoline.
¾Strong winds can compromise the stability of the trampoline. If strong winds are
predicted, the trampoline must be fastened to the ground with cords and moorings,
moved to a protected place, or taken apart and stored.
¾Try to avoid moving the assembled trampoline, it could bend during transportation.
Should it be necessary to move the trampoline, please consider the following: At least
four people, evenly spaced around the frame, are needed to lift the trampoline off the
ground. The trampoline must be carried horizontally, and if the frame shifts position,
use four people to draw the trampoline back into the correct shape.
¾The trampoline can only be used if the jumping mat is clean and dry. Worn or
damaged jumping mats should be replaced immediately.

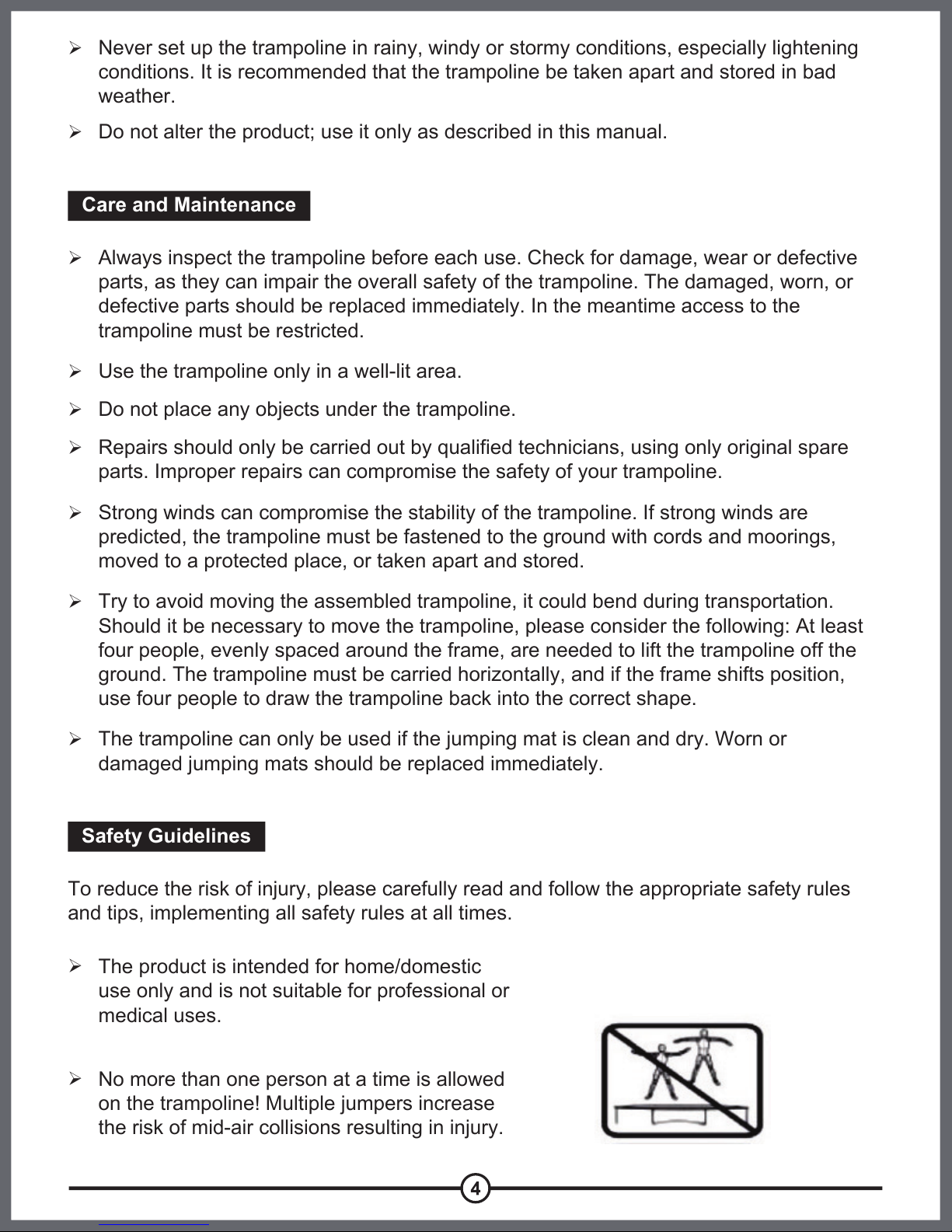

Care and Maintenance
¾Always inspect the trampoline before each use. Check for damage, wear or defective
parts, as they can impair the overall safety of the trampoline. The damaged, worn, or
defective parts should be replaced immediately. In the meantime access to the
trampoline must be restricted.
Safety Guidelines
To reduce the risk of injury, please carefully read and follow the appropriate safety rules
and tips, implementing all safety rules at all times.
¾No more than one person at a time is allowed
on the trampoline! Multiple jumpers increase
the risk of mid-air collisions resulting in injury.
¾The product is intended for home/domestic
use only and is not suitable for professional or
medical uses.

¾Do not perform somersaults on the trampoline
as this will increase the chances of landing on
your head or neck, paralysis or even death
can result.

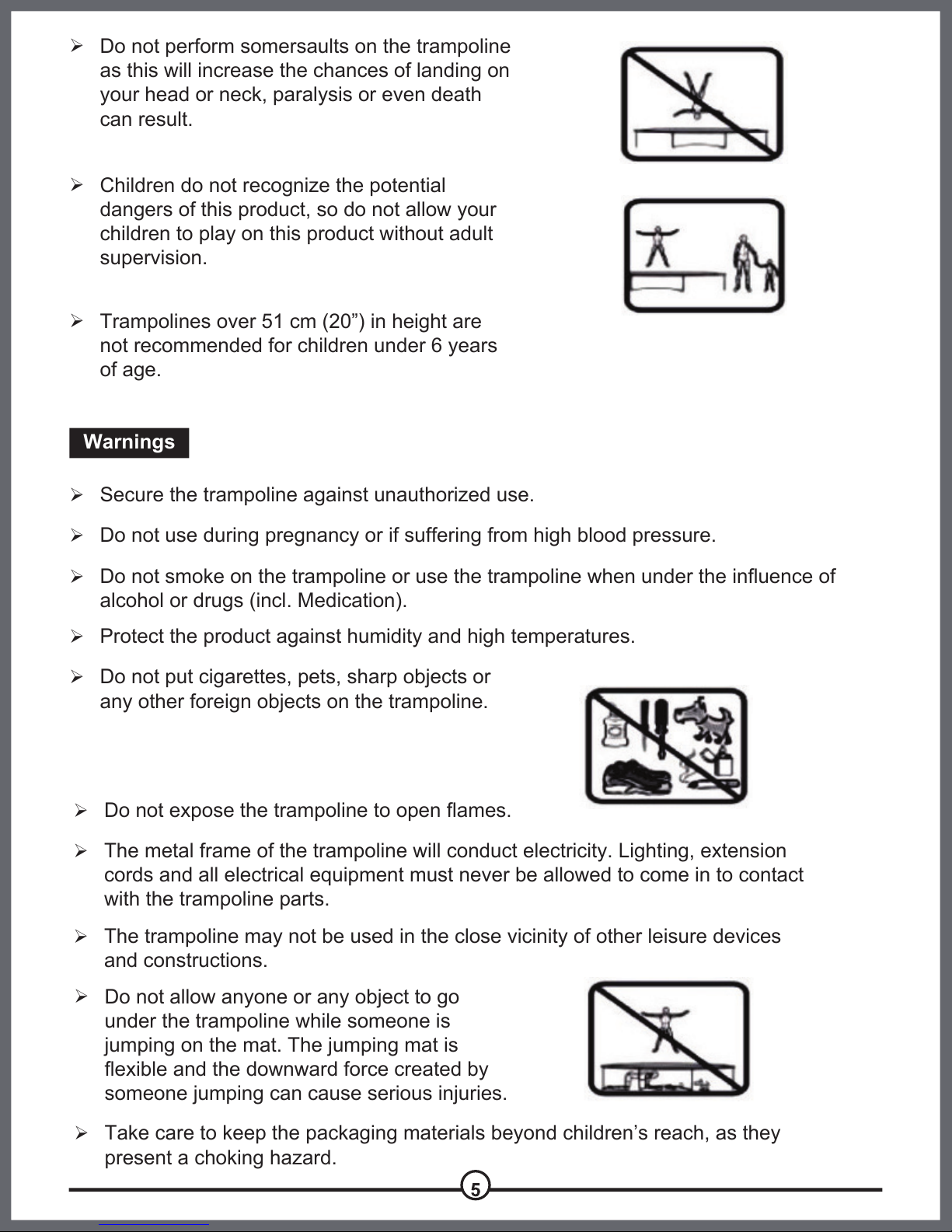

¾Children do not recognize the potential
dangers of this product, so do not allow your
children to play on this product without adult
supervision.
¾Trampolines over 51 cm (20”) in height are
not recommended for children under 6 years
of age.
Warnings
¾Secure the trampoline against unauthorized use.
¾Do not use during pregnancy or if suffering from high blood pressure.
¾Do not smoke on the trampoline or use the trampoline when under the influence of
alcohol or drugs (incl. Medication).
¾Protect the product against humidity and high temperatures.
¾Do not put cigarettes, pets, sharp objects or
any other foreign objects on the trampoline.
¾Do not allow anyone or any object to go
under the trampoline while someone is
jumping on the mat. The jumping mat is
flexible and the downward force created by
someone jumping can cause serious injuries.
¾Take care to keep the packaging materials beyond children’s reach, as they
present a choking hazard.
¾Do not expose the trampoline to open flames.
¾The metal frame of the trampoline will conduct electricity. Lighting, extension
cords and all electrical equipment must never be allowed to come in to contact
with the trampoline parts.
¾The trampoline may not be used in the close vicinity of other leisure devices
and constructions.

Proper Use
Carefully climb onto trampoline. Do not jump into it directly, or use it as a jump board
for other activities. Jumping into the trampoline, hitting the frame, cover pads, and
landing incorrectly on the trampoline; can lead to injury.

The maximum weight allowed on the trampoline is 500 lbs. Overloading the
trampoline above the recommended user weight will cause damage to the
trampoline.
No more than one person at a time should be allowed on the trampoline!
Avoid unsupervised use of the trampoline.
Do not use the trampoline if it is wet.
Do not wear shoes while jumping; this will damage the jumping mat.
Do not sit or lean on the cover pad as it needs to be flexible so it can move with
the jumping mat.
Objects that could be dangerous should be vacated from the playing area.
Do not allow small children to pull themselves up onto the trampoline by using the
cover pads, as this may damage the pads and compromise the safety of your
trampoline.
Do not wear clothes with hooks or loose parts when jumping on the trampoline, in
order to avoid getting stuck in any trampoline parts.
It is the responsibility of the owner or the supervisor to guarantee that all users of the
trampoline are informed about all safety rules and that there is sufficient space around
the trampoline to allow for safe play.
Learn the fundamental jumping techniques thoroughly before trying difficult jumps, see
section: Fundamental Bounce Techniques for further guidance.

7

!
Lay out the trampoline parts on the ground
so that you start to form a rectangle with the
top rail sections. Make sure to keep all the
tubes in the same direction all around the
trampoline frame.
Frame Layout
Step 1
Step 2
Attach the leg extensions (part D), to the leg
base (part E), and tightly secure together
with screws (part J) and washers (part K).
Repeat this step for all 4 legs.
Construct the Legs
Step 3
Attach the Middle Support to the Legs.
Attach part P and part O. Once they are attached,
connnect the pole to the legs by sliding it on to the
leg extensions (part D). Slide the pole down the legs
until it stops. Repeat this step for all 4 legs.
Step 4
Assemble the Frame Corners
Lay out the trampoline parts as shown in the figure. Connect the corner rails (part C) to the
top rails (Part B) using screws and nuts (part I). Part C1 connects to part B1 and part C2
connects to part B2. Then attach to the leg bases as shown using screws and washers
(parts J & K).
Note:
Make sure that all
screw holes that
connect the B rails
to the legs are facing
the inside of the
frame.
8
FRAME ASSEMBLY FOR MODEL UBRTG01-1017

Step 5
9

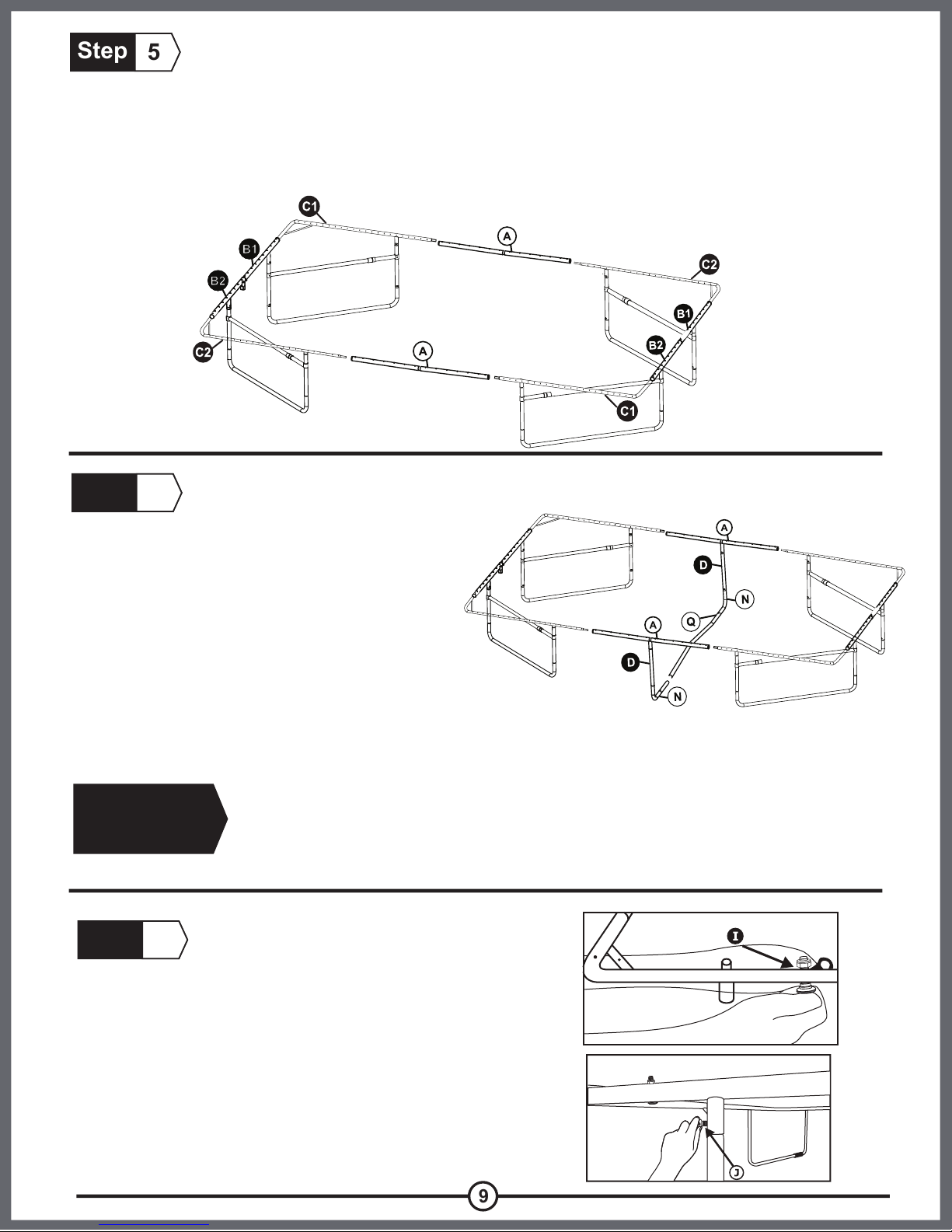

Connect the top rails B1 and B2. Attach part A- the long side of the trampoline, to the
corners part C, making sure that the longer side of part C is on the longer side of the
trampoline, as shown. Secure with screws and nuts (part I).
Assemble the Frame
Step 6
Assemble the Center Leg Base
IMPORTANT:
Step 7
Secure the Frame
Take two leg extensions (part D) and
connect to the center top rails (part A).
Then attach the corner supports (part N)
to the leg extensions (part D), making
sure to attach the legs to the shorter side
of the corner support. Then connect the
midde support (part Q) to the corners
(part N).
You may not be able to fully connect the middle support (part Q) to the
corner (part N), as it may be too short. You will need to attach the jumping
mat first; see instructions on page 10. After attaching the mat you will
be able to fully attach part Q. Secure with screws and washers.
Secure all the frame pieces together using the vari-
ous screws, nuts and washers. Ensure that you use
the proper screws for the proper parts- Part I for the
top rails and Parts J and K for the legs.
Make sure to tighten all screws.

How To Use The Spring Pulling Tool
Step I: Hook the more rounded end of the spring
onto the trampoline mat's triangular rings.
Step II: Extend the spring pull tool and link it up
with the other end of the spring. Pull the tool in
the direction of the trampoline frame until the
spring head is lined up with the hole in the
trampoline frame.
WARNING: Be careful where you place your hands during spring assembly as
connector points can pinch!
Make sure the v-rings between the springs matches the number of holes in the
frame between the springs.
Note:
Lay out the trampoline mat inside the frame.
1.
Connect all 4 springs to the corner top rails
2.
First connect the 4
corner springs.
Follow by connecting
4 additional springs
in the center of the quarters.
Then continue,
connecting every
few springs
Complete the
rest of the springs
Step III: Slide the spring end into the hole as
you remove the tool.
TRAMPOLINE MAT ASSEMBLY

The trampoline is almost complete, with all the springs in place. Before using the
trampoline please attach the provided safety pads.
Lay out the other two pads and connect
with velcro.
2.
Lay out the two sides of the safety pad shown
here and connect with the attached velcro
strip.
1.
Tie all the cover pad strings onto the top rail
of the trampoline. The middle of the pad has
a set of strings with two S-shaped hooks at
the end. Attach one S-shaped hook to the
springs of the mat, and the other S-shaped
hook to the V-rings of the mat. Attach the
hooks from underneath the mat.
3.
TRAMPOLINE COVER PAD ASSEMBLY

WARNING:
2 adults in good physical condition are required for the following assembly.
Wear proper shoes and maintain balance to prevent a fall. Failure to follow
all instructions and warnings exactly may result in serious injury.
.
Lay out all parts prior to assembly. Please note:
Picture may vary slightly with the different trampo-
line models.
1.

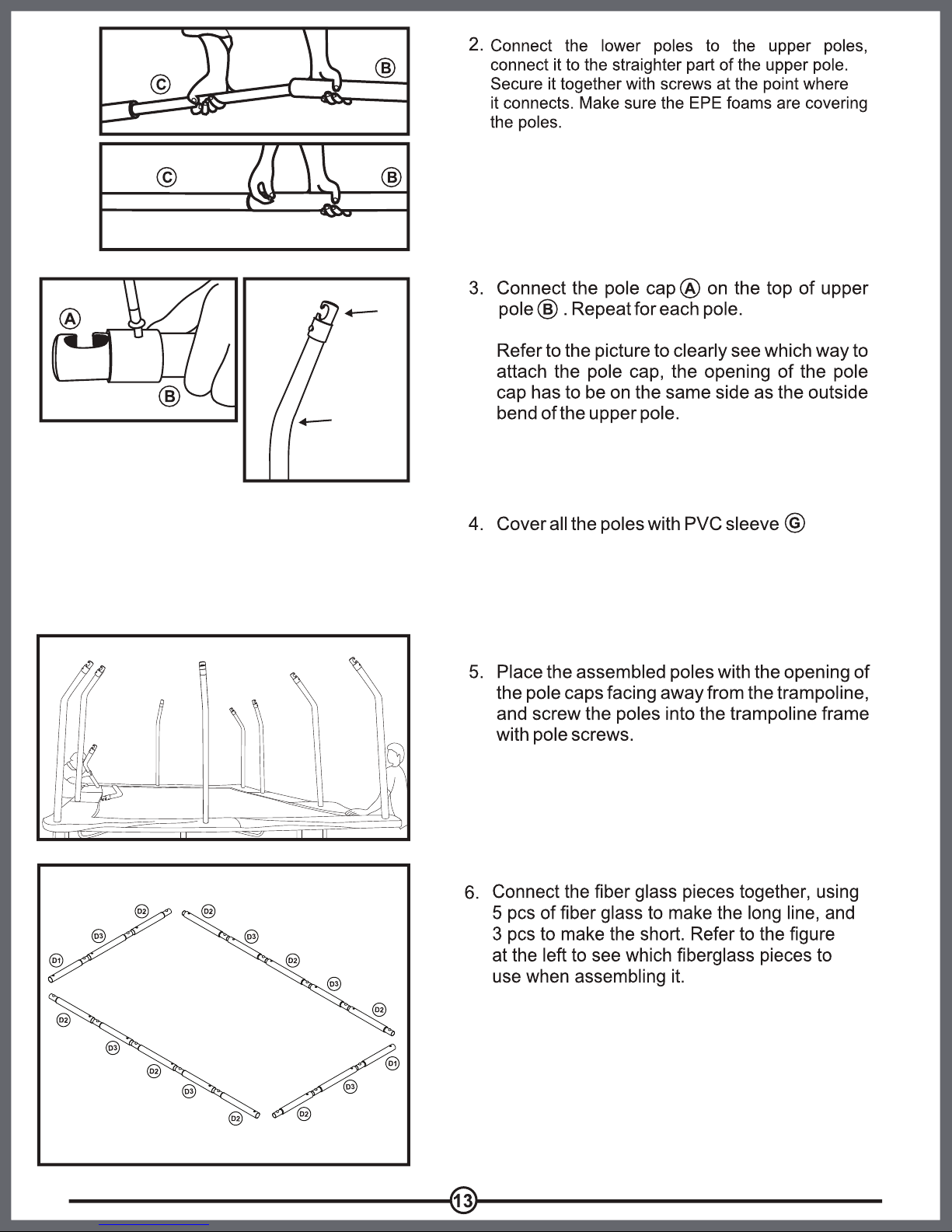

SAFETY ENCLOSURE ASSEMBLY

15

16

17

18

Instructions pour monter, installer, entretenir, maintenir et utiliser le trampoline
Avertissement: Lisez attentivement les consignes avant d’assembler ou d’utiliser le trampoline.
3m x 5m
Manuel d’ulisaon
du trampoline rectangulaire
ÉDITION FRANÇAISE Manuel Version #04
Déchargez gratuitement l’application BILT.
Suivez la marche à suivre pas à pas et procédez à
l’assemblage rapidement et facilement.
