URayTech URayCoder Instruction manual

Preface
Thank you for your support of URayCoder video encoder and video decoder.
This quick user manual is for you to use the device quickly. If you need more information
about video encoder, please refer to another detailed user manual.
This manual is universal. If you have purchased an encoder with other interfaces (such as
SDI, VGA, etc), you can also use this manual.
If you need user manual in PDF format, you can open the USB flash drive to get it. By the
way, the video guidance is also included in the USB flash drive.
Since it is a professional product, and Amazon customer service is not familiar with this
product, if you encounter any technical problems when using the device, or encounter
document requirements(such as new firmware, SDK, APP etc), please contact us via the
following contact information, we will arrange professional engineers to provide you with
technical service.
Email: [e-mail]
Skype: [e-mail]
Whatsapp: [phone]

Table Of Contents
1. Reset·········································································································1
2. Log in to the Control Panel············································································ 1
2.1. Windows Operating System·································································1
2.2. MAC Operating System······································································ 6
3. WIFI Connection························································································ 12
4. Preview Video Stream·················································································14
5. Adjust Output Video Audio Quality································································· 16
6. Online Live Streaming·················································································17
6.1. YouTube Live Streaming····································································17
6.2. Facebook Live Streaming·································································· 20
6.3. Push Stream to the Streaming Server·················································· 23
7. Port Mapping·····························································································25
8. Contact Us································································································26

１
1. Reset
There is a ‘‘RESET’’ hole on the front end of video encoder, which is used for conducting
initialization reset to the encoder. After turning on the power of the device, insert a pin into
the hole, then press the reset button and hold it down for about 8 seconds until you see all
three indicator light(VIDEO, LAN, POWER) go out All parameters will be initialized.
•The default IP address is 192.168.1.168. The default login ID and password are ''admin''.
•You can try to reset the device if you encounter any problems while using the device.
2. Log in to the Control Panel
Logging in to the control panel of video encoder is the first step in using the device. Most
customers cannot log in to the control panel of video encoder by entering 192.168.1.168
directly in the browser. The reason is that the IP address of video encoder(192.168.1.168)
and the IP address of PC(or laptop) are not in the same network segment, so they cannot
communicate with each other. In order to log in to the control panel of video encoder, we
first need to change the IP address of PC(or laptop).
This is how to log in to the control panel. If you are using windows, please refer to chapter
2.1; if you are using MAC, please refer to chapter 2.2.
2.1 Windows Operating System
Step 1. Connect the video encoder to the router via an Ethernet cable

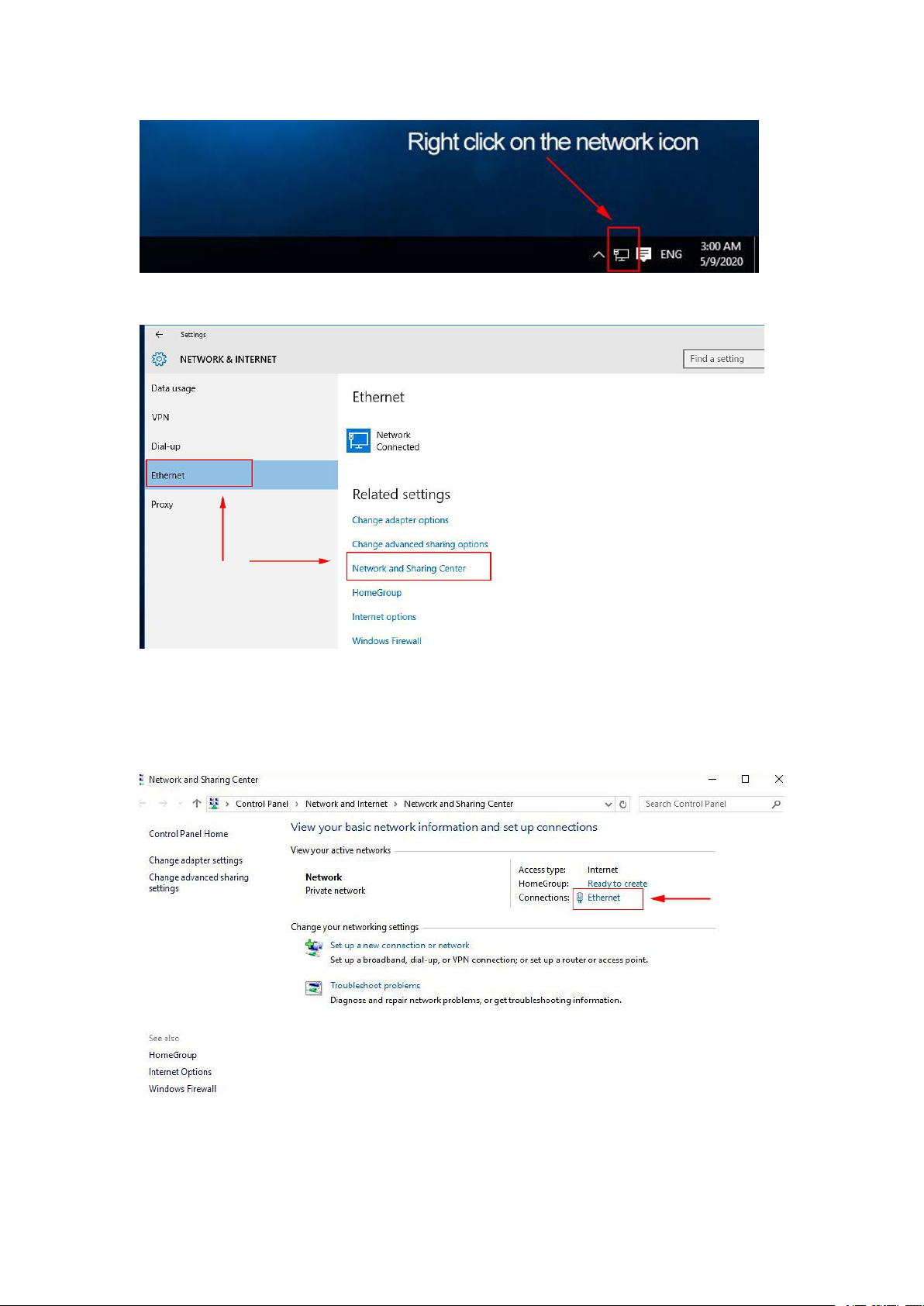

Step 2. Connect the PC(or laptop) to the same router via Ethernet cable or WIFI. Right
click on the network icon to open <Network and Sharing Center>

２
Step 3. Click ''Ethernet'' or ‘‘WIFI’’
If you connect the PC(or laptop) to the router via WIFI, ‘‘WIFI’’ is displayed in here.
Step 4. Click ''Details''

３
You can check the IP address and default gateway of the PC(or laptop) in <Network
Connection Status>. For example, the IP address of my PC(or laptop) is 192.168.0.111,
and the gateway of of my PC(laptop) is 192.168.0.1.
Remember the IP address and the gateway of your PC(laptop), it will be used in step 10.
Step 5. Click ''Properties''
Step 6. Double-click ''Internet Protocol Version 4(TCP /IPv4)''

４

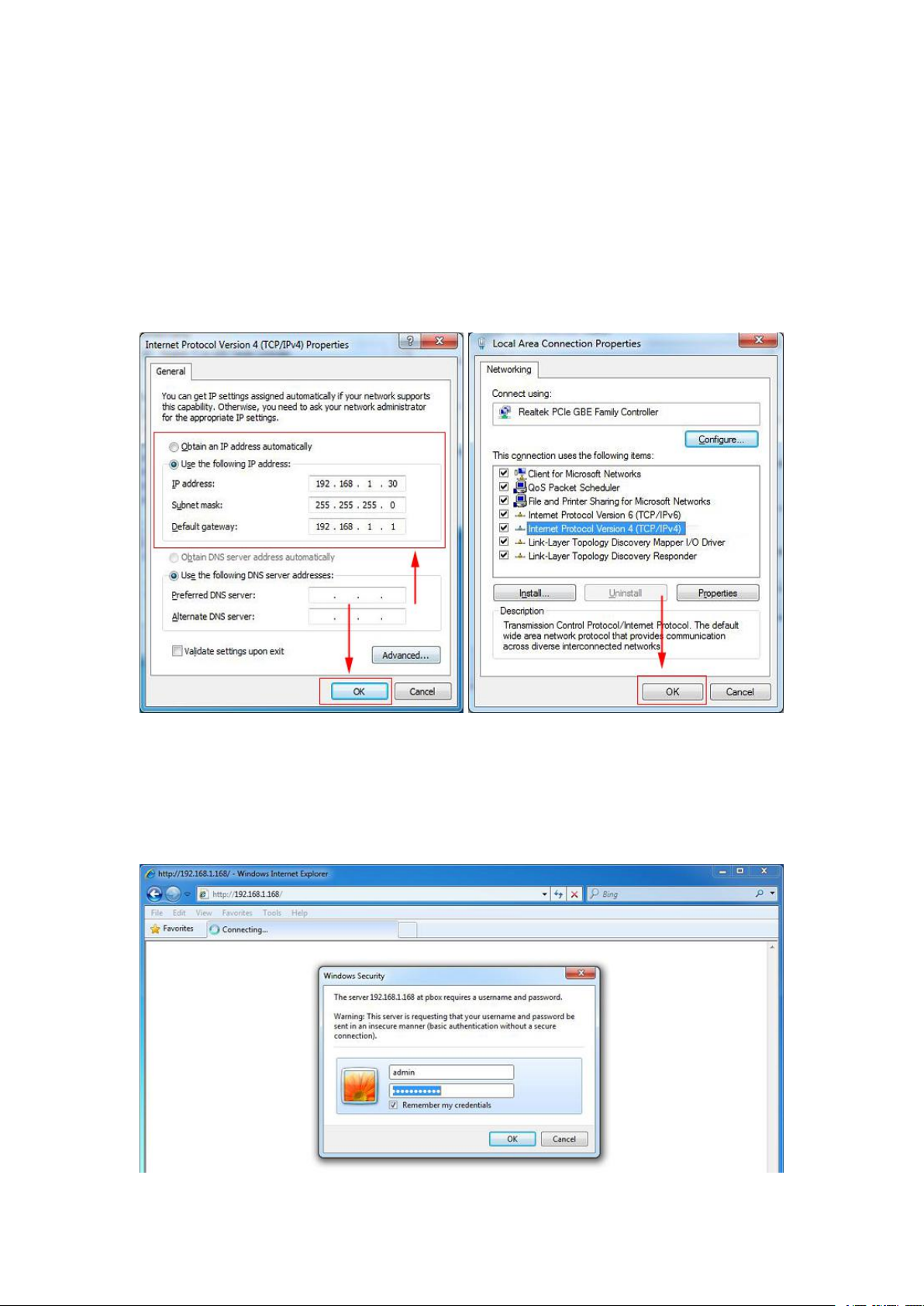

Step 7. Select ''Use the following IP address''
Step 8. Change the IP address and default gateway of PC(laptop), and then click ''OK''
You can set the IP address to 192.168.1.30 and the default gateway to 192.168.1.1.
In order for the IP settings to take effect, please remember to click ‘’OK’’ in the window of
<Local Area Connection Properties>.
Step 9. Log in to the control panel of video encoder 192.168.1.168
The default ID and password are ''admin''.
If you cannot log in to the control panel, please reset the device. (Refer to chapter 1)

５

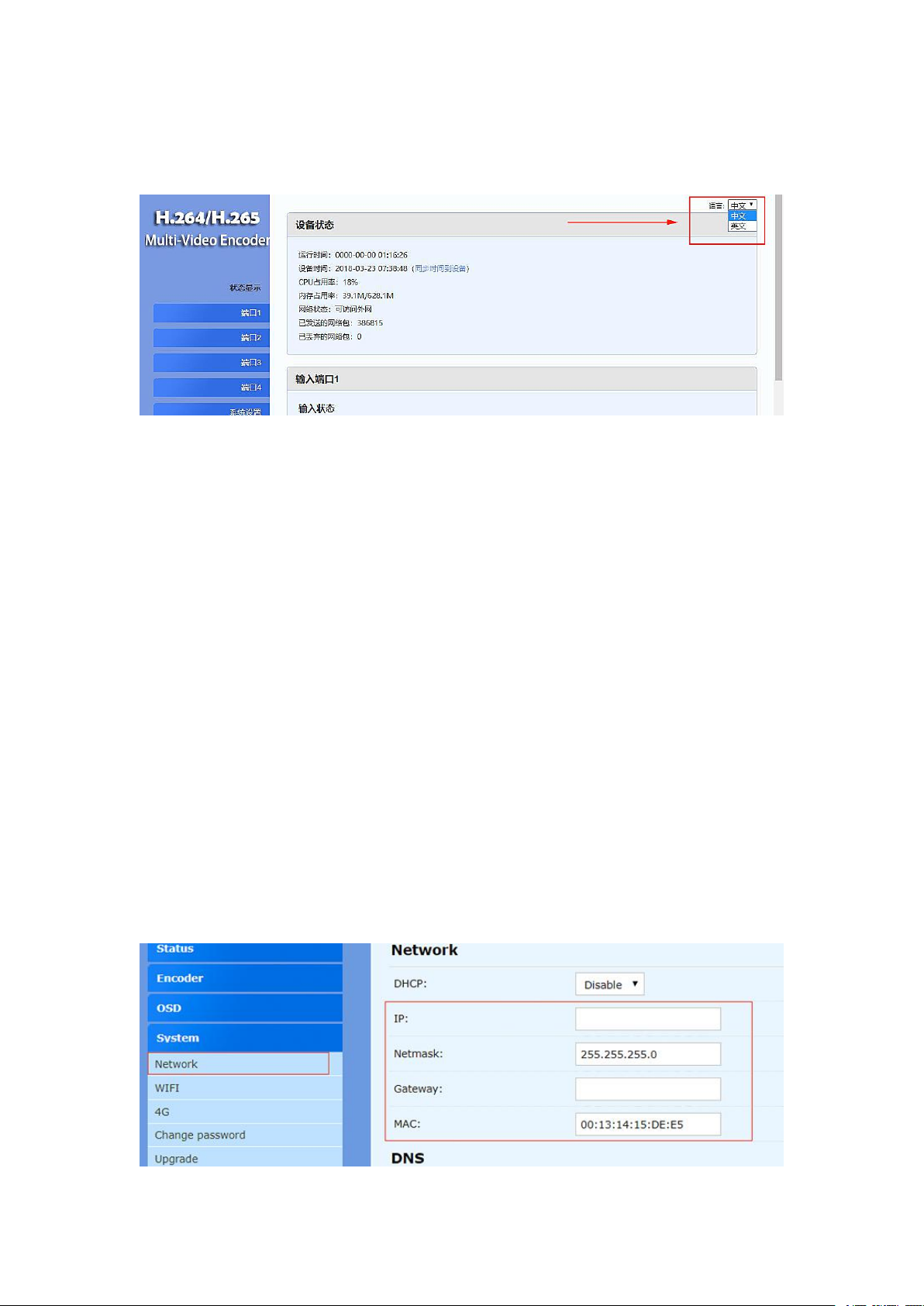

Usually, the language of the control panel is English. If Chinese is displayed, you can
change the language in the upper right corner of control panel. Please select ‘‘英文’’.
Now the video encoder can be used in local area network(LAN). In order to use it in a wide
area network(WAN), we need to change the IP address of video encoder.
Step 10. Change the IP address and gateway of video encoder
In step 4, you already know the IP address and default gateway of the PC(or laptop).
For example, the IP address of my PC(or laptop) is 192.168.0.111, and the gateway is
192.168.0.1. Therefore, I can change the IP address of the video encoder to
192.168.0.168(in order to avoid IP conflicts, please don’t make the IP address of video
encoder the same as the IP address of your PC), and change the default gateway to
192.168.0.1.
Since each PC(or laptop) has a different IP address, I can only use my computer IP as an
example. Before changing the IP address and gateway of video encoder, please refer to
the IP address and gateway of your computer(In Step 4). If you have any question, please
contact us. We will arrange an engineer to help you set up.

６
Step 11. Click ''Reboot'' to restart the video encoder
Step 12. Select ''Obtain an IP address automatically'', and then click ''OK''
Please remember the new IP address of the video encoder.
In order for the IP settings to take effect, please remember to click ‘‘OK’’ in the window of
<Local Area Connection Properties>.
Step 13. Log in to the new IP address of video encoder
2.2 MAC Operating System
Step 1. Connect the video encoder to the router via an Ethernet cable
Step 2. Connect the MAC to the same router via WIFI. Open the window of <System
Performance>

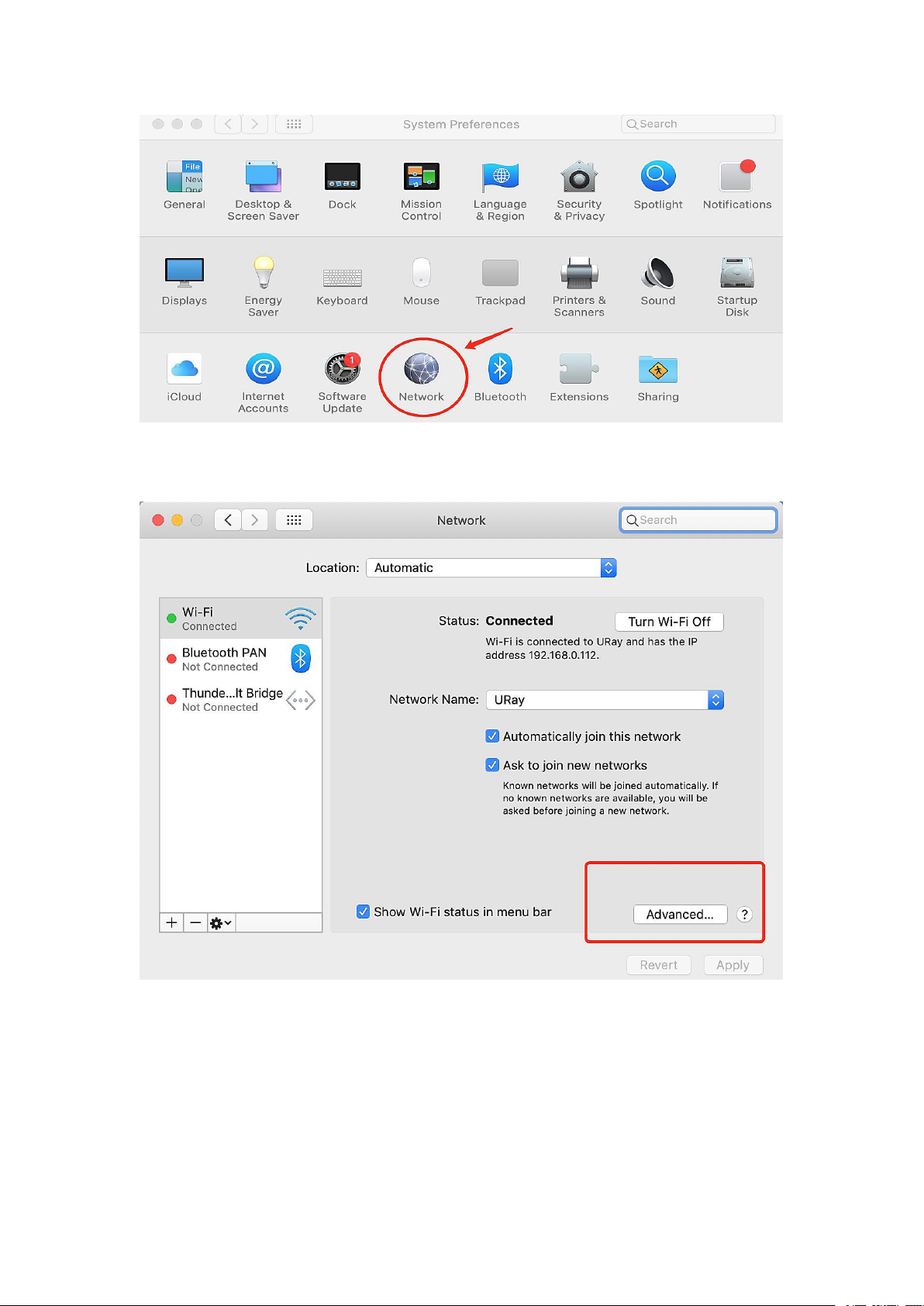

Step 3. Click ‘‘Network’’

７
Step 4. Click ‘‘Advanced’’

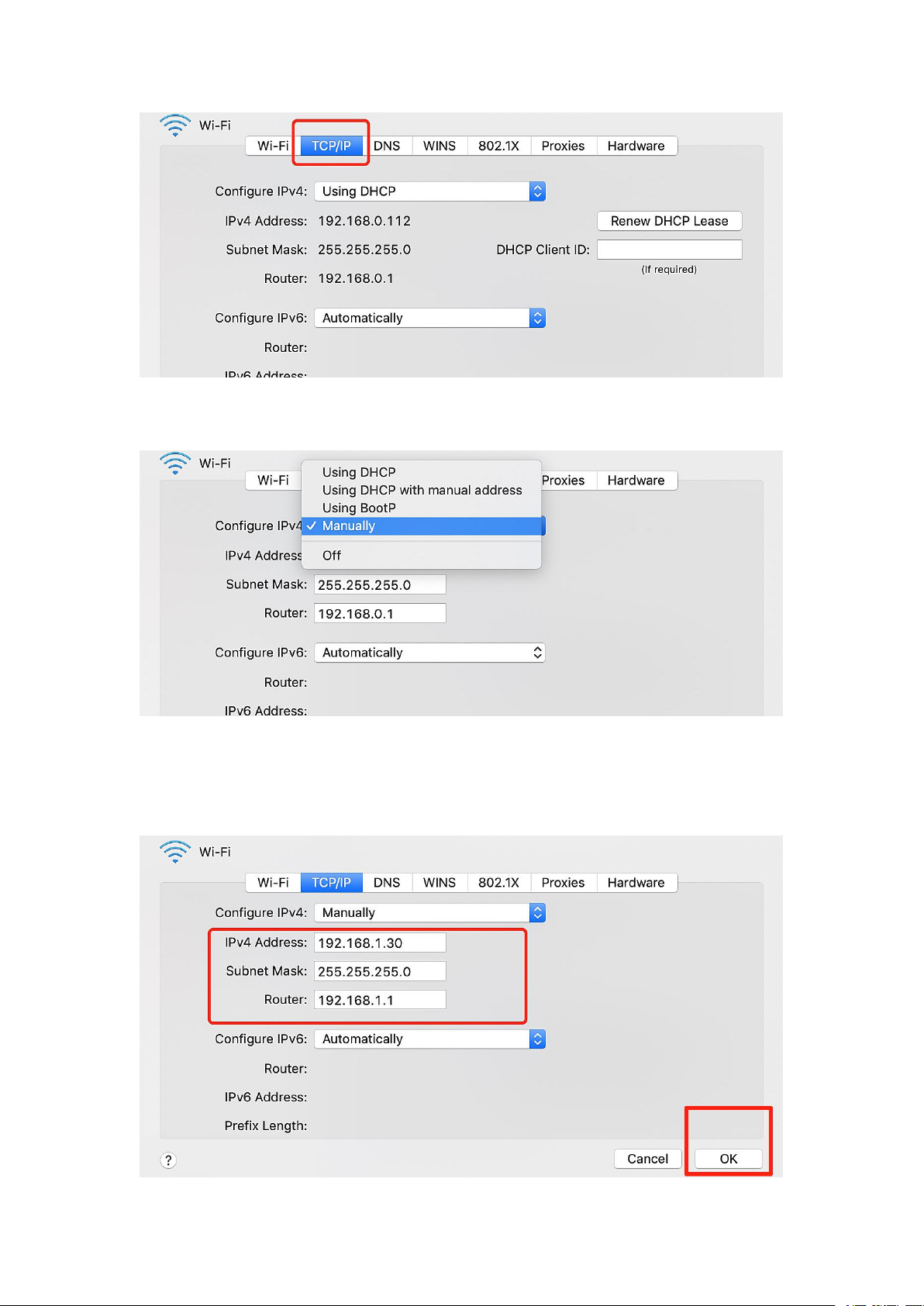

Step 5. Click ‘‘TCP /IP’’
You can check the IP address and default gateway of the MAC here. For example, the IP
address of my MAC is 192.168.0.112, and the gateway of my PC(laptop) is 192.168.0.1.
Remember the IP address and default gateway of your MAC, it will be used in step 10.

８
Step 6. Select ‘’Manually’’ in the setting of ‘’Configure IPV4’’
Step 7. Change the IP address of MAC, and click ''OK''.
You can set the IP address to 192.168.1.30 and the default gateway to 192.168.1.1.

９
Step 8. Click ‘‘Apply’’ in the window of <Network>
Step 9. Log in to the control panel of video encoder 192.168.1.168
The default ID and password is ''admin''.
If you cannot log in to the control panel, please reset the device. (Refer to chapter 1)

１０
Usually, the language of the control panel is English. If Chinese is displayed, you can
change the language in the upper right corner of control panel. Please select ‘‘英文’’.
Now the video encoder can be used in local area network(LAN). In order to use it in a wide
area network(WAN), we need to change the IP address of video encoder.
Step 10. Change the IP address and gateway of the video encoder
In step 5, you already know the IP address and default gateway of the MAC.
For example, the IP address of my MAC is 192.168.0.112, and the gateway is 192.168.0.1.
Therefore, I can change the IP address of the video encoder to 192.168.0.168(in order to
avoid IP conflicts, please don’t make the IP address of video encoder the same as the IP
address of your MAC), and change the default gateway to 192.168.0.1.
Since each MAC has a different IP address, I can only use my MAC IP as an example.
Before changing the IP address and gateway of video encoder, please refer to the IP
address and gateway of your MAC(In Step 5). If you have any question, please contact us.
We will arrange an engineer to help you set up.

１１
Step 11. Click ''Reboot'' to restart the video encoder
Step 12. Select ‘‘Using DHCP’’ in the setting of ‘‘Configure IPV4’’, and click ''OK''.
Step 13. Click ‘‘Apply’’ in the window of <Network>

１２
Step 14. Log in to the new IP address of video encoder
3. WIFI Connection
This chapter applies to all models with WIFI function. If your video encoder doesn’t have
WIFI function, you can ignore this chapter.
Step 1. Connect the WIFI antenna to the video encoder.
Step 2. Select ‘‘WIFI’’ in the ‘‘WIFI mode’’ setting, and then click ‘‘Apply’’.
Step 3. Click ''Reboot'' to restart the video encoder.
Step 4. Select a WIFI in the ‘‘WIFI List’’. You need to choose the WIFI which is sent from
the router to which the encoder is connected, so that the laptop or Mac can access WIFI
IP of the encoder.
If there is no WIFI list, please click ‘‘Refresh’’ or restart the encoder again.

１３

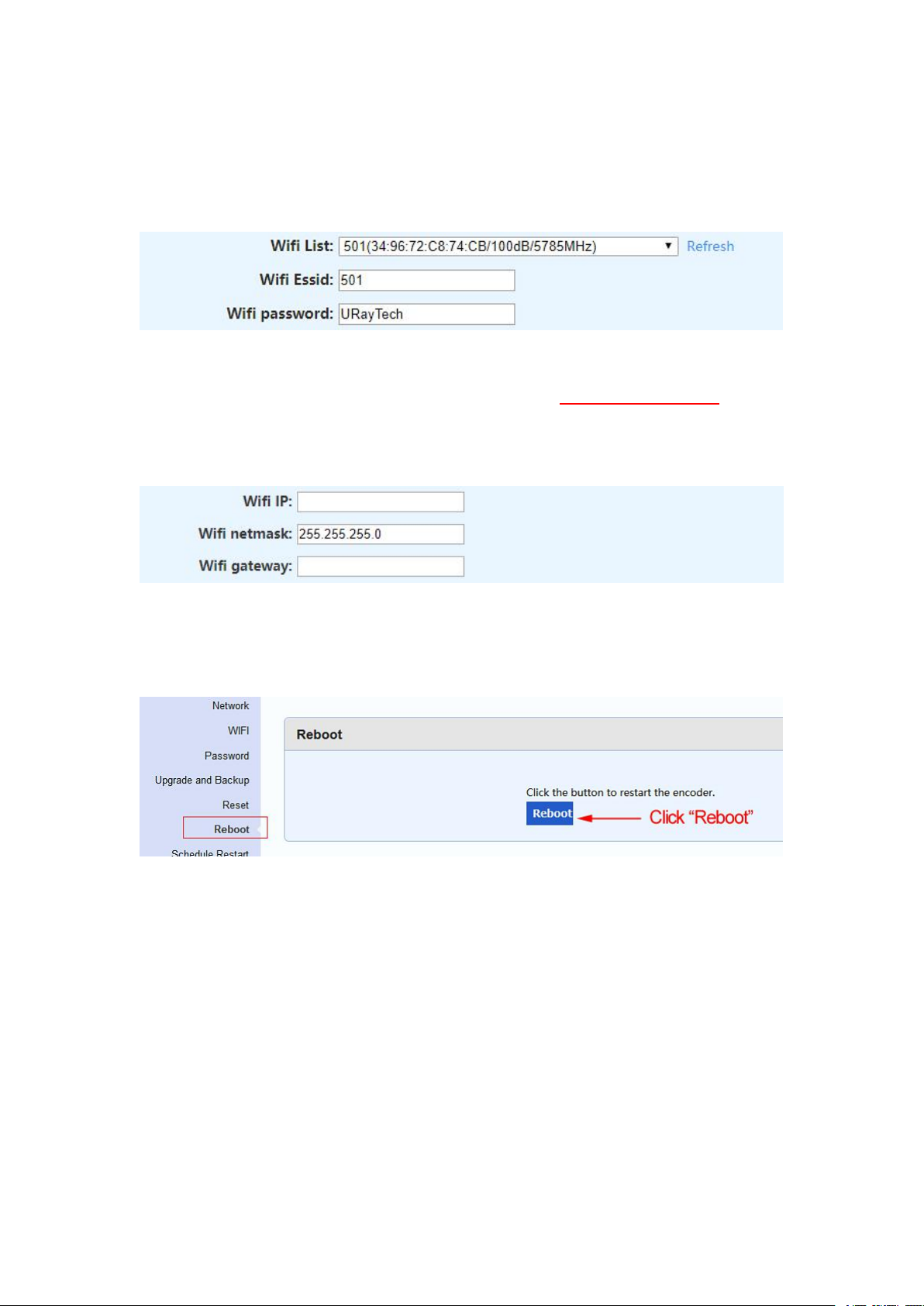

Step 5. Enter the name and password of the WIFI in ‘‘WIFI Essid’’ and ‘‘WIFI Password’’.
WIFI Essid: The name of the WIFI selected in the WIFI list.
WIFI Password: The password of the WIFI selected in the WIFI list.
Step 6. Change the IP and gateway of the video encoder, remember the WIFI IP.
Before changing the IP address, Please refer to the IP of the laptop or Mac. You can refer
to step 10 in chapter 2.1 or 2.2.
Step 7. Click ‘‘Apply’’.
Step 8. Click ''Reboot'' to restart the video encoder
Step 9. Log in to the WIFI IP of video encoder.
If you can log in to the WIFI IP, it means that the WIFI connection is successful, and the
WIFI status will be displayed as ‘‘COMPLETED’’.
If you cannot log in to the the WIFI IP, please log in to the Ethernet port IP, and check
whether the WIFI password is correct, or whether the IP of the video encoder and the IP of
PC(or laptop) are on the same network segment.
If you have trouble setting up a wireless network, please contact us. We will arrange an
engineer to help you set up.

１４
4. Preview Video Stream
You can download the VLC software in Google and then use VLC to preview video stream.
This is how to preview video stream.
Step 1: Open VLC media player, click ‘‘Media’’, and then click ‘‘Open Network Stream’’.
Step 2: Enter the URL of video stream and click ‘‘Play’’.

１５
Currently, you can only preview the URL of video streaming in local area network(LAN),
because 192.168.1.168 is the IP address of local area network. If you want to preview the
URL of video stream in wide area network(WAN), please refer to Chapter 7.

１６
5. Adjust Output Video Audio Quality
Adjust the video audio quality of the output stream by setting the following parameters.
• Bitrate: You can adjust the bitrate of the video stream from 32 to 32000. If the bitrate
value is set too high and the network bandwidth(upload bandwidth) is not insufficient, the
output video will play not smoothly; if the bitrate value is set too low, the image quality of
the output video will be poor.
For 1080p output resolution, the bitrate can be adjusted in the range of 3000 to 5000.
For 720p output resolution, the bitrate can be adjusted in the range of 1500 to 3000.
For 576p output resolution, the bitrate can be adjusted in the range of 800 to 1500.
• Encoded Size: You can adjust the resolution of the video stream up to 1920x1080P.
The resolution of the output video cannot exceed the resolution of the input video. For
example, if you need 1280x720 output, you need to input a video source with a resolution
of 1280x720 or higher.
• Bitrate Control: If the network bandwidth is sufficient, you can select ‘‘VBR’’; If the
network bandwidth is normal, you can select ‘‘strong CBR’’; If the network bandwidth is
not good, you can select ‘‘CBR’’;
• GOP: Please use the default value of 30.
• Audio Bitrate: You can adjust the higher bitrate to get better audio quality.

１７
• Audio Sampling Rate: You can set the output sampling rate to be the same as the
input sampling rate. (Input sampling rate is displayed in ‘‘Input Status’’)
6. Online Live Streaming
6.1 YouTube Live Streaming(RTMP)
Step 1. Visit website https://www.youtube.com/live_dashboard
Step 2. Log in to YouTube account and find ''Stream name /key''
Step 3. Configure the setting of ‘‘RTMP(S) /RTSP PUSH URL’’, then select ''Enable'', and
then click ''Apply''
This is the RTMP setting format of YouTube.
rtmp://a.rtmp.youtube.com/live2/xxx (xxx is your Stream Key)
For example, my Stream Key is xcm8-ev8m-vbe2-3mgf. Therefore, I need to enter the
following RTMP information of YouTube into the setting of ''RTMP(S) /RTSP PUSH URL''.
rtmp://a.rtmp.youtube.com/live2/xcm8-ev8m-vbe2-3mgf

１８
Step 4. Configure the setting of ‘'DNS1'' and ‘'DNS2'' and ‘'Gateway'', then click ''Apply''
Enter the gateway of the router to the setting of the ’’DNS1’’ and ‘‘DNS2’’ and ‘‘Gateway’’.
You can find the gateway of the router in step 4 of chapter 2.1 or step 5 of chapter 2.2.
Step 5. Click ''Reboot'' to restart the video encoder
Step 6. Check if the video encoder is connected to YouTube.
If ‘‘Connected’’ is displayed, it means the video encoder is connected to YouTube already.
