Urive CLASSIC User manual

User manual
Manufacturer: Midong E&T Co., Ltd.
Ver.1.0

01. Before using Urive Classic ………………………………… 3
02. Precautions before using the product …………………… 4
03. Precautions when using the product ……………………… 5
04. Product: Features …………………………………………… 7
05. Package component ………………………………………… 10
06. Name of each part …………………………………………… 11
07. How to install the Urive Classic …………………………… 15
08. Product: functional description …………………………… 18
09. GUI ………………………………………………………………20
10. How to upgrade ………………………………………………29
11. PC viewer ………………………………………………………30
12. Configuration…………………………………………………… 41
13. Video recording type …………………………………………43
14. Product: specification ………………………………………45
15. Consumer compensation regulations………………………46
16. Before requesting A/S services ……………………………47
17. Warranty…………………………………………………………49
CONTENTS

Urive Classic ... 3 ... User's Guide
01. Before using Urive Classic
The product is a secondary product for safe driving. It is designed to store video and audio information
coming from the front and rear cameras with touch LCD. It records driving and parking videos and
information about car accidents or impacts. This will provide relevant circumstantial reference data.
◊
# Urive Classic is a trademark of Midong E&T.
◊
# All the manual’s contents are protected according to copyright law.
◊
# All the program rights used in the product belong to Midong E&T and are protected according to copyright
law.
◊
# The manufacturer shall not be liable for product failures or damages because of misuse, incorrect
installation, or unauthorized alteration.
◊
# For safety reasons, avoid manipulating the black box while driving.
◊
# The images used in the manual may look different from the actual screens depending on the printing
conditions.
◊
# It is recommended that users read the manual carefully before using the product for proper and safe use.
◘ # This is a driver assistance device. The manufacturer will not be held liable for any consequences resulting from the use of the product.
Please use the product properly.
◘
# To enhance the performance of the product, the contents of this instruction manual may be changed without prior notice.

Urive Classic ... 4 ... User's Guide
02. Precautions before using the product
• Scope of warranty and responsibilities
- # This product is for assisting people in driving safely. The company will not be responsible for the loss that could occur because
of failures, data loss, or while using the product.
-
# This product is an ancillary device designed for recording and storing external videos. Some functions may not be supported
depending on the driving conditions and the conditions of a vehicle itself. When it comes to the level of support for
performance that is to be provided through the updating of firmware for improving quality and securing stability, it may vary
depending on the types of products. Depending on situations, recording may not take place. Considering that, users need to
use the product only for getting information for checking driving-related videos. Recording may not take place also depending
on the conditions of the SD card.
-
# This product is designed for recording the video related to an accident involving a user’s vehicle. However, it is not guaranteed
that the whole length of a video related to an accident is to be recorded. In case of an accident in which a minor shock occurs,
the detection sensor will not be activated, and, consequently, the video related to the event may not be recorded.
• Precautions for using the memory card
- # Check the data once a week at least for confirming that the product’s operation is normal.
-
# Format the micro SD memory card at least twice a month for stable use of the product.
- # Recommended to use a micro SD card that is exclusively designed for the product.
◘ In general, memory cards are valid for a certain period of time (warranted for 6 months) and therefore storage of new data may be
disabled if the card had been in use for a long time. If this is the case, replace with a new card as the manufacturer is not liable for the
data loss.

Urive Classic ... 5 ... User's Guide
03. Precautions when using the product
This section is for your safety and for the proper use of the product to prevent safety accidents/risks. The
manufacturer shall not be responsible for problems caused by use of the product in violation of the instructions.
Warning! Not following the instructions can lead to serious injuries or even death.
If the product is wet, do not place it in the heater or in the microwave oven to dry.
It may cause explosion, product deformation, or product failure, which is not covered under the warranty.
Do not use chemicals (such as benzene, thinner, or alcohol) or detergent to clean the product.
It may cause fire.
Do not alter or apply impact on the product.
Unauthorized alteration or product damage by impact shall not be covered under the warranty.
Do not install or operate the product while driving.
Operation of the product while driving can cause accidents. Please pull over to a safe spot when you operating the product.
!

Urive Classic ... 6 ... User's Guide
03. Precautions when using the product
Caution! Not following the instructions can lead to minor injuries or damage to the products.
If the product is directly connected to the car, do not use
the product for an extensive period.
It may discharge the battery.
Install the product in unaffected area by the Navigation
or HIPASS device.
Reflections of images of Navigation or HIPASS may cause poor
recording quality.
Ensure that the double-sided adhesive tape is firmly
affixed during installation.
The product may show poor performance when moving or
observing motor vibration for an extended period.
Keep the windshield clean.
Foreign materials may prevent normal recording of images.
Be careful when using memory cards and removing
them.
Uncertified Micro SD card may not be recorded properly.
Please remove the power cable before inserting or removing the
SD card.
Back up files periodically.
When the SD card is full, the oldest file in the card will be
overwritten by a new file. Please back up data periodically to
prevent unwanted data loss.
Please do not use sharp devices on the LCD.
The touch panel or the LCD may be damaged by sharp devices
when the black box is set up along with such devices on the LCD.
Avoid an area where the product is exposed to direct
sunlight when parked.
If used for long hours in an airtight environment inside a car and
under direct sunlight, the product may malfunction.
!

Urive Classic ... 7 ... User's Guide
04. Product: Features
◊ # High-quality video recording with clear images and an optimal viewing angle (Full HD-HD)
It provides high-quality clear video files at both day and night (Resolution: front: 1920×1080, Rear: 1280×720) and optimal viewing
angle (front: 115 degrees, rear: 130 degrees)
◊ # High-quality and low capacity
It records high-quality video files & low capacity with High Profile Codec.
◊ # 2CH Black Box for simultaneous front and rear monitoring
The main body of Classic is used to record the front side, and, at the same time, the external camera fitted inside the car is used to
record the rear side.
◊ # Ultra speed booting
After ignition, it starts video recording quickly. (Booting time: less than 7 sec.)
◊ # Black box that generates less heat
This is the least heat-generating device in our Full HD line-up. Thus, it can provide the longest recording time before the power is cut
in a hot summer.
◊ # Videos that have been recorded already or in the process of being recorded can be checked immediately through the
3.5-inch wide LCD screen with high resolution.
It can show the real-time front and rear videos playback and recorded files at the 3.5” wide touch LCD.

Urive Classic ... 8 ... User's Guide
04. Product: Features
◊ # Format function
To solve disadvantages of the traditional FAT file system, it is designed to save files to an SD card in a more stable manner to allow
easy SD management.
For any physical or certain problem of SDs, the set provides a format function.
◊ # PIP (picture in picture)
It shows the front and rear videos at the same time.
◊ # Easy Configuration
Users can change the configuration on the touch screen by themselves.
◊ # Continuous recording
All videos during driving are continuously recorded as a one-minute video file.
◊ # Event (impact) manual recording
It records 20 seconds video files from the 5 seconds before the incidence to the 15 seconds after it in the event folder
when there is an impact or the power button is pressed briefly.
◊ # Dedicated CCTV to protect the car, recording in parking
It provides recording in parking to record any damage or accident while your car is parked.
◊ # Auto memory management
Even if a memory card is short of space, it provide auto management function to remove files from the oldest ones
to record recent driving videos.

Urive Classic ... 9 ... User's Guide
04. Product: Features
◊ # PC viewer for playing recorded data
The PC viewer can play 2 channels (front/rear) of the black box video at the same time in order for easy checking of information.
◊ # Embedded voltage cutoff device to prevent battery discharge and settings for cut off voltage and timer
It is embedded with a device to cut the power to prevent battery discharge. If it reaches a certain voltage level, the black box is turned
off according to the cutoff voltage/time settings to prevent the battery from discharging. You can select 1 from 7 steps of cutoff voltage
and 5 steps of the timer, respectively.
◊ # Voice information
Voice information is provided according to situations.
◊ # Autosaver
1. Driving mode
- If the product temperature exceeds the LCD warranty temperature range, the LCD is automatically turned off while
if the temperature is within the range, the LCD is automatically turned on. (Remained off until the temperature is cooled down).
- Voice information (High temperature off and LCD tapped during the high-temperature off): “The LCD has been shut down
because of high temperature.”
2. Parking mode
- If the temperature is kept above the operation guarantee temperature, the black box is turned off to protect it.
If the temperature is cooled to operating temperature, it automatically starts to record video.

Urive Classic ... 10 ... User's Guide
05. Package component
Please check all the components in the box as the picture below.
If the component is damaged or has a problem, please contact the selling shop immediately.
상기 구성품은 부품 공급에 따라 사양이 임의로 변경될 수 있습니다. (상기 이미지는 소비자의 이해를 돕기 위한 것이며 실물과 다를 수도 있습니다.)
This component can be changed based on the supply of parts without prior notice.
(The images shown above are for the users’ information; thus, they may look different from actual components.)
Basic component
Option (To be sold separately)
Main body,
mounting holder
Micro SD card
adaptor
Rear camera,
cable
Double-sided
tape
Micro SD card
for URIVE
Manual Cigar power
cable
Continuous
power cable
Hexagon
wrench
GPS module
Ver 1.0
User manual

Urive Classic ... 11 ... User's Guide
06. Name of each part (Front camera)
1
23
4
5
6
7
9
8
10
11

Urive Classic ... 12 ... User's Guide
06. Name of each part (Front camera)
Name Functional description
① Camera lens To record the front video
② Embedded speaker For voice information
③ Security LED High-brightness blue LED for indicating the operation state and security
④ Power terminal (DC) Port to connect the power cable
⑤ External GPS terminal (GPS) Port to connect an external GPS module
⑥ Rear camera terminal (CAM) Micro USB 5-pin port to connect the rear camera
⑦ LCD 3.5″ LCD to check a video and control the device
⑧ Embedded mic (MIC) To record voice with a video
⑨ LED indicator Green LED to indicate always-on mode
⑩ SD card slot To insert a micro SD card for storage
⑪ Power & Manual record switch Power On/Off switch

Urive Classic ... 13 ... User's Guide
06. Name of each part (Rear camera)
Name Functional description
① Adhering surface Surface to attach the rear camera to a rear window
② Security LED Blue LED for indicating operation state and security
③ Camera lens Rear camera lens
④ Terminal Micro USB 5-pin port to connect the body
⑤ Screen reversal switch Horizontal reversal switch for rear-view screen (N: Normal / M: Horizontal
reversal)
1
2
34
5

Urive Classic ... 14 ... User's Guide

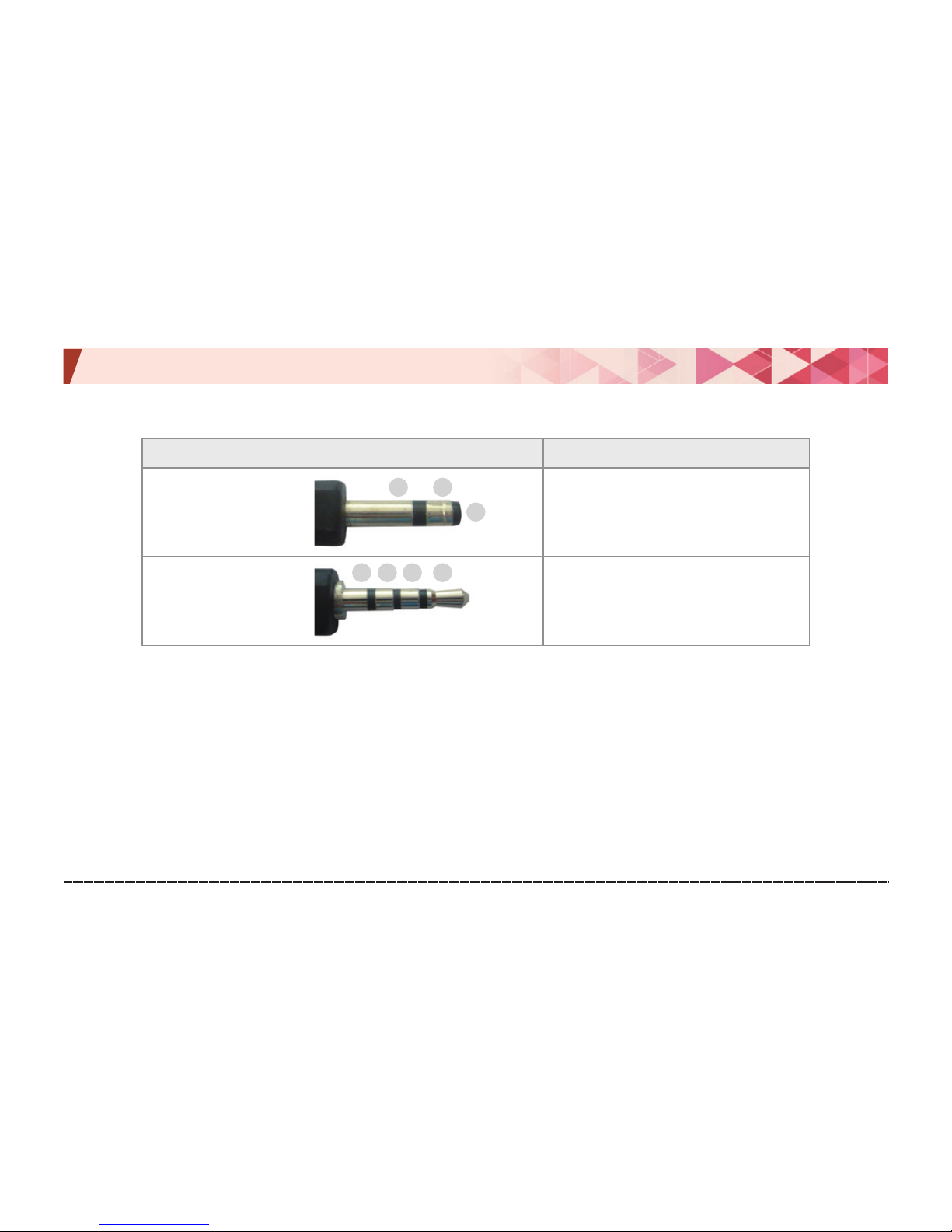

06. Name of each part (Socket pin arrangement)
Sockets Images of sockets Pin arrangement
Power socket
(DC socket) ① GND ② ACC ③ BAT (B+)
GPS
socket(2.5 pi)
① VCC (3.6-6 V DC) ② Rx
③ GND ④ Tx (GPS Signal Output)
1
2
1234
3
◆ Socket pin arrangement

Urive Classic ... 15 ... User's Guide
07. How to install the Urive Classic -Precautions
■ #
The installation requires embedding and constant power supply; thus, you are advised to seek help from one of
our partners.
■
#
It is recommended to use only Urive-certified power and connection cables. (The rear camera cable must UL-
certified, and check the “UL” marking on the yellow band of the cable. You are provided with a 6 m-long rear
camera cable. Make sure that the length is appropriate for your car).
■
#
Try to avoid high-temperature and small sections for installing the cable as the sheath can melt
or be damaged resulting in a short circuit.
■
#
Wrong installation may lead to a fire, for which we are not liable.
■
#
To install it, park your car on a level surface under good lighting with the engine turned off.
■
#
Ensure that the power cable is not connected before the rear camera is connected.
■
#
Before finishing the installation process, make sure that the front-/rear-view video is properly saved.
■
#
Try to avoid any interruption of sight of driver.
■
#
Make sure a micro SD card is inserted and then connect the power.
■
#
For the clean and safe installation, try to hide the cables.
■
#
Keep your windshield clean.
■
#
The rear camera may be influenced by the tinting or hot wire.
■
#
Remove the lens protection of front and rear cameras after installation.

Urive Classic ... 16 ... User's Guide
07. Installation
Clean the sections to install front and rear cameras.
Attach the body and rear camera as you desire.
Connect the cable to the rear camera and external GPS (optional)
without the power cable connected.
Connect the power to a fuse box, and power cable to the body.
- Black line: GND, (ex) Chassis
- Yellow line: ACC, (ex) Fuse of cigar jack
- Red line: BAT(B+), (ex) Emergency light
1
2
3
4

Urive Classic ... 17 ... User's Guide
07. Installation—Rear camera
After the intro and caution screens, it starts recording with a
buzzer.
After booting up, front-view image is displayed. Touch [Rear-view image] item to check the
rear-view image, and enable [Setting] – [PIP] to check the front-/rear-view images at the
same time.
※ State LED: driving mode – GREEN LED On / Parking mode – GREEN LED Off
Check if the front-/rear-view image is saved, and, then, hide the cables.
5
6
6

Urive Classic ... 18 ... User's Guide
08. Functions
Classification Situation Action Voice information
Power
(ACC ON)
Power cable is connected to the body. BLUE LED is turned on and then off after booting up, GREEN LED is turned on. After booting up, consecutive videos are
saved with the interval at 1 min. 1 time of buzzer sound
Switch is pressed and held. Power On/Off
Power OFF: “Shutting the power down.”
Driving
mode
Parking mode →ACC(Engine) ON Mode switching with LCD ON -→Constant recording starts. “Shifting to the driving mode.”
Switch is pressed; impact is sensed. It saves a video from 5 seconds before to 15 seconds after
(20-second duration). 2 times of buzzer sound
Video list, system state, and entering the
setting menu
When entering a menu, the video recording is stopped.
When exiting the menu, “Recording starts.” Recording is
resumed with the voice information. “Stopping recording.”
During the power cutoff due to
high temperature, the LCD doesn't turn on. The LCD doesn't turn on even if it is pressed. “The LCD has been shut down because of high temperature.”
Receiving GPS signal “G” mark at the bottom of image; it starts to measure the
speed and save the operation record. “GPS is connected.”
Parking
mode
Parking mode →ACC (Engine) OFF After switching the mode, LCD OFF; it starts motion and
impact; blinking of BLUE LED at 1 second interval Impact is sensed: 2 times of buzzer.
Motion or impact is sensed.
A 30-second video image is saved.
BLUE LED
Blinks 2 times per second while saving due to a motion.
Saving because of a motion: Blinks 4 times per second.
“Shifting to parking mode.”
Turning off due to cutoff voltage, time, or
high temperature Cutoff details are recorded in the SD card before turning off. “Shutting the power down."
Others Firmware update
BLUE LED blinks during update and it reboots after the update. “Starting the update.”
When there is no SD card, or a problem with it. Rebooting after a voice information “Please check the SD card.”
※ When the black box switches to parking or driving mode, it does not record a video until it finishes rebooting.

Urive Classic ... 19 ... User's Guide
08. Product: functional description -Voice information
Voice Situation
“Shifting to driving mode.” When shifting from parking to driving mode
“Shifting to parking mode.” When shifting from driving to parking mode
“Stopping recording.” When entering Video View, System State, or Setting menu
“Shutting the power down.” Power is turned down by a switch or during parking.
“GPS is connected” When GPS signal is received in driving mode (1 alarm)
“Impact during parking has been
identified.”
When it is shifted to driving mode after an impact file is created while
parking.
“Please check the SD card.” When there is no SD card or a problem with it.
“Formatting the SD card.” When formatting an SD card
“The LCD has been shut down because of
high temperature.”
When the LCD is touched after it has been shut down because of high
temperature.
“Starting the update.” When starting to update

Urive Classic ... 20 ... User's Guide
09. GUI -Real-time view
#
After booting up to driving mode, real-time view is provided.
#
The view screen shows firmware version, video recording time, image quality, GPS signal state, voice recording
state, product temperature, battery voltage, and recording state(REC, EVT).
#
In the screen setting, enable PIP to see the front and rear view images in PIP.
#
Disable the PIP to see either the front or rear view image. (Default: PIP OFF)
#
Screen saver on: With no action in the real-time view screen, it shifts to the screen saver, which turns off
the LCD in 2 minutes if there is no action again.
#
Screen saver off: With no action in the real-time view screen for 2 minutes, the LCD is turned off.
#
Use the reversal switch of rear camera to horizontally reverse the image.
[Real-time view] [Real-time view - PIP mode] [Screen saver]
