Urive MD-9400E User manual

User manual
MD-9400E
Manufacturer: MIDONG&CINEMA Co., Ltd.

CONTENTS
01. Before using Urive Albatross4 ......................... 3
02. Precautions before using the product ............... 4
03. Precautions when using the product ................ 5
04. Product: Features .............................................. 7
05. Package component ........................................ 11
06. Name of each part ........................................... 12
07. How to install the Urive Albatross4 ................ 16
08. Product: functional description ...................... 22
09. GUI .................................................................... 28
10. How to upgrade ............................................... 41
11. PC viewer ......................................................... 42
12. Configuration ................................................... 52
13. Video recording type ........................................ 56
14. Product: specification ...................................... 58

_ 3
01
Before using Urive Albatross4
This product is a secondary product for safe driving supporting LDWS(Lane Departure Warning System),
FCWS(Forward Collision Warning System), FVSA(Front Vehicle Start Alarm). It is designed to store video and audio
information coming from the front and rear cameras with touch LCD. It records driving and parking videos and
information about car accidents or impulses. This will provide relevant circumstantial reference data.
#
Urive Albatoross4 is a trademark of MIDONG&CINEMA Co., Ltd.
#
All the manual’s contents are protected according to copyright law.
#
All the program rights used in the product belong to MIDONG&CINEMA and are protected according to copyright
law.
#
The manufacturer shall not be liable for product failures or damages because of misuse, incorrect installation, or
unauthorized alteration.
#
For safety reasons, avoid manipulating the black box while driving.
#
The images used in the manual may look different from the actual screens depending on the printing conditions.
#
It is recommended that users read the manual carefully before using the product for proper and safe use.
●Thisisadriverassistancedevice.Themanufacturerwillnotbeheldliableforanyconsequencesresultingfromtheuseoftheproduct.
Pleaseusetheproductproperly.
●Toenhancetheperformanceoftheproduct,thecontentsofthisinstructionmanualmaybechangedwithoutpriornotice.

_ 4
02
Precautions before using the product
#
Scope of warranty and responsibilities
- # This product is for assisting people in driving safely. The company will not be responsible for the loss that could occur
because of failures, data loss, or while using the product.
- # This product is an ancillary device designed for recording and storing external videos. Some functions may not be
supported depending on the driving conditions and the conditions of a vehicle itself. When it comes to the level of support
for performance that is to be provided through the updating of firmware for improving quality and securing stability, it may
vary depending on the types of products. Depending on situations, recording may not take place. Considering that, users
need to use the product only for getting information for checking driving-related videos. Recording may not take place also
depending on the conditions of the SD card.
- # This product is designed for recording the video related to an accident involving a user’s vehicle. However, it is not
guaranteed that the whole length of a video related to an accident is to be recorded. In case of an accident in which a
minor shock occurs, the detection sensor will not be activated, and, consequently, the video related to the event may not be
recorded.
#
Precautions for using the memory card
- # Check the data once a week at least for confirming that the product’s operation is normal.
- # Format the micro SD memory card at least twice a month for stable use of the product.
- # Recommended to use a micro SD card that is exclusively designed for the product.
*Ingeneral,memorycardsarevalidforacertainperiodoftime(warrantedfor6months)andthereforestorageofnewdatamaybe
disabledifthecardhadbeeninuseforalongtime.Ifthisisthecase,replacewithanewcardasthemanufacturerisnotliableforthe
dataloss.

_ 5
03
Precautions when using the product
Warning! Not following the instructions can lead to serious injuries or even death.
This section is for your safety and for the proper use of the product to prevent safety accidents/risks. The
manufacturer shall not be responsible for problems caused by use of the product in violation of the instructions.
If the product is wet, do not place it in the heater or in
the microwave oven to dry.
It may cause explosion, product deformation, or product
failure, which is not covered under the warranty.
Do not use chemicals (such as benzene, thinner, or
alcohol) or detergent to clean the product.
It may cause fire.
Do not alter or apply impulse on the product.
Unauthorized alteration or product damage by impulse shall
not be covered under the warranty.
Do not install or operate the product while driving.
Operation of the product while driving can cause accidents.
Please pull over to a safe spot when you operating the
product.

_ 6
Precautions when using the product
03
Warning! Not following the instructions can lead to serious injuries or even death.
If the product is directly connected to the car, do not use
the product for an extensive period.
It may discharge the battery.
Install the product in unaffected area by the Navigation
or HIPASS device.
Reflections of images of Navigation or HIPASS may cause
poor recording quality.
Ensure that the double-sided adhesive tape is firmly
affixed during installation.
The product may show poor performance when moving or
observing motor vibration for an extended period.
Keep the windshield clean.
Foreign materials may prevent normal recording of images.
Be careful when using memory cards and removing them.
Uncertified Micro SD card may not be recorded properly.
Please remove the power cable before inserting or removing
the SD card.
Back up files periodically.
When the SD card is full, the oldest file in the card will be
overwritten by a new file. Please back up data periodically to
prevent unwanted data loss.
Please do not use sharp devices on the LCD.
The touch panel or the LCD may be damaged by sharp
devices when the black box is set up along with such devices
on the LCD.
Avoid an area where the product is exposed to direct
sunlight when parked.
If used for long hours in an airtight environment inside a car
and under direct sunlight, the product may malfunction.

_ 7
04
Product: Features
# High-quality video recording with clear images and an optimal viewing angle (Full HD- Full HD)
It provides high-quality clear video images at both day and night (Resolution: front/rear : 1920×1080) and optimal viewing
angle (Default resolution value of rear camera for parking mode: HD(1280x720) but users can set the video resolution of
rear camera to 1920×1080 at the exclusive viewer.)
# High-quality and low capacity
It records high-quality front/rear video files & low capacity with High Profile Codec.
# Ultra-speed booting
After ignition, it starts video recording quickly. (Booting time: less than 9 sec.)
# Videos that have been recorded already or in the process of being recorded can be checked immediately through
the 4.0-inch wide LCD screen with high resolution.
It can show the real-time front and rear videos playback and recorded files at the 4.0” wide touch LCD.
# Format-free function
With its format-free function, the SD card does not need to be regularly formatted. (Note that if the SD card’s life cycle
comes to an end and cannot save images, replace it with a new one.)
# PIP (picture in picture)
It shows the front and rear videos at the same time.

_ 8
Features
04
# Easy Configuration
Users can change the configuration on the touch screen by themselves.
# Continuous recording
All videos during driving are continuously recorded as one-minute video files.
# Event (impulse) manual recording
It records 20 seconds video files from the 3 seconds before the incidence to the 17 seconds after it in the event folder
when there is an impulse or the power button is pressed briefly.
# Dedicated CCTV to protect the car, recording in parking
It provides recording in parking to record any damages or accidents while your car is parked.
# Parking impulse notification LED
It provides parking impulse notification by blinking the RED LED before drivers get in the car.
(Within 1minuite impulses alarms are excluded after switched to parking mode.)
# Auto memory management
Even if a memory card is short of space, it provide auto management function to remove files from the oldest ones to
record recent driving videos.

_ 9
Features
04
# PC viewer for playing recorded data
The PC viewer can play 2 channels (front/rear) of the black box video at the same time in order for easy checking of
information.
# Embedded voltage cut-off device to prevent battery discharge and settings for cut-off voltage and timer
It is embedded with a device to cut the power to prevent battery discharge. If it reaches a certain voltage level, the black
box is turned off according to the cut-off voltage/time settings to prevent the battery from discharging. You can select 1
from 7 steps of cut-off voltage and 5 steps of the timer, respectively.
# Voice guidance
Voice guidance is provided according to situations.
# Autosaver
1. Driving mode
- # If the product temperature exceeds the LCD warranty temperature range, the LCD is automatically turned off while
if the temperature is within the range, the LCD is automatically turned on. (Remained off until the temperature is
cooled down).
- # Voice information (High temperature off and LCD tapped during the high-temperature off): "The LCD has been shut
down due to the high temperature."
2. Parking mode
- # If the temperature is kept above the operation guarantee temperature, the black box is turned off to protect it.
If the temperature is cooled to operating temperature, it automatically starts to record video.

_ 10
Features
04
# Advanced night vision
When the surrounding environment is dark it automatically operates a night vision function. It records brighter pictures
than the actual brightness and its setting values can be adjusted to 4 steps by users.
# Advanced Driver Assistance System(ADAS)
1. Lane Departure Warning System(LDWS)
- # It makes warning sounds when drivers drive to lanes with over the set speed.
2. Forward Collision Warning System(FCWS)
- # It makes warning sounds when drivers get under danger to front collision with over the set speed.
3. Front Vehicle Start Alarm(FVSA)
- # It makes warning sounds when the front car starts to go.
•ThenotificationswillworkafterthedeviceisconnectedwiththeGPS.

_ 11
05
Package component
Please check all the components in the box as the picture below.
If the component is damaged or has a problem, please contact the selling shop immediately.
Main body,
mounting holder
Rear camera,
cable
Cigar power
cable
GPS Module
Manual
Micro SD card
reader
Continuous
power cable
Double-sided
tape
Micro SD card
for URIVE
Hexagon
wrench
Basic component Option (To be sold separately)
Thiscomponentcanbechangedbasedonthesupplyofpartswithoutpriornotice.
(Theimagesshownabovearefortheusers’information;thus,theymaylookdifferentfromactualcomponents.)
User manual
Manufacturer:MIDONG&CINEMA Co., Ltd.

_ 12
06
Name of each part (Front camera)
12
343
5
11
12
6
7
8
9
10 10

_ 13
Name of each part (Front camera)
06
Name Functional description
①Camera lens To record the front video
②Embedded speaker For voice guidance
③Security LED for indicating the operation state and security(BLUE LED)
④Parking impulse notification LED The RED LED provides parking impulses notification to the drivers.
⑤Power terminal (DC) Port to connect the power cable
⑥External GPS terminal (GPS) Port to connect an external GPS module
⑦Rear camera terminal (CAM) Micro USB port to connect the rear camera
⑧Embedded mic (MIC) To record voice with a video
⑨LCD 4.0″LCD to check a video and control the device
⑩Status, LDWS indicator LED The GREEN LED indicates the driving mode and lain departure direction.
⑪SD card slot To insert a micro SD card for storage
⑫Power switch Power On/Off switch

_ 14

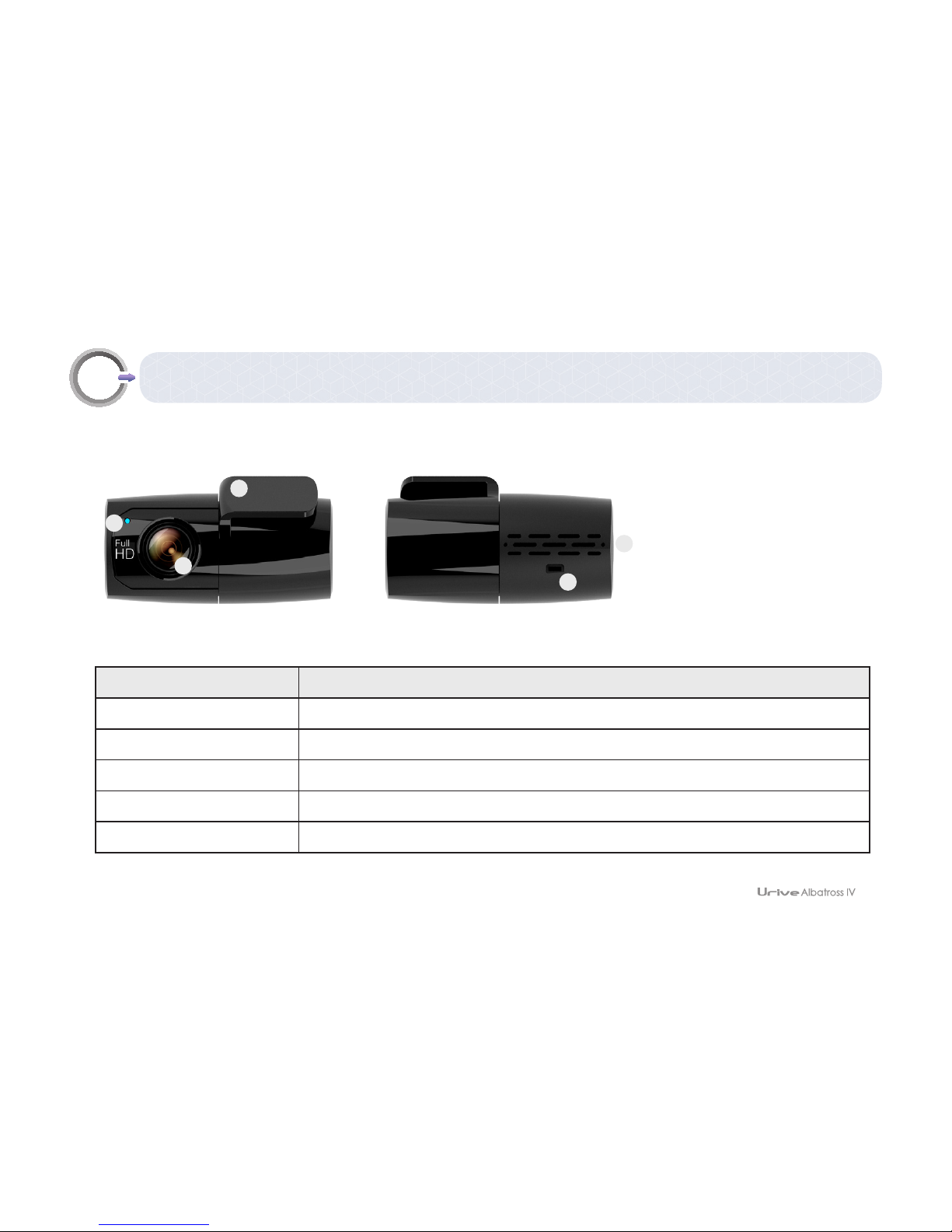

Name of each part (Rear camera)
06
Name Functional description
①Adhering surface Surface to attach the rear camera to a rear window
②Security LED Blue LED for indicating operation state and security
③Camera lens Rear camera lens
④Terminal Micro USB 5-pin port to connect the body
⑤Screen reversal switch Horizontal reversal switch for rear-view screen (N: Normal / M: Horizontal reversal)
1
2
5
3
4

_ 15
06
Name of each part (Socket pin arrangement)
Sockets Images of sockets Pin arrangement
Power socket
(DC socket) ①GND ②ACC ③BAT (B+)
GPS socket
(2.5 pi)
①VCC (3.6–6 V DC) ②Rx
③GND ④Tx (GPS Signal Output)
①
①②③④
②③
Socket pin arrangement

_ 16
How to install the Urive Albatross4 – Precautions
07
# The installation requires embedding and constant power supply; thus, you are advised to seek help from one of
our partners.
# It is recommended to use only Urive-certified power and connection cables. (The rear camera cable must UL-
certified, and check the “ULT” marking on the yellow band of the cable. You are provided with a 6 m-long rear
camera cable. Make sure that the length is appropriate for your car).
# Try to avoid high-temperature and small sections for installing the cable as the sheath can melt or be damaged
resulting in a short circuit.
# Wrong installation may lead to a fire, for which we are not liable.
# To install it, park your car on a level surface under good lighting with the engine turned off.
# Ensure that the power cable is not connected before the rear camera is connected.
# Before finishing the installation process, make sure that the front-/rear-view video is properly saved.
# Try to avoid any interruption of sight of driver.
# Make sure a micro SD card is inserted and then connect the power.
# For the clean and safe installation, try to hide the cables.
# Keep your windshield clean.
# The rear camera may be influenced by the tinting or hot wire.
# Remove the lens protection of front and rear cameras after installation.

_ 17
07
Installation
1
2
3
4
Clean the sections to install front and rear cameras.
Attach the body and rear camera as you desire.
▪FortheADAS,pleaseinstallthemaindevicetofitthetopcenter(beneathof
theroommirror)ofthefrontglass(lessthan15cm).(referto“07.installation–
ADAScameras)
Connect the cable to the rear camera and external GPS without
the power cable connected.
Connect the power to a fuse box, and power cable to the body.
▪Youareadvisedtohaveconstantpowersupplyconnectedfromoneofour
professionalpartners.
- Black line: GND, (ex) Chassis - Yellow line: ACC, (ex) Fuse of cigar jack
- Red line: BAT(B+), (ex) Emergency light

_ 18
07
Installation – Rear camera
7
6
After booting up, front-view image is displayed. Touch [Rear-view image] item to check
the rear-view image, and enable [Setting] – [PIP] to check the front-/rear-view images at
the same time.
▪StateLED:Drivemode–GREENLEDOn/Parkingmode–GREENLEDOff
5
After the intro and caution screens, it starts recording with a
buzzer.
Check if the front-/rear-view image is saved, and, then, hide the cables.

_ 19
07
Installation – ADAS cameras
Installation preparing & precautions
1. # For the ADAS, please install the main device to fit the top center(beneath of the room mirror) of the front glass (less
than 15cm).
2. # Product mounts can move about 3 degrees if users cannot install the products to the center, adjust its angles to the
center.
3. # If its any angles or the installed location has been changed, please set the [ADAS]-[camera installation] again.
4. # Please adjust LDW & FVSA time If they are too fast or slow.
5. # Lane departure warnings and forward collision alert notifications will work after the device is connected with GPS.
They also operate over the set speed.
6. # Even if you turn on the blinker, since The product does not link with the blinker, lane departure alarms will sound.
▪Youmustinstalltheunitinahighpositionofthewindshieldifyourvehiclebodyislower.

_ 20
Installation – ADAS cameras
07
1
4 5
2 3
Pleaseinstalladjustingtheyellowguidelinestothehorizon.
Refertotheimage4,the(U)markshouldbeacenterofthescreen.
Ifyouselectsedanatthemenu,pleaseadjusttomatchthegreenlinetothebonnetedgebyusingtheup/downbuttons.
installation
