URS ZLI012035 User manual

1
01/2023
Instructions
Lithium Display
INDEX
1. Introduction to ZLIDISPLAY ......................................................................................................................................................................1
2. How to connect the display to a single battery ................................................................................................................................2
3. ON/OFF button .............................................................................................................................................................................................2
4. Working during charging ..........................................................................................................................................................................2
5. Working during discharge ........................................................................................................................................................................ 3
6. What is the purpose, how does blocking relay work and what are its technical characteristics .................................... 3
7. Mobile app ..................................................................................................................................................................................................... 4
8. How to connect the app with ZLIDISPLAY .......................................................................................................................................... 4
9. How to update the rmware of ZLIDISPLAY ....................................................................................................................................... 4
10. Accessories ................................................................................................................................................................................................... 4
1. INTRODUCTION TO ZLIDISPLAY
ZLIDISPLAY allows to show the basic parameters of the battery to which it is connected:
• State of charge or S.o.C.
• Total voltage
• Charging or discharging current
• Maximum internal temperature
• Remaining autonomy according to discharge current
Direct communication with BMS makes it a very precise and essential accessory for knowing the state of the
battery.
NB: ZLIDISPLAY works exclusively with Zenith Lithium batteries.
S.o.C. battery tachometer
Total voltage
battery pack
Internal battery
temperature
Battery S.o.C.
Current of
charge/discharge

2
Model Compatibility with ZLIDISPLAY Parallel
ZLI012035  
ZLI012051  
ZLI012100  
ZLI024036  
ZLI024065  
ZLI024070  
ZLI024100  
ZLI036065  
ZLI036065.INOX  
ZLI048060  
2. HOW TO CONNECT THE DISPLAY TO THE BATTERY
3. ON/OFF BUTTON
4. WORKING DURING CHARGING
On the back of the display and the battery have the same RS485 communication port.
It will be necessary the appropiate ZLIDISPCABx cable in order to connect both devices.
The ON/OFF button is used to switch the display on or off.
Press and hold the ON/OFF button for about 5 seconds to switch the display on or off.
"Charging" will appear on the display during charging phase and the charging current will be indicated at the
bottom right corner.
After 2 consecutive minutes in the charging phase, the display automatically goes into stand-by mode.
Press and hold the ON/OFF button for about 5 seconds to switch it on again or discharge the battery.
NB: the display only works when the battery is switched on

3

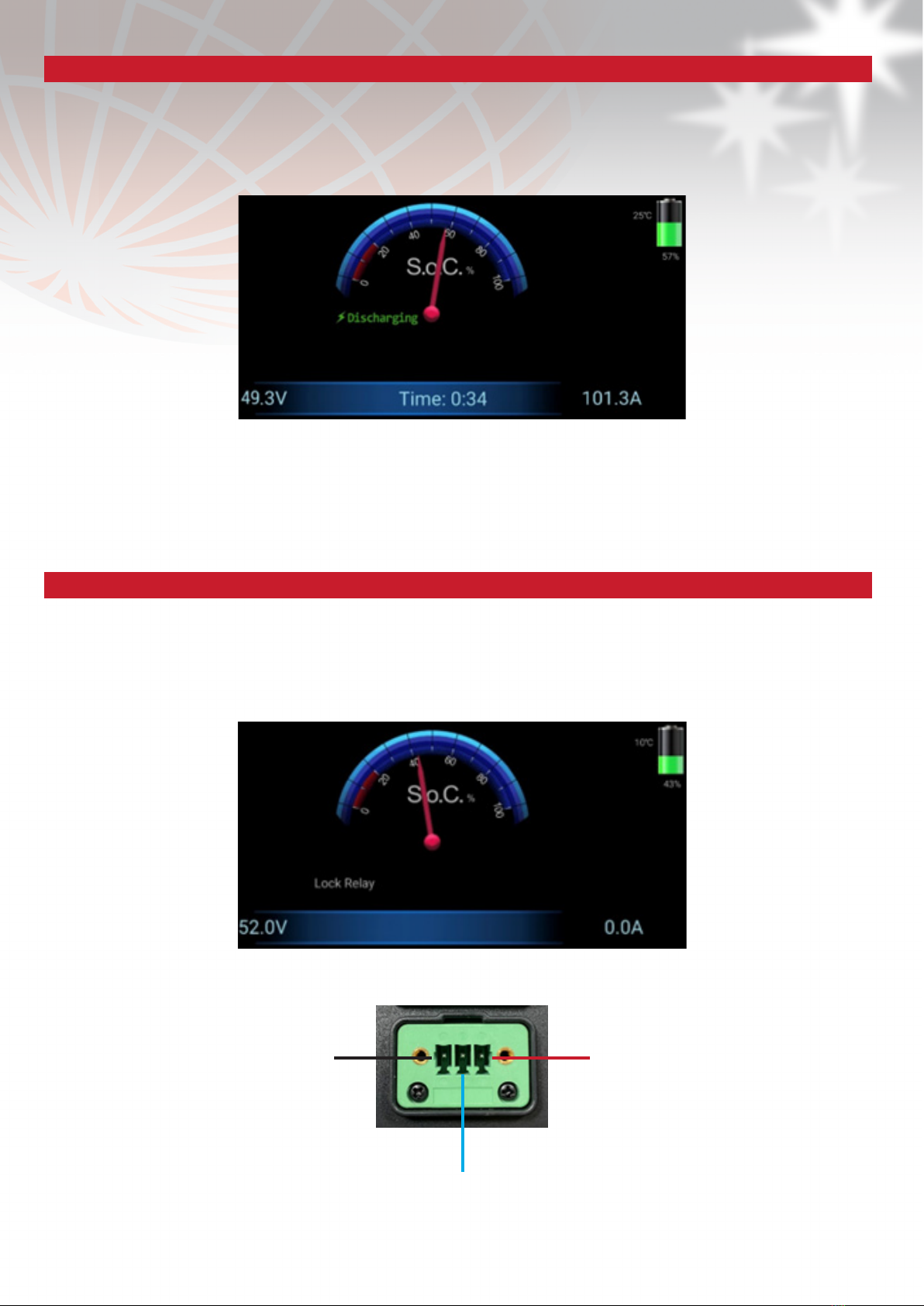

5. OPERATION DURING DISCHARGE
6. WHAT IS THE PURPOSE, HOW DOES BLOCKING RELAY WORK AND WHAT ARE ITS TECHNICAL CHARACTERISTICS
"Discharging" will appear on the display during the discharging phase, the discharge current will be indicated at
the bottom right corner and in the centre there will be the remaining autonomy time depending on the discharge
current (if the remaining autonomy is more than 100 hours, the display will show "TIME --:--").
During this phase the display will never go into stand-by mode but it will be possible to switch it off by pressing and
holding the ON/OFF button.
During discharging, when the S.o.C. of the battery falls below 20%, the blocking relay is activated.
It is deactivated when during the charging of the battery, the S.o.C. reaches and exceeds 50% (the two values are not
programmable).
The block relay is used to disable one or more vehicle functions.
When the lock realy is active, "Lock Relay" appears on the display.
This is the connection diagram:
Specifications: 1A 60Vdc max
OFF ON
COM
As soon as the S.o.C. reaches 20% the battery icon will change from green to red.
As soon as the S.o.C. reaches 10% the display will start flashing.
On models ZLI012035, ZLI012051 and ZLI024036 the display will switch off until the battery is charged, in case of full
discharge (S.o.C. = 0%).
On all the other models it will remain on and continue to flash.

4
U.B.S. UNION BATTERY SERVICE s.r.l. unipersonale
Via Alessandro Volta
25015 Desenzano del Garda (Bs) – Italia
Tel [phone] - Fax [phone]
[email protected]
www.unionbatteryservice.it
7. MOBILE PHONE APP
8. HOW TO MATCH THE APP TO THE ZLIDISPLAY
9. HOW TO UPDATE THE ZLIDISPLAY FIRMWARE
10. ACCESSORIES
The app allows you to view the same information of the display and to update the firmware remotely.
To download the app for mobile phones or tablets (only with Android operating system 9 onwoards) click here.
To use it, it is necessary to activate geolocation and bluetooth (range: approx. 15m).
NB: the app may be subject to updates, please check our website for the latest verision (link)
1. Open "ZENITH LITHIUM DISPLAY" app on your phone/tablet.
2. Press on the three dots at the top right and select "Select BMS Device".
3. Select "ZLI DISPLAY" and wait for the two devices to communicate.
4. Once the connection is complete, you will be able to view the display data on your phone/tablet.
NB: As long as the two devices remain connected, the screen will display this symbol:
NB: FW updates will always be communicated directly by Union Battery Service or through its distributors.
1. Opes "ZENITH LITHIUM DISPLAY" app on your phone/tablet.
2. Press on the three dots at the top right and select "Firmware Upgrade".
3. Press "SELECT" and select the correct file.
4. Press "UPGRADE" to start downloading the firmware (it may take a few minutes).
5. When the updates is complete, the app will automatically return to the start screen and you will need to reconnect
to the display.
• Display for Zenith Lithium: ZLIDISPLAY
• Display connection cable - 1.5m battery: ZLIDISPLAYCAB1.5
• Display connection cable - 3m battery: ZLIDISPLAYCAB3
• Display connection cable - 6m battery: ZLIDISPLAYCAB6
• Display connection cable - 12m battery: ZLIDISPLAYCAB12
• Distribution connecting cables: ZLISWITCH
