1. Introduction
Welcome to the UA-SNVRL810-P, UA-SNVR1620-P Quick Start Guide. In the following
sections, you will learn about the basic installations and configurations. For more details, see
UA-SNVRL810-P, UA-SNVR1620-P User’s Manual.
1.1Packing List
UA-SNVRL810-P
1. UA-SNVRL810-P
2. 3.5” HDD Screw Kit
3. 2.5” HDD Screw Kit
4. USB Mouse
UA-SNVR1620-P
5. Power Adapter (DC 48V, 1.5A, 72W)
6. Power Cord
7. Download Guide

1. UA-SNVR1620-P
2. 3.5” HDD Screw Kit x 2
3. 2.5” HDD Screw Kit x 2
4. Rack Mount x 2
5. Screw for Rack Mount x 2
6. USB Mouse
7. Power Adapter (DC 48V, 3.75A, 180W)
8. Power Cord
9. Download Guide


Note:The first time you run the NVR, you will be required to set your password immediately
in order to protect your privacy. Please be sure to record your username and password and
save them in a secure place. If you forget your password, you will be unable to log in the
system, please contact your reseller to reset the password.

2
2. Installation
2.1 Connection Diagram
1. You can connect to other IP cameras remotely over the Internet.
2. Connect a CAT.5E or higher RJ45 Ethernet cable for local connectivity. You can connect
to other IP cameras through your local network.
3. Two-way voice conversation with the remote PC.
4. Connect an external hard disk drive to back up files stored on the NVR.
5. Connect the included power cable.
6. Use the USB flash disk for backup, camera, or system upgrade.
7. Connect a RS-485 device such as speed domecamera.
8. Connect an external alarm output device such as siren.
9. Connect external alarm sensors.
10. Connect the video output of the NVR to the TV or monitor via HDMI or VGAconnection.
11. Connect speakers if you want to listen to the live audio or audio playback from the NVR.
12. Connect PoE IP cameras. It may take up to 1 minute for the cameras to start transmitting
video to the NVR.
Note: Above diagram is for reference only. The practical connection may be different
depending on the NVR you purchased.

3
2.2HDD Installation
Depending on the model you purchased, the NVR supports one or two 3.5” / 2.5” SATA hard
disk drives.
Caution: Do not install or remove the hard disk drive while the power is turned on.
Note: Above procedures are for reference only. The practical operation may be different
depending on the NVR you purchased.
a) Connect the data and power cables to the two hard
disk drives and place the hard disk drives on the NVR
case.
b) Carefully flip the NVR case and secure the hard
disk drives to the NVR with the eight (8) screws

4
2.3 Power Supply Connection
Caution: Only use the supplied power adapter that comes with the NVR.
Connect one end of the power adapter to the power connector on the back of the NVR. Plug the
other end of the power adapter into the wall outlet.And press the Power Switch to turn on the
power.

5
3. Getting Started
3.1 Start Wizard
3.1.1 Start Wizard
Click Start Wizard to proceed to the next step.
3.1.2 Connecting IP Cameras
After finishing setting Network Configuration and Date and Time, this page appears.

6
Click Search to search IP cameras in the same network. Choose the IP camera(s) you want
to add, and then click icon to add to the NVR. Or, click button to manually add
individual IP camera to a single channel.
◼IP Address/Domain: IP address or domain name of the IP camera.
◼Alias: Name of the IP camera.
◼Position: Position to display the camera name on the screen.
◼Port: Port of the IP camera.
⚫Type 80 for UA-B20004F / UA-B40004F / UA-B4000VF-S / UA-D20004F /
UA-D40002F / UA-D4000VF-S / UA-R40002F-SA / GV-IP cameras
⚫Type 9000 for UA-B580F3 / UA-R500F2 / UA-R560F2 / UA-R580F2 / UA-R800F2
◼Protocol: Choose the protocol of the IP camera from the dropdown menu.
⚫Select Onvif for UA-B20004F / UA-B40004F / UA-B4000VF-S / UA-D20004F /
UA-D40002F / UA-D4000VF-S / UA-R40002F-SA / GV-IP cameras
⚫Select Private for UA-B580F3 / UA-R500F2 / UA-R560F2 / UA-R580F2 /
UA-R800F2
◼User Name: User Name of the IP camera.
◼Password: Password of the IP camera.
◼Bind channel: Choose a channel of the NVR you want to attach to.
Note:
1. The system fills in the ID and password using admin/admin by default. Make sure to
enter the correct ID and password of the IP cameras when adding them to the NVR.
2. The default password is 123456 for the following IP camera models: UA-B20004F /
UA-B40004F / UA-B4000VF-S / UA-D20004F / UA-D40002F / UA-D4000VF-S /
UA-R40002F-SA. To modify the password on the camera’s Web interface, refer to
Network Cameras User Manual for details.

7
3.2 Live View Overview
3.2.1 Main Window

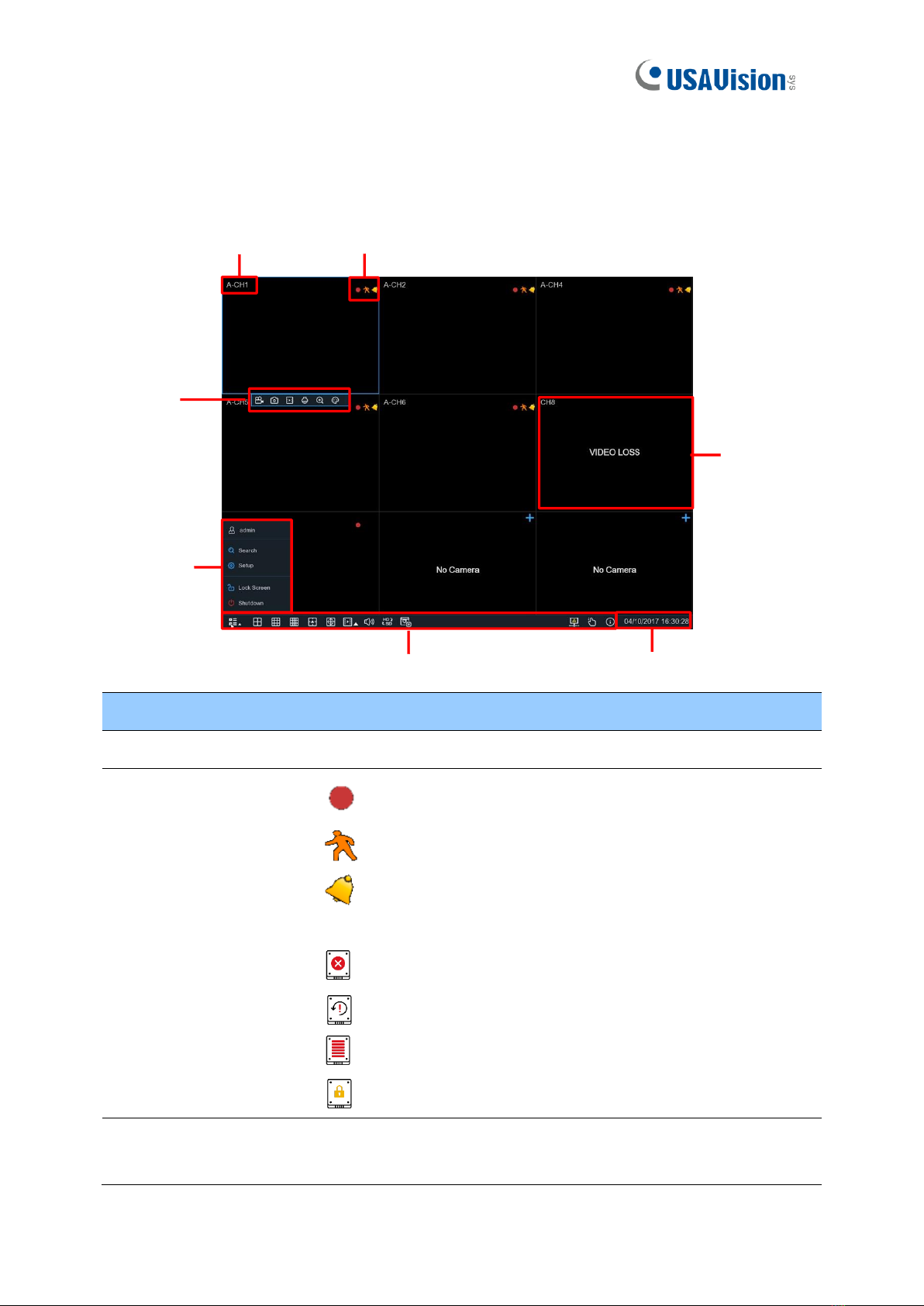

12
5
3
4
6
7
No.
Name
Description
1
Camera Title
Display channel number.
2
Status Icon
This indicates that the NVR is currently recording.
This icon appears when the camera has detected motion.
The icon indicates that the external I/O alarm device is
triggered.
This icon indicates that the HDD is in error to work.
This icon indicates the HDD is unformatted.
This icon indicates the HDD is full.
This icon indicates the HDD is read-only.
3
Camera Quick
Toolbar
Left-click on the screen to quickly access the camera’s toolbar.
Refer to 4.2.1 Camera Quick Toolbar in the manual for details.

8
4
Start Menu
admin: To switch user.
Search: Search & Playback.
Setup: System Setup.
Lock Screen: Lock and unlock screen.
Shutdown: Shutdown, reboot, and log out the system.
5
Task Menu Bar
Locate at the bottom of the live view screen. Refer to 4.2.2
Taskbar in the manual for details.
6
System Date and
Time
Display the system’s date and time.
7
OSD
VIDEO LOSS: The camera is disconnected.
No Camera: No camera is assigned.
Decoding Failed: The NVR doesn’t support the current IP
camera compression standard. Change the compression
standard to H.264.
Click to open Quick Add menu to add IP camera.
Click to edit the current IP camera.
For details, see 4.2 Live View Screen Overview in the Manual.

9
4. Remote Access via Web Client
Use the Web Client to remotely access your NVR at any time via a PC. Before you access
the Web Client, ensure that your PC’s system meets the basic requirements and that the
network settings of the NVR are configured properly.
4.1 Basic System Requirements
Item
Minimum
Recommended
CPU
Intel Core™ i5 CPU
Intel Core™ i5 CPU or higher
RAM
4G or more
8G or more
Hard Drive
500G or more
1000G or more
Display RAM
2G or more
4G or more
Display Resolution
1280*1024
1920*1080
OS
Windows 7 or above
Mac OS X 10.9 or above
DirectX
DirectX 11
Direct3D
Acceleration Function
Ethernet Adapter
10/100/1000M Ethernet Adapter
Browser
IE 10 / 11
Safari V12.1 or above
Firefox V52 or above
Google Chrome V57 or above
Edge V79 or above

10
4.2 Looking Up the Dynamic IP Address
By default, when the NVR is connected LAN with DHCP server, it is automatically assigned
with a dynamic IP address. Follow the steps below to look up its IP address.
1. Download and install the UVS Device Utility here.
2. On the UVS Device Utility window, click Search to search for the devices connected in
the same LAN.
3. Find the device with its Mac Address and click on its IP address.
4. The login web page appears.

11
5. Upgrading Firmware
You can upgrade the firmware on the device remotely through UVS Device Utility.Follow
the instructions below.
1. Download and install the UVS Device Utility program here.

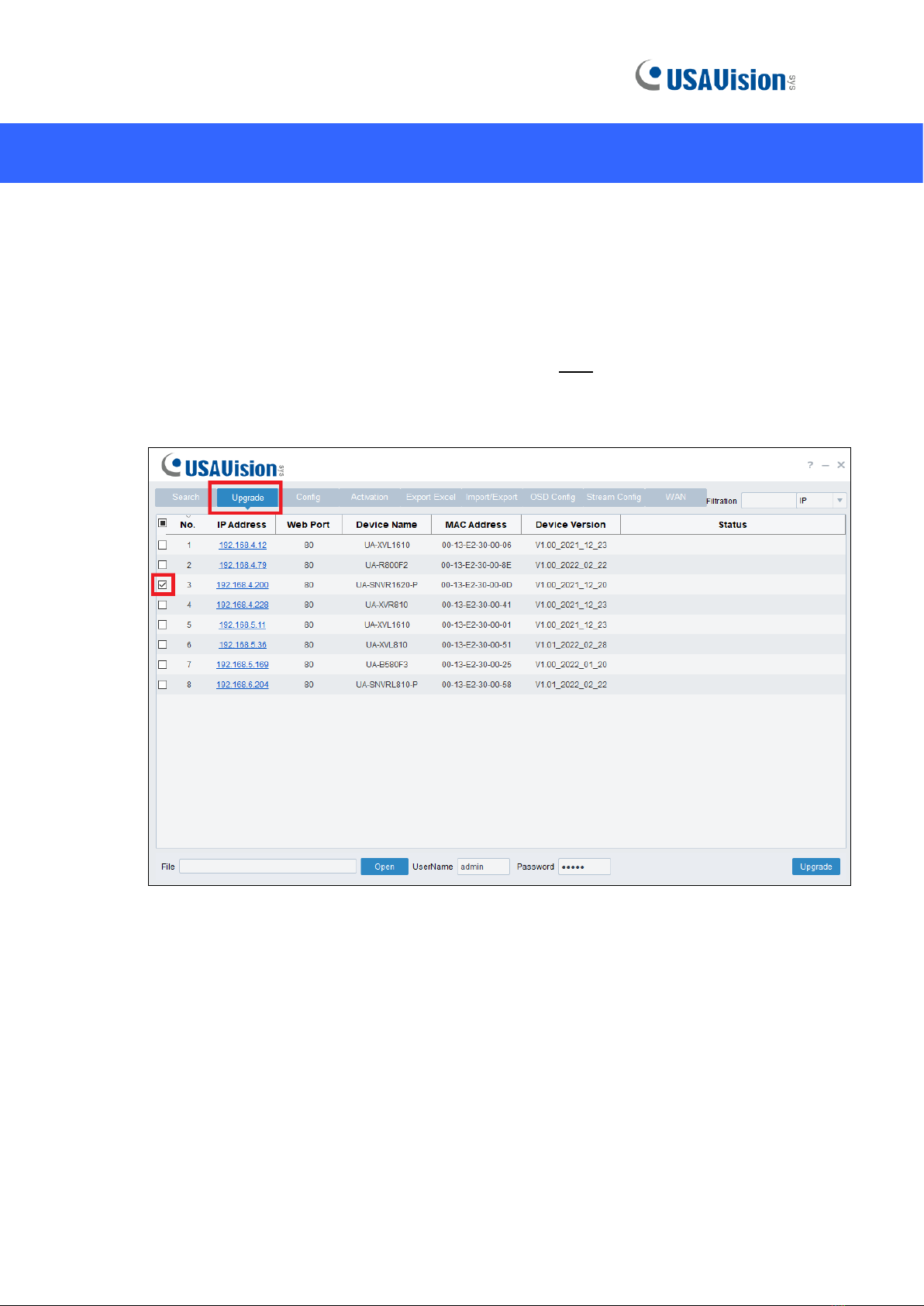

2. On the UVS Device Utility window, click Upgrade and check the box of the device you
wish to upgrade the firmware on.
3. Click Open to locate the firmware file saved at your local computer.
4. Enter the username and password of the device.
5. Click Upgrade to process the upgrade.
