USB Vision CrystalLink USB 3.0 User manual

CrystalLink USB 3.0
2-Port USB 3.0
100m Multimode Fiber Optic Extender
Installation and User Manual

FCC Radio Frequency Interference Statement Warning
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received including interference that may cause undesired
operation.
CE Statement
The CrystalLink USB3.0 is in conformity with European Standard EN 55022, EN 55024, EN 61000-3-2, and EN
61000-3-3.
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.

Contents
Introduction ............................................................................................................. 3
Product Contents ................................................................................................................................ 3
Features ................................................................................................................................................... 3
The Transmitter Unit .......................................................................................................................... 4
The Reveiver Unit ................................................................................................................................ 5
Installation Guide .................................................................................................... 6
Requirements ....................................................................................................................................... 6
Fiber Optic Link Cabling ................................................................................................................... 6
Installing the CrystalLInk USB3.0 System ................................................................................... 7
Preparing Your Site ............................................................................................................................. 7
Preparing Your Computer ................................................................................................................ 7
Connecting a USB 3.0 Device ........................................................................................................11
Installing the Receiver Unit ............................................................................................................11
Installing the Transmitter Unit .....................................................................................................11
Checking the Installation ...............................................................................................................12
Compatibility ......................................................................................................................................12
Troubleshooting .................................................................................................... 13
Contacting Technical Support .............................................................................. 15
Warranty Information ........................................................................................... 15
Obtaining Warranty Service ................................................................................. 16
Contacting Sales .................................................................................................... 16
Contacting Technical Support .............................................................................. 16
Technical Glossary ................................................................................................. 17
USB Connectors .................................................................................................................................17
DupTransmitter LC Crossover .......................................................................................................17
Specifications ......................................................................................................... 18

4
Introduction
This document provides product information for the CrystalLink USB3.0, installation instructions,
troubleshooting guidelines, and instructions for contacting Rose Electronics regarding technical
support and warranty information.
The instructions in this document assume a general knowledge of computer installation procedures,
familiarity with cabling requirements, and some understanding of USB devices.
CrystalLink USB3.0 Product Contents
Your CrystalLink USB3.0 is packaged with:
•Transmitter unit (Local Extender)
•Receiver unit (Remote Extender)
•AC power adapter
•USB 3.0 cable
•Power cable
•User Document
Features
The CrystalLink USB3.0 enables users to extend beyond the standard 3m cable limit for USB 3.0 peripheral
devices. With the CrystalLink USB3.0, certain USB 3.0 devices can be located up to 100 meters from the
computer.
The CrystalLink USB3.0 supports only USB 3.0 devices. USB 2.0 and 1.1 devices will not function through this
extender.
The CrystalLink USB3.0 comprises two individual units: the Transmitter unit and the Receiver unit.
The Transmitter Unit
The Transmitter unit connects to the computer using a standard USB 3.0 cable. Power for this unit is provided
from the USB port on the host computer.
Front View

5
Rear View
ITEM
TYPE
DESCRIPTION
1
Power ON Unit is powered properly.
Power OFF Unit is not powered or not powered properly.
2
Status Blinking (1Hz) Waiting for connection to Receiver.
Status ON Transmitter and Receiver are linked and operating normally.
Status OFF Fault detected; power cycle required.
3
Host ON SuperSpeed Host detected on upstream facing port.
Host OFF SuperSpeed Host not detected.
4 Power Port (optional)
Not required in normal operation.An optional 5V power supply
can be
connected to the Transmitter unit to provide power if the USB port on
the host PC is not capable of delivering sufficient power to the unit.
5 Configuration Port Reserved for manufacturer use.
6 USB 3.0 Type B port
Used to connect the Transmitter unit to the host computer. Port accepts
locking or non-locking USB 3.0 Type B connectors.
7 Link Port (Dup Transmitter LC) Extension link Dup Transmitter LC fiber optic transceiver port.

6
Front View
Rear View
The RECEIVER Unit
The Receiver unit has two USB Type A ports for USB 3.0 devices. The RECEIVER unit allows you to connect up
to two USB 3.0 devices directly. The RECEIVER unit is powered by an external AC adapter and can supply up to
900mA to each USB port.
Front View
Rear View
ITEM TYPE DESCRIPTION
1 USB 3.0 Type A ports Used to connect USB 3.0 device(s) to the RECEIVER unit. Ports accept
locking or non-locking USB 3.0 Type A connectors.
2
Power ON Unit is powered properly.
Power OFF Unit is not powered or not powered properly.
3
Status Blinking (1Hz) Waiting for connection to TRANSMITTER.
Status ON TRANSMITTER/RECEIVER are linked and operating normally.
Status OFF Fault detected; power cycle required.
4
Host ON SuperSpeed Host detected on upstream facing port.
Host OFF SuperSpeed Host not detected.
5 Power Port Connects to the locking AC power supply. Required on the Receiver unit
for correct operation.
6 Config Port Reserved for manufacturer use.
7 Link Port (Dup Transmitter
LC)
Extension link Dup Transmitter LC fiber optic transceiver port.

7
Installation Guide

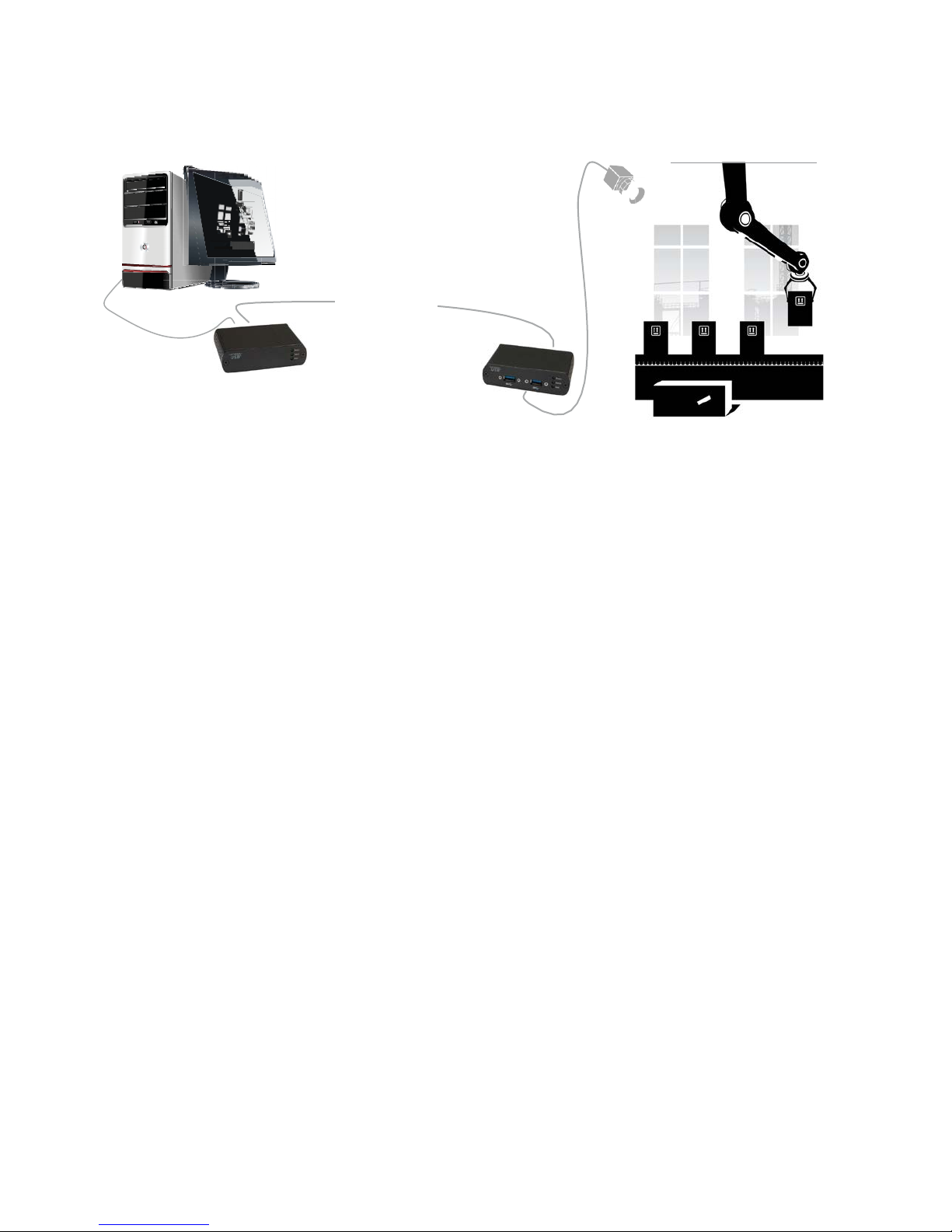

Example Application
USB 3.0 Camera
Computer & Monitor USB 3.0
up to 100m over
multimode fiber
TRANSMITTER
RECEIVER Assembly Line
Requirements
To complete installation of the CrystalLink USB3.0, you will also require the following items that are not
included with the product:
•USB 3.0 compatible computer (host computer) with a USB 3.0 compliant operating system
•USB 3.0 compatible device
•2-strand 50/125μm multimode (MMF) fiber optic cable with Dup Transmitter LC connectors
Fiber Optic Link Cabling
The Transmitter and Receiver units are interconnected by fiber optic cabling. This cabling must be:
•50/125μm multimode fiber (MMF)
•Terminated with Dup Transmitter LC connectors
The following maximum distances are achievable depending on the application and cabling standard:
•Using OM3, up to 100m is achievable with USB 3.0 cameras, and up to 50m for all other applications.
•Using OM2, up to 50m is achievable for all applications.
These maximum distances include any fiber patch cords or patch panel interface.
If premise cabling will be used for the installation, then the distances provided above must be met when
measuring from Transmitter to Receiver,inclusive of the premise cabling and the patch cables. All cables
must meet the ratings specified. Patch cables must be terminated with Dup Transmitter LC connectors.

8
Installing the CrystalLink USB3.0 System
Preparing Your Site
Before you can install the CrystalLink USB3.0, you need to prepare your site:
1. Determine where the computer is to be located and set up the computer.
2. Determine where you want to locate the USB device(s).
3. Ensure fiber optic cabling is in place, prepared, properly terminated, and within the maximum
distances as defined for the cabling standard used.
Preparing Your Computer
The CrystalLink USB3.0 does not support suspend modes of operation. As such, your computer
should be configured to not go into“suspend mode” or to “suspend”the USB ports.
To perform the changes:

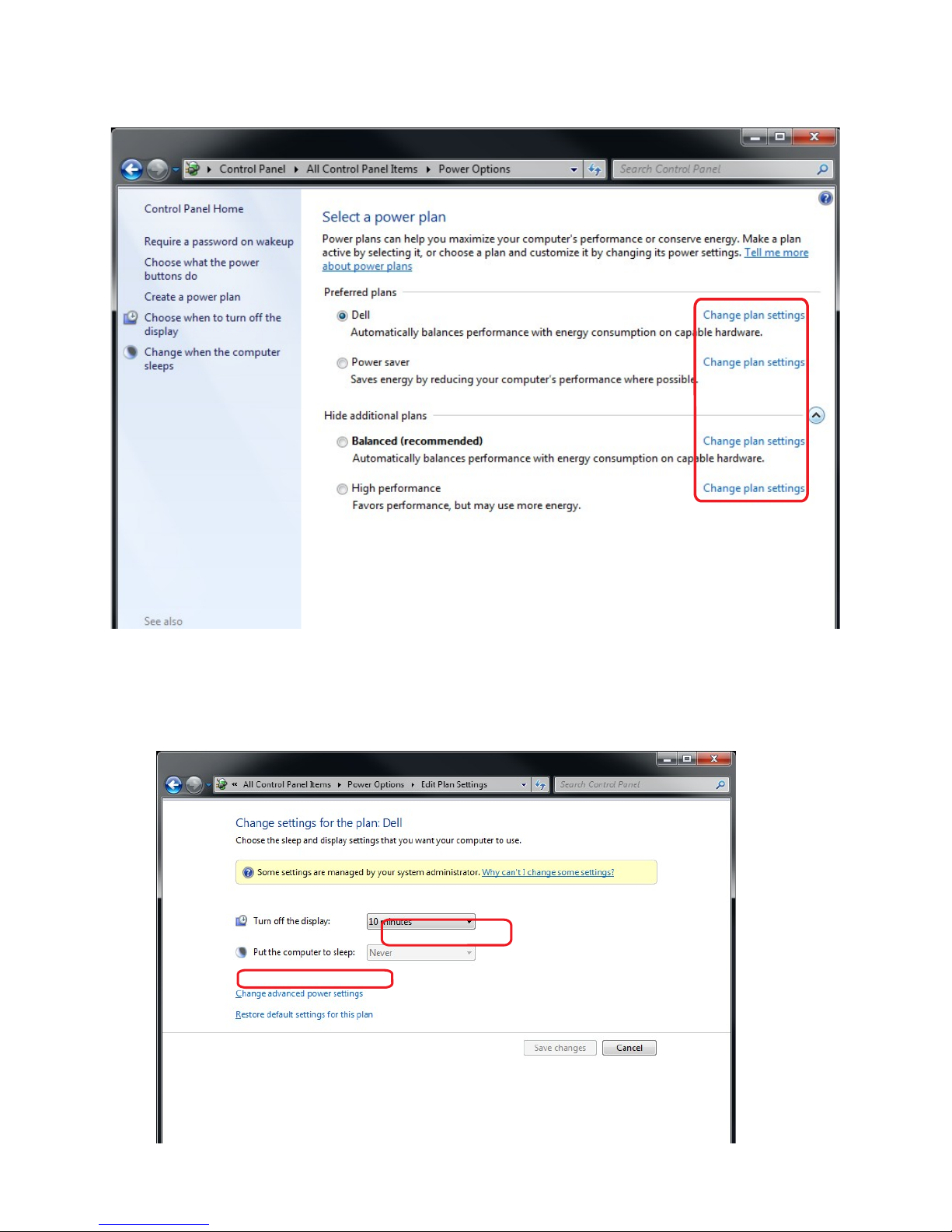

Windows (7/8)
To disable “suspend”settings on your computer:

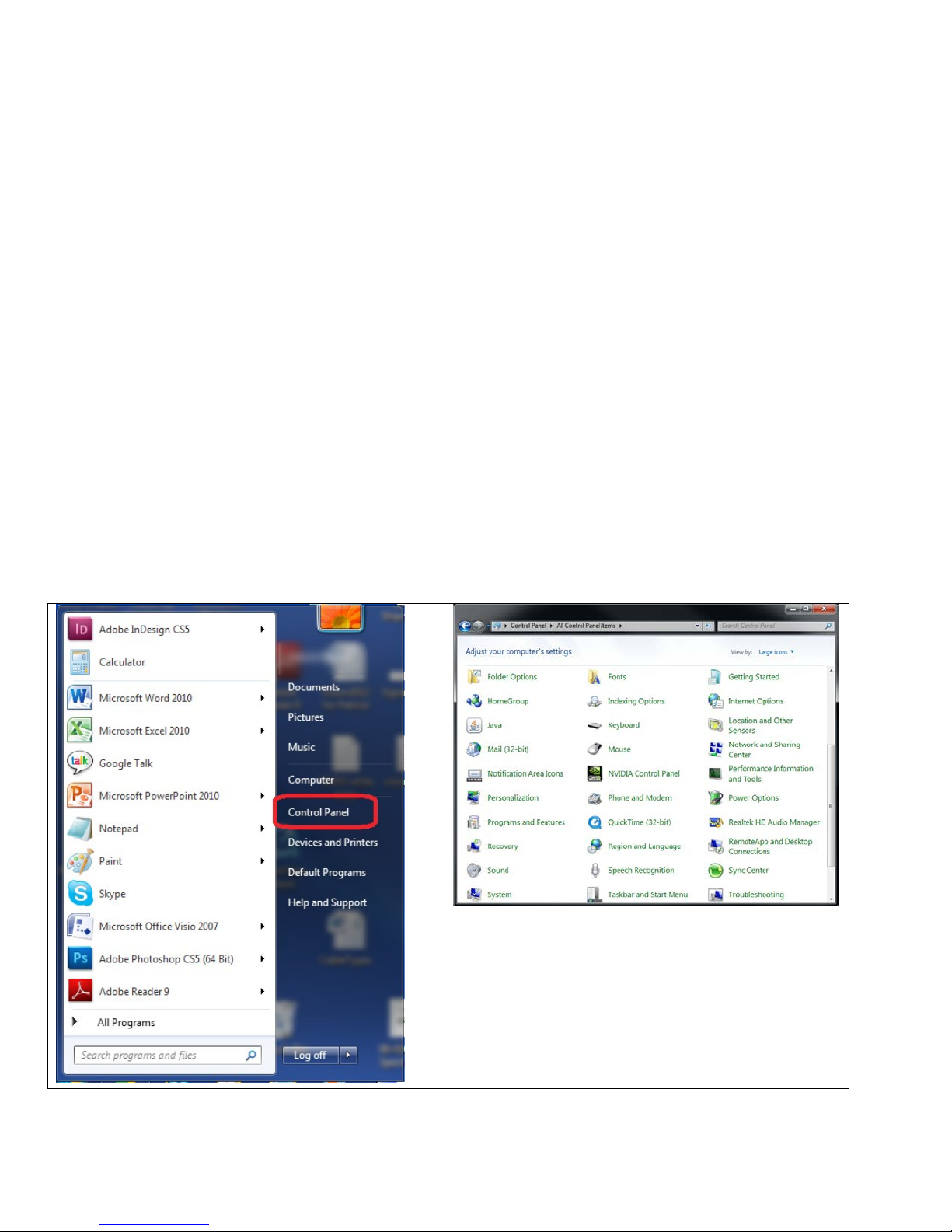

1. Open Control Panel. Open Power Options.

a. Click on Change Plan Setting
2. Select “Never”for“Put the computer to sleep”for all the configurations presented.
a. Click Change advanced power settings.
8

9

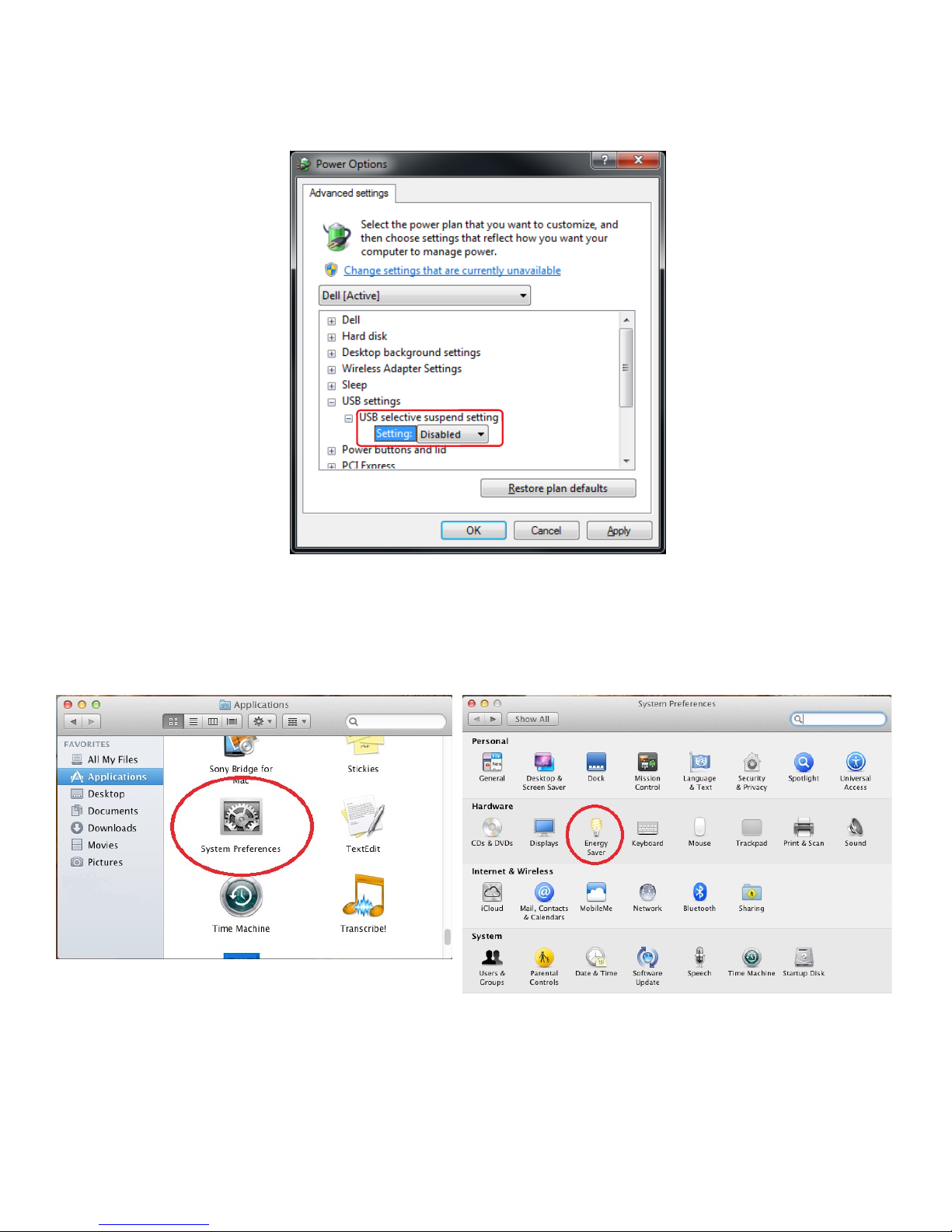

b. Expand“USB settings”
c. Expand“USB selective suspend setting”
3. Select“Disabled”.

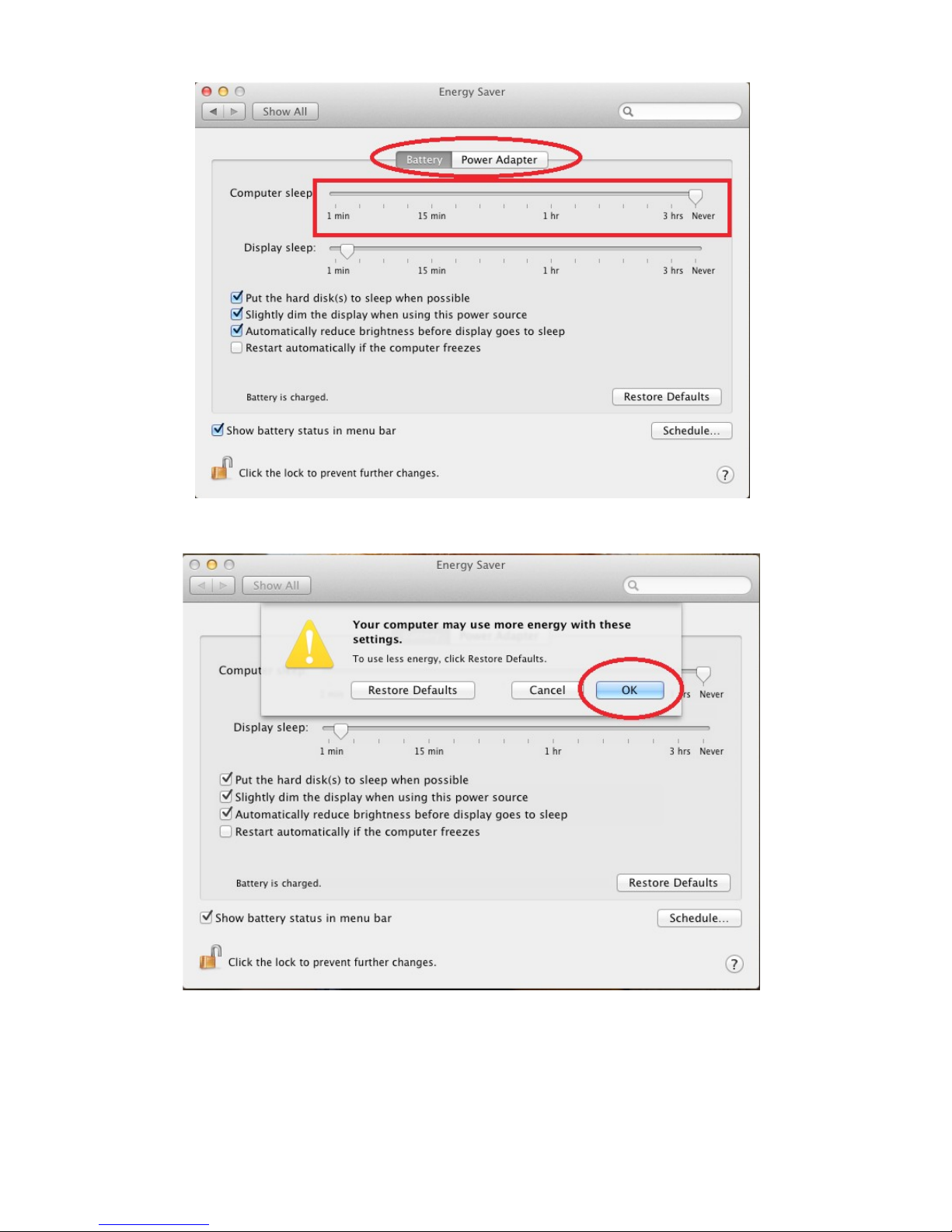

OS X
To disable “suspend”settings on your computer:
1. Open System Preferences and select Energy Saver.
