USFilter CHEM-AD XL B Series User manual

CHEM-AD®XL SERIES B
DIAPHRAGM
METERING PUMP
BOOK NO. IM 440.601AB UA ISSUE B

IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
EQUIPMENT SERIAL NO. _________________
DATE OF START-UP _____________________
START-UP BY ___________________________
Prompt service available from nationwide authorized service contractors.
ORDERING INFORMATION
In order for us to ll your order immediately and correctly, please order material by description and part number, as shown
in this book. Also, please specify the serial number of the equipment on which the parts will be installed.
WARRANTY
Seller warrants for a period of one year after shipment that the equipment or material of its manufacture is free from defects
in workmanship and materials. Corrosion or other decomposition by chemical action is specically excluded as a defect
covered hereunder, except this exclusion shall not apply to chlorination equipment. Seller does not warrant (a) damage
caused by use of the items for purposes other than those for which they were designed, (b) damage caused by unauthorized
attachments or modications, (c) products subject to any abuse, misuse, negligence or accident, (d) products where parts
not made, supplied, or approved by Seller are used and in the sole judgement of the Seller such use affects the products’
performance, stability or reliability, and (e) products that have been altered or repaired in a manner in which, in the sole
judgement of Seller, affects the products’ performance, stability or reliability. SELLER MAKES NO OTHER WARRANTY OF
ANY KIND, AND THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY OF MERCHANTABILITY OR OF FITNESS OF THE MATERIAL OR EQUIPMENT FOR
ANY PARTICULAR PURPOSE EVEN IF THAT PURPOSE IS KNOWN TO SELLER. If Buyer discovers a defect in mate-
rial or workmanship, it must promptly notify Seller in writing; Seller reserves the right to require the return of such defective
parts to Seller, transportation charges prepaid, to verify such defect before this warranty is applicable. In no event shall such
notication be received by Seller later than 13 months after the date of shipment. No action for breach of warranty shall be
brought more than 15 months after the date of shipment of the equipment or material.
LIMITATION OF BUYER’S REMEDIES. The EXCLUSIVE REMEDY for any breach of warranty is the replacement f.o.b.
shipping point of the defective part or parts of the material or equipment. Any equipment or material repaired or replaced
under warranty shall carry the balance of the original warranty period, or a minimum of three months. Seller shall not be
liable for any liquidated, special, incidental or consequential damages, including without limitation, loss of prots, loss of
savings or revenue, loss of use of the material or equipment or any associated material or equipment, the cost of substitute
material or equipment, claims of third parties, damage to property, or goodwill, whether based upon breach of warranty,
breach of contract, negligence, strict tort, or any other legal theory; provided, however, that such limitation shall not apply
to claims for personal injury.
Statements and instructions set forth herein are based upon the best information and practices known to U.S. Filter/Wal-
lace & Tiernan, Inc., but it should not be assumed that every acceptable safety procedure is contained herein. Of necessity
this company cannot guarantee that actions in accordance with such statements and instructions will result in the complete
elimination of hazards and it assumes no liability for accidents that may occur.
1.010-42
WALLACE & TIERNAN PRODUCTS
1901 West Garden Road, Vineland, NJ 08360

CHEM-AD®XL SERIES B
IM 440.601AB UA (B/6-06) Introd.
INTRODUCTION
This technical manual contains all the necessary instructions for the
installation, start-up, maintenance, and repair of the USFilter’s Wallace
& Tiernan Products (USF/W&T) Chem-Ad®XL Series B Diaphragm
Metering Pumps.
WARNING: TO AVOID POSSIBLE SEVERE PERSONAL IN-
JURY OR DAMAGE TO THE EQUIPMENT, THIS EQUIP-
MENT SHOULD BE INSTALLED, OPERATED AND SER-
VICED ONLY BY TRAINED, QUALIFIED PERSONNEL
WHO ARE THOROUGHLY FAMILIAR WITH THE ENTIRE
CONTENTS OF THIS INSTRUCTION BOOK. WHEN DEAL-
ING WITH HAZARDOUS MATERIAL IT IS THE RESPON-
SIBILITY OF THE EQUIPMENT USER TO OBTAIN AND
FOLLOW ALL SAFETY PRECAUTIONS RECOMMENDED
BY THE MATERIAL MANUFACTURER/SUPPLIER. AVOID
CONTACTING ELECTRICALLY HOT METER POSTS AND
CIRCUIT BOARD COMPONENTS WHILE MAKING METER
ADJUSTMENTS.
NOTE: When ordering material, always specify model and serial
number of apparatus.
TABLE OF CONTENTS
Very Important Safety Precautions ............................SP-1
Notes on Protective Equipment and Clothing............1.010-6
Regional Ofces.........................................................1.010-1
Technical Data ...........................................................Section 1
Installation..................................................................Section 2
Operation....................................................................Section 3
Service........................................................................Section 4
Illustrations ................................................................Section 5
Preventive Maintenance Kits and Accessories ..........Section 6
!

IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
VERY IMPORTANT SAFETY PRECAUTIONS
This page provides very important safety information related to safety in installation, operation, and
maintenance of this equipment.
WARNING
TO AVOID POSSIBLE SEVERE PERSONAL INJURY OR EQUIPMENT DAMAGE, OBSERVE
THE FOLLOWING:
THISEQUIPMENTSHOULDBEINSTALLED,OPERATED,ANDSERVICEDONLYBYTRAINED,
QUALIFIED PERSONNEL WHO ARE THOROUGHLY FAMILIAR WITH THE ENTIRE CON-
TENTS OF THIS INSTRUCTION BOOK.
REPAIRS MAY ONLY BE CARRIED OUT WHEN THE PLUG IS DISCONNECTED FROM THE
MAINS, OR WHEN THERE IS NO VOLTAGE.
ONLY ORIGINAL SPARE PARTS MUST BE USED FOR REPAIRS.
DO NOT DISCARD THIS INSTRUCTION BOOK UPON COMPLETION OF INSTALLATION.
INFORMATION PROVIDED IS ESSENTIAL TO PROPER AND SAFE OPERATION AND MAIN-
TENANCE.
ADDITIONAL OR REPLACEMENT COPIES OF THIS INSTRUCTION BOOK ARE AVAILABLE
FROM:
USFILTER’S WALLACE & TIERNAN PRODUCTS
1901 WEST GARDEN ROAD
VINELAND, NEW JERSEY 08360
PHONE: [phone]
FAX: [phone]
NOTE
Minor part number changes may be incorporated into USF/W&T products from time to time that are
not immediately reected in the instruction book. If such a change has apparently been made in your
equipment and does not appear to be reected in your instruction book, contact your local USF/W&T
sales ofce for information.
Please include the equipment serial number in all correspondence. It is essential for effective commu-
nication and proper equipment identication.
SP-1

CHEM-AD®XL SERIES B
IM 440.601AB UA (B/6-06)
NOTES ON PROTECTIVE EQUIPMENT AND CLOTHING
The following Warning appears in several locations in this book. It is general in nature due to the variety
of hazardous liquids this equipment is capable of handling.
WARNING: WHEN DEALING WITH HAZARDOUS MATERIAL, IT
IS THE RESPONSIBILITY OF THE EQUIPMENT USER TO OBTAIN
AND FOLLOW ALL SAFETY PRECAUTIONS RECOMMENDED BY
THE MATERIAL MANUFACTURER/SUPPLIER.
It is good general practice to make use of
protective equipment when handling any
hazardous material.
IT IS RECOMMENDED THAT SUCH
PROTECTIVE EQUIPMENT BE USED BY
ALL PERSONS SERVICING THIS PUMP,
ASSOCIATED PIPING, TUBING, VALVES,
AND ACCESSORIES, WHEN THE EQUIP-
MENT IS HANDLING ANY HAZARDOUS
MATERIAL.
1. Goggles, exible tting,
hooded ventilation
(per ANSI Z87.1)
2. Face Shield
(per ANSI Z87.1)
3. Chemical Apron
4. Chemical Gloves
NOTE: (1) ANSI Z87.1 “practice for occupational.......eye and face protection” recommends goggles
(#1 above) as the “preferred protection” when handling chemicals that present a hazard
from splash, acid burns or fumes; for severe exposure, a face shield (#2 above) over the
goggles is recommended.
(2) An eye ushing fountain and a deluge-type shower may be recommended or required by
insurance carriers or governmental safety agencies, which should be consulted for specic
requirements.
1.010-6C

IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
REGIONAL OFFICES
INSTALLATION, OPERATION, MAINTENANCE, AND SERVICE INFORMATION
Direct any questions concerning this equipment that are not answered in the instruction book to the
Reseller from whom the equipment was purchased. If the equipment was purchased directly from
USFilter’s Wallace & Tiernan Products (USF/W&T), contact the ofce indicated below.
UNITED STATES
1901 West Garden Road
Vineland, NJ 08360
TEL: [phone]
FAX: [phone]
CANADA
If the equipment was purchased directly from USF/W&T Canada, contact the nearest ofce indicated
below.
ONTARIO QUEBEC
250 Royal Crest Court 243 Blvd. Brien
Markham, Ontario Bureau 210
L3R3S1 Repentigny, Quebec
[phone] [phone]
MEXICO
If the equipment was purchased directly from USF/W&T de Mexico, contact the ofce indicated be-
low.
Via Jose López Portillo No. 321
Col. Sta. Ma. Cuautepec, Tultitlan
Edo. México 54900
TEL: [phone]
1.010-1

CHEM-AD®XL SERIES B
1IM 440.601AB UA (B/6-06)
SECTION 1 - TECHNICAL DATA
List of Contents
PARA. NO.
Technical Data .....................................................1.1
Capacity, Pressure, and Power Consumption ......1.2
Materials of Construction ....................................1.3
Control Modes .....................................................1.4
Illustrations
Chemical Resistance Guide ..............................440.600.190.010A-F

2IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
1.1 Technical Data
Type Mechanically Actuated Diaphragm
Metering Pump
Model Chem-Ad XL, Series B
Service Metering of mild to very corrosive chemicals
Capacity range Refer to Capacity Chart
Ambient Temperature 104° F (40° C)
Maximum Liquid
Temperature
125° F (52° C)
Maximum Back Pressure 120 PSI (8 BAR) at 60 Hz
150 PSI (10 BAR) at 50 Hz
Suction Lift 6 ft of water
Accuracy ± 3% of full scale
Valves Double ball, threaded valves
Diaphragm PTFE - EPDM composite diaphragm
Drive unit Synchronous Motor
Stroke Length Adjustment
E60/E60Plus and
M60/M60Plus control modes:
One turn manual knob,
10% increments, range 30-100%
Stroke Frequency Control
E60/E60Plus and
M60/M60Plus control modes:
Keypad control, 1% increments, on local
mode, range 30-100%
0 - 20 mA, 4 - 20 mA, 20 - 0 mA, 20 - 4 mA
input or pulse input on remote mode
Connection sizes
USA Version:
EURO Version:
Adapter for tubing connectoin, 3/8" OD x
1/4" ID
Connection set for 4/6, 6/8, 6/12 tubing
(mm ID/mm OD)

CHEM-AD®XL SERIES B
3IM 440.601AB UA (B/6-06)
Alarm Output Signal
E60/E60Plus and
M60/M60Plus control modes:
Empty Signal Output - Max. Load, 24V
AC/DC, 3 Amps
Stroke Signal Output - Max. Load, 24 V
DC, 300 mA
Power Requirement USA Version - 115 VAC, 60 Hz, Single
Phase
EURO Version - 230 VAC, 50 Hz, Single
Phase
1.2 Capacity, Pressure, and Power Consumption
seireS
B
spmuP
yticapaC erusserP rewoP
@HPG
,zH06
mps441
@HPL
,ZH06
mps441
@HPL
,zH05
mps221
@ISP
zH06
@RAB
zH05 sttaW
1 44.0 86.1 4.1 021 01 21
2 97.0 3 5.2 021 01 21
3 25.1 67.5 8.4 05 4 21
4 63.1 61.5 3.4 021 01 02
5 82.2 46.8 2.7 021 01 03
6 55.3 44.31 2.11 06 5 03
NOTE: All data refers to a water temperature of 68° F (20° C).
1.3 Materials of Construction
Pump Component Material of Construction
Pump Head PVDF, Polypropylene, 316 Stainless Steel
Connection PVDF, Polypropylene, 316 Stainless Steel
Diaphragm PTFE-EPDM Composite Diaphragm
Valves PVDF, 316 Stainless Steel, Polypropylene,
(consists of PVDF inner parts)
Valve Balls Ceramic, 316 Stainless Steel, Teon
O-ring Viton, EPDM, Isolast
Valve Spring Elgiloy/Hastelloy C4
Housing and Finish Thermoplastic, Blue per RAL 5007

4IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
1.4 Control Modes
The control mode functions for the Chem-Ad XL B series (USA) are
as follows:
E60 6 ft cable with U.S. plug
Mechanical stroke adjustment
Level switch connection
Alarm and stroke signal output connection
Reversible analog input, 0/4 - 20 mA / 20 - 0/4 mA or
pulse input
Remote on/off switch connection
Membrane touch pad operator interface
Integral back-lit digital display of functions and features
Capacity display
Multiple language display
External or internal operation
Input signal scaling
Stroke frequency control
Batch mode and pulse storage
Password protection
E60Plus Includes all of the above features found in the E60 model,
with the addition of:
Flow monitoring
Set point control
NOTE: In order to achieve E60Plus functionality, order (1) Upgrade
kit, part number AAC9446 (USA)

CHEM-AD®XL SERIES B
5IM 440.601AB UA (B/6-06)
The control mode functions for the Chem-Ad XL B series (EURO)
are as follows:
M60 6 ft cable with EURO plug
Mechanical stroke adjustment
Level switch connection
Alarm and stroke signal output connection
Reversible analog input, 0/4 - 20 mA / 20 - 0/4 mA or
pulse input
Remote on/off switch connection
Membrane touch pad operator interface
Integral back-lit digital display of functions and features
Capacity display
Multiple language display
External or internal operation
Input signal scaling
Stroke frequency control
Batch mode and pulse storage
Password protection
M60Plus Includes all of the above features found in the M60 model,
with the addition of:
Flow monitoring
Set point control
NOTE: In order to achieve M60Plus functionality, order (1) Upgrade
kit, part number AAC9443 (Metric)

6IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
E60 / M60 E60Plus / M60Plus

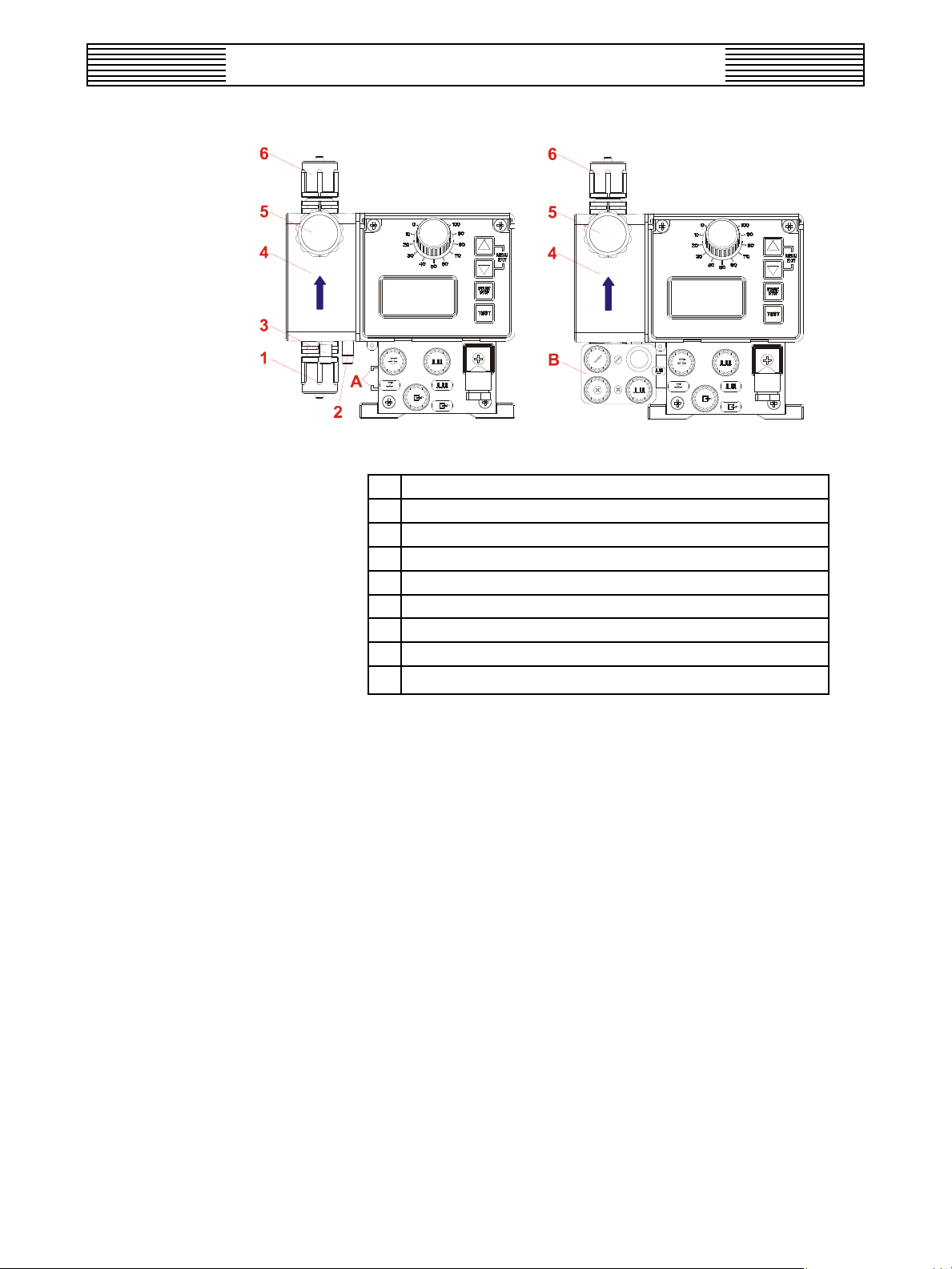

1 Suction valve (connection on the suction side)
2 Diaphragm breakage drain connection
3 Venting connection (feeding back to the container)
4 Pump head
5 Vent screw
6 Discharge valve (connection on the pressure side)
A Rail for connecting the intelligent control pack (ICP)
B Intelligent control pack (ICP)
Flow direction of the metering medium

CHEM-AD®XL SERIES B
7IM 440.601AB UA (B/6-06)

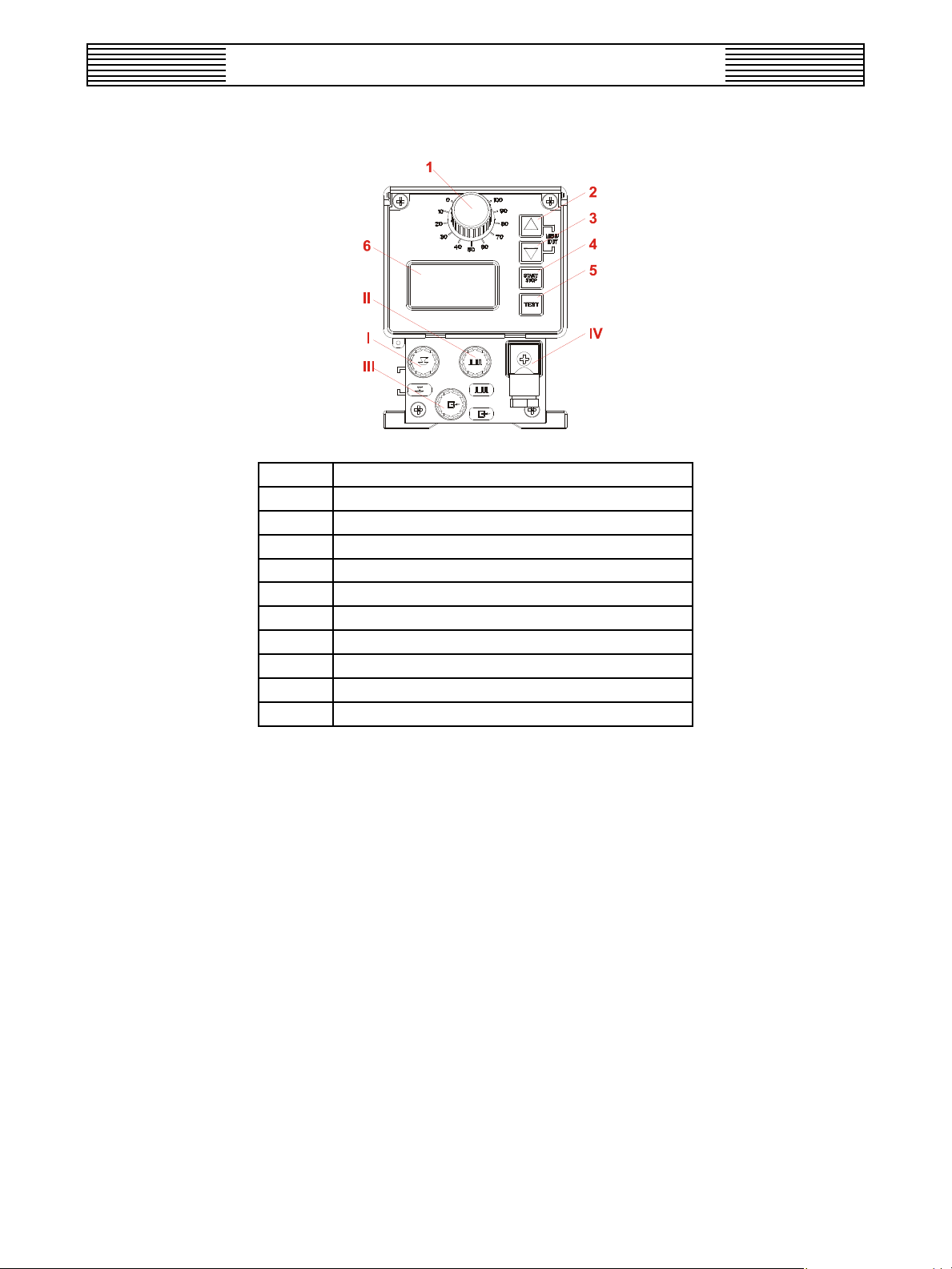

1.4.1 Indicators / Controls / Jacks
Item No. Description
1 Control knob for setting the stroke length
2 Menu/Exit, up arrow key
3 Menu/Exit, down arrow key
4 Start/Stop key (Enter function)
5 Test Key
6 Digital display
I Tank level input for low-level and empty
II input for pulse-/ mA signal and remote on/off
III output for empty report, fault report and stroke signal
IV power supply

8IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B

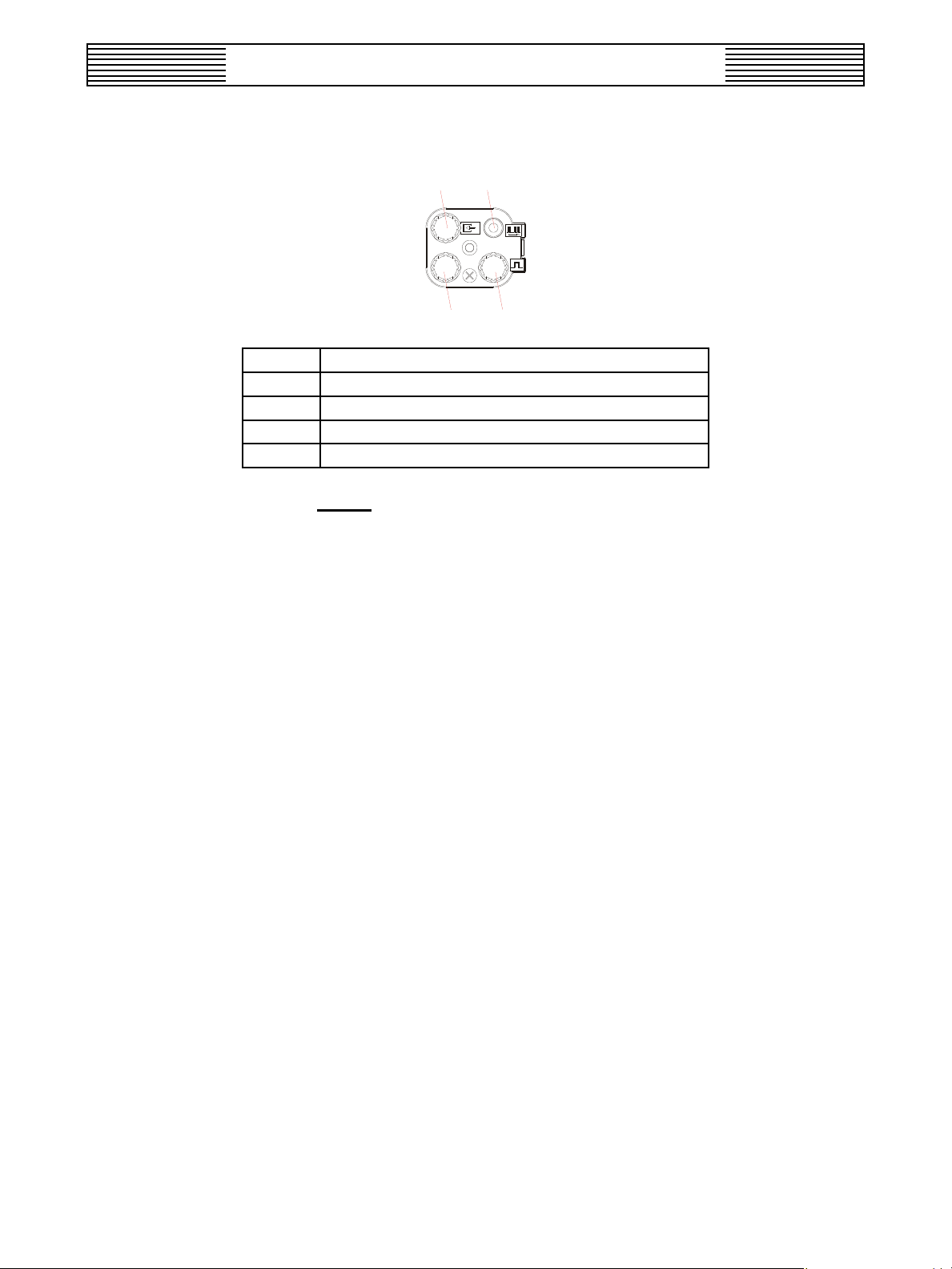

1.4.2 Intelligent Control Pack (ICP)
V VI
VII VIII
Item No. Description
V input for oval gear meter
VI connection for pulse input to pump (input II)
VII input for batch pulse and remote on/off
VIII input for pulse, mA signal input and remote on/off
NOTE:
1. The socket connectors, I and II, must always be occupied, either by
the protective cap with the corresponding symbol or the appropriate
equipment connected.
2. Keep the protective cap secure, in a place where it will not be
lost.

CHEM-AD®XL SERIES B
9IM 440.601AB UA (B/6-06)
INTRODUCTION
The following pages are offered as a general guide and indication of the suitability of
various elastomers and plastics in use today with a wide range of industrial chemicals. The
ratings are based, for the most part, on published literature of various plastic suppliers and
elastomer manufacturers but, in some cases, they are considered the opinion of experienced
compounders.
We cannot guarantee their accuracy nor assume responsibility for use thereof. Several
factors must always be considered in using an elastomer or plastic part in service. The most
important as we see them are:
TEMPERATURE OF SERVICE
Higher temperatures increase the effect of chemicals on plastic. The increase varies with
the plastic and the chemical. The compound quite stable at room temperature might fail at
elevated temperature.
CONDITIONS OF SERVICE
A compound that swells badly might still function well as a static seal yet fail in any dynamic
application.
GRADE OF PLASTIC
Many types of plastic are available in different grades that vary greatly in chemical
resistance.
THE COMPOUND ITSELF
Compounds designed with certain outstanding properties may be poorer in performance
with a chemical than one designed especially for uid resistance.
CAUTION: It is NOT recommended that USFilter/Wallace & Tiernan Chem-Ad Metering
Pumps be used to handle FLAMMABLE LIQUIDS.
In light of the above factors, it is always best to TEST.
Statements and suggestions set forth herein are based upon the best information and practices known to USF/W&T. However, it should not
be assumed either that information is complete on the subjects covered or that all possible circumstances, safety measures, precautions,
etc., have been included. These statements and suggestions are not intended to reect state, municipal, or insurance requirements or
national safety codes; where applicable, those sources should be consulted directly. Moreover, since the conditions of use are beyond its
control, USF/W&T makes no guarantee of results and assumed no liability in connection with the information contained herein.
CHEMICAL RESISTANCE GUIDE
440.600.190.010A
ISSUE 0 12-02

10IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
CHEMICAL RESISTANCE GUIDE
440.600.190.010B
ISSUE 1 1-06
MATERIAL ANALYSIS OR DESCRIPTIONS
The following is typical analysis and description of the pump components named in
Materials of Construction.
MATERIAL ANALYSIS or DESCRIPTION
Ceramic 99% aluminum oxide
EPDM Ethylene Propylene
GFPPL Glass-lled polypropylene
Duran*** Galss Borosilicate Glass, 81% SiO2, 13% B2O3, 4% Na2O/K2O, 2% AI2O3
Hastelloy C High nickel-chrome alloy of the following analysis:
Ni, 54%, Cr 15.5%. Co 2.5%, Mo 16%, W 4%, Fe 5.5%, C 0.08%, others 3%
Hypalon* Chlorosulphonated polyethene, CSM
Isolast**** Peruoroelastomer, FFPM
Kynar* Polyvinylidene uoride, PVDF
PVC Polyvinyl chloride
PE Polyethylene
PP Polypropylene
Stainless Steel, 316 AISI 316
Cr 16-18%, Ni 10-14%, C 0.08%, Mn 2%m Si 1%, P 0.045%, S 0.03%, Mo 2-3%
SAN Styrene-Acrylonitrile
Teon* Fluorocarbon resin of tetrauoroethylene polymer, TFE, PTFE
Viton* Colpolymer of vinylidene uoride and peruoropropylene or hexauoropropylene,
FKM, FEPM
* Teon, Hypalon, and Viton are registered trademarks of E.I. DuPont Co.
** Kynar is a registered trademmark of Atochem North America, Inc.
*** Duran is a registered trademark of Schott.
**** Isolast is a registered trademark of Busak + Shamban.

CHEM-AD®XL SERIES B
11IM 440.601AB UA (B/6-06)
LACIMEHC
CITSALP REMOTSALE LATEM
%5,dicAcitecA
%08,dicAcitecA
laicalG,dicAcitecA
edirdyhnAcitecA
B
C
C
C
D
D
D
C
A
C
C
A
A
B
B
X
H
E
G
G
A
E
E
E
N
G
X
A
A
A
A
A
C
E
E
A
A
C
B
C
C
C
C
C
A
A
A
A
A
A
A
A
H
H
H
H
H
B
B
B
edirolhCmunimulA
ediruolFmunimulA
etafluSmunimulA
F
F
A
A
A
A
A
A
A
A
X
A
H
H
H
A
A
A
A
X
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
A
A
X
A
B
G
A
B
E
B
%01,ainommA
edirolhCmuinommA
etartiNmuinommA
etaflusrePmuinommA
etafsohPmuinommA
etafluSmuinommA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
A
X
X
X
A
X
H
H
H
H
H
A
A
A
A
A
A
A
A
A
X
X
A
A
A
A
A
A
A
A
A
A
A
A
B
B
A
A
A
A
A
A
A
A
A
A
B
A
A
A
A
A
A
A
N
A
A
A
A
N
H
B
X
A
A
A
B
A
E
A
B
lohoclAlymA
enilinA
ainommAauqA
aigeRauqA
dicAcinesrA
C
C
A
C
A
A
B
A
A
A
X
C
A
X
A
X
B
B
B
X
H
H
X
X
H
C
C
B
C
A
A
A
A
X
A
A
A
A
A
A
B
B
B
B
C
B
B
A
B
X
B
A
B
A
A
A
A
A
A
A
A
A
A
A
N
A
A
C
C
A
A
A
A
C
B
edirolhCmuiraB
etafluSmuiraB
reeB
edyhedlazneB
dicAciozneB
)etaroBmuidoS(xaroB
dicAciroB
retaWenimorB
dicAcirytuB
A
A
A
C
A
A
A
C
D
A
A
A
B
A
H
A
A
A
A
A
A
C
A
A
A
C
A
X
X
B
X
A
B
A
X
X
H
H
H
X
H
H
H
C
H
A
A
A
C
E
X
A
X
B
A
A
A
A
A
A
A
X
B
A
A
A
A
A
A
A
A
A
B
A
A
C
C
B
B
C
C
X
X
A
B
C
A
A
B
C
A
A
A
C
A
A
A
A
B
A
N
A
A
A
A
A
A
A
A
A
A
A
A
N
A
A
A
A
N
A
A
A
A
A
A
A
E
B
A
A
B
A
A
C
B
etiflusiBmuiclaC
edirolhCmuiclaC
etirolhcopyHmuiclaC
etafluSmuiclaC
A
A
A
A
A
A
A
A
A
A
C
A
A
A
A
X
H
H
G
H
X
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
A
B
B
A
A
B
A
N
A
A
N
A
A
B
N
A
A
H
A
B
C
C
B
edirolhcarteTnobraC
edixoiDenirolhC
dicAcinobraC
dicAcitecaorolhC
maoforolhC
dicAcinoflusorolhC
E
B
A
A
C
E
A
A
A
C
A
C
C
E
A
D
E
E
C
X
X
X
X
C
C
C
H
C
C
C
X
X
A
C
C
C
A
X
A
A
A
A
A
A
A
A
A
A
C
C
B
C
C
C
C
C
C
C
C
C
A
A
B
C
B
C
A
A
A
N
A
A
A
X
N
A
A
A
A
X
A
A
A
A
B
C
B
C
A
B
CHEMICAL RESISTANCE GUIDE
440.600.190.010C
ISSUE 1 1-06
Polypropylene PVC PVDF GFPPL Polyethylene SAN Kalrez, Isolast Teon Hypalon EPDM Viton Glass Ceramic Hastelloy C 316 SS
RATING KEY
A – Acceptable D – Good to 70° F (20° C)
B – Satisfactory where minor attack is acceptable E – Good to 80° F (27° C)
C – Not recommended F – Good to 125° F (52° C)
N – Information Lacking G – Good to 150° F (65.5° C)
X – Unknown H – Good to 185° F (85° C)

12IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
LACIMEHC
CITSALP REMOTSALE LATEM
%01,dicAcimorhC
%03,dicAcimorhC
%05,dicAcimorhC
dicAcirtiC
A
A
C
A
A
A
A
A
A
A
A
A
A
A
B
A
H
H
G
H
A
A
B
A
A
A
A
A
A
A
A
A
A
A
A
A
C
C
C
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
A
B
B
E
B
edirolhCreppoC
edinayCreppoC
etartiNreppoC
etafluSreppoC
)%05(dicAcilyserC
A
A
A
A
B
A
A
A
A
A
A
A
A
A
X
B
X
X
A
X
H
H
H
H
X
A
A
A
A
X
A
A
A
A
A
A
A
A
A
A
B
A
B
B
C
B
N
B
B
C
B
B
B
B
A
A
N
A
A
A
A
A
A
A
A
A
A
B
A
A
C
A
A
B
A
edirolhClyhtE
locylGenelyhtE
C
A
A
A
E
A
X
X
X
G
C
A
A
A
A
A
C
B
A
A
A
B
A
A
A
A
A
A
A
B
sdicAyttaF
edirolhCcirreF
etartiNcirreF
etafluScirreF
edirolhCsuorreF
etafluSsuorreF
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
A
C
C
A
B
X
H
H
H
H
H
G
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
B
B
B
B
B
C
A
A
A
B
B
B
B
B
B
B
B
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
A
C
B
A
C
B
B
C
B
dicAciroboulF
dicAcicilisuolF
%04,edyhedlamroF
dicAcimroF
)teW(21noerF
larufruF
)lorecylG(enirecylG
F
F
D
C
N
C
D
A
A
G
A
B
X
A
A
A
H
H
C
N
A
C
A
B
B
X
X
X
H
H
H
H
N
N
H
B
B
A
C
X
X
A
X
A
B
B
N
A
A
A
A
A
A
A
A
A
B
H
B
B
E
N
B
B
X
A
B
B
B
A
H
B
C
C
A
C
B
N
C
A
A
A
A
A
C
C
A
A
A
A
A
H
H
H
H
H
H
H
B
B
A
B
C
B
A
%02,dicAcimorbordyH
%52-0,dicAcirolhcordyH
%73-52,dicAcirolhcordyH
%01,dicAciroulfordyH
%03,dicAciroulfordyH
%06,dicAciroulfordyH
%02,cicilisoulfordyH
D
D
D
G
G
X
A
A
A
A
A
A
A
A
A
A
A
A
B
B
A
B
B
B
A
B
C
A
H
H
D
H
F
N
X
X
A
B
B
C
C
B
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
A
A
B
X
B
E
E
B
E
B
A
D
A
N
H
F
D
B
A
A
A
C
C
C
C
D
D
N
C
C
C
C
D
D
D
H
F
N
N
C
C
C
C
C
C
B
%03,edixorePnegordyH
%05,edixorePnegordyH
%09,edixorePnegordyH
.LOS.QA,edifluSnegordyH
F
E
N
A
A
A
A
A
A
X
X
A
B
B
B
X
H
N
N
X
B
X
C
B
A
A
A
A
A
A
A
A
A
A
B
B
B
C
C
A
A
A
A
B
A
A
A
F
N
N
N
N
N
N
N
N
C
C
C
B
CHEMICAL RESISTANCE GUIDE
440.600.190.010D
ISSUE 1 1-06
RATING KEY
A – Acceptable D – Good to 70° F (20° C)
B – Satisfactory where minor attack is acceptable E – Good to 80° F (27° C)
C – Not recommended F – Good to 125° F (52° C)
N – Information Lacking G – Good to 150° F (65.5° C)
X – Unknown H – Good to 185° F (85° C)
Polypropylene PVC PVDF GFPPL Polyethylene SAN Kalrez, Isolast Teon Hypalon EPDM Viton Glass Ceramic Hastelloy C 316 SS

CHEM-AD®XL SERIES B
13IM 440.601AB UA (B/6-06)
LACIMEHC
CITSALP REMOTSALE LATEM
senoteK
dicAcitcaL
etatecAdaeL
liOgnitacirbuL
C
C
F
F
C
N
A
A
C
A
A
E
X
A
X
B
C
D
H
H
C
C
A
A
X
A
A
A
A
A
A
A
C
B
C
B
X
A
A
C
C
F
C
A
A
A
A
A
A
A
A
A
A
A
A
A
A
N
A
A
edirolhCmuisengaM
etartiNmuisengaM
etafluSmuisengaM
dicAcielaM
edirolhCenelyhteM
F
F
F
F
C
A
A
A
A
B
A
A
A
A
C
A
X
A
X
X
H
H
H
X
C
A
A
A
C
C
A
N
A
A
A
A
A
A
A
A
A
A
A
A
C
A
B
A
C
C
A
A
A
A
N
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
N
A
A
B
A
enelahtpaN
edirolhClekciN
etafluSlekciN
%01,dicAcirtiN
%02,dicAcirtiN
%05,dicAcirtiN
suordyhnA,dicAcirtiN
enezneBortiN
D
F
F
F
F
N
C
C
A
A
A
A
H
F
C
F
E
A
A
A
A
E
C
E
X
A
A
A
B
E
C
X
D
H
H
D
D
D
C
D
C
A
A
F
C
C
C
C
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
H
A
A
F
N
C
C
C
A
A
B
C
C
X
C
F
H
H
A
A
C
C
N
F
A
A
A
A
A
A
A
A
A
A
N
N
N
N
A
A
A
A
H
F
D
D
A
A
N
A
A
H
F
F
A
staFdnasliO
dicAcielO
muelO
dicAcilaxO
F
D
C
D
A
A
C
F
A
E
X
A
X
C
C
B
F
D
X
F
X
C
C
B
N
A
A
A
A
A
A
A
X
N
C
H
C
B
X
B
A
D
A
A
A
A
A
A
A
A
A
A
A
F
X
F
A
A
X
C
lonehP
%05-0,dicAcirohpsohP
%001-05,dicAcirohpsohP
remyloP
etahpsohpyloP
C
D
D
B
A
F
A
A
A
A
B
A
B
A
A
E
A
B
A
A
C
H
H
X
X
A
B
B
A
X
A
A
A
A
X
A
A
A
A
A
C
A
A
A
A
B
B
C
A
A
A
H
H
A
A
A
A
A
A
X
A
A
A
A
A
A
A
F
X
X
H
F
N
B
A
etanobraciBmuissatoP
edimorBmuissatoP
etanobraCmuissatoP
etarolhCmuissatoP
edirolhCmuissatoP
edinayCmuissatoP
etamorhciDmuissatoP
edixordyHmuissatoP
etartiNmuissatoP
etanagnamrePmuissatoP
etafluSmuissatoP
F
F
F
F
F
F
F
H
F
F
F
A
A
A
A
A
A
A
F
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
B
A
X
B
A
A
A
A
X
H
H
H
H
H
H
H
H
F
H
A
A
A
A
A
A
A
C
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
H
H
H
H
H
H
H
H
F
H
A
A
A
B
A
B
B
B
B
B
A
X
B
B
B
B
B
B
C
H
F
A
N
N
H
A
N
F
H
C
H
F
F
A
A
N
A
A
A
A
C
A
A
A
X
H
F
F
H
F
F
H
F
A
F
B
F
F
F
N
A
A
H
F
H
H
CHEMICAL RESISTANCE GUIDE
440.600.190.010E
ISSUE 1 1-06
RATING KEY
A – Acceptable D – Good to 70° F (20° C)
B – Satisfactory where minor attack is acceptable E – Good to 80° F (27° C)
C – Not recommended F – Good to 125° F (52° C)
N – Information Lacking G – Good to 150° F (65.5° C)
X – Unknown H – Good to 185° F (85° C)
Polypropylene PVC PVDF GFPPL Polyethylene SAN Kalrez, Isolast Teon Hypalon EPDM Viton Glass Ceramic Hastelloy C 316 SS

14IM 440.601AB UA (B/6-06)
CHEM-AD®XL SERIES B
LACIMEHC
CITSALP REMOTSALE LATEM
spaoS
etatecAmuidoS
etanimulAmuidoS
etanobraciBmuidoS
etaflusiBmuidoS
etiflusiBmuidoS
etanobraCmuidoS
etarolhCmuidoS
edirolhCmuidoS
edinayCmuidoS
etahpsohpatemaxeHmuidoS
%02,edixordyHmuidoS
%05,edixordyHmuidoS
etirolhcopyHmuidoS
etartiNmuidoS
etaciliSmuidoS
etafluSmuidoS
edifluSmuidoS
F
F
B
F
F
F
F
F
F
F
F
D
N
F
F
F
F
F
A
A
A
A
A
A
A
A
A
A
A
H
F
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
C
A
A
E
A
A
A
A
E
A
A
A
A
A
A
A
A
X
A
A
B
A
A
A
A
A
H
H
X
H
H
X
H
H
H
H
X
H
H
H
H
H
H
H
A
A
A
A
A
A
A
A
A
A
X
B
B
A
A
A
A
A
A
A
A
A
F
F
A
A
A
X
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
D
A
A
A
A
A
A
A
A
A
A
A
N
A
A
A
A
A
A
N
A
A
A
A
A
A
A
A
A
A
D
H
D
A
A
A
A
A
X
G
G
C
F
N
F
A
X
C
C
G
A
N
A
X
A
A
A
A
A
A
N
A
A
A
A
C
C
A
A
A
A
A
A
F
X
F
F
X
F
F
F
A
X
A
A
F
F
F
A
H
A
A
A
A
A
A
A
F
N
A
X
A
A
C
A
H
A
B
edirolhCcinnatS
dicAciraetS
stnevloSsdraddotS
%01-0,dicAcirufluS
%57-01,dicAcirufluS
%59-57,dicAcirufluS
%001-59,dicAcirufluS
F
F
C
D
N
N
C
A
A
X
A
A
A
N
A
E
X
A
A
E
E
A
C
X
A
E
E
E
H
X
X
H
F
N
N
A
C
X
C
C
C
C
X
A
X
A
G
E
E
A
A
A
A
A
A
A
N
X
X
A
C
C
C
N
B
C
A
C
C
C
A
A
A
A
A
A
H
A
A
A
A
A
A
A
A
A
X
A
H
F
F
H
X
X
A
F
F
F
C
A
A
N
C
C
C
dicAcinnaT
srouqiLgninnaT
dicAciratraT
enelyhteorolhcirT
etahpsohplysercirT
F
F
F
C
C
A
A
A
A
A
A
A
A
E
X
B
A
X
C
X
H
X
H
C
X
X
X
C
X
X
A
X
A
D
X
A
A
A
A
A
A
X
D
C
C
B
C
D
C
B
A
A
A
A
A
A
A
H
A
X
A
A
A
A
A
H
X
A
A
X
F
A
A
N
X
aerU
rageniV
)dicA(rouqiLetihW
edirolhCcniZ
etafluScniZ
etahpsohpohtrOcniZ
A
A
A
A
A
A
A
A
A
A
A
A
A
A
X
A
A
A
X
A
X
A
A
A
H
H
X
H
H
X
X
A
C
A
A
X
N
A
X
A
A
X
A
A
A
A
A
A
N
A
X
B
A
A
X
A
X
A
A
X
C
B
A
B
A
A
A
A
A
A
A
N
A
A
A
A
A
X
A
A
X
A
D
X
B
A
A
B
A
A
CHEMICAL RESISTANCE GUIDE
440.600.190.010F
ISSUE 1 1-06
RATING KEY
A – Acceptable D – Good to 70° F (20° C)
B – Satisfactory where minor attack is acceptable E – Good to 80° F (27° C)
C – Not recommended F – Good to 125° F (52° C)
N – Information Lacking G – Good to 150° F (65.5° C)
X – Unknown H – Good to 185° F (85° C)
Polypropylene PVC PVDF GFPPL Polyethylene SAN Kalrez, Isolast Teon Hypalon EPDM Viton Glass Ceramic Hastelloy C 316 SS
