Instruction Manual

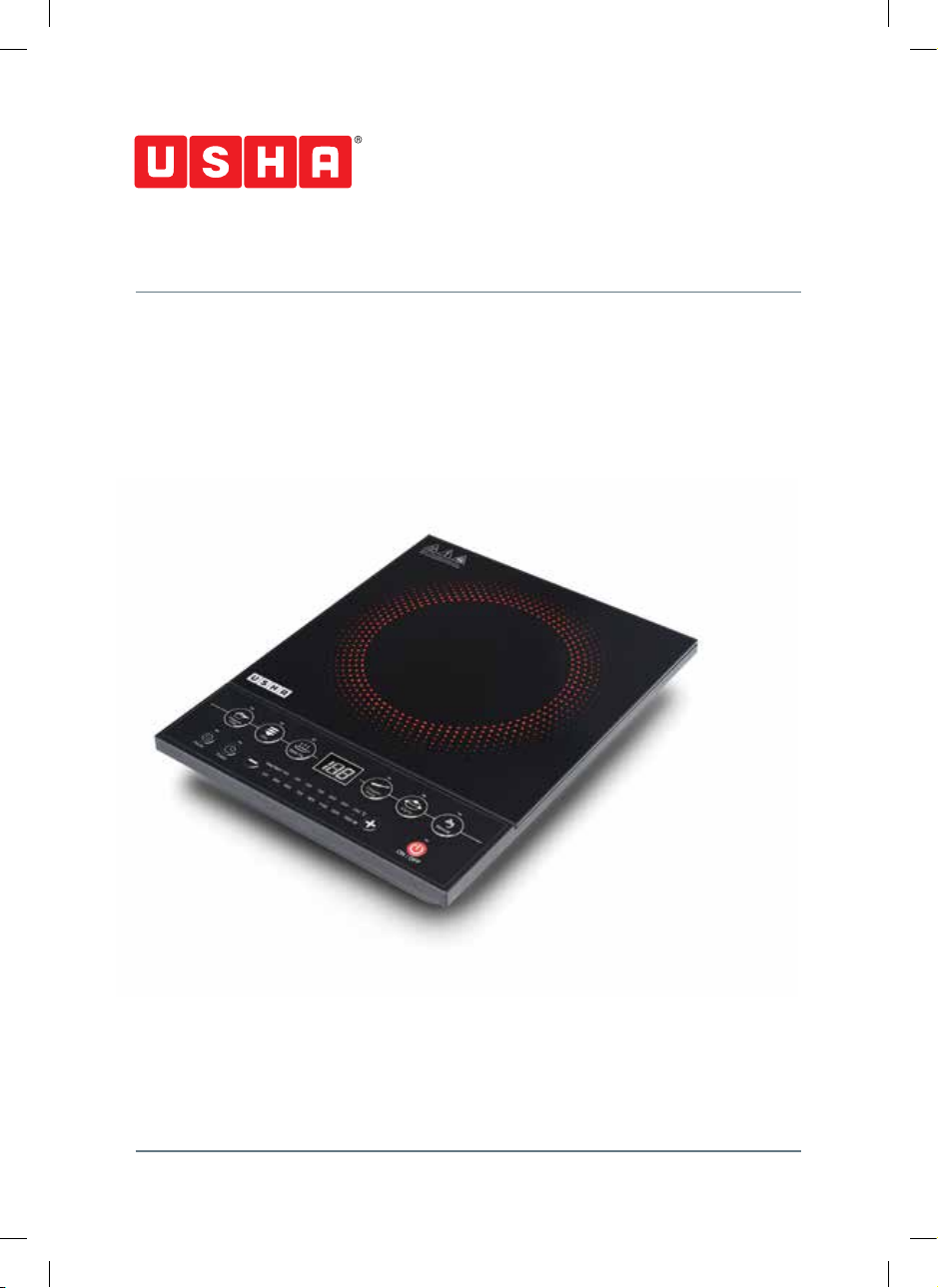

INDUCTION COOKTOP
CJ1600WPC
Size:148x210mm (A5)

1 Induction Cooktop
Dear Customer,
Congratulations!
You are now the proud owner of USHA 'CookJoy' Induction Cooktop – a state of art,
technologically advanced Induction Cooktop. This modern Induction Cooktop makes
cooking healthy and safe. This is another unique quality product from Usha International
Limited, a name synonymous with trust and reliability.
All USHA products are designed to give you trouble free performance. We suggest you to
read this user manual carefully to ensure many years of trouble free and easy cooking.
Enjoy Cooking
Size:148x210mm (A5)

CONTENTS
Induction Cooktop 2
Know your Induction Cooktop
Description of Parts .............................................................................................................................. 3
Control Panel .......................................................................................................................................... 3
Key Features ............................................................................................................................................ 4
How Induction Cooking works......................................................................................................... 4
Advantages of Induction Cooking................................................................................................... 4
Operating Instructions
Connecting your Induction Cooktop.............................................................................................. 4-5
Presest Functions................................................................................................................................... 5-6
Cookware for the induction Cooktop............................................................................................. 6
Safety Instructions
Important Safeguards ......................................................................................................................... 7
Care and Cleaning .............................................................................................................................. 8
Miscellaneous
Technical Specications ..................................................................................................................... 8
Troubleshooting ................................................................................................................................... 9
Warranty Card ...................................................................................................................................... 10
Size:148x210mm (A5)

KNOW YOUR INDUCTION COOKTOP
3 Induction Cooktop
Size:148x210mm (A5)
DESCRIPTION OF PARTS
1. Induction Cooker 2. Pressure Cook 3. Pause 4. Timer 5. Idli
6. - 7. Deep Fry 8. Display Window 9. Chapati/Dosa 10. +
11. Curry 12. Manual 13. ON/OFF
4 6 10 135 7 8 9 11 12

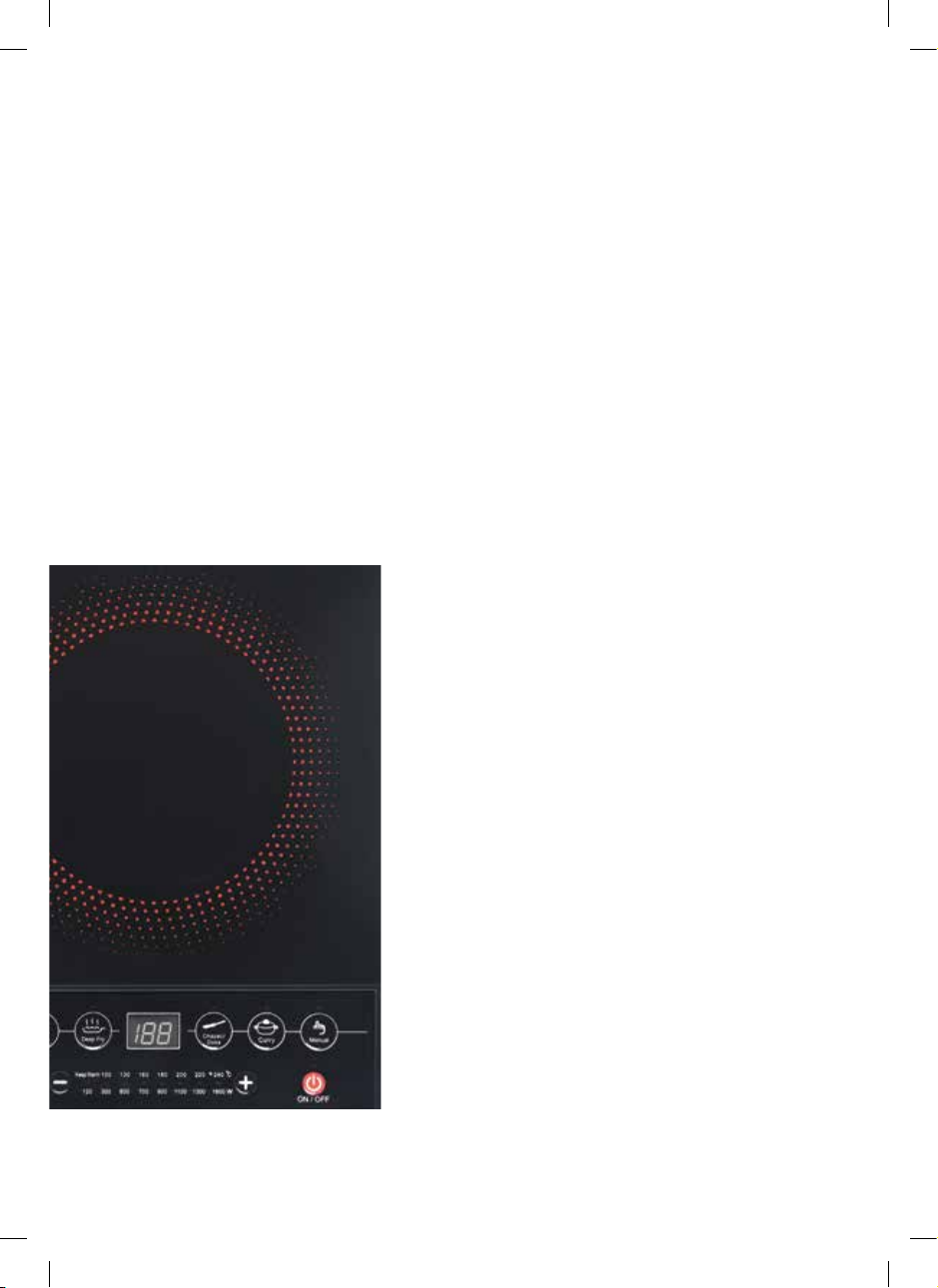

CONTROL PANEL
3
2
1

Induction Cooktop 4
KEY FEATURES
1. Auto switch to power saving mode to prevent overheating.
2. Keep Warm Function - This will keep food ready-to-eat for a long time (Pressure Cook and Curry
Mode only). Keep Warm setting makes it convenient for family members eating at dierent times.
3. Pause - Pause allows you to cook at your own pace.
4. Pan sensor technology – operates only when Cookware is placed on Induction Cooktop.
5. 5 Pre-set menu with additional manual control.
6. For uctuations upto 2 500 V : safety varistor protects the Induction Cooktop.
7. Anti skid feet.
8. 1 . 2 m exible cord with 3 pin plug for convenience.
HOW INDUCTION COOKING WORKS
An electric voltage is applied on a conductor Coil, which is beneath the
ceramic glass. This produces a high frequency electromagnetic eld. This
eld penetrates the metal of the ferrous (magnetic material) cooking
vessel and generates heat. This heat generated in the cooking vessel is
transferred to the vessel's contents. Nothing outside the vessel is
aected by the eld. As soon as the vessel is removed, the heat generation stops.
ADVANTAGES OF INDUCTION COOKING
•It is a powerful cooking medium with precise and instant heat application.
•No wastage of heat, maximum energy utilization as the energy is supplied directly to the cooking
vessel.
•Safety from open flames, no re hazards, or gas leakages.
•Once the cookware is taken o the ceramic plate the device automatically switches to standby
mode.
•lf unsuitable cookware is placed, the unit will detect the same and no energy will be transmitted.
•Spilled food will not stick and burn as the top plate is heated through the base of cookware
•Auto switch o at high temperature.
•Burning gas has by-products that are vaporized, but eventually condense on the surface of the
cooktop and around. Induction cooking uses electricity that eliminates any such by-product
keeping the cooking area clean.
•Specially designed body to prevent ingress of water and insects.
CONNECTING YOUR 'COOKJOY’ INDUCTION COOKTOP
•Check the unit for visible damage.
•Place the unit on a stable and level surface. It is preferred that the product be placed on a
concrete, stone or a wooden surface as to avoid heating of surface and any damage to the device.
OPERATING INSTRUCTIONS
Size:148x210mm (A5)

Function
Default
Cooking
time
Default
wattage/
Temperature
Adjustable
cooking
time range
Usage
Chapati
/Dosa
This setting can be used for all type of cooking
especially if you want to control the time and
power setting yourself. Press the manual button
and use the +/- button to increase or decrease
the power.
Idli 20 min 1 100 W
/ 200º C
The Chapati/Dosa mode can be used to cook food
on a at induction type tawa. In case the tawa
gets overheated or less heated, the power can be
increased or decreased by using +/- button.
This cooking mode can be used for steaming idli
/dhokla/vegetables etc. You can increase or
decrease the power by using +/- button.
180 min 900 W
/ 180º C
This cooking mode can be used for gravy or
curry dishes. You can increase or decrease the
power as required by using +/- button.
Curry 10 min
1 300 W
/ 220º C
Manual 180 min
1 min - 180 min
1 min - 180 min
1 min - 180 min
1 min - 180 min
5 Induction Cooktop
•Never place the unit on a flammable surface (e.g. table cloth, carpet, etc.)
•Do not block the ventilation slots of the unit. This may overheat the unit.
•Keep a minimum distance of 10 cm from the wall.
•Do not place the induction cooktop next to devices or objects which have a magnetic eld. (e.g.
TV, Music Systems, etc.)
•Do not place the unit near to open re, a heater or other source of heat.
•Ensure that power cord is not damaged or squeezed beneath the unit.
•Oversize pot may damage the product.
PRE-SET FUNCTIONS**
There are various preset healthy cooking options.
After switching ON the Induction Cooktop, press the corresponding preset function button to select
the desired cooking mode.
Note: Power in each cooking mode is restricted complying with the normal cooking requirements &
you can use manual mode if higher wattage is required.
Size:148x210mm (A5)
1 300 W
/ 220º C

1 min - 180 min
1 min - 180 min
Induction Cooktop 6
TIMER
The timer function on the device helps you set a desired time for your cooking requirements. The
timer can be adjusted as per your cooking need by the (+) and (-) buttons on the device. Once set the
display would ash the set time and begin the countdown.
PAUSE
Press the Pause button to stop heating, when the induction cooktop is in pause. On selecting the
Pause function, || symbol will be displayed. Press the “Pause“ button again or select a cooking mode
to quit the pause status & return to the normal cooking. After setting pause the induction cooktop
stops heating but after reaching the default pause time. If the pause state is not cancelled, Induction
cooktop may sound an alarm & automatically switch o.
COOKWARE FOR THE INDUCTION COOKTOP
NOTE:
•The results may vary depending on the power supply, quality of ingredients and the amount of water.
•Above shown watt is for ideal vessel. Actual watt may dier depending upon the vessel used.
Stainless
steel pot
Enamel cooking
utensils Enamel stainless steel kettle
Iron kettle Iron frying pan Iron plate Iron pan
Size:148x210mm (A5)
KEEP WARM FUNCTION
This will keep food ready-to-eat for long time (Pressure Cook and Curry Mode only).
Keep Warm setting makes it convenient for family members eating at dierent times.
•
Default
wattage/
Temperature
Pressure
Cook
Deep
Fry
120 min 1 600 W
/ 240º C
120 min 1 300 W
/ 220º C
Function
Default
Cooking
time
Adjustable
cooking
time range
Usage
This cooking mode can be used for all pressure
cooking. The power/timer is adjustable in this
mode, you can increase or decrease the
power/timer by using +/- button as required.
This cooking mode is applicable for high
temperature cooking and typically used for
deep frying like samosa, puris etc. You can
increase or decrease the power as required by
using +/- button.

SAFETY INSTRUCTIONS
7 Induction Cooktop
•All pots and pans with magnetic bottom, stainless steel pots with iron bottom, cast iron enameled
pans.
•Flat-bottom pans and pots with the diameter of the size of the heating area with magnetic
bottom.
•Utensils such as ceramic pots, heat—proof glass, copper pots and pans, aluminium pots and
pans, and containers with curved bottom should be avoided.
•Pressure vessels should be substituted with pots.
IMPORTANT SAFEGUARDS
•In case of damage, even if it is only a small wear and tear, disconnect the device from the power
supply immediately & contact customer service.
•It is recommended not to place any metal kitchen utensils, cookware or pan lids, knives or other
metal objects on the induction cooktop. These may heat up when the device is turned on.
•Place the hot pan in the hob area or the heating area only and not on the control panel or the frame.
•Any magnetic objects Iike credit cards, cassettes etc. should be kept away from the device when in use.
•Keep metal plates or aluminium foil away from the device to avoid overheating.
•Avoid keeping the Induction cooktop on a steel or iron board while operating. Due to
electromagnetic waves, the iron or steel board may heat up and damage the bottom of the device.
•To avoid aecting product performance and to prevent injury, do not heat empty pots. When in
use, do not leave the appliance without supervision for a long time. When leaving the appliance
without supervision, make sure there is enough water in the pot.
•Do not heat iron items on the induction cooktop heating plate to avoid danger caused by high
temperatures.
•The utensils provided for the induction cooktop can only be used for cooking with it. These
cooking utensils cannot be used on both induction cooktop and gas stove.
•Do not use the induction cooktop near a gas stove, kerosene stove, gas cooker or in any space
with an open fire or an environment with high temperature.
•Do not use the induction cooktop by putting it onto a carpet, tablecloth or thin paper to avoid
blocking the air inlet opening or air outlet opening, which results in influencing heat emission.
•Do not insert any objects like wires or tools in the ventilation slots, this may cause electric shock.
•Avoid touching the hot surface of the ceramic glass. The hotplate does not heat up during
cooking, but the temperature of the cookware heats up the hotplate.
•Unopened tins or cans are not to be heated on the hotplate. They might explode, and therefore
please remove the lid beforehand.
•It is recommended to disconnect the device from the electric outlet when not in use.
•Stay away from the device or the power plug, if hands are wet.
•Connect the device to a suitable outlet. Do not connect the device to the same outlet with other
devices plugged in.
•Never pull the device by pulling on the power cable.
•The device should not be left unattended when in use.
•If the Induction surface gets cracked by any means, switch o the appliance to avoid electric shock.
•Metallic objects such as knives, forks, spoons and lids should not be placed on the Induction Cooktop
glass plate as they may get hot.
Size:148x210mm (A5)

Induction Cooktop 8
•Ensure proper earthing is provided in the socket.
•People with limited physical, sensory or mental abilities or who lack the necessary experience
and/or skills should not use the appliance alone. They should only be allowed to use the device
under the supervision of a person responsible for their safety.
•It is recommended not to move the device during cooking or with the cookware on top of it.
•Avoid using the device when it does not function properly or is damaged.
•Keep children as well as people under inuence of drugs or alcohol away from the device.
•Do not submerge the device in water or other liquids and do not wash it in the dishwasher.
•In case of any problem with the device, do not try to repair it yourself. It should be only done by a
qualied expert using original replacement and accessory parts.
•The maximum weight the Usha Cookjoy Induction cooktop can with stand along with the
cookware and its contents is 8 kg
•It has been scientifically proven that an induction hotplate does not pose a risk. However, people
with pacemakers should check with their doctor.
•Unplug the power cord prior to cleaning the device. Avoid using any caustic cleansing agents and
make sure that no water penetrates the device.
•To avoid electric shocks, never immerse the device, the cables and the plug in water or other
liquid.
•Wipe o the ceramic field with a damp cloth or use a mild, non abrasive soap solution.
•Wipe o the chasing and the operating area with a soft cloth.
•For better life of the device, do not use any petroleum product on the device as it may damage
the plastic parts.
•Clean the device properly and store in a dry place.
CARE AND CLEANING
MISCELLANEOUS
Model
Operating Power Range
Operating Voltage
CJ1600WPC
1 600 W
Power Plug 16 A 3 pin Plug
Product Dimension (L*W*H) 340 mm x 270 mm x 65 mm
Product Weight 2 . 1 kg
230 V AC
Frequency 50 Hz
TECHNICAL SPECIFICATIONS
Size:148x210mm (A5)

9 Induction Cooktop
TROUBLESHOOTING
Abnormalities Key checking points and trouble shooting
Is the power plug properly connected?
Is the switch, power outlet, fuse or power cord damaged?
After plugging in the power cord and
pressing the “ON/OFF” key, the
indicator and display do not light up.
Is the pot material proper?
Is the appliance in a “Preset” working status?
For other causes, please take the appliance to a service
centre to be xed.
The “ON/OFF” indicator lights up and
the display works normally, but
heating does not start.
Is the temperature of the oil too high when frying dishes?
Is the temperature of the surroundings very high?
Is the air inlet or air outlet of the induction cooktop
blocked?
Is the default heating time of the induction cooktop over?
The self-safety protection of the induction cooktop starts,
wait for several minutes and connect power to use it.
Heating suddenly stops during the
process.
Size:148x210mm (A5)
If the error code E0 is reported, please check if the
cookware you are using is suitable for induction cooking or
wait for the appliance to cool down and then switch it on
again.
Check for proper Voltage.
Check for proper Voltage.
Contact service center.
Please wait for the appliance to cool down and then switch
on Induction Cooktop again.
Code of
failure
E0
E1
E2
E3 - E7
E8 - E9

Induction Cooktop 10
WARRANTY CARD
Liability for consequential loss or damage is neither accepted nor implied.
S.No: DATE:
CASH MEMO:
DEALER’S NAME AND ADDRESS:
OWNER’S NAME & ADDRESS:
TERMS AND CONDITIONS OF WARRANTY:
•USHA 'Cookjoy' Induction Cooktop carries a one year warranty against manufacturing defects
only from the date of sale.
• In the event of any complaint, please contact USHA CARE at Toll Free No: 1800 1033 111
•Please preserve the warranty card and original invoice and ensure that they are duly stamped and
signed by the dealer. A warranty card or invoice which is not stamped and signed will be treated
as invalid.
•This warranty does not cover damages to the Induction Cooktop due to improper use, storage,
mishandling, negligence, breakage or cracking of plastic parts or ceramic plate and fluctuation in
voltage supply.
•If the Induction Cooktop is opened, tampered or serviced by anyone except our authorized
customer care center or technician, the warranty becomes void.
•Warranty is void if the Induction Cooktop is used for other than the domestic use.
•Warranty shall not be applicable for damages caused by Force Majeure.
•Warranty does not cover the man made issues or problems caused by incorrect use.
•All repairs within 1 year warranty period (arising from manufacturing defects) will be done 'Free of
Charge’.
•Warranty is void if the serial no. has been deleted, defaced or altered.
•Under no circumstances, whether based on limited warranty or otherwise the company be liable
for incidental, special or consequential damages.
•Use of product indicates acceptance of the aforesaid terms & conditions.
•For service & repair of product outside the warranty period, You may contact the Usha Service
Centre. We will be happy to serve you.
Size:148x210mm (A5)

Size:148x210mm (A5)
USHA INTERNATIONAL LTD.
ISO 9001 : 2015 Certied Company
To explore our range of
product and recipe log
on to www.usha.com
www.ushacook.com COOK
Plot No. 15, Institutional Area, Sector 32, Gurugram - 122 001 (Haryana) Tel : [phone],
Fax : [phone], E-mail : [email protected]
Regd. Oce : Surya Kiran Building, 19 Kasturba Gandhi Marg, New Delhi 110 001 (India) Tel : [phone] Fax : [phone]
[email protected]om
