Models VFZC32N, VFZC32L
Vent-Free Zero-Clearance Gas Fireplace
United States
StoveCompany
851301 3/98
WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal injury,
or loss of life.
~Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
~WHAT TO DO IF YOU SMELL GAS
* Do not try to light any appliance
* Do not touch any electrical switch; do not
use any phone in your building
* Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions
* If you cannot reach your gas supplier, call
the fire department
~Installation and service must be performed by
a qualified installer, service agency, or the gas
supplier.
This is an unvented gas-fired
heater. It uses air (oxygen) from
the room in which it is installed.
Provisions for adequate
combustion and ventilation air
must be provided. Refer to
"Adequate Combustion And
Ventilation Air" on pages 6-10 of
this manual.
OWNER'S OPERATION AND INSTALLATION MANUAL
Shown with optional
cabinet mantel, hearth
base, and brass trim.
This firebox may be installed in an aftermarket* manufactured (mobile) home,
where not prohibited by state or local codes.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
(i.e. Installation of this product is permitted after the manufactured (mobile) home is sited).
Save this manual for
future reference.
WARNING:
Do not use a blower insert,
heat exchanger insert or other
accessories not approved
for use with this heater.

2
TABLE OF CONTENTS
IMPORTANT: Read this owner's manual carefully and completely before trying to
assemble, operate, or service this fireplace. Improper use of this fireplace can cause
serious injury or death from burns, fire, explosion, electrical shock, and carbon poi-
soning.
WARNINGS/SAFETYINFORMATION
Install and use fireplace with care. Follow all local codes. In the absence of local codes, use
the latest edition of The National Fuel Gas Code ANSI Z223.1, also known as NFPA 54*.
Firebox must be electrically grounded in accordance with the National Electric Code, ANSI/
NFPA 70 (latest edition).
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
LOCAL CODES
SECTION PAGE
LOCALCODES.......................................................................................................2
WARNINGS/SAFETYINFORMATION.................................................................2-4
VFZC32SPECIFICATIONS.................................................................................4-5
PRODUCTFEATURES...........................................................................................6
LOCATINGTHEFIREPLACE.....................................................................................6
AIRFOR COMBUSTION AND VENTILATION..................................................6-10
INSTALLATION................................................................................................10-13
GASCONNECTION........................................................................................14-15
GASPRESSURECHECK.....................................................................................15
MANTELINSTALLATION................................................................................16-18
BUILT-ININSTALLATION.................................................................................18-19
LOGASSEMBLY...................................................................................................20
OPERATINGINSTRUCTIONS........................................................................21-23
CLEANING/SERVICING..................................................................................23-24
FLAMEAPPEARANCE.........................................................................................24
PARTSDIAGRAM&LIST.....................................................................................25
GENERATORASSEMBLYPARTSDIAGRAM......................................................26
GENERATORASSEMBLYPARTSLIST................................................................27
VF32BBLOWER KIT WIRING DIAGRAM............................................................28
OPTIONALACCESSORIES.............................................................................29-30
HOWTOORDERREPAIRPARTS........................................................................31

WARNING: Any change to this heater or its controls can be dangerous.
1. This heater shall not be installed in a bedroom or bathroom.
2. Never install the fireplace
* in a recreational vehicle
* where curtains, furniture, clothing, or other flammable objects are less than
36 inches from the front, top, or side of the fireplace
* in high traffic areas
* in windy or drafty areas
3. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool.
Using these added items can cause sooting.
4. You must operate this fireplace with the fireplace screen and hood in place.
Make sure these parts are in place before running.
5. Do not allow fans to blow directly into the firebox. Avoid any drafts that alter burner flame
patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner
patterns can cause sooting.
6. To prevent malfunction and/or sooting, an unvented gas heater should be cleaned at
least annually by a professional service person. More frequent cleaning may be required
due to excessive lint from carpeting, etc. It is imperative that control compartments,
burners and circulating air passageways be kept clean.
7. Correct placement of the ceramic fiber logs is necessary to avoid problems with sooting.
Sooting can settle on surfaces outside the heater and cause discoloration. See the
appropriate section of this manual for instructions.
8. This Vent-free gas log heater requires fresh air ventilation to run properly. See Air for
Combustion and Ventilation instructions in this owner's manual.
9. Do not run fireplace
* where flammable liquids or vapors are used or stored
* under dusty conditions
10. Do not use this fireplace to cook food or burn paper or other objects.
11. Never place any objects in the firebox or on logs.
12. Fireplace front and screen becomes very hot when running. Keep children and adults
away from hot surfaces to avoid burns or clothing ignition. Firebox will remain hot for a
time after shutdown. Allow surfaces to cool before touching.
13. Carefully supervise young children when they are in the room with fireplace.
14. Turn fireplace off and let cool before servicing. Only a qualified service person should
service and repair fireplace.
15. Operating vent-free gas log heaters in a fireplace above elevations of 4,500 feet could
cause pilot outage.
16. IMPORTANT: The fireplace hood must not be replaced with a hood/canopy which may
be provided with the decorative type unvented room heater. 3
WARNINGS/SAFETY INFORMATION CONTINUED

4
WARNINGS/SAFETY INFORMATION CONTINUED
17. CARBON MONOXIDE POISONING: Early signs of carbon monoxide poisoning are
similar to the flu with headaches, dizziness and/or nausea. If you have these signs,
obtain fresh air immediately. Have the heater serviced as it may not be operating
properly.
18. This vent-free gas fireplace is intended to be smokeless. If logs appear to smoke, turn off
the heater and call a qualified service person. Initial burn off may cause slight smoke and
odor during the first four hours of operation.
19. Input ratings are shown in BTU per hour and are for elevations up to 2,000 feet. For
elevations above 2,000 feet, input ratings should be reduced 4 percent for each 1,000
feet above see level. Refer to the National Fuel Gas Code.
20. The fireplace and its individual shut off valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of
1/2 psig (3.5 kPa).
21. The fireplace must be isolated from the gas supply piping system be closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at
test pressures equal to or less than 1/2 psig (3.5 kPa).
22. Do not use this gas fireplace if any part has been under water. Immediately call a
qualified service technician to inspect the room heater and to replace any part of the
control system and any gas control which has been under water.
VFZC32 SPECIFICATIONS
Natural Gas
Manifold Pressure Setting: 4" w.c.
Gas Inlet Pressure: Maximum 10-1/2" w.c.
Minimum 5" w.c.
Propane/LPG
Manifold Pressure Setting: 10" w.c.
Gas Inlet Pressure: Maximum 13" w.c.
Minimum 11"w.c.
Gas Rate Number
Model Number Type Max BTU/Hr Min BTU/Hr of Burners
VFZC32N Manual 30,000 8,000 2
VFZC32L Manual 30,000 8,000 2
Controls - Main control has 4 positions:
1. OFF - All gas to the gas logs is shut off at the control
2. IGN - Piezo ignitor allows ignition of the pilot without the use of matches or batteries
3. PILOT - Valve position to light/maintain a standing pilot
4. ON - Gas flow to complete system, front burner ignition
Front Burner Control Knob - infinite control, rotate clockwise to minimum rate and counterclockwise
to maximum rate.
Rear Burner Control Knob - Has 3 positions:
1. OFF - Gas to rear burner is shutoff at control
2. ON/MAX - Maximum gas flow to rear burner
3. MIN - Minimum gas flow rate to rear burner

5
VFZC32 SPECIFICATIONS, CONTINUED...
FIREBOX TOP VIEW
FIREBOX FRONT VIEW FIREBOX SIDE VIEW

6
PRODUCT FEATURES
AIR FOR COMBUSTION AND VENTILATION
This fireplace shall not be installed in a confined space unless provisions are
provided for adequate combustion and ventilation air. Read the following
instructions to insure proper fresh air for this and other fuel-burning appliances in
your home.
WARNING
Today's homes are built more energy efficient than ever. New materials, increased insula-
tion, and new construction methods help reduce heat loss in homes. Home owners weather
strip and caulk around windows and doors to keep the cold air out and the warm air in. During
heating months, home owners want their homes as airtight as possible.
While it is good to make your home energy efficient, your home needs to breathe. Fresh air
must enter your home. All fuel-burning appliances need fresh air for proper combustion and
ventilation.
Exhaust fans, fireboxes, clothes dryers, and fuel-burning appliances draw air from the house
to operate. You must provide adequate fresh air for these appliances. This will insure proper
venting of vented fuel-burning appliances.
Operation
This Vent-free Gas Fireplace requires no outside venting or chimney making installation easy
and inexpensive. When used without the optional blower (model VF32B), the firebox
requires no electricity making it ideal for emergency backup heat.
Blower Accessory
The VFZC32 Vent-free Gas Fireplace will accept the VF32B Blower Kit accessory. The kit
comes with the variable blower. The variable blower allows you to select the fan speed you
desire. The blower circulates heated air from the firebox into the room. Use of the blower is
optional.
Planning
Plan where you will install the fireplace. This will save time and money later when you install
the fireplace. Before installation, consider the following:
1. Where the fireplace will be located. Allow for wall and ceiling clearances (see
Installation Clearances, pages 10 & 11).
2. Everything needed to complete installation.
3. These models CANNOT be installed in a bedroom or bathroom.
4. Proper air for combustion and ventilation (see below).
LOCATING FIREPLACE

7
AIR FOR COMBUSTION AND VENTILATION CONTINUED
Providing adequate ventilation
The following is excerpts from National Fuel Gas Code. NFPA 54/ANSI Z223.1, Section 5.3,
Air for Combustion and Ventilation.

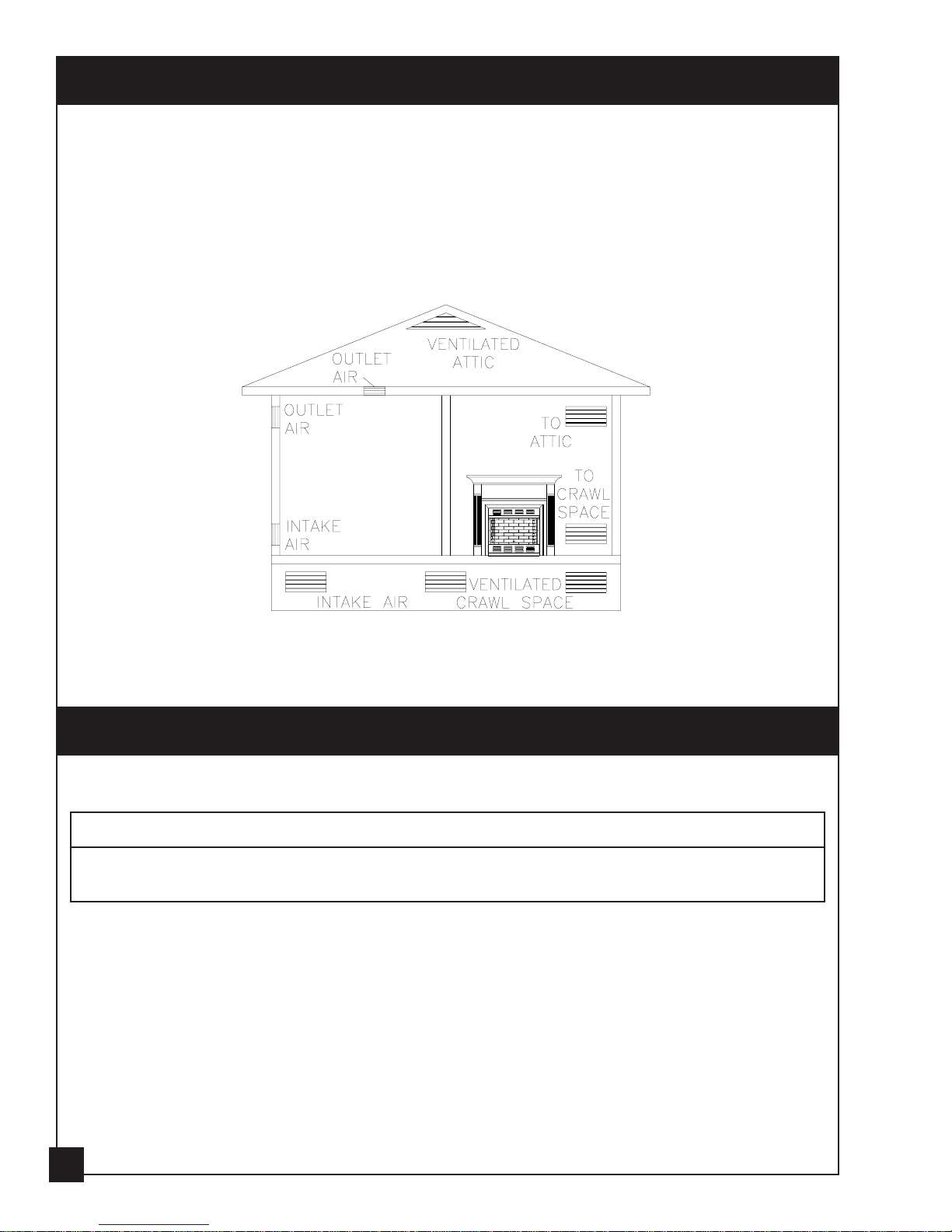

All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction; 2. Unconfined Space; 3. Confined Space.
The information on pages 6 through 10 will help you classify your space and provide ad-
equate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for combustion
and ventilation. However, in buildings of unusually tight construction, you must provide
additional fresh air.
Unusually tight construction is defined as construction where:
a. Walls and ceilings exposed to the outside atmosphere have a continuous
water vapor retarder with a rating of one perm (6x10 per pa-sec-m ) or less
with openings gasketed or sealed and
b. Weather stripping has been added on openable windows and doors and
c. Caulking or sealants are applied to areas such as joints around window and
door frames, between sole plates and floors, between wall-ceiling joints,
between wall panels, at penetrations for plumbing, electrical, and gas lines,
and at other openings.
If your home meets all of the three criteria above, you must provide additional fresh air. See
Ventilation Air From Outdoors, page 10.
If your home does not meet all of the three criteria above, proceed to page 8.
Confined Space and Unconfined Space
The National Fuel Gas Code (ANSI Z223.1, 1992 Section 5.3) defines a confined space as a
space whose volume is less than 50 cubic feet per 1,000 BTU per hour (4.8m per kw) of the
aggregate input rating of all appliances installed in that space and an unconfined space as a
space whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8m per kw) of
the aggregate input rating of all appliances installed in that space. Rooms communicating
directly with the space in which the appliances are installed*, through openings not furnished
with doors, are considered a part of the unconfined space.
* Adjoining rooms are communicating only if there are doorless passageways or ventilation
grills between them.
-11 2
3
3

8
AIR FOR COMBUSTION AND VENTILATION CONTINUED
Determining if You Have a Confined or Unconfined Space
Use this worksheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install the firebox plus any adjoining rooms with
doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = _______________ cu. Ft. (volume of space)
Example: Space size 22 ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) =
3168 cu. Ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the space
can support.
_________ (volume of space) 50 cu. Ft. = (Maximum BTU/Hr the space can support)
Example: 3168 cu. Ft. (volume of space) 50 cu. Ft. = 63.3 or 63,300 (maximum
BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel-burning appliances in the space.
Vent-free Firebox __________________ BTU/Hr
Gas water heater* __________________ BTU/Hr
Gas furnace __________________ BTU/Hr
Vented gas heater __________________ BTU/Hr
Gas firebox logs __________________ BTU/Hr
Other gas appliances* + __________________ BTU/Hr
Total = __________________ BTU/Hr
Example: Gas water Heater 40,000 BTU/Hr
Vent-free firebox with log heater + 39,000 BTU/Hr
Total = 79,000 BTU/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from
the outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual amount of
BTU/ Hr used.
______________ BTU/Hr (maximum the space can support)
______________ BTU/Hr (actual amount of BTU/Hr used)
Example: 63,300 BTU/Hr (maximum the space can support)
79,000 BTU/Hr (actual amount of BTU/Hr used)
The space in the above example is a confined space because the actual BTU/Hr used is
more than the maximum BTU/Hr the space can support. You must provide additional fresh
air.
Your options are as follows:
A. Rework worksheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air From Inside Building, page 9.

9
AIR FOR COMBUSTION AND VENTILATION CONTINUED
B. Vent room directly to the outdoors. See Ventilation Air from Outdoors, page 10.
C. Install a lower BTU/Hr firebox, if lower BTU/Hr size makes room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the space
is an unconfined space. You will need no additional fresh air ventilation.
WARNING
If the area in which the firebox and gas log heater may be operated is smaller than
that defined as an unconfined space, provide adequate combustion and
ventilation air by one of the methods described in the National Fuel Gas Code,
ANSI Z223.1, 1992, Section 5.3.
VENTILATION AIR
Ventilation Air From Inside Building

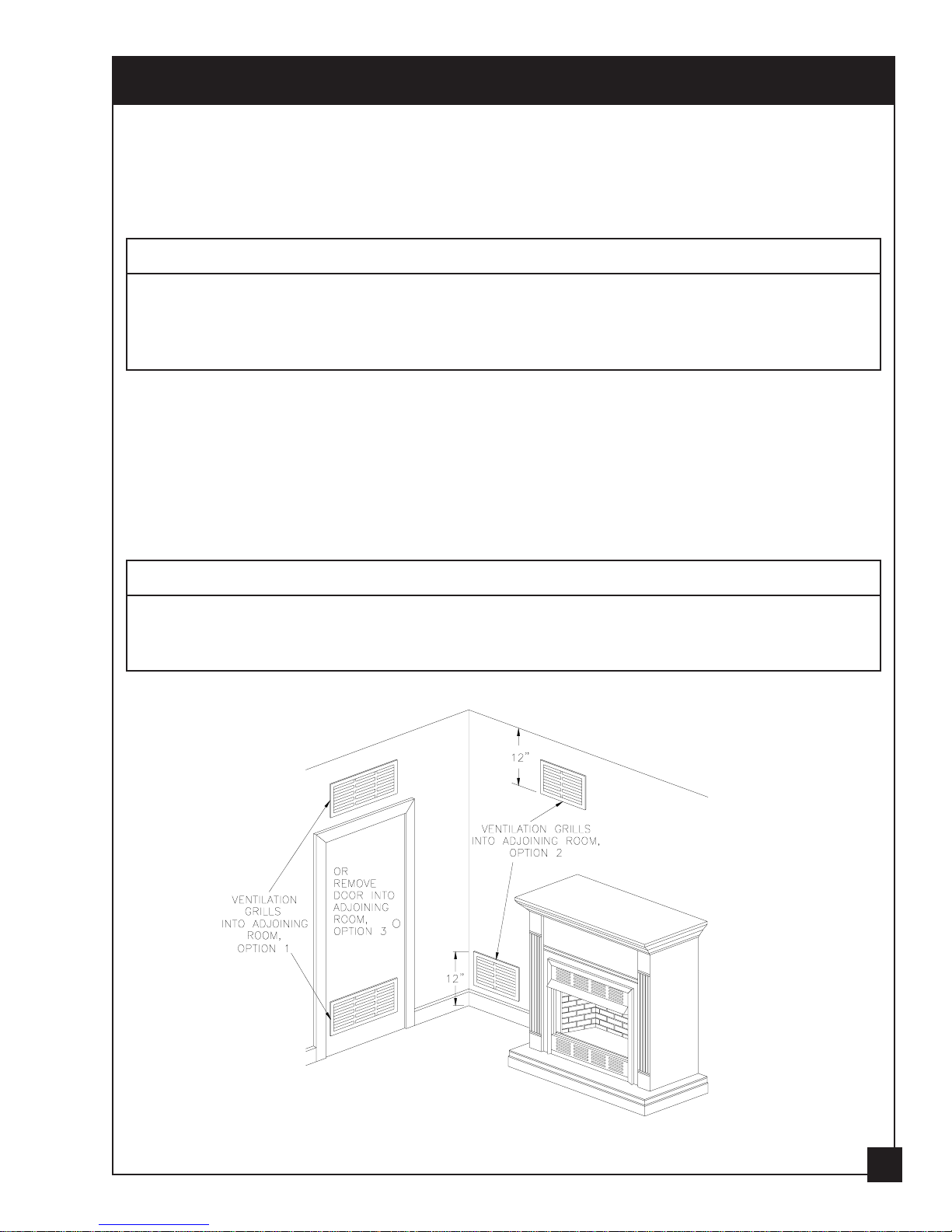

This fresh air would come from an adjoining unconfined space. When ventilating to an ad-
joining unconfined space, you must provide two permanent openings: one within 12" of the
ceiling and one within 12" of the floor into adjoining room ( see options in Figure 1).
Follow the National Fuel Gas Code NFPA 54/ ANSI Z223.1, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
WARNING
Rework worksheet, adding the space of the adjoining unconfined space. The
combined spaces must have enough fresh air to supply all appliances in both
spaces.
Figure 1 - Ventilation Air from Inside Building

10
AIR FOR COMBUSTION AND VENTILATION CONTINUED
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent
openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items
directly to the outdoors or spaces open to the outdoors. These spaces include attics and
crawl spaces. (See Figure 2)
IMPORTANT: Do not provide openings for inlet or outlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic will activate the power vent.
WARNING
Maintain the minimum clearances. If you can, provide greater clearances from
floor, ceiling, and adjoining wall.
INSTALLATION CLEARANCES
Carefully follow the instructions below. This will ensure safe installation.
Minimum Wall and Ceiling Clearances (see Figure 3)
A. Clearances from the side of the firebox opening to any combustible wall should not
be less than 6 inches. (This applies to built-in installation or using an (optional) cabinet
mantel kit.)
B. Clearances from the top of the firebox opening to the ceiling should not be less than
42 inches.
Mantel Clearances for Conventional Installation
INSTALLATION
Figure 2 - Ventilation Air from Outdoors

11
INSTALLATIONCONTINUED
42"
NOTE: CLEARANCES ARE THE
SAME IF USING OPTIONAL
CABINET MANTELS OR BUILT-IN
INSTALLATION.
Figure 3 - Minimum Clearance to Wall and Ceiling
Mantel Clearances for Built-in Installation
If placing custom mantel above built-in fireplace, you must meet minimum clearance
between mantel shelf and top of fireplace opening.
Figure 4 - Minimum Mantel
Clearances for Built-in Installation
If your installation does not meet the
above minimum clearances, you must:
* raise the mantel to an
acceptable height, OR
* remove the mantel.
6" TO
SIDE WALL
SIDE VIEW OF FIREBOX
TOP OF
FIREPLACE
OPENING
ALL MINIMUM
DISTANCESARE
IN INCHES
MANTEL
WIDTH
WALL
MANTEL SHELF
UNDERSIDE OF
MANTEL SHELF
DISTANCE TO
UNDERSIDE OF
MANTEL

12
INSTALLATIONCONTINUED
Installing the Fireplace Screen.
1. Insert each rod through the rings located at the top of the screen. NOTE: Before placing
the last ring over the rod, slide the tinnerman clip (included in the parts bag) onto the rod
and then slide the last ring over the rod. (See Figure 5)
2. Insert the right screen and rod into the hole in the side trim and line up rod with the back
hole in the firebox top and fasten with one of the 5/16" head screws included.
3. Now insert the left screen and rod as above. (Figure 5)
1. Slide the Hood over the shoulder screws and gentle press down until secure. NOTE:
There are (2) shoulder screws on each side of the firebox opening directly below the
top plate. These shoulder screws should line up with the notches on the sides of the
Fireplace Hood. (See Figure 6)
Installing the Fireplace Hood.
Figure 6 - Installing the Fireplace Hood.
SHOULDER SCREW
HOODCUT-AWAY
TO SHOW
UNDERSIDE
Figure 5 - Installing Fireplace Screen
SCREEN
RING
TINNERMAN
CLIP
HOLE FOR ROD
ROD
SCREW

13
INSTALLATIONCONTINUED

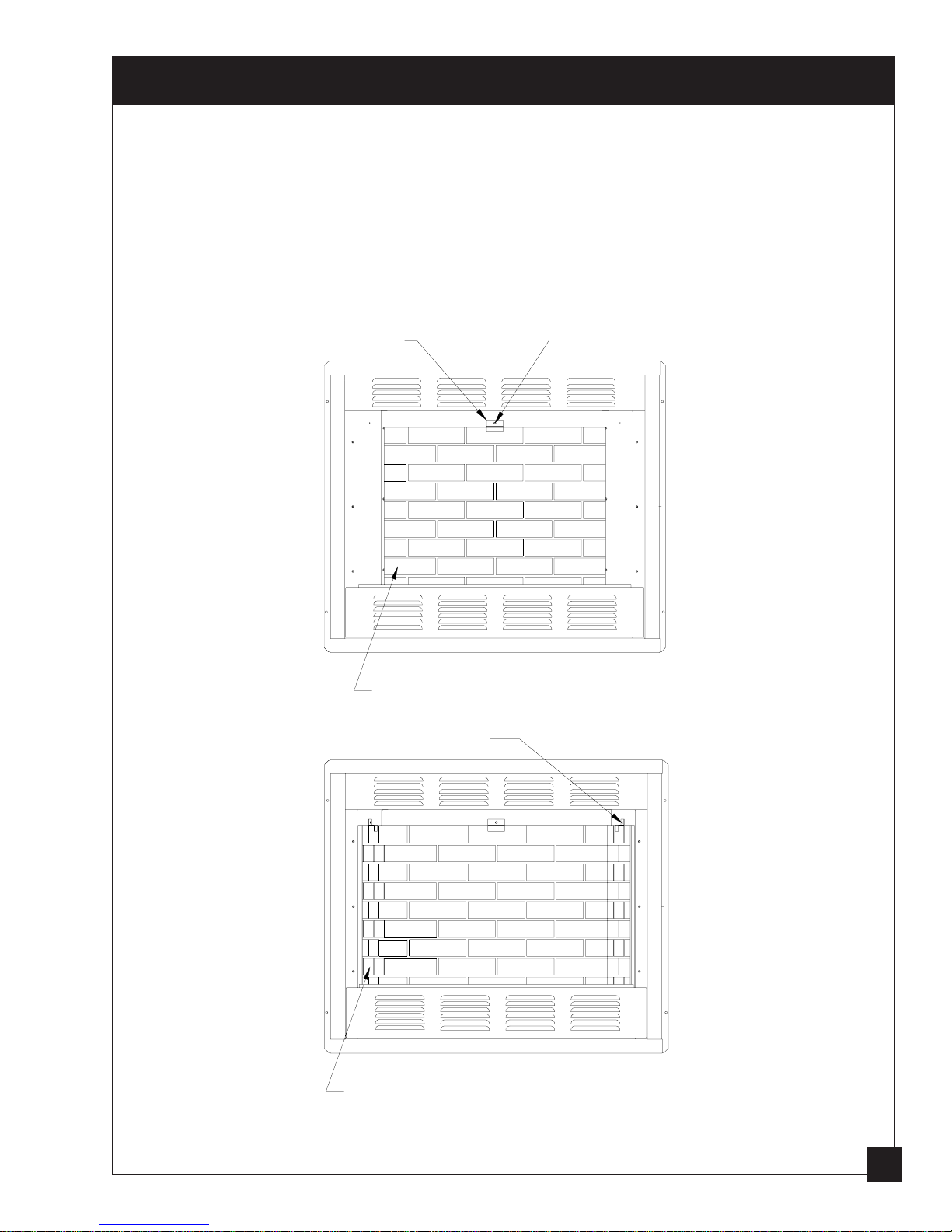

1. Before installing the firebrick panels you must first remove the brick brackets.
A 5/16" nut driver will be required. (See Figure 7a & b, below for location)
2. Carefully remove the firebrick panels from their box.
3. Decide which side of the firebox you want the gas line to enter and knock out the
appropriate holes in the cabinet, firebox, and the firebrick panel.
4. Place the back firebrick panel in the firebox, as shown in Figure 7a.
5. Place the side firebrick panels in the firebox, as shown in Figure 7b.
6. You can now replace the brick brackets using a 5/16" nut driver.
Installing the Firebrick Panels into the firebox.
Firebox shown with some parts missing for clarity.
Figure 7b
ATTACH BRACKET W/SCREW
ATTACH BRACKET W/SCREW
BACK FIREBRICK PANEL
Figure 7a
SIDE FIREBRICK PANEL
BRICK BRACKET

GAS CONNECTION
CAUTION
Use new black iron or steel pipe only. Internally tinned copper tubing can be
used in some areas when permitted by local codes. Only use pipe of 1/2" or
greaterdiametertoallowfullgasvolumetoheater.Excessivepressurelosswill
occur if the pipe is too small.
A manual shutoff valve, union and plugged 1/8" NPT pressure tapping point
must be installed upstream of the heater (FIGURE 8).
A sediment trap must be installed upstream of the heater to prevent moisture
and contaminants from passing through the pipe to the heater controls and
burners. Failure to do so could prevent the heater from operating reliably
(FIGURE 8).
A qualified gas appliance installer must connect the fireplace to
the gas supply. Consult all local codes.

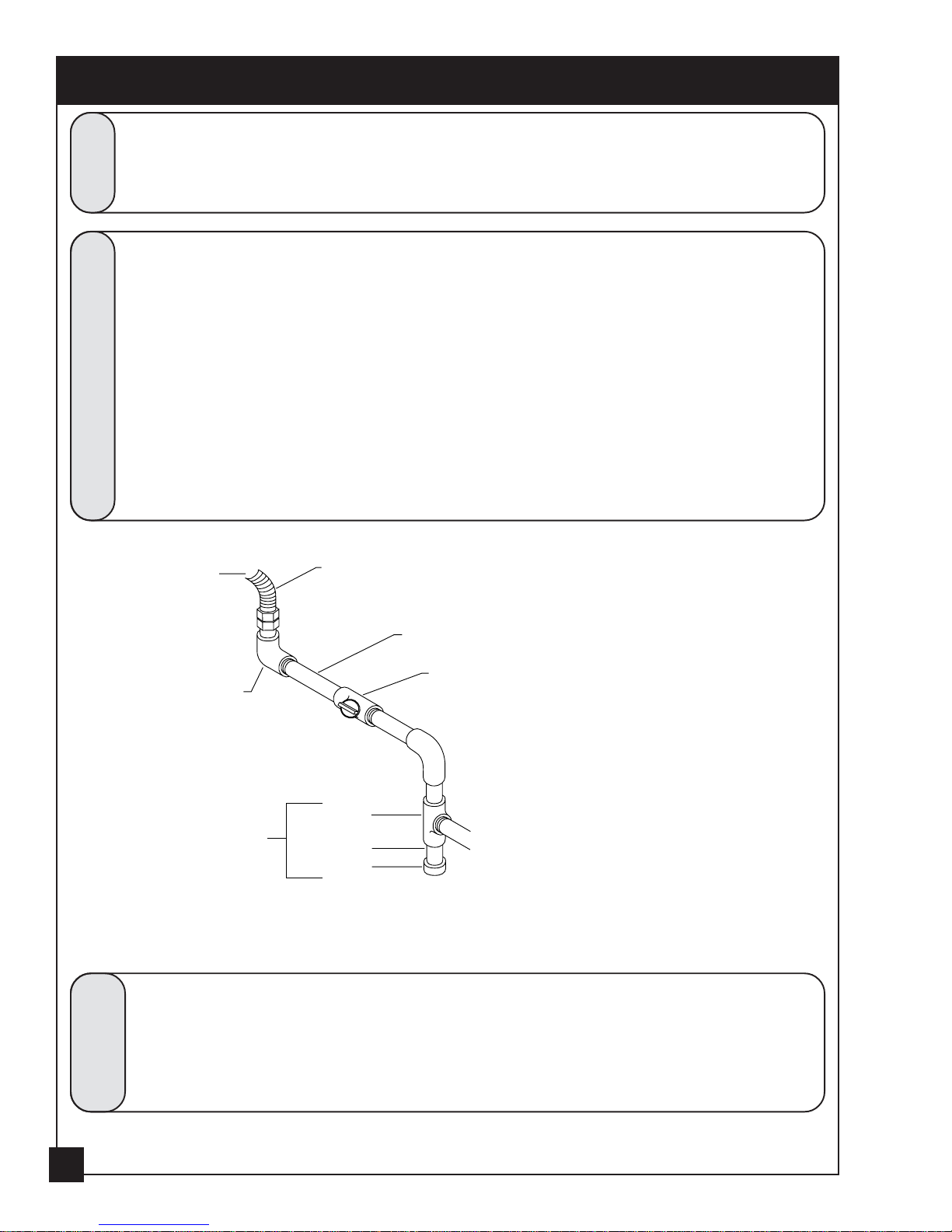

TO HEATER
CONTROL VALVE STAINLESS
FLEXIBLE TUBE
PIPE
COUPLING
PIPE
MANUAL
SHUTOFF VALVE
TEE JOINT
PIPE NIPPLE
CAP
SEDIMENT TRAP
IMPORTANT: Loosen the pipe adapter
on the flex tube before installing to the
system piping.
FIGURE 8. Gas Connection
CHECKGAS TYPE:Thegassupplymustbethesameasstatedonheater'sratingplate.Ifthe
gassupplyisdifferent,DONOTINSTALLtheheater.Contactyourdealerforthecorrectmodel.
WARNING
Connecting directly to an unregulated propane/LPG tank can
cause an explosion.
14
NOTICE

Control Valve
Control Bracket
(Rightside view
facing heater)
Test Pressure
Input Test Pressure
Output
GAS CONNECTION, CONTINUED...
GAS PRESSURE CHECK
15
The gasinletconnectionis3/8"NPT,madeattherearofthemaincontrol. Thisunitcomeswith
an 18" gas flex pipe attached to the control valve at the factory. Run gas line into firebox from
either side and attach to gas flex pipe.
Testallgasjointsfromthegasmetertotheheaterforleaksusingsoapandwatersolutionafter
completing connection. DO NOT USE AN OPEN FLAME.
FIGURE 9. Flex Pipe Connected to control
Gas Flex Pipe
Note: Gas Flex pipe can be
ran to either side of the
fireplace for ease of gas
connection.
Theheaterregulatorcontrolstheburnerpressurewhichshouldbecheckedatthepressuretest
pointlocatedontherightsideofthemaincontrolandisaccessiblefromthesideofthegaslog
assembly (see FIGURE 10).
The pressure should be checked with the heater burning and the control set to high (HI).
The pressure regulator is preset and locked to avoid tampering. If the pressure is not as
specified in Product Specifications (Page 2), contact your dealer and replace the regulator.
FIGURE 10 - Pressure Test Point Location

MANTELINSTALLATION

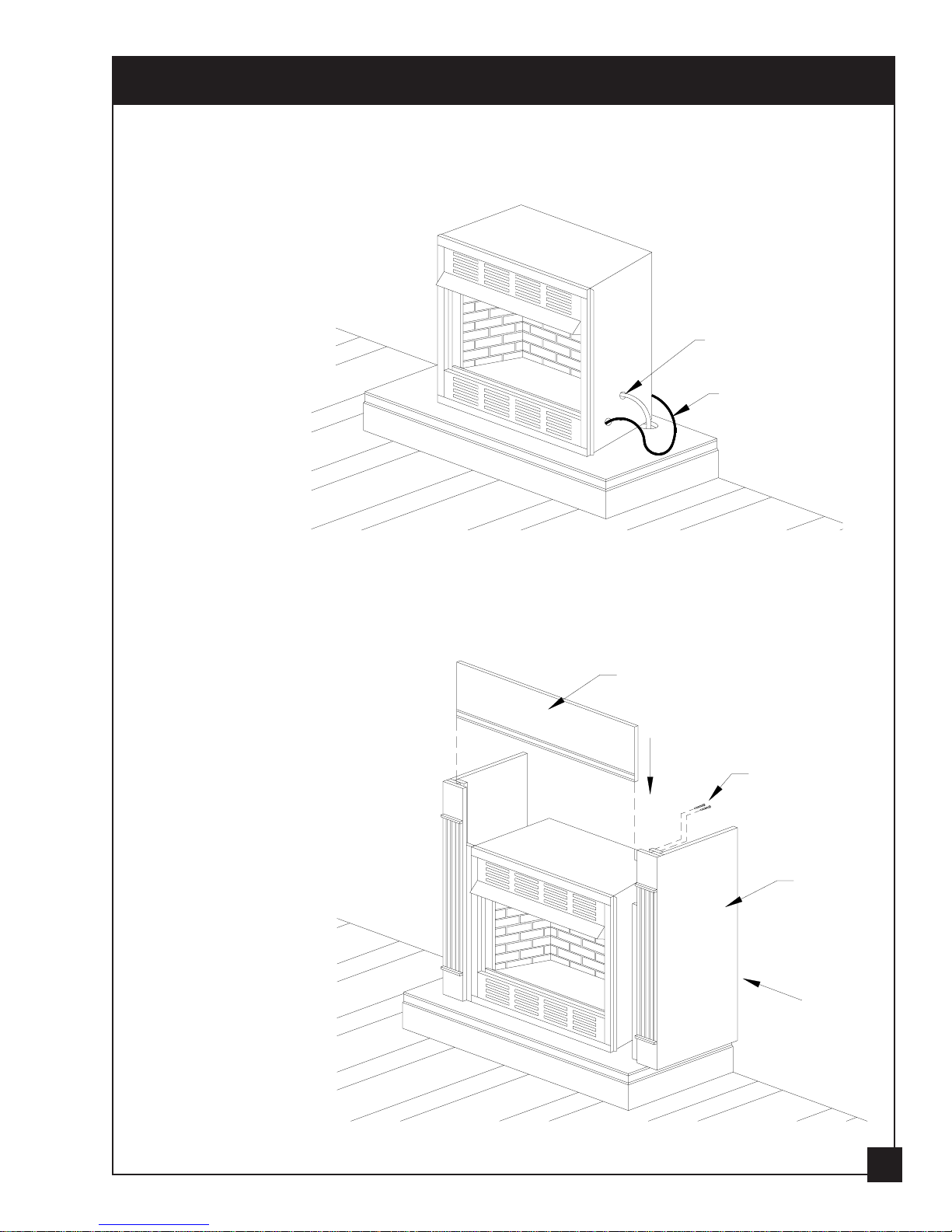

This fireplace may be installed using the cabinet mantel with hearth base accessory against
a wall in your home. You must use one of the Satin Black or Polished BrassTrim Kits
available when installing your fireplace with the optional mantel kit. (See Accessories on
page 28 & 29). NOTE: The Trim Kits provide a finished appearance covering rough and/or
unfinished mantel edges.
NOTE: The instructions below show installation using the VFGO32M/VFUF32M series
cabinet mantels and the VFGO32B/VFUF32B series hearth base accessories. The hearth
base accessory shown is optional for this installation. You can install the fireplace and mantel
directly on the floor. The VFUN32FM face mantel accessories cannot be installed with the
VFGO32B/VFUN32B series hearth base. You must install the face mantels directly on the
floor.
NOTE: If using the VFUF32FM series face mantel accessory, a wall recess opening will be
needed. See installation instructions for VFUF32FM series face mantel accessory.
1. Assemble cabinet mantel, hearth base (optional), and trim accessories.
Assembly instructions are included with each accessory.
2. If using an optional VF32B blower, install a properly grounded, 120 volt three-prong
electrical outlet at firebox location if an outlet is not there. If possible, locate outlet so
cabinet mantel will cover it when installed (see Figure 11, below).
3. Install gas piping to fireplace location. For this installation you will need an approved
flexible gas line (if allowed by local codes) and a manual shutoff valve. The flexible gas
line must be the last item installed on the gas piping. See Connecting to Gas Supply
on pages 14 & 15.
4. Place (optional) hearth base accessory against wall at installation location. Cut an
access hole in hearth top to run flexible gas line to fireplace (see Figure 11). Make sure
to locate access hole so cabinet mantel will cover it when installed. Note: you can secure
base to floor using wood screws. Countersink screw heads and putty over.
Fireplace Installation Using Optional Mantel.

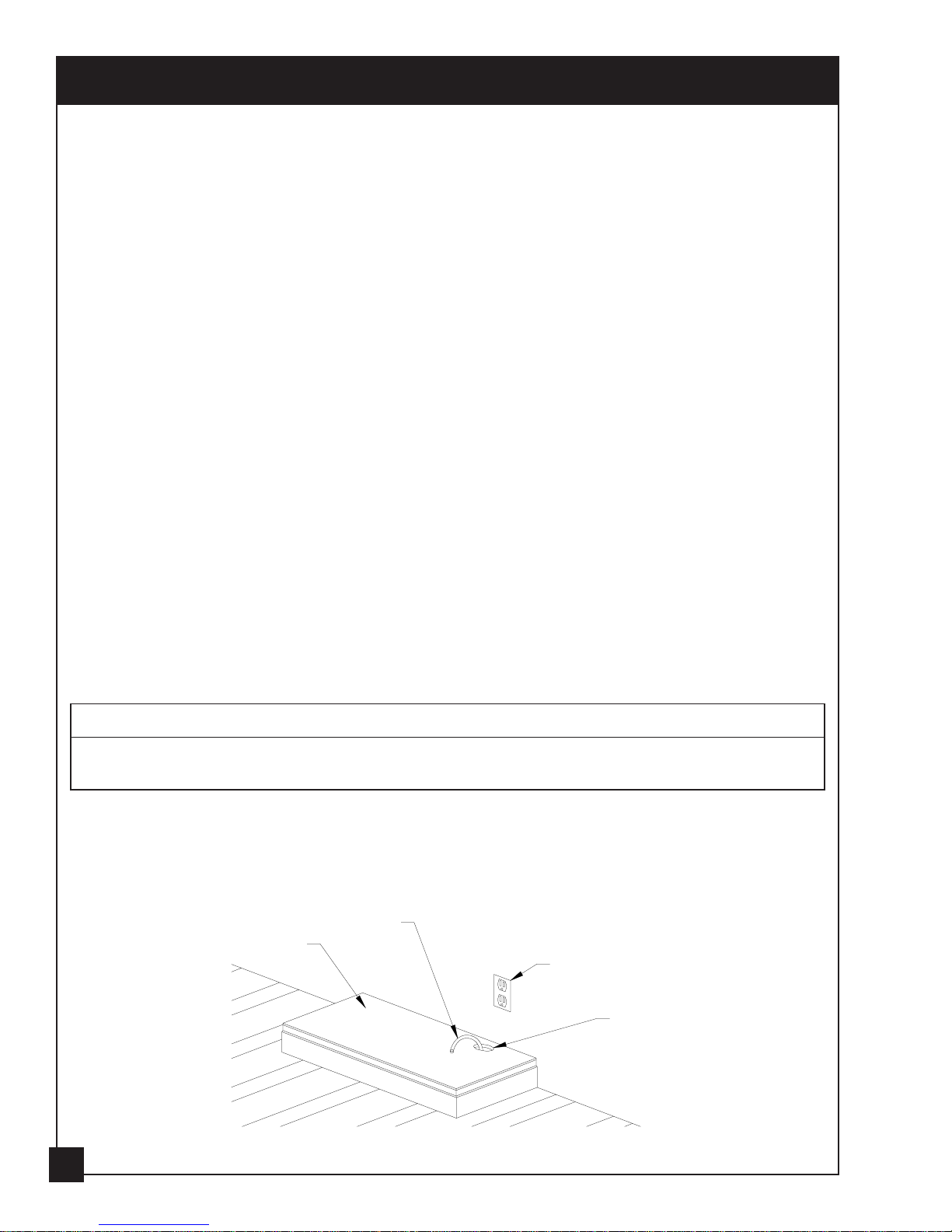

Figure 11 - Placing (optional) Hearth Base against wall
Hearth Base
Flexible Gas Line
Electrical Outlet
Gas Line
Access Hole
16
NOTICE
A qualified service person must connect fireplace to gas supply. Follow all local
codes.

MANTEL INSTALLATION CONTINUED
Figure 12 - Installing Firebox on Hearth Base
7. Place the Cabinet Mantel Legs on Hearth Base and slide each side firmly up against
the unit (See Figure 13). NOTE: The Cabinet Mantel Legs and Hearth Base should be
against the wall.
8. Lower the header into the slots at
the top of each leg, using four
1-1/4" screws to attach header
to the legs.
Figure 13 - Installing Cabinet Mantel Legs & Header
Header
Wood
Screws
Right
Leg
17
5. Center the unit on the Hearth Base. Run the Gas Line into the firebox. You can access
beneath the firebox, to connect gas supply to control valve, from the left or right of the
unit. Knock out the appropriate holes and run the flexible gas line into the fireplace and
connect to the flexible gas line supplied with the fireplace.
6. If installing Optional VF32B
Blower Kit, use a standard
3-prong power supply cord
(not included) and plug
blower into outlet.
NOTE: See Blower
Kit Instruction sheet
for full installation
instructions. 3-Prong power
supply cord
(not included)
Knock out plug in
cabinet and run
Flexible Gas Line
into firebox.

Figure 15 - Rough Opening for Installing in Wall
MANTEL INSTALLATION CONTINUED
9. Lower Mantel top onto legs and header to com-
plete installation of mantel.
Built-in Fireplace Installation.
Height Front Width Depth
Model # Actual Framing Actual Framing Actual Framing
VFZC32 35" 35-1/4" 35-3/8" 35-1/2" 17-3/8" 18"
Built-in installation of this fireplace involves installing the fireplace into a framed-in enclosure.
This makes the front flush with the wall. If installing a mantel above the fireplace, you must
follow the clearances shown in Figure 4, page 11. Follow the instructions below to install the
fireplace in this manner.
18"
35-1/4"
1. Frame in rough opening. Use dimensions shown in Figure 15 for rough opening.
35-1/2"
18
Figure 14 - Installing Mantel Top
BUILT-ININSTALLATION

BUILT-ININSTALLATIONCONTINUED
If installing in a corner, use the dimensions shown in Figure 16 below for the rough
opening. The height is 35", which is the same as the wall opening in Figure 15,
page 18.
2. Install gas piping to fireplace. NOTE: This unit give (2) options on where the gas
line can be ran into the fireplace. Knock outs are provided on the left and right side of the
cabinet and firebox for gas line connection. See Gas Connection, pages 15.
3. Carefully set the firebox in front of rough opening with back of firebox inside wall opening.
4. If using the VFZCB (optional) Blower Kit, see installation instructions included with blower.
5. Attach gas line to the flexible gas line provided with unit. See Gas Connection,
pages 14-15.
6. Carefully insert firebox into rough opening.
7. Attach fireplace to wall studs using nails or wood screws through holes in nailing flange
(see Figure 17).
8. Check all gas connections for leaks.
9. If using optional Trim Kit, install the trim after final finishing and/or painting of wall. See
instructions included with Trim Kit for attaching trim. (See Optional Accessories, page
29 & 30, for the different kits available).
Figure 17 - Attaching Firebox to
Wall Studs
Nailing Flanges Holes
(2 on each side of firebox)
50-15/16"
36"
72"
19
Figure 16 - Rough Opening for Installing in Corner.
35-1/2"

LOGASSEMBLY
LOG POSITIONING
This unit is supplied with a set of four ceramic fiber logs. Do not handle these logs with your
bare hands! Always wear gloves to prevent skin irritation from ceramic fibers. After handling
logs, wash your hands gently with soap and water to remove any traces of fibers.
PROPER INSTALLATION SEQUENCE:
1. Installtherearlog(#2)ontherearsetof locators. Visuallychecktoverify thelogissecurely
placed on the locators.
2. Install the front log (#1) on the front locators. Visually check to verify the log is securely
placed on the locators.
3. Install the left and right cross twigs as illustrated, on the locator pins provided in the front
and rear logs. Holes provided in the bottom of the cross twigs should allow them to seat
completely over these pins.
WARNING: Failure to position the
parts in accordance with these
diagrams or failure to use only
parts specifically approved with
this heater may result in property
damage or personal injury.
WARNING
The positioning of the logs is critical to the safe and clean
operationofthisheater.Sootingandotherproblemsmayresultif
the logs are not properly and firmly situated in the appliance.
Neveraddadditionallogsorembellishmentssuchaspinecones,
vermiculite or rock wool to the heater.

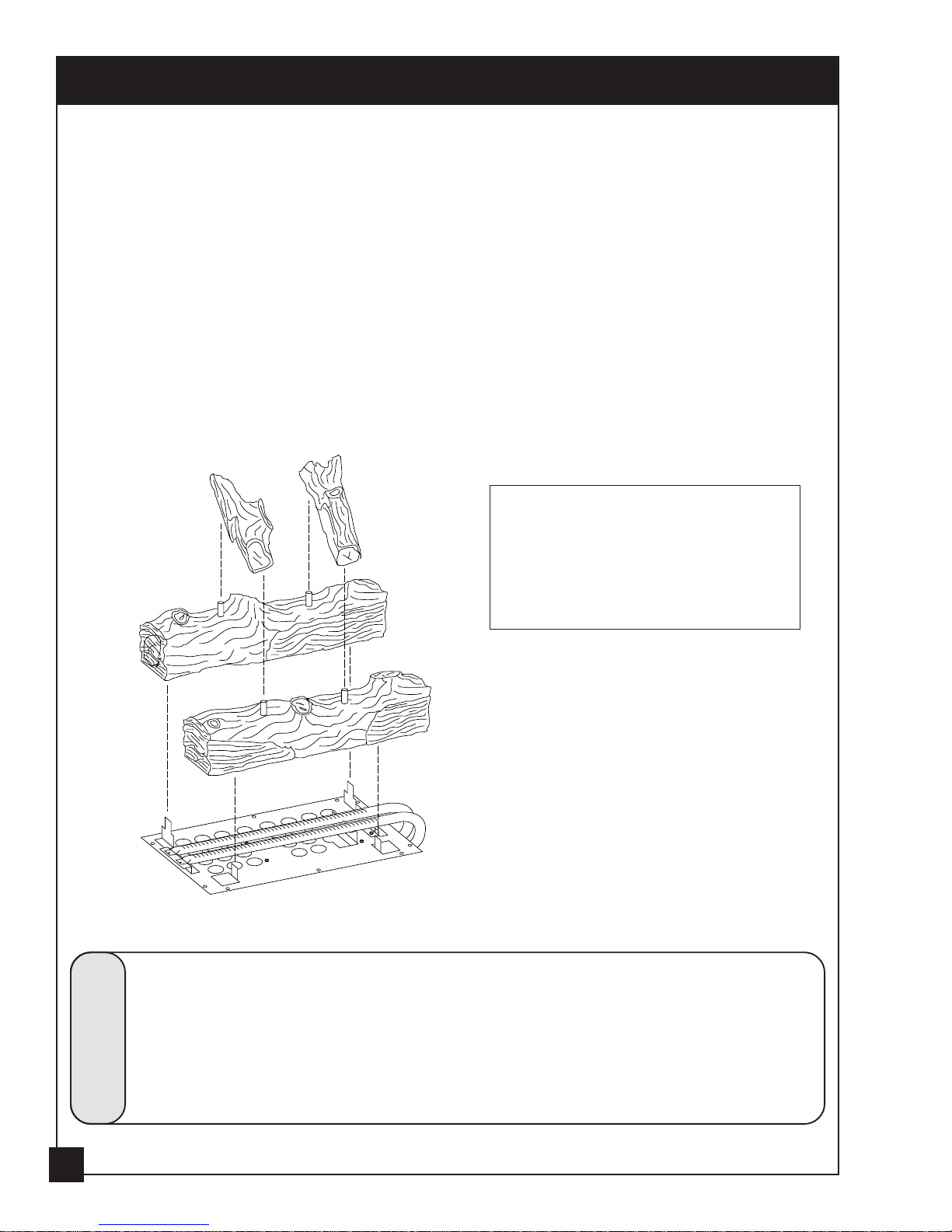

FIGURE 18 - Log Set Assembly
#2
#1
20
