UST WP255 User manual

WATER /SEMI TRASH PUMP
OWNER'S MANUAL
Model WP255
IMS (International Merchandising Services)
Warranty Information
Do Not Return To Store
One year Limited ManufactureCs Warranty.
Products are not to be returned to retailer
Service is available from a network of providers nationwide
To identify a provider in your area or for warranty information call toll free
866 797 2738

CONTENTS
( I ) SAFETY INFORMATIONS.................................... 2
(If) SAFETY LABEL LOCATION-S.............................. 2
(lli) NAMEOF EVERYPART .................................... 3
(IV) PRE STARTING OPERATION-.............................. ,t
(V) STARTING THE ENGINE.................................... 7
(V[) IJSINGMETHODOF WATERPIJMP ........................ 9
(\ll) STOPPIN(; THE ENGINE.................................... 10
(VIII) PERIODIC MAINTENANCE................................. 11
(IX) TRANSPORT/STORAGE....................................... 15
( X ) TROUBLESHOOTING.......................................... 17
(Xl) SPECIFICATION ............................................. 19

( I ) SAFETY INFORNATIONS
•To sure safety, don' t use water pump pump combustible,
caustic, brine(e.g, wine, boney, oil has been used), or
caustic liquid(e.g, gasoline and acid).
•To prevent fire, stop engine when refueling.
•To prevent fire, clean tt_e overflowing fuel.
•To prevent fire, never use the machine in flammable
conditions.
•place the machine in a place where pedestrians or
children are not likely to touch the machine.
•To prevent being poisoned and fire disease, when
exhausting, never point to building or appliance with
exhaust pipe.
•To prevent being poisoned, never operate the machine
indoors or any where witt_ air blocked.
•To avoid accident, please place tt_e water pump in tt_e
horizontal and solid position.
•To avoid accident, before you start the engine, please
check tt_e machine is safety.
•Before starting, please check tt_e oil is full.
(II) SAFETY LABEL LOCATIONS
Your water pump/petrol engine must be used witt_ care.
Therefore, decals have been place on the machine, to
remind you pictorially of main precautions to take
during use.

Should one become detached o1" unreadable, contact your
dealer for its replacement.
(III) NAMEOF EVERYPART
Muffler
Tention rod Fuel tank cap
Choke rod_gutle t pipe
Fuel valve
Starter grip___ '_''- Ftame
I _Engine oi filler cap
ngine switch
water filler cap
air cleaner
intake pipe
water drain plug
oil drain plug 0
filter

(IV) PRE-STARTING OPERATION
1: Connect intake pipe
Used conmlercially available bose, pipe joint and pipe
connecting hoop. The intake pipe must be continuous and
can not be folded exceed what' s needed, the pump does
best when it is not far from the water. The time that
the pump takes water is in direct proportion to the
length of the intake pipe. The filter which forms
complete set with the pump must be fixed on the end the
intake pipe as shown in the picture.
QBefore pumping water, the filter must be fired on the
end of the intake pipe. The filter can help remove the
mess which may result in blocking and can harm the
impeller.
Caution: Fix the pipe joint and pipe connecting hoop
well, in case it leaks air and lower the intake power.
If the intake pipe is uncrowned, it will do harm to the
function of the pump and it will weaken the taking water
ability of the pump.
out[et pipe__
\
pipe connecting hoop
2: Connect outlet pipe
[se conmlercially available bose, pipe _joint and pipe
connecting hoop. i short pipe of by diameter does best,
long pipe of small diameter add to flowing resistance
and reduce the output rate of the pump.
4

Note: Fix the pipe connecting
hoop well, in case the outlet
pipe comes tll]crowl]edul]der
the high pressure.
3: Check oil lever
Caut ion:
outlet pipe
pipe connecting hoop
SEngine oil is one of the main factors which influence
the function and the using life of the generator. Do not
recommend to use dirty engine oil.
Qcheck the oil lever when the generator stops and make
sure theftthe generator in the horizontal position.
_se the QIANJIAND 4 stroke ,or an equiw_lent high
detergent, premium qut_litymotor oil certified to meet
or exceed [.S automobile mal_t_facturer's reqt_irements
for service classification SG, SF. Motor oil s classified
SG, SF will show this designation on the container.
Select the appropriate viscosity for the average
temperature in your area.
Caut ion:
Running the engine with low oil lever will cause serious
engine d_mlage.
Engine oil filler cap
upper oil limit

4: Check tilefuel levelRemove
the fuel tank cap andcheck tile
fuel level.
If the fuel is low, please add
fuel.
Never use all oil gasoline
mixture or dirty gasoline.
Avoid getting dirt, dust or
water illtilefuel tank.
5: Check tile air cleaner elementsRemove tile screw,
cushion and air cleaner cover. Check tileair cleaner
element for dirt or obstruction,
clean the air cleaner element,
if it is dirty(see page 14) aircleancover
Caut ion:
Never run tileengine without tile
_ir cleaner.
6:Check whether tile pump is
filled with water
The pump must completely filled
with water before it runs.
Cauti on:
Do not try to run tilepump before filled it with water,
otherwise it will become too hot. The long time running
with no water of tilepump will harm. If there is no
water illthe pump, stop the generator immediatelyand
filled tilepump with water when it cools off.
water filler cap

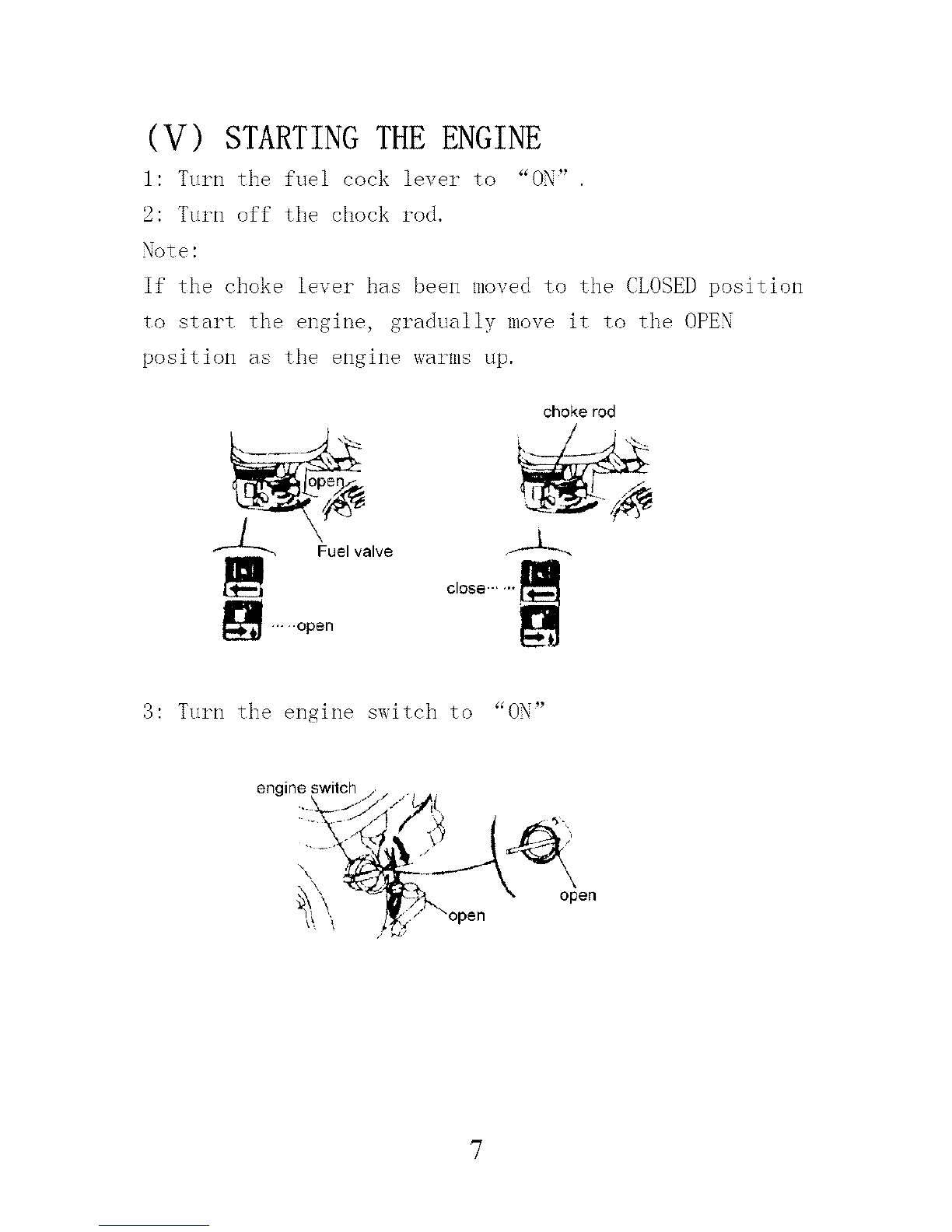

(V) STARTING THE ENGINE
1: Turn the fuel cock lever to "ON".
2: Turn off the chock rod.
Note :
If the choke lever has been moved to the CLOSED position
to start the engine, gradually move it to the OPEN
position as the engine warms up.
choke rod
close ......
..... open
3: Turn the engine switch to "ON"
engine
open

4:Move the tension rod to the left.
tension rod
5: Pull slowly on the recoil starter until it is ngaged,
then pull it briskly.
Warning :
Do not allow the starter grip to snap back against the
engine. Return it gently to prevent damage to the
starter.

(VI) USING METHODOF WATERPUMP
1: After engine rtlnnlng some miltt_tes, please ttlrn tile
choke rod to "ON" position.
choke rod
...... open
2: Turn up the tension rod properly so the pump sucks
water to 1)ump body quickly
tension rod
3: When it is on stable running, adjust the tension rod
to keep the machine at proper rotate speed to decrease
the ft_el constanption.
,i. After using the puml) ,remove the water drain plug and
drain the water in 1)tanl) body.

(VII) STOPPING THE ENGI_
1: Remove the tention rod to the right.
2: Turn the engine switch to "OFF" position.
engine switch
high low
_,close
3: Turn the fuel cock lever to "OFF" position.
fuel valve
close
10

(VII) PERIODIC MAINTENANCE
Periodic inspection and adjustment of petrol engine/water-pump are
essential if high level performance is to be maintained. Regular
maintenance will also help to extend service life.
Maintenance schedule
Every
REGULAR First Every 3 Every 6
SERVICE Before month months mol]ths yeal"
each or
PETIOD or 20 or 50 or 100
use 300
ITEM hours hotli's hotli's hour s
Engine oil ()
check
Engine oil (1 o
clean
Aim" cleaner 0
check
Air cleaner
cleaTl
Spark plug ()
Fuel line Every 2 years
Check 0
impeller
Pump cap 0
Note: Service the air cleaner more frequently when used
in dusty areas.
11

1: Engine oil
change
Drain the oil while
the engine is still
warm to assure
rapid and complete
draining.
A: Remove the oil
0evo j
filler cap oil drain plug
carburetor.
To prevent carburetor
malfunction, service the air
cleaner resularly. Service more
frequently when operating the
water pump/petrol engine in
extremely dusty areas.
filler cap and drain the oil container by tipping the
engine toward the oil filler neck.
B: Install the oil drain plug and screw in.
C: refill with the reeonmend oil(see page 6) and check
the oil level.
ENGINE OIL CAPACITY: O. 6L
Wash your hands with soap and water after handing used
oil.
Note:
Please dispose of used motor oil in a manner that is
compatible with the environment. We suggest you take it
in a sealed container to your local service station for
reclamation. Do not throw it in the trash o1" pour it on
the ground.
2: Air cleaner service
A dirty air cleaner will air clean cover
restrict air flow to the air clean
element
12

Warning:
Never use gasoline or low flash point solevents for
leaning the air cleaner element, i fire or explosion
could result.
Caut ion:
Never run the engine without the air cleaner. Rapid
engine wear will result.
A: Remove the air
cleaner cover and the
air cleaner elenlent.
B: Wash the element in
a nonflanmmble or high
flash point solvent m_d
dry it thoroughly.
k.
C: Sock the element in clean engine oil and squeeze out
the excess oil.
D: Reinstall the air cleaner element and the air cleaner
cover.
3: Spark plug serve
Recommended spark plug: NHSP LD F6RTC[
To ensure proper engine operation, the spark plug must
be properly gapped m_d free of deposits.
A: Remove the spark plug cap.
Warning:
If the engine has been running, the muffler will be very
hot, be careful not to touch the muffler.
B: Visually inspect the spark plug. Discard it if there
is apparent wear or the insulator is <:racked or chipped.
13

Clean the spark plug with a wire brush if it is to be
reused.
O. 70-0. 80mm
O.028-0. 031in
C: Measure the plug gap with a feeler gauge.
Correct as necessary by carefully bending the side
electrode.
The gap should be O. 70 O. 80nml
D: Check that the spark plug washer is in good condition
and thread the spark plug in by hand to prevent cross
threading.
Note:
After a new spark plug has been seated by band, it should
be tighten 1/2 turn with a wrench to compress its washer.
If a used plug is being reinstalled, it should only
require 1/2 to 1/-'I turn after being seated.
Caut ion :
The spark plug must be securely tightened. An improperly
tightened plug can become very hot and possibly damage
the engine.
14

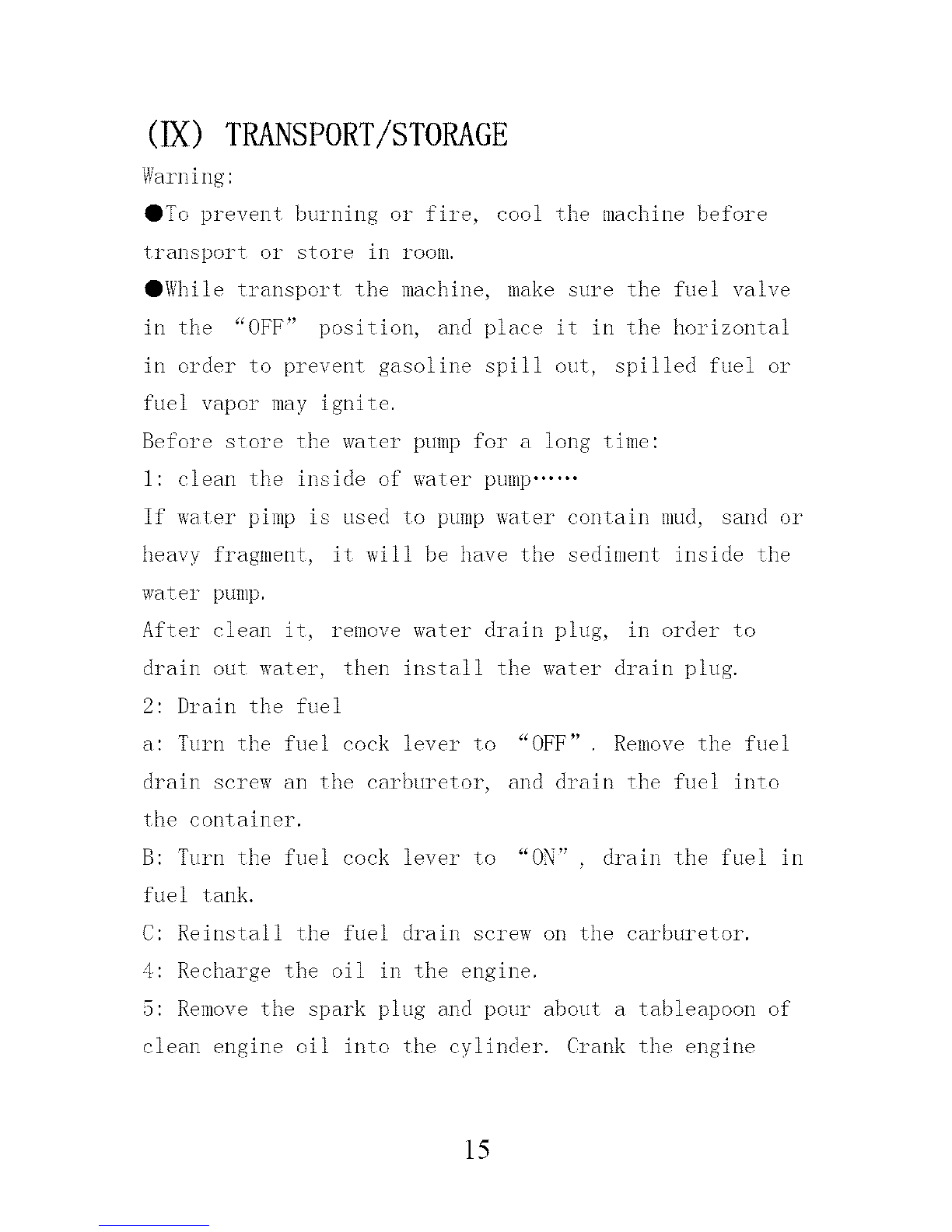

(IX) TRANSPORT/STORAGE
Warning :
OTo prevent burning oi"fire, cool tilemachine before
transport or store in room.
SWhile transporttilemachine, make sure the fuel valve
in the "OFF" position, and place it in the horizontal
in order to prevent gasoline spill out, spilled fuel or
fuel vapor may ignite.
Before store tilewater pump for a long time:
i: clean tileinside of water pump......
If water pimp is used to pump water containmud, sand or
heavy fragment,it will be have the sediment inside tile
water pump.
After clean it, remove water drain plug, in order to
drain out water, then install tilewater drain plug.
2: Drain tilefuel
a: Turn tile fuel cock lever to "OFF". Remove tile fuel
drain screw an tile carburetor, and drain tile fuel into
tilecontainer.
B: Turn tilefuel cock lever to "ON" , drain tilefuel in
fuel tank.
C: Reinstall tilefuel drain screw on tilecarburetor.
4: Recharge tileoil in tileengine.
5: Remove tilesp_rk plug and pour _ibouta t_bleapoon of
clean engine oil into tilecylinder.Crank tileengine
15

several revolutions to distribute the oil, then
reinstall the spark plu_.
6: pull the starter _rip slowly until resistance is felt.
7: Cover the water pump to keep out dust.
16

(X) TROUBLESHOOTING
Engine won't start
1:Is there fuel in the fuel tank?
2:Is the fuel valve in the "on" position?
3: Is gasoline reaching the carburetor?
4: Is the engine switch in the ON position?
5: Is there oil in the crankcase?
6: Is there a spark at spark plug?
A: Remove the spark plug cap. Clean any dirt from around the spark
plug base, then remove the spark plug.
B: Install the spark plug in the plug cap.
C: Turn the engine switch ON.
D: Grounding the side electrode to the cooling tin below the spark
plug hole, pull the recoil starter to see if sparks jump across the gap.
E: If there is no spark, replace the spark plug.
If OK, reinstall the spark plug and try to start the engine
according to the instructions.
7: If the engine still does not start, consult dealer.
Water pump won't pump water
1: Is there enough water in the water pmnp?
2: Is there any dirt block the filter?
3: Is pipe connect hoop install secure?
4: Is the water pipe damage?
5: Is suction distance too high?
6: If water pump does not pump water, please consult dealer
17

\
18

(XI) SPECIFICATION
Model 6101W
Overall Length 490mm
Overall Width 380nnn
Overall Height 390mm
Dry Weight 26Kg
ENGINE
Type 4-Stroke,Overhead valve, 1cylinder
Bore X Stroke 68 X 45mm
Rate Power 4.1Kwi3600rpm
Max. Torque 11N.mi2500rpm
Cooling system Force air
Ignition system TCI
Output shaft rotate direction Against clock (from output shaft)
Noise lever(side of muffler) 82dBA
WATER PUMP
Intake pipe diameter 50mm(2.0in)
Outlet pipe diameter 50mm(2.0in)
Rotate speed 3600rpm
Max. suction Head 8m (26ft.)
In succession working hours 2.8 hours
Flux 36m3h (160GPM)
19
