UTStarcom F3000 Assembly instructions

How do I...
Page III. Page IV.
Turn phone on/off
These operations need to be performed in standby mode. When
the left soft key function is Menu, the phone is in standby mode.
To return to standby mode, press .
Make a call
Answer a call
Press and hold .
Key in the phone number and press .
Press (Answer) or .
Turn Vibration
on/off
Press and hold until the (green)
indicator appears/disappears.
WARNING: Prior to placing or receiving calls, the WiFi phone must be
connected to a Wireless Access Point and registered with the service
network. See Section 3, "Connecting to a Wireless Network" for detailed
instructions.
How do I...
Phonebook
options:
Add a contact
Delete a contact
Under the Phonebook menu:
Select Add Entry; follow screen prompts.
Select Delete; follow screen prompts.
Edit a contact
Search
phonebook
Assign a speed
dial key
Select Search; scroll to name; press
(Detail); press to reach the intended
item; press (Option); select Edit;
follow screen prompts.
Contact name must already be in the
phonebook. Select Speed Dial; select the
desired key (2-9); scroll to the desired
name and press (Ok); scroll to the
desired number and press (Ok).
Select Search; key in the first letter(s) of
the name; press to scroll.
End or reject
a call
Clear a keypad
entry
Use speed dial
Adjust listening
volume
Access menu
options
Press (Clear) .
While on a call, press .
Press (Menu) to access the main
menu. Press to reach the desired
submenu/option, and then press (Ok).
If there is a number in front of the
intended option, you can access the
option by directly pressing the
corresponding number key.
Press (Hangup) or , or close the
flip cover.
Press and hold the speed dial key to
display the phone number, and then
press .

1. Overview
Page 1 Page 2
The UTStarcom F3000 Handheld is a wireless Voice over IP
(VoIP) telephone that, when coupled with VoIP phone service,
combines the benefits of Internet telephone service, with
mobility. This guide covers how to configure and use your F3000
to make VoIP phone calls via the service network. You can make
and receive calls as long as you are within range of a wireless
access point. See the F3000 User Manual for more information
on all features.
Note: Before using your F3000 handheld, you should have high-speed
Internet access, a wireless router, and a voice account set up.
When the battery power is low and needs recharging, the battery
indicator will flash continuously, and the phone will sound a
low battery alarm, reminding you that the battery is running low
and the phone will be switched off automatically. To charge the
battery, follow the steps below:
1. Connect the charger to an AC wall outlet (100 - 240V).
2. Connect the lead from the charger to the charging socket of
the phone. The battery indicator bar starts to scroll ( a
a a ). If the phone is off, the text "Charging..."
is also displayed on the LCD screen.
3. When the battery indicator bar stops scrolling, charging is
complete. The text "Fully Charged!" is also displayed on the
LCD screen, if the phone is off.
Note: The phone takes about 3-4 hours to charge and the exact time may
vary depending on the circumstances.
2. Charge the Battery
DigitalInnovation
DigitalInnovation
DigitalInnovation
Internet

3. Connecting to a Wireless Network
Page 3 Page 4
Your F3000 WiFi phone has been preconfigured to provide VoIP
phone service via any available open wireless Access Point (AP)
connected to the Internet. If you want to use a specific AP or
your AP is protected by encrypted access, refer to Section 3.2.
When you turn on the F3000, it searches for available APs,
selects the AP with the best signal and attempts to connect
to it. You will see the message "Connecting to APname"
while the phone is attempting to connect.
Note: If there are new configuration and software updates available,
when the F3000 has successfully connected to an AP, it will need to
be provisioned. Please refer to Section 4.
Note: If the WiFi phone cannot connect to an AP, it will keep
searching and wear down your battery. Verify open AP availability. If
not found, turn off the phone until you are within range of an Access
Point.
Once connected (and provisioned
when necessary), you will see the
message "Registering via APname".
When the right soft key function
displaying Names in standby mode,
you are ready to make and receive
calls.
Before connecting to a protected or specific AP, you must
define it to the F3000. You can define a maximum of four
APs. Typically you would define frequently used APs such
as that of your home router. Defined APs can be open
(available for use by anyone) or protected (available for use
by authorized users only).
Protected APs require use of an encryption code for
access. The F3000 supports WEP and WPA-PSK
encryption codes. If your home wireless router was installed
with a WEP or WPA-PSK (Pre-Shared Key), use it when
defining the SSID to your F3000. If you are defining a
corporate AP, obtain the WEP or WPA-PSK from the AP
administrator.
Once APs are saved, the F3000 first tries to connect to one
of the defined APs and if none are available, it looks for an
open AP to use for your call.
You will see the message "Connecting to APname" while
the phone is attempting to connect.
Note: If there are new configuration and software updates available,
when the F3000 has successfully connected to an AP, it will need to
be provisioned. Please refer to Section 4.
3.1 Connecting to Open Access Points
3.2 Connecting to Protected or Specific Access
Points
3. Connecting to a Wireless Network

3. Connecting to a Wireless Network
Page 5 Page 6
3. Connecting to a Wireless Network
Note: You must be within range of the AP when using Net Search to
define it to the F3000.
The Net Search feature locates APs and allows you to save
the SSIDs. Follow these Net Search steps:
3.3.1 Using Net Search
1. There are two ways to initiate Net Search:
- Press (Search) while the F3000 is automatically
scanning for an AP (when the phone is first turned on).
- Use the menus to initiate Net Search: Press
(Menu); press to scroll to WiFi and press
(Ok); press to select Net Search.
2. Available SSIDs are displayed. Press to highlight
the desired SSID and press (Save). Press to
reach the desired AP profile and press (Save) to
save the SSID.
3. Press to select the Security Mode option. select
from Open AP, WEP KEY and WPA-PSK according to
the AP's authentication mode.
4. If WEP KEY or WPA-PSK is selected, the phone will
dierectly access the WEP Key Info or WPA-PSK Info
option.
Follow the prompts to set the option:
- WEP Key Info: Select 64bit or 128bit to specify the
encryption method that was used to create the WEP;
enter the WEP key and press (Ok). To set the
WEP key authentication method and index, select
Auth. Method and WEP Key Index.
- WPA-PSK Info: Enter the WPA-PSK key and press
(Ok).
Once connected (and provisioned when necessary), you
will see the message "Registering via APname". When the
right soft key function displaying Names in standby mode,
you are ready to make and receive calls.
Note: If the WiFi phone cannot connect to
an AP, it will keep searching and wear
down your battery. Verify open AP
availability. If not found, turn off the phone
until you are within range of an Access
Point.
APs can be defined and saved automatically using the Net
Search feature if APs have broadcast turned on. If the
desired AP has broadcast turned off. The AP can be
entered directly through a series of keystrokes on your
handset.
3.3 Finding and Saving the Access Point

3. Connecting to a Wireless Network
Page 7 Page 8

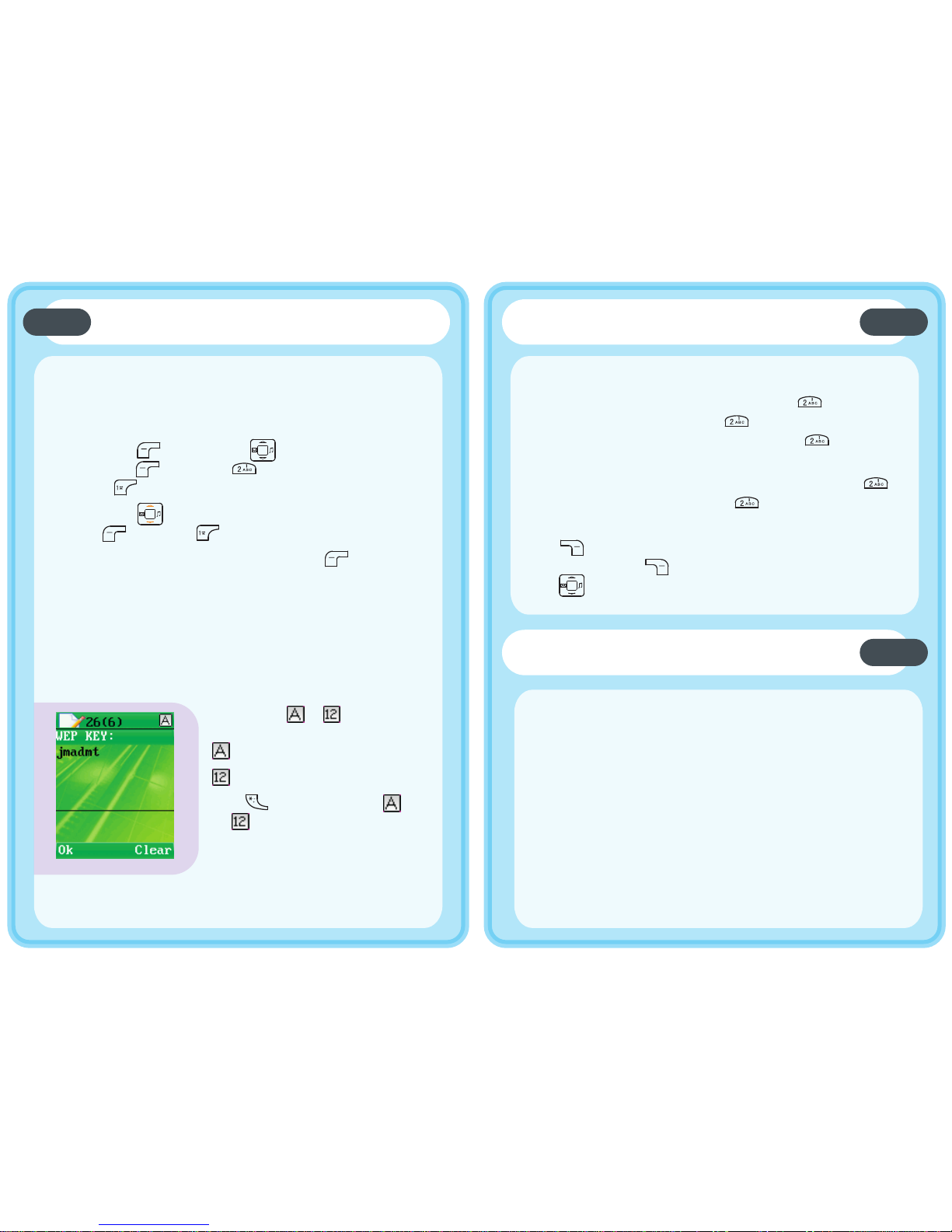

For alpha entry, rapidly press a key to toggle through the
letters assigned to that key. For example, enters a, b,
c, A, B, and C. Rapidly press to toggle through the
entries. Therefore, to enter B, rapidly press five times.
Pause between key presses to enter the next character in
the string. For example, to enter the string "ab", press
once, pause then rapidly press twice.
If you want to change something previously entered, press
(Clear) to delete the character to the left of the cursor;
press and hold (Clear) to delete all characters. Press
to move the cursor.
An indicator ( or ) appears at
the upper right corner of the screen.
indicates Alpha entry;
indicates numeric entry.
Press to switch between
and .
For numeric entry, press the desired
key once.
3. Connecting to a Wireless Network
Page 8
You can enter alpha and numeric values, such as a WEP
Key, using the F3000 phone keys.
If the desired AP has broadcast turned off, you can save the
AP by entering SSID information directly.
1. Press (Menu); press to scroll to WiFi and
press (Ok); press to select WiFi Config; press
to select AP Profile.
2. Press to reach the desired AP profile and press
(Ok). Press to select the SSID option.
3. Enter the desired AP's SSID and press (Ok).
4. Follow steps 3-4 specified in Section 3.3.1.
3.4 Tips for Alphanumeric Entry
3.3.2 Entering SSIDs Directly
4. Auto-Provisioning of F3000 WiFi
Phone
If there are new configuration and software updates available,
once the phone has connected to the Internet successfully via
the Access Point, the F3000 will need to be provisioned with the
latest configuration and software. This process is automatic and
will take several minutes to complete. During this time, several
status messages such as downloading, decompressing will be
displayed on the phone's display. Once complete, the phone will
reboot.
After auto-provisioning, the phone will use the same process as
previously described for connecting to Access Points.

Page 9 Page 10
5. Troubleshooting5. Troubleshooting
These are the most common problems and solutions that come
up when starting to use the F3000 WiFi phone. If you are having
trouble placing a phone call, go through this checklist until your
problem is solved:
I cannot make a phone call:
- Is the phone connected to an AP and registered with the
service network?
If so, you will see the right soft key function displaying
Names in standby mode. Key in the phone number to call
and press .
If the phone hasn't connected to an AP, refer to Section 3.1
("Connecting to Open Access Points") and Section 3.2
("Connecting to Protected or Specific Access Points") for
advice.
If the phone has connected to an AP, but hasn't registered
with the service Network, the following message will appear
"No Service Try Another AP". This may indicate connection
to an AP for which there is no Internet, or possibly an AP that
has filtering. Try connecting to another AP.
- Is there sufficient signal strength? Check the Signal Bars in
the top left corner of the display. Move closer to AP for better
signal strength.
The phone cannot be switched on:
- Press and make sure you hold it down for more than 2
seconds.
- If it still doesn't switch on, check your battery. If necessary,
charge the battery.
How do I know what my IP address and Mac Address is?
Access the Network Information option: Press (Menu);
press to scroll to WiFi and press (Ok); press to
select Network Parameter. Press to select Network
Information.
Net Search didn't find my AP:
Make sure SSID broadcasting is enabled on your AP.
HELPFUL HINT: Your WiFi phone's Local Log function provides the
phone's status information, which may help analyze the problem.
Press (Menu); press to scroll to Misc and press (Ok).
Press to select Local Log. The phone's status information will be
displayed.
Strong Weak
Doc. Code: 8810026900.0512
