UTStarcom F3000 User manual

i
_______________________________________
Copyright Statement: “©2005 UTStarcom, Inc. All rights reserved. No
part of this publication may be reproduced in any form or by any means
without the prior written permission of UTStarcom, Inc.”
Warranty Language: “The contents of this manual, whether in whole or in
part, do not constitute any express or implied warranty with respect to any
products of UTStarcom, Inc., or its affiliates.”
Doc. Code: 8810026700.051221

Table of Contents
SAFETY PRECAUTIONS.................................................... 1
1. GETTING STARTED ....................................................... 8

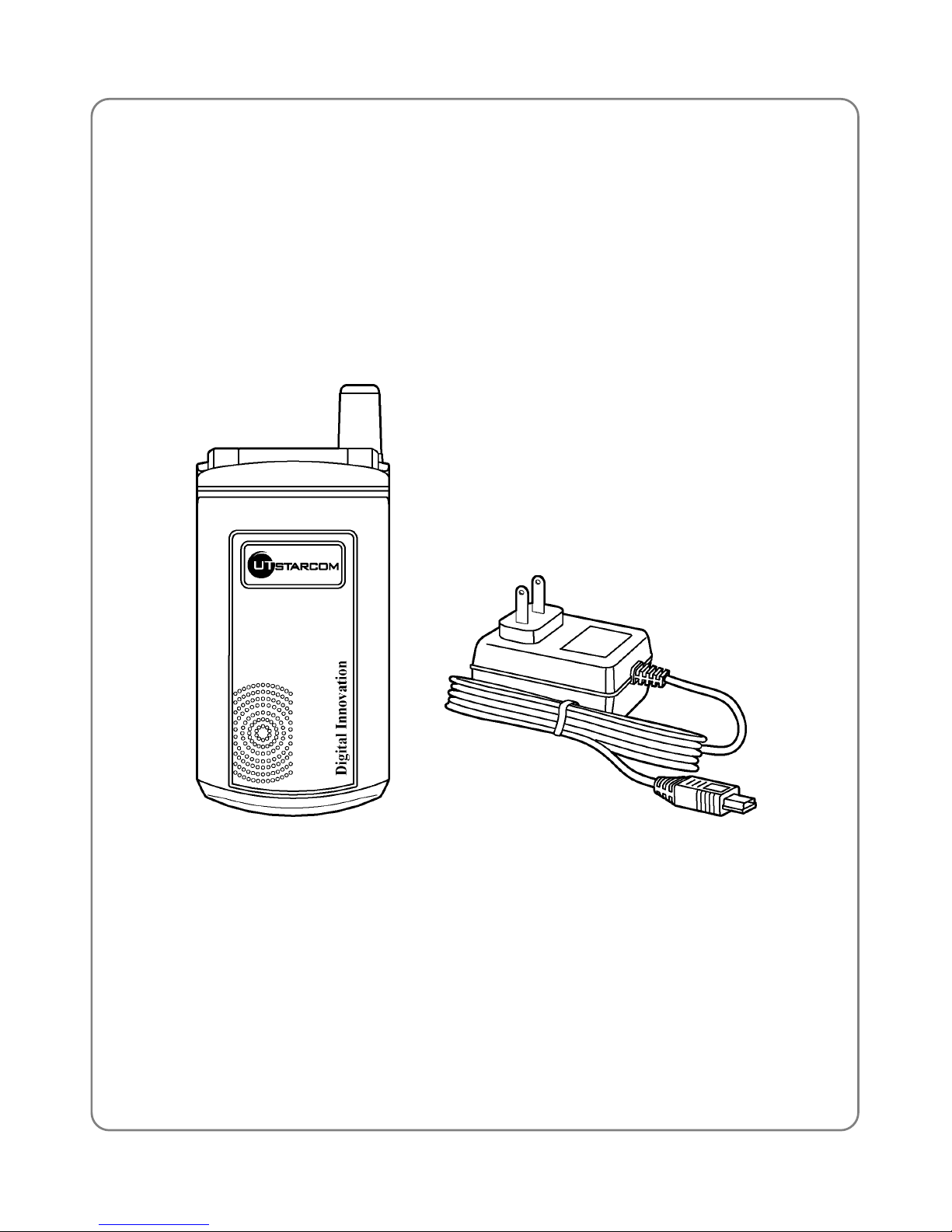

1.1 PACKAGE CONTENTS.....................................................................8
1.2 PHONE SPECIFICATIONS ................................................................9

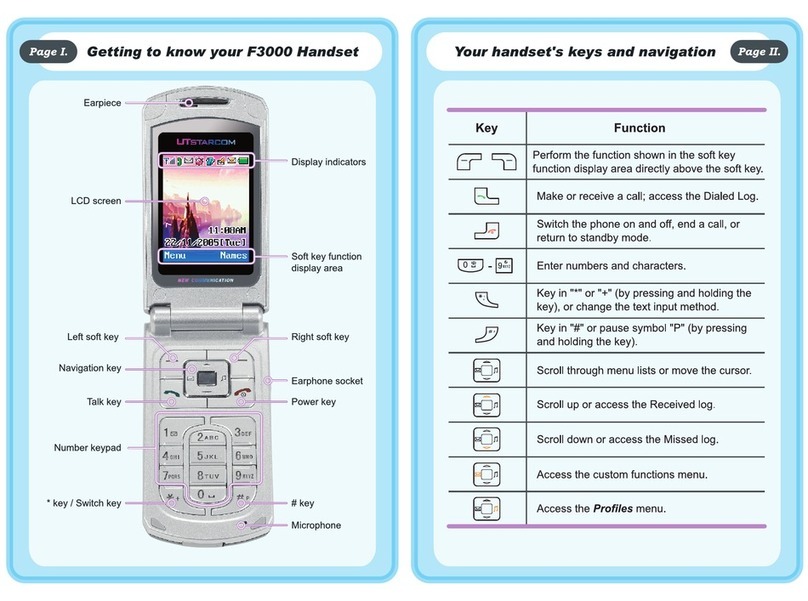

1.3 HANDSET DESCRIPTION...............................................................10
1.4 DISPLAY INDICATORS ...................................................................12
1.5 CHARGE THE BATTERY ................................................................13
1.6 REPLACE THE BATTERY ...............................................................14
1.7 CONVENTIONS USED IN THIS MANUAL ..........................................15
1.8 ACCESS MENU/LIST OPTIONS ......................................................16
2. BASIC OPERATIONS ................................................... 17
2.1 SWITCH THE PHONE ON/OFF .......................................................17
2.2 MAKE A CALL ..............................................................................17
2.3 USE SPEED DIAL .........................................................................18
2.4 ANSWER A CALL ..........................................................................18
2.5 REJECT A CALL ...........................................................................19
2.6 IN CALL OPERATIONS ..................................................................19
2.6.1 Hold a Call .....................................................................................19
2.6.2 Call Waiting....................................................................................20
2.6.3 Make a New Call............................................................................20
2.6.4 Conference Call .............................................................................21
2.6.5 Transfer a Call ...............................................................................22
2.6.6 Mute the Microphone Volume ........................................................22
2.6.7 Access the Phonebook ..................................................................23
2.6.8 Adjust the Listening Volume ...........................................................23
2.7 STORE A PHONE NUMBER............................................................24
2.8 CALL LOG SHORTCUT..................................................................24
2.9 CUSTOM FUNCTIONS SHORTCUT .................................................25
2.10 PROFILES SHORTCUT ................................................................25
2.11 VIBRATION SHORTCUT ...............................................................25
ii

iii
3. PHONEBOOK (NAMES) ............................................... 26
3.1 SEARCH......................................................................................26
3.2 ADD ENTRY.................................................................................28
3.3 DELETE ......................................................................................30
3.3.1 One by One ...................................................................................30
3.3.2 All...................................................................................................30
3.4 GROUP INFO ...............................................................................31
3.4.1 Ring Tone.......................................................................................31
3.4.2 Browse...........................................................................................31
3.5 SPEED DIAL ................................................................................32
3.6 MEMORY.....................................................................................33
4. MENU ............................................................................ 34
4.1 MESSAGES .................................................................................34
4.1.1 Text Message.................................................................................34
4.1.2 Email..............................................................................................41
4.2 CALL LOG ...................................................................................51
4.2.1 Missed Log ....................................................................................51
4.2.2 Received Log.................................................................................54
4.2.3 Dialed log.......................................................................................57
4.2.4 Duration .........................................................................................60
4.3 PROFILES ...................................................................................61
4.3.1 Standard ........................................................................................61
4.3.2 Meeting..........................................................................................65
4.3.3 Outdoor..........................................................................................65
4.3.4 User Define....................................................................................65
4.4 SETTINGS ...................................................................................66
4.4.1 Date/Time ......................................................................................66
4.4.2 Display...........................................................................................67
4.4.3 Set Handset...................................................................................68
4.4.4 Set Security ...................................................................................70
4.5 TOOLS ........................................................................................73
4.5.1 Alarm .............................................................................................73
4.5.2 Calendar ........................................................................................75
4.5.3 Calculator ......................................................................................77
4.5.4 Time Zone......................................................................................78

iv
4.6 GAMES .......................................................................................79
4.6.1 Sand Volleyball ..............................................................................79
4.6.2 Gobang..........................................................................................80
4.7 WIFI...........................................................................................81
4.7.1 Net Search.....................................................................................81
4.7.2 WiFi Config ....................................................................................82
4.7.3 Network Parameter........................................................................84
4.7.4 Signal Protocol...............................................................................87
4.8 NETWORK ...................................................................................92
4.8.1 Call Waiting....................................................................................92
4.8.2 Call Transfer ..................................................................................92
4.8.3 Three Way Call ..............................................................................93
4.8.4 Register Interval Time ....................................................................93
4.8.5 Caller-ID Block...............................................................................93
4.8.6 Repeat Dial on Busy ......................................................................94
4.8.7 Reject Anonymous Incoming Call ..................................................94
4.8.8 No Disturb......................................................................................94
4.8.9 Personal Information......................................................................94
4.9 MISC ..........................................................................................95
4.9.1 Vendor Information.........................................................................95
4.9.2 PC Config ......................................................................................95
4.9.3 Remote TFTP Update....................................................................95
4.9.4 Remote TFTP Server.....................................................................96
4.9.5 Local TFTP Update........................................................................96
4.9.6 Local Log .......................................................................................96
4.9.7 Web Authentication........................................................................97
5. INPUT METHOD............................................................ 98
5.1 SWITCH INPUT METHOD...............................................................98
5.2 ENGLISH .....................................................................................98
5.3 LETTER.......................................................................................99
5.4 PINYIN AND STROKE..................................................................100
5.5 DIGIT ........................................................................................100
5.6 SYMBOLS..................................................................................101
6. TROUBLESHOOTING..................................................102

Safety Precautions
SAFETY PRECAUTIONS
CE Declaration of Conformity
For the following equipment: WiFi handset F3000
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member States
relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage
Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the
procedures given in European Council Directive 99/5/EC and
89/3360EEC.
The equipment was passed. The test was performed according to the
following European standards:
 EN 300 328 V.1.6.1 (2004-11)
 EN 301 489-17 V.1.2.1 (2002-08)
 EN 60950: 2000
1

Safety Precautions
FCC RF Exposure Compliance
This phone has been tested and complies with the Federal
Communications Commission (FCC) RF exposure limits for the General
Population/Uncontrolled exposure environment. In addition, it complies
with the following Standards and Guidelines:
 FCC 96-326, Guidelines for Evaluating the Environmental Effects of
Radio-Frequency Radiation
 FCC OET Bulletin 65 Edition 01-01 (2001) Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio
Frequency Electromagnetic Fields
 ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with
Respect to Human Exposure to Radio Frequency Electromagnetic
Fields, 3 kHz to 300 GHz
 ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromagnetic Fields - RF
and Microwave
 Note: For body-worn operation, this phone has been tested and
meets FCC RF exposure guidelines when used with an accessory
that contains no metal and when the back of the phone faces your
body.
 Use of other accessories may not ensure compliance with FCC RF
exposure guidelines.
 The antenna used for this transmitter must not be co-located or
must not operate in conjunction with any other antenna.
2

Safety Precautions
Handling the Phone, Battery and Charger
DANGER
Only use the battery and charger specified for the
phone. Failure to do so can result in damage to the
phone, electric shock or fire.
CAUTION
Do not store or operate the phone or charger in hot,
damp, or dusty areas, which can damage electrical and
mechanical components. Avoid prolonged exposure to
temperatures below 5°C or in excess of 35°C.
DANGER
Do not drop, shake or throw the phone or charger.
Rough handling can damage internal circuit boards and
the battery pack.
Do not use the phone in the vicinity of volatile gases.
Leave the area before using the phone. Failure to leave
the area can result in the risk of fire or an explosion.
Do not disassemble or modify the phone, charger, or
battery. Incorrect modifications, reassembly, or
tampering may result in malfunction or personal injury.
3

Safety Precautions
Handling the Phone
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
 This device may not cause harmful interference
 This device must accept any interference received, including
interference that may cause undesired operation
This device has been designed to operate with the antennas listed below,
and having a maximum gain of 3.44 dB. Antennas not included in this list
or having a gain greater than 3.44 dB are strictly prohibited for use with
this device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated
power (e.i.r.p.) is not more than that permitted for successful
communication.
DANGER
This phone has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This phone
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this phone does cause harmful interference to radio or
television reception, which can be determined by
turning the phone off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna
4

Safety Precautions
- Increase the separation between the phone and
receiver
- Connect the phone into an outlet on a circuit
different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV
technician for help
Observe local regulations for specialized areas
(hospital, aircraft, etc) when using the phone.
Do not use the phone while operating a vehicle.
CAUTION
Changes or modifications not expressly approved by
UTStarcom, Inc. could void the user’s authority to
operate the phone.
Keep all storage media (magnetic cards, floppy disks,
credit cards, etc.) away from the phone. Close
encounters or contact can erase or damage the storage
media.
Keep all sharp metal objects (pins, nails, hairpins etc.)
away from the phone handset. The handset earpiece
contains a strong magnet that can attract and hold
metal objects. Remove any objects from the handset
earpiece before using, to avoid personal injury.
In case of emergency, key in the emergency number
(911 for example in US), then press the Talk key and let
the operator know your specific location. Don’t hang up
until you are told to do so.
5

Safety Precautions
Handling the Battery
DANGER
Do not dispose of the battery pack in a fire. It may
explode. Check with local waste management codes for
disposal instructions.
Do not force the battery pack into the phone. Improper
installation can cause malfunctions or damage the
battery pack. This may result in fire or personal injury.
Use caution in handling batteries in order not to short
the battery on conductive materials such as rings,
bracelets, and keys. The battery and/or conductor may
overheat and cause burns.
If the battery becomes too hot while recharging, it
should be removed immediately from the charger.
When clothes or skin are exposed to battery leakage,
rinse with clean water at once to prevent skin irritation.
Do not use a cracked, leaking or odor-emitting battery
pack near an open flame or high temperatures.
CAUTION
If a fully discharged battery is stored for a long period of
time, it may not be possible to recharge the battery.
Observe local waste management codes for proper
battery disposal instructions.
6

Safety Precautions
Handling the Charger
DANGER
Only use a power source that provides the appropriate
voltage (AC100~240 V) for the charger. An unsuitable
power source can result in damage to the charger, fire
or electric shock.
Do not use the charger if the power supply cord or plug
is damaged or frayed (exposed or broken wires, etc).
This can result in the risk of fire or electric shock.
Do not short circuit the charger connector jack. This may
result in fire or electric shock.
Immediately unplug the charger from the wall outlet in
the event that liquid is spilled into the unit to prevent fire
or electric shock.
CAUTION
Always unplug the charger from the wall outlet before
cleaning to avoid the risk of electric shock.
Do not place heavy objects on the cord to avoid
damage.
Always grip the power plug when removing the charger
from the wall outlet. Do not pull on the power supply
cord to avoid damage and the risk of electric shock.
7

Getting Started
1. GETTING STARTED
1.1 Package Contents
Please check the package contents by comparing them with the following
list. If you find anything missing or if the documentation set is incomplete,
contact your local phone dealer immediately.
 Model F3000 (with one battery)
 Charger (one)
 User Manual (one)
 Quick Start Guide (one)
 Certificate of quality
8

Getting Started
1.2 Phone Specifications
Dimensions About 85 x 43 x 22 (L×W×H) mm
Weight Approximately 90g
Battery DC 3.7V 1100mAh Li-ion battery
Charger
Input: 100~240V AC, 50~60Hz
Output: 5.2V DC, 600mA
Charger Weight Approximately 80g
Charging Time Approximately 3-4 hours
Standby Time Approximately 75 hours
Talking Time Approximately 3 hours
 Standby time refers to the state in which the phone is on continuously
without being used for calls, or moved to different service areas
 The standby time depends on the network conditions, phone usage
and surrounding area. The phone consumes more battery power
under the following conditions:
- In areas with weak signals, with high or low temperatures, or when
used outside the service coverage area
- When the phone frequently searches for network signal due to
location changes
- When you talk on the phone for long periods of time
- The Alarm, Backlight or Vibration function is active
- Ring or listening volume is set to maximum
9

Getting Started
1.3 Handset Description
1. Earpiece
2. LCD Screen
3. Left Soft Key:
This key is used to perform the function indicated on the screen above
it.
10

Getting Started
4. Right Soft Key:
This key is used to perform the function indicated on the screen above
it.
5. Navigation Key:
This key is used to scroll up and down through menu lists.
6. Talk Key:
This key is used to make or receive a call. It can also be used to
access outgoing call logs in standby mode.
7. Power Key:
This key is used to switch the phone on and off, to end a call, or to
return to standby mode.
8. ~ Number Keypad:
These keys are used to enter numbers and characters.
9. * Key/Switch Key:
This key is used to key in “*” or “+” (by pressing and holding the key),
or to change the text input method.
10. # Key:
This key is used to key in “#” or pause symbol “P” (by pressing and
holding the key).
11. Microphone
12. Fixed Antenna
13.Battery
14.Slot for Hand Strap
15.Battery Release Button
16. Charging Socket
11

Getting Started
17.Earphone Socket
18. Speaker
 Note: This is only a brief introduction to the keypad functions.
Please refer to the contents of this user manual for detailed
descriptions and operations.
1.4 Display Indicators
1. Shows the current signal strength. The higher the bar, the
stronger the signal.
Strong Weak
2. Refers to the calling or connecting mode.
3. Indicates there are unread text messages.
4. Indicates the Alarm function is active.
12

Getting Started
5. (blue) Means the Ring Mode is set to Vibration; if the Ring Mode
is set to Vibration And Ring or Ring After Vibration, will be
displayed; if the Ring Mode is set to Mute, will be displayed. If the
No Disturb function is active, will be displayed.
If you press and hold the vibration shortcut key in standby mode,
(green) will be displayed
6. Indicates there are unread voice mails.
7. Indicates there are unread new emails.
8. Indicates the battery charge level. The higher the bar, the greater
the battery power.
High Low
9. Content Display Area: Shows phone numbers, characters, etc.
10.Soft key function display area: Shows the functions of the left soft key
and the right soft key .
1.5 Charge the Battery
When the battery power is low and needs recharging, the battery indicator
will flash continuously, and the phone will sound a low battery alarm
(if the Alert Tone is set to On and the Ring Mode is set to neither
Vibration nor Mute), reminding you that the battery is running low and the
phone will be switched off automatically. To charge the battery, follow the
steps below:
1. Connect the charger to an AC wall outlet (100~240V).
2. Connect the lead from the charger to the charging socket of the phone.
The battery indicator bar starts to scroll ( ).
13

Getting Started
If the phone is off, when you open the flip cover, the text “Charging…”
is also displayed on the LCD screen.
3. When the battery indicator bar stops scrolling, charging is complete.
The text “Fully Charged!” is also displayed on the LCD screen, if the
phone is off.
 With your phone turned off, charge your new battery for 4 hours before
its first use
 When the battery is being charged, it is normal that your charger and
phone become warm to the touch
 If the phone is turned on while charging, you can still make and
receive calls as usual, but this will consume battery power, thus
extending the charging time
1.6 Replace the Battery
Since battery power is easily consumed, if you find the battery power
diminishes quickly after full charging, please replace your battery. After
replacing the battery, you will need to reset the date and time.
1. In standby mode, switch the phone off by pressing and holding .
(Otherwise, some user settings will be lost.)
14

Getting Started
2. Remove the battery.
With the back of the phone facing you, press the release button and lift
the battery off.
3.
Slide the new battery as illustrated until it locks into place.
Install the new battery.
1.7 Conventions Used in this Manual
nd hold the key” means to press the key for over 2
 manual, for
example Menu
ne standby mode. When the left
soft key function is Menu, the phone is in standby mode
 In this manual, “press the key” means to release the key after you
press it; “press a
seconds before releasing it
The text displayed on the screen is indicated in bold in this
 Most operations ed to be performed in
15

Getting Started
 Navigation key operations follow:
Press the “Up”, “Down”, “Left”, and “Right” directions on the
Navigation key to execute operations such as browsing, selecting,
adjust g and setu key directi ns are as follows:in p; o
Up Down
Up or
Down Left Right
Left or
Right
1.8 Access Menu/List Options
A variety of options are available for the menus and lists, such as: Men
and Names.
u
m, teps below:
by
For example, to access MenuToolsAlar follow the s
(Menu).
1. In stand mode, press the left soft key
2. Press to reach Tools, and then press the left soft key ( .Ok)
3. Press to highlight Alarm, and then press the left soft key
(Ok).
If there is a number in front of the intended option, you can access the
option by directly pressing the corresponding number key.
Note: To return to the previous menu level, press the right soft key
(Back). To return to standby mode without changing the menu
settings, press .
16
