V-fit-ST ADDER GYM TO PYTHON CROSS TRAINER CONVERSION... User manual

CH2922
ADDER GYM TO PYTHON CROSS
TRAINER CONVERSION KIT

Contents
Section Page
Assembly . . . . . . . . . . . . . . 3
Protect the environment by not disposing of this product with household waste.

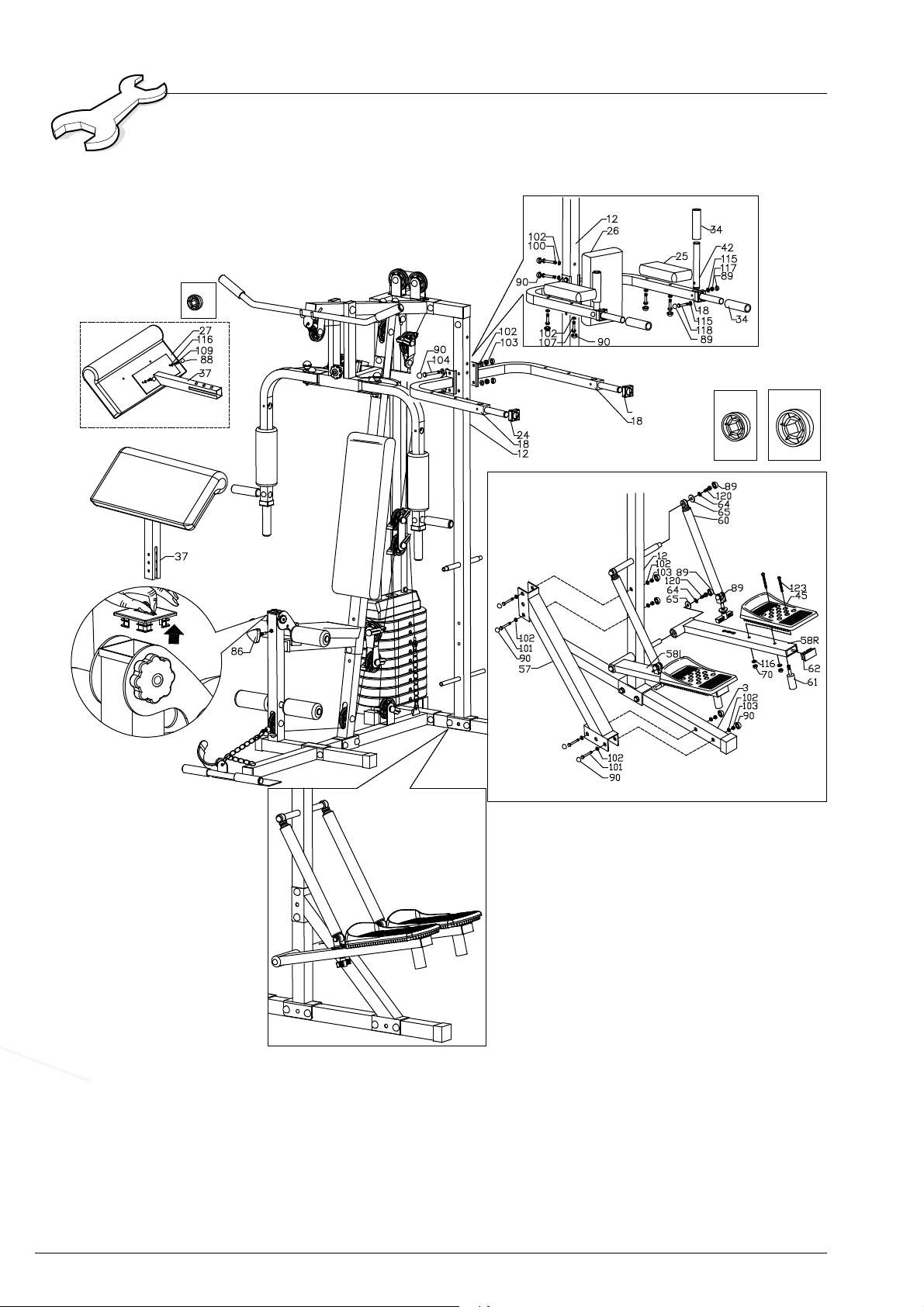

Assembly
A
B
C
Page 3
24
x2
M6
88
x12
M8
89
x18
M10
90

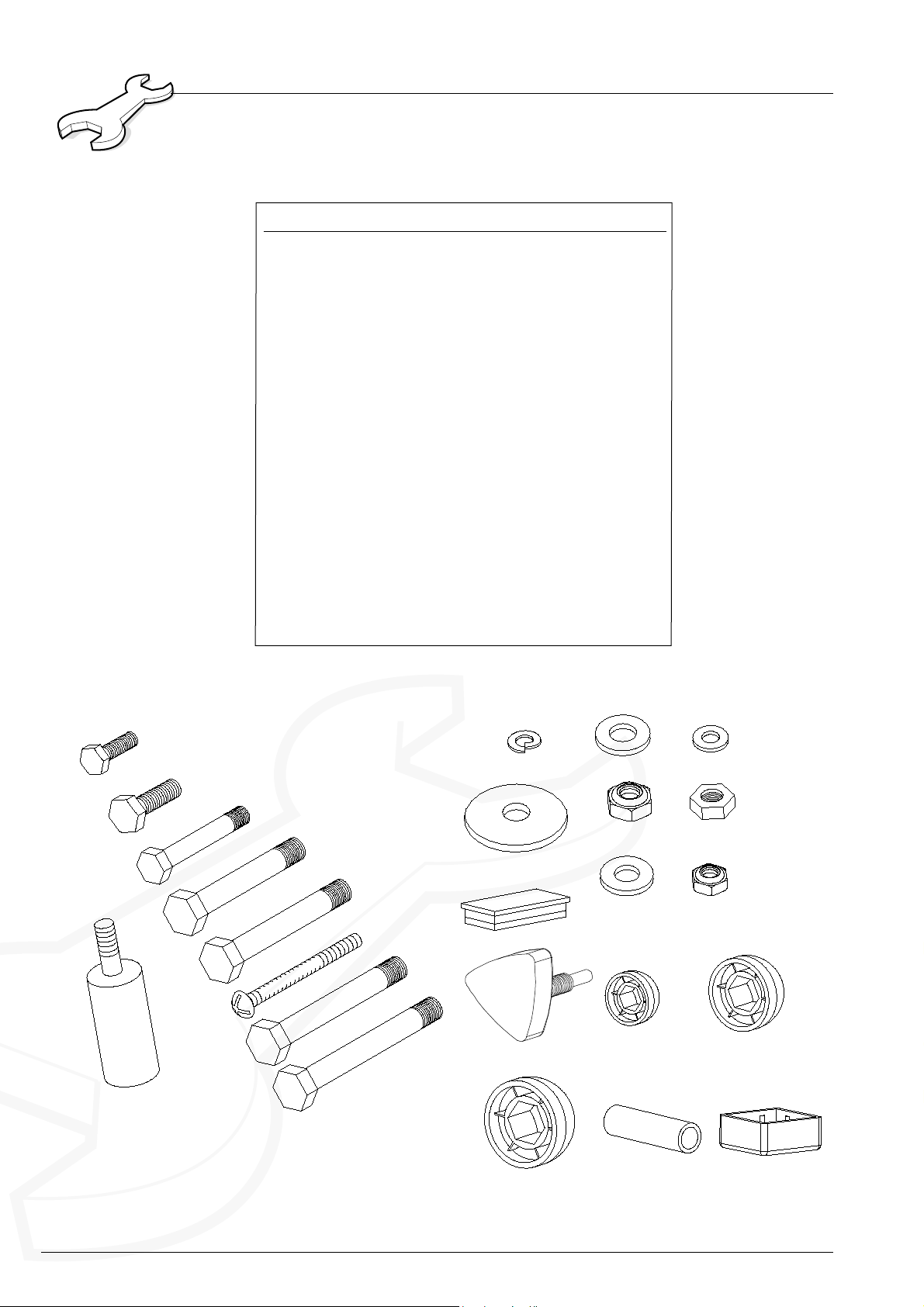

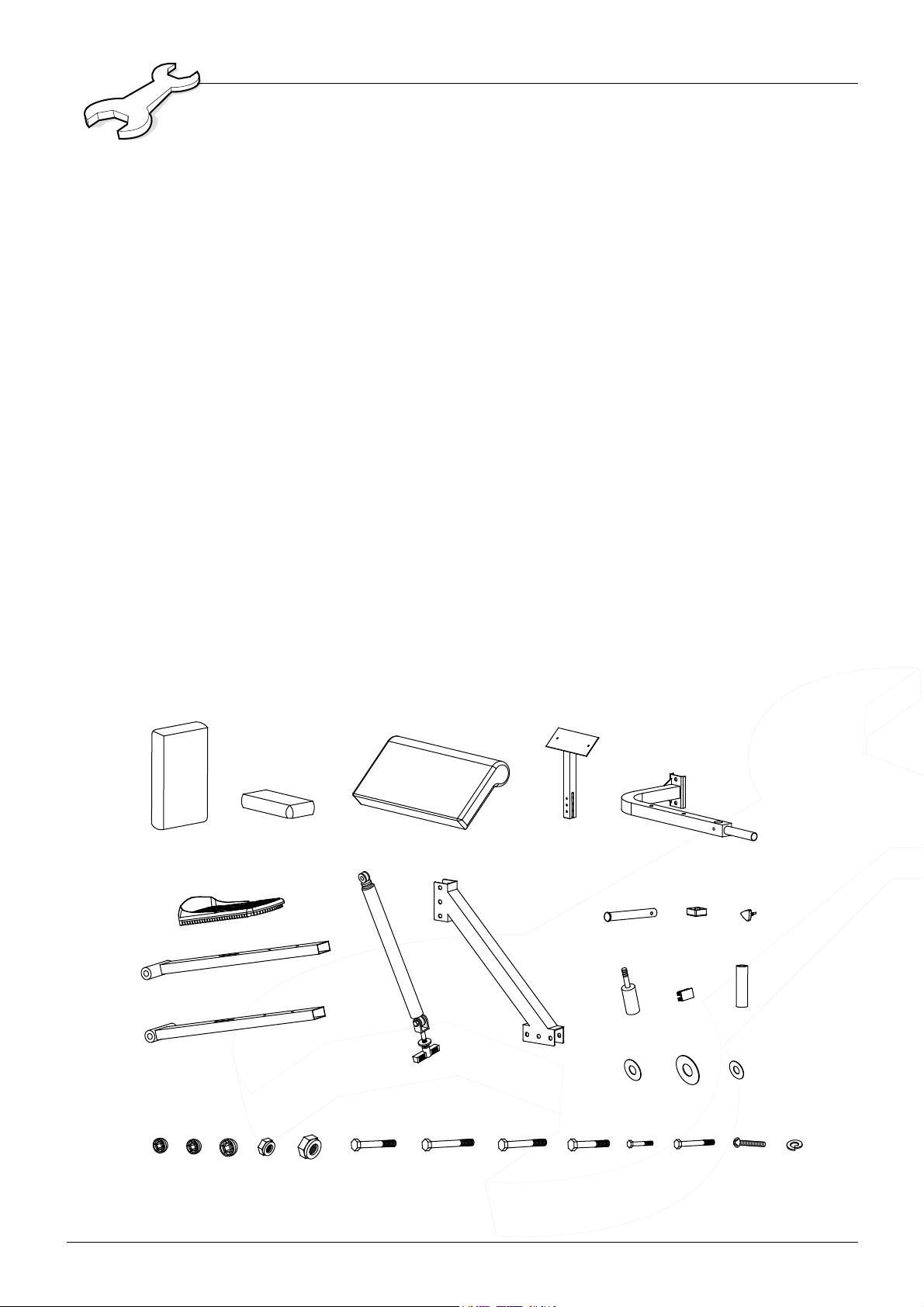

Assembly
PART No. DESCRIPTION QTY
MASTER PARTS & ACCESSORY LIST
18 VKR SUPPORT FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . 2
24 HOLLOW CAP 38 x 38mm . . . . . . . . . . . . . . . . . . . . . . 2
25 VKR ARM PADS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
26 VKR BACKREST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
27 PREACHER CURL PAD . . . . . . . . . . . . . . . . . . . . . . . . . . 1
34 FOAM GRIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
37 PREACHER CURL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
42 VKR GRAB-HANDLES . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
45 FOOTPLATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
57 SUPPORT TUBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
58R STEP ARM(R) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
58L STEP ARM(L) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
59 CYLINDER MOUNT BRACKET . . . . . . . . . . . . . . . . . . . . . 2
60 CYLINDER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
61 RUBBER STEP BUMPER . . . . . . . . . . . . . . . . . . . . . . . . 2
62 INT CAP 30 x 60mm
. . . . . . . . . . . . . . . . . . . . . . . . . . . 2
64 M8 SPRING WASHER
. . . . . . . . . . . . . . . . . . . . . . . . . . 4
65 M8 x 3T FLAT WASHER
. . . . . . . . . . . . . . . . . . . . . . . . . 4
70 M6 NYLON LOCKNUT
. . . . . . . . . . . . . . . . . . . . . . . . . . . 4
89 M8 BOLT COVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
88 M6 BOLT COVER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
90 M10 BOLT COVER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
100 M10 x 65mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
101 M10 x 75mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
102 M10 FLAT WASHER . . . . . . . . . . . . . . . . . . . . . . . . . . .
103 M10 NYLON LOCKNUT . . . . . . . . . . . . . . . . . . . . . . . . .
104 M10 x 70mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
107 M10 x 50mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
109 M6 x 15mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
115 M8 FLAT WASHER . . . . . . . . . . . . . . . . . . . . . . . . . . . .
116 M6 FLAT WASHER . . . . . . . . . . . . . . . . . . . . . . . . . . . .
117 M8 NYLON LOCKNUT . . . . . . . . . . . . . . . . . . . . . . . . .
118 M8 x 45mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
120 M8 x 20mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
123 M6 x 60mm MACHINE SCREWS . . . . . . . . . . . . . . . . . 4
4
2
2
6
4
2
4
2
6
18
6
3
86 M12 LOCKING KNOB (MALE) . . . . . . . . . . . . . . . . . . . . . 6
86
12 3
61
58R
45
60
57
42 24
34
18
37
27
25
26
58L
62
9088
M10
M6
89
M8
70 103100101107109
65 102116
120
10464
Page 4

Assembly
PART No. DESCRIPTION QTY
ASSEMBLY ACCESSORIES
24 HOLLOW CAP 38 x 38mm . . . . . . . . . . . . . . . . . . . . .
34 FOAM GRIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
61 RUBBER STEP BUMPER . . . . . . . . . . . . . . . . . . . . . . .
62 INT CAP 30 x 60mm
. . . . . . . . . . . . . . . . . . . . . . . . . .
64 M8 SPRING WASHER
. . . . . . . . . . . . . . . . . . . . . . . . .
65 M8 x 3T FLAT WASHER
. . . . . . . . . . . . . . . . . . . . . . . .
70 M6 NYLON LOCKNUT
. . . . . . . . . . . . . . . . . . . . . . . . . .
89 M8 BOLT COVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
88 M6 BOLT COVER
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
90 M10 BOLT COVER
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
100 M10 x 65mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
101 M10 x 75mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
102 M10 FLAT WASHER . . . . . . . . . . . . . . . . . . . . . . . . . . .
103 M10 NYLON LOCKNUT . . . . . . . . . . . . . . . . . . . . . . . . .
104 M10 x 70mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
107 M10 x 50mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
109 M6 x 15mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
115 M8 FLAT WASHER . . . . . . . . . . . . . . . . . . . . . . . . . . . .
116 M6 FLAT WASHER . . . . . . . . . . . . . . . . . . . . . . . . . . . .
117 M8 NYLON LOCKNUT . . . . . . . . . . . . . . . . . . . . . . . . .
118 M8 x 45mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
120 M8 x 20mm HEX BOLT . . . . . . . . . . . . . . . . . . . . . . . .
123 M6 x 60mm MACHINE SCREWS . . . . . . . . . . . . . . . . . 4
4
2
2
6
4
2
4
2
6
18
6
3
18
12
2
6
4
4
4
2
2
4
2
86 M12 LOCKING KNOB (MALE) . . . . . . . . . . . . . . . . . . . .
Part NO.62
Part NO.101
Part NO.102
Part NO.103
Part NO.61
Part NO.64
Part NO.65
Part NO.70
Part NO.120
Part NO.123
Part NO.116
M6
Part NO.88
Part NO.109
Part NO.104
Part NO.24
Part NO.100
Part NO.107
Part NO.115
Part NO.118
Part NO.117
Part NO.86
M10
Part NO.90 Part NO.34
M8
Part NO.89
Page 5

Assembly
INSTRUCTIONS:- STAGE A
INSTRUCTIONS:- STAGE B
INSTRUCTIONS:- STAGE C
1Fit the Preacher Curl Pad (27) to the Preacher Curl (37) using 2 x M6 x 15mm Hex Bolts (109)
and 2 x M16 Flat Washers (116) Secure in place at the desired height using the M12 Locking
Knob (male) (86).
Attach the VKR Support Frames (18) to the Rear Upright (12) using 2 x M10 x 70mm Hex Bolts
(104), 4 x M10 Flat Washers (102) and 2 x M10 Nylon Locknuts (103).
2
Fit the VKR Backrest (26) to the Rear Upright (12) with 2 x M10 x 65mm Hex Bolts (100) and
2 x M10 Flat Washers (102).
3
Fit the VKR Arm Pads (25) to each of the VKR Support Frames (18) using 2 x M10 x 50mm
Hex Bolts (107) and 2 x M10 Flat Washers (102) for each pad.
4
Fit the VKR Grab-Handles (42) into the VKR Support Frames (18), securing each in place with
a M8 x 45mm Hex Bolt (118), 2 x M8 Flat Washers (115) and a M8 Nylon Locknut (117).
5
6
Fit a Step Arm (58R and 58L) to the LOWER mount on each side of the Rear Upright (12) and secure
using 1 x M8 x 20mm Hex Bolt (120), 1 x M8 Spring Washer (64) and 1 x M8 x 3T Flat Washer (65).
Fit a Step Arm Footplate (45) to each Step Arm (58R and 58L) using 2 x M6 x 60mm Machine Screws
(123), 2 x M6 Flat Washers (116) and 2 x M6 Nylon Locknuts (70).
Screw into the underside of each Step Arm Footplate (45) 1 x Rubber Step Bumper (61) and cap the
open end of each Step Arm Footplate with 1 x Int Cap (62).
Assemble the top of the Hydraulic Cylinder (60) to the UPPER mount on each side of the Rear Upright
(12) using 1 x M8 x 20mm Hex Bolt (120), 1 x M8 Spring Washer (64) and 1 x M8 x 3T Flat Washer
(65).
Remove the Plastic "T" Knob on the underside of the Cylinder Mount Bracket (59) along with the
large Flat Washer and locate the Bolt (welded to the Cylinder Mount Bracket) in one of the 3 slotted
positions in the Step Arm (58R and 58L). Refit the Flat Washer and Plastic "T" Knob and tighten
securely in place.
7
8
9
10
11
Ensure that the offset on the
Step Arm is set towards the
INSIDE of the Rear Upright to
facilitate correct positioning of
the Hydraulic Cylinders (60).
Note
Ensure that the Machine Screws
are fitted into the Step Arm
Footplate from the TOP.
Note
To adjust the Stepping
Resistance move the Cylinder
Mount Bracket CLOSER to the
Rear Upright to REDUCE
Resistance and AWAY from the
Rear Upright to INCREASE
Resistance.
Note Attach the Support Tube (57) to the Rear Upright (12) and Frame Stabiliser (3) using 4 x M10 x 75mm
Hex Bolts (101), 8 x M10 Flat Washers (102) and 4 x M10 Nylon Locknuts (103).
12
13 Cap all Nuts and Bolt heads with the Nut Caps (88, 89 ,90 and 91).
Slide 1 x Hollow Cap (24) over each of the welded Grab Handles on the VKR Support Frame (18).
Now slide 1 x Press Bar Foam Grip (34) onto each end of the welded Grab Handles on the VKR
Support Frame (18).
Page 6
