V-ZUG Combair SL User manual

Oven
Combair SL
Operating instructions
V-ZUG Ltd

2
Thank you for choosing to buy one of our products. Your appliance is made
to high standards and is easy to use. Nevertheless, please take the time to
read these operating instructions in order to familiarize yourself with the ap-
pliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appli-
ance at the time these operating instructions went to press. The right to make
technical modifications for the purpose of the further development of the ap-
pliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
Indicates a list.
Validity
The model number corresponds to the first three digits on the identification
plate. These operating instructions apply to the following models:
Variations depending on the model are noted in the text.
© V-ZUG Ltd, CH-6301 Zug, 2009
Denotes important safety precautions. Failure to observe said pre-
cautions can result in injury or damage to the appliance or fittings!
Denotes useful tips for the user.
Type Model no. Size system
BC-SL 728 55-600 / 55-762
BC-SL 759 60-600 / 60-762

3
Contents
Safety precautions 6
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . 6
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Note on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Appliance description 11
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operating and display elements . . . . . . . . . . . . . . . . . . . . . 12
Cooking space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Operating the appliance 17
Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting the operating mode . . . . . . . . . . . . . . . . . . . . . . . 20
Changing the operating mode . . . . . . . . . . . . . . . . . . . . . . 20
Selecting the cooking space temperature . . . . . . . . . . . . . 20
Checking / Changing the cooking space temperature . . . . 21
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
User settings 22
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Time display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Temperature unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Time format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

… Contents
4
Time functions 27
Setting / Changing the time . . . . . . . . . . . . . . . . . . . . . . . . . 27
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Operating time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Delayed start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Operating modes 34
Fast heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Food probe 39
Food probe temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Soft roasting 42
Rotisserie spit and roasting basket 46
Rotisserie spit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Roasting basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
BakeOmatic 49
Degree of browning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Cooking / Baking duration . . . . . . . . . . . . . . . . . . . . . . . . . 49
Selecting and starting BakeOmatic . . . . . . . . . . . . . . . . . . . 51
Recipes 53
Selecting and starting a recipe . . . . . . . . . . . . . . . . . . . . . . 54
Own recipes 56
Creating own recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Keeping cooked food warm 59
Tips and tricks 60
Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Optional 62
Warming drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

… Contents
5
Care and maintenance 63
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Cleaning the appliance door . . . . . . . . . . . . . . . . . . . . . . . 64
Removable parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Cleaning the accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Cleaning the enamelled cooking space . . . . . . . . . . . . . . . 66
Replacing the halogen light bulb . . . . . . . . . . . . . . . . . . . . 67
Trouble-shooting 68
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
After a power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Accessories and spare parts 72
Technical data 74
Disposal 75
Index 76
Repair service 79
Quick instructions 80

6
Safety precautions
In accordance with the requirements of IEC 60335-1:
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless supervised or unless they have been given instruction
concerning the use of the appliance by a person responsible for their
safety.
Before using for the first time
The appliance must be installed and connected up to the power supply in
accordance with the separate installation instructions. The necessary work
should be done by a qualified fitter or electrician.
Dispose of the packaging material in accordance with local regulations.
Before using the newly installed appliance for the first time, please follow
the advice in the 'Using for the first time' section.
Make the desired user settings.
The appliance corresponds to recognised technology standards
and the relevant safety regulations. Proper use of the appliance is
however essential to avoid damage and accidents. Please there-
fore follow the precautions given in these operating instructions.

… Safety precautions
7
Correct use
The appliance is designed for use in the home for preparing food. Under
no circumstances flambé or cook food using a lot of fat in the cooking
space! No liability is assumed for any damage caused by improper or in-
correct use.
Never use the appliance to dry animals, textiles or paper!
Not to be used as a room heater.
Only the food probe supplied with this appliance may be used.
Any repairs, modifications or manipulations to the appliance, especially
any electrically live parts, should only be carried out by the manufacturer,
its Customer Services or similarly qualified persons. Repairs if carried out
incorrectly may cause serious injury, damage to the appliance and fittings,
as well as affect the functioning of the appliance. If the appliance is not
working properly or in case of a repair order, follow the instructions given
in the 'Repair service' section. Please contact Customer Services if
necessary.
Only original spare parts may be used.
Retain these operating instructions for future reference. If you sell the ap-
pliance or pass it on to a third party, please ensure these operating instruc-
tions accompany the appliance, together with the instructions on
installation. In this way, the new owner can inform themselves about how
to use the appliance correctly and read the pertinent safety precautions.
Children in the home
Packaging material, e.g. plastic and polystyrene, can be dangerous for chil-
dren. Danger of suffocation! Please keep packaging material away from
children.
The appliance is designed for use by adults who are familiar with these
operating instructions. Children are often unable to recognise the danger
of electrical appliances. Ensure proper supervision and do not allow chil-
dren to play with the appliance – there is a danger that children can hurt
themselves.
Use the childproof locking facility.

… Safety precautions
8
Note on use
If the appliance is visibly damaged, do not use it. Contact our Customer
Services.
If the appliance is not operating property, disconnect it from the power sup-
ply immediately.
Ensure the mains cables of other electrical appliances do not get caught
in the door of the appliance as the electrical cable insulation could get
damaged.
If the mains cable of the appliance is damaged, it must be replaced by Cus-
tomer Services in order to avoid hazard.
Ensure there are no foreign bodies or pets in the cooking space before
closing the appliance door.
Objects that could pose a danger if the appliance were accidentally
switched on should not be stored in the cooking space. Do not store food
or any temperature-sensitive or inflammable materials, e.g. cleaning
agents, oven sprays, etc., in the cooking space or in the warming drawer.
Keep the appliance door closed when grilling, as the heat could damage
the operating and display elements or the fitted units above.

… Safety precautions
9
Caution: Burns hazard!
The appliance gets very hot when in use.
Heat is produced during cooking and baking. The appliance door, espe-
cially the glass, can get hot. Burns hazard – do not touch. Keep children
away!
Steam may escape from the cooking space when the appliance door is
opened. Do not put your hands into the cooking space if there is steam in
it!
The appliance will remain hot for some time after it is switched off and will
cool down only slowly to room temperature. Please allow sufficient time for
the appliance to cool down before, for instance, cleaning it.
Overheated fat and oil can easily catch fire. Heating oil in the cooking
space to sear meat is dangerous and should not be done. Never try to ex-
tinguish burning oil or fat with water – danger of explosion!
Smother the flames with a fire blanket and keep all doors and windows
closed.
Do not pour spirits (e.g. brandy, whisky, schnapps, etc.) over hot food –
danger of explosion!
Do not leave the appliance unsupervised when drying herbs, bread, mush-
rooms, etc. If the foodstuff dries out too much, this can pose a fire hazard.
If you notice smoke possibly coming from the appliance itself or from in-
side the cooking space, keep the appliance door closed. Disconnect the
appliance from the power supply.
Accessories such as wire shelves and trays, etc. get hot in the cooking
space. Always wear protective gloves or use oven cloths.

… Safety precautions
10
Caution: Danger of injury!
Be careful not to put fingers in the door hinges, otherwise there is a risk of
injury if the appliance door is moved. Particular care should be taken when
children are around.
Only leave the appliance door open in the at-rest position. An open appli-
ance door poses danger of tripping or injury! Do not sit or rest on the ap-
pliance door or use it as a storage surface.
How to avoid damaging the appliance
Close the appliance door carefully.
Do not put baking tins, dishes, moulds, cooking trays, etc. directly on the
floor of the cooking space if using the , , or operating
modes.
Do not place any protective insert or aluminium foil on the floor of the cook-
ing space, as this can cause damage to the appliance.
Do not use objects that can rust in the cooking space.
Using knives or cutting wheels on the original baking tray will cause visible
damage.
To prevent corrosion, leave the appliance door open in the at-rest position
until the cooking space has cooled down.
When cleaning the appliance make sure no water gets inside the appli-
ance. Use a moderately damp cloth. Do not spray the inside or outside of
the appliance with water. Do not use a steam cleaner. If water gets inside
the appliance, it will cause damage.

11
Appliance description
Construction
1Operating and display elements
2Ventilation opening
3Door handle
4Appliance door
5Warming drawer *
* Depending on the model
3
4
5
1
2

… Appliance description
12
Operating and display elements
Buttons
Displays
Symbols
Operatingmodes
* Depending on the model
Warming drawer /
Plate warmer * Adjusting knob
Illustration Timer
Cooking space temperature /
Food probe temperature
Time, operating time,
switch-off time
Operating mode Off
Temperature Plain text display
Time, operating time,
switch-off time, timer, etc.
Warming drawer /
Plate warmer * Operating time
Cooking space temperature Switch-off time
Food probe temperature Time
Timer
˚C
˚C
PizzaPlus
PizzaPlus

… Appliance description
13

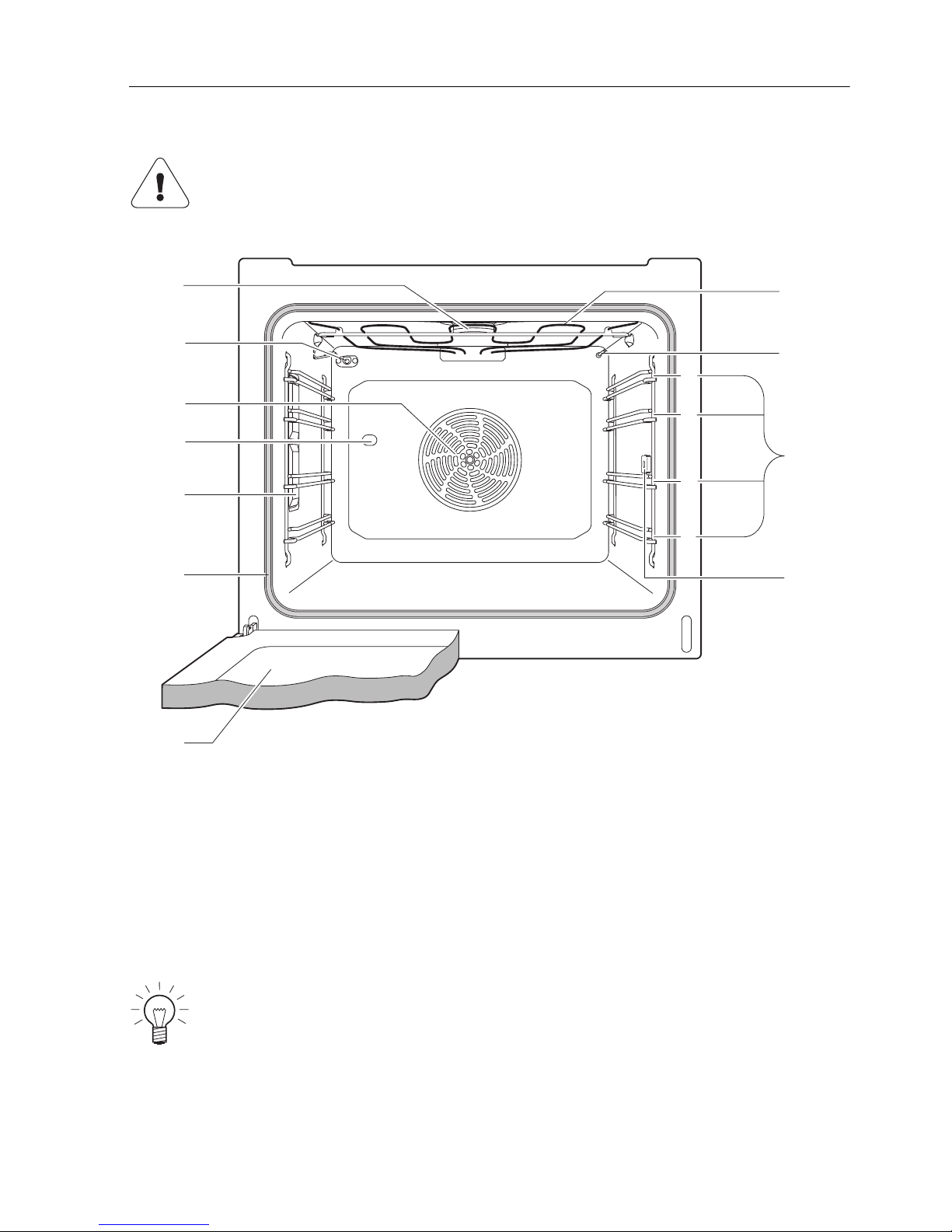

Cooking space
Do not place any protective insert or aluminium foil on the floor of
the cooking space.
1Appliance door 6Climate sensor
2Door seal 7Cooking space ventilation
3Illumination 8Grill / Top heat
4Drive for rotisserie spit /
Roasting basket
9Cooking space temperature sensor
10 Levels (labelled)
5Hot air fan 11 Socket for food probe
The bottom heat element is beneath the cooking space floor.
3
5
2
1
6
10
11
4
78
9
1
2
3
4

… Appliance description
14
Accessories
Original TopClean baking tray
Serves as a baking tin for flans and biscuits.
Use together with the wire shelf as a drip tray.
Using knives or cutting wheels on the original bak-
ing tray will visibly damage the surface.
If not fully covered by the baking, the shape of the
original baking tray can become distorted during
baking. This is normal. As it cools down, it will go
back to its original form.
Always push the «sloped» side 1of the original bak-
ing tray right to the back of the cooking space.
The original baking tray is to be used the normal
way round – not upside down.
Wire shelf
For standing roasting and baking tins on.
For standing meat, frozen pizza, etc. on.
Serves as a cooling rack.
For preparing frozen bread rolls and quiche.
ACover the wire shelf with baking paper or use a round baking tray.
1

… Appliance description
15

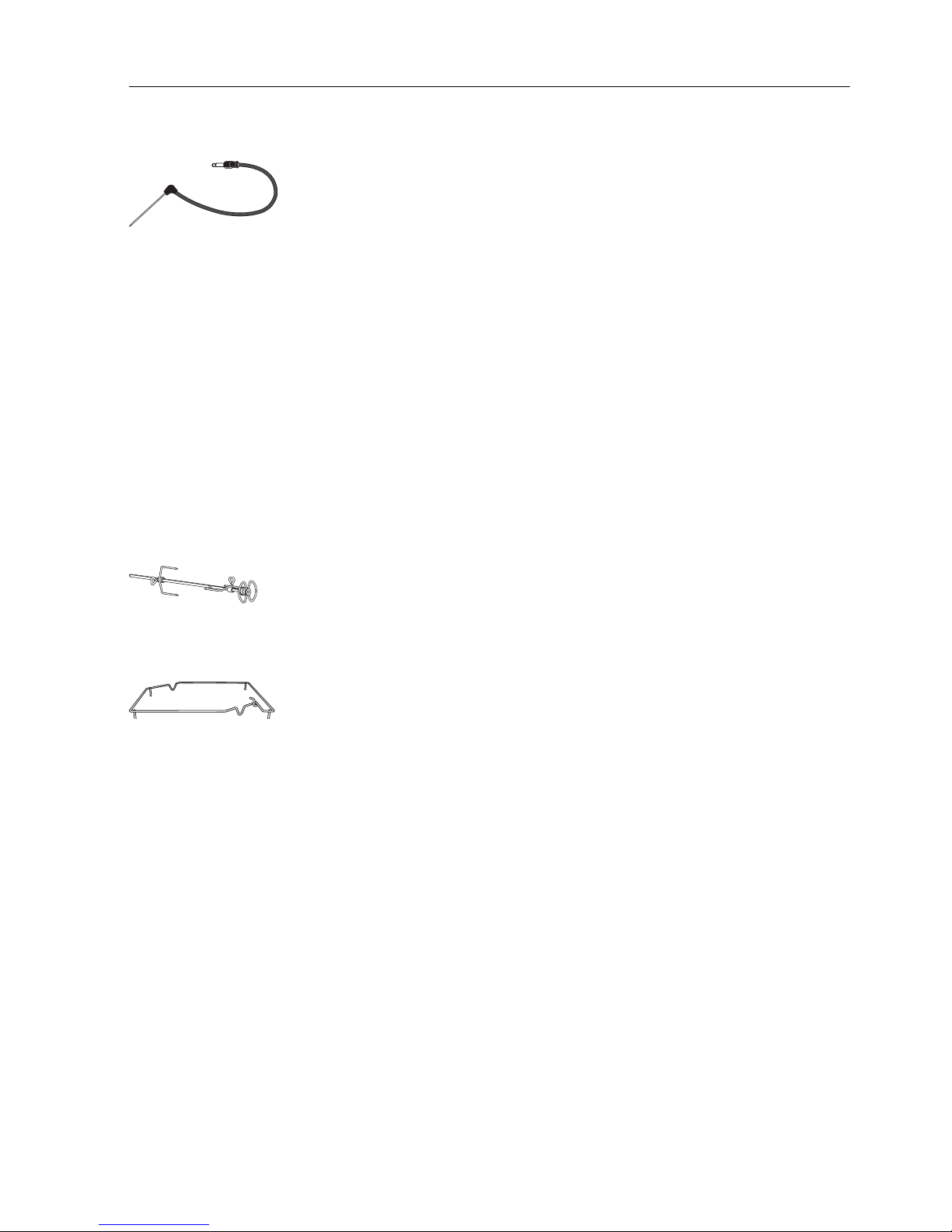

Food probe with angled handle
The food probe is suitable for measuring the core tem-
perature of food between the range of 30 °C to 99 °C.
As soon as the set food probe temperature is
reached, the appliance switches off automatically. A
guide to appropriate food probe temperatures can
be found in 'Tips on settings'.
The food probe can also be simply used to measure
the core temperature. In this case, the operating
mode must be switched off manually.
The food probe can be used with all operating
modes and with the rotisserie spit and roasting
basket.
Rotisserie spit
For preparing roasts and chicken.
Rotisserie frame
Rack for rotisserie spit and roasting basket.

… Appliance description
16
The following accessories are not included in the scope of delivery.
Roasting basket
For preparing roasts, a leg of lamb, etc.
Round TopClean baking tray
Baking tin for flans and quiches.
Available in three different sizes.
Porcelain dish
For preparing various dishes such as lasagne,
potato gratin, etc.
For grilling roasts, chicken, etc.
For keeping food warm.
Available in three different sizes.
Roller runner
For safely pulling out one or more trays / wire
shelves in order, for instance, to baste a joint of meat
or to take out a baking tin.

17
Operating the appliance
Using the buttons
The operating mode, the cooking space temperature, the food probe temper-
ature, the operating time, the switch-off time and various other functions can
be selected by pressing the appropriate button once or more.
The symbol for the function selected illuminates or flashes.
A recommendation flashes in the corresponding digital display.
Turn the adjusting knob to change the setting.
Press the adjusting knob to confirm the setting or it will be automat-
ically accepted after 10 seconds.
Other settings or changes can be made at any time.
Press the button to switch off the appliance.

… Operating the appliance
18
Using the plain text display
When the appliance is switched off, the adjusting knob is used to dis-
play text, to view the different selection options and to confirm.
Press the adjusting knob to activate the plain text display.
Turn the adjusting knob to view the selection options.
Press the adjusting knob again to confirm the selection.
Press the button to turn off the plain text display.
To return to the previous operating level, select «back» and press the
adjusting knob. The symbol indicates additional
information.
Select and press OK
Own recipes
Select and press OK
BakeOmatic
Select and press OK
Soft roasting
Select and press OK
Recipes
Select and press OK
Keep warm
Select and press OK
User settings
Select and press OK
back
i

… Operating the appliance
19

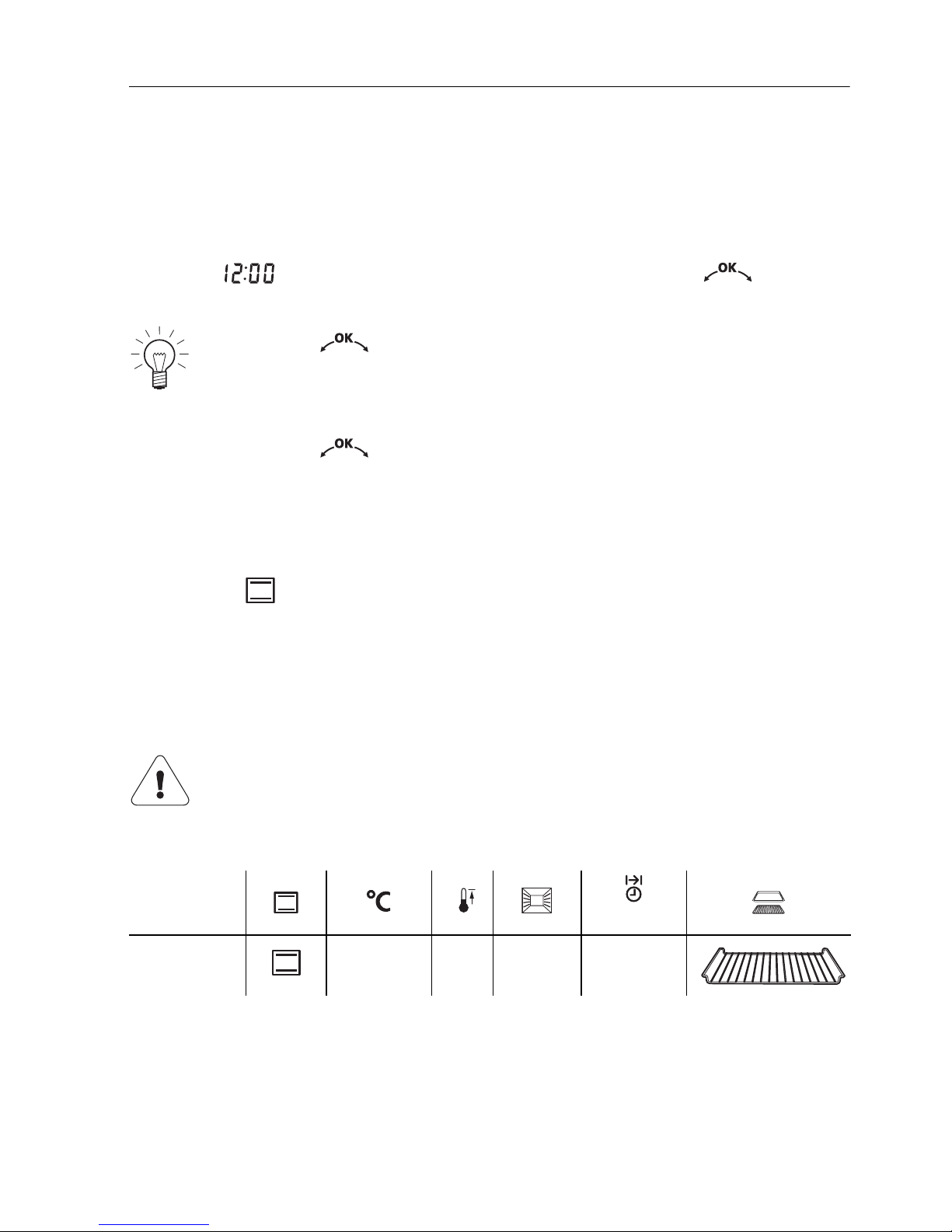

Using for the first time
Before using the newly installed appliance for the first time the following
measures should be taken:
ARemove all packaging and transport materials from the cooking space.
AWhen flashes in the right digital display, turn the adjusting
knob to set the time.
AClean the cooking space and the accessories.
AHeat the empty cooking space (i.e. without the wire shelf, baking tray, etc.)
using the operating mode at the maximum cooking space temperature
for approximately 1 hour. There is likely to be some smoke and odour giv-
en off, we therefore recommend ventilating the room well during this phase.
Example
The tables in 'Tips on settings' give:
APut the wire shelf at level 2.
APress the adjusting knob to switch between hours and
minutes.
ATurn it to set the hours and the minutes.
APress the adjusting knob to confirm the setting or it will be
automatically accepted after 10 seconds.
Burns hazard from heat produced during cooking and baking! Use
protective gloves or oven cloths. Keep children away.
Mins.
Cake 165–175 yes 2 50–65
˚C

… Operating the appliance
20
Selecting the operating mode
ASelect the operating mode.
– «Top/bottom heat» « Level 2» appears in the plain text display.
– flashes in the left digital display.
– The and symbols flash.
Changing the operating mode
The operating mode selected can be changed.
APress the button repeatedly until the desired operating mode appears.
Selecting the cooking space temperature
APress the button.
ATurn the adjusting knob and change the cooking space temperature
to .
APress the adjusting knob to confirm.
– «Top/bottom heat» « Appliance is heating up» appears in the plain
text display.
– The symbol illuminates.
– As soon as the cooking space has heated up, an acoustic signal is emit-
ted and «Top/bottom heat» « Level 2» appears in the plain text
display.
APlace the cake tin on the wire shelf.
It is recommended that the cooking space temperature be set to the
median temperature given in the 'Tips on settings'.
i
i
i
