V-ZUG Hotair SL User manual

Oven
Hotair SL
Operating instructions
VZUG LTD

2
Dear V-ZUG Customer
Thank you for choosing to buy one of our products.
Your appliance is made to high standards and is easy to use. Nevertheless, please
take the time to read these operating instructions in order to familiarize yourself with
the appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifica-
tions for the purpose of the further development of the appliance is reserved.
Symbols used
AIndicates step-by-step instructions.
– Describes how the appliance reacts to the steps taken.
䡲Indicates a list.
Validity
The model number corresponds to the first three digits on the identification plate. These
operating instructions apply to the following models:
Deviations depending on the model are noted in the text.
© V-ZUG LTD, CH-6301 Zug, 2006
Denotes important safety precautions. Failure to observe
said precautions can result in injury or damage to the appli
ance or fittings!
Denotes useful tips for the user.
Type Model no. Size system
BH-SL 704 55-381
BH-SL 705 60-381

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Children in the home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Appliance description 10
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating and display elements . . . . . . . . . . . . . . . . . . . 11
Using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . 13
General operating instructions . . . . . . . . . . . . . . . . . . . . . 13
User settings 14
Childproof lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Time display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Baking and roasting 17
Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Selecting an operating mode . . . . . . . . . . . . . . . . . . . . . 19
Checking / Changing the cooking space temperature . . . . . 20
Changing the operating mode . . . . . . . . . . . . . . . . . . . . 20
End of baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Optimal use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Clock functions 26
Setting and changing the time . . . . . . . . . . . . . . . . . . . . . 26
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Operating time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Delayed start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Tips on settings 32

…Contents
4
Care and maintenance 39
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the accessories . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the cooking space . . . . . . . . . . . . . . . . . . . . . . 40
Removing the appliance door . . . . . . . . . . . . . . . . . . . . . 41
Catalytic self-cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Troubleshooting 43
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
After a power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Tips and tricks 45
Note for testing institutes . . . . . . . . . . . . . . . . . . . . . . . . . 46
Accessories and spare parts 47
Disposal 48
Index 49
Repair service 51
Quick instructions 52

5
Safety precautions
In accordance with the requirements of IEC 60335-1:
䡲This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, un-
less supervised or unless they have been given instruction concerning the use of the
appliance by a person responsible for their safety.
Before using for the first time
䡲The appliance must be installed and connected up to the electricity supply in ac-
cordance with the separate installation instructions. The necessary work should be
done by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
䡲Before using the newly installed appliance for the first time, please follow the tips
in the 'Using for the first time' section.
䡲Make the desired user settings.
The appliance corresponds to recognised technology stand
ards and the relevant safety regulations. Proper use of the
appliance is however essential to avoid damage and acci
dents. Please therefore follow the precautions given in these
operating instructions.

…Safety precautions
6
Correct use
䡲The appliance is designed for use in the home for preparing food. No liability is
assumed for any damage caused by improper or incorrect use.
䡲Not to be used as a room heater or humidifier.
䡲Any repairs, modifications or manipulations to the appliance, especially any elec-
trical parts, should only be carried out by the manufacturer, its Customer Services
or similarly qualified persons. Repairs if carried out incorrectly may cause serious
injury, damage to the appliance and fittings, as well as affect the functioning of
the appliance. If the appliance is not working properly or in case of a repair order,
follow the instructions given in the 'Repair service' section. Please contact Customer
Services if necessary.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass the appli-
ance on to a third party, please ensure these operating instructions accompany the
appliance, together with the instructions on installation. In this way, the new owner
can inform themselves about how to use the appliance correctly and read the per-
tinent safety precautions.
Children in the home
䡲Packaging material (e.g. plastic, polystyrene) can be dangerous for children. Dan-
ger of suffocation! Please keep packaging material away from children.
䡲The appliance is designed for use by adults who are familiar with these operating
instructions. Children are often unable to recognise the danger of electrical appli-
ances. Ensure proper supervision and do not allow children to play with the appli-
ance – there is a danger that children can hurt themselves.
䡲Use the childproof locking facility.

…Safety precautions
7
Use
䡲If the appliance is visibly damaged, do not use it. Contact our Customer Services.
䡲If the appliance is not operating properly, disconnect it from the electricity supply
immediately.
䡲Ensure the mains cables of other electrical appliances do not get caught in the door
of the appliance, as the electrical cable insulation could get damaged.
䡲If the mains cable is damaged, it must be replaced by Customer Services.
䡲Ensure there are no foreign bodies or pets in the cooking space before closing the
appliance door.
䡲Objects that could pose a danger if the appliance were accidentally switched on
should not be stored in the cooking space. Do not store temperature-sensitive or
inflammable materials, e.g. cleaning agents, oven sprays, etc., in the cooking
space.
䡲Keep the appliance door closed when grilling. The heat could damage the oper-
ating and display elements or the fitted units above.

…Safety precautions
8
Caution: Burn hazard!
䡲The appliance gets very hot when in use.
䡲Heat is produced during baking and roasting. The appliance door, especially the
glass, can get hot. Burn hazard – do not touch. Keep children away!
䡲Overheated fat and oil can easily catch fire. Heating oil in the cooking space to
sear meat is dangerous and should not be done. Never try to extinguish burning
oil or fat with water – danger of explosion! Smother the flames with a damp cloth
and keep all doors and windows closed.
䡲Do not pour spirits (e.g. brandy, whisky, schnapps, etc.) over hot food – danger
of explosion!
䡲Accessories such as wire shelves and trays, etc. get hot in the cooking space.
Always wear protective gloves or use oven cloths.
䡲Do not leave the appliance unsupervised when drying herbs, bread, mushrooms,
etc. If the foodstuff dries out too much, it can pose a fire hazard.
䡲If you notice smoke from a possible fire coming from the appliance or from inside
the cooking space, keep the appliance door closed. Switch off the appliance or
disconnect it from the mains supply.
䡲The appliance will remain hot for some time after it is switched off and cool down
only slowly to room temperature. Allow sufficient time for the appliance to cool
down before, for instance, cleaning it.

…Safety precautions
9
Caution: Danger of injury!
䡲When using or cleaning the appliance be careful not to put fingers in the door
hinges, otherwise there is a risk of injury if the appliance door is moved.
Particular care should be taken when children are around.
䡲Only leave the appliance door open in the at-rest position. An open appliance
door poses danger of tripping or injury! Do not sit or rest on the appliance door
or use it as a storage surface.
How to avoid damaging the appliance
䡲Close the appliance door carefully.
䡲Using knives or cutting wheels on the original baking tray will visibly damage the
surface.
䡲To prevent corrosion, allow the cooking space to dry out thoroughly after use by
leaving the appliance door open in the at-rest position.
䡲When cleaning the appliance make sure no water gets inside it. Use a moderately
damp cloth. Do not spray the inside or outside of the appliance with water. Do not
use a steam cleaner. If water gets inside the appliance, it can cause damage.

10
Appliance description
Construction
1Operating and display elements
2Door handle
3Appliance door
1
2
3

…Appliance description
11

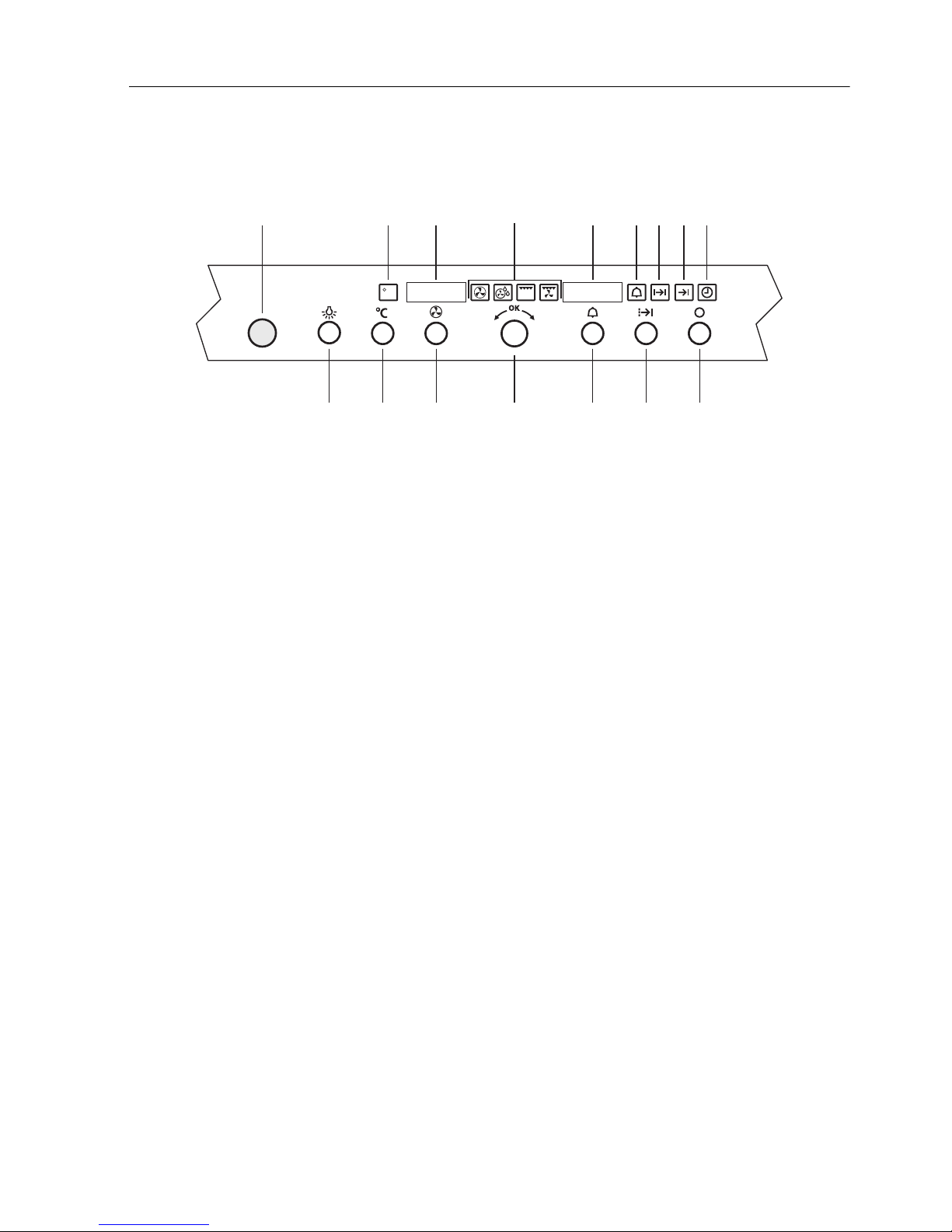

Operating and display elements
Buttons
Displays
Symbols
AIllumination ETimer
BCooking space temperature FOperating time and switch-off time
COperating mode GOff
DAdjusting knob
HTemperature ITime, duration and timer
JCooking space temperature MOperating time
KOperating modes NSwitch-off time
LTimer OTime
PCommunications interface
C
PK
J H I L M N O
A B C D E F G

…Appliance description
12

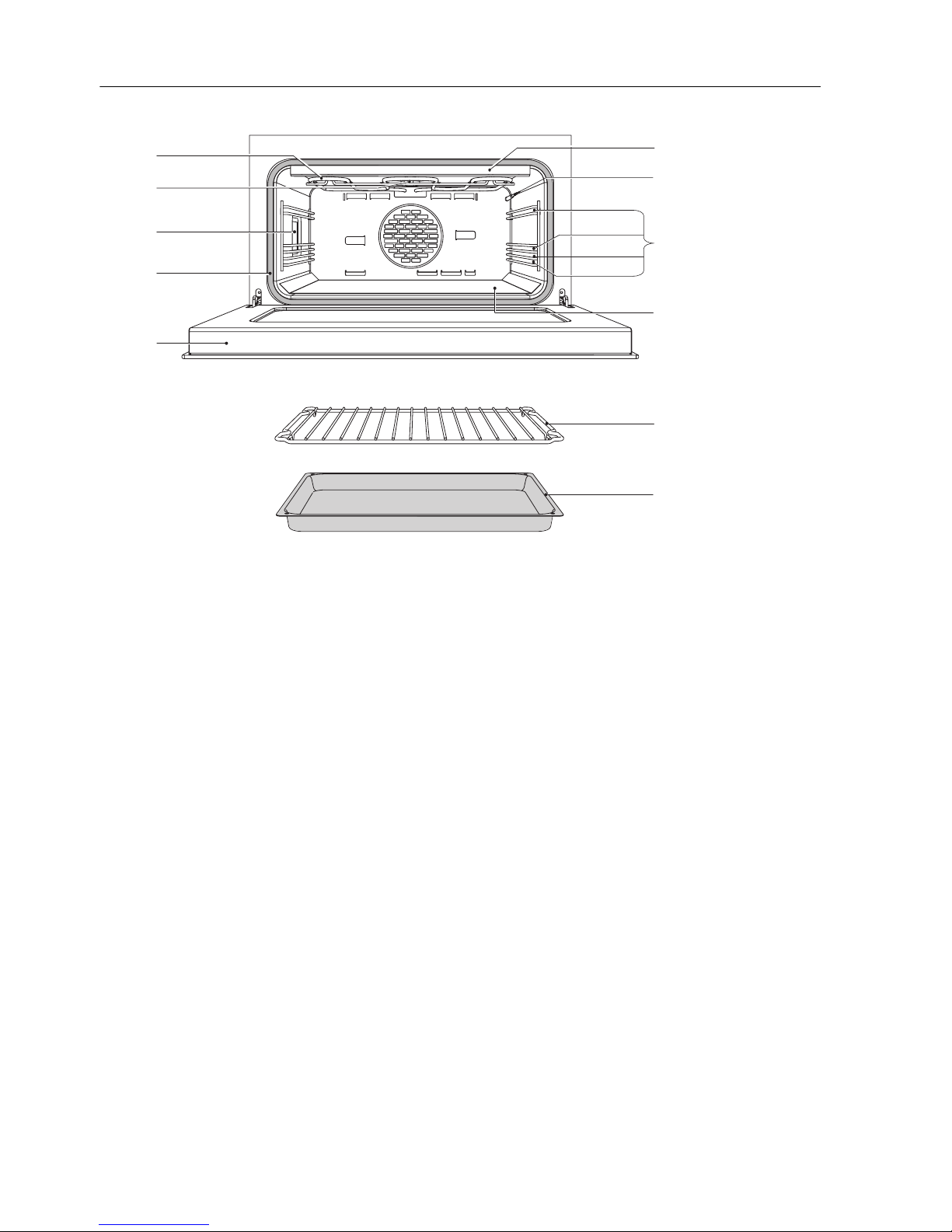

1Appliance door 7Cooking space temperature sensor
2Door seal 8Shelf levels
3Illumination 9Protective foil
4Cooking space ventilation 10 Wire shelf
5Grill 11 Original baking tray
6Grill guard
2
1
3
5
4
8
(Level 4)
6
7
(Level 1)
9
10
11
(Level 2)
(Level 3)

…Appliance description
13
Using for the first time
Before operating the newly installed appliance for the first time the following steps
should be taken:
ARemove all packaging and transport materials from the cooking space.
AIf the display on the right is flashing , turn the adjusting knob to set
the desired time.
– The display stops flashing after around 15 seconds and the time is set.
AHeat the empty appliance (i.e. without the wire shelf, baking tray, etc.) using the
operating mode at maximum temperature for approximately 1 hour. There is
likely to be some smoke and odour given off, we therefore recommend ventilating
the room well during this phase.
General operating instructions
The operating mode, cooking space temperature as well as the cooking time and vari-
ous other functions can be selected by pressing the appropriate button once or more.
䡲The symbol for the function selected illuminates or flashes.
䡲The corresponding display flashes with a recommended value.
䡲Turn the adjusting knob to change the recommended value.
䡲Press the adjusting knob to start the appliance straightaway.
䡲If the adjusting knob is not pressed, the appliance will start automatically within 15
seconds of the last setting change.
䡲Additional settings or changes can be made at any time.
䡲Press the button to switch off the appliance.

14
User settings
You can change the appliance settings to suit your own preferences. The procedure
is the same for all user settings.
The following diagram gives an overview of the possible user settings.
▪off *
▪on
▪invisible
▪visible *
* Factory setting
Childproof look
Time
ADepress button for 5 seconds.

…User settings
15
Childproof lock
The childproof lock is to prevent the appliance from being accidentally switched on.
Switching the childproof lock on / off
AWith the appliance switched off, hold the button depressed for 5 seconds.
– appears in the display.
APress the adjusting knob to confirm.
– appears in the display for childproof lock off.
APress the adjusting knob to confirm.
– appears in the display.
ATurn the adjusting knob to change the display to for childproof
lock on.
APress the adjusting knob to confirm.
APress the button to exit.
– The user setting selected is activated.
Operation with childproof lock activated
If the or buttons are pressed when the childproof lock is activated:
– A double acoustic signal is emitted.
– Nothing happens when the buttons are pressed.
– appears in both displays.
AWhen the childproof lock is activated, press the button together with the
or button.
– The childproof lock is overridden. The appliance can now be used as normal.
– The childproof lock is automatically reactivated 10 minutes after the appliance
has been switched off.
The / / and buttons can be used irrespective of whether
the childproof lock is activated or not.

…User settings
16
Time display
Select between
䡲(invisible)
䡲(visible)
Switching the time display on / off
AWith the appliance switched off, depress the button for 5 seconds.
– appears in the display.
APress the adjusting knob to confirm.
– appears in the display.
ATurn the adjusting knob until appears in the display for time
display visible.
APress the adjusting knob to confirm.
– flashes in the display.
ATurn the adjusting knob.
– appears in the display for time display invisible.
APress the adjusting knob to confirm.
APress the button to exit
– The user settings selected are activated.
If «invisible» is selected, the displays are not illuminated when the appliance
is off, minimizing electricity consumption. When the appliance is on the time
is displayed.

17
Baking and roasting
Operating modes
The operating modes available are described below.
Hot air
Hot air humid
APress the button1×.
– Recommended cooking space
temperature: 180 °C
A heating element behind the back wall of the
cooking space heats up the air inside the cooking
space. A fan circulates the hot air evenly around
the cooking space. The food is warmed evenly
from all sides so that it is possible to bake on two
levels at the same time and thus save energy.
Suitable for cooking moist cakes and pastries,
such as flans, on two levels.
APress the button 2×.
– Recommended cooking space
temperature: 180 °C
The steam produced during baking is largely
retained in the cooking space ensuring the food
retains its moisture.
Suitable for gratins, soufflés and yeast pastries.

…Baking and roasting
18
Grill
Grillforced convection
Keep appliance door closed when grilling.
APress the button 3×.
– Recommended cooking space
temperature: 250 °C
The grill is suitable for grilling and gratinating
food.
Use the wire shelf for grilling food that is not too
thick and for putting tins on.
APress the button 4×.
– Recommended cooking space
temperature: 200 °C
To avoid excessively dirtying the bottom of the
cooking space, put the food to be grilled in a
shallow, heatproof dish.
It is recommended that food be grilled on the wire
shelf at a cooking space temperature of between
150 °C and 190 °C. A baking tray lined with
aluminium foil placed at the lowest shelf level
serves as a drip tray.
Suitable for roasting chicken and meat as well as
for gratinating and browning.

…Baking and roasting
19
Selecting an operating mode
How to select an operating mode is explained by means of an example.
Assume you want to bake a cake in a 25 cm long cake tin. The 'Tips on settings' sec-
tion gives:
The recommended cooking space temperature is given as a range to take account of
differences between recipes. For the first attempt, it is recommended the cooking
space temperature be set at the median value – in this example, 160 °C.
APut the wire shelf in the cooking space at level 1.
APress the button once or more to select the desired operating mode – in this
example hot air.
– The symbol illuminates.
–The symbolflashes.
– The recommended cooking space temperature flashes .
ATurn the adjusting knob to set the desired temperature – in this example
.
The recommended cooking space temperature can be changed as long as the
symbol and the temperature display are still flashing. If they have
already stopped flashing, press the button.
Burn hazard from heat produced during baking and
roasting! Please read the 'Safety precautions' section first.
Preheat Level Time in
mins.
Cake, 25 cm 155–165 yes 1 50–60
If the cooking space temperature is not changed within the next 15 seconds,
the appliance switches on automatically.
C
C

…Baking and roasting
20
APress the adjusting knob to start the appliance straightaway.
– As long as the cooking space temperature is under 30 °C, appears
in the temperature display.
– A single acoustic signal is emitted when the set cooking space temperature is
reached.
APlace the cake tin on the wire shelf.
Checking / Changing the cooking space temperature
The set cooking space temperature can be checked or changed during operation.
APress the button.
– The symbol flashes for approximately 15 seconds.
– The set cooking space temperature flashes in the temperature
display.
ATurn the adjusting knob to change the cooking space temperature.
Changing the operating mode
The operating mode can be changed during operation.
APress the button repeatedly until the desired operating mode appears.
– The set cooking space temperature remains unchanged.
The temperature display shows the temperature in the cooking space rising.
C
