V3 SOUND GRAND PIANO XXL User manual

Manual
Grand Piano XXL

12
Thank you for choosing the V3 GRAND PIANO XXL — the most modern technology inside an electronic
musical instrument.
The third generation of our sound expander creates an open, lively and authentic sound, just like a real
concert piano. The unmistakable timbre of two exclusive grand pianos await you, equipped with the
latest in modelling algorithms: Imperial 290 of Vienna and Model “D,” constructed in Hamburg.
❶String resonance – pedal down: Our new multi-layer algorithm creates a sound that
perfectly simulates the real depth – the physical depth – of the instrument.
❷Sympathetic resonance: passive string resonance.
❸Note-Off samples: Created with note velocity and length
❹Pedal On/Off noise: Connect a sustain pedal to the unit.
The pedal noise only sounds with a sustain pedal connected to the V3SOUND housing.
❺Half pedal function: Use a controller pedal,
like ROLAND® DP-10, to vary the sustain lengths.
❻Sustain pedal “grabbing:” Press the sustain pedal again after you release it to
extend the resonance of the strings.
MIDI-THRU MIDI-IN
POWER ON/OFF USB-HOST
MAIN REVERB
LED - POWER ON
LED - MIDI
MAIN VOLUME
SAFETY INSTRUCTIONS
• Read the user manual before using the device
• Do not allow any liquid to come in contact
with the device
• Do not place anything on top of the device
• Do not handle the power supply with wet hands
• Turn off all connected devices before you
connect any new devices
Do not use or store the device where it is
exposed to:
• dampness or wetness
• extreme temperature changes
(i.e. do not store in a vehicle in winter)
• strong vibrations or jolts
HANDLING
• Use only the original cables and power supply
• Remove the cable only by pulling on the plug,
not on the cable
• Do not expose the power adapter to any
mechanical stress
CUSTOMER SERVICE
Do not carry out any repairs at home, as this may
result in permanent damage to the electronics.
Any guarantee claims are no longer valid in this
case.
ACCESSORIES
Manual and power
POWER REQUIREMENT
9VDC / 1.0A
HUMIDITY
max. 80%, non-condensing
OPERATING TEMPERATURE
10 to 40 degrees Celsius

!


All the audio recordings V3SOUND uses on
the sound boards are protected by copyright.
V3SOUND alone has been given the right by all
musicians involved to use this material. Any du-
plication, editing or any other copy of individual
sounds by or given to a third party in any form
(audio sampling CD, data storage device with
individual sounds, download of any file, etc.) is
strictly forbidden.
Copyright © 2017 V3SOUND - Austria
• Master Volume
• Master Reverb
• 4 GB flash memory
• 16 MIDI channels
• 4 audio out (2 stereo)
• Polyphony 256 voice
• Port available for 1 sustain foot pedal
• Dimensions: 12cm (L) x 12cm (W) x 6cm (H)
• Weight: 0.2 kg
• USB Host
The CE certification is available at
http://www.v3sound.com/support/
V3SOUND GMBH
Kirchplatz 7 - 6114 Kolsass - Austria - Europe
This product conforms to the
FCC 47 CFR PART 15
SUBPART B
OverviewSafety precautions Copyright
Specification
Piano Modelling Algorithm
User interface and porst

43
To avoid possible damage to the loud speakers or
other connected electronic devices, always connect
all cables before turning on the amplifier. Turn on
the GRAND PIANO XXL first before turning on any
active loud speakers or amplifiers.
Make sure the POWER switch on the back
of the device is in the OFF position
(LED light is not on).
Plug the power adapter that came with the
device into the DC port on the back of the unit.
Plug the other end of the power adapter
into a power outlet. Make sure that the
adapter is compatible with the power supply.
Connect the audio outputs to an amplifier,
active loudspeakers or headphones.
Connect the MIDI or USB cable
to the V3 unit.








Before you turn the device on or off, make sure that
all connected audio devices that amplify the audio
signal (mixer, amplifier, active loud speakers) have
their volumes turned down.
Press the POWER ON/OFF switch on the
back of the device.
Turn up the V3 unit MAIN VOLUME
knob to adjust the volume.
Adjust the volume on your mixer or
active loudspeaker.

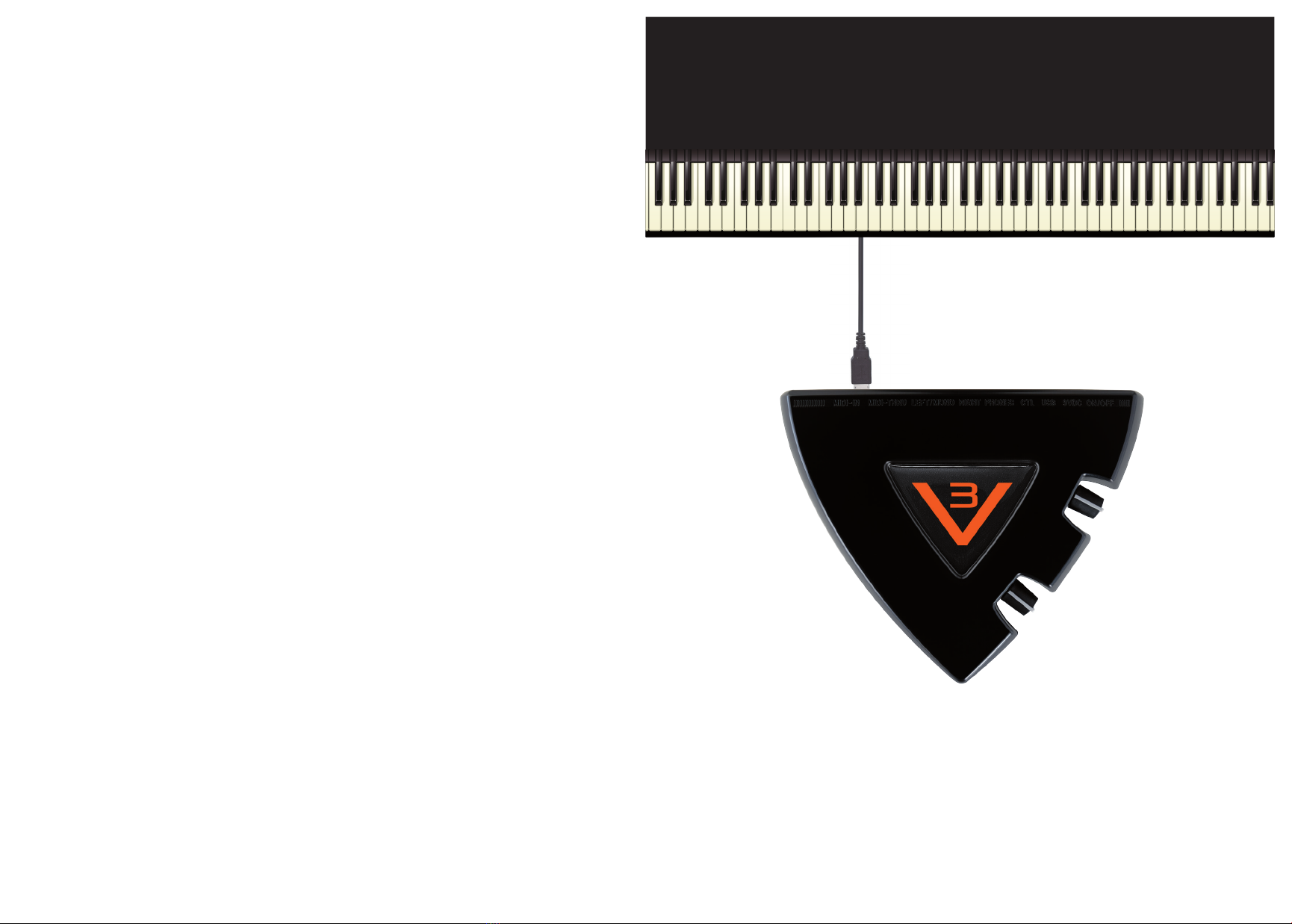

The V3 unit can be connected to any USB Audio
Class 1 compatible keyboard.
The GRAND PIANO XXL can supply your USB
keyboard with a maximum of 500mA.
If your keyboard requires more than 500mA,
you will need an external power supply.
Just plug in your USB keyboard here.
The polarity of the sustain foot pedal is set up
automatically when you turn on the V3.
The pedal only works on MIDI channel 1.
Connect the foot pedal before turning on the
device.
To use the AUX OUT for any MIDI channel, you
must manually change the 4 internal switches
and send a MIDI message on the specied
MIDI channel.
The connection changes from 2 mono jacks to
2 stereo jacks.
One stereo jack gives you the MAIN stereo;
the other one the AUX stereo.
The V3 GRAND PIANO XXL sound board is a
16-channel, multi-timbral MIDI tone genera-
tor. Change sounds by sending a program
change through MIDI.
Sympathetic resonance, sustain pedal grab-
bing and the half pedal function are only
active on MIDI channel 1.
HO = Hammer off noise
PD = Pedal noise
V= Number of necessary voices (OSC) per note.
STEREO L + R standard = BABAA (grafic)
STEREO + AUX = BBABB
ABOUT POLYPHONY
e unit oers 256 mono voices. Many sounds of the
Grand Piano XXL use 6 voices per note.
If you hit 10 notes at the same time, 60 voices are used.
If you hold down the sustain pedal, the 60 voices are
sustained and still in use. If you play again, 60 more
voices are needed.
So, do not forget to release the sustain pedal!
If you exceed the Polyphony, a clicking sound is audible.
Connect To turn on Foot pedal
Aux out - 2nd stereo out
Select sounds
Connect – USB keys
TIP
Turn the volume on the V3 unit as loud as possible,
and then adjust the volume of the sound on your mixer.

65
Prg. Sympathetic reso. Pedal down reso. Noise V
0Grand Piano Vienna -- Ho, Pd 3
1 Grand Piano Hamburg - - Ho, Pd 3
2Grand Piano Vienna Rock - Ho, Pd 3
3 Grand Piano Hamburg Rock - Ho, Pd 3
4Grand Piano Vienna -original Ho, Pd 5
5 Grand Piano Hamburg - original Ho, Pd 5
6Grand Piano Vienna -softer Ho, Pd 5
7 Grand Piano Hamburg - softer Ho, Pd 5
8Honky Tonk -- Ho, Pd 5
9Upright Piano Variation -- Ho, Pd 5
10 Grand Latin Vienna Octave - - Ho, Pd 4
11 Grand Latin Hamburg Octave - - Ho, Pd 4
Prg. Sympathetic reso. Pedal down reso. Noise V
12 Grand Vienna Layered EP-FM - - - 4
13 Grand Hamburg Layered EP-FM - - - 4
14 Grand Vienna Layered E-Piano - - - 3
15 Grand Hamburg Layered E-Piano - - - 3
16 Grand Vienna Layered Pad - - - 4
17 Grand Hamburg Layered Pad - - - 4
18 Grand Vienna Layered Strings - - - 4
19 Grand Hamburg Layered Strings - - - 4
20 Grand Vienna Dream Sus Resonance - - - 3
21 Grand Hamburg Dream Sus Resonance - - - 3
Prg. Sympathetic reso. Pedal down reso. Noise V
22 Electric Grand - - - Ho, Pd 4
23 Electric Grand -   Ho, Pd 4
24 Electric Grand Vibrato 1 - - - 4
25 Electric Grand Vibrato 2 - - - 4
26 Electric Grand Layered EP_FM - - - 5
27 Electric Grand Layered Pad - - - 5
28 Electric Grand Microphon - - Ho, Pd 4
Prg. V
56 Clavinet - 2
57 Harpsichord - 2
Bank MSB 0
Bank MSB 0
Bank MSB 0
Bank MSB 0
Grand Piano
Grand Piano & Layer
Electric Grand
Stringed
Prg. V
29 E-Piano MK1 Dyno - velocity splits 9 2
30 E-Piano MK1 Dyno soft velocity splits 6 2
31 E-Piano MK1 Dyno Vibrato 1 velocity splits 9 2
32 E-Piano MK1 Dyno Layered Pad velocity splits 9 4
33 E-Piano MK1 Dyno Layered FM velocity splits 9 5
34 E-Piano MK1 Dyno Layered MKS velocity splits 9 3
35 E-Piano MK1 Classic - velocity splits 2
36 E-Piano MK1 Classic soft velocity splits 2
37 E-Piano MK1 Classic Vibrato 1 velocity splits 2
38 E-Piano MK1 Classic Layered Bell velocity splits 4
39 E-Piano MK1 Classic Layered FM velocity splits 5
40 E-Piano MK1 Classic Layered MKS velocity splits 3
41 E-Piano Wurl. A200 - velocity splits 2
42 E-Piano Wurl. A200 soft velocity splits 2
43 E-Piano Wurl. A200 Vibrato 1 velocity splits 2
44 E-Piano Wurl. A200 Vibrato 2 velocity splits 4
45 E-Piano Wurl. A200 Vibrato 3 velocity splits 5
46 E-Piano Wurl. A200 no tines velocity splits 3
47 E-Piano DX Classic - note-off 5
48 E-Piano FM - note-off 4
49 E-Piano FM Vibrato 1 note-off 4
50 E-Piano FM Layered Pad - 5
51 E-Piano FM & MKS - Repetition Attack 4
52 E-Piano V3 Bella - velocity splits 1
53 E-Piano V3 Bella Note off 1 Oct. up velocity splits 2
54 E-Piano V3 Bella Layered Cortales velocity splits 3
55 E-Piano V3 Bella Layered Pad velocity splits 4
Bank MSB 0
E-Piano

87
Prg. V
58 Organ 776555678 slow 4
59 Organ 776555678 fast 4
60 Organ 800000000 slow 4
61 Organ 800000000 fast 4
62 Organ 807800000 slow 4
63 Organ 807800000 fast 4
64 Organ 800000008 slow 4
65 Organ 800000008 fast 4
66 Organ 687600000 slow 4
67 Organ 687600000 fast 4
68 Organ 888 perc slow 4
69 Organ Ham Full 4
70 Theatre Organ Mighty Tower 4
71 Combo Organ Vibrato 4
72 Classic Organ Tutti 4
73 Classic Organ Pipe 4
Prg. V
83 Full Strings Chamber 1 Emotion 6
84 Full Strings Chamber 1 6
85 Full Strings Orchestra 2 6
86 Full Strings Orchestra 3 Emotion 6
87 Full Strings Tremolo 2
88 Full Strings Pizzicato 2
89 Solo Violin Vibrato 2
90 Synth Strings PWM 2
91 Synth Strings analog 2
Prg. V
92 Choir Classic Aah 2
93 Choir Pop Ooh 3
Prg. V
94 Trumpet 2
95 Cornet 2
96 Mute Trumpet 2
97 Trombone 2
98 Brass Section Pop 4
99 Brass Section Classic 4
Prg. V
100 Alto Saxophon 2
101 Tenor Saxophon 2
102 Tenor Saxophon - Jazz 2
103 Tenor Saxophon Funky 2
104 Flute 2
105 Oboe 2
106 Englishhorn 2
107 Bassoon 2
108 Clarinet 2
Prg. V
74 Accordion French Musette 4
75 Accordion French Celeste 4
76 Accordion Jazz Reed 16´ 2
77 Harmonica 2
Prg. V
78 Vibraphone 1
79 Marimba 2
80 Xylophone 1
81 Dulcimer 1
82 Harp 3
Bank MSB 0 Bank MSB 0
Bank MSB 0
Bank MSB 0
Bank MSB 0
Bank MSB 0
MSB 0
Organs Strings
Choir
Brass
Woodwinds
Accordions
Tuned Instruments
Prg. V
109 Nylon Guitar 2
110 Jazz Guitar 2
111 Overdrive Guitar 2
Prg. V
112 BellPad 4
113 SoftPad 4
114 Classic Polysynth 4
115 Square Lead 4
116 P5Brazz 4
117 SawLead 4
118 HookLead 2
119 Pad 2
120 Bells 2
121 OberBrass 2
122 T8SuperBrass 2
Prg. V
123 Grand Piano & E-Bass Split note 48 - C 4
124 Grand Piano & Double bass Split note 48 - C Repetition & Random 4
125 Grand Piano & Double bass & Ride Split note 48 - C Repetition & Cym. velo. split 4
Prg. V
126 Orchestra Percussion Mapping Page 23 2
Prg. V
127 Silence - no sound 0
Bank MSB 0
Bank MSB 0
Bank MSB 0
Bank MSB 0
Bank MSB 0
Guitar
Synthesizer
Piano & Bass & Cymbal Split
Orchestra Percussion
Silence - no sound

109
Prg.
0 Organ 776555678 slow
1 Organ 776555678 fast
2 Organ 800000568 slow
3 Organ 800000568 fast
4 Organ 008530000 slow
5 Organ 008530000 fast
6 Organ 800000000 slow
7 Organ 800000000 fast
8 Organ 807800000 slow
9 Organ 807800000 fast
10 Organ 804708000 slow
11 Organ 804708000 fast
12 Organ 800008000 slow
13 Organ 800008000 fast
14 Organ 800000008 slow
15 Organ 800000008 fast
16 Organ 687600000 slow
17 Organ 687600000 fast
18 Organ 888 perc slow
19 Rock Organ
20 Ham Full
21 Ham L100 Retro KW1
22 Ham L100 Retro KW2
23 German Organ DB slow
24 German Organ DB fast
25 German Organ FL slow
26 German Organ FL fast
27 Version UK
Bank MSB 1
Organ
Prg.
28 Theatre Organ Mighty Tower
29 Theatre Organ + Xylo Reiteration
30 Theatre Organ + Glocken Reiter.
31 Theatre Organ Piston 2
32 Theatre O. Piston 2+ Xylo Reiteration
33 Theatre O. Piston 2 + Glocken Reiter.
34 Theatre Organ Royal
35 Theatre O. Royal + Xylo Reiteration
36 Theatre O. Royal + Glocken Reiter.
37 Theatre Organ Pedal Bass
38 Organ House
39 Combo Retro Vibrato 1
40 Combo Retro Vibrato 2
41 Classic Organ Tutti 1
42 Classic Organ Tutti 2
43 Classic Organ Pipe Pos Nazard
44 Classic Organ Pipe Combi Funds 8
45 Classic Organ Pedal Flute 16
Prg. Attitudes of 16 51/3 8 4 22/3 2 13/5 11/3 1 Percussion
46 Jimmy Smith 8 8 8 Perc 3
47 Joey DeFrancesco 8 8 8 8 Perc 2
48 Charles Earland 8 8 8 8 Perc 3
49 Brian Auger 8 8 8 6 Perc 2
50 Garner-Set 8 8 8 8 8 Perc 3
51 Piano Set 8 Perc 2
52 Walter Wanderley 8 7 Perc 2
53 Whistle 8 8 Perc 2
54 Gospel Set 8 8 8 4 4 8 Perc 2
55 Blues Set 8 8 5 3 2 3 5 8 8 Perc 3
56 EasyListening 8 8 8 8 8 Perc 2
57 Jimmy Smith 8 8 Perc 3
58 Jimmy Smith 8 8 Perc 3
59 Joey Defrancesco 8 8 7 6 4 Perc 3
60 Ballad 2 8 2 Perc 2
61 Jesse Crawford 8 8 Perc 3
62 Joey Defrancesco 8 3 8 Perc 3
63 Booker T. Jones 8 8 8 6 3 Perc 3
64 Green Onions 8 8 8 8 Perc 3
65 Matthew Fisher 8 8 8 Perc 2
66 Jimmy McGriff Gospel 8 8 8 6 6 Perc 2
67 Chords 4 3 7 Perc 3
68 Chords 8 4 Perc 2
69 Walter Wanderley 8 8 6 Perc 3
70 Walter Wanderley 8 8 Perc 3
71 Lenny Dee 8 8 8 8 Perc 2
72 Lenny Dee 8 8 8 8 8 Perc 3
73 Lenny Dee 8 8 8 8 8 Perc 2
74 Ethel Smith 8 8 8 8 8 Perc 2
75 Ken Griffin 8 8 8 8 8 Perc 2
76 Jon Lord 8 8 8 Perc 2
77 Jimmy Smith 8 8 Perc 2
78 Jimmy Smith 8 8 Perc 2
79 Exclusive 8 8 Perc 2 & 3 Repe.
80 Exclusive 8 3 8 Perc 2 & 3 Repe.
Bank MSB 1
Organ - Drawbar Registrations

1211
Prg. 16 51/3 8 4 22/3 2 13/5 11/3 1 Percussion
81 Standard 8 8 8 7 6 6 Perc 2
82 Standard 8 8 8 5 5 5 6 6 6 Perc 2
83 Standard 8 8 8 8 8 8 Perc 3
84 Standard 8 8 8 5 4 4 8 8 8 Perc 3
85 Standard 8 8 8 8 7 6 6 Perc 3
86 Experiment 8 8 8 6 Perc 1 exp.
87 Experiment 8 7 6 5 Perc 1 exp.
88 Experiment 8 8 8 8 5 Perc 13/5 exp.
89 Experiment 8 7 6 5 Perc 8 exp.
90 Standard 8 7 6 7 Perc 3
Bank MSB 1
Organ - Drawbar Registrations
Prg.
91 Bars 1st Three + Attack
92 Bars 1st Four + Attack
93 Bar 16 + Attack
94 Bars 19 - 8 + Attack
95 Bar 8 + Attack
96 Bar 5 1/3 + Attack
97 Vib A (HPF)
98 Vib B (HPF)
99 Full Organ (HPF)
100 Highest (HPF)
101 Middle Mixed (HPF)
102 Bars 1st Three
103 Bars 1st Four
104 Bar 16
105 Bar 16 & 8
106 Bar 8
107 Bar 5 1/3
108 Bar 4
109 Bar 2 2/3
110 Bar 2
111 Bar 1 3/5
112 Bar 1 1/3
113 Bar 1
Prg.
114 Percussion 2
115 Percussion 2 long
116 Percussion 3
117 Percussion 3 long
118 Theatre Organ Glocken Hit
119 Theatre Organ Glocken short
120 Theatre O. Glocken Reiteration
121 Theatre Organ Xylo Hit
122 Theatre Organ Xylo Reiteration
123 Theatre Organ Xylo H & R
124 T. O. Glocken Reiter velocity
125 T. O. Xylo Reiter velocity
126 Organ Click
127 Silence
Bank MSB 1
Organ - Drawbars
Prg.
0 Bells & Pad
1 Digital Pad
2OBX & Wavebell
3DX1 Toy
4Star Them
5 Brightness
6 OB & Noise
7 Atmos
8 Brass Comp
9 Brass Rex
10 Polysynth Classic
11 Halo Pad
12 Caliope
13 Charang
14 Fairly Space
15 Echo Drop
16 VF Vox
17 Bass & Lead
18 Fantasia
19 Bowed Glass
20 Soft Pad
21 Ice Rain
22 Goblin
23 SoundTrack
24 Atmosguitar
25 Bottle soft
26 Polysynth Classic 5th
27 SquareLead
28 P5Brass
29 Saw
Prg.
30 SawEnv
31 C-Lead
32 SoloVox
33 MetalPad
34 JunoSweep
35 Vangbrass
36 Crystal
37 FM8
38 Mo55
39 DXBell
40 OBS1
41 OBSoft
42 Hook
43 FMPluk
44 FMBrazz
45 Ice
46 BoHook
47 VPhrase
48 VP1
49 Grace
50 Noise
51 Digirace
52 Shinner
53 Pad-A
54 Vibro
55 Digisi
56 Alex
57 VZBell
58 VZ1
59 Mizoo
Bank MSB 2
Synthesizer

1413
Bank MSB 2
Synthesizer
Prg.
60 Bellko
61 Bellz
62 AnalogOB
63 M3Osc
64 M12Brass
65 M12Brass ENV
66 OBLead
67 OBArp
68 OBell
69 OBrass
70 Mach1
71 Brazza
72 Brasso
73 T8SuperBrass
74 T8SuperBrass ENV
75 Dells
76 Pulse
77 Pulso
78 PWD24
79 Xypho
80 Charpo
81 Jippo
82 JXArp
83 Bamarimba
84 JCO10
85 JXBell
86 StabBrass
87 Clouds
88 BellHit HP Filter
89 OBNoise
90 Noise down
91 Voxo (Notch filter 12)
92 APad Notch (Notch filter 12)
93 PWD (Notch filter 12)
94 MOSC (Notch filter 12)
Prg.
95 Square (Band pass filter 24)
96 OXB (Band pass filter 24)
97 Hook (Band pass filter 24)
98 Pulso (Band pass filter 24)
99 Jops (Band pass filter 12)
100 Filter (Band pass filter 24)
101 PolyS (Band pass filter 24)
102 OBLead (Band pass filter 24)
103 JXBell (Notch Filter 24)
104 Barimbo (Band pass filter 24)
105 Arpp (Band pass filter 24)
106 Bottle (High pass filter 12)
107 Jells (Band pass filter 24)
108 Poly (High pass filter 24)
109 Mogo (High pass filter 24)
110 HBells (High pass filter 24)
111 HBelly (High pass filter 6)
112 HBrass (High pass filter 24)
113 ClassicPoly (High pass filter 12)
114 Harppo (High pass filter 24)
115 Hipps (High pass filter 6)
Prg.
116 Classic Synth Bass
117 Classic Synth Bass Rezo
118 JBass 1
119 JBass 2
120 JBass 3
121 JBass soft
122 CS Classic Bass
123 MoBass
124 MoBass ENV
125 XBass 1
126 XBass 2
127 Silence
Bank MSB 2
Syn. Bass
Prg.
0 Glockenspiel
1 Music Box
2 Music Box oct. delay
3 Vibraphone
4 Vibraphone short release
5 Vibraphone soft Attack
6 Vibraphone no Vib.
7 Vibraphone no Vib. shot Rel.
8 Vibraphone fast Tremolo
9 Celeste
10 Tinkle
11 Marimba
12 Marimba octave delay
13 Marimba & Xylophon
14 Xylophone
15 Xylophone octave delay
16 Tubular Bell
17 Tubular Bell 2
18 Timpani
19 Kalimba
20 Cortales
21 Steel drums
22 Guitar Nylon
23 Guitar Nylon soft
24 Guitar Nylon Octave
25 G. Nylon Slide (velo. 116-127 Slide)
26 Guitar Steel
27 Guitar Steel soft
28 G. Steel Slide (velo. 116-127 Slide)
29 Banjo
30 Banjo Slide
31 Mandoline Ensemble Tremolo
32 Mandoline Ensemble
33 M. Ens. Split (velo. 116-127 Split)
Prg.
34 Git. Jazz 1
35 Git. Jazz 2
36 Git. Jazz & Octave
37 Pedal Steel Vib.
38 Pedal Steel
39 Pedal Steel bowed
40 P. Steel Slide (velo. 116-127 Slide)
41 Git. Jazz Chicken Picking 1
42 Git. Jazz Chicken Picking 2
43 E-Guitar clean
44 E-Guitar Overdrive
45 E-Guitar Distortion
46 Mute Guitar
47 Harpsichord
48 Harpsichord & Octave
49 Clavinet 1
50 Clavinet 2
51 Dulcimer 3 strings
52 Dulcimer 3 strings+
53 Dulcimer 3 strings Tremolo
54 Dulcimer 3 strings bowed
55 Dulcimer 5 strings
56 Dulcimer 5 strings+
57 Dulcimer 5 strings Tremolo
58 Dulcimer 5 strings bowed
59 Harp
60 Harp long
61 Sitar
62 Shamisen
63 Koto
64 Shanai
Bank MSB 3 Bank MSB 3
Perc. Instruments Stringed Instr.

1615
Prg.
65 Upright Jazz Bass Random
66 Upright Jazz Bass Random Note off
67 Upright Jazz Bass velo 96 - 105
68 Upright Jazz Bass velo 96 - 105 Note off
69 Upright Jazz Bass velo. 120
70 Upright Jazz Bass velo. 120 Note off
71 Upright Jazz Bass no finger attack
72 Upright Bass finger attack
73 Upright Bass more finger attack
74 Upright Bass no finger attack
75 Bowed Upright Bass
76 Bowed Upright Bass shorter release
77 E-Bass Flat
78 E-Bass Flat Repetition
79 E-Bass US 1
80 E-Bass US 2
81 E-Bass US 2 Filter
82 E-Bass Pick
83 E-Bass Pick dark
84 EBass Fretless
85 Slap Bass
86 Slap Bass
87 EB & Baritone horn layered
Bank MSB 3
Bass
Prg.
88 Accordion Musette VM German
89 Accordion Musette VM +16 German
90 Accordion Musette VM +4+16 German
91 Accordion Musette Gala Italian
92 Accordion Musette French
93 Accordion Musette +16 French
94 Accordion Musette +4 French
95 Accordion Musette +4+16 French
96 Accordion French Celeste French
97 Accordion French Celeste +4 French
98 Accordion French Celeste +16 French
99 Accordion French Celeste +4+16 French
100 Accordion 4+16 universal
101 Accordion 4+8+16 universal
102 Tango French
103 Tango +4 French
104 Accordion 8+16 universal
105 Accordion 4+8+16 universal
106 Reed 4+8
107 Reed 8+8
108 Accordion Celeste 88
109 Accordion Celeste 88 +
110 Accordion Celeste 88 ++
111 Reed 16
112 Reed 8 Casotto
113 Reed 8
114 Reed 4
115 Melodeon Austrian
116 Melodeon Irish
117 Accordina
118 Harmonica
119 Harmonica Slide velo. 116-127 Slide
120 E-Accordion Retro
121 E-Accordion Retro long release
127 Silence no sound
Bank MSB 3
Accordion

17 18
Bank MSB 4
Drums & Percussion
120 Pop Drum Kit (page 23)
121 Jazz Drum Kit (page 23)
122 Orchestra Percussion (page 23)
123 Voice Kit (page 23)
Prg.
64 Classic Choir Aah
65 Classic Choir Aah Filter
66 Classic Choir Ooh
67 Classic Choir Ooh Filter
68 Choir Ooh
69 Choir Ooh Filter
70 Boys Aah
71 Boys Ohh
72 Boys Doo
73 Boys Doo Bass
Prg.
74 Girls Aah
75 Girls Ohh
76 Girls Doo
77 Boys & Girls Octave Ahh
78 Boys & Girls Octave Doo
79 Synth Voice
80 Voiceless
100 Orch Hit Major
101 Orch Hit Minor
Prg.
00 Full Strings 1 Chamber Emotion velocity to attack
01 Full Strings 1 Chamber short Release shot
02 Full Strings 1 Chamber medium Release medium
03 Full Strings 1 Chamber long Release long
04 Full Strings 1 Chamber slow Slow Attack
05 Full Strings 2 short Release shot
06 Full Strings 2 medium Release medium
07 Full Strings 2 long Release long
08 Full Strings 2 forte forte only
09 Full Strings 2 piano piano only
10 Full Strings 3 Emotion velocity to attack
11 Full Strings 3 FAD layered 4
12 Full Strings 3 slow slow
13 Full Strings 3 standard
14 Full Strings Tremolo
15 Full Strings Pizzicato
16 Disco Strings long
17 Disco Strings short
18 Disco Strings Glide down
19 Disco Strings Slide velo. 116-127 Slide
20 String Ensemble Detache Dynamic curve 1
21 String Ensemble Detache Dynamic curve 2
Prg.
22 Violin
23 Viola
24 Cello
25 Contrabass
26 Celtic fiddle
27 Celtic fiddle (softer attack)
28 C. fiddle Slide (velo. 116-127 Slide)
Prg.
29 Strings PWM A
30 Strings PWM B
31 Strings PWM C
32 Strings PWM D
33 Strings MKS A
34 Strings MKS B
35 Strings MKS C
36 Strings MKS D
37 Strings Retro Solino
38 Stringmaster Retro
39 Strings M12
40 Strings M12
41 Strings M12
42 Strings M12
43 Strings M12
44 Strings M12
Bank MSB 3
Bank MSB 4
Bank MSB 4
Bank MSB 4
Choir
Strings Ensembles
Solo Strings
Synth Strings
Prg.
45 Strings MKS
46 Strings MKS
47 Strings MKS
48 Analog Strings
49 Analog Strings
50 Analog Strings
51 JP Strings
52 JP Strings
53 JP Strings
54 JP Strings
55 MKS Strings
56 MKS Strings
57 MKS Strings
58 OB Strings
59 OB Strings
60 OBA Strings
127 Silence
Bank MSB 4
Drums & Percussion

2019
Prg.
0 Trumpet velo. split 48 - 96
1 Trumpet velo. split 64
2 Trumpet piano
3 Trumpet mezzo
4 Trumpet forte
5 Trumpet fall Split velo. 116-127 fall
6 Trumpet goup Split velo. 116-127 goup
7 Trumpet Slide velo. 116-127 Slide
8 Cornet Repetition
9 Cornet soft Repetition
10 Cornet hard Repetition
11 Cornet porta attack Repetition
12 Cornet Slide velo. 116-127 Slide Repetition
13 Trumpet mute
14 Trumpet mute AV
15 Flugelhorn
16 Trombone
17 Horn
18 Baritone horn vibrato
19 Baritone horn staccato
20 Tuba
21 Tuba soft
Bank MSB 5
Brass
Prg.
32 US Trumpet Section dynamic split
33 US Trumpet Section forte forte
34 US Trumpet Section mezzo mezzo
35 US Trumpet Section fast fall fast fall
36 US Trumpet Section Split velo. 116-127 fall
37 US Trombone Section dynamic split
38 US Trombone Section forte forte
39 US Trombone Section mezzo mezzo
40 US Trombone Section fast fall fast fall
41 US Trombone Section Split velo. 116-127 fall
42 US Trump. & Trombone Section dynamic split
43 US Trump. & Trombone Section forte forte
44 US Trump. & Trombone Section mz mezzo
45 Classic Trumpet Ensemble dynamic split
46 Classic Trumpet Ensemble piano piano
47 Classic Trombone Ensemble dynamic split
48 Classic Trombone Ensemble piano
49 Classic Horn Ensemble
50 Classic Full Brass dynamic split
51 Classic Full Brass+ forte
Bank MSB 5
Brass Section

2221
Prg.
63 Soprano Sax dynamic split
64 Soprano Sax softer softer zones
65 Soprano Sax harder harder zones
66 Soprano Sax breath breath noise
67 Soprano Sax Slide velo. 116-127 slide
68 Soprano Sax II more Vibrato
69 Alto Sax dynamic split
70 Alto Sax softer softer zones
71 Alto Sax harder harder zones
72 Alto Sax breath breath noise
73 Alto Sax Slide velo. 116-127 slide
74 Tenor Sax dynamic split
75 Tenor Sax softer softer zones
76 Tenor Sax harder harder zones
77 Tenor Sax breath breath noise
78 Tenor Sax Slide velo. 116-127 slide
79 Max Jazz Tenor velo. split 116 Random Key & breath noise
80 Max Jazz Tenor velo. split 64 Random Key & breath noise
81 Max Jazz Tenor soft soft only Random Key & breath noise
82 Max Jazz Tenor velo. split 96
83 Max Jazz Tenor Vibrato less delay velo. split 96
84 Max Jazz Tenor soft soft only breath noise
85 Max Jazz Tenor Slide velo. 116-127 slide Random Key & breath noise
86 Max Jazz Tenor Slide soft velo. 116-127 slide Random Key & breath noise
87 Tenor Sax Funky
88 Tenor Sax Funky growl
89 Tenor Sax Funky Split velo. split 116
90 Baritone Sax
91 Sax Section 1
92 Sax Section 2
Bank MSB 5
Saxophon
Prg.
93 Oboe
94 English horn
95 Bassoon
96 Clarinet
97 Clarinet soft
98 Cla. Slide (velo. 116-127) velo. 116-127 Slide
99 Hugo Clarinet no loop
100 Hugo Cla. Slide (velo. 116-127) velo. 116-127 Slide no loop
101 Piccolo
102 Flute
103 Flute EQ
104 Flute High Pass Filter
105 Panflute
106 Shakuhachi
107 Celtic High Whistle
108 Celtic High Whistle Grace note AV Auto Grace note
109 C. High Wh. Slide (velo. 116-127) velo. 116-127 Slide
110 Bottle
111 Bottle soft
112 Bottle Q
113 Bottle LFO
114 Whistle
115 Whistle GS
116 Hl. Pipers & Drone (split note 60-c1) split note 60 - c1
117 Ullian Piper & Drone Repetition
118 Ullian Piper & Drone Grace note AV Auto Grace note Repetition
119 U. Piper & Dr. Slide (velo. 116-127) velo. 116-127 Slide
120 Ullian Drone & Chords
127 Silence no sound
Bank MSB 5
Winds

2423
Bank Prg. Standard Mode
4 120 Pop Drum Kit
4 121 Jazz Drum Kit
4 122 Orchestra Percussion
4 123 Voice Kit
Bank Prg. Standard Mode
- 0 Pop Drum Kit
- 1 Jazz Drum Kit
- 2 Orchestra Percussion
- 3 Voice Kit
Sound Mapping - Drum Channel Mode (Channel 10)Sound Mapping - Standard Channel Mode
Nr. Pop Jazz Orchestra Voice
C 12 Gran Casa
13 Surdo Mute ~ Gran Casa
D 14 Surdo Open ~ Gran Casa
15 Hi Q ~ Gran Casa
E 16 Whip Slap ~ Gran Casa
F 17 Scratch H ~ Gran Casa Breath 1
18 Scratch L ~ GC. forte Breath 2
G 19 Finger snap ~ GC. medium Finger Snaps
20 Click Noise ~ GC. piano Male Count: 'One'
A 21 Metronom Click ~ Male Count: 'Two'
22 Metronom Bell ~ Male Count: 'Three'
23 Seq Click L ~ Gong Male Count: 'Four'
C 24 Seq Click H ~ Male Count: 'a'
25 Brush Tap ~ Female Count: 'One'
D 26 Brush Swirl ~ Female Count: Two'
27 Brush Slap ~ Closed HH Female Count: 'Three'
E 28 Brush Tap Swirl ~ Pedal Ped. Female Count: 'Four'
F 29 Snare Roll ~ Open HH. Female Count: 'a'
30 Castanet ~ Ride Cymbal Vocal Bass Drum 3
G 31 Snare Soft ~ Vocal Snare 4
32 Sticks ~ Vocal Rim Shot
A 33 Kick Soft Kick Jazz Vocal Bass Drum 2
34 Open Rim Shot ~ Vocal Snare 3
35 Kick Tight Kick Jazz Gran Casa Vocal Bass Drum 1
C 36 Kick Kich Jazz Gran Casa Vocal Bass Drum
37 Side Stick Side Stick Jazz Vocal Cross Stick
D 38 Snare Snare Jazz Concert Sn. Vocal Snare 1
39 Hand Clap ~ Castanets Vocal Clap
E 40 Snare Tight Snare Jazz Concert Sn. Vocal Snare 2
F 41 Floor Tom ~ Timpani Vocal Floor Tom
42 Hi-Hat Closed ~ Timpani Vocal Closed Hi Hat
G 43 Low Tom ~ Timpani Vocal Low Tom
44 Hi-Hat Pedal ~ Timpani Vocal Pedal Hi Hat
A 45 Medium Low ~ Timpani Vocal Mid Tom 2
46 Hi-Hat Open ~ Timpani Vocal Open Hi Hat
47 Mid Tom ~ Timpani Vocal Mid Tom 1
C 48 Mid Tom High ~ Timpani Vocal Hi Tom 2
49 Crash Cymbal 1 ~ Timpani Vocal Crash Cymbal
D 50 High Tom ~ Timpani Vocal High Tom 1
51 Ride Cymbal 1 ~ Timpani Vocal Ride Cymbal
E 52 Chinese Cymbal ~ Timpani Male Ad Lib 1
F 53 Ride Cup ~ Timpani Male Ad Lib 2
54 Tambourine ~ Tamburin Male Ad Lib 3
G 55 Splash Cymbal ~ Concert Cy. Male Ad Lib 4
56 Cowbell ~ Concert Cy. Male Ad Lib 5
A 57 Crash Cymbal 2 ~ Concert Cy. Male Ad Lib 6
58 Vibraslap ~ Concert Cy. Vibra Slap
59 Ride Cymbal 2 ~ Concert Cy. Male: Hmm Hmm
C 72 Whistle L ~ Triangle op. Female: 'Fantastic! New..
73 Guiro Short ~ Triangle mu. -
D 74 Guiro Long ~ Triangle roll -
75 Claves ~ -
E 76 Wood Block H ~ -
F 77 Wood Block L ~ Wind. dwn. -
78 Cuica Mute ~ Wind. up Vocal Cuica High
G 79 Cuica Open ~ Vocal Cuica Low
80 Triangle Mute ~ Male 'All Right'
A 81 Triangle Open ~ Male 'Get Down'
Nr. Pop Jazz Orchestra Voice
82 Shaker ~ Male 'Chicka'
83 Jingle Bells ~ Male 'Ku-Chi-Ka'
C 84 Bell Tree ~ Male 'Everybody Come..
85 Male 'Huh'
D 86 Male 'That's Good!'
87 Male 'Ow!'
E 88 Applaus Male 'Yeah!'
F 89 C. Snare pp Male 'Ah'
90 C. Snare p Male 'That's Bad'
G 91 C. Snare mp Male 'Hit The Note'
92 C. Snare mf
A 93 C. Snare f
94 C. Snare ff
95 C. Snare pp
C 96 C. Snare p
97 C. Snare mp
D 98 C. Snare mf
99 C. Snare f
E 100 C. Snare ff
F 101 Snare Roll p
102 Snare Roll p
G 103 Snare Roll m
104 Snare Roll m
A 105 Snare Roll f
106 Snare Roll f
107 Snare Ro.dyn
C 108 Snare Ro.dyn
109 Snare Ro.dyn
D 110 HiHat Pedal (7) ~ Snare Ro.dyn
111 Hi Hat cl. Tip ~ Snare Ro.dyn
E 112 Hi Hat cl. Pearl ~ Snare Ro.dyn
F 113 Hi Hat cl. Pearl ~ Opera Gong
114 Hi H. cl. Shaft 1 ~ Opera Gong
G 115 Hi H. cl. Shaft 2 ~ Opera Gong
116 Hi H. cl. Shaft 2 ~ Opera Gong
A 117 Hi Hat med. 1 ~ Opera Gong
118 Hi Hat Open 1 ~ Opera Gong
119 Hi Hat Open 2 ~ Opera Gong
C 120 Hi Hat Splash ~ Opera Gong
121 Ride Cymbal 1 ~ Opera Gong
D 122 Ride Low ~ Opera Gong
123 Cymbal Chock ~ Opera Gong
E 124 Opera Gong
F 125 Opera Gong
126 Opera Gong
G 127 Intro Tune

2625
84 - Portamento control 91 - Reverb send 93 - Chorus send 120 - All sound off 121 - Reset all controllers 123 - All note off 126 - Mono-mode 127 - Poly-mode
RPN 0000H BnH 65H 00H 64H 00H 06H vv Pitch bend sensitive in semitone (default=2) RPN 0001H Fine tune in cent BnH 65H 00H 64H 01H 06H vv vv=00 -100 vv=40H 0 vv=7FH +100 RPN 0002H Coarse tune half tone BnH 65H 00H 64H 02H 06H vv vv=00 -64 vv=40H 0 vv=7FH +64 NRPN 18rrH BnH 63H 18H 62H rr 06H vv Pitch coarse of perc. rr in semitone (vv=40H->no modif) NRPN 1ArrH BnH 63H 1AH 62H rr 06H vv Level of perc. sound rr (vv=00 to 7FH) NRPN 1CrrH BnH 63H 1CH 62H rr 06H vv Pan of perc. sound rr (40H = middle) NRPN 1DrrH BnH 63H 1DH 62H rr 06H vv Reverb send level of perc rr (vv=00 to 7FH)
AUX AUDIO OUT (Reverb return is fixed in Main out)
BnH 63H 38H 62H rr 06H vv rr = MIDI channel - CH1 = 00 CH2 = 01
vv = 0 MAIN 127=AUX Example :Set CH1 to AUX - send 3 MIDI controllers: cc99 value 56 + cc98 value 00 + cc06 value 127
Program Change : 0-127 * depends on sound board System Exclusive: SYSEX F0H 7EH 7FH 09H 01H F7H General MIDI Reset SYSEX F0H 7FH 7FH 04H 01H 00H II F7H Master volume (II=0 to 127, default 127) SYSEX DSP1 F0h,41h,00h,42h,12h,40h,7Fh,7Fh,xxh,00h,F7h
xxh=Effect 00h=HALL1 01h=HALL2 02h=ROOM1 03h=ROOM2 04h=ROOM3“ 05h=PLATE1 06h=PLATE2 07h=PLATE3 08h=CHORUS 09h=FLANGE 0Ah=DELAY1 0Bh=DELAY2 0Ch=CHORUS/ROOM1 0Dh=CHORUS/ROOM2 0Eh=VOCAL CANCEL 0Fh=ROTARY SPEAKER
SYSEX DSP2 F0h,41h,00h,42h,12h,40h,01h,38h,xxh,00h,F7h xxh=Effect
0h=CHORUS 1 02h=CHORUS 3 04h=FEEDBACK 06h=SHORT DELAY
01h=CHORUS 2 03h=CHORUS 4 05h=FLANGER 07h=FB DELAY
MIDI IMPLEMENTATION
Recognized
Basic Default 1 - 16 Mode 3 poly mode Messages Note number * 12-109 * depends on sounds Velocity Note ON 9nH,v=1-127 o Note OFF 9nH,v=0 x Key aftertouch o Channel aftertouch o Pitch Bend 0-12 Bank Select 00 Controller 01 - Modulation
05 - Portamento time 06 - Data Entry 07 - Volume 10 - Panorama 11 - Expression 64 - Sustain 65 - Portamento 66 - Sostenuto 71 - Filter resonance 72 - ENVELOPE Release 73 - ENVELOPE Attack 74 - Filter cutoff 75 - ENVELOPE Decay 76 - Vibrato rate 77 - Vibrato depth 78 - Vibrato delay
MIDI IMPLEMENTATION
