Vacmaster CARDIO54 AM1202R User manual
AM1202R
124W
AM1202R
Suzhou Cleva Electric Appliance Co., Ltd.
No.8 Ting Rong Street
Suzhou Industrial Park, Suzhou
Jiangsu Province, China
www.cleva-europe.com
Made in P.R.C
1
2
3
4
5
9
10
6
11
12
13
7
8
4
GB
TABLE OF CONTENTS
SECTION PAGE
Symbols
Safety Information
Unpacking and Checking Carton Contents
Operation
Maintenance
Troubleshooting
Technical Data
Recycling and Disposal
..........................................................................................................................................
..........................................................................................................................
....................................................................................
........................................................................................................................................
...................................................................................................................................
..............................................................................................................................
................................................................................................................................
..................................................................................................................
4
5
7
7
9
10
11
11
Thank you for purchasing this Vacmaster® Air Mover. Feel condent that with Vacmaster®you are
obtaining a high quality product engineered for optimal performance.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
SYMBOLS
Caution
Read instruction manual. Failure to follow the warnings and instructions may
result in electric shock, re and/or serious injury.
5
GB
SAFETY INFORMATION
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE
USING THIS AIR MOVER.
When using the equipment, a few safety precautions must be
observed to avoid injuries and damage. Please read the complete
operating manual with due care. Keep this manual in a safe
place so that the information is always available. If you give
the equipment to any other person, give them these operating
instructions as well. We cannot accept any liability for damage or
accidents which arise due to a failure to follow these instructions
and the safety information.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Never leave the appliance switched on unattended, if you leave
the work area, switch the appliance off or unplug it from the
power supply.
• Do not use this air mover near ammable liquids, gases or
explosive vapours like gasoline or other fuels, lighter uids,
cleaners, oil-based paints, natural gas, hydrogen, or explosive
dusts like coal dust, magnesium dust, grain dust or gun power.
Sparks inside the motor can ignite ammable vapours or dust.
• Do not use this appliance to blow or move anything that is
burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not unplug by pulling on the cord. To unplug, grasp the plug,
not the cord.
• Do not use with damaged cord, plug or other parts.
• Do not pull or carry by cord, use cord as handle, close a door
on cord, or pull cord around sharp edges or corners.
• Before each use, check the power supply cable for damage. Do
not use the equipment if the cable is damaged or worn. Danger
of electric shock hazard.
• If the power cable for this equipment is damaged, it must be
6
GB
replaced by a suitably qualied repair specialist in order to
prevent hazards.
• If air mover is not working as it should, or has been dropped,
damaged, left outdoors, or dropped into water, take it to a
suitably qualied repair specialist for inspection and repair
before using it again.
• Make sure that the mains voltage corresponds with the
information on the rating plate.
• Only plug the appliance into a socket which is safeguarded by
at least 13A.
• For additional protection: It is recommended that this air mover
can be used in conjunction with residual current device (RCD)
with a rated residual current of 30mA or less.
• Do not use with a solid state speed control device.
• Do not expose to rain. Store indoors.
• Do not handle the plug or air mover with wet hands.
• Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or other coverings. Direct cord away from trafc
areas where it will not be tripped over.
• Do not cover the ventilation openings. Do not operate with any
ventilation openings blocked; keep free of dust, lint, hair or
anything that may reduce air ow. Never operate this air mover
with intake grills removed.
• Keep hair, loose clothing, ngers, and all parts of body away
from openings and moving parts.
CAUTION:
• If appliance is used in a dusty environment, ensure the correct
PPE (personal protective equipment) is worn, such as a dust
mask.
• Do not move or carry the air mover while it is operating.
• Only operate on a level, stable surface to prevent the air mover
from falling and potentially causing injury or damage to the unit
or property.
7
GB
OPERATION

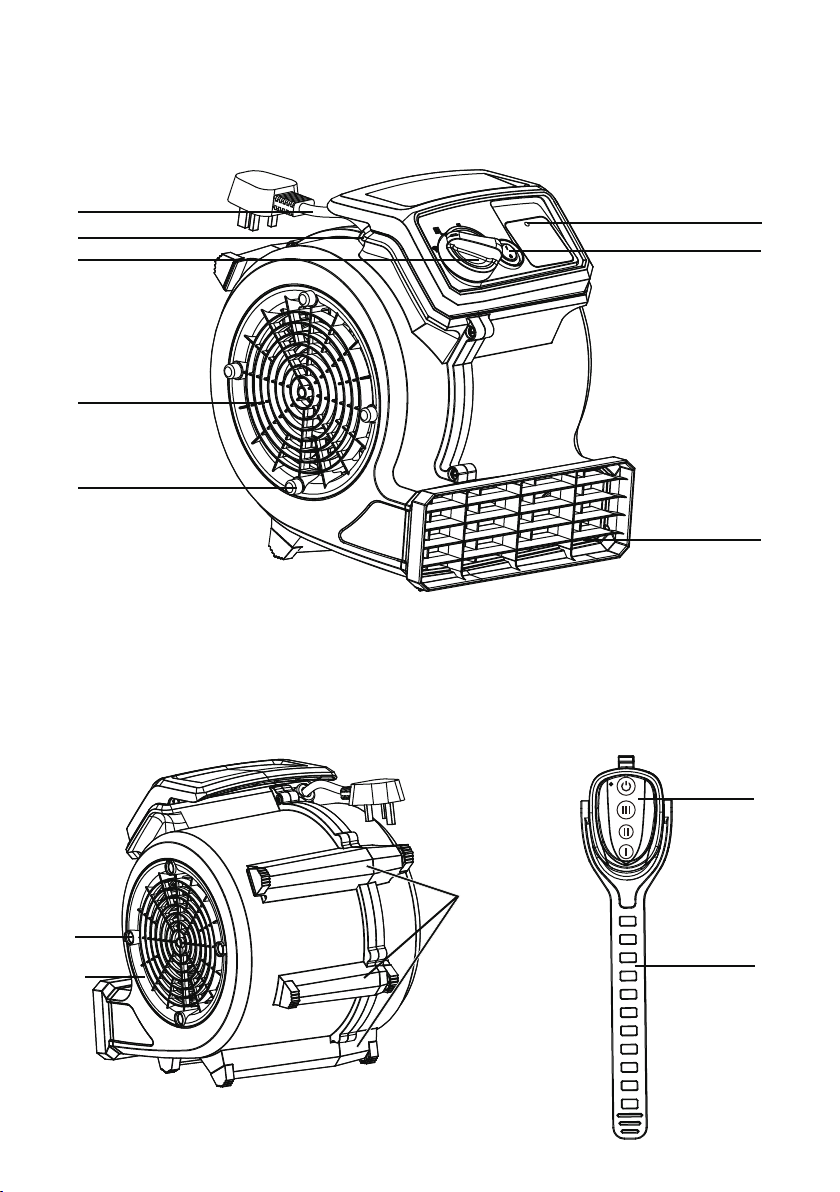

1Power Cord 8 Status Indicator Light
2Carry Handle/Cord Storage 9Mounting Pegs
3Speed Control Knob 10 Intake Grill (Right)
4Intake Grill (Left) 11 3-Position Anti-Skid Feet
5Mounting Pegs 12 Remote Control
6 Air Discharge Grill 13 Remote Control Holder
7On/Off Switch
1. Switching On/Off
1) Verify that the on/off switch is set to "0" OFF position. Connect the mains plug to a suitable
power outlet.
2) Press the on/off switch to "I" ON position.
3) When the speed control knob is positioned at either I, II or III, the air mover will begin to operate
at the desired speed. The indicator light on air mover will illuminate green.
4) To change to desired speed, switch the knob between the three positions.
5) When the speed control knob is located at position, the remote control mode is engaged.
For remote control operation, refer to the Remote Control Mode section.
6) To switch off the air mover, press the on/off switch to "0" OFF position.
Position Status
ILow
II Medium
III Maximum
Remote Control Mode
UNPACKING AND CHECKING CARTON
CONTENTS
2. Remote Control Mode
NOTE: The remote control supplied with your air mover is already pre-set and does not require
pairing upon rst use. The remote control can be used directly to operate the air mover in remote
control mode.
1) Switch the speed control knob to position (Fig. 1). Press the on/off switch on the air mover
to "I" ON position. The air mover is in standby mode. The indicator light will illuminate red.
2) Press button on the remote control to start the air mover. The air mover will automatically
start in the lowest speed setting. The indicator light on air mover will illuminate green. To
8
GB
change to desired speed, press the , , or button as necessary (Fig. 2).
3) The air mover can also be started by pressing the desired speed setting on the remote control
initially.
4) Press the button again, to return the air mover into standby mode. The indicator light will
illuminate red.
5) To completely switch off the air mover, press the on/off switch to "0" OFF position.
3. Pairing A Remote Control with Your Air Mover
If a new or replacement remote control is used, or the current remote control is not able to operate
the air mover, reset the remote control by following the instructions:
1) Ensure the air mover is turned off by pressing the on/off switch into the “0” OFF Position.
2) Switch the speed control knob to position.
3) Restart the air mover by pressing the on/off switch to "I" ON position.
4) Within rst 5 seconds, immediately press the button on the remote control. The indicator
light will ash red until the button is released.
The indicator light on air mover shows the status as below:
Symbols Indicator Light Status
Green, Continuous Operational
Red, Continuous Standby
Red, Flashing Pairing/Receiving instructions
4. Afxing Remote Control Strap
The remote control can be conveniently stored in the holder located on the strap.
1) Place the remote control unit into the holder within the strap. Remote control should sit
securely.
2) The strap can be used to attach onto a handle located for example on a treadmill or exercise
bike. To secure the strap, loop the strap around the handle and secure the locking tap into the
available outlet (Fig. 3).
5. Air Mover Positioning
1) Place the air mover in the desired position on a at and stable surface. Ensure there is at least
a foot of clearance on each side of the air mover. Avoid placing the air mover where loose
fabric, sheets, or other objects can get pulled onto the intake grills.
2) Direct the air mover at the designated target area, using one of the operational positions (Fig. 4).
CAUTION: When using an extension cord, be sure to use an extension cord that
has the capacity to handle the current the product will draw. An undersized cord will cause a
drop in voltage, resulting in overheating and loss of power. Before using any extension cord,
inspect it for loose or exposed wires and cut or worn insulation.
WARNING: Do not stack air movers vertically during operation. To reduce risk of
overheating or overload, ensure area around intake grills are clear to allow for unobstructed
air ow.
9
GB
MAINTENANCE
WARNING: Do not store outdoors. Store in a dry environment, away from
hazardous materials, such as toxic, carcinogenic, ammable, or explosive substances.
CAUTION: To prevent damage to air mover, property damage, or personal injury:
do not stack more than three units high. Stack only on a stable, level, even surface. Do not
transport stacked units unless they are braced on all sides.
CAUTION: Do not turn on the air mover while it is stacked. The stacking pegs are
for storage purposes only.
1. Maintenance Before and After Each Use
1) Inspect the plug and the cord to ensure that it has not been damaged during operation or
between uses. If the plug or cord is damaged, do not use the air mover and replace the
damaged part immediately.
2) Check the air intake and air discharge grills and make sure they are free of blockage.
2. Cord Storage
1) Before storing the air mover, ensure the on/off switch is turned to "0" OFF position, and unplug
the unit from the power outlet.
2) Wrap the power cord around the base of the handle.
3) Use the attached power cable strap to hold the cord in place.
3. Storing the Air Mover
To conserve space while storing multiple units, this air mover can be stacked together with multiple
additional units using the mounting pegs and inlets on each side of the unit (Fig. 5).
4. Replacing the Remote Control Battery
NOTE: The remote control contains small parts. Be careful when replacing the battery and ensure
all maintenance is completed on a at and stable surface.
1) Locate the 3 screws on the rear of the remote control. Carefully remove these screws and keep
them in a safe place.
2)
Remove the rear casing to access the battery. The battery and board can both be removed (Fig. 6).
3) Replace the battery with a suitable 27A 12V battery cell. Ensure the positive and negative
battery connections are correctly positioned.
4) Insert the board and battery back into the casing and secure in place by retightening the screws
provided.
CAUTION: Check that the new battery is installed correctly by pressing a button
on the remote control. The indicator light ( ①) should illuminate RED (Fig. 7).
WARNING: Ensure that the unit is never operated without the intake grills, air
discharge grill, and impeller.
10
GB
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The air mover will not
operate.
No power supply. Check the power supply, cord,
breakers, and fuses.
Faulty power cord.
Unplug and visually check the
power cord. If damaged, have it
repaired by qualied personnel or
contact the after sales helpline.
On/off switch in the wrong
position.
Move the switch to the "I" ON
position.
The on/off switch is faulty.
Have the switch replaced by
qualied personnel or contact the
after sales helpline.
The air mover runs but
makes loud scraping
noise.
Damage to the unit has
caused deformed housing or
misaligned centrifugal fan.
Replace the air mover.
The air mover runs but
centrifugal fan does not
rotate.
The centrifugal fan and
housing are jammed. Replace the air mover.
There is a problem with the
switch or capacitor.
The air mover runs briey
then shuts off due to
overload protection.
The intake grill or air
discharge grill is obstructed. Remove the obstruction.
The motor is damaged. Replace the air mover.
The air mover runs but
with excessive vibration.
The centrifugal fan has dirt
build up.
Have the air mover inspected by
qualied personnel or contact the
after sales helpline.
The centrifugal fan is
damaged or the motor is bent. Replace the air mover.
The remote control will not
operate.
The remote control is not
paired with the air mover.
Reset the remote control following
the instructions on page 10.
The battery is dead. Replace the battery or remote
control.
The remote control is
damaged.
Replace with a new remote
control.
The status light on the
remote control no longer
illuminates when pressed.
The battery is dead. Replace the battery or remote
control.
The remote control is
damaged.
Replace with a new remote
control.
WARNING: To reduce the risk of electric shock, unplug before troubleshooting.
11
GB
RECYCLING AND DISPOSAL
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. The machine must be delivered in rigid packaging to avoid damage during
transportation. The packaging and the machine itself are manufactured from recyclable
materials and should be disposed of accordingly.
TECHNICAL DATA
Model Number AM1202R
Motor 220-240V ~ 50Hz
Power 124W
Air ow 15m3/min
Net Weight 3.63Kg
4
1
6
7
①
5
2
3
AM1202R
124W
AM1202R
Suzhou Cleva Electric Appliance Co., Ltd.
No.8 Ting Rong Street
Suzhou Industrial Park, Suzhou
Jiangsu Province, China
www.cleva-europe.com
Made in P.R.C
Table of contents
Other Vacmaster Blower manuals
