Vacron 1000TVL -P User manual

1000TVL VACRON-P
Color Camera
2013. V1.0
User Manual

1000TVL VACRON-P Camera
i
Index
A. FEATURES ......................................................................................................................1
B. Specifications ...................................................................................................................2
C. Structure of Product .........................................................................................................3
D. OSD Operation.................................................................................................................4
(1.1) AE Mode Setting...........................................................................................4
(1.2) Standard AE..................................................................................................4
(1.3) SWDR...........................................................................................................5
(1.4) BLC...............................................................................................................5
(1.5) HLC...............................................................................................................6
(1.6) Demist...........................................................................................................7
2. Color Adjust ..............................................................................................................8
(2.1) White Balance...............................................................................................8
(2.2) Brightness.....................................................................................................8
(2.3) Color-Red......................................................................................................8
(2.4) Color-Green ..................................................................................................8
(2.5) Color-Blue.....................................................................................................8
(2.6) Contrast ........................................................................................................8
(2.7) Saturation .....................................................................................................8
(2.8) CR suppress .................................................................................................8
3. Image Adjust.............................................................................................................9
(3.1) Day & Night...................................................................................................9
(3.2) Digital Slow Shutter.....................................................................................11
(3.3) 3D DNR.......................................................................................................12
(3.4) 2D DNR.......................................................................................................12
(3.5) Sharpen ......................................................................................................12
(3.6) FC suppress ...............................................................................................12
(3.7) Blemish compensation................................................................................12
4. Intelligent ................................................................................................................12

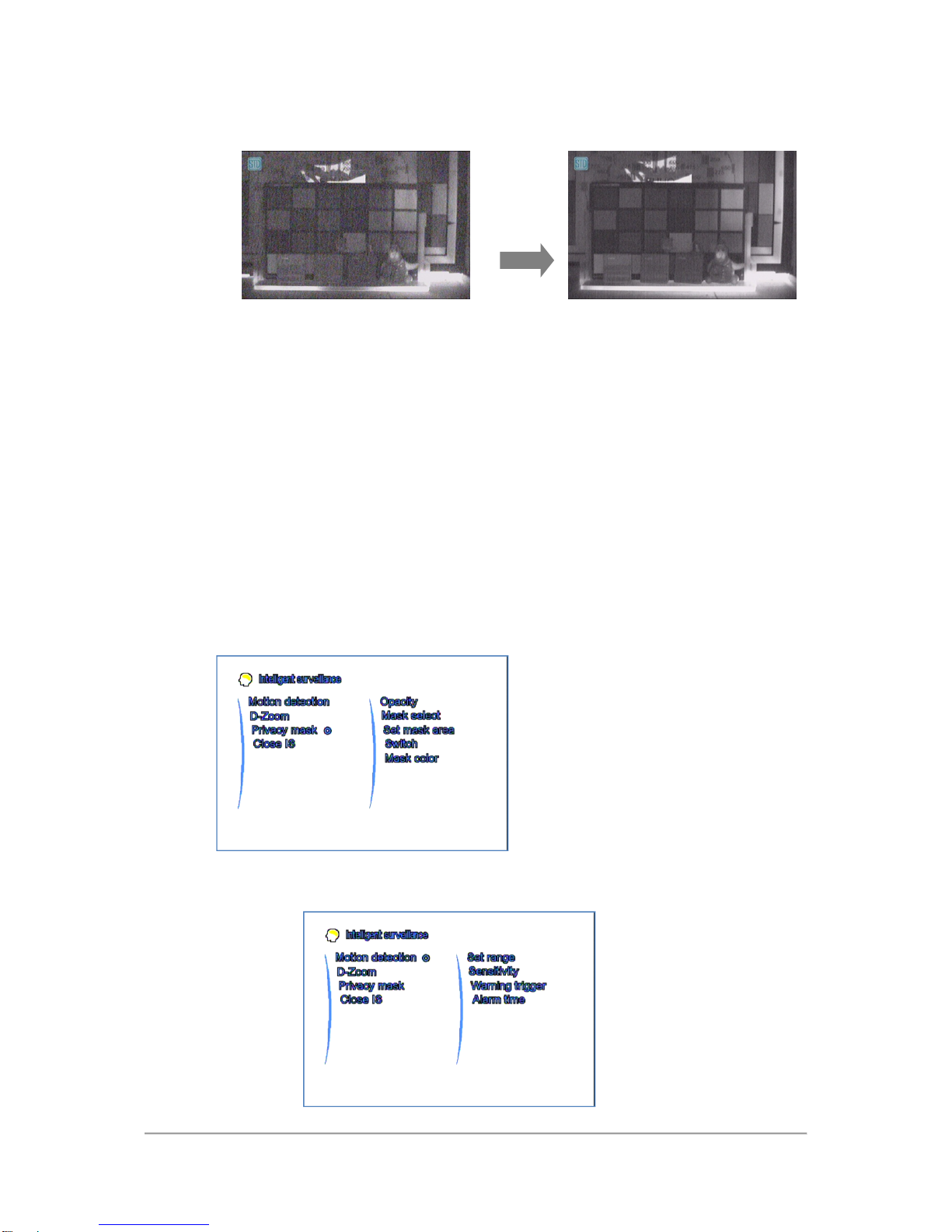

(4.1) Motion Detection.........................................................................................12
(4.2) D-Zoom.......................................................................................................13
(4.3) Privacy mask...............................................................................................14
(4.4) Close IS ......................................................................................................14
E. System setting................................................................................................................15
(1.1) Lens ............................................................................................................15
(1.2) RS485 Set up .............................................................................................15
(1.3) Languages ..................................................................................................15
(1.4) Monitor selection.........................................................................................15
(1.5) Others .........................................................................................................15
F. Attachment A: UTC Controller Installation ...................................................................16

1
A. FEATURES
1/3” CCD High Solution Optics Double Frequency WDR Color Camera
High Resolution Color 1000TVL
2D/3D Noise Reduction (HDNR)
Optics Double Frequency WDR(128dB)
Digital Slow Shutter from x2 up to x512 (Max)
Adaptive Backlight compensation function ( BLC ) / Anti-Headlight (HLC)
e-PTZ (Zoom x 4)
Privacy Mask x 8 (Color)
High Contrast Images
Ideal for Backlight Environment
Digital Demist Process
Intelligent IR Exposure (Smart IR)
Color Rolling Suppression
UTC / OSD Control

1000TVL VACRON-P Camera
2
B. Specifications
Video System NTSC PAL
Pick Up Element SONY 1/3” CCD Image Sensor
Image Signal Process Digital Signal Processor
Number Of Pixels 1020 (H) × 508 (V) 1024 (H) × 596 (V)
Picture Elements Approx. 520K Approx. 610K
Horizontal Resolution 1000 TVL
Synchronization Internal Synchronization
Scanning System 2 : 1 Interlace
Minimum Illumination 0.001 LUX
S/N Ration Max. 63 dB
OSD Menu Build-in Multi-layers semi-opacity Menu Setting
Camera Title/ Function
Enable Display Camera Title/ Function Enable Display
Wide Dynamic Range WDR (128dB)
Digital Slow Shutter X2 ~ X512
Backlight Compensation Function
( BLC ) HLC / BLC / off
Automatic Gain Control ( AGC ) on
Digital Noise Reduction ( DNR ) 2D/3D-NR
Digital Demist Process on / off
Digital Zoom Zoom 4X
Digital Day & Night Mode (D & N) Color / B&W / Auto-Progressive / Auto-General / External
input
Flash Suppression Function on / off
Privacy Masking Function on/off (8 Editable area)
Blemish Compensation Static & Dynamic (4096 points)
Image Quality Adjustment Hue / Contract / Saturation / Sharpness
Auto White Balance AWB/ATW
Language English / Simplified Chinese / (support multi-language)
Electronic Shutter Speed
Auto:1/60(50)S TO 1/100,000 S
Manual: 1/60(50)S, FL1/120(100)S, 1/250S, 1/500S,
1/1,000S, 1/2,000S, 1/4,000S, 1/10,000S
Video Signal Output 1 Vp-p standard video signal output, 75 Ohms
Operation Temperature - 5°C ~ +40°C

1000TVL VACRON-P Camera
3
C. Structure of Product
Box Camera
Auto Iris Lens
Connector
Power Indicator
Power Input
DC12V/AC24V
OSD operation
Set up / Up / Right
/ Left / Down
Video Out

1000TVL VACRON-P Camera
4
D. OSD Operation
■ Mainmenu ■OSD Setup
Setup: 1.Click one time to enter the Main menu
Click twice ( to Exit OSD menu, Reload Fty ,
Return to Previous page, Exit & Save)
UP / Down: Selection.
Left / Right: Enter & Return.
(1.1) AE Mode Setting
(1.2) Standard AE
Under Standard mode AE, symbol will be shown on the upper
left corner of Live view.

1000TVL VACRON-P Camera
5
(1.3) SWDR
Auto switch: Set to Auto/On
Level: Value 0~10
Set the ratio of WDR. Small value will have more ratio for the
outdoors; in the other hand, big value will have more ration for the
indoors.
Low lum brightness: Value 0~40, the brightness in the dark
area will depend on the value.
icon will appear on the top-left corner.
Standard SWDR
(1.4) BLC
Back light compensation
Level: （Auto, Low, Middle, High）

1000TVL VACRON-P Camera
6
Symbol will be shown on the upper left corner of Live view.
Normal Back light compensation
(1.5) HLC
High light compensation
Set Range: Click Right button to enter the menu, press SETUP
button in order to set up next corner point. (in this area, any brighter
light source will be blocked)
Normal HLC on
Detection are (area marked in Red)
Level : Low, Middle, High.
Mask Grayscale: (Value: 1-6) Mask color set up, the color is
closer to white when the value is higher.
Symbol will be shown on the upper left corner of Live view.

1000TVL VACRON-P Camera
7
(1.6) Demist
Demist: Set the level of Demist. If set Auto, the DSP will turn
on/off the function and decide the level of demist (Auto, Low,
Middle, High).
3D-NR: On/Off the 3D-NR function
Symbol will be shown on the upper left corner of Live view
Normal Demist activated
(Heavy Fog) Demist Off
(Middle Fog) Demist Off
(LIght Fog) Demist Off

1000TVL VACRON-P Camera
8
2. Color Adjust
Color adjust settings
(2.1) White Balance
Tracking Mode 2-8.5k、Tracking Mode 2-10k
(2.2) Brightness
0~99
(2.3) Color-Red
Red (0~99)
(2.4) Color-Green
Green (0~99)
(2.5) Color-Blue
Blue (0~99)
(2.6) Contrast
0~99
(2.7) Saturation
0~99
(2.8) CR suppress
ON/OFF
