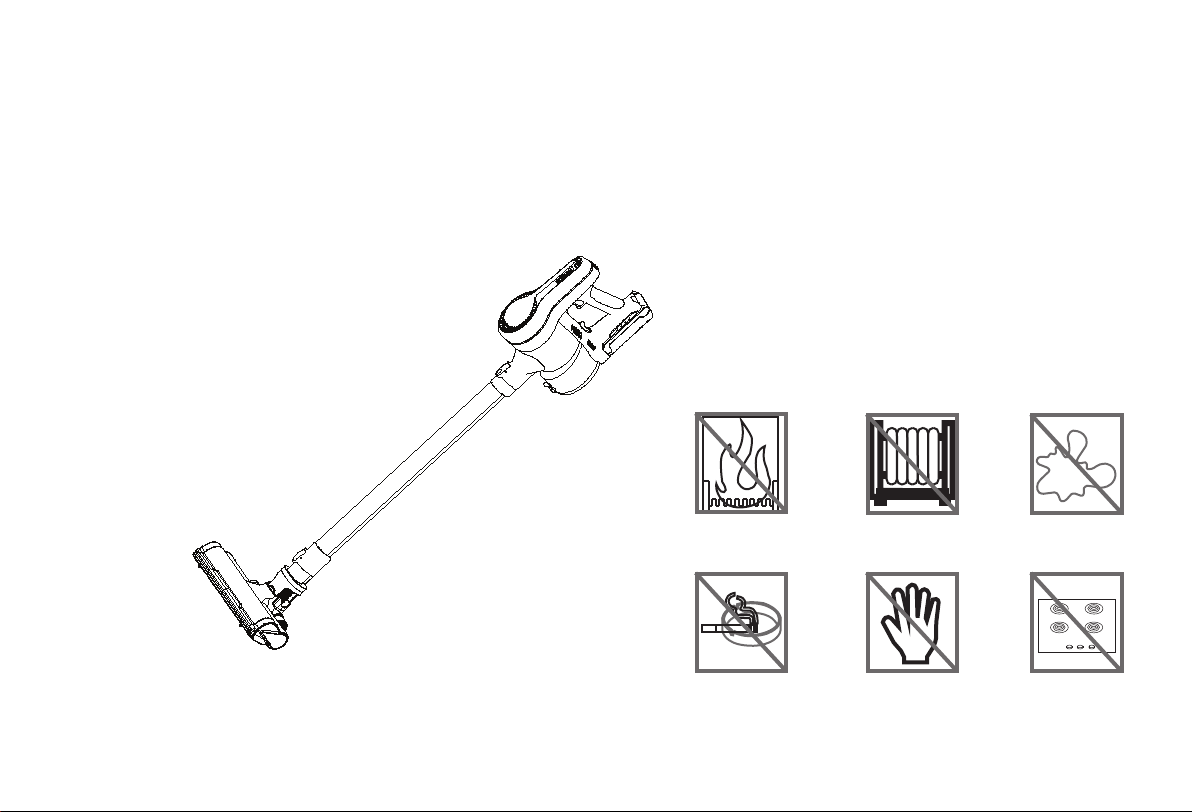

VACUUBO VB25W User manual
Cordless Vacuum Cleaner
Instruction Manual
READ AND SAVE THESE INSTRUCTIONS
THIS MACHINE IS INTENDED FOR HOUSEHOLD USE ONLY
Do not use near
open flames
Do not store near
heat sources
Do not pick up water
or liquids
Do not place on
or near the cooker
Do not put hands
near the brush bar
when the machine
is in use.
Do not pick up
burning objects
SHENZHEN ZAPADOS TECHNOLOGY CO.,LTD
www.opodee.com
Important Safety Instructions
BEFORE USING THIS MACHINE READ ALL INSTRUCTIONS AND CAUTIONARY
MARKINGS IN THIS MANUAL AND ON THE MACHINE
When using an electrical appliance, basic precautions should always be followed,
including the following:
WARNING SYMBOLS USED
These warnings apply to the machine, and also where applicable, to all tools
, accessories,chargers or mains adaptors.
Notice
This symbol on the device or its packaging indicates: Do not dispose of
electrical appliances as unsorted municipal waste; use separate collection
facilities. Contact your local authority for information regarding the collection
systems available. If electrical appliances are disposed of in landfills or
dumps, hazardous substances can leak into the groundwater and get into
the food chain, damaging your health and well-being. When replacing old
appliances with new ones, the retailer is legally obliged to take back your old
appliance for disposal at least free of charge.
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC Statement
1
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1. This machine is not intended for use by persons (including children) with reduced physical,
sensory or reasoning capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the machine by a person responsible for their
safety.
2. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Children should be supervised to ensure that they do not play with the machine.
3. Use only as described in this OPODEE Operating Manual. Do not carry out any maintenance
other than that shown in this manual, or advised by the OPODEE support.
4. Suitable for dry locations ON LY. Do not use outdoors or on wet surfaces.
5. Do not handle any part of the plug or machine with wet hands.
6. Do not use with a damaged cord or plug. If the supply cord is damaged it must be replaced
by OPODEE, its service agent or similarly qualified persons in order to avoid a hazard.
7.If the machine is not working as it should, has received a sharp blow, has been dropped, damaged,
left outdoors, or dropped into water, do not use and contact the OPODEE support
8. Contact the OPODEE support when service or repair is required. Do not disassemble the machine
as incorrect reassembly may result in an electric shock or fire.
9. Do not stretch the cord or place the cord under strain. Keep the cord away from heated surfaces.
Do not close a door on the cord, or pull the cord around sharp edges or corners. Arrange the cord
away from traffic areas and where it will not be stepped on or tripped over. Do not run over the cord.
10. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord. The use of an
extension cord is not recommended.
11. Do not use to pick up water.
12. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where
they or their vapors may be present.
13. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
14. Keep hair, loose clothing, fingers, and all parts of the body away from openings and
moving parts. Do not point the hose, wand or tools at your eyes or ears or put them in
your mouth.
15. Do not put any object into openings. Do not use with any opening blocked; keep free
of dust, lint, hair and anything that may reduce airflow.
16. Use only OPODEE recommended accessories and replacement parts.
17. Do not use without the clear bin and filter(s) in place.
18. Unplug from the outlet when not in use for extended periods and before maintenance
or servicing.
19. Use extra care when cleaning on stairs.
20. Do not install, charge or use this machine outdoors, in a bathroom or within 10 feet
(3 meters) of a pool. Do not use on wet surfaces and do not expose to moisture, rain or
snow.
21. Use only OPODEE chargers for charging this machine. Use only OPODEE batteries:
other types of batteries may burst, causing
22.FIRE WARNING – Do not place this product on or near a cooker or any other hot surface
and do not incinerate this machine even if it is severely damaged. The battery might catch
fire or explode.
23. Always turn ‘OFF’ the machine before connecting or disconnecting the motorized brush bar.
24. FIRE WARNING – Do not apply any fragrance or scented product to the filter(s) of this
machine. The chemicals in such products are known to be flammable and can cause the
machine to catch fire.
25. Wash hands after handling.
Vacuum Cleaner Tube
Direct Drive Cleanerhead
(Include Floor Brush) Power Brush
High Efficiency Strainer Primary Filter Strainer Battery Pack Power Adapter
Sofa Brush Flat Tube Stand Knife Carpet Brush
Package Contents
Part Name
Vent
Power On / Off
Unpack Dust Cup Button
Unpack Battery Button
Speed Control Button
Dust Cup Buckle
Metal Tube Locker
1
4
2
1
3
4
8
7
6
5
1
1
2
2
3
3
4
5
9
6
10
7
Metal Tube
8
Power Brush Locker
9
Power Brush
10
2
3High efficiency Strainer
Metal Filter Strainer
Primary Filter Strainer
Motor
1
4
2
3
Remaining Capacity
Fault Indicator
100%
50%
20%
LED
DC Socket
Electrode Pin
1
2
3
TLow Speed Mode:
---The four blue LEDS are light
High Speed Mode:
Failure Indication
---The three blue LEDS are light
---The last LED turns to pink
---The LED is flashing
Battery Pack
Assembly
Docking station installation
Ensure no pipe work (gas, water, air) or electrical
cables, wires or ductwork are located directly behind
the mounting area.
Click
Click
Click
1. Use stick or screw to fix the stand
The position of stand is jut the height of machine.
1
2
1
1
2
1. Release the Dust Cup Buckle 2. The cover of Dust Cup will open
automatically
3. Clean the inside of Dust Cup with
the provided cleaning tool or scrub
clean with dishcloth.
4. Buckle the Cover
Emptying the clear bin
MAX
•Do not carry out any maintenance or repair work other than that shown and described in this
Operating Manual.
• Only use parts recommended by OPODEE.
• Store the machine indoors. Do not use or store it below 37.4°F (3°C).
• Ensure the machine is at room temperature before operating.
• Clean the machine only with a dry cloth.
• Do not use any lubricants, cleaning agents, polishes or air fresheners on any part of the machine.
• Empty as soon as the dirt reaches the level of the MAX mark – do not overfill.
• Ensure the machine is disconnected from the charger before emptying the clear bin.
• To make emptying the clear bin easier, it is advisable to remove the tube and
floor tool.
• To minimize dust/allergen contact when emptying, encase the clear bin tightly in a
plastic bag and empty.
Charge the Machine
Looking after your machine
Plug the adapter into the a wall outlet and plug the DC jack into the DC socket of the Battery
You can remove the battery to
charge from the macine.
Charging time : 4-5 Hours
The LED is flashing one by one,when charging.
The four lights will light on, when fully charged.
1
2
3
4
Click
1. Remove the Battery pack
2. Disassemble the Dust Cup
1. Press the battery pack button
1. Press the Unpack Dust Cup Button 2. Hold the Dust Cup and pull out a little
3. Then pull down.
2. Hold the battery pack and pull down

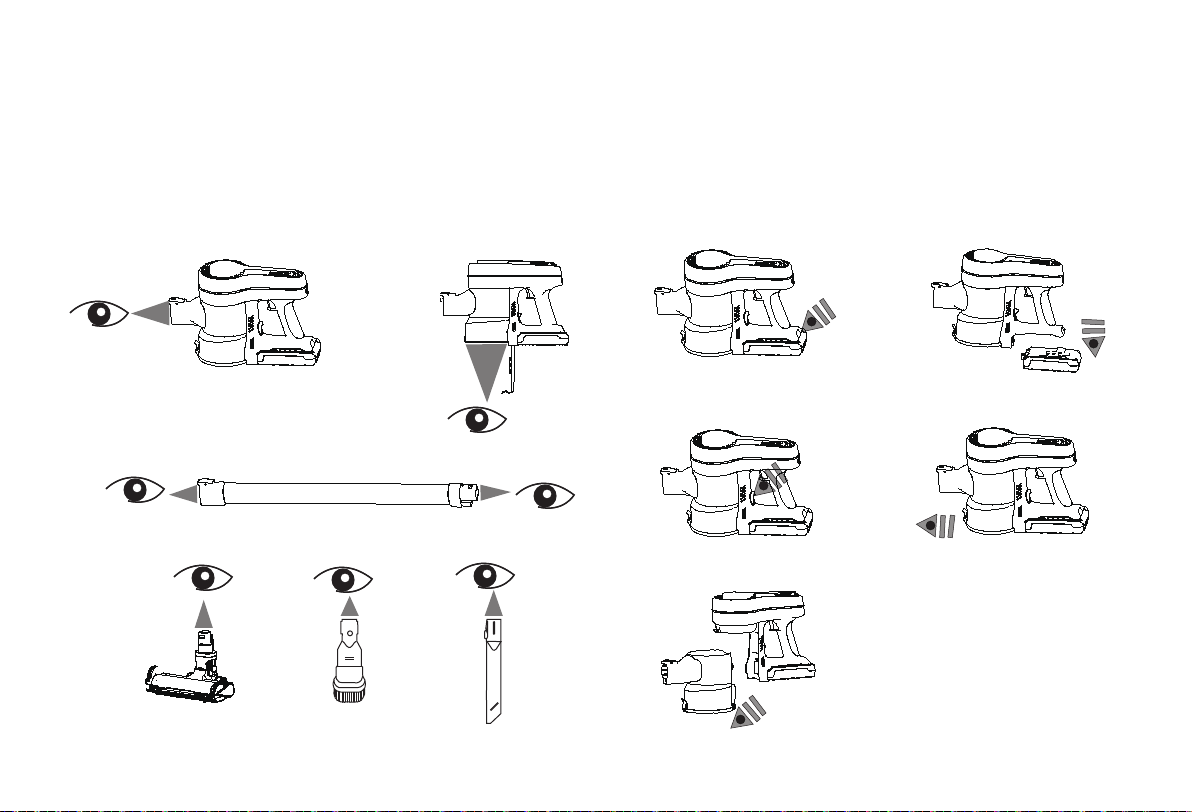

Looking for blockages Maintain the Machine
• Ensure the machine is disconnected from the charger before removing the clear bin.
• Remove the tube , floor tool and battery pack.
• Clean the clear bin with a damp cloth only.
• Do not use detergents, polishes or air fresheners to clean the clear bin.
• Do not put the clear bin in a dishwasher.
• Ensure the clear bin is completely dry before replacing.
•The motor will pulse when there is a blockage. Please follow the instructions belowto locate
the blockage:
• Ensure the machine is disconnected from the charger before looking for blockages.
• Do not operate while checking for blockages as doing so could result in personal injury.
• Beware of sharp objects when checking for blockages.
• This machine has carbon fiber brushes. Take care if coming into contact with them, as they
may cause minor skin irritation. Wash your hands after handling the brushes.
2
1
1
2
3
3. Take out the filter
5. Wipe the Pachine and Gust Fup
6. Install the Dust Cup
4. Wash the filter
2
1
TWash filter with cold water at least once a month.
Ensure the filter is completely dry before refitting.
1. The protrude angle of motor
must inset the sunken of Dust
Cup.
2. Hold the Dust Cup and
Upward
Click
1. Unlock the Buckle
2. Pull out the block.
3. Pull out the rolling brush
4. Clean the rolling brush 5. Reinstall the rolling brush by inserting
the fixed protruding end first and then
clicking into place.
Direct Drive Cleanerhead: Cleaning
obstructions or replace brush
Troubleshooting
Suction gets weak
1. Empty the dirt cup.
2. Clean the HEPA filter.
3. Check if the dust cup is installed correctly.
Roller brush stops spinning
or has strange noise
1. Check if the brush (especially the bearing part) is stuck by hair.
2. Check if the filter cup is installed correctly in the right place.
3. Detach the tube, use the handheld part only. If not work,
contact the seller for help.
Battery doesn’t charge
1. Check if the charger & charging base is connected correctly.
2. If there is no light on when charging, contact the seller for help.
1
6
6. Reinstall the block and lock the Buckle
4
3
2
5
Technical Specification
Battery
Charging time
Motor Power
Power Suction
Battery Power
Charging Voltage
Working time
22.2V / 2200 mAh Li-ion
4-5 hours
26.5V / 0.5A
250W
20Kpa
48.84W
35min (low speed), 20min (high speed)
