Vaillant eloSTOR Exclusive VEH 50/8-7 User manual

Installation and maintenance instructions
eloSTOR exclusive
VEH 50–120/8-7
AT, DE
Publisher/manufacturer
Vaillant GmbH
Berghauser Str. 40 D-42859 Remscheid
Tel. [phone]‑0 Fax [phone]‑2810
[email protected] www.vaillant.de

Contents
2Installation and maintenance instructions eloSTOR exclusive 0020234040_02
Contents
1 Safety.................................................................... 3
1.1 Action-related warnings ......................................... 3
1.2 Intended use.......................................................... 3
1.3 General safety information .................................... 3
1.4 Regulations (directives, laws, standards).............. 4
2 Notes on the documentation .............................. 5
2.1 Observing other applicable documents ................. 5
2.2 Storing documents................................................. 5
2.3 Validity of the instructions...................................... 5
3 Product description............................................. 5
3.1 Identification plate.................................................. 5
3.2 CE label ................................................................. 5
3.3 Design.................................................................... 5
4 Set-up.................................................................... 5
4.1 Checking the scope of delivery.............................. 5
4.2 Requirements for the installation site .................... 6
4.3 Observing the minimum clearances ...................... 6
4.4 Installing the product.............................................. 6
5 Installation............................................................ 7

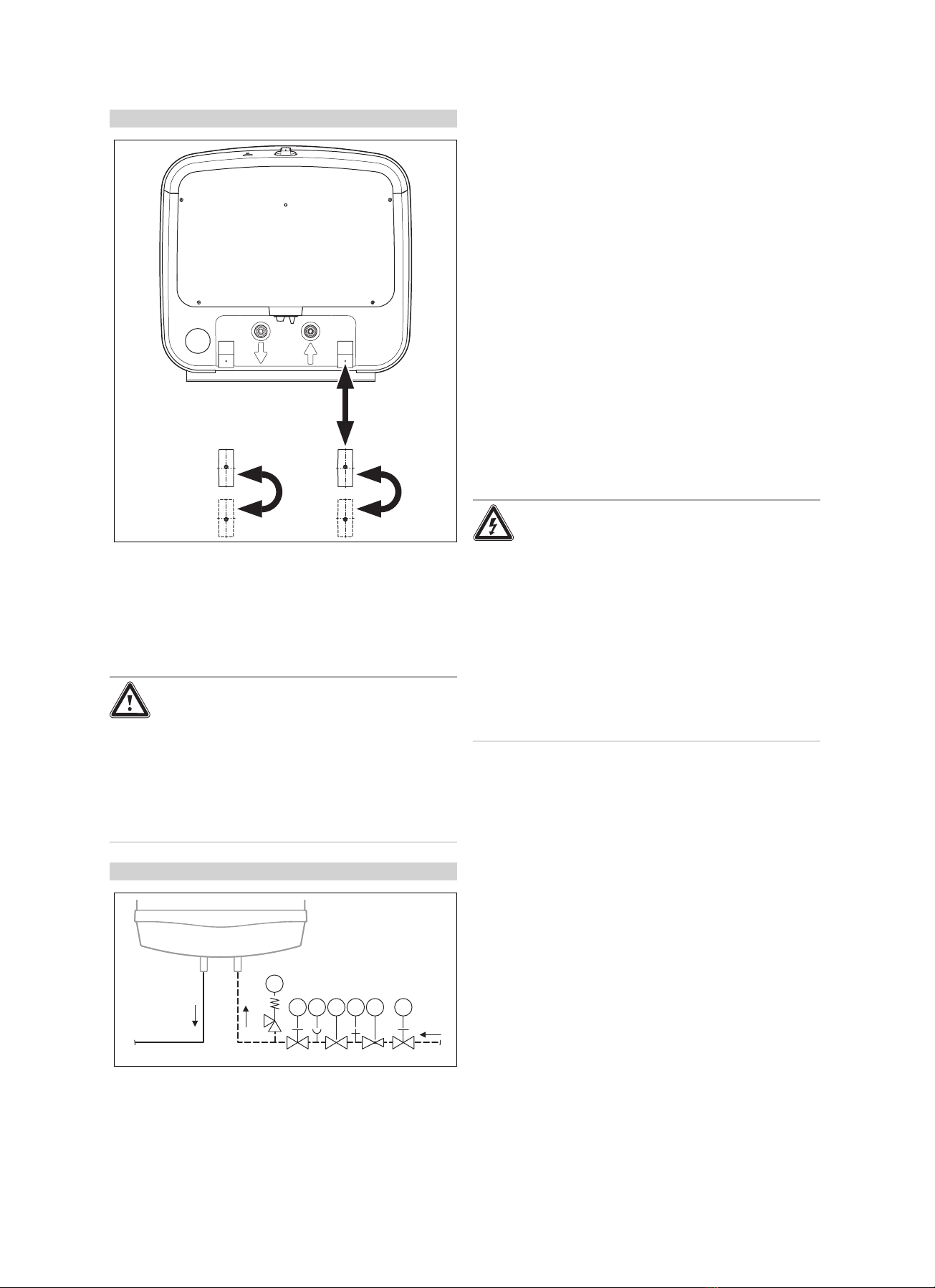

5.1 Hydraulic installation.............................................. 7
5.2 Requirements for electrical installation at the
installation site ....................................................... 7

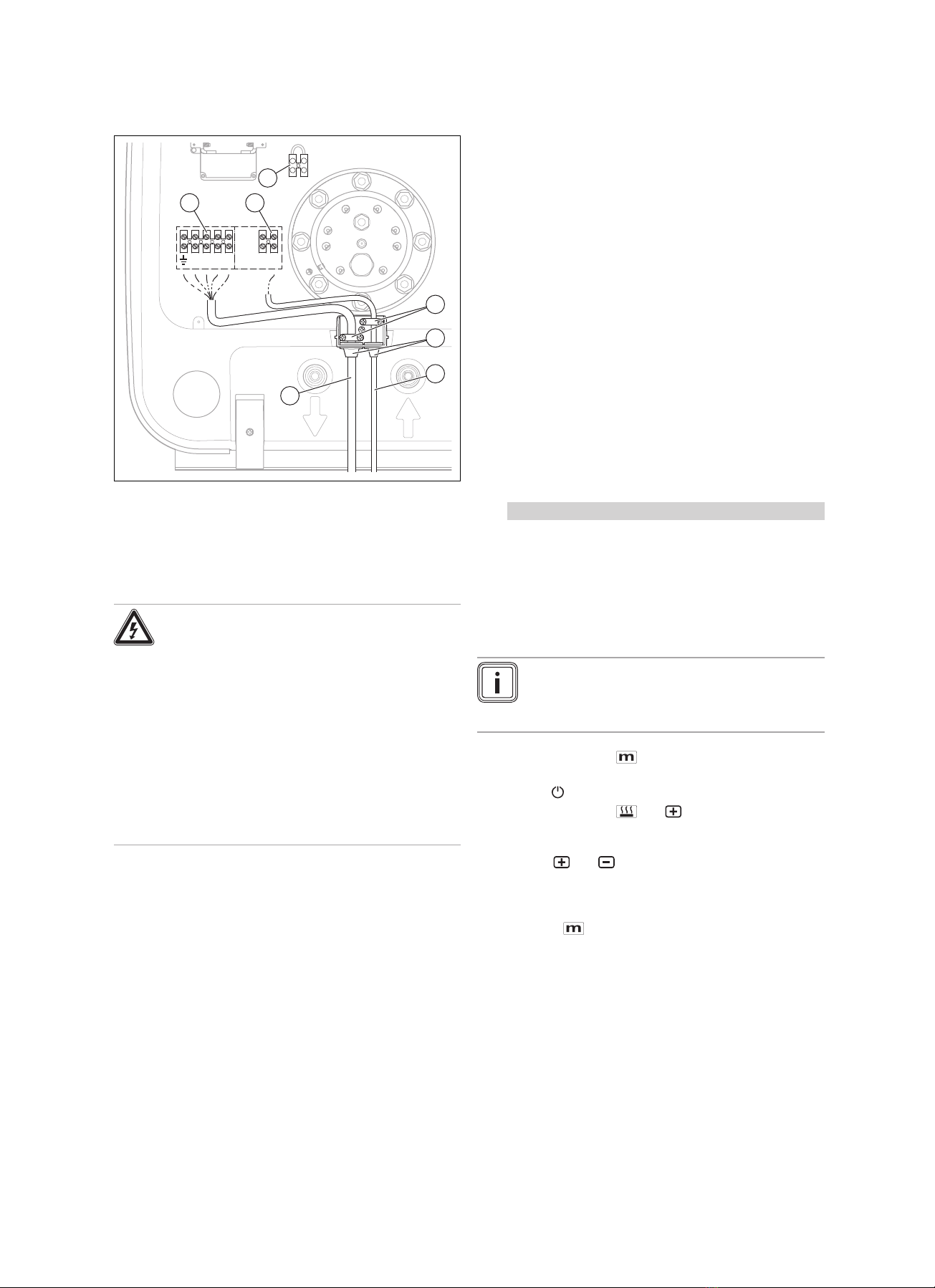

5.3 Electrical installation .............................................. 8
6 Start-up................................................................. 8
6.1 Operating............................................................... 8
6.2 Setting the configuration type ................................ 8
6.3 Checking that the product works correctly............. 9
7 Handing over to the operator ............................. 9
8 Inspection and maintenance .............................. 9
8.1 Disconnecting the product from the power
supply .................................................................... 9
8.2 Checking the magnesium protection anode .......... 9
8.3 Checking the inner vessel and components for
scale deposition................................................... 10
8.4 Completing maintenance work ............................ 10
9 Troubleshooting ................................................ 10
9.1 Replacing a defective Smart Control module ...... 10
9.2 Replacing a defective heating element................ 10
9.3 Resetting the safety cut-out................................. 10
9.4 Rectifying faults ................................................... 10
10 Decommissioning.............................................. 10
11 Recycling and disposal..................................... 10
12 Customer service............................................... 11
Appendix ............................................................................ 12
A Fault display view.............................................. 12
B Rectifying faults................................................. 12
C Dimensions and dimension drawing ............... 13
D Circuit diagrams and electrical
connections........................................................ 14

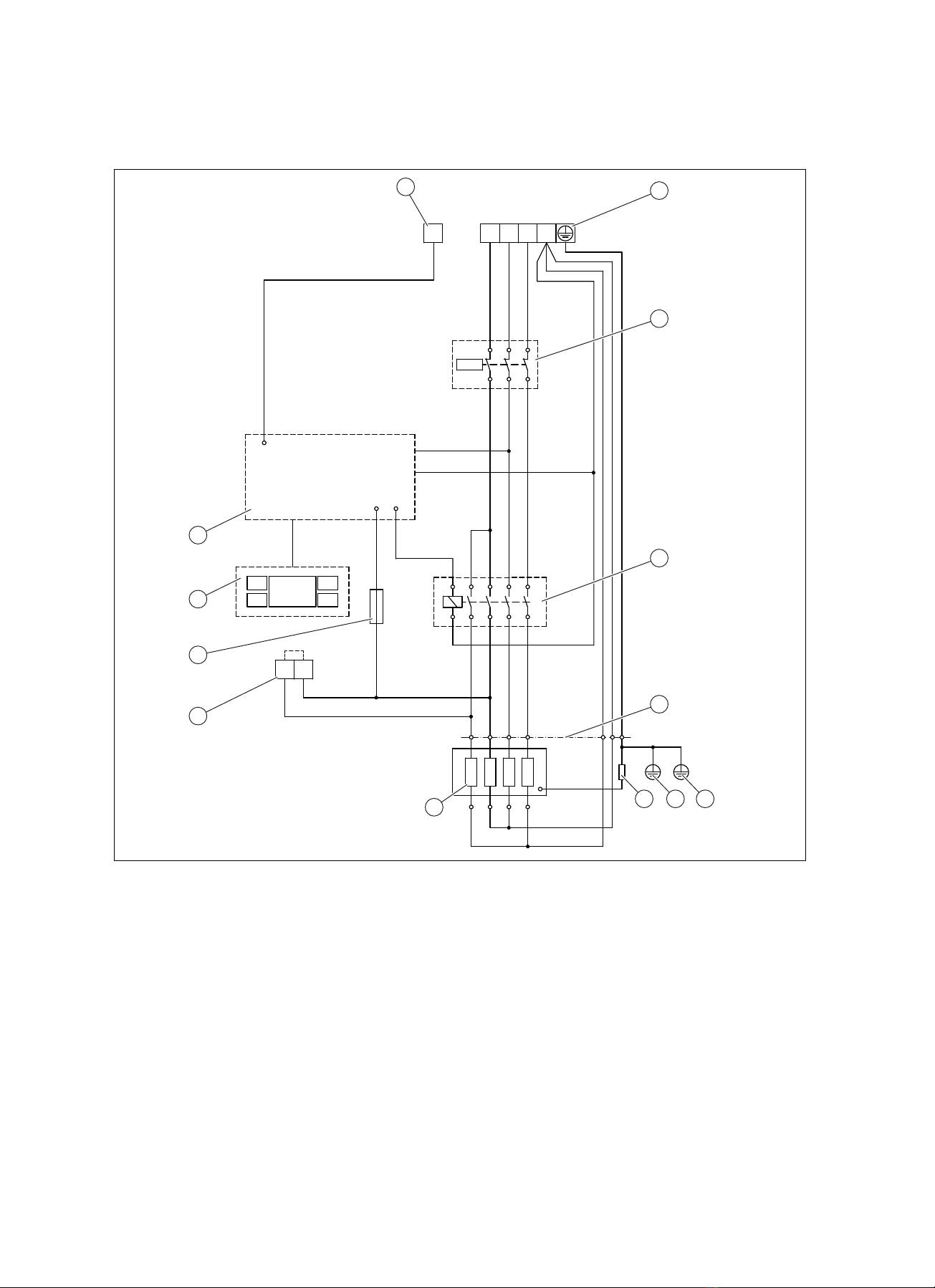

D.1 Connection diagram............................................. 14

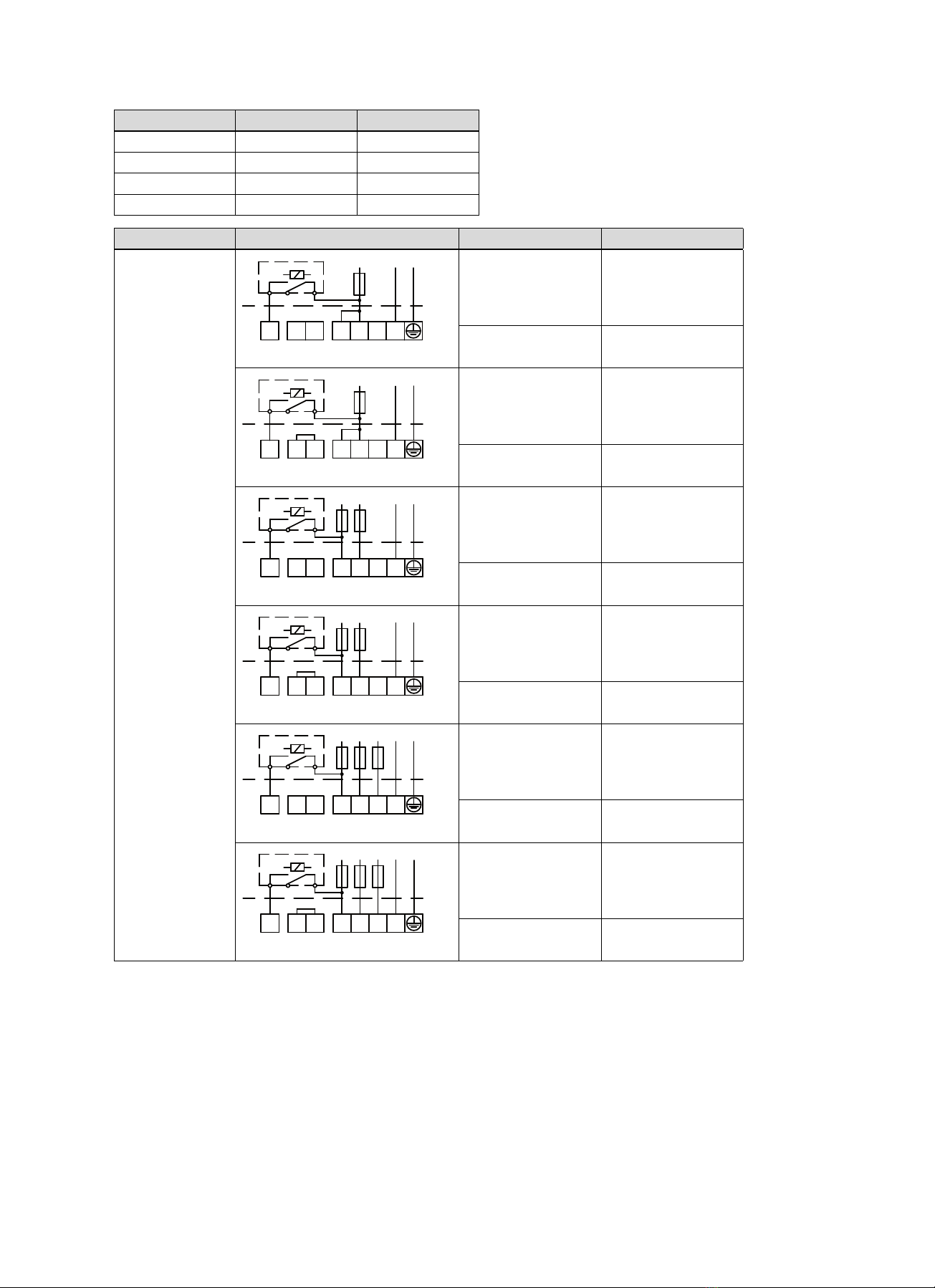

D.2 Overview of the configuration types .................... 15
D.3 Selecting the power ............................................. 15
E Maintenance plan............................................... 17
F Technical data.................................................... 17

Safety 1
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 3
1 Safety
1.1 Action-related warnings
Classification of action-related warnings
The action-related warnings are classified in
accordance with the severity of the possible
danger using the following warning signs and
signal words:
Warning symbols and signal words
Danger!
Imminent danger to life or risk of
severe personal injury
Danger!
Risk of death from electric shock
Warning.
Risk of minor personal injury
Caution.
Risk of material or environmental
damage
1.2 Intended use
There is a risk of injury or death to the user or
others, or of damage to the product and other
property in the event of improper use or use
for which it is not intended.
The product is designed for use as a heat
generator for hot water generation.
–Max. hot water temperature: 85 ℃
The product is approved exclusively for ver-
tical installation on the wall.
The product must only be operated if a safety
group is installed.
Intended use includes the following:
–observance of accompanying operating,
installation and servicing instructions for
the product and any other system compon-
ents
–installing and fitting the product in accord-
ance with the product and system approval
–compliance with all inspection and main-
tenance conditions listed in the instruc-
tions.
Intended use also covers installation in ac-
cordance with the IP code.
The use of the product in vehicles, such as
mobile homes and caravans, is not classed
as intended use. Units that are not classed
as vehicles are those that are installed in
a fixed and permanent location (known as
"fixed installation").
Any other use that is not specified in these in-
structions, or use beyond that specified in this
document shall be considered improper use.
Any direct use in industrial or commercial
processes is also deemed to be improper.
Caution.
Improper use of any kind is prohibited.
1.3 General safety information
1.3.1 Risk caused by inadequate
qualifications
The following work must only be carried out
by competent persons who are sufficiently
qualified to do so:
–Set-up
–Dismantling
–Installation
–Start-up
–Inspection and maintenance
–Repair
–Decommissioning
▶Observe all instructions that are included
with the product.
▶Proceed in accordance with current tech-
nology.
▶Observe all applicable directives, stand-
ards, laws and other regulations.
1.3.2 Risk of death from electric shock
There is a risk of death from electric shock if
you touch live components.
Before commencing work on the product:
▶Disconnect the product from the power
supply by switching off all power supplies
at all poles (electrical partition with a con-
tact gap of at least 3 mm, e.g. fuse or cir-
cuit breaker).
▶Secure against being switched back on
again.
▶Check that there is no voltage.
1.3.3 Material damage due to unsuitable
installation surface
The installation surface must be even and
have sufficient load-bearing capacity to sup-

1 Safety
4Installation and maintenance instructions eloSTOR exclusive 0020234040_02
port the operating weight of the product. An
uneven installation surface may cause leaks
in the product.
There is a risk of death if the connections are
subject to leaks.
▶Make sure that the product is positioned
flush against the installation surface.
▶Ensure that the installation surface has
sufficient load-bearing capacity to bear the
operating weight of the product.
1.3.4 Risk of scalding and material
damage due to escaping hot or cold
water
▶If you use plastic pipes for the hot or cold
water connection of the product, you must
only use pipes that are temperature-res-
istant up to 95 °C under a pressure of 1.0
MPa (10 bar).
1.3.5 Risk of death due to lack of safety
devices
The schematic drawings included in this doc-
ument do not show all safety devices re-
quired for correct installation.
▶Install the necessary safety devices in the
system.
▶Observe the applicable national and inter-
national laws, standards and guidelines.
1.3.6 Risk of injury due to the heavy
weight of the product
▶Make sure that the product is transported
by at least two people.
1.3.7 Risk of material damage caused by
using an unsuitable tool
▶Use the correct tool to tighten or loosen
threaded connections.
1.3.8 Risk of material damage caused by
frost
▶Do not install the product in rooms prone
to frost.
1.3.9 Risk of being burned or scalded by
hot components
▶Only carry out work on these components
once they have cooled down.
1.4 Regulations (directives, laws,
standards)
▶Observe the national regulations, stand-
ards, guidelines and laws.

Notes on the documentation 2
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 5
2 Notes on the documentation
2.1 Observing other applicable documents
▶You must observe all the operating and installation in-
structions included with the system components.
2.2 Storing documents
▶Pass these instructions and all other applicable docu-
ments on to the system operator.
2.3 Validity of the instructions
These instructions apply for the following products only:
Product article number
VEH 50/8-7 0010019874
VEH 80/8-7 0010019875
VEH 100/8-7 0010019876
VEH 120/8-7 0010019877
3 Product description
3.1 Identification plate
The identification plate is located on the lower side of the
product.
The identification plate contains the following information:
Information Meaning
Serial no. Serial number
VEH XX /8-7 Type designation
l Water capacity
3/N/PE 400 V
1/N/PE 230 V
~ 50/60 Hz
Electrical connection data
MPa (bar) Max. operating pressure
IP25D Level of protection
3.2 CE label
The CE label shows that the products comply with the basic
requirements of the applicable directives as stated on the
identification plate.
The declaration of conformity can be viewed at the manufac-
turer's site.
3.3 Design
3
1
2
6
45
1 Product holder
2 Domestic hot water
cylinder
3 Cold water connection
4 Mains connection line
5 Operator control panel
6 Hot water connection
The cylinder is equipped with external heat insulation. The
cylinder vessel is made of enamelled steel. The heating ele-
ments that transfer the heat are located inside the vessel. As
additional corrosion protection, the vessel has a magnesium
protection anode.
4 Set-up
4.1 Checking the scope of delivery
▶Check that the scope of delivery is complete.
Quantity Component
1 Domestic hot water cylinder
1 Product holder
1 Installation template
1 Operating instructions
1 Installation and maintenance instructions
Applicability: VEH 80/8-7
Quantity Component
1 Connector 0020192421
1 Connector 0020192422

4 Set-up
6Installation and maintenance instructions eloSTOR exclusive 0020234040_02
4.2 Requirements for the installation site
▶Observe the following requirements:
–Installation only in rooms that are always dry and free
of frost
–Installation only on a level, vertical and stable wall
–Installation only on a wall with sufficient load-bearing
capacity for the filled product (→Appendix: Technical
data)
Conditions: Non-pressurised installation
–Installation height above sea level: < 2000 m
4.3 Observing the minimum clearances
≥500
▶Comply with the minimum clearances during installation.
4.4 Installing the product
A1
A2
220 - 305
240
100
R ½
R ½
350
100
R1
6
1
2
3
5
4
1 Product bracket (re-
placement for VEH /5)
2 Product bracket (new
installation or replace-
ment for VEH /6 or /7)
3 Bearing surfaces for
wall support
4 Hot water connection
5 Discharge connection
6 Cold water connection
A1 Distance between the
product bracket and
water connections (re-
placement for VEH /5)
A2 Distance between the
product bracket and
water connections
(new installation or
replacement for VEH /6)
1. Install the product bracket.
[mm] A1 A2
VEH 50 790 690
VEH 80/100/120 1020 920
2. Hang the product in the product bracket.
–Lateral corrections are possible as a result of move-
ment.
Conditions: Pressure-tight installation of a VEH 50, VEH 100 or VEH 120
▶Install a suitable safety group on the VEH's water con-
nections.
Conditions: Pressure-tight installation of a VEH 80
▶Install a suitable safety group on the VEH's water con-
nections.
▶Replace the connectors from the safety group with the
connectors supplied for the VEH 80:
–Vaillant connection pipe 0020192421
–Vaillant connection pipe 0020192422

Installation 5
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 7
Conditions: The wall is uneven.
▶Smooth out any unevenness in the wall with the wall
supports.
5 Installation
5.1 Hydraulic installation
Warning.
Risk of adverse health effects caused by
impurities in the potable water.
Sealing residues, dirt or other residues in the
pipelines may adversely affect the quality of
the potable water.
▶Flush all of the hot and cold water pipes
thoroughly before you install the product.
Conditions: Pressure-tight installation
5 64 732
1
1 Expansion relief valve
2 Stop valve
3 Pressure gauge con-
nectors
4 Return flow prevention
5 Test valve
6 Pressure reducer
7 Cold water stop valve
▶Install components (1) to (7).
▶Install the safety device as close as possible to the pro-
duct's cold water inlet.
▶Install the drain pipework at a constant incline.
▶Maintain a clearance between the expansion relief
valve's discharge pipe and the tundish so that the drain
pipework is open to the atmosphere.
–Clearance: ≥20 mm
▶Make sure that the diameter of the drain pipework is at
least equal to that of the expansion relief valve's dis-
charge pipe.
▶Check the water connection positive pressure.
Result 1:
Water connection positive pressure: ≤6 bar
▶Install a suitable safety group with no pressure redu-
cer.
Result 2:
Water connection positive pressure: 6 … 16 bar
▶Install a suitable safety group with pressure reducer.
5.2 Requirements for electrical installation at
the installation site
Danger!
Risk of electric shock
There is a risk of electric shock when working
on electrical components that are connected
to the low-voltage network.
▶Disconnect the product from the power
supply.
▶Secure the product against being
switched back on again.
▶Check that the product is de-energised.
▶Only open the product when it is de-ener-
gised.
▶Connect the product to a permanent mains connection
via a partition wall.
–Requirements for the partition: Contact opening of at
least 3 mm; mains connection is switched off at all
pins
▶Make sure that the line protection switches are suitable
for the measuring current.
–Measuring current: 16 A

6 Start-up
8Installation and maintenance instructions eloSTOR exclusive 0020234040_02
5.3 Electrical installation
1
3
4
7 6
5
2
12L1L2L3N
45
1 Mains connection cable
2 Auxiliary connection
cable
3 Cable duct
4 Strain relief
5 Output selection ter-
minal
6 Auxiliary connection
terminal
7 Mains connection ter-
minal
Danger!
Risk of electric shock
There is a risk of electric shock when working
on electrical components that are connected
to the low-voltage network.
▶Disconnect the product from the power
supply.
▶Secure the product against being
switched back on again.
▶Check that the product is de-energised.
▶Only open the product when it is de-ener-
gised.
1. Observe the connection diagram ( Appendix).
2. Guide the mains connection cable through the cable
duct and through the strain relief.
3. Tighten the screws on the strain relief.
4. Secure the mains connection cable to the mains con-
nection terminal.
5. Guide the auxiliary connection cable through the cable
duct and through the strain relief.
6. Tighten the screws on the strain relief.
7. Secure the auxiliary connection cable to the auxiliary
connection terminal.
Re-work
▶Using an indelible pen, note the connected power on the
identification plate.
6 Start-up
1. Open the cold water stop cock.
2. Open the hot water valves.
3. Wait until water flows out of the hot water valves.
4. Close the hot water valves.
5. Check that the expansion relief valve is functioning
properly by venting the expansion relief valve.
◁Water must escape from the expansion relief valve.
6. Ensure that the safety cut-out is switched on.
7. Check that all of the pipe connections are leak-tight.
8. Switch on the fuses.
9. Switch on the line protection switches.
10. Set the configuration type. (→Page 8)
11. Set the operating mode (→Operating instructions).
12. Check that the product works correctly. (→Page 9)
13. Set the target cylinder temperature.
Conditions: Water hardness: > 3.57 mol/m³
–Water temperature: ≤50 ℃
6.1 Operating
The domestic hot water cylinder operating instructions list
the functions that can be set by the operator.
6.2 Setting the configuration type
Note
In the as-delivered condition, the twin-circuit
switching (Co2) and the Smart operating mode
are preset.
1. Press and hold the button for at least three seconds
to switch to standby mode.
◁The symbol flashes in the display.
2. Press and hold the and buttons at the same
time for at least 10 seconds to open the configuration
menu.
3. Use the and buttons to set the configuration type
(on-demand switching (Co0), single-circuit switching
(Co1) or twin-circuit switching (Co2)) that was selected
during the electrical installation.
4. Press the button to save this selection and exit the
configuration menu.

Handing over to the operator 7
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 9
6.3 Checking that the product works correctly
1. Set the maximum flow temperature on the domestic hot
water cylinder.
◁The display shows the "Heating element active"
symbol .
2. Open the hot water draw-off point that is furthest away
from the domestic hot water cylinder.
◁If water flows out from the hot water draw-off point,
the domestic hot water cylinder has been sufficiently
filled with water.
3. After a few minutes, check the current hot water tem-
perature.
4. When the domestic hot water cylinder is heated for the
first time, check whether the expansion relief valve is
operating correctly.
◁If water drips from the discharge line, the expansion
relief valve is operating correctly.
7 Handing over to the operator
▶Inform the operator how to handle the product. Answer
any questions the operator may have. Draw attention to
the safety information that the operator must follow.
▶Explain to the operator how the safety devices work and
where they are located.
Danger!
Risk of death from legionella.
Legionella multiply at temperatures below
60 °C.
▶Ensure that the end user is familiar with
all of the Anti-legionella measures in order
to comply with the applicable regulations
regarding legionella prevention.
▶Explain to the operator how to limit the hot water temper-
ature at the draw-off point in order to prevent scalding.
▶Inform the operator of the necessity to have the product
maintained on a regular basis.
▶Provide the operator with all relevant instructions and unit
documentation for safe-keeping.
8 Inspection and maintenance
▶You can find the inspection and maintenance work in the
maintenance plan in the appendix. (→Page 17)
8.1 Disconnecting the product from the power
supply
Danger!
Risk of electric shock
There is a risk of electric shock when working
on electrical components that are connected
to the low-voltage network.
▶Disconnect the product from the power
supply.
▶Secure the product against being
switched back on again.
▶Check that the product is de-energised.
▶Only open the product when it is de-ener-
gised.
▶Remove the mains connection lines.
8.2 Checking the magnesium protection anode
1
2
2
5
3
4
6
1 Flange with hex nuts
2 Heating elements
3 Drain cock
4 Temperature sensor
5 Earth line
6 Magnesium protection
anode
1. Disconnect the product from the power supply.
(→Page 9)
2. Empty the product. (→Page 10)
Removing the flange
3. Unscrew the cover on the flange.
4. Remove the electrical connections on the heating ele-
ments from the terminal block.
5. Undo the hex nuts on the cover for the flange and the
electronics box.
6. Remove the temperature sensor for the thermostat and
the safety cut-out.
7. Unscrew the earth line from the flange.
8. Remove the flange straight from the cylinder tank.
Replacing the magnesium protection anode
9. Replace the magnesium protection anode when it is
worn to an extent of 60%.

9 Troubleshooting
10 Installation and maintenance instructions eloSTOR exclusive 0020234040_02
Installing the flange
10. Replace the flange seal.
11. Check the inner vessel and components for scale de-
position. (→Page 10)
12. Screw the flange in place.
13. Screw on the earth line.
14. Insert the temperature sensor for the thermostat and
the safety cut-out into the opening provided for them.
15. Use a cube plug to place the electrical connections for
the heating elements on the terminal block.
16. Screw the cover to the product tightly.
17. Start up the product. (→Page 8)
8.3 Checking the inner vessel and components
for scale deposition
1. Disconnect the product from the power supply.
(→Page 9)
2. Empty the product. (→Page 10)
3. Remove the flange. (→Page 9)
4. If necessary, clean the inner vessel with descaling
agents or by carefully scraping it with a wooden spatula.
5. Replace components if necessary.
6. Install the flange. (→Page 10)
7. Start up the product. (→Page 8)
8.4 Completing maintenance work
1. Fit the casing.
2. Ensure that all of the product's components have been
installed correctly.
3. Connect the product to the power supply.
4. Switch on the product.
9 Troubleshooting
9.1 Replacing a defective Smart Control
module
1. Disconnect the product from the power supply.
(→Page 9)
2. Undo the screws on the cover for the flange and elec-
tronics box.
3. Pull out all plugs from the Smart Control module.
4. Undo the two screws for the Smart Control module.
5. Secure the new Smart Control module.
6. Plug all of the plugs into the contacts.
7. Screw the cover to the product tightly.
8. Start up the product. (→Page 8)
9.2 Replacing a defective heating element
1. Disconnect the product from the power supply.
(→Page 9)
2. Empty the product. (→Page 10)
3. Remove the flange. (→Page 9)
4. Unscrew the defective heating element from the flange.
5. Screw the new heating element onto the flange.
6. Install the flange. (→Page 10)
7. Start up the product. (→Page 8)
9.3 Resetting the safety cut-out
1
1. Disconnect the product from the power supply.
(→Page 9)
2. Eliminate whatever triggered the safety cut-out using
the table in the appendix (→Page 12).
3. In the opening (1), press the reset button for the safety
cut-out, e.g. using a screwdriver.
4. Start up the product. (→Page 8)
9.4 Rectifying faults
▶Use the table in the appendix to rectify the faults
(→Page 12).
10 Decommissioning
1. Disconnect the product from the power supply.
(→Page 9)
Emptying the product
2. Close the cold water stop cock.
3. Open a hot water valve connected to the product.
4. Drain the domestic hot water cylinder using the drain
cock.
Removing the product
5. Remove the cold and hot water piping.
6. Undo the screws.
7. Lift the product and remove it from the wall.
8. Remove the screws from the wall.
11 Recycling and disposal
Disposing of the packaging
▶Dispose of the packaging correctly.

Customer service 12
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 11
▶Observe all relevant regulations.
12 Customer service
Applicability: Austria
Vaillant Group Austria GmbH
Clemens-Holzmeister-Straße 6
1100 Wien
Österreich
E-Mail Kundendienst: [email protected]
Internet Kundendienst: http://www.vaillant.at/werkskundendi-
enst/
Telefon: 05 7050‑2100 (zum Regionaltarif österreichweit,
bei Anrufen aus dem Mobilfunknetz ggf. abweichende Tarife
- nähere Information erhalten Sie bei Ihrem Mobilnetzbe-
treiber)
Der flächendeckende Kundendienst für ganz Österreich ist
täglich von 0 bis 24 Uhr erreichbar. Vaillant Kundendienst-
techniker sind 365 Tage für Sie unterwegs, sonn- und feier-
tags, österreichweit.
Applicability: Germany
Auftragsannahme Vaillant Kundendienst: 021 91 5767901

Appendix
12 Installation and maintenance instructions eloSTOR exclusive 0020234040_02
Appendix
A Fault display view
Display Cause Remedy
Err
The display lights up for 30 seconds.
The display remains permanently on.
Dry fire
Fault
–Check all of the product's components
for malfunctions.
Repair or replace the defective compon-
ent.
Press and hold the and buttons
at the same time for 5 seconds to ac-
knowledge the fault
B Rectifying faults
Fault Possible cause Troubleshooting
The safety cut-out has
been tripped.
The display lights up for
30 seconds and displays
the fault code err.
Dry fire –Check why the domestic hot water cylinder does not contain any
water and replace the faulty component.
–Fill the domestic hot water cylinder.
Heat-up time too long
–Smart Control module defective
–Communication fault
–Check that the electrical plug connections and other connections
are seated correctly and correct these if necessary.
–Replace the Smart Control module.
–Expansion relief valve is open
–Expansion relief valve is defect-
ive
–Close the expansion relief valve.
–Replace the expansion relief valve.
Smart Control module defective Replace the Smart Control module.
Electronics fault Replace the Smart Control module.
Connection error –Check that the electrical plug connections and other connections
are seated correctly and correct these if necessary.
–Replace the Smart Control module.

Appendix
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 13
C Dimensions and dimension drawing
A
B C
470507
100
R ½
350
100
41
Dimensions
VEH 50/8-7 VEH 80/8-7 VEH 100/8-7 VEH 120/8-7
A637 mm 875 mm 1,041 mm 1,207 mm
B529 mm 673 mm 759 mm 759 mm

Appendix
14 Installation and maintenance instructions eloSTOR exclusive 0020234040_02
D Circuit diagrams and electrical connections
D.1 Connection diagram
L1 L3
L2 N
HC3
HC2
HC1
HC4
STL
1
4 5
LT
16 A
230 V
HT
12
3
4
5
678
9
10
12
11
13
1 EVU contact
2 Mains connection terminal
3 Safety cut-out
4 Control system relay
5 Isolating plug
6 Protection anode earthing
7 Vessel earthing
8 Functional earth resistor
9 Heating elements
10 Output selection terminal
11 Fuse
12 Smart control interface module
13 Smart control power module
LT Low tariff output
HT High tariff output

Appendix
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 15
D.2 Overview of the configuration types
On-demand
switching (Co0)
Single circuit
switching (Co1)
Twin circuit switching (Co2)
Available operating
mode
Scald protection
Manual
Scald protection
Manual
Smart
Scald protection
Manual
Smart
EVU contact Not working Not working Open: High tariff Closed: Low
tariff
Not working
Heating elements actu-
ated by
Sluice Sluice Sluice Smart Control
module
Sluice
D.3 Selecting the power
Configuration type Mains connection Basic load Rapid heating
Single-circuit switch-
ing
On-demand switch-
ing
1L1 L3
L2 N
45
LNPE
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
2 kW
–
–VEH 120/8-7
1.5 kW
–
L1 L3
L2 N
45
LNPE
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–
–VEH 120/8-7
3 kW
–
L1 L3
L2 N
45
LNPE
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–
–VEH 120/8-7
4.5 kW
–
L1 L3
L2 N
45
NPE
L2
L1
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–
–VEH 120/8-7
3 kW
–
L1 L3
L2 N
45
NPE
L2L1
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–
–VEH 120/8-7
4.5 kW
–
L1 L3
L2 N
45
NPE
L3
L2L1
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
6 kW
–
–VEH 120/8-7
6 kW
–
By bridging terminal 4/5, heating elements 1 and 4 can be interconnected in the low tariff. The heating elements' outputs are
listed in the following table. Find out from your energy supply company what the maximum power consumption is for low-tariff
switching.

Appendix
16 Installation and maintenance instructions eloSTOR exclusive 0020234040_02
Heating element VEH 50 / 80 / 100 VEH 120
1 1 kW 1.5 kW
2 2 kW 1.5 kW
3 2 kW 1.5 kW
4 1 kW 1.5 kW
Configuration type Mains connection Basic load Rapid heating
Twin-circuit switching
L1 L3
L2 N
45
LNPE
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
1 kW
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–VEH 120/8-7
1.5 kW
–VEH 120/8-7
4.5 kW
L1 L3
L2 N
45
PE
1
LN
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
2 kW
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–VEH 120/8-7
3 kW
–VEH 120/8-7
4.5 kW
L1 L3
L2 N
45
L1 NPE L2
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
1 kW
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–VEH 120/8-7
1.5 kW
–VEH 120/8-7
4.5 kW
L1 L3
L2 N
45
L1 NPE L2
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
2 kW
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
4 kW
–VEH 120/8-7
3 kW
–VEH 120/8-7
4.5 kW
L1 L3
L2 N
45
L1 NPE L2 L3
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
1 kW
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
6 kW
–VEH 120/8-7
1.5 kW
–VEH 120/8-7
6 kW
L1 L3
L2 N
45
L1 NPE L2 L3
1
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
2 kW
–VEH 50/8-7
–VEH 80/8-7
–VEH 100/8-7
6 kW
–VEH 120/8-7
3 kW
–VEH 120/8-7
6 kW

Appendix
0020234040_02 eloSTOR exclusive Installation and maintenance instructions 17
E Maintenance plan
Maintenance work Interval
Checking the magnesium protection anode After the first two years, then annu-
ally thereafter
Checking seals Each time maintenance work is
carried out
Tighten the fixing screws Each time maintenance work is
carried out
Checking the inner vessel and components for scale deposition Each time maintenance work is
carried out
F Technical data
Technical data –General
VEH 50/8-7 VEH 80/8-7 VEH 100/8-7 VEH 120/8-7
Product dimensions, height 637 mm 875 mm 1041 mm 1207 mm
Product dimensions, width 504 mm 504 mm 504 mm 504 mm
Product dimensions, depth 450 mm 450 mm 450 mm 450 mm
Weight when filled with water 80 kg 130 kg 160 kg 185 kg
Nominal capacity 50 l 80 l 100 l 120 l
Electrical power consumption –1 kW
–2 kW
–4 kW
–6 kW
–1 kW
–2 kW
–4 kW
–6 kW
–1 kW
–2 kW
–4 kW
–6 kW
–1.5 kW
–3 kW
–4.5 kW
–6 kW
Technical data –Output
VEH 50/8-7 VEH 80/8-7 VEH 100/8-7 VEH 120/8-7
Standby energy consumption (in 24 hours at
65 °C)
0.6 kWh 0.8 kWh 0.93 kWh 1.06 kWh
Selectable hot water temperature range 7 … 85 °C 7 … 85 °C 7 … 85 °C 7 … 85 °C
Energy-saving setting 60 °C 60 °C 60 °C 60 °C
Mixed water volume from 40 °C 96 l 157 l 196 l 237 l
Heat-up time (from 10 to 60 °C) at 1 kW 2.73 h 4.60 h 6.83 h –
Heat-up time (from 10 to 60 °C) at 1.5 kW –––4.35 h
Heat-up time (from 10 to 60 °C) at 2 kW 1.43 h 2.18 h 3.51 h –
Heat-up time (from 10 to 60 °C) at 3 kW –––2.16 h
Heat-up time (from 10 to 60 °C) at 4 kW 0.73 h 1.00 h 1.82 h –
Heat-up time (from 10 to 60 °C) at 4.5 kW –––1.32 h
Heat-up time (from 10 to 60 °C) at 6 kW 0.39 h 0.68 h 0.90 h 0.98 h
Permissible operating pressure 0 … 0.6 MPa 0 … 0.6 MPa 0 … 0.6 MPa 0 … 0.6 MPa
Technical data –Electrics
VEH 50/8-7 VEH 80/8-7 VEH 100/8-7 VEH 120/8-7
Electric connection –230 V/50 Hz
–400 V/50 Hz
–230 V/50 Hz
–400 V/50 Hz
–230 V/50 Hz
–400 V/50 Hz
–230 V/50 Hz
–400 V/50 Hz
Rated current 16 A 16 A 16 A 16 A
Level of protection IP25D IP25D IP25D IP25D

0020234040_02 19.12.2017
Supplier
Vaillant Group Austria GmbH
Clemens-Holzmeister-Straße 6 1100 Wien
Telefon 05 7050 Telefax 05 7050‑1199
Telefon 05 7050‑2100 (zum Regionaltarif österreichweit, bei Anrufen aus dem Mobilfunknetz ggf. abweichende
Tarife - nähere Information erhalten Sie bei Ihrem Mobilnetzbetreiber)
[email protected] [e-mail]
www.vaillant.at www.vaillant.at/werkskundendienst/
Vaillant Deutschland GmbH & Co.KG
Berghauser Str. 40 D-42859 Remscheid
Telefon [phone]‑0 Telefax 021 91 18‑2810
Auftragsannahme Vaillant Kundendienst 021 91 5767901
[email protected] www.vaillant.de
© These instructions, or parts thereof, are protected by copyright and may be reproduced or distributed only with
the manufacturer's written consent.
We reserve the right to make technical changes.
0020234040_02
