VALBERG 980118 User manual

980118 - WF 1114 A W566C
Washing machine
Lave-linge
Wasmachine
Lavadora
INSTRUCTIONS FOR USE ....................02
CONSIGNES D'UTILISATION ....................32
GEBRUIKSAANWIJZINGEN ....................64
INSTRUCCIONES DE USO ....................94
2/2 07/2023-01

2
EN
Thank you!
Thank you for choosing this VALBERG product.
VALBERG products are chosen, tested, and
recommended by ELECTRO DEPOT, so you can be sure
you are getting a top-quality, easy-to-use product
that won’t let you down.
We’re confident your new device will be a pleasure
to use every day!
Welcome to ELECTRO DEPOT.

3
EN
Table of Contents
AProduct overview
CCleaning and
maintenance
BProduct usage Installation
Operation
Cleaning and maintenance
Trouble Shooting
Transport
Product Fiche
Parts
Specifications

4
EN

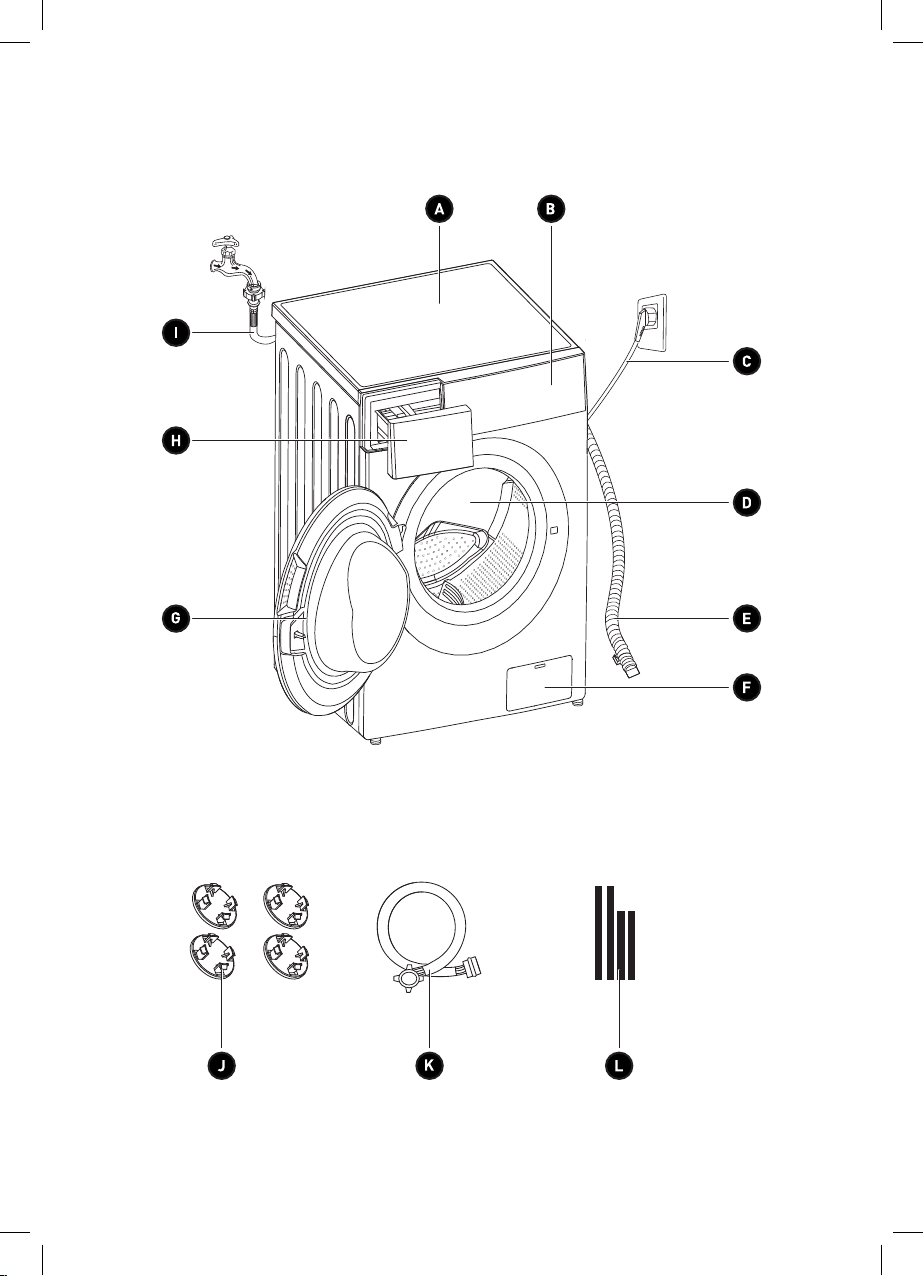

Parts
Product overview
A
Top cover Door
Control panel Detergent dispenser
Power supply cord Water supply hose
Drum 4 x Cover caps
Drain hose 1 x Supply hose cold water
Service flap Acoustic sponge
Note:
• The product picture is for illustration only, please refer to real product as
reference.

5
EN
Product overview
A
Specifications
Model: 980118 - WF 1114 A W566C
Power Supply: 220-240V~, 50Hz
MAX. Current: 10A
Standard Water Pressure: 0.05MPa ~ 1MPa
Washing Capacity: 11.0kg

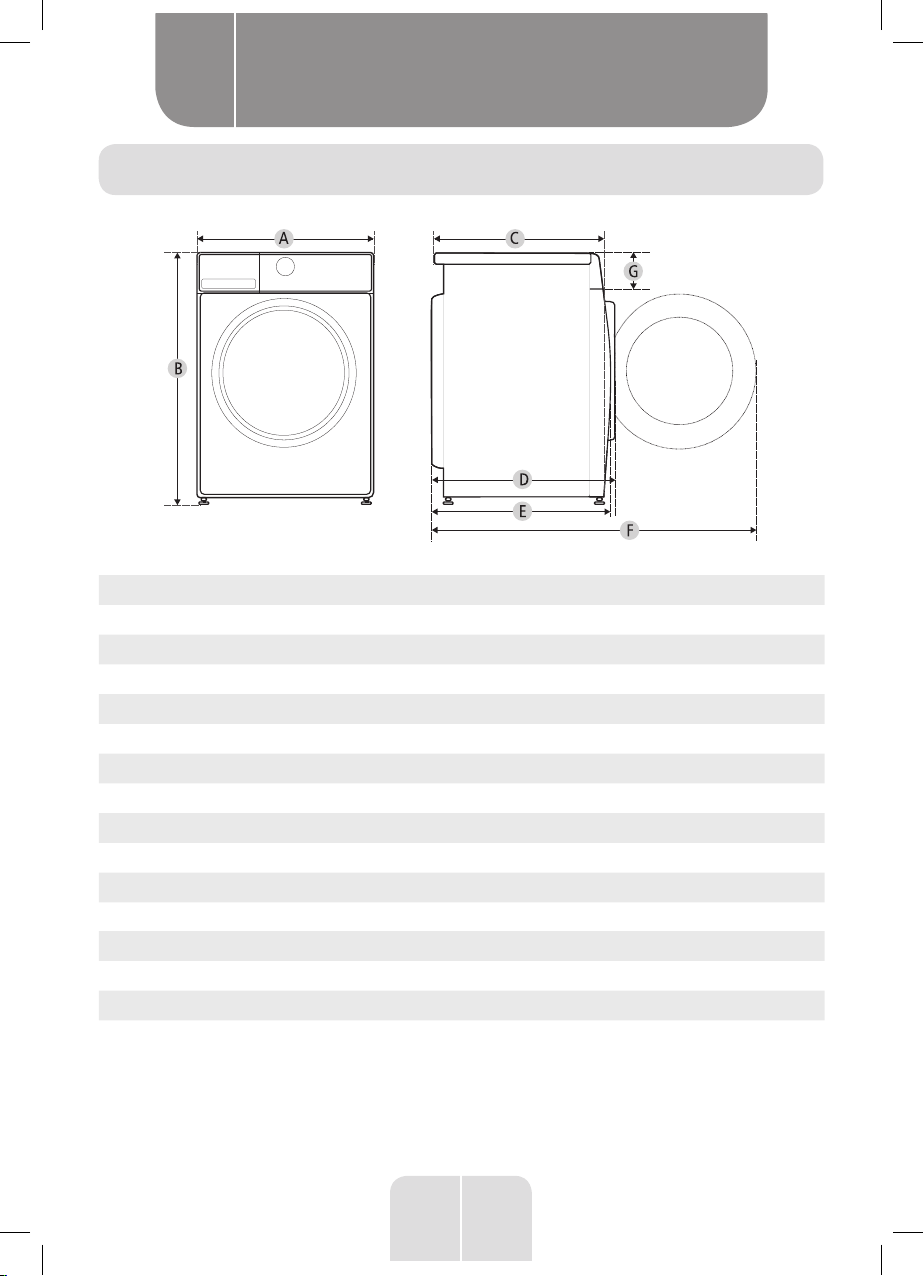

Dimension
A: 595mm
B: 850mm
C: 565mm
Weight: 72kg
Rated Power: 1950W
Reference Dimension
D: 629mm
E: 611mm
F: 1094mm
G: 135mm

6
EN
Installation

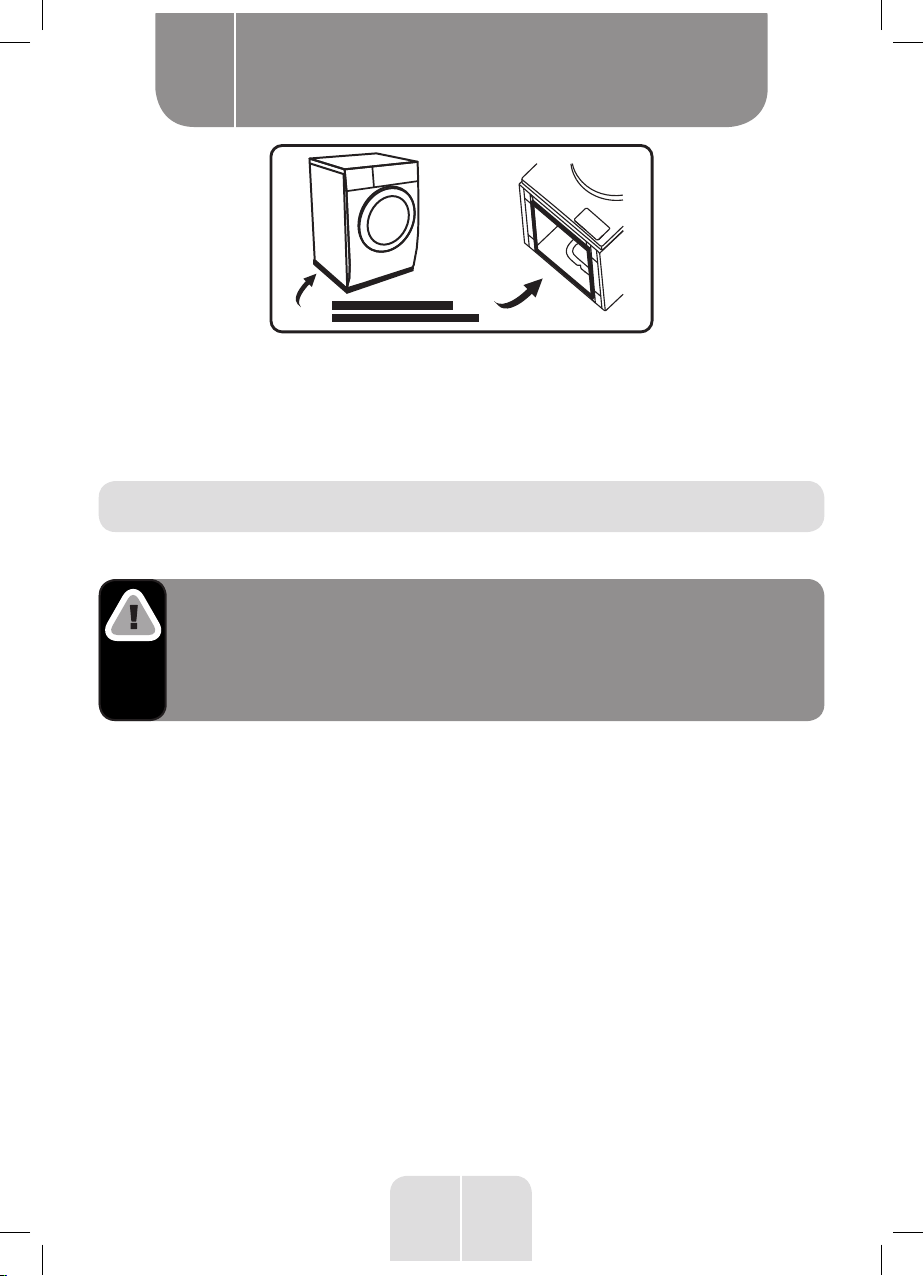

Installation area
Warning!

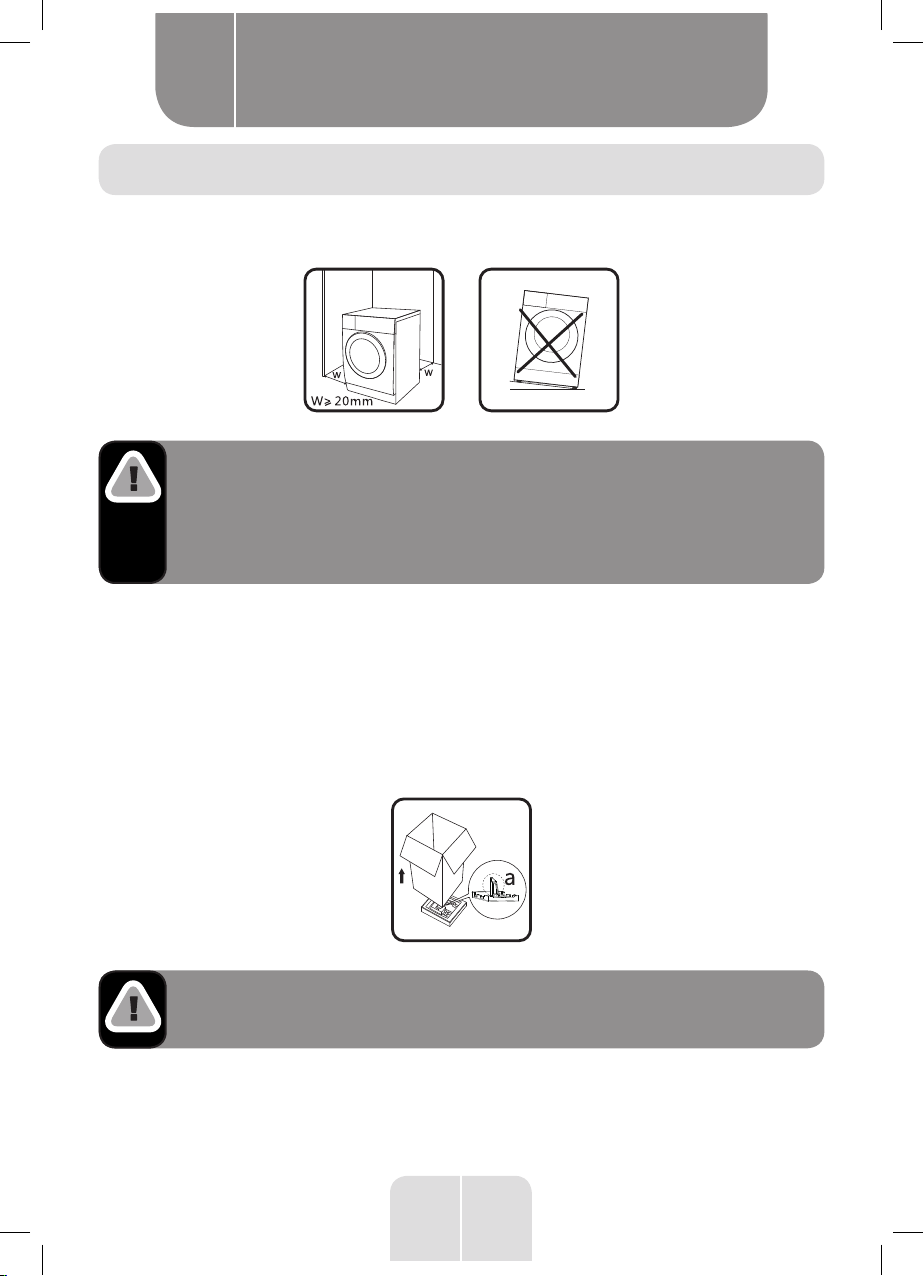

• Stability is important to prevent the product from wandering! Make sure the
machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in
the picture.
Before installing the machine, the location characterized as follows shall be selected:
• Rigid, dry, and level surface
• Avoid direct sunlight
• Sufficient ventilation
• Room temperature is above 0°C
• Keep far away from the heat sources such as coal or gas burning appliances.
Unpacking the washing machine
Warning!
• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging.Make sure the small triangle
foam (a) is removed with the bottom packaging together. If not, lay the unit down on the
side surface and remove it manually.
Product usage
B

7
EN
Product usage
B
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

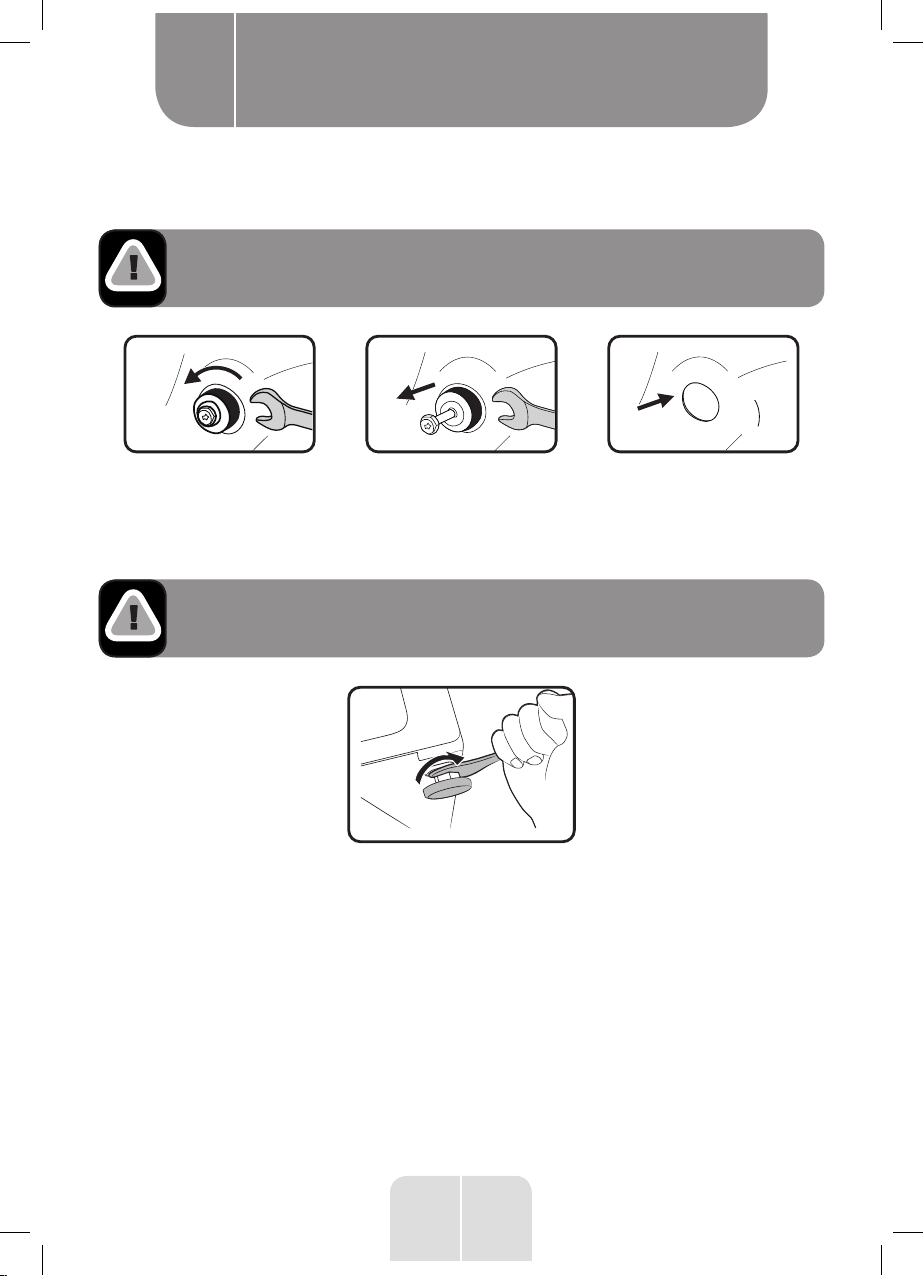

Remove transport bolts
Warning!
• You must remove the transport bolts from the backside before using the
product.
1. Loosen the 4 transport bolts with a spanner.
2. Remove the bolts including the rubber parts and keep them for future use.
3. Close the holes using the cover caps.
Levelling the washing machine
Warning!
• The lock nuts on all four feet must be screwed tightly against the housing.
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

8
EN
Product usage
B
Connect the water supply hose
Warning!
To prevent leakage or water damage, follow the instructions in this chapter.
• Do not kink, crush or modify water inlet hose.
Connect the water supply hose to the water inlet valve and a water tap with cold water as
indicated.
Note:
• Connect manually, do not use tools. Check if the connections are tight.
Drain Hose
Warning!
• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.
There are two ways to place the end of drain hose:
water
trough
1. Put it into the water trough.
2. Connect it to the branch drain pipe of the trough.
Acoustic Sponge / Panel
Note:
• Please make sure to assemble the acoustic sponges/panel, which can
effectively reduce the noise caused by the machine while working, in order
to provide you with a more peaceful and quiet living environment.

9
EN
Product usage
B
2x
2x
1. Get the machine laid on the floor, using some soft material like foam or clothes between
the machine and floor for a protection;
2. Stick the longer sponges to the longer bottom edges of machine, and the shorter sponges
to the shorter bottom edges, Installation of panel is same as sponges.
• Acoustic Sponge: WF 1114 A W566C.
Operation
Quick Start
Caution!
• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any
residual water and to neutralize potential odors, it’s recommended to clean
your appliance before first use. For this reason, start the Cotton program at
90°C without laundry and detergent.
Calibration
It’s recommended to calibrate the washing machine, so that provide the best performance.
The appliance is able to detect the amount of laundry loaded. This function is optimizing the
product performance by minimizing energy and water consumption, saving you money and
time. For this reason it’s recommended to calibrate the appliance for best use.
1. Remove all accessories from the drum and close the door;
2. Insert the mains plug to the socket;
3. Switch on the washing machine and press “Boost” and “Temp.” simultaneously for
10seconds until “t19” is displayed;

10
EN
Product usage
B
4. Press [ ] to start the appliance and wait till “****” is displayed.
• Before Washing
earth
terminal
1. Plug in
2. Open tap
3. Load
4. Close door
5. Add detergent
Note:
• Detergent need to be added in compartment I if the pre-wash function is
selected.
• Do not put laundry beads into the detergent dispenser.
• Washing
1. Power On
2. Select programme
3. Select function or remain default settings

11
EN
Product usage
B
4. Press Start/Pause to start the program
• After Washing
Buzzer beep and “End” on display.
Before Each Washing
• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C,
the inlet valve and draining system may be damaged. If the machine is installed under
freezing conditions, it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash.
Use non-foaming or less-foaming detergent suitable for machine washing properly.
1. Check the care label
2. Sort laundry according to color and textile type
3. Take all items out of the pockets
4. Tie together long textile strips and belts, close zips and button
5. Put small items into a laundry bag
6. Turn easy-pilling and long-pile fabric inside out
Warning!
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Do not wash items that have been cleaned in, washed in or soaked in
combustible or explosive substances such as wax, petroleum, paint, gasoline,
alcohol, kerosene and other flammable substances, or if items may have been
sprinkled with any of these substances.
• Do not wash, spin, or dry water-proof seats, mats, or clothing.

12
EN
Product usage
B

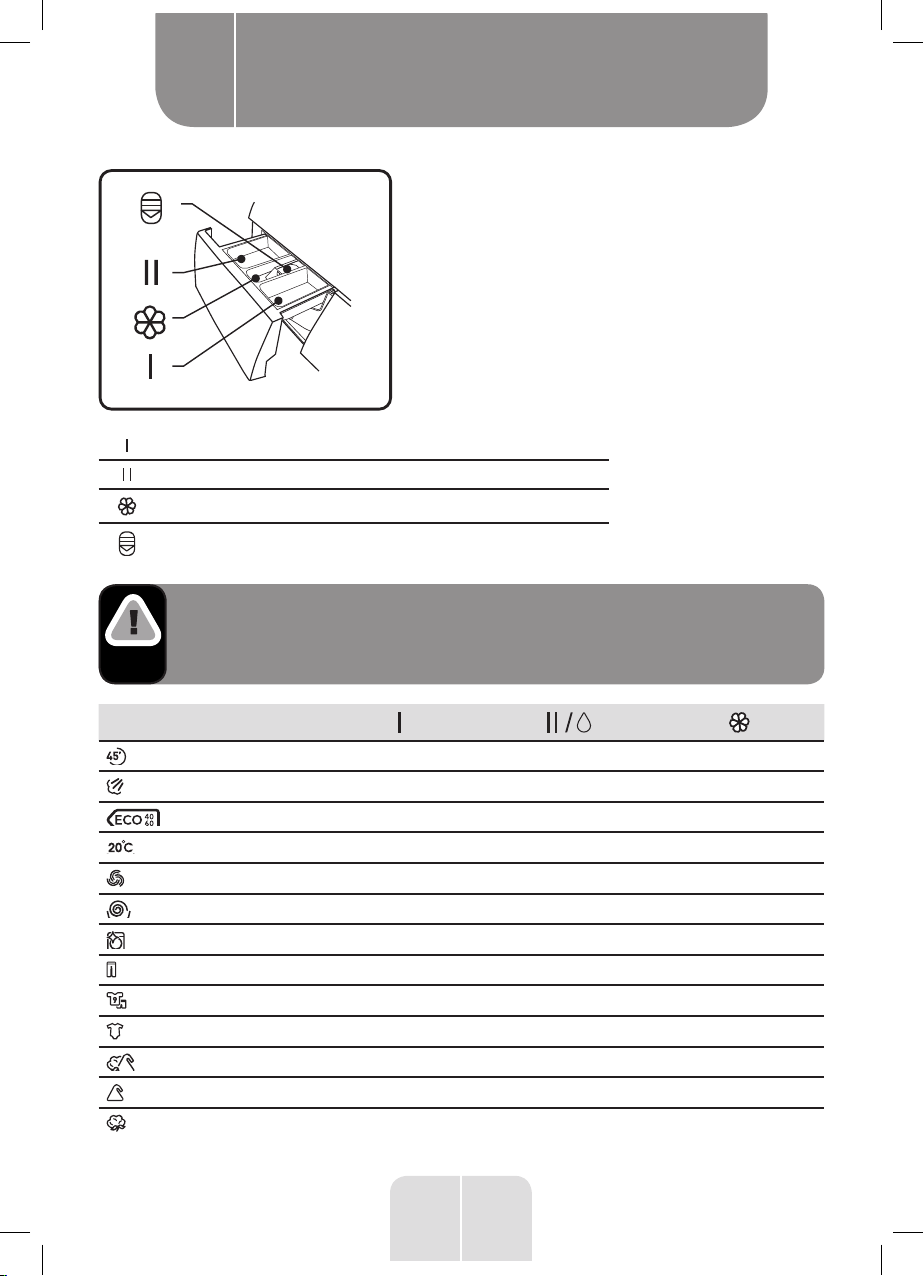

Detergent Dispenser
Pre wash
Main wash
Softener
Release button to pull out the dispenser
Caution!
• Detergent only need to be added in “compartment I” after selecting pre-wash
function.
• Do not put laundry beads into the detergent dispenser.

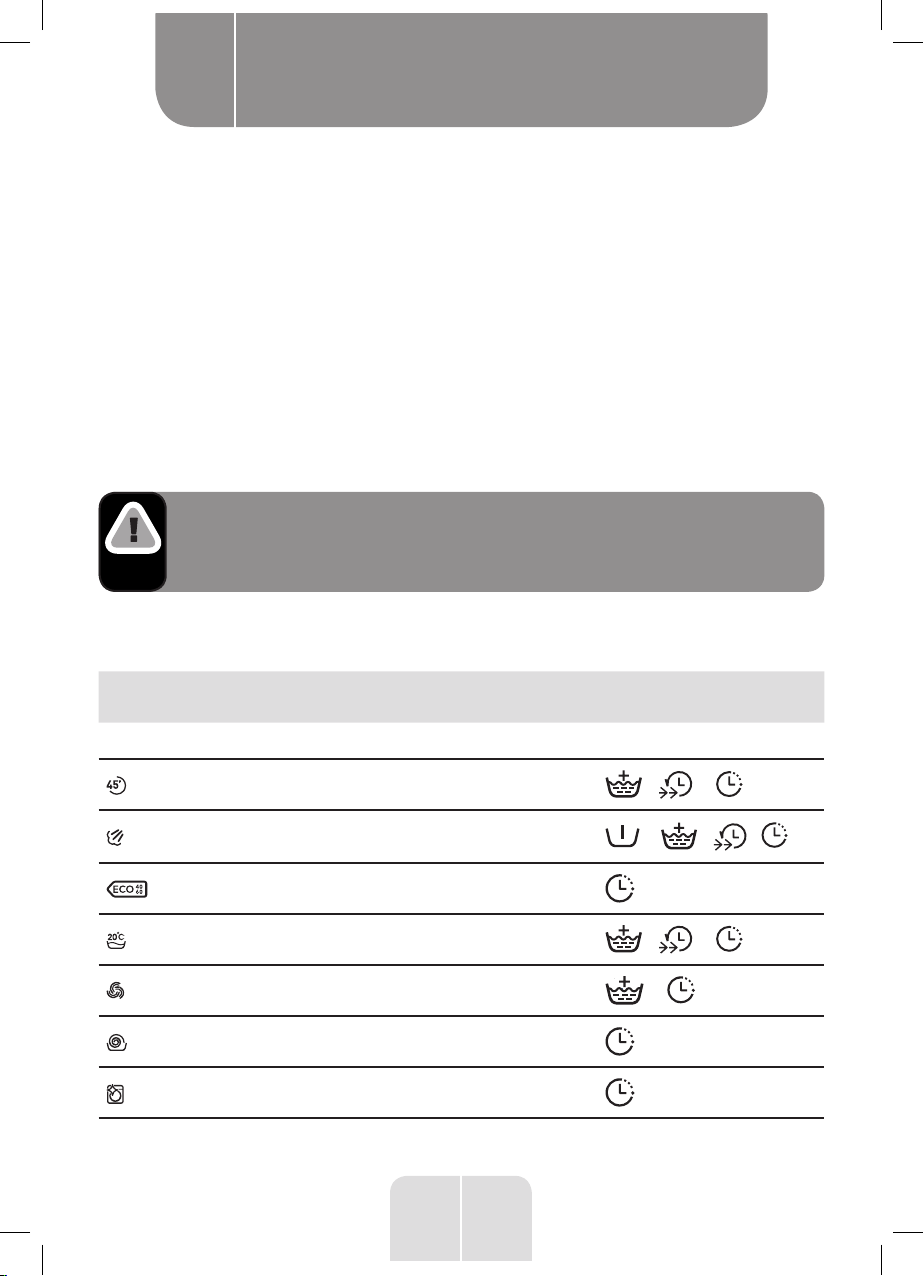

Programme
Quick 45'/15'  
Steam Hygiene 
ECO 40-60  
20°C  
Wool  
Spin Only
Drum Clean
Jeans 
Sports 
Baby Care 
Mix 
Synthetic 
Cotton 
 Means must  Means optional

13
EN
Product usage
B
Detergent Recommendation
Recommended washing
detergent
Wash cycles Washing temp. Type of laundry and
textile
Heavy-duty detergent
with bleaching agents
and optical brighteners
Cotton, ECO 40-60,
Mix 40
White laundry made
from boil-proof cotton
or linen
Colour detergent without
bleaching agent and
optical brighteners
Cotton, ECO 40-60,
Mix, Sports 40
Coloured laundry
made from cotton or
linen
Color or mild detergent
without optical
brighteners
20°C 20
Coloured laundry
made from easy care
fibres or synthetic
materials
Mild washing detergent Quick 45’/15’ 20 Delicate textiles, silk,
viscose
Note:
• Agglomerating or ropy detergent or additive can be diluted in some water
before pouring it into the detergent dispenser, to avoid its inlet to get blocked
and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap
water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less
detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.
Following symptoms are a sign of detergent overdosing:
– heavy foam formation
– poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
– laundry turns grey
– built-up of limescale deposits on the drum, the heating element and/
or the laundry

14
EN
Product usage
B

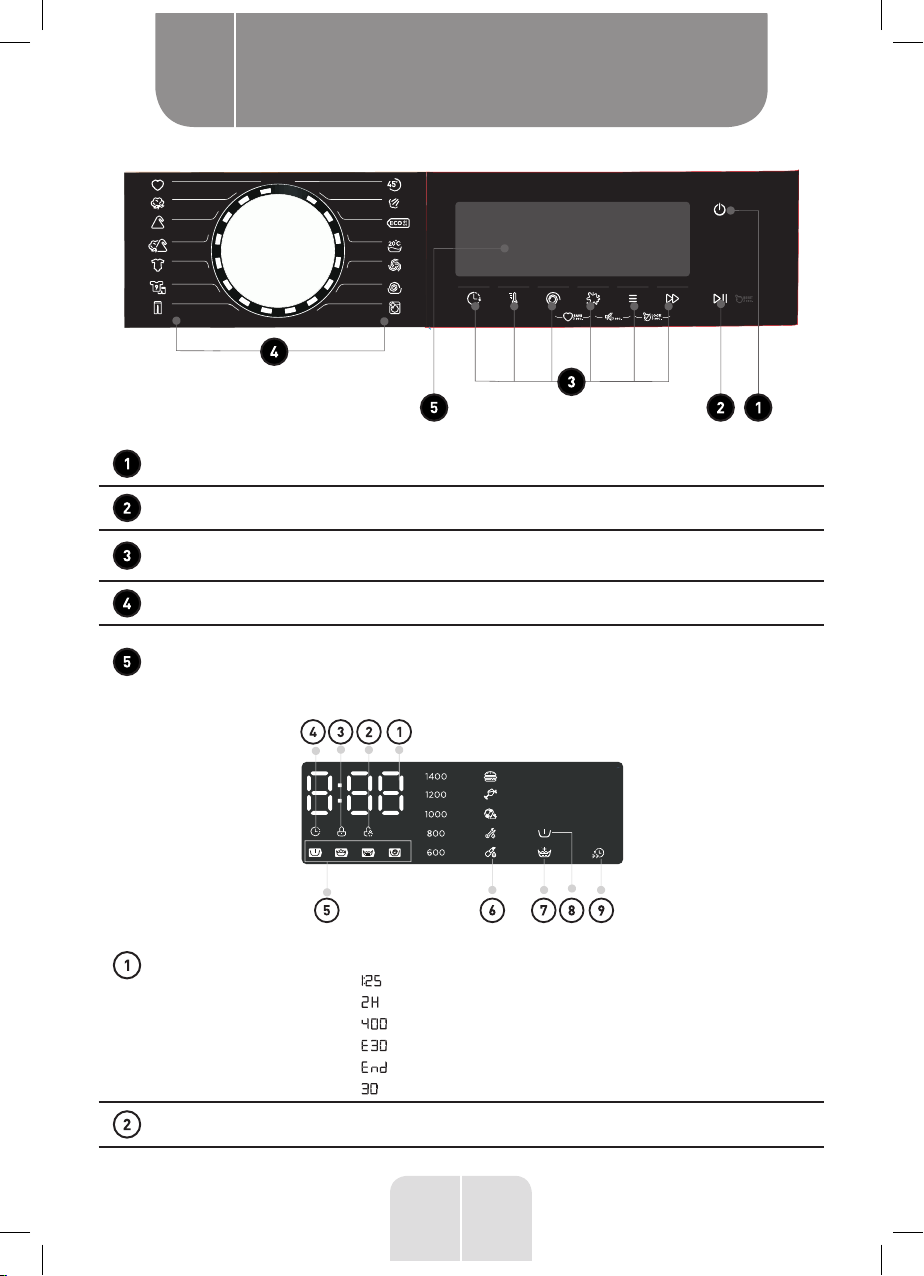

Control Panel
Power Product is on/off.
Start/Pause Press the button to start or pause the washing cycle.
Option This allows you to select an additional function and will
light when selected.
Programmes Available according to the laundry type.
Display
The display shows the settings, estimated time
remaining, options, and status messages for your
washer. The display will remain on through the cycle.
Display
• Wash Time
• Delay Time
• Speed
• Error
• End
• Temp
Child Lock

15
EN
Product usage
B
Door Lock
Delay
Pre Wash-Wash-Rinse-Spin
Stain Master
Extra Rinse
Pre Wash
Boost
Programmes
Model: WF 1114 A W566C
Programme Load(kg) Default Time
11.0 11.0
Quick 45'/15' 2.0 0:45
Steam Hygiene 5.5 2:28
ECO 40-60 11.0 4:00
20°C 5.5 1:01
Wool 2.0 1:07
Spin Only 11.0 0:12
Drum Clean – 1:18
Jeans 11.0 1:35
Sports 5.5 0:47
Baby Care 11.0 2:01
Mix 11.0 1:20
Synthetic 5.5 3:18
Cotton 11.0 3:39
• Cotton, Mix, Synthetic are auto Weighting programs. When these 3 programs are selected,
the washing machine will automatically adjust the appropriate water level and wash time
according to the weight of the laundry during the washing process.

16
EN
Product usage
B
Cycle
Nominal capacity in kg
Temperature setting
Cycle duration in hours
and minutes
Energy consumption in
kWh/operalling cycle
Water consumption in
liter/operalling cycle
Highest temperature°C(1)
Residual moisture in %/
spin speed in rpm(2)
Quick 45'/15' 2.0 20 0:45 0.131 31 20 75%/800
ECO 40-60(3)
11.0 - 4:00 0.928 70.0 38 53.9%/1350
5.5 - 3:00 0.658 51.0 34 53.9%/1350
3.0 - 3:00 0.259 47.0 23 53.9%/1350
20°C 5.5 20 1:01 0.200 54 20 65%/1000
Mix 40°C 11.0 40 1:20 0.930 92 40 65%/1000
Mix 60°C 11.0 60 1:30 1.579 92 60 65%/1000
Cotton 60°C 11.0 60 3:44 1.814 92 60 53%/1400
• The above data is for reference only, and the data may change due to different actual use
conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• 20°C programme is able to clean lightly soiled cotton laundry, at a nominal temperature
of 20°C, which complies with the regulation (EU) 2019/2023.
• Compliant to EN 60456:2016+A11:2020 With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340,
(EU) 2021/341,
The EU energy efficiency class is: A
Energy test program: ECO 40-60. Other as the default.
Half load for 11.0kg machine: 5.5kg.
Quarter load for 11.0kg machine: 3.0kg.

17
EN
Product usage
B
Programmes
Programmes are available according to the laundry type.
Programmes
Quick 45'/15'
This procedure defaults to 45', press the “Boost” to switch to
15', which is suitable for washing few and not very dirty clothes
quickly. Sometimes, after the quick 15’ procedure is completed, the
moisture content of clothes is high.
Steam Hygiene
Steam is applicable for daily laundries.
The steam can deeply penetrate the fiber, which effectively
eliminate bacterias and germs, preventing odors and protecting
your health.
ECO 40-60 Default 40°C, not selectable, suitabale for laundry washing at about
40°C - 60°C.
20°C 20°C default, can choose cold water.
Wool
Hand or machine-washable wool or richwool textiles. Especially
gentle wash programme to prevent shrinkage, longer programme
pauses (textiles rest in wash liquor).
Spin Only Extra spin with selectable spin speed.
Drum Clean
Specially set in this machine to clean the drum and tube. It applys
90 °C high temperature sterilization to make the clothes washing
more green. When this programme is performed, the clothes or
other washing cannot be added. When proper amount of chlorine
bleaching agent is put in, the barrel cleaning effect will be better.
The customer can use this programme regularly according to the
need.
Jeans Specially for jeans.
Sports Washing the activewear.
Baby Care Washing the baby’s clothes, it can make the baby's wear cleaner
and make the rinse performance better to protect the baby skin.
Mix Mixed load consisting of textiles made of cotton and synthetics.
Synthetic
Wash synthetic articles, for example: shirts, coats, blending. While
washing the knitting textiles, detergent quantity shall be reduced
due to its loose string construction and easily forming bubbles.
Cotton Hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
(1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.

18
EN
(2)
Residual moisture after the wash cycle in water content percent and the spin speed at
which this was achieved.
(3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be
washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the
compliance with the regulation (EU) 2019/2014, (EU) 2019/2023, (EU)2021/340, (EU) 2021/341.
The most efficient programmes in terms of energy consumption are generally those that
perform at lower temperatures and longer duration.
Loading the household washing machine up to the capacity indicated for the respective
programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the higher
the spinning speed in the spinning phase, the higher the noise and the lower the remaining
moisture content.
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme. The machine will continue
the programme when the power supply is re-established.
Option
Model: WF 1114 A W566C
Cycle Default Temp.
(°C)
Default spin speed
in rpm Additional functions
Wash cycles 1400
Quick 45'/15' 20 800
Steam Hygiene 60 1000
ECO 40-60 - 1400
20°C 20 1000
Wool 40 600
Spin Only - 1000
Drum Clean 90 -
Product usage
B
