Valcom PagePac PAGEPAL V-5335700 User manual

Issue 2
1947170
PAGEPAL®
V-5335700
by
PagePac®
INTRODUCTION
The PagePal unit interfaces most telephone sys-
tems (PBX, KTS, Centrex) to virtually any public
address audio system.
In addition, PagePal furnishes inputs for customer
provided background music and auxiliary inputs
(such as an attendant microphone, a radio
receiver, recorded announcements). Control
inputs are provided for tones generated by the
PagePal. PagePal can be placed on a desk or
shelf, or mounted to a wall.
Note: Only line level microphones may be used
with PagePal.
SPECIFICATIONS
FEATURES
• Telephone Access from:
- Loop start trunk port
- Ground start trunk port
- Analog PBX station, Centrex or CO lines
- Dry loop page ports (4-wire) with contact
closure
• Level controls to set attendant input and back-
ground music, relative to telephone level
• Simplified connections via modular telephone
jack and lugless terminal block
Power Requirements
• Included power supply plugs into standard AC
outlet
Dimensions/Weight
• 2.5”H x 6.0”W x 4.0”D
(6.4cm x 15.3cm x 10.2cm)
• 2.0 lbs. (0.9 kg)
Environment
• Temperature: 0 to 40°C (32 to 104°F)
• Humidity: 5 to 95%
OPERATION
Inputs are routed to the output with the following
priority (highest to lowest):
1. Attendant access for emergency announce-
ments.
2. Telephone Access for general paging.
3. Alert Tone 1 (siren) for evacuation warning.
4. Alert Tone 2 (chime) for time clock, door bell,
security alert, etc.
5. Night bell for after-hours calls to ring over the
public address system.
6. Music input for background music.
7. Override or busy tone is returned to the tele-
phone user if a higher priority input is active.
8. Call confirmation and preannouncement tones
may be optioned.
9. An optional contact closure output is provided
to control auxiliary equipment (music/page
switching, recorder logging, etc.).
10. Station access mode features:
- VOX (Voice Operated Switch)
- Maximum length off-hook timer.
- Responds to open loop disconnect).
- Dial tone detection and disconnect.
11. Loop Start Supervised (LSS) access mode
provides VOX and maximum length off-hook
timers for use with a Loop Start Trunk Port.
Technical Manuals Online! - http://www.tech-man.comTechnical Manuals Online! - http://www.tech-man.com
firealarmresources.com

2947170
INSTALLATION
Input Access / Switch Settings
A four position slide switch is used to select the
telephone access mode.
•(LS) Loop Start
Used with a Loop Start Trunk Port of a PBX or
Key System, or a dedicated phone set.
•(GS/LSS)
Ground Start/Loop Start Supervised
Access from a PBX Ground Start Trunk Port.
In this mode, the PBX ground must be con-
nected to pin 1 of the 20-pin connector on the
PagePal®or pin 2 of the RJ11 connector on
the PagePal.
In Loop Start Supervised mode, pin 7 of the
PagePal must be connected to pin 1 on the
20-pin connector to allow supervision of the
Loop Start Trunk Port. The PagePal will super-
vise the connection, and will automatically dis-
connect the line if no voice is detected on the
line for 20 seconds or if the line remains active
(off hook) for more than one minute.
•(SA) Station Access
Used with a standard (ANALOG) station port
on a CENTREX, PBX, Key System, or Central
Office subscriber line. Use a two-wire RJ11
cable in this mode. The PagePal receives talk
battery and ring voltage from the host system.
•(DL) Dry Loop
Interfaces with the Page Port of a PBX or Key
System, or an Auxiliary port of a PBX. This
input shall respond to resistances from 0 to 1K
Ohms and will ignore resistance greater than
10K Ohms. Use a four-wire RJ11 cable in this
mode. Dry Loop is a four wire connection.
Pins 2 and 5 of the RJ11 are intended to inter-
face with the control leads of the host system,
while pins 3 and 4 connect to Tip and Ring, as
usual. See Table 2 for pinout descriptions.
Main Output
Adjusts level of output. Full clockwise rotation
provides 14 dBm gain.
Set the Main Output level first using telephone
input, then adjust Attendant and Music Inputs for
an appropriate relative level.
Attendant Input
Adjusts level of Attendant Input relative to the
Telephone Input. Adjustment range isfrom 0 dBm
to less than -30 dBm.
Music Input
Adjusts level of Music Input relative to the Tele-
phone Input. Adjustment range is from 0 dBm to
less than -30 dBm.
TECHNICAL ASSISTANCE
When calling, have a VOM and a telephone test
set available and call from the job site. Call (540)
427-3900 and ask for PagePac Technical Sup-
port, or call [phone] for Valcom 24-hour
Automated Support or visit our websites at http://
www.pagepac.com and www.valcom.com.
Should repairs be necessary, attach a tag to the
unit clearly stating company name, address,
phone number, contact person, and the nature of
the problem. Send the unit to:
PagePac®Repair Dept.
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019-5056
Technical Manuals Online! - http://www.tech-man.comTechnical Manuals Online! - http://www.tech-man.com
firealarmresources.com

3947170
PREAMP
PHONE SYSTEM
POWER AMPLIFIER(S)
SIGNAL PROCESSING
CONTROL
MUSIC SOURCE
CLOSE FOR SIREN
CLOSE FOR CHIME
JUMPER TO DISABLE TONES
JUMPER TO DISABLE TONE
TO LOUDSPEAKERS
PUBLIC ADDRESS
AUDIO SYSTEM
TYPICAL
INPUTS
PAGEPAL
STATION OR KEY
TELEPHONE SYSTEM,
PRE-PROGRAMMED
FOR NIGHT BELL
MICROPHONE
RECORDED
ANNOUNCEMENTS
RADIO RECEIVER
CLOSE FOR
ATTENDANT ACCESS
TO AC
OUTLET
JUMPER TO ENABLE LSS MODE

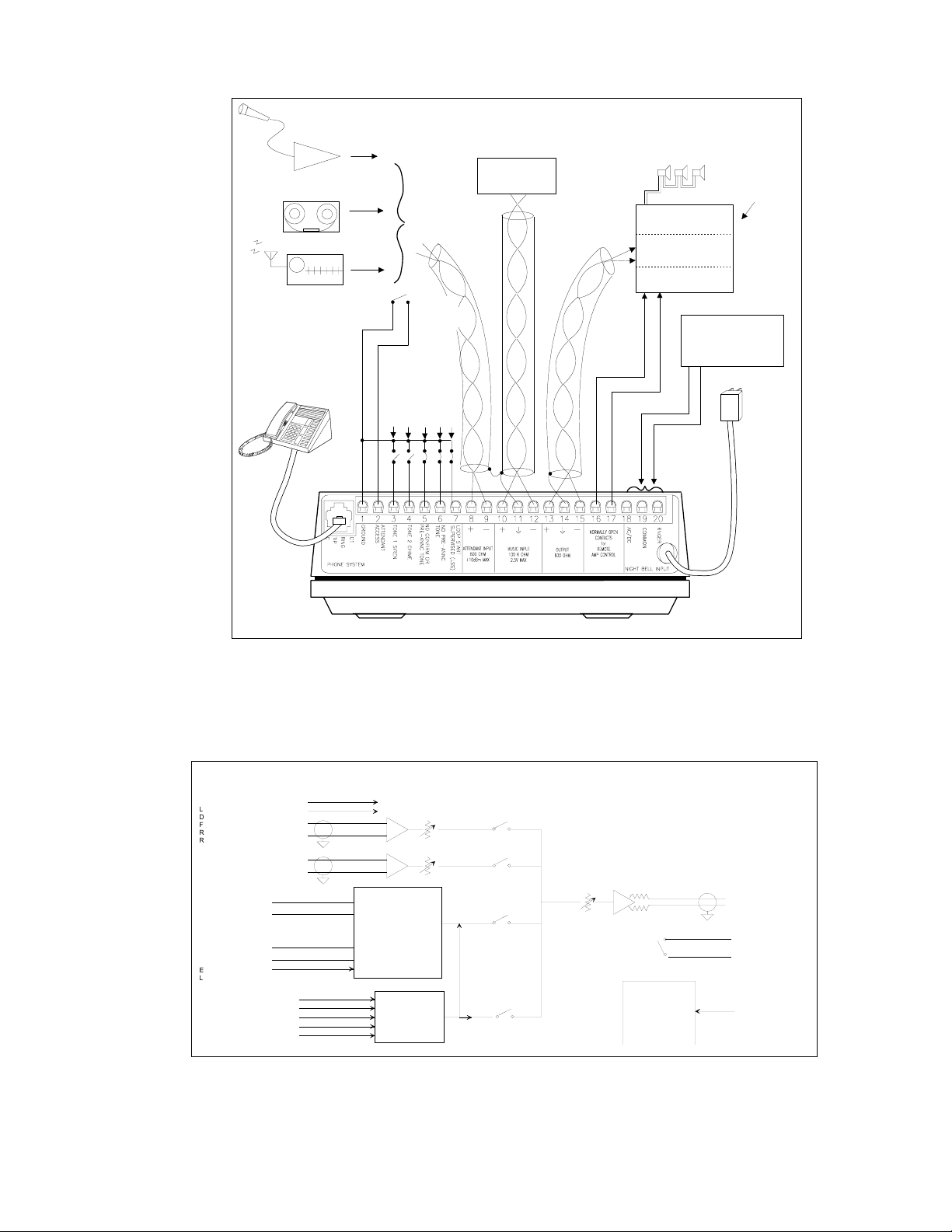

FIGURE 1
Typical Connections to the PagePal®Connectors (Rear Panel View)
Refer to Tables 1 and 2 for Description
L
INE LEVEL INPUT
D
RY, W ITH CONTACT CLOSURE
F
RO M AM PLIFIED M IC,
R
ECORDED ANNOUNCEMENTS
R
A D IO , E T C .
P1 CO NTACTS
600 O H M 0dB
0dB 100K O H M MUSIC SOURCE
TONE G ENERATO R
NIGHT BELL
CHIME
SIREN
TIP
RING
C
C1
E
NABLE SUPERVISED
L
OO P START TRUNK
CONTACT CLOSURE
CONTACT CLOSURE
CONTACT CLOSURE
TO NE 1
TO NE 2
OPTION JUMPERS
RING DETECT
AC DC DETECT
NIGHT BELL
115 V AC
POW ER SUPPLY
R E M O T E A M P C O N T R O L
OUTPUT TO
POW ER AM P (S)
300 O H M S
300 O H M S
CLOSED FOR P1 THROUGH P5
P1
P6
P3
P2, 4 0R 5
ATTEN DANT
INPUT LEVEL
MUSIC
INPUT LEVEL
PAGEPAL BLO CK DIAGRAM
20dB
TELEPHO NE INTERFACE
LOOP START, GROUND START
OR SUPER VISED LOO P START
-24VDC TALK BATTERY
STATIO N /CENTREX O R
SUPER VISED LOOP START
V O X T IM E O U T
F O R C E D T IM E O U T
DRY LOOP (PAGEPORT)
FIGURE 2
PagePal Functional Block Diagram
Technical Manuals Online! - http://www.tech-man.comTechnical Manuals Online! - http://www.tech-man.com
firealarmresources.com

4947170
Terminal Description
1 Ground for ground start/common connection for Terminals 2-7.
2 Close a contact between this terminal and J2-1 to activate attendant access.
3 Close a contact between this terminal and J2-1 to active TONE 1 (siren).
4 Close a contact between this terminal and J2-1 to activate TONE 2 (chime).
5 Connect a jumper between this terminal and J2-1 to disable confirmation and
preannouncement tones.
6 Connect a jumper between this terminal and J2-1 to disable the preannouncement
tone.
7 Connect a jumper between this terminal and J2-1 to enable Loop Start Supervised
(LSS) mode. (You must also set the slide switch on the front panel to the GS/LSS
position).
8 Attendant input, + phase of balanced 600 Ohm input.
9 Attendant input, – phase of balanced 600 Ohm input.
10 Music input, + phase of balanced 100 K Ohm input.
11 Ground for optional shield termination of music input.
12 Music input, – phase of balanced 100K Ohm input.
13 Audio output to paging system, + phase of balanced output, 300 Ohm.
14 Ground for optional shield termination of output.
15 Audio output to paging system, – phase of balanced output, 300 Ohm.
16 Normally open contact (with J2-17) that may be used to activate paging equipment.
17 Normally open contact (with J2-16). Contact is closed when any input with priority
higher than music is present.
18 Night bell Input from key systems. Night bell is activated by any low voltage greater
than 10VAC/DC.
19 Common terminal for night bell input voltage.
20 Night bell input from ringer voltage.
Table 1. PagePal®J2 Terminal Block Connector
Technical Manuals Online! - http://www.tech-man.comTechnical Manuals Online! - http://www.tech-man.com
firealarmresources.com

5947170
Terminal Block Connector
This is a 20 Pin lugless-type terminal block
located at J2 (See Figure 1). See Table 1 for con-
tact descriptions.
Factory Test Connector Wall Plug Transformer
J3 - No user connections 115 VAC, 60 Hz, U.L.
and CSA Listed.
Pin Number Description
1 Not Used.
2 C1 control input for Dry Loop (Page Port) activation by
closure (may also be used for Ground Start grounding
point).
3 Ring (– polarity is important for Ground Start).
4 Tip (+ polarity is important for Ground Start).
5 C control input for Dry Loop (Page Port) activation by
contact closure.
6 Not Used.
Problem Troubleshooting Steps
Night Bell is not active when it is
intendedto be activated with a low
AC or DC voltage.
The input voltage level is too low or missing. (Minimum 10
VAC)
Make sure that the input connections are to pins 18 and 19
of J2 (polarity is important).
A higher priority in the PagePal®is active.
Check the MAIN OUTPUT volume control setting.
Night Bell is not active when it is
intended to be activated with a
Ring voltage.
The input voltage level is too low or missing. (Minimum 40
VAC)
Make sure that the input connections are to pins 19 and 20
of J2.
A higher priority in the PagePal is active.
Check the MAIN OUTPUT volume control setting.
Table 2. RJ-11 Pinout
Table 3. Troubleshooting Suggestions
Technical Manuals Online! - http://www.tech-man.comTechnical Manuals Online! - http://www.tech-man.com
firealarmresources.com

6947170
Alert Tone 2 is not functioning. Check the connection to the back panel, pins 1 and 4 of J2.
Check the MAIN OUTPUT volume control setting.
Verify using an Ohm meter that a contact closure is being
provided from the host equipment.
A higher priority in the PagePal®is active.
When using the PagePal in the
Page Port mode a busy tone is
returned when attempting to
access the PagePal.
Verify that the Telephone Access Switch is in the proper
position for the application. (DL)
Verify that Attendant Access is not active.
The PagePal is not being
accessed in the Ground Start
mode.
Verify that the host telephone system's ground is connected
to Pin 1 of J2 on the PagePal or Pin 2 or the RJ-11 jack.
Verify that the Telephone Access Switch is in the proper
position for the application. (GS)
Tip and Ring may be reversed (the Ring is always more
negative than the Tip).
Excessive loop length.
The PagePal answers a station
call, then immediately hangs up. Verify that the Telephone Access Switch is in the proper position for the application (SA not GS).
Dry loop (Page Port) mode won't
access PagePal. Pins 2 and 5 of the RJ11 connector must be closed by a contact from the PBX when access is desired.
Alert Tone 1 is not functioning. Check the connection to the back panel, pins 1 and 3 of J2.
Check the MAIN OUTPUT volume control setting.
Verify using an Ohm meter that a contact closure is being
pro- vided from the host equipment.
A higher priority in the PagePal is active.
Attendant Access is not
functioning. Check the connection to the back panel, pins 1 and 2 of J2.
Check the MAIN OUTPUT volume control setting.
Check the ATTENDANT INPUT volume control setting.
Verify using an Ohm meter that a contact closure is being
pro- vided from the host equipment.
Hum, buzz or noise on the output
in the Attendant Access mode
with a Attendant Access source
connected in an unbalanced
configuration.
Using a jumper wire, short the un-used Attendant Access
input pin to pin 8 of J2.
Low Volume on the output. Adjust gain controls.
The wrong impedance is attached to the output.
Problem Troubleshooting Steps
Technical Manuals Online! - http://www.tech-man.comTechnical Manuals Online! - http://www.tech-man.com
firealarmresources.com
